1. Configuring AnsibleConfiguring Ansible
To UseTo Use
Jump ServerJump Server
Ompragash ViswanathanOmpragash Viswanathan
linkedin.com/in/ompragash

2. ArchitectureArchitecture Overview Overview

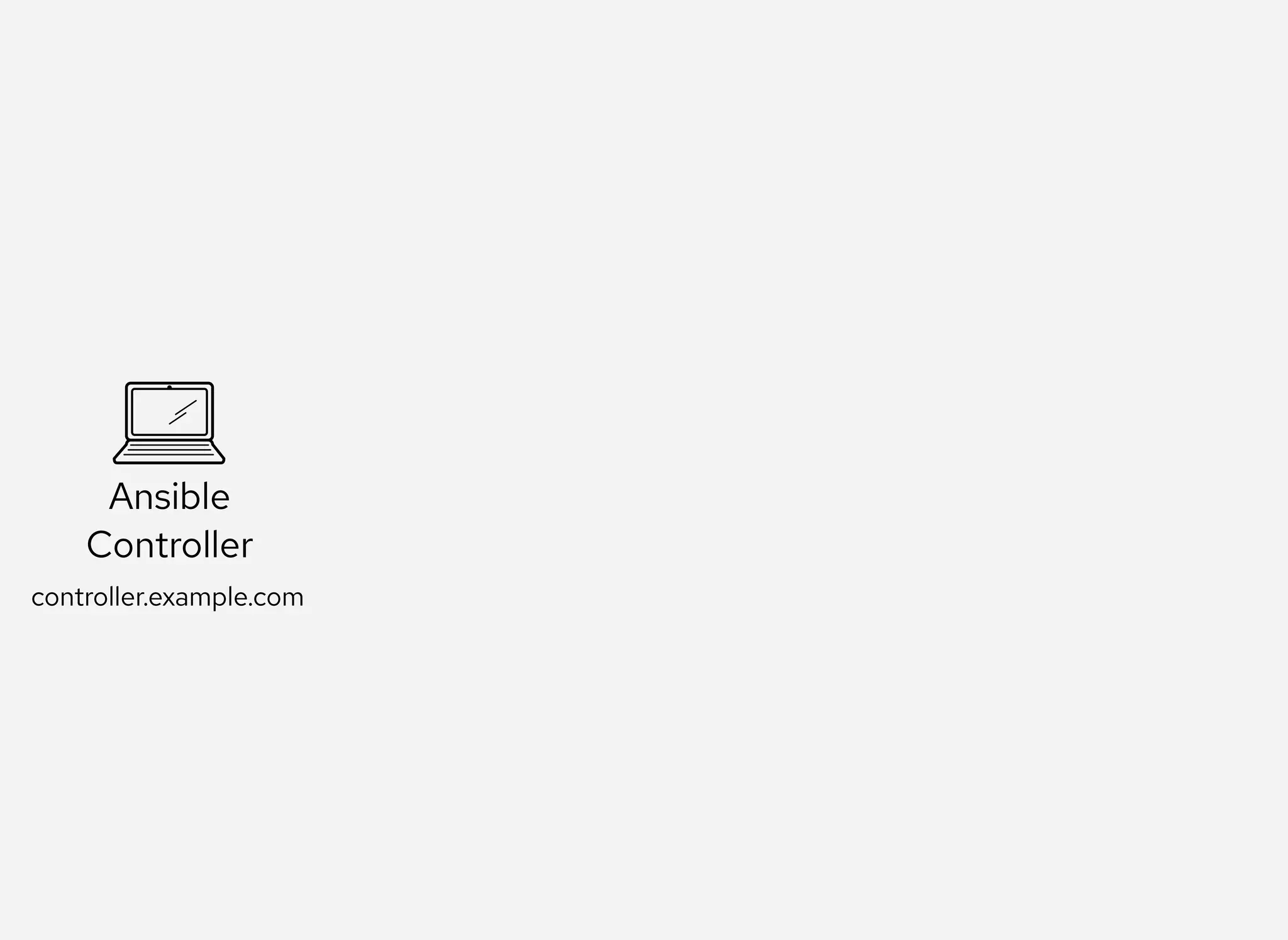

3. Ansible
Controller
controller.example.com

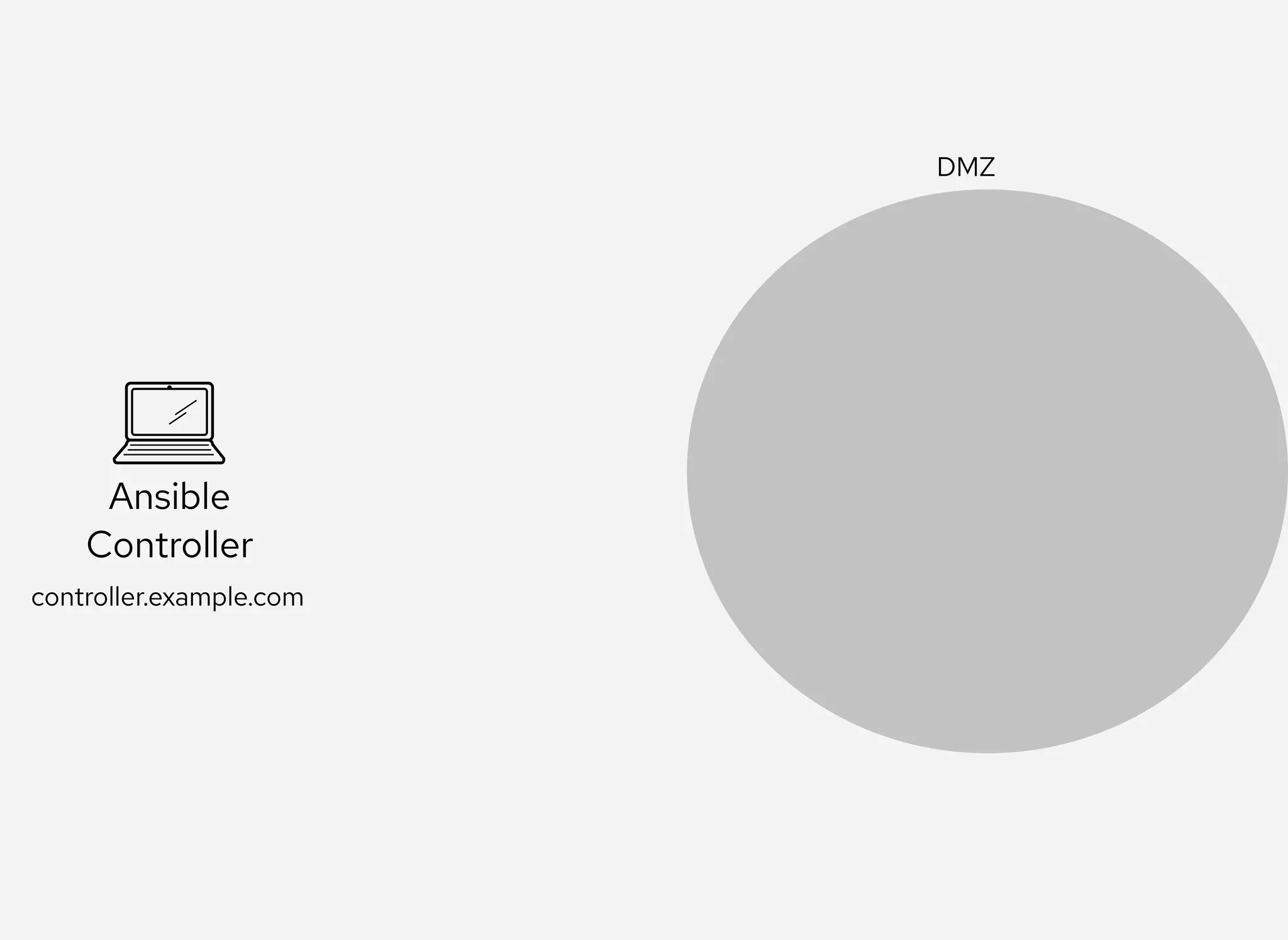

4. Ansible
Controller
DMZ
controller.example.com

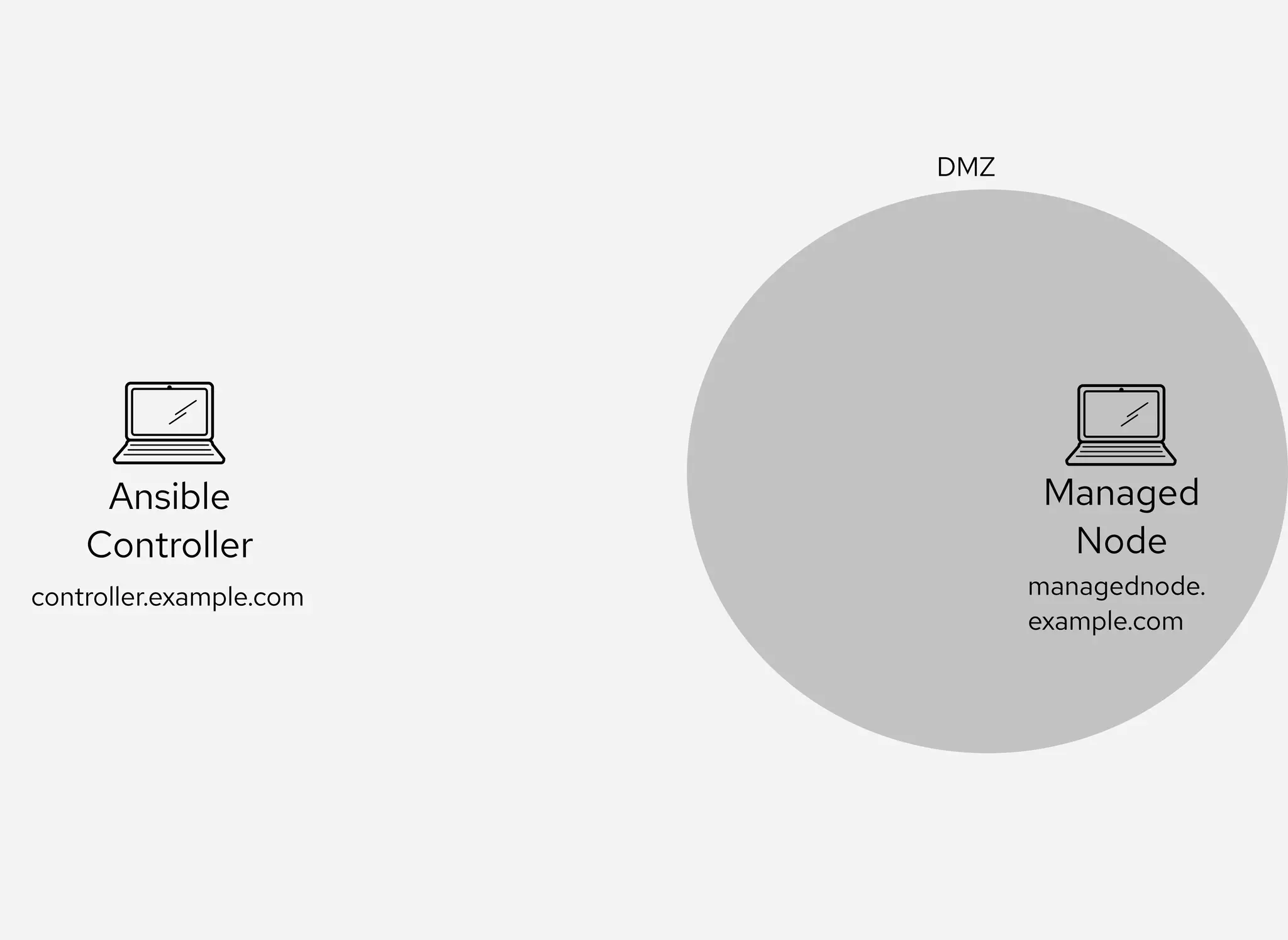

5. Ansible
Controller
Managed
Node
DMZ
controller.example.com managednode.
example.com

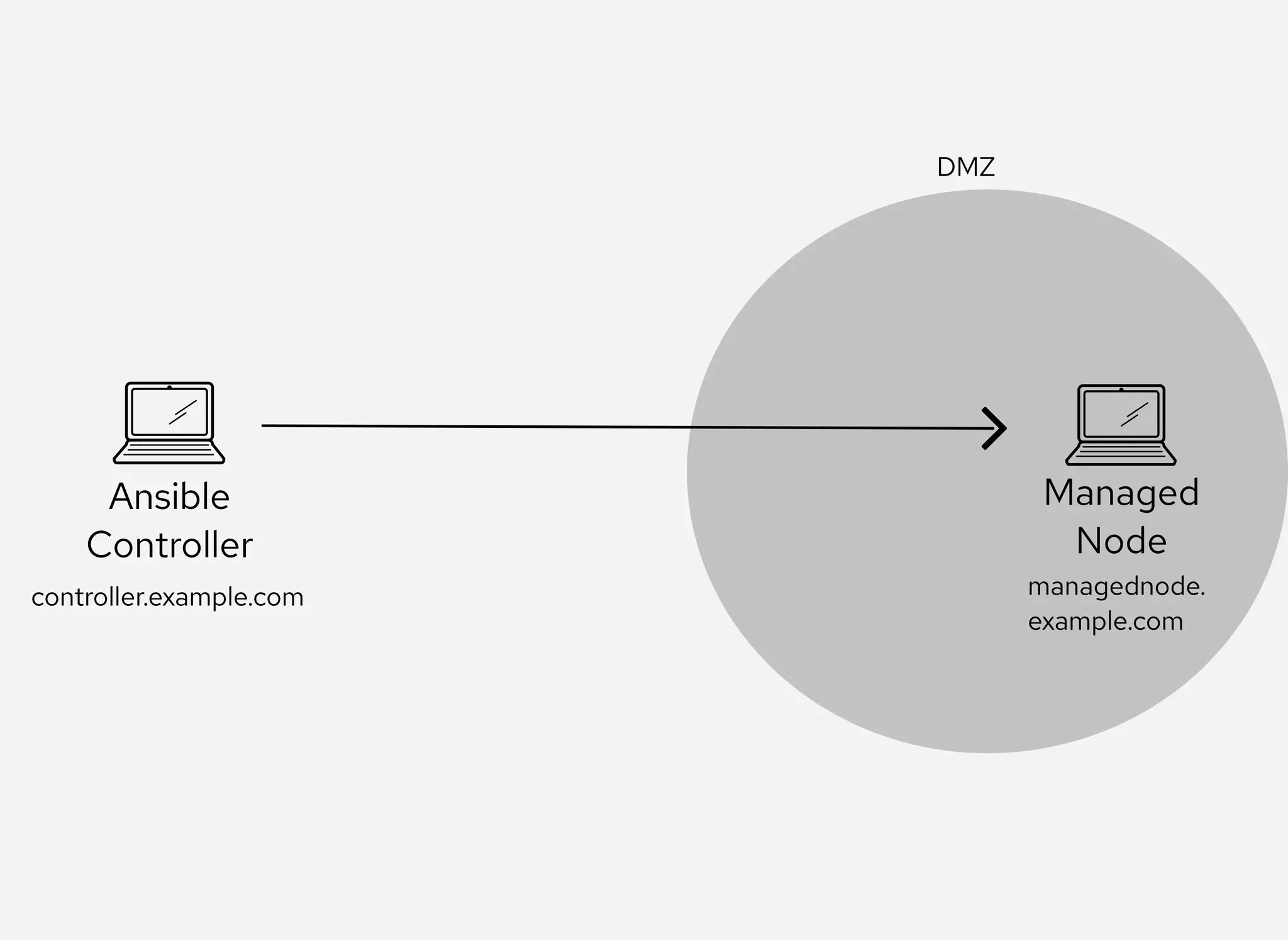

6. Ansible
Controller
Managed
Node
DMZ
controller.example.com managednode.
example.com

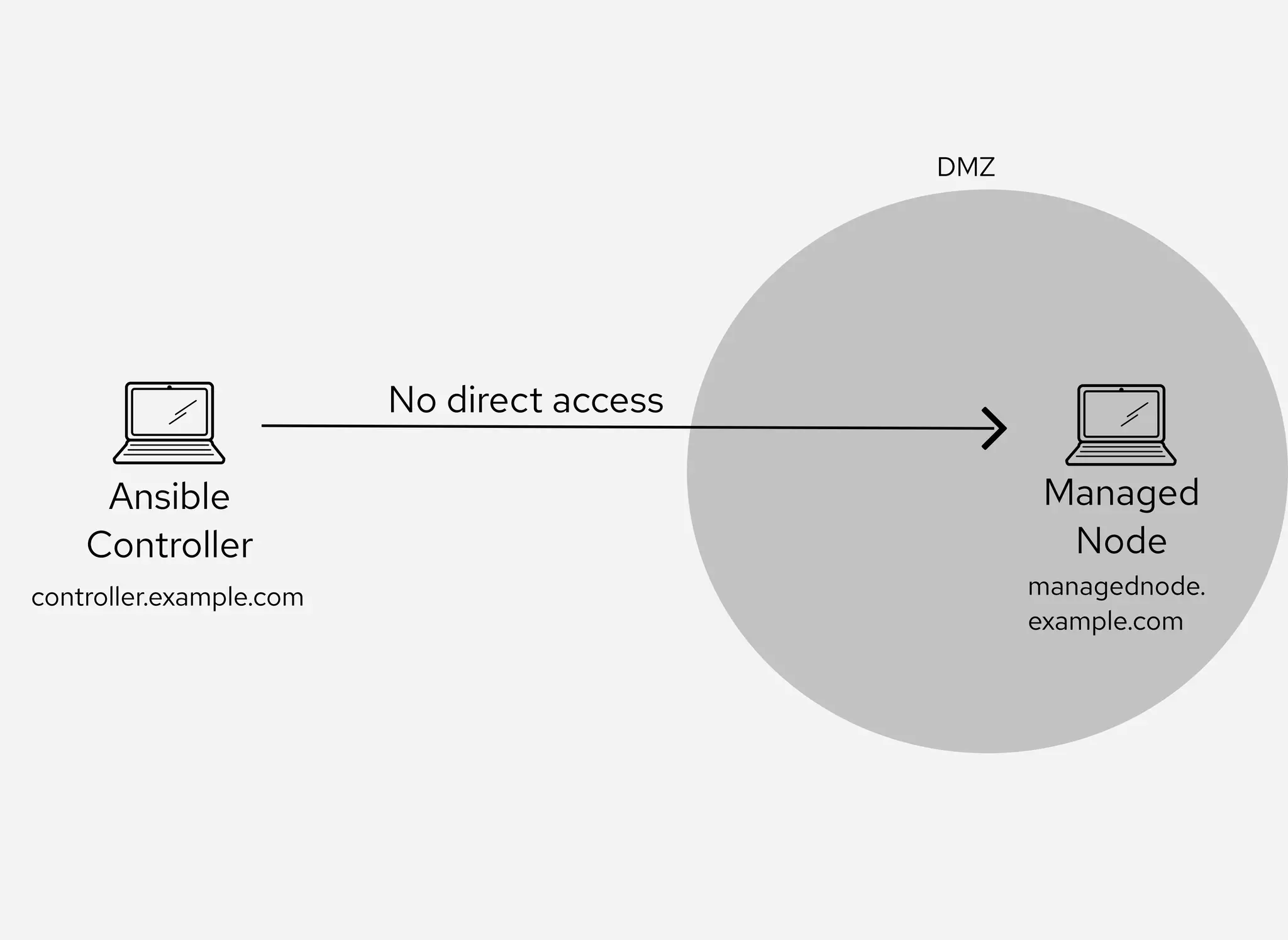

7. Ansible
Controller
Managed
Node
DMZ
No direct access
controller.example.com managednode.
example.com

8. Ansible
Controller
Managed
Node
DMZ
Jump
Server
controller.example.com managednode.
example.com
jumpserver.example.com

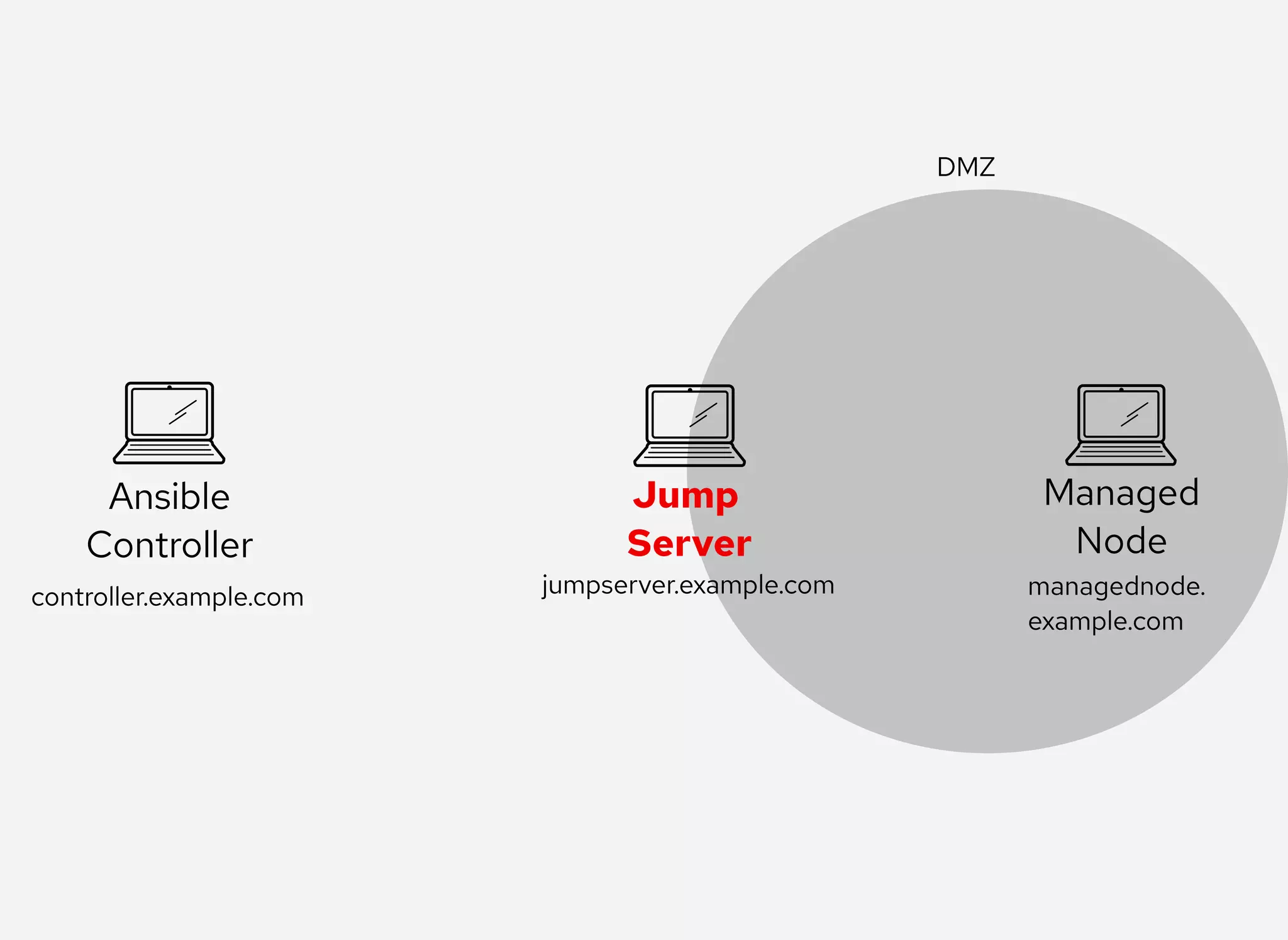

9. Ansible
Controller
Managed
Node
DMZ
Jump
Server
controller.example.com managednode.
example.com
jumpserver.example.com

10. Ansible
Controller
Managed
Node
DMZ
Jump
Server
controller.example.com managednode.
example.com
jumpserver.example.com

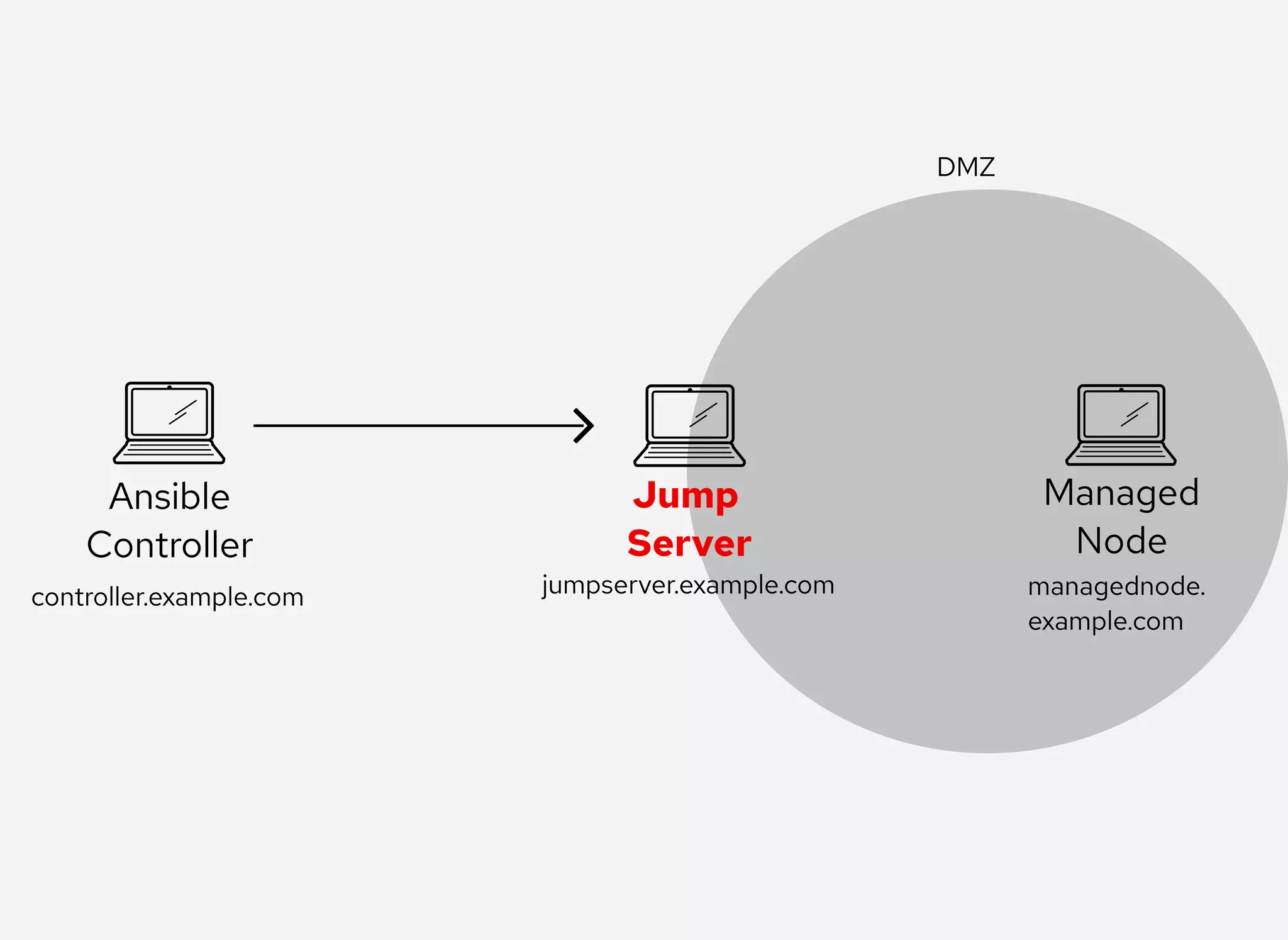

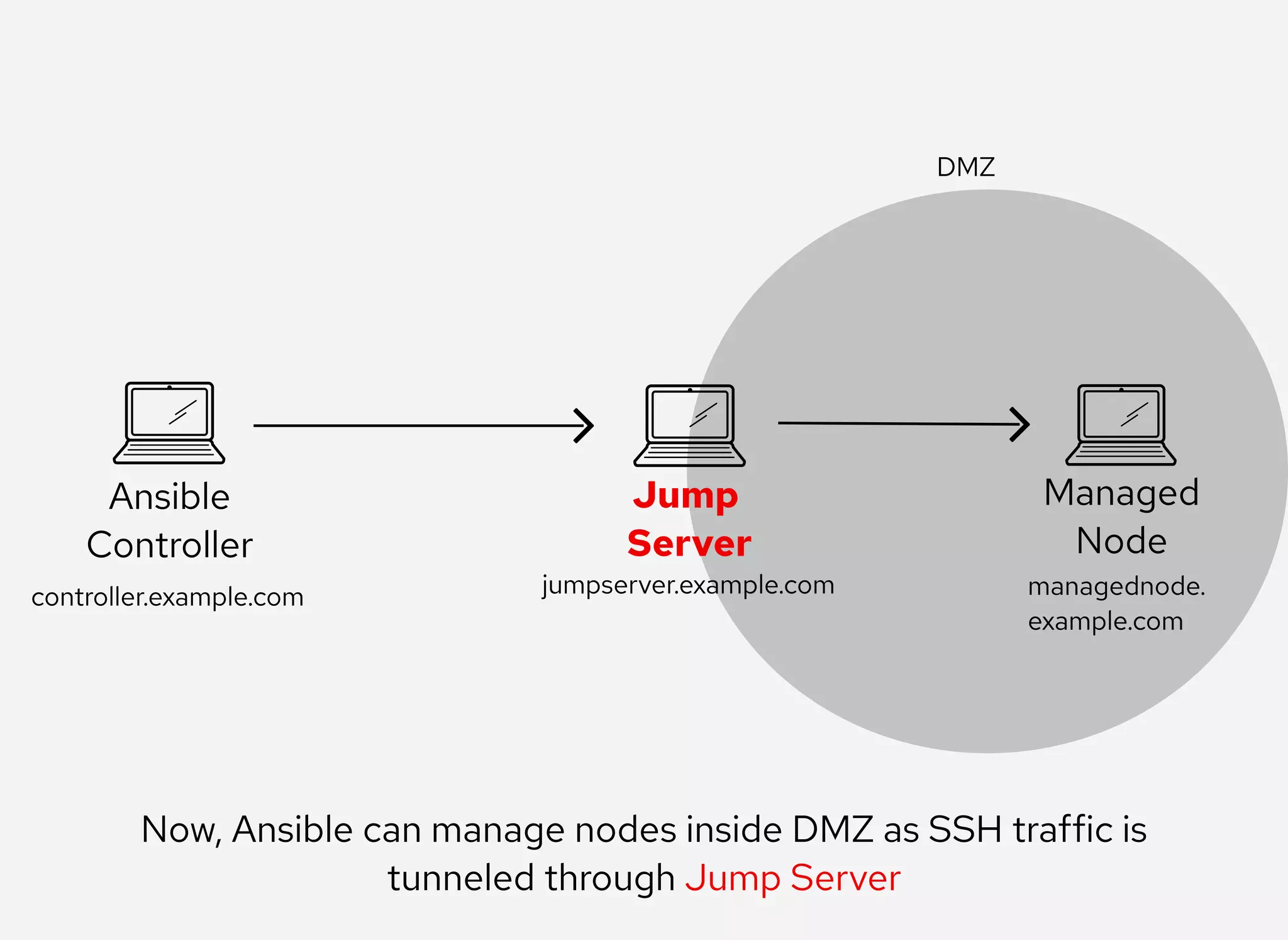

11. Ansible
Controller
Managed
Node
DMZ
Jump
Server
Now, Ansible can manage nodes inside DMZ as SSH traffic is
tunneled through Jump Server
controller.example.com managednode.
example.com
jumpserver.example.com

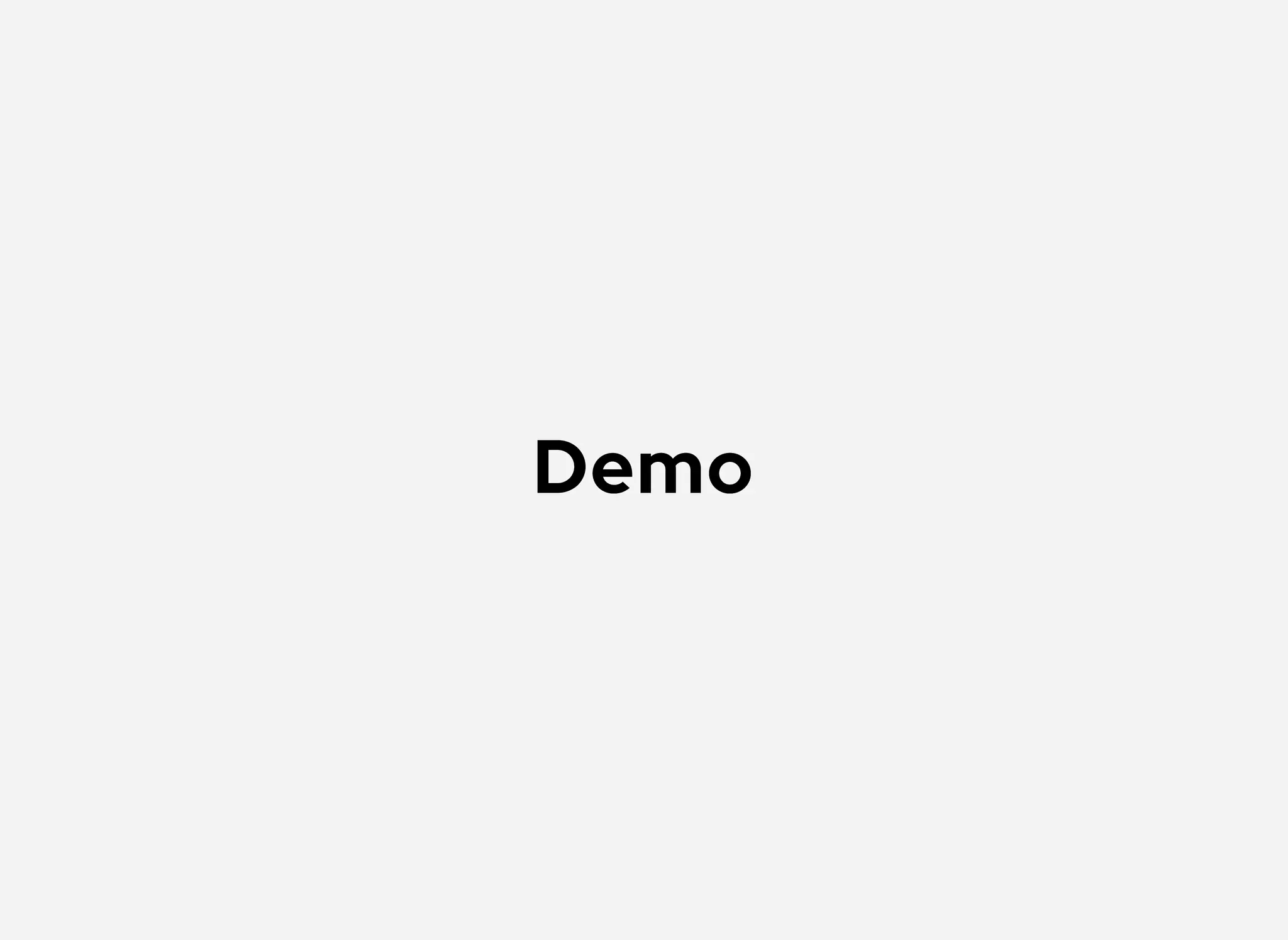

12. DemoDemo

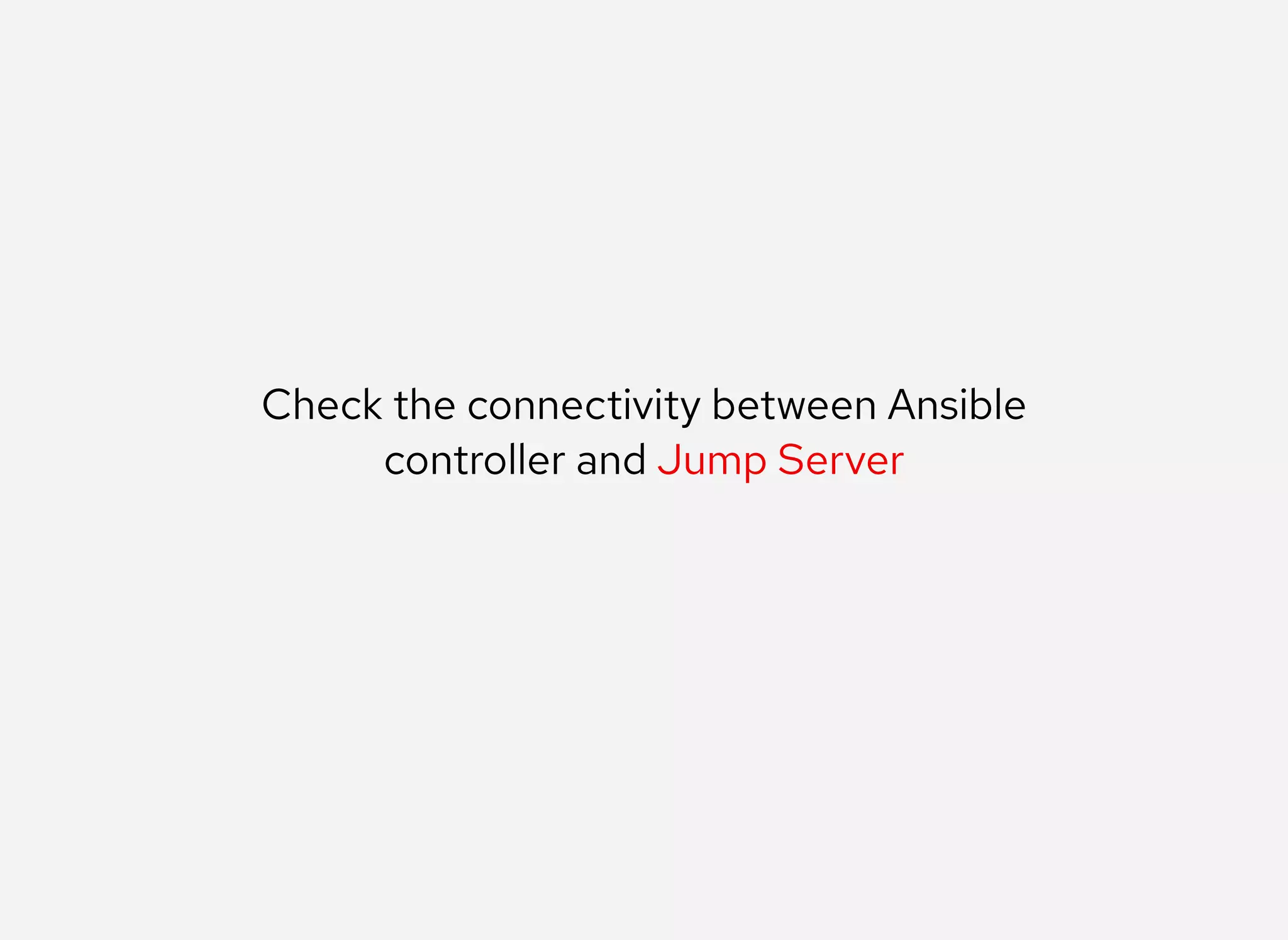

13. Check the connectivity between Ansible
controller and Jump Server

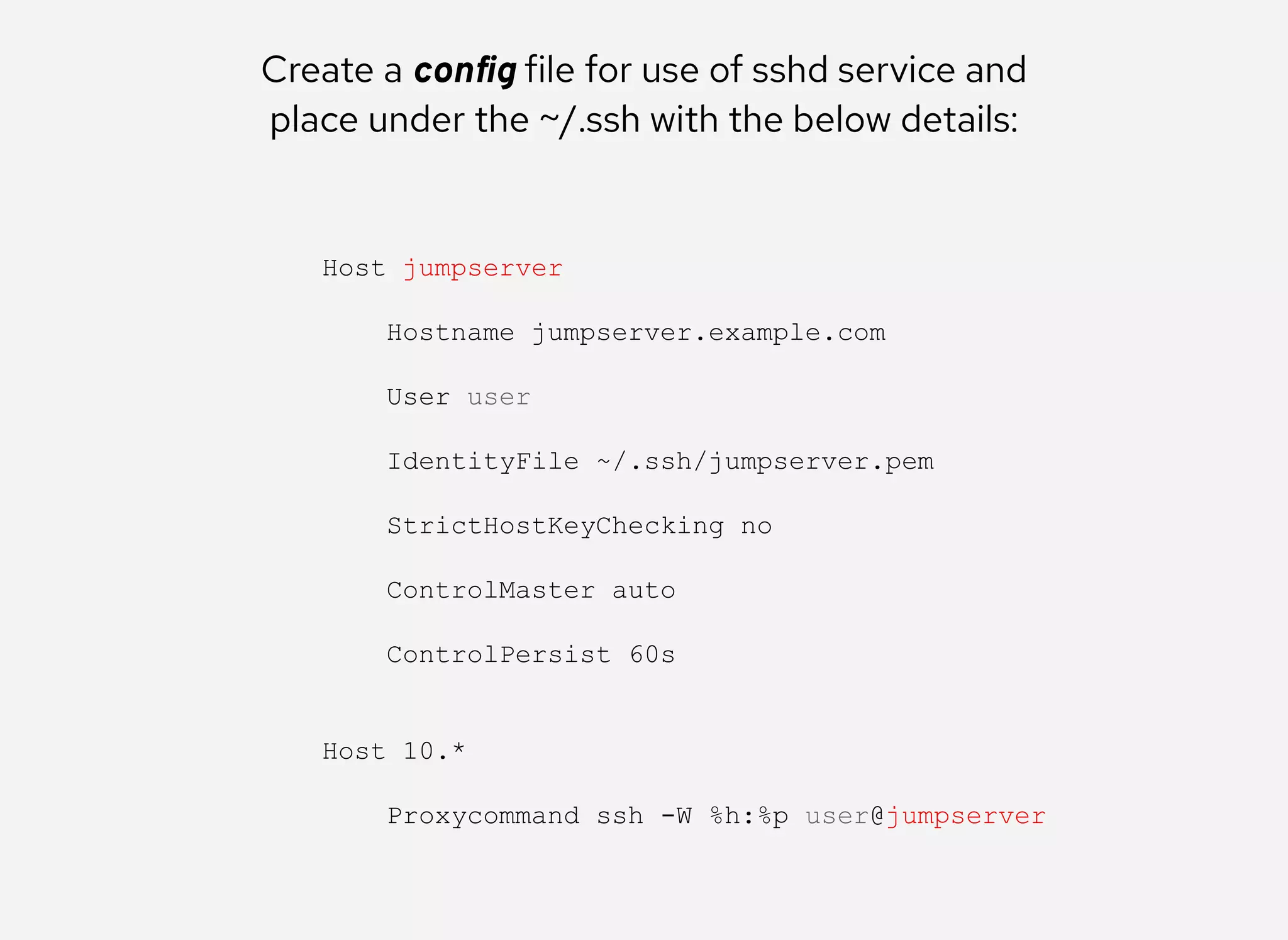

14. Create a config file for use of sshd service and
place under the ~/.ssh with the below details:
Host jumpserver
Hostname jumpserver.example.com
User user
IdentityFile ~/.ssh/jumpserver.pem
StrictHostKeyChecking no
ControlMaster auto
ControlPersist 60s
Host 10.*
Proxycommand ssh ­W %h:%p user@jumpserver

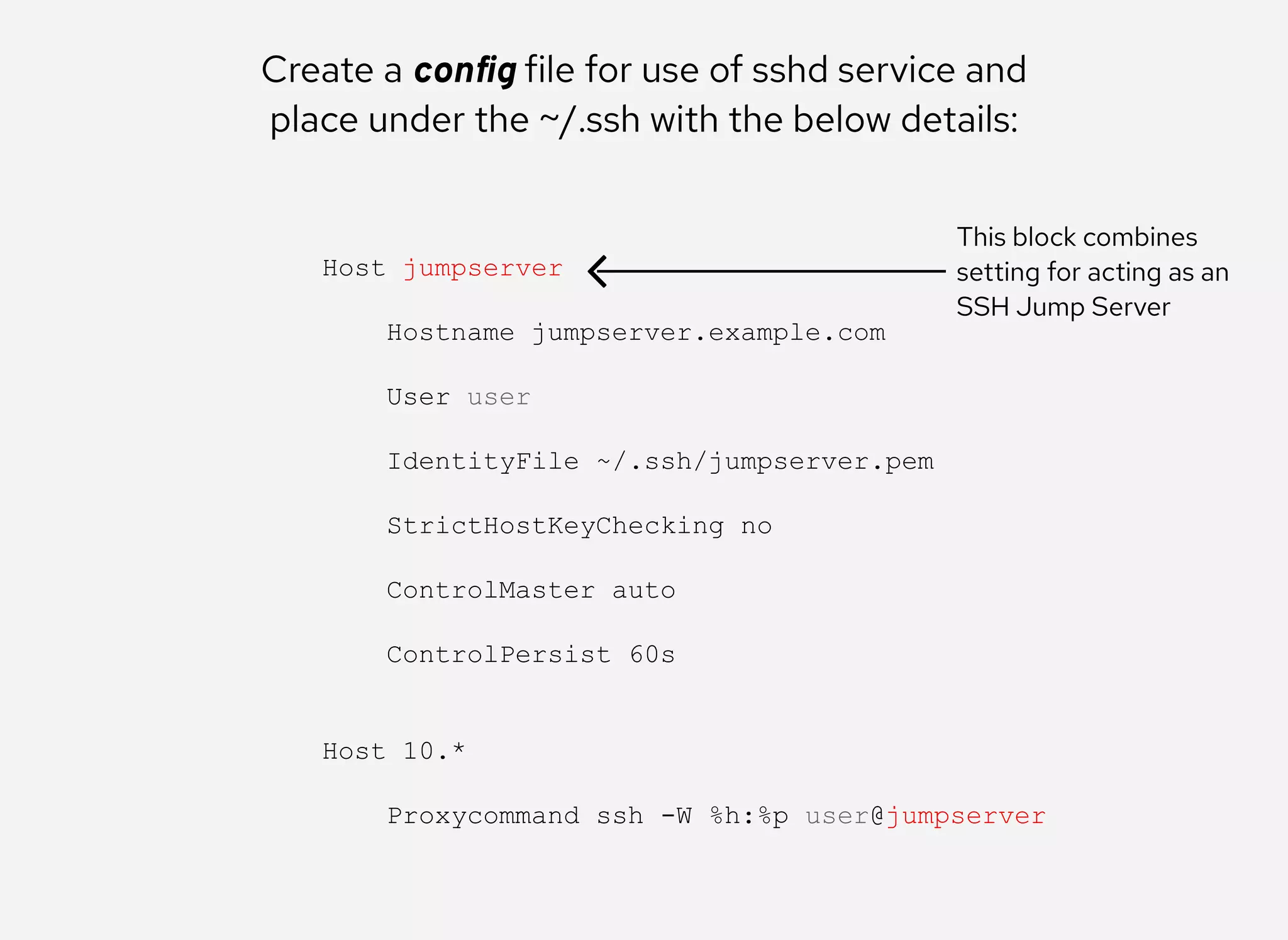

15. Create a config file for use of sshd service and
place under the ~/.ssh with the below details:
Host jumpserver
Hostname jumpserver.example.com
User user
IdentityFile ~/.ssh/jumpserver.pem
StrictHostKeyChecking no
ControlMaster auto
ControlPersist 60s
Host 10.*
Proxycommand ssh ­W %h:%p user@jumpserver
This block combines
setting for acting as an
SSH Jump Server

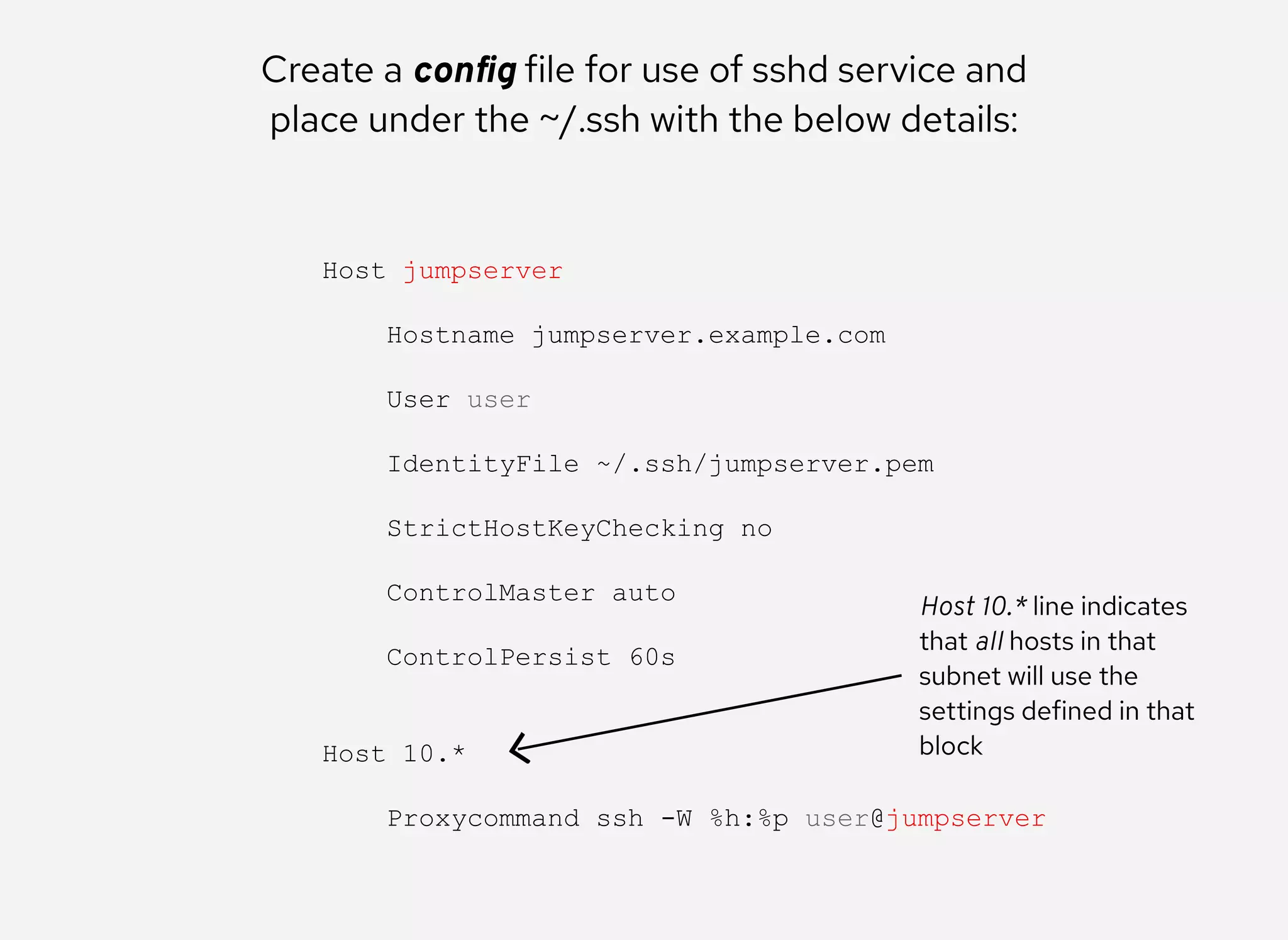

16. Create a config file for use of sshd service and
place under the ~/.ssh with the below details:
Host jumpserver
Hostname jumpserver.example.com
User user
IdentityFile ~/.ssh/jumpserver.pem
StrictHostKeyChecking no
ControlMaster auto
ControlPersist 60s
Host 10.*
Proxycommand ssh ­W %h:%p user@jumpserver
Host 10.* line indicates
that all hosts in that
subnet will use the
settings defined in that
block

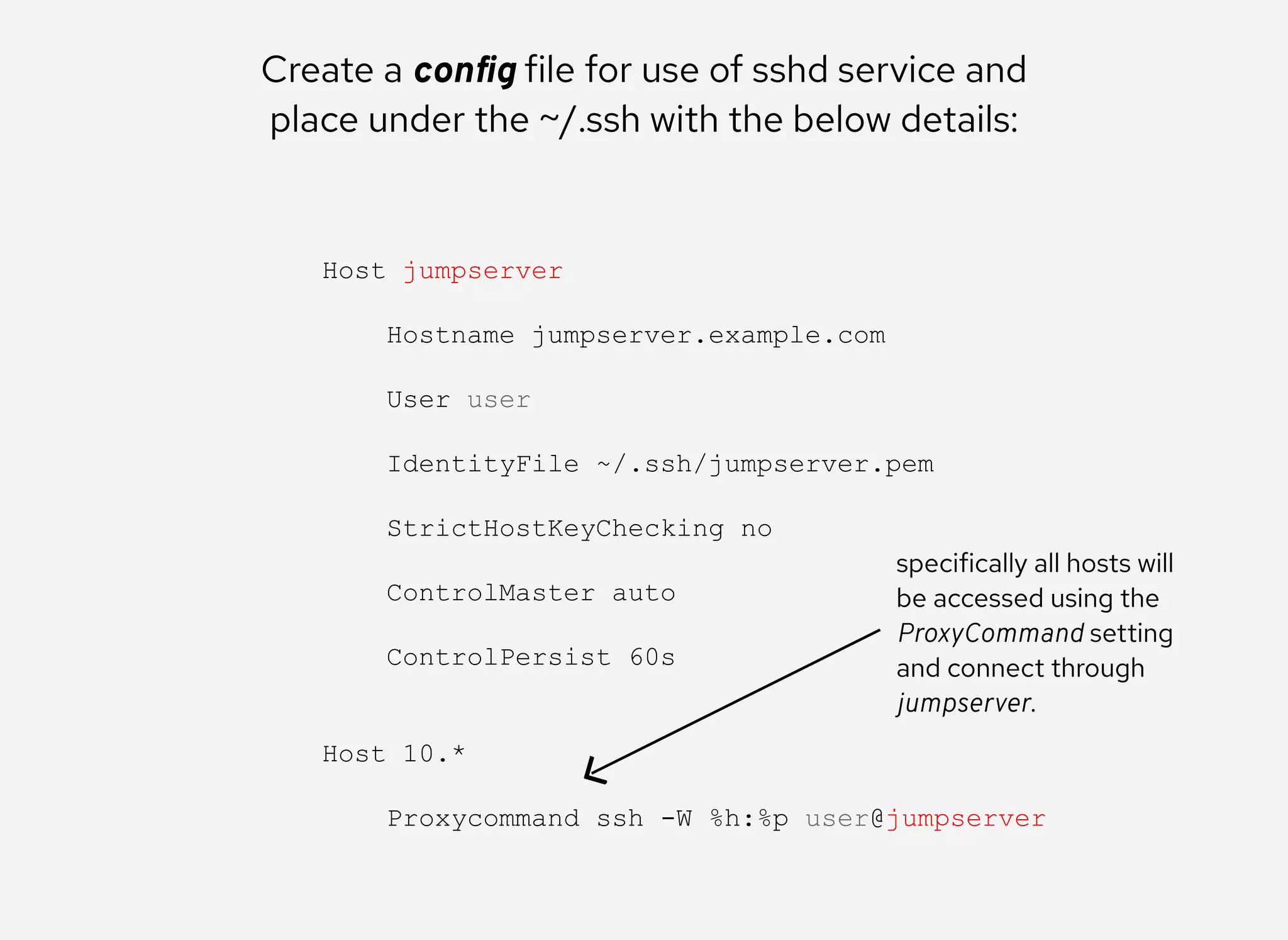

17. Create a config file for use of sshd service and
place under the ~/.ssh with the below details:
Host jumpserver
Hostname jumpserver.example.com
User user
IdentityFile ~/.ssh/jumpserver.pem
StrictHostKeyChecking no
ControlMaster auto
ControlPersist 60s
Host 10.*
Proxycommand ssh ­W %h:%p user@jumpserver
specifically all hosts will
be accessed using the
ProxyCommand setting
and connect through
jumpserver.

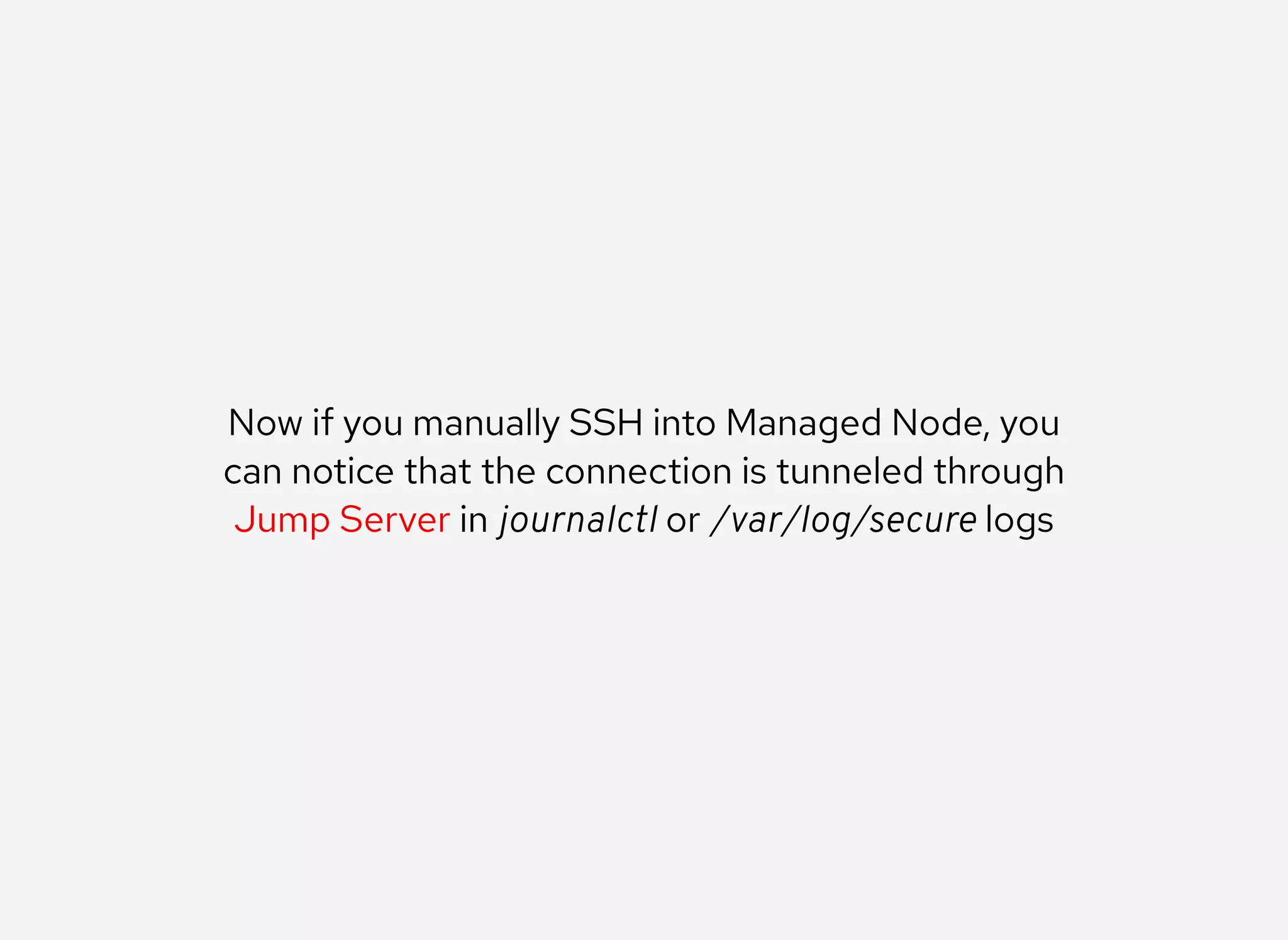

18. Now if you manually SSH into Managed Node, you
can notice that the connection is tunneled through
Jump Server in journalctl or /var/log/secure logs

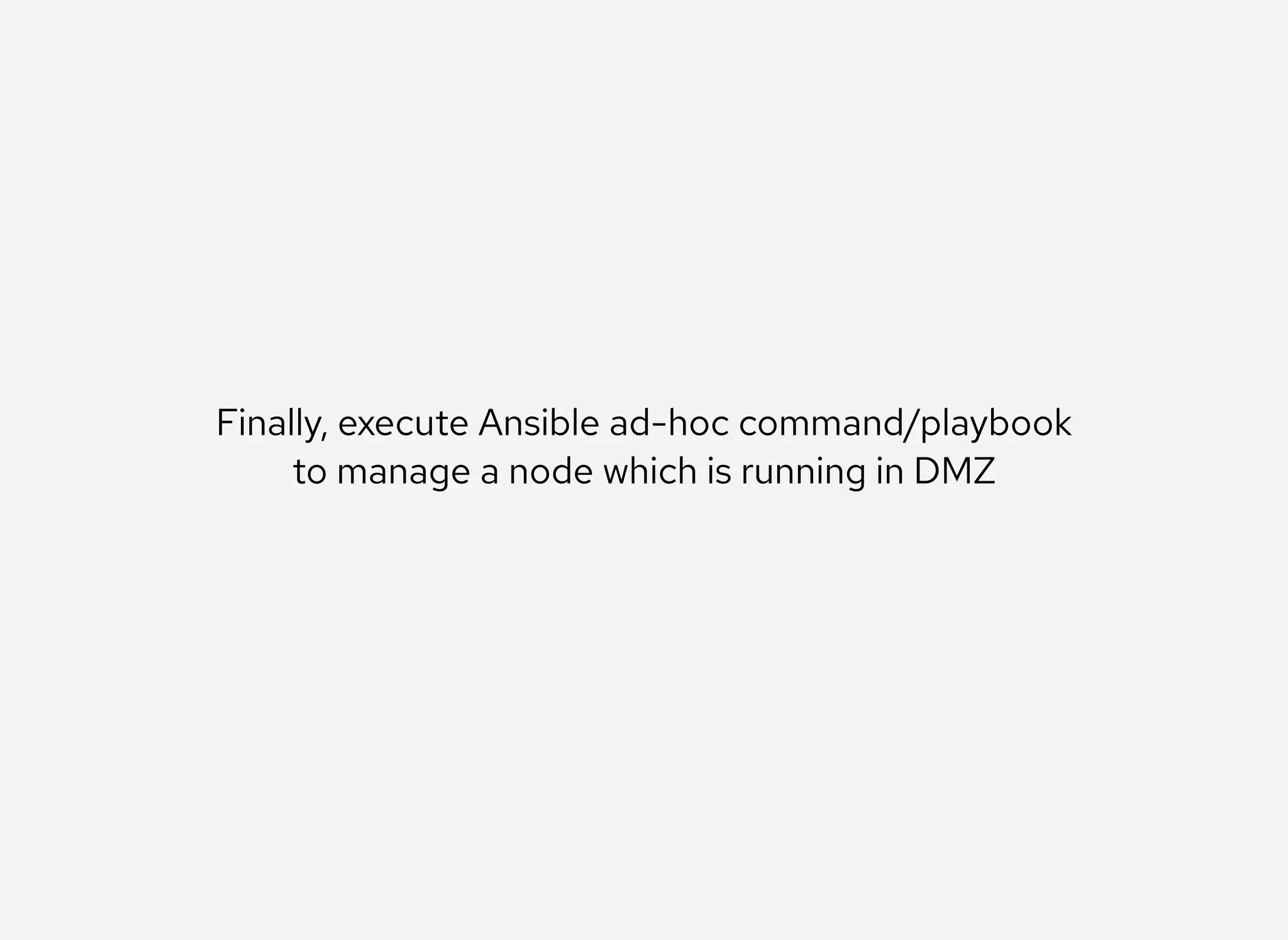

19. Finally, execute Ansible ad-hoc command/playbook
to manage a node which is running in DMZ

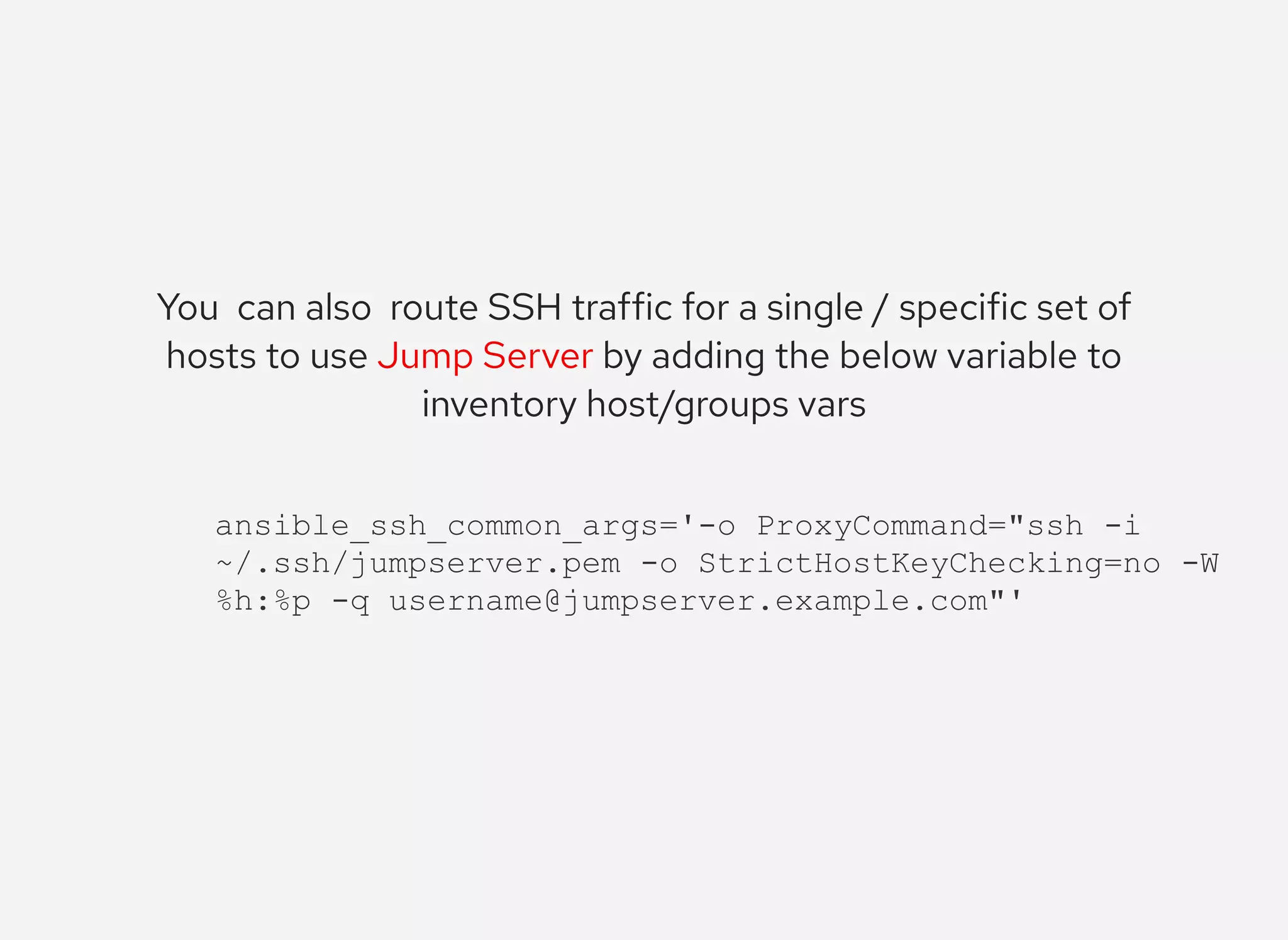

20. You can also route SSH traffic for a single / specific set of
hosts to use Jump Server by adding the below variable to
inventory host/groups vars
ansible_ssh_common_args='­o ProxyCommand="ssh ­i
~/.ssh/jumpserver.pem ­o StrictHostKeyChecking=no ­W
%h:%p ­q username@jumpserver.example.com"'

21. Check video description for references and
useful links
