This document discusses configuration entities in Drupal 8. It provides examples of using the configuration manager interface to manage configuration objects like content types, image styles, and blocks through YAML files. It also demonstrates how to create a custom configuration entity type called ConfigPagesType with its own schema, class definition, listing builder, and forms for adding and editing entities of that type.

1. Configuration entities
in Drupal 8.
Eugene Kulishov Adyax 2015

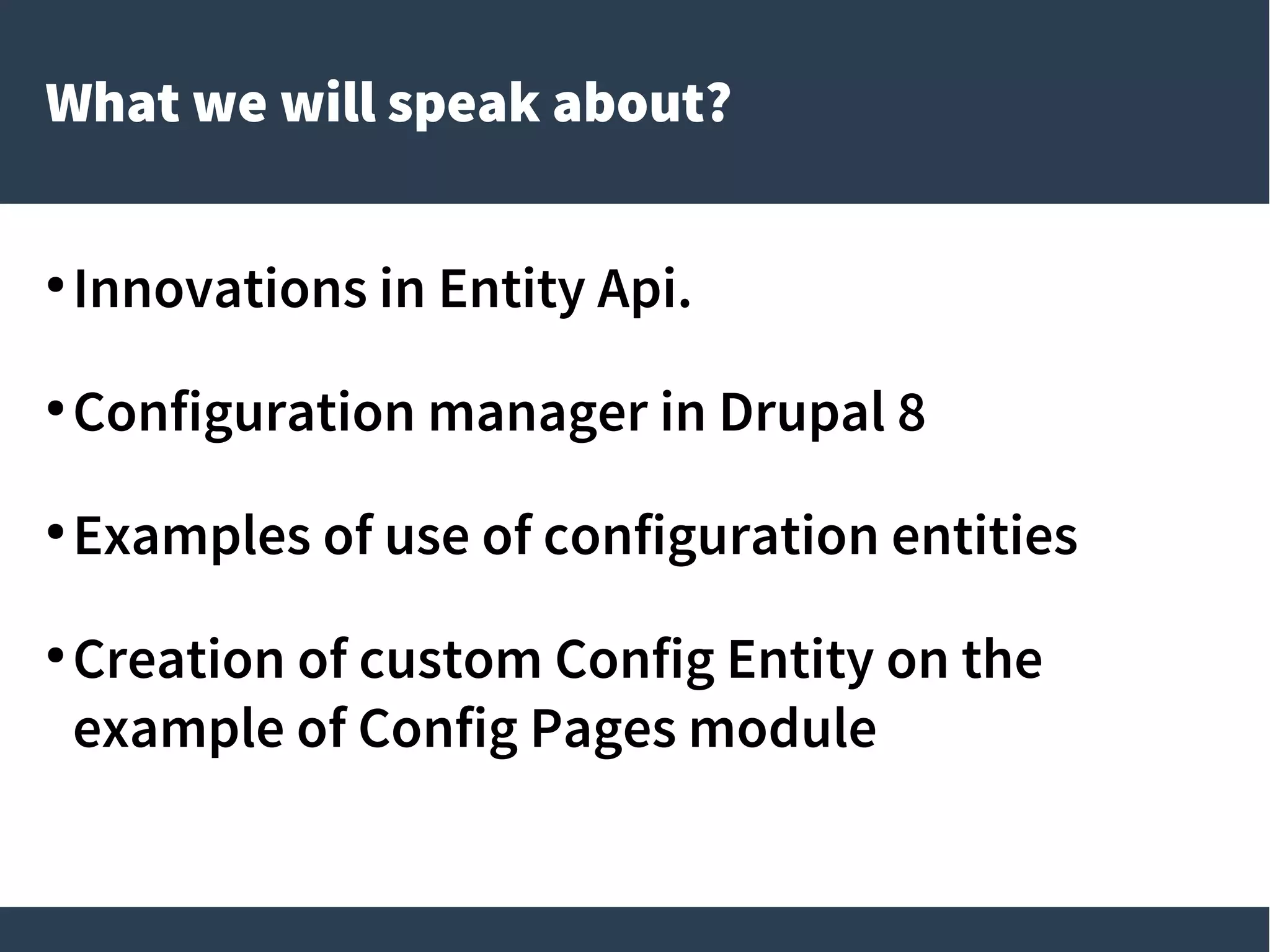

2. What we will speak about?
●
Innovations in Entity Api.
●
Configuration manager in Drupal 8
●
Examples of use of configuration entities
●
Creation of custom Config Entity on the
example of Config Pages module

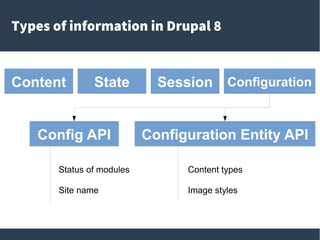

3. Types of information in Drupal 8
Content State Session Configuration
Config API Configuration Entity API
Status of modules
Site name
Content types
Image styles

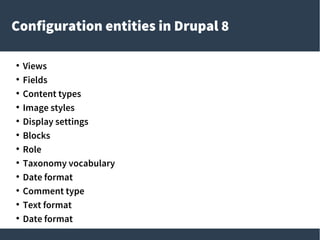

4. Configuration entities in Drupal 8
●
Views
●
Fields
●
Content types
●
Image styles
●
Display settings
●
Blocks
●
Role
●
Taxonomy vocabulary
●
Date format
●
Comment type
●
Text format
●
Date format

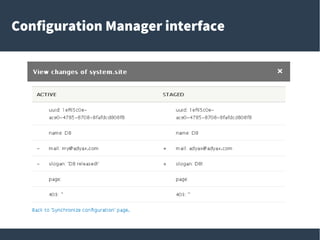

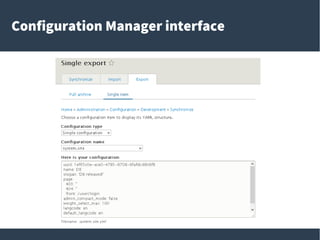

5. Configuration Manager interface

6. Configuration Manager interface

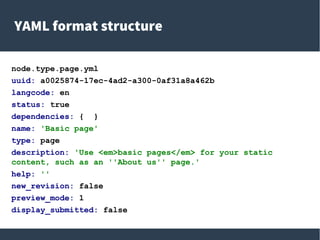

7. YAML format structure
node.type.page.yml
uuid: a0025874-17ec-4ad2-a300-0af31a8a462b
langcode: en
status: true
dependencies: { }
name: 'Basic page'
type: page
description: 'Use <em>basic pages</em> for your static
content, such as an ''About us'' page.'
help: ''
new_revision: false
preview_mode: 1
display_submitted: false

8. Configuration installation
File:
core.entity_view_mode.comment.simple_comment.yml
langcode: en
status: false
dependencies:
module:
- comment
id: comment.simple_comment
label: 'My simple comment'
targetEntityType: comment
cache: true

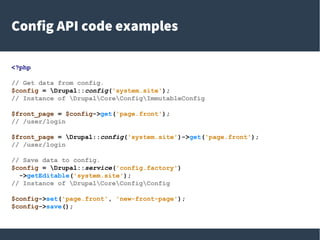

9. Config API code examples
<?php
// Get data from config.
$config = Drupal::config('system.site');
// Instance of DrupalCoreConfigImmutableConfig
$front_page = $config->get('page.front');
// /user/login
$front_page = Drupal::config('system.site')->get('page.front');
// /user/login
// Save data to config.
$config = Drupal::service('config.factory')
->getEditable('system.site');
// Instance of DrupalCoreConfigConfig
$config->set('page.front', 'new-front-page');
$config->save();

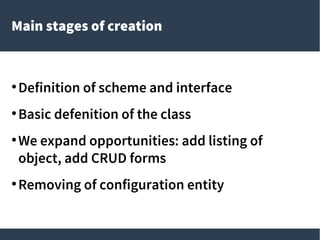

10. Main stages of creation
●
Definition of scheme and interface
●
Basic defenition of the class
●
We expand opportunities: add listing of
object, add CRUD forms
●
Removing of configuration entity

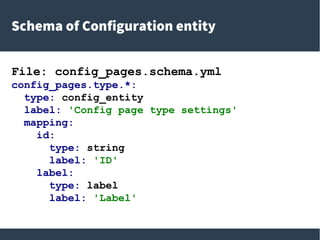

11. Schema of Configuration entity
File: config_pages.schema.yml
config_pages.type.*:
type: config_entity
label: 'Config page type settings'
mapping:
id:
type: string
label: 'ID'
label:
type: label
label: 'Label'

12. Basic definition of the class
File: ConfigPagesType.php
namespace Drupalconfig_pagesEntity;
use DrupalCoreConfigEntityConfigEntityBundleBase;
/**
* @ConfigEntityType(
* id = "config_pages_type",
* admin_permission = "administer config_pages types",
* label = @Translation("Config page type"),
* config_prefix = "type",
* entity_keys = {
* "id" = "id",
* "label" = "label",
* "context" = "context",
* "menu" = "menu"
* },
* )
*/
class ConfigPagesType extends ConfigEntityBundleBase implements ConfigPagesTypeInterface {
/**
* The config page type ID.
*/
protected $id;
/**
* The config page type label.
*/
protected $label;
}

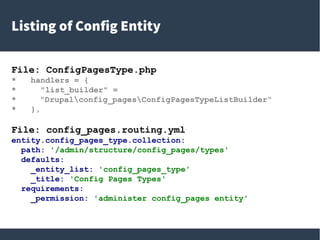

13. Listing of Config Entity
File: ConfigPagesType.php
* handlers = {
* "list_builder" =
* "Drupalconfig_pagesConfigPagesTypeListBuilder"
* },
File: config_pages.routing.yml
entity.config_pages_type.collection:
path: '/admin/structure/config_pages/types'
defaults:
_entity_list: 'config_pages_type'
_title: 'Config Pages Types'
requirements:
_permission: 'administer config_pages entity'

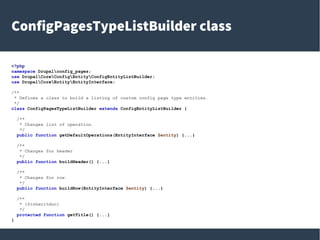

14. ConfigPagesTypeListBuilder class
<?php
namespace Drupalconfig_pages;
use DrupalCoreConfigEntityConfigEntityListBuilder;
use DrupalCoreEntityEntityInterface;
/**
* Defines a class to build a listing of custom config page type entities.
*/
class ConfigPagesTypeListBuilder extends ConfigEntityListBuilder {
/**
* Changes list of operation.
*/
public function getDefaultOperations(EntityInterface $entity) {...}
/**
* Changes for header
*/
public function buildHeader() {...}
/**
* Changes for row.
*/
public function buildRow(EntityInterface $entity) {...}
/**
* {@inheritdoc}
*/
protected function getTitle() {...}
}

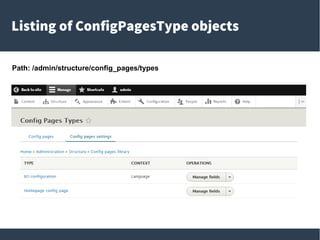

15. Listing of ConfigPagesType objects
Path: /admin/structure/config_pages/types

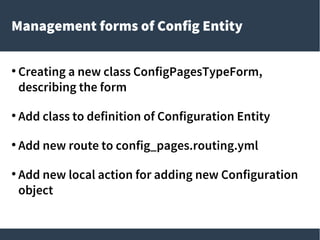

16. Management forms of Config Entity
●
Creating a new class ConfigPagesTypeForm,
describing the form
●
Add class to definition of Configuration Entity
●
Add new route to config_pages.routing.yml
●
Add new local action for adding new Configuration
object

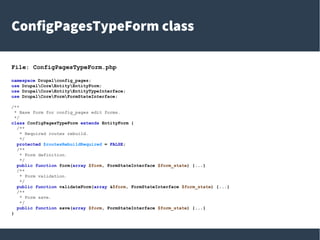

17. ConfigPagesTypeForm class
File: ConfigPagesTypeForm.php
namespace Drupalconfig_pages;
use DrupalCoreEntityEntityForm;
use DrupalCoreEntityEntityTypeInterface;
use DrupalCoreFormFormStateInterface;
/**
* Base form for config_pages edit forms.
*/
class ConfigPagesTypeForm extends EntityForm {
/**
* Required routes rebuild.
*/
protected $routesRebuildRequired = FALSE;
/**
* Form definition.
*/
public function form(array $form, FormStateInterface $form_state) {...}
/**
* Form validation.
*/
public function validateForm(array &$form, FormStateInterface $form_state) {...}
/**
* Form save.
*/
public function save(array $form, FormStateInterface $form_state) {...}
}

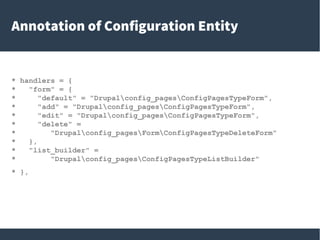

18. Annotation of Configuration Entity
* handlers = {
* "form" = {
* "default" = "Drupalconfig_pagesConfigPagesTypeForm",
* "add" = "Drupalconfig_pagesConfigPagesTypeForm",
* "edit" = "Drupalconfig_pagesConfigPagesTypeForm",
* "delete" =
* "Drupalconfig_pagesFormConfigPagesTypeDeleteForm"
* },
* "list_builder" =
* "Drupalconfig_pagesConfigPagesTypeListBuilder"
* },

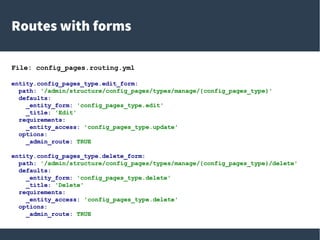

19. Routes with forms
File: config_pages.routing.yml
entity.config_pages_type.edit_form:
path: '/admin/structure/config_pages/types/manage/{config_pages_type}'
defaults:
_entity_form: 'config_pages_type.edit'
_title: 'Edit'
requirements:
_entity_access: 'config_pages_type.update'
options:
_admin_route: TRUE
entity.config_pages_type.delete_form:
path: '/admin/structure/config_pages/types/manage/{config_pages_type}/delete'
defaults:
_entity_form: 'config_pages_type.delete'
_title: 'Delete'
requirements:
_entity_access: 'config_pages_type.delete'
options:
_admin_route: TRUE

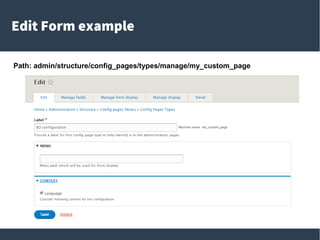

20. Edit Form example
Path: admin/structure/config_pages/types/manage/my_custom_page

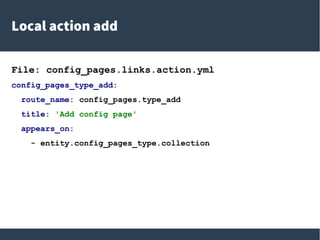

21. Local action add
File: config_pages.links.action.yml
config_pages_type_add:
route_name: config_pages.type_add
title: 'Add config page'
appears_on:
- entity.config_pages_type.collection

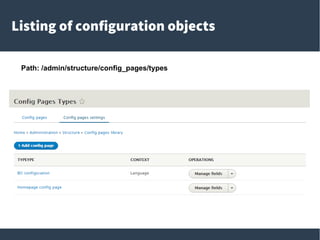

22. Listing of configuration objects
Path: /admin/structure/config_pages/types

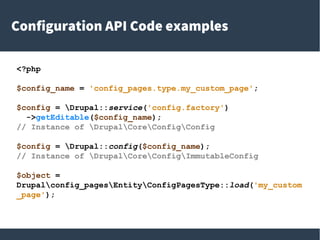

23. Configuration API Code examples
<?php
$config_name = 'config_pages.type.my_custom_page';
$config = Drupal::service('config.factory')
->getEditable($config_name);
// Instance of DrupalCoreConfigConfig
$config = Drupal::config($config_name);
// Instance of DrupalCoreConfigImmutableConfig
$object =
Drupalconfig_pagesEntityConfigPagesType::load('my_custom
_page');

24. Thanks!
