This document provides instructions for drawing a staircase in AutoCAD. It describes drawing a rectangle and offsetting inner gridlines. The unnecessary lines are trimmed to create the staircase structure. Vertical offsets are drawn from the leftmost and rightmost lines using specified distances to complete the staircase drawing. Students are assigned to draw the sample staircase using their own process and document the steps. A second assignment involves drawing a column layout plan with given dimensions.

1. COMPUTER AIDED DRAFTING:
AUTOCAD
COURSE TEACHER: ENGR. IFTESHAM BASHAR

2. LECTURE CONTENTS
• Drawing of a typical staircase (step by step process)
• Assignment

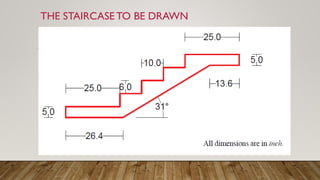

3. THE STAIRCASE TO BE DRAWN

4. THE PROCESS OF DRAWING
- At first, draw a rectangle of dimensions: L = 80 inch; B = 29 inch;
- Use the explode tool to isolate each side of the rectangle;
- Draw the inner gridlines as shown in the rightside figure using offset tool.
80 inch
29
inch
25 inch 25 inch
3 @ 10 inch
4
@
6
inch
5 inch

5. THE PROCESS OF DRAWING (CONTD.)
- Use the trim tool to erase the unnecessary horizontal as well as vertical
lines to create the staircase.
- At the last stage, draw a rightside vertical offset from the leftmost vertical
line of the rectangle (offset distance = 26.4 inch);
also draw a leftside vertical offset from the rightmost line of the rectangle
(offset distance = 13.6 inch).
- Then draw an inclined line in between these offset points to complete
drawing the staircase.

6. ASSIGNMENTS
• Assignment-1: Draw the staircase shown in today’s class
using your own process; save the file in AutoCAD and also
make a summary in powerpoint mentioning the steps you
followed to draw the staircase. Submit your AutoCAD file and
the powerpoint presentation on or before 13 April, 2023 in
your google classroom or in my email of East-West University.

7. ASSIGNMENT-2

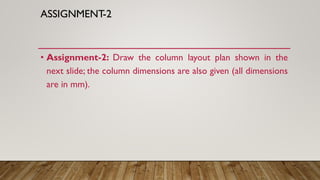

• Assignment-2: Draw the column layout plan shown in the
next slide; the column dimensions are also given (all dimensions
are in mm).

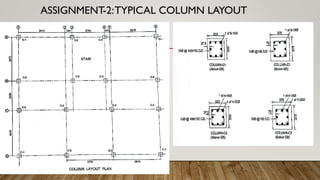

8. ASSIGNMENT-2:TYPICAL COLUMN LAYOUT
