Computational Thinking : Course Overview
- 1. Pertemuan #01: Course Overview& CT Concepts Catherine Olivia Sereati - FT Unika Atma Ja FTA 101 BERPIKIR KOMPUTASIONAL Team Dosen : Dr. Ir. Catherine Olivia Sereati., ST., MT Gregorius Airlangga., PhD Julius Bata., S.Kom., M.Kom
- 2. Agenda 1. RPS, KontrakKuliah 2. Gambaran kuliah 3. Konsep Berpikir Komputasional
- 3. RPS & KontrakKuliah
- 4. RPS Deskripsi Mata Kuliah Kemampuanmenyelesaikan persoalan membutuhkan cara berpikir yang terstruktur. Berpikir komputasional merupakan cara berpikir terstruktur yang terdiri dari beberapa konsep seperti dekomposisi, abstraksi, pengenalan pola dan algoritma. Mata kuliah Berpikir Komputasional memberikan pengenalan terhadap konsep – konsep berpikir komputasional, menggunakan konsep – konsep tersebut untuk menyelesaikan persoalan serta menerapkan dalam komputer. Pada mata kuliah ini mahasiswa akan mempelajari bagaimana menggunakan dekomposisi, abstraksi, pengenalan pola, dan algoritma untuk menyusun suatu solusi permasalahan. Selain itu Mahasiswa juga akan dikenalkan dengan bahasa pemrograman untuk mengimplementasi solusi yang dibuat. Computational Thinking
- 5. RPS Capaian Pembelajaran 1. Mahasiswamampu mengemukakan pendapat secara tertulis secara lisan dan bekerja secara individu atau berkelompok 2. Mahasiswa mampu menyusun algoritma dalam menyelesaikan suatu permasalahan 3. Mahasiswa mampu membuat program komputer sederhana menggunakan Bahasa Pemrograman 4. Mahasiswa mampu menerapkan konsep berpikir komputasional pada suatu studi kasus sederhana Asesmen : Tes kinerja (praktik) dan Tugas (proyek akhir) Komposisi nilai : 5. UTS : 20 % 6. UAS : 25 % 7. Tugas : 55 %
- 6. RPS Topik 1. Course Overview,Programming Language 2. Programming Language 3. Basic program structure: control constructs and data types 4. CT concepts – Abstraction 5. CT concepts – Decomposition 6. CT concepts – Pattern recognition 7. CT concepts – Algorithm 8. Program structure: Function 9. Program structure: Testing & Debugging 10. Case Study
- 7. Perkuliaha n 1. Kuliah tatapmuka (teams atau gather.town), elearning.atmajaya.ac.id 2. Mahasiswa diharapkan mencoba latihan selama dikelas dan latihan mandiri 3. Blended Gamified + game-based learning + active class-room
- 8.
- 9. Pillars of Computational Thinking 9 Propertyof Penn Engineering
- 10. What is computationalthinking? Computational thinking refers to the thought processes involved in expressing solutions as computational steps or algorithms that can be carried out by a computer. (Cuny, Snyder, & Wing, 2010; Aho , 2011; Lee, 2016). From Digital Promise: https://digitalpromise.org/initiative/computational-thinking/computational-thinking-for-next-generation-science/what-is-computational-thinking/

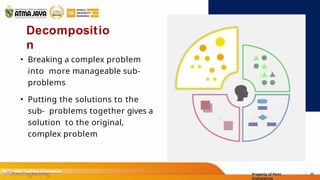

- 11. • Breaking acomplex problem into more manageable sub- problems • Putting the solutions to the sub- problems together gives a solution to the original, complex problem 11 Property of Penn Engineering Decompositio n
- 12. Decomposition: Outlining aPaper Introduction 12 Property of Penn Engineering Conclusion Body
- 13. Mapping the Earth 13 Propertyof Penn Engineering
- 14. Collecting the Data 14 Propertyof Penn Engineering
- 15. Stitching the Images 15 Propertyof Penn Engineering
- 16. Functionality: Zoom andSearch 16
- 17.
- 18. • Finding similaritiesor shared characteristics within or between problems • Makes the problem easier to solve since the same solution can be used for each occurrence of the pattern 18 Property of Penn Engineering Pattern Recognition
- 19. Pattern Recognition Drawing Dogs 19 Propertyof Penn Engineering
- 20. Pattern Recognition Drawing DifferentDogs 20 Property of Penn Engineering
- 21. Social Media Site:Photo Albums Metadata Name(s) Date Location ... Photo Album Compress 21 Property of Penn Engineering Data Server 👤 👤 👤 👤 👥 👥 👤 👤 👤 👤 👥 👥 👥 👥
- 22. Data Compression 5 31 2 1 2 2 22 Property of Penn Engineering
- 23. Data Compression :problem example
- 24. Data Representation &Abstraction

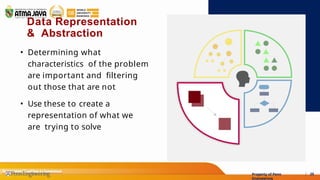

- 25. • Determining what characteristicsof the problem are important and filtering out those that are not • Use these to create a representation of what we are trying to solve 25 Property of Penn Engineering Data Representation & Abstraction

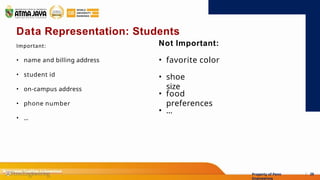

- 26. Important: • name andbilling address • student id • on-campus address • phone number • ... 26 Property of Penn Engineering Not Important: • favorite color • shoe size • food preferences • ... Data Representation: Students
- 27. Important: • author list •title • ISBN • publication date • edition • category • ratings • summary • ... 27 Property of Penn Engineering Not Important: • color of the cover • birthplace of authors • complete contents of the book • … Data Representation: Books
- 28.
- 29. • Fill electrictea kettle • Bring it to a boil • Pour hot water in cup • Put teabag in cup • Steep for 4 minutes • Remove teabag 2 9 Property of Penn Engineering Making a Cup of T ea
- 30. • Step-by-step instructionsof how to solve a problem • Identifies what is to be done (the instructions), and the order in which they should be done. 3 0 Property of Penn Engineering Algorithms
- 31. • Often expressedas something humans understand • Eventually translated into sequences of computer instructions • For example, we will discuss “coding” algorithms using Python 3 1 Property of Penn Engineering What is an Instruction?
- 32. Simple Flowchart Instruction1 Instruction2 3 2 Property ofPenn Engineering
- 33. Flowchart: Making aCup of Tea Star t Stop Fill electric kettle with water Boil water Fill cup with hot water Put teabag in cup Let steep for 4 minutes Remove teabag 3 3 Property of Penn Engineering
- 34. Flowchart: Making aCup of Herbal or Black Tea type = “black”? Stop Start Input: “black” or “herbal” tea? Fill electric kettle with water yes Store input in variable type Temperature = 212 Steep = 4 Temperature = 180 Steep = 5 Heat water to value of temperature °F Let steep for value of steep minutes Remove teabag no Put type teabag in cup 3 4 Property of Penn Engineering
- 35. Flowchart: Making aCup of Tea, Revisited Star t Stop Fill electric kettle with water Boil water Fill cup with hot water Put teabag in cup Let steep for 4 minutes Remove teabag 3 5 Property of Penn Engineering
- 36. Flowchart: Making aCup of T ea Efficiently Fill electric kettle with water Boil water Fill cup with hot water Stop Put teabag in cup Star t 3 6 Property of Penn Engineering
- 37. Case Studi :Writing Paper
- 38. 1. Dekomposisi 2. Abstraksi 3.Pengenalan pola 4. Algoritma Problem : Menulis artikel/makalah Step 1st

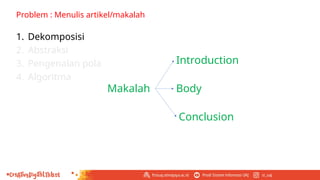

- 39. 1. Dekomposisi 2. Abstraksi 3.Pengenalan pola 4. Algoritma Problem : Menulis artikel/makalah Makalah Introduction Body Conclusion
- 40. 1. Dekomposisi 2. Abstraksi 3.Pengenalan pola 4. Algoritma Problem : Menulis artikel/makalah Makalah
- 41. 1. Dekomposisi 2. Abstraksi 3.Pengenalan pola 4. Algoritma Problem : Menulis artikel/makalah Makalah referensi
- 42. 1. Dekomposisi 2. Abstraksi 3.Pengenalan pola 4. Algoritma Problem : Menulis artikel/makalah Algoritma menulis makalah 1. Menentukan ide pokok makalah 2. Mencari dan membaca makalah referensi 3. Menulis paragraf pembuka 4. Menulis beberapa paragraf isi pembahasan 5. Menulis kesimpulan 6. Membaca seluruh makalah 7. Jika ada kesalahan, kembali ke Langkah 3, jika tidak lanjut langkah 8 8. selesai
- 43.
- 44. Assignment : • Makealgorithma for case study 2
- 45. • Decomposition: breakingdown a complex problem into smaller parts • Pattern recognition: finding the similarities among smaller problems • Data representation and abstraction: describing data in a structured manner and generalizing details • Algorithms: step by step instructions for solving the problem 45 Property of Penn Engineering Conclusion Pillars of Computational Thinking
- 46. Next Intro to ProgrammingLanguage
- 47. References : Computational Thinkingfor Problem Solving University of Pennsylvania https://www.coursera.org/learn/compthinking/lecture/ Problem Solving Using Computational Thinking University of Michigan https://www.coursera.org/learn/compthinking/home/module/1
