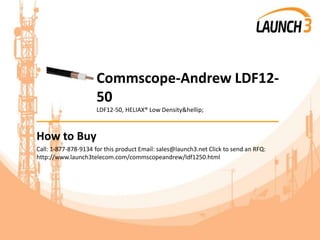

Commscope-Andrew LDF12-
50
LDF12-50, HELIAX® Low Density…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/commscopeandrew/ldf1250.html

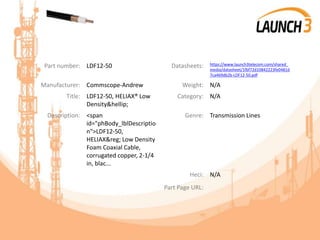

Part number: LDF12-50 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/1fbf72d10842223fe0481d
7ca469db2b-LDF12-50.pdf
Manufacturer: Commscope-Andrew Weight: N/A
Title: LDF12-50, HELIAX® Low
Density…
Category: N/A
Description: <span
id="phBody_lblDescriptio
n">LDF12-50,
HELIAX&reg; Low Density
Foam Coaxial Cable,
corrugated copper, 2-1/4
in, blac...
Genre: Transmission Lines
Heci: N/A
Part Page URL:

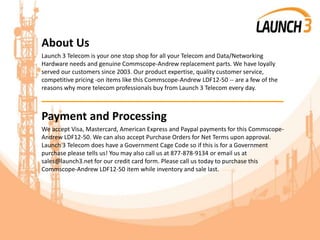

About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Commscope-Andrew replacement parts. We have loyally
served our customers since 2003. Our product expertise, quality customer service,
competitive pricing -on items like this Commscope-Andrew LDF12-50 -- are a few of the
reasons why more telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Commscope-
Andrew LDF12-50. We can also accept Purchase Orders for Net Terms upon approval.
Launch 3 Telecom does have a Government Cage Code so if this is for a Government
purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this
Commscope-Andrew LDF12-50 item while inventory and sale last.

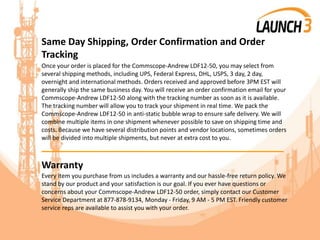

Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Commscope-Andrew LDF12-50, you may select from
several shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day,
overnight and international methods. Orders received and approved before 3PM EST will
generally ship the same business day. You will receive an order confirmation email for your
Commscope-Andrew LDF12-50 along with the tracking number as soon as it is available.
The tracking number will allow you to track your shipment in real time. We pack the
Commscope-Andrew LDF12-50 in anti-static bubble wrap to ensure safe delivery. We will
combine multiple items in one shipment whenever possible to save on shipping time and
costs. Because we have several distribution points and vendor locations, sometimes orders
will be divided into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Commscope-Andrew LDF12-50 order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.

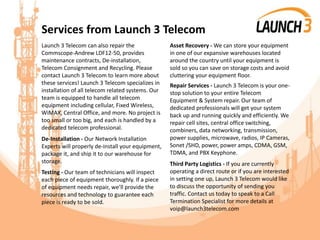

Services from Launch 3 Telecom
Launch 3 Telecom can also repair the
Commscope-Andrew LDF12-50, provides
maintenance contracts, De-installation,
Telecom Consignment and Recycling. Please
contact Launch 3 Telecom to learn more about
these services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

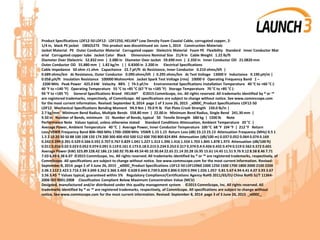

Product Specifications LDF12-50 LDF12- LDF1250, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 2-
1/4 in, black PE jacket OBSOLETE This product was discontinued on: June 1, 2014 Construction Materials
Jacket Material PE Outer Conductor Material Corrugated copper Dielectric Material Foam PE Flexibility Standard Inner Conductor Mat
erial Corrugated copper tube Jacket Color Black Dimensions Nominal Size 21/4 in Cable Weight 1.22 lb/ft
Diameter Over Dielectric 52.832 mm | 2.080 in Diameter Over Jacket 59.690 mm | 2.350 in Inner Conductor OD 21.0820 mm
Outer Conductor OD 55.880 mm | 1.82 kg/m | | 0.8300 in 2.200 in Electrical Specifications
Cable Impedance 50 ohm ±1 ohm Capacitance 22.7 pF/ft dc Resistance, Inner Conductor 0.210 ohms/kft |
0.689 ohms/km dc Resistance, Outer Conductor 0.090 ohms/kft | 0.295 ohms/km dc Test Voltage 13000 V Inductance 0.190 µH/m |
0.058 µH/ft Insulation Resistance 100000 Mohms•km Jacket Spark Test Voltage (rms) 10000 V Operating Frequency Band 1 –
2200 MHz Peak Power 425.0 kW Velocity 88% | 74.5 pF/m Environmental Specifications Installation Temperature 40 °C to +60 °C (-
40 °F to +140 °F) Operating Temperature 55 °C to +85 °C (67 °F to +185 °F) Storage Temperature 70 °C to +85 °C (-
94 °F to +185 °F) General Specifications Brand HELIAX® ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™
are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com
for the most current information. Revised: September 8, 2014 page 1 of 3 June 26, 2015 _x000C_Product Specifications LDF12-50
LDF12 Mechanical Specifications Bending Moment 94.9 Nm | 70.0 ft lb Flat Plate Crush Strength 150.0 lb/in |
2.7 kg/mm Minimum Bend Radius, Multiple Bends 558.80 mm | 22.00 in Minimum Bend Radius, Single Bend 241.30 mm |
9.50 in Number of Bends, minimum 15 Number of Bends, typical 50 Tensile Strength 680 kg | 1500 lb Note
Performance Note Values typical, unless otherwise stated Standard Conditions Attenuation, Ambient Temperature 20 °C |
Average Power, Ambient Temperature 40 °C | Average Power, Inner Conductor Temperature 100 °C 68 °F 104 °F | 212 °F Return
Loss/VSWR Frequency Band 806–960 MHz 1700–2000 MHz VSWR 1.15 1.15 Return Loss (dB) 23.13 23.13 Attenuation Frequency (MHz) 0.5 1
1.5 2 10 20 30 50 88 100 108 150 174 200 300 400 450 500 512 600 700 800 824 894 Attenuation (dB/100 m) 0.037 0.052 0.064 0.074 0.169
0.242 0.299 0.391 0.529 0.566 0.591 0.707 0.767 0.829 1.041 1.227 1.313 1.396 1.416 1.554 1.703 1.845 1.878 1.973 Attenuation (dB/100 ft)
0.011 0.016 0.02 0.023 0.052 0.074 0.091 0.119 0.161 0.173 0.18 0.215 0.234 0.253 0.317 0.374 0.4 0.426 0.432 0.474 0.519 0.562 0.572 0.601
Average Power (kW) 323.89 228.42 186.13 160.92 70.86 49.54 40.10 30.64 22.65 21.14 20.28 16.95 15.61 14.45 11.51 9.76 9.12 8.58 8.46 7.71
7.03 6.49 6.38 6.07 ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of
CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised:
September 8, 2014 page 2 of 3 June 26, 2015 _x000C_Product Specifications LDF12-50 LDF12960 1000 1250 1500 1700 1800 2000 2100 2200
2.06 2.112 2.423 2.716 2.94 3.049 3.262 3.366 3.469 0.628 0.644 0.739 0.828 0.896 0.929 0.994 1.026 1.057 5.81 5.67 4.94 4.41 4.07 3.93 3.67
3.56 3.45 * Values typical, guaranteed within 5% Regulatory Compliance/Certifications Agency RoHS 2011/65/EU China RoHS SJ/T 11364-
2006 ISO 9001:2008 Classification Compliant Below Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system ©2015 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: September 8, 2014 page 3 of 3 June 26, 2015 _x000C_
