This document provides product specifications for a Commscope-Andrew 400BPNM-C Type N Male connector. It includes details on ordering, payment, shipping, warranty and repair services available from Launch 3 Telecom. Specifications cover electrical and mechanical characteristics, environmental testing standards, and regulatory compliance for the connector.

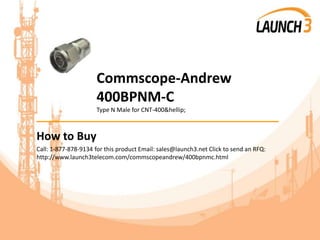

2. Commscope-Andrew
400BPNM-C
Type N Male for CNT-400…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/commscopeandrew/400bpnmc.html

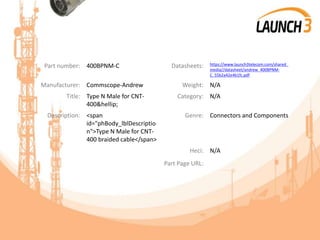

3. Part number: 400BPNM-C Datasheets: https://www.launch3telecom.com/shared_
media//datasheet/andrew_400BPNM-
C_55b2a42e4b1fc.pdf
Manufacturer: Commscope-Andrew Weight: N/A
Title: Type N Male for CNT-
400…
Category: N/A
Description: <span
id="phBody_lblDescriptio
n">Type N Male for CNT-
400 braided cable</span>
Genre: Connectors and Components
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Commscope-Andrew replacement parts. We have loyally
served our customers since 2003. Our product expertise, quality customer service,
competitive pricing -on items like this Commscope-Andrew 400BPNM-C -- are a few of the
reasons why more telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Commscope-
Andrew 400BPNM-C. We can also accept Purchase Orders for Net Terms upon approval.
Launch 3 Telecom does have a Government Cage Code so if this is for a Government
purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this
Commscope-Andrew 400BPNM-C item while inventory and sale last.

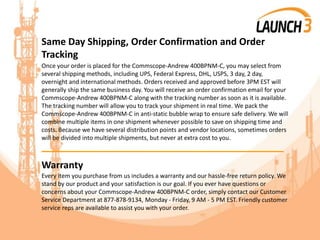

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Commscope-Andrew 400BPNM-C, you may select from
several shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day,
overnight and international methods. Orders received and approved before 3PM EST will
generally ship the same business day. You will receive an order confirmation email for your
Commscope-Andrew 400BPNM-C along with the tracking number as soon as it is available.
The tracking number will allow you to track your shipment in real time. We pack the
Commscope-Andrew 400BPNM-C in anti-static bubble wrap to ensure safe delivery. We will
combine multiple items in one shipment whenever possible to save on shipping time and
costs. Because we have several distribution points and vendor locations, sometimes orders
will be divided into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Commscope-Andrew 400BPNM-C order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.

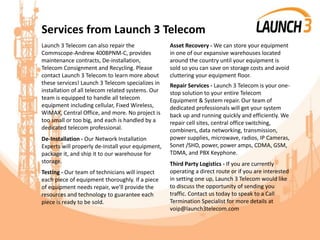

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the
Commscope-Andrew 400BPNM-C, provides
maintenance contracts, De-installation,
Telecom Consignment and Recycling. Please
contact Launch 3 Telecom to learn more about
these services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

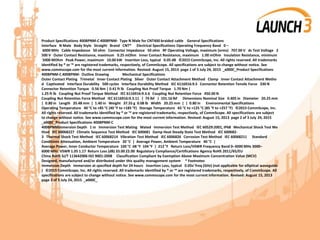

7. Product Specifications 400BPNM-C 400BPNM- Type N Male for CNT400 braided cable General Specifications
Interface N Male Body Style Straight Brand CNT® Electrical Specifications Operating Frequency Band 0 –
6000 MHz Cable Impedance 50 ohm Connector Impedance 50 ohm RF Operating Voltage, maximum (vrms) 707.00 V dc Test Voltage 2
500 V Outer Contact Resistance, maximum 0.25 mOhm Inner Contact Resistance, maximum 1.00 mOhm Insulation Resistance, minimum
5000 MOhm Peak Power, maximum 10.00 kW Insertion Loss, typical 0.05 dB ©2015 CommScope, Inc. All rights reserved. All trademarks
identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See
www.commscope.com for the most current information. Revised: August 15, 2013 page 1 of 3 July 24, 2015 _x000C_Product Specifications
400BPNM-C 400BPNM- Outline Drawing Mechanical Specifications
Outer Contact Plating Trimetal Inner Contact Plating Silver Outer Contact Attachment Method Clamp Inner Contact Attachment Metho
d Captivated Interface Durability 500 cycles Interface Durability Method IEC 6116916:9.5 Connector Retention Tensile Force 330 N
Connector Retention Torque 0.56 Nm | 0.41 ft lb Coupling Nut Proof Torque 1.70 Nm |
1.25 ft lb Coupling Nut Proof Torque Method IEC 6116916:9.3.6 Coupling Nut Retention Force 450.00 N
Coupling Nut Retention Force Method IEC 6116916:9.3.11 | 74 lbf | 101.16 lbf Dimensions Nominal Size 0.405 in Diameter 20.25 mm
| 0.80 in Length 35.48 mm | 1.40 in Weight 37.55 g 0.08 lb Width 20.25 mm | | 0.80 in Environmental Specifications
Operating Temperature 40 °C to +85 °C (40 °F to +185 °F) Storage Temperature 65 °C to +125 °C (85 °F to +257 °F) ©2015 CommScope, Inc.
All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject
to change without notice. See www.commscope.com for the most current information. Revised: August 15, 2013 page 2 of 3 July 24, 2015
_x000C_Product Specifications 400BPNM-C
400BPNMImmersion Depth 1 m Immersion Test Mating Mated Immersion Test Method IEC 60529:2001, IP68 Mechanical Shock Test Me
thod IEC 60068227 Climatic Sequence Test Method IEC 600681 Damp Heat Steady State Test Method IEC 600682-
3 Thermal Shock Test Method IEC 60068214 Vibration Test Method IEC 6006826 Corrosion Test Method IEC 60068211 Standard
Conditions Attenuation, Ambient Temperature 20 °C | Average Power, Ambient Temperature 40 °C |
Average Power, Inner Conductor Temperature 100 °C 68 °F 104 °F | 212 °F Return Loss/VSWR Frequency Band 0–3000 MHz 3000–
6000 MHz VSWR 1.05 1.17 Return Loss (dB) 33.00 22.00 Regulatory Compliance/Certifications Agency RoHS 2011/65/EU
China RoHS SJ/T 113642006 ISO 9001:2008 Classification Compliant by Exemption Above Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system * Footnotes
Immersion Depth Immersion at specified depth for 24 hours Insertion Loss, typical 0.05v¯freq (GHz) (not applicable for elliptical waveguide
) ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All
specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: August 15, 2013
page 3 of 3 July 24, 2015 _x000C_
