This document summarizes the specifications of a CNC EPS Styrofoam cutting machine. The machine has dimensions of 3570 x 3250 x 2500 mm and can cut Styrofoam blocks vertically and horizontally. It has 30 hot wire cutters that can cut pieces up to 2100 mm x 1450 mm. The machine is powered by 2 x 4.5 NM motors on the X and Y axes and uses Mach 3 and G-Code control programs to cut insulation and decoration pieces for construction.

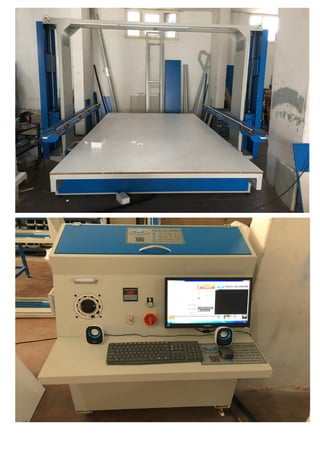

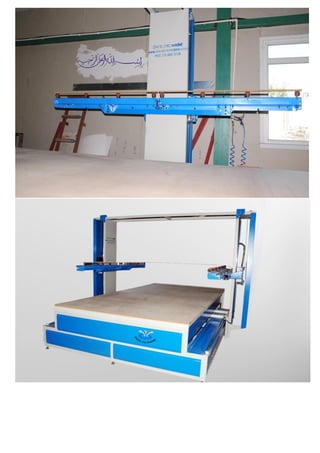

1. CNC EPS STYROFOAM CUTTING MACHINE (HORIZONTAL-VERTICAL ARM – 30 HOT WİRE)

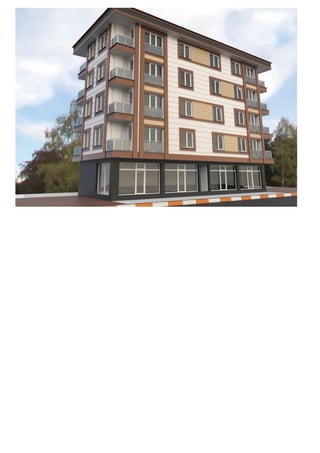

It is used in the production of products such as jambs, panels, crown, floor pile, appliqué keystone which are used for
insulation and decoration in external facades.
PRODUCT TECHNICAL SPECIFICATIONS
MACHINE DIMENSIONS 3570 x 3250 x 2500 mm
CONTROL PANEL 1000 x 800 x 1100 mm
TABLE DIMENSIONS X=3570 mm Y=2000 mm
MACHINE CUTTING CAPACITY 2 blocks in vertical cabling, 4 blocks in horizontal cabling
APPLICABLE WIRE NUMBER 30 pieces 0,30 mm wire connection capacity
MAXIMUM CUTTING MEASUREMENTS X=2100 mm Y=1450 mm
HORIZONTAL RESIDENCE LENGTH 3000 mm
ENERGY CONSUMPTION OF MACHINE MIN 1 KW MAX 5 KW
X AXIS MOTOR POWER AND NUMBER 2 X 4.5 NM motor
Y AXIS MOTOR POWER AND NUMBER 2 X 4.5 NM motor
MACHINERY CONTROL PROGRAM Mach 3
G-CODE PROGRAM Lazy cam
MACHINE MOVEMENT SYSTEM Linear rail and rack gear
MACHINE WEIGHT 1000 KG

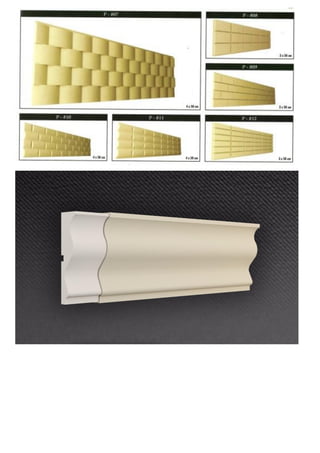

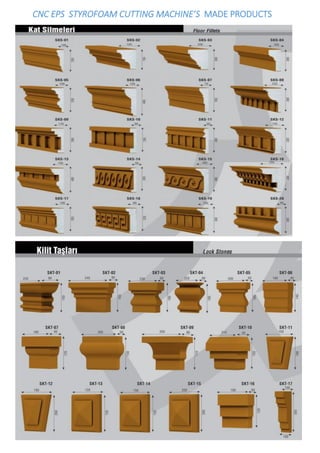

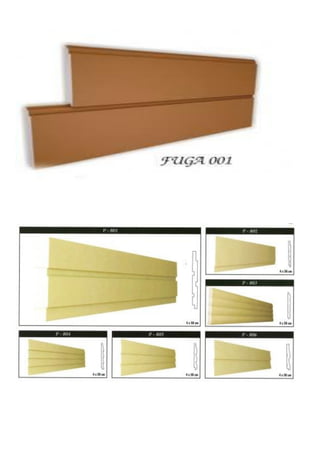

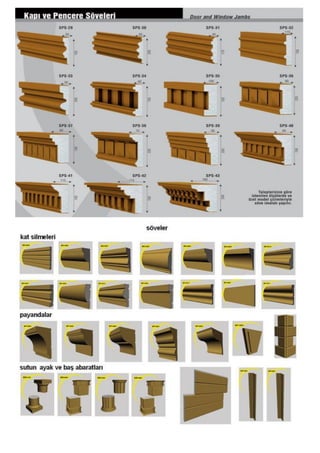

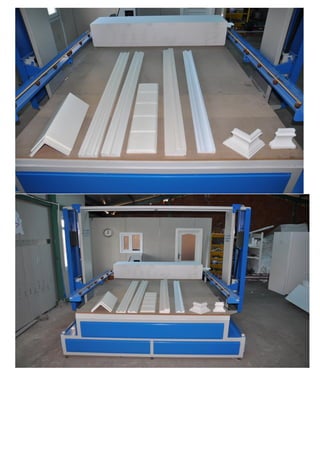

5. CNC EPS STYROFOAM CUTTING MACHINE’S MADE PRODUCTS
