The AIR-CAP2702I-I-K9 is an 802.11ac wireless access point that provides 3x4 MIMO with three spatial streams for greater coverage and capacity. It has internal antennas and operates in the 2.4GHz and 5GHz bands with a maximum throughput of 1.3Gbps. The access point requires a wireless controller, has Gigabit Ethernet ports, uses PoE+ for power, and comes with a limited lifetime warranty.

1. AIR-CAP2702I-I-K9 Datasheet
Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment
Online In China At Low Price! www.hi-network.com
Overview
Based on the Cisco Aironet heritage of RF excellence, the 2700 Series utilizes a Purpose-built innovative chipset to provide a high-density experience for enterprise
network. 3 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing
access points. AIR-CAP2702I-I-K9 is one of the 2700 series AP, needing wireless controller, providing internal antenna and I regulatory domain.
Quick Specification
Table 1 shows the quick specification of AIR-CAP2702I-I-K9.
Model AIR-CAP2702I-I-K9
Description 802.11ac CAP w/CleanAir; 3x4:3SS; Int Ant; I Reg Domain
Frequency band and 20-MHz
operating channels
I (I regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
Antenna Internal Antenna
802.11ac Wave 1 capabilities
● 3x4 MIMO with three spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, and 80-MHz channels
● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 DFS
● CSD support
Interfaces
● 2x10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
System memory
● 512 MB DRAM
● 64 MB flash
Dimensions (W x L x H) ● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight ● 2.2 lb (1.0 kg)

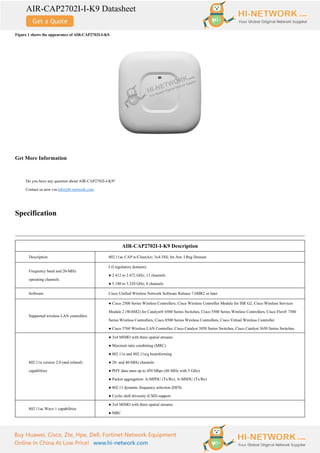

2. AIR-CAP2702I-I-K9 Datasheet
Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment
Online In China At Low Price! www.hi-network.com
Figure 1 shows the appearance of AIR-CAP2702I-I-K9.
Get More Information
Do you have any question about AIR-CAP2702I-I-K9?
Contact us now via info@hi-network.com.
Specification
AIR-CAP2702I-I-K9 Description
Description 802.11ac CAP w/CleanAir; 3x4:3SS; Int Ant; I Reg Domain
Frequency band and 20-MHz
operating channels
I (I regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
Software Cisco Unified Wireless Network Software Release 7.6MR2 or later
Supported wireless LAN controllers
● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services
Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500
Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
802.11n version 2.0 (and related)
capabilities
● 3x4 MIMO with three spatial streams
● Maximal ratio combining (MRC)
● 802.11n and 802.11a/g beamforming
● 20- and 40-MHz channels
● PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 dynamic frequency selection (DFS)
● Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities
● 3x4 MIMO with three spatial streams
● MRC

3. AIR-CAP2702I-I-K9 Datasheet
Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment
Online In China At Low Price! www.hi-network.com
● 802.11ac beamforming
● 20-, 40-, and 80-MHz channels
● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 DFS
● CSD support
Integrated antenna
● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
External antenna (sold separately)
● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
● Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment
scenarios
Interfaces
● 2x10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
Indicators ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) ● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight ● 2.2 lb (1.0 kg)
Environmental
● Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: 32° to 104°F (0° to 40°C)
● Operating humidity: 10% to 90% percent (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.
System memory
● 512 MB DRAM
● 64 MB flash
Input power requirements
● AP2700: 44 to 57 VDC
● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw
● AP2700: 15W
Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing
equipment will be higher by some amount dependent on the length of the interconnecting cable.
Powering options
● 802.3at PoE+
● Enhanced PoE
● Cisco AP2700 power injectors (AIR-PWRINJ4=)
● Cisco AP2700 local power supply (AIR-PWR-C= or AIR-PWR-D=)
Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under
PoE.
Warranty Limited lifetime hardware warranty
