The AIR-CAP2702E-I-K9 is an 802.11ac wireless access point that provides 3x4 MIMO with three spatial streams for greater coverage and capacity. It supports data rates up to 1.3 Gbps and utilizes external antennas. The access point has two Ethernet ports, a console port, and requires a wireless controller for management. It has dimensions of 8.69 x 8.69 x 1.99 inches and can be powered via 802.3at PoE+ or an external power supply.

1. AIR-CAP2702E-I-K9 Datasheet
Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment
Online In China At Low Price! www.hi-network.com
Overview
Based on the Cisco Aironet heritage of RF excellence, the 2700 Series utilizes a Purpose-built innovative chipset to provide a high-density experience for enterprise
network. 3 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing
access points. AIR-CAP2702E-I-K9 is one of the 2700 series AP, needing wireless controller, providing external antenna and I regulatory domain.
Quick Specification
Table 1 shows the quick specification of AIR-CAP2702E-I-K9.
Model AIR-CAP2702E-I-K9
Description 802.11ac CAP w/CleanAir; 3x4:3SS; Ext Ant; I Reg Domain
Frequency band and 20-MHz
operating channels
I (I regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
Antenna External Antenna
802.11ac Wave 1 capabilities
● 3x4 MIMO with three spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, and 80-MHz channels
● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 DFS
● CSD support
Interfaces
● 2x10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
System memory
● 512 MB DRAM
● 64 MB flash
Dimensions (W x L x H) ● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight ● 2.2 lb (1.0 kg)

2. AIR-CAP2702E-I-K9 Datasheet
Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment
Online In China At Low Price! www.hi-network.com

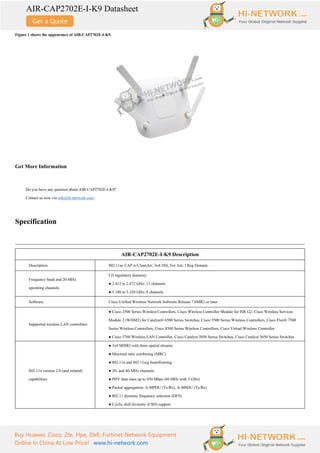

Figure 1 shows the appearance of AIR-CAP2702E-I-K9.
Get More Information
Do you have any question about AIR-CAP2702E-I-K9?
Contact us now via info@hi-network.com.
Specification
AIR-CAP2702E-I-K9 Description
Description 802.11ac CAP w/CleanAir; 3x4:3SS; Ext Ant; I Reg Domain
Frequency band and 20-MHz
operating channels
I (I regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
Software Cisco Unified Wireless Network Software Release 7.6MR2 or later
Supported wireless LAN controllers
● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services
Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500
Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
802.11n version 2.0 (and related)
capabilities
● 3x4 MIMO with three spatial streams
● Maximal ratio combining (MRC)
● 802.11n and 802.11a/g beamforming
● 20- and 40-MHz channels
● PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 dynamic frequency selection (DFS)
● Cyclic shift diversity (CSD) support

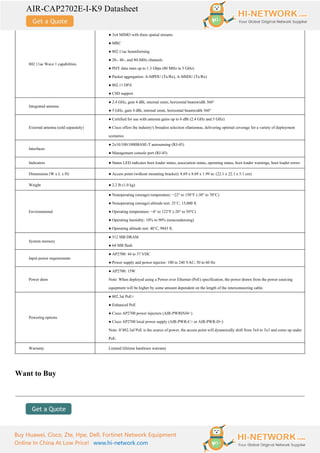

3. AIR-CAP2702E-I-K9 Datasheet
Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment
Online In China At Low Price! www.hi-network.com
802.11ac Wave 1 capabilities
● 3x4 MIMO with three spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, and 80-MHz channels
● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 DFS
● CSD support
Integrated antenna
● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
External antenna (sold separately)
● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
● Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment
scenarios
Interfaces
● 2x10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
Indicators ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) ● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight ● 2.2 lb (1.0 kg)
Environmental
● Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: −4° to 122°F (-20° to 50°C)
● Operating humidity: 10% to 90% (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.
System memory
● 512 MB DRAM
● 64 MB flash
Input power requirements
● AP2700: 44 to 57 VDC
● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw
● AP2700: 15W
Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing
equipment will be higher by some amount dependent on the length of the interconnecting cable.
Powering options
● 802.3at PoE+
● Enhanced PoE
● Cisco AP2700 power injectors (AIR-PWRINJ4=)
● Cisco AP2700 local power supply (AIR-PWR-C= or AIR-PWR-D=)
Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under
PoE.
Warranty Limited lifetime hardware warranty
Want to Buy

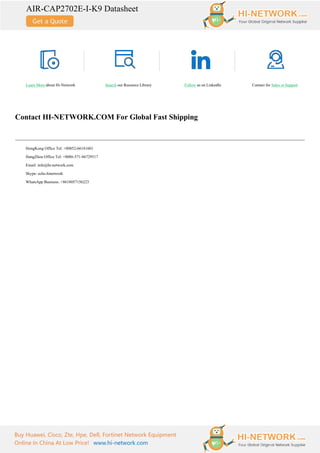

4. AIR-CAP2702E-I-K9 Datasheet
