1. CI/CD with GitHub, Travis CI,
SonarCloud and Docker Hub
How to include CICD into your GitHub project
This work is licensed under the Creative Commons Attribution Non Commercial Share Alike 3.0 License. To view a copy of this license, visit
https://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 171 Second Street, Suite 300, San Francisco,
California, 94105, USA.

2. Hands-on
Preparation
,

3. Requisites
GITHUB
 Docker Hub account
TRAVIS
 Access to Travis with your GitHub account
DOCKER
 GitHub account
CODECOV
 Access to CodeCov with your GitHub account (optional)
SONARCLOUD
 Access to SonarCloud with your GitHub account

4. Requisites

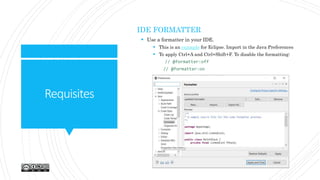

IDE FORMATTER
 Use a formatter in your IDE.
 This is an example for Eclipse. Import in the Java Preferences
 To apply Ctrl+A and Ctrl+Shift+F. To disable the formatting:
// @formatter:off
// @formatter:on

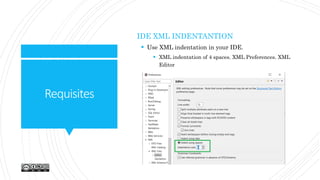

5. Requisites
IDE XML INDENTANTION
 Use XML indentation in your IDE.
 XML indentation of 4 spaces. XML Preferences. XML
Editor

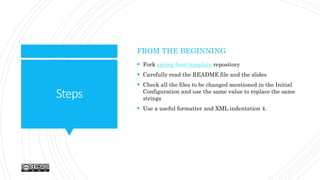

6. Steps
FROM THE BEGINNING
 Fork spring-boot-template repository
 Carefully read the README file and the slides
 Check all the files to be changed mentioned in the Initial
Configuration and use the same value to replace the same
strings
 Use a useful formatter and XML indentation 4.

7. Initial Configuration
Variables to configure

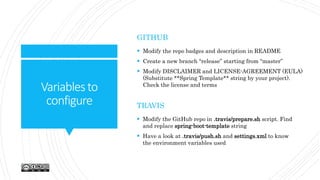

8. Variablesto
configure
GITHUB
 Modify the repo badges and description in README
 Create a new branch “release” starting from “master”
 Modify DISCLAIMER and LICENSE-AGREEMENT (EULA)
(Substitute **Spring Template** string by your project).
Check the license and terms
TRAVIS
 Modify the GitHub repo in .travis/prepare.sh script. Find
and replace spring-boot-template string
 Have a look at .travis/push.sh and settings.xml to know
the environment variables used

9. Variablesto
configure
POM (BEFORE IMPORTING IN THE IDE)
 Find and replace spring-boot-template string
 SCM section. Include the proper GitHub repo
 ArtifactId and version (if applicable)
 Name, description and final name
CHANGELOG
 Add the proper title and description of the repo
CHANGELOG.md and changelog.mustache
 Modify the GitHub Api in changelog.json file. Find and
replace spring-boot-template string
DOCKER
 Find and replace spring-boot-template string

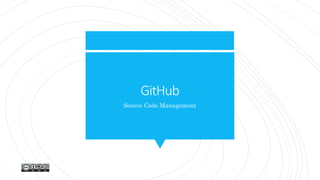

10. GitHub
Source Code Management

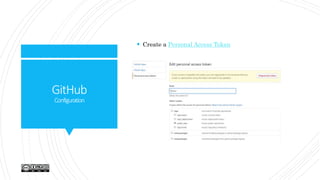

11. GitHub
Configuration
 Create a Personal Access Token

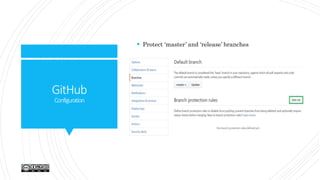

12. GitHub
Configuration
 Protect ‘master’ and ‘release’ branches

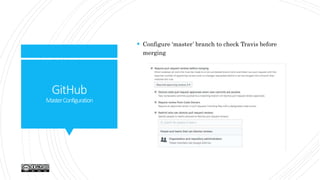

13. GitHub
MasterConfiguration
 Configure ‘master’ branch to check Travis before
merging

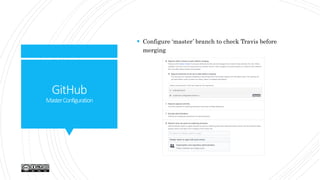

14. GitHub
MasterConfiguration
 Configure ‘master’ branch to check Travis before
merging

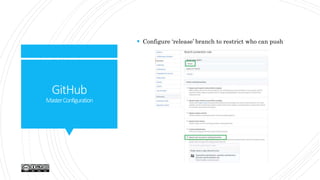

15. GitHub
MasterConfiguration
 Configure ‘release’ branch to restrict who can push

16. Travis CI
Automation Server

17. TravisCI
Whatis
 Travis CI is an automation server freely available for
open source projects with a couple of clicks and small
file configuration (.travis.yml).

18. TravisCI
.travis.yml
 Travis CI runs the CI (clean, test, package and sonar goals) when we merge features into master
and runs the CD (release) when push to release.
 A complete .travis.yml example is here:
language: java
sudo: false # faster builds
cache:
directories:
- $HOME/.m2
env:
global:
- secure: “
addons:
sonarcloud:
organization: "arihealth“
token:
secure: xxxx=
script:
- if [ "$TRAVIS_PULL_REQUEST" = "true" ]; then mvn clean test; mvn package -
Dmaven.test.skip=true; mvn sonar:sonar; fi
- if [ "$TRAVIS_BRANCH" = "master" ]; then mvn clean test; mvn sonar:sonar; fi
- if [ "$TRAVIS_BRANCH" = "release" ]; then chmod +x .travis/prepare.sh &&
.travis/prepare.sh; mvn -s .travis/settings.xml -B release:clean release:prepare; git
push --tags; mvn -s .travis/settings.xml -B release:perform; chmod +x .travis/push.sh &&
.travis/push.sh; fi

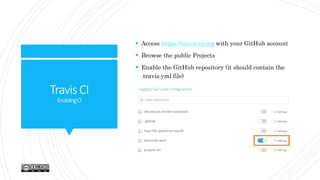

19. TravisCI
EnablingCI
 Access https://travis-ci.org with your GitHub account
 Browse the public Projects
 Enable the GitHub repository (it should contain the
.travis.yml file)

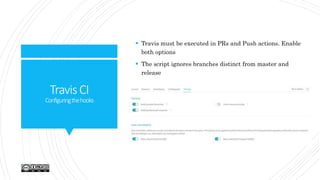

20. TravisCI
Configuringthehooks
 Travis must be executed in PRs and Push actions. Enable
both options
 The script ignores branches distinct from master and
release

21. TravisCI
Environmentvariables
 Travis CI has an elegant way to configure secrets using
environment variable
 Add the environment variables. They are used inside
the maven settings.xml and prepare.sh included in
folder .travis. Have a look at them.

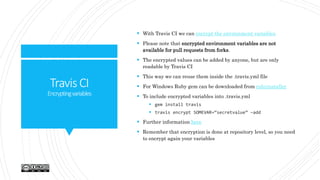

22. TravisCI
Encryptingvariables
 With Travis CI we can encrypt the environment variables
 Please note that encrypted environment variables are not
available for pull requests from forks.
 The encrypted values can be added by anyone, but are only
readable by Travis CI
 This way we can reuse them inside the .travis.yml file
 For Windows Ruby gem can be downloaded from rubyinstaller
 To include encrypted variables into .travis.yml
 gem install travis
 travis encrypt SOMEVAR=“secretvalue” –add
 Further information here
 Remember that encryption is done at repository level, so you need
to encrypt again your variables

23. CodeCov
Code Coverage

24. CodeCov
 Open source code test coverage
 Access https://codecov.io/ using your GitHub credentials
 No need to enable the GitHub repo as Travis CI, but
Jacoco (or similar enabled)
 Add the following snippet to your .travis.yml
after_success:
- bash <(curl -s https://codecov.io/bash)

25. SonarCloud
Quality Analysis

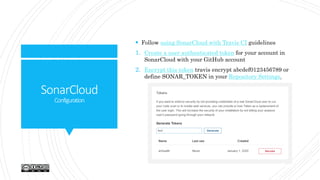

26. SonarCloud
Configuration
 Follow using SonarCloud with Travis CI guidelines
1. Create a user authenticated token for your account in
SonarCloud with your GitHub account
2. Encrypt this token travis encrypt abcdef0123456789 or
define SONAR_TOKEN in your Repository Settings.

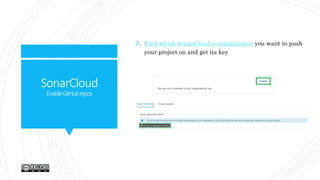

27. SonarCloud
EnableGitHubrepos
3. Find which SonarCloud.io organization you want to push
your project on and get its key

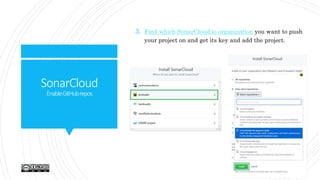

28. SonarCloud
EnableGitHubrepos
3. Find which SonarCloud.io organization you want to push
your project on and get its key and add the project.

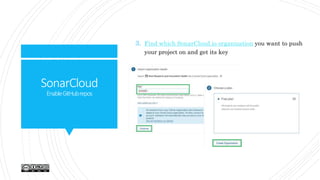

29. SonarCloud
EnableGitHubrepos
3. Find which SonarCloud.io organization you want to push
your project on and get its key

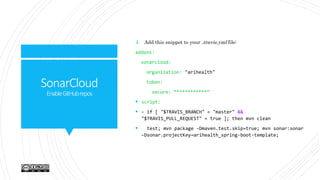

30. SonarCloud
EnableGitHubrepos
4. Add this snippet to your .travis.yml file:
addons:
sonarcloud:
organization: "arihealth"
token:
secure: “***********”
 script:
 - if [ "$TRAVIS_BRANCH" = "master" &&
"$TRAVIS_PULL_REQUEST" = true ]; then mvn clean
 test; mvn package -Dmaven.test.skip=true; mvn sonar:sonar
–Dsonar.projectKey=arihealth_spring-boot-template;

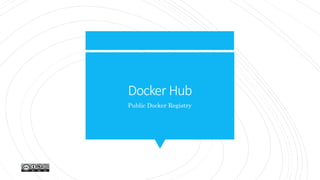

31. Docker Hub
Public Docker Registry

32. DockerHub
Whatis
 Open source repository of Docker images
 You need an account at https://hub.docker.com/
 You can create an organization for your Lab or department
 Allow access permission in your GitHub account

33. DockerHub
Configuration
 Link your GitHub account to Docker at My Profile/Edit
profile, this is needed for the Automatic builds

34. DockerHub

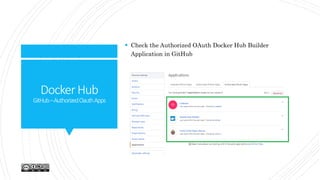

GitHub–AuthorizedOauthApps
 Check the Authorized OAuth Docker Hub Builder
Application in GitHub

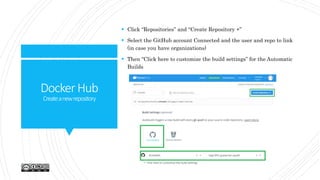

35. DockerHub
Createanewrepository
 Click “Repositories” and “Create Repository +”
 Select the GitHub account Connected and the user and repo to link
(in case you have organizations)
 Then “Click here to customize the build settings” for the Automatic
Builds

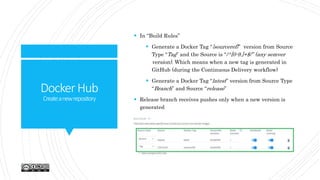

36.  In “Build Rules”
 Generate a Docker Tag “{sourceref}” version from Source
Type “Tag” and the Source is “/^[0-9.]+$/” (any semver
version). Which means when a new tag is generated in
GitHub (during the Continuous Delivery workflow)
 Generate a Docker Tag “latest” version from Source Type
“Branch” and Source “release”
 Release branch receives pushes only when a new version is
generated
DockerHub
Createanewrepository

37.  Automatic Builds can be modified in the “Builds” section of
the image “Configure Automatic Builds” button
DockerHub
Builds

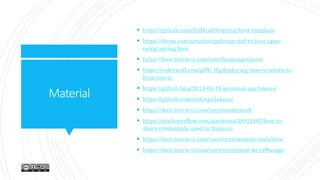

38. Material
 https://github.com/AriHealth/spring-boot-template
 https://dzone.com/articles/applying-cicd-to-java-apps-
using-spring-boot
 https://docs.travis-ci.com/user/languages/java/
 https://coderwall.com/p/9b_lfq/deploying-maven-artifacts-
from-travis
 https://github.blog/2013-05-16-personal-api-tokens/
 https://github.com/settings/tokens/
 https://docs.travis-ci.com/user/sonarcloud/
 https://stackoverflow.com/questions/58821867/how-to-
share-credentials-used-in-travis-ci
 https://docs.travis-ci.com/user/environment-variables/
 https://docs.travis-ci.com/user/encryption-keys/#usage
