The document discusses different types of data link protocols including asynchronous and synchronous protocols as well as character-oriented and bit-oriented protocols. It provides figures illustrating examples of data link protocols such as XMODEM and how frames are structured in simple, multiblock, and multiframe transmissions. Control frames and byte stuffing techniques are also examined.

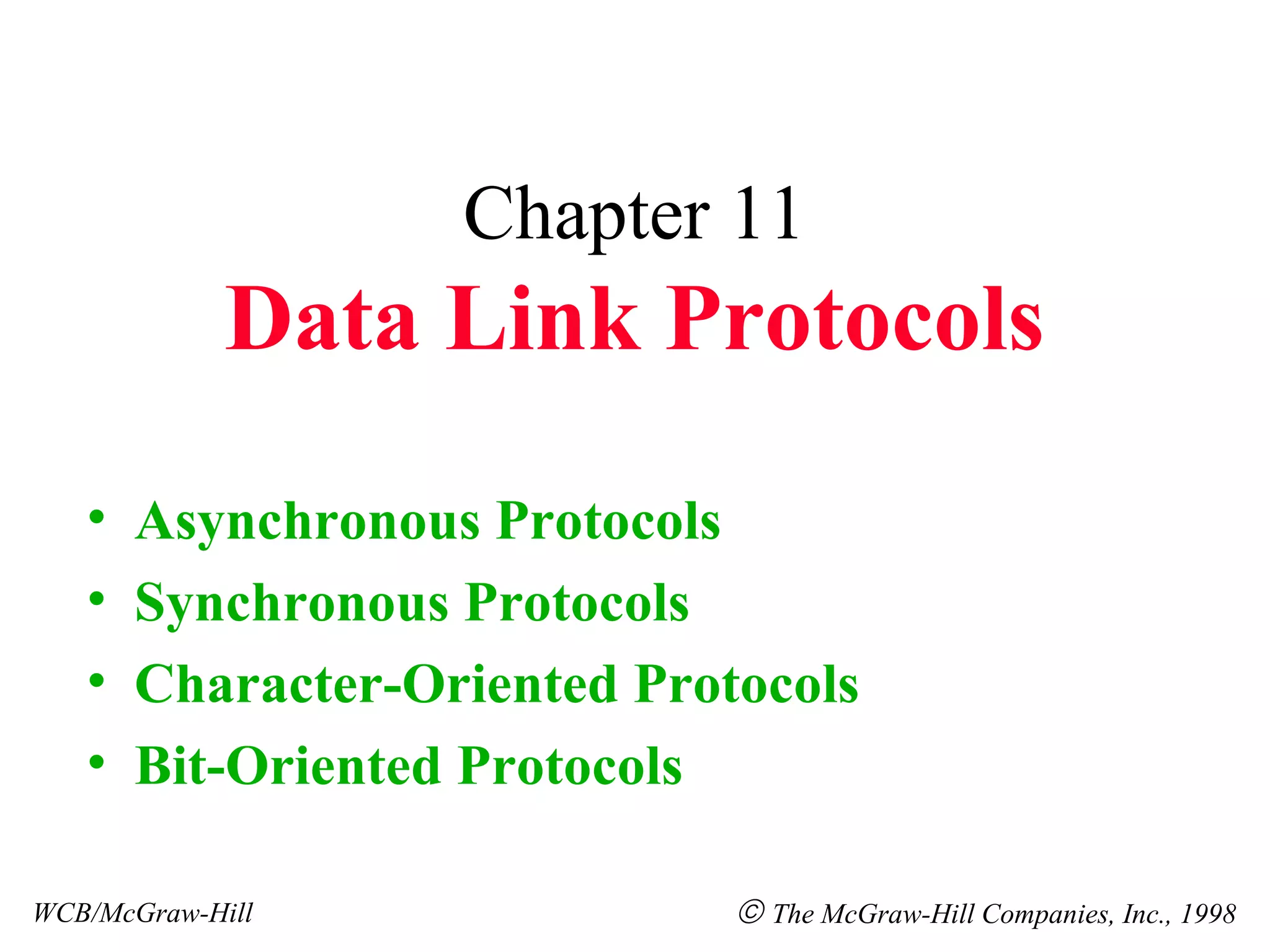

1. Chapter 11 Data Link Protocols Asynchronous Protocols Synchronous Protocols Character-Oriented Protocols Bit-Oriented Protocols WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

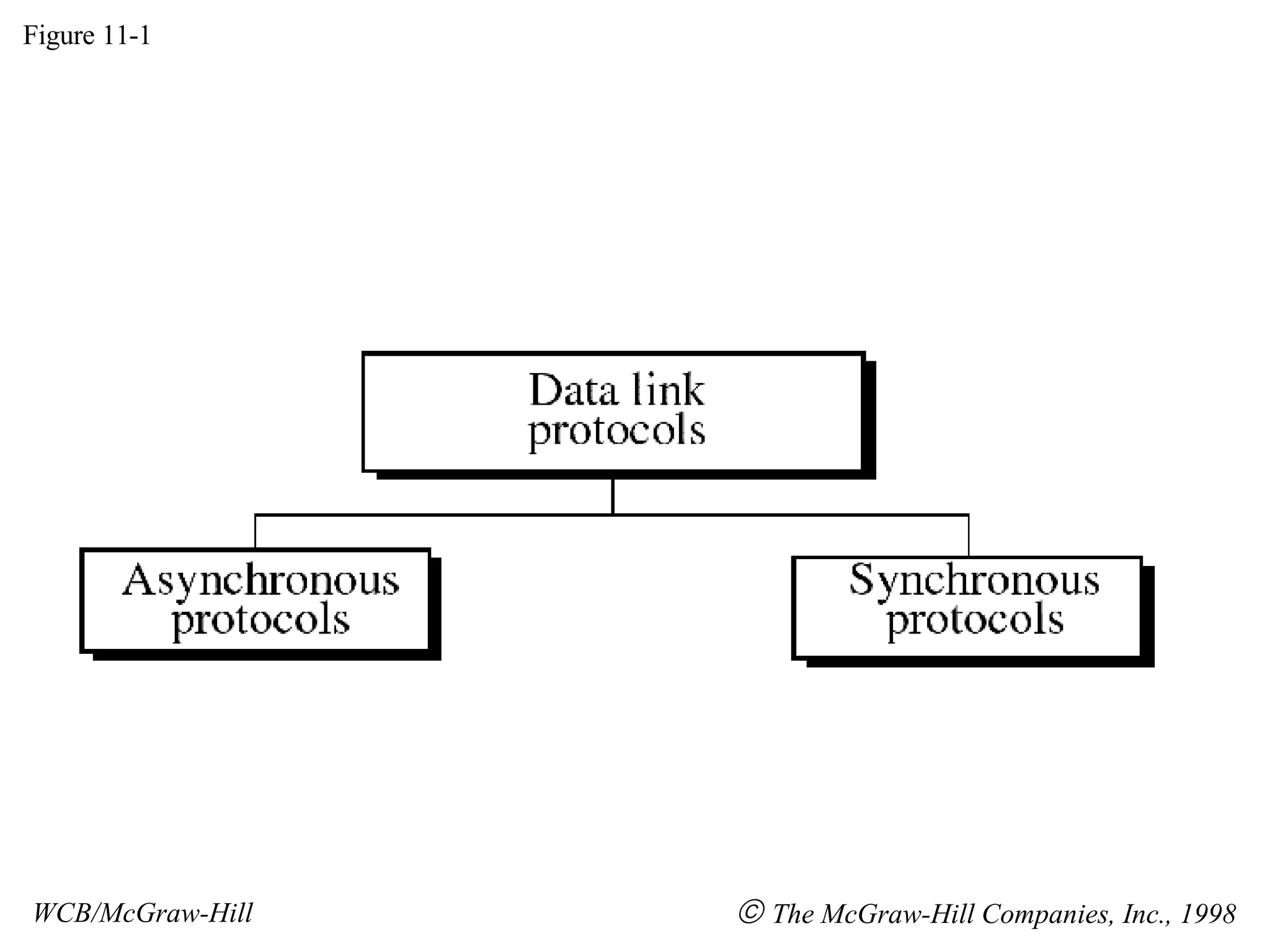

2. Figure 11-1 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

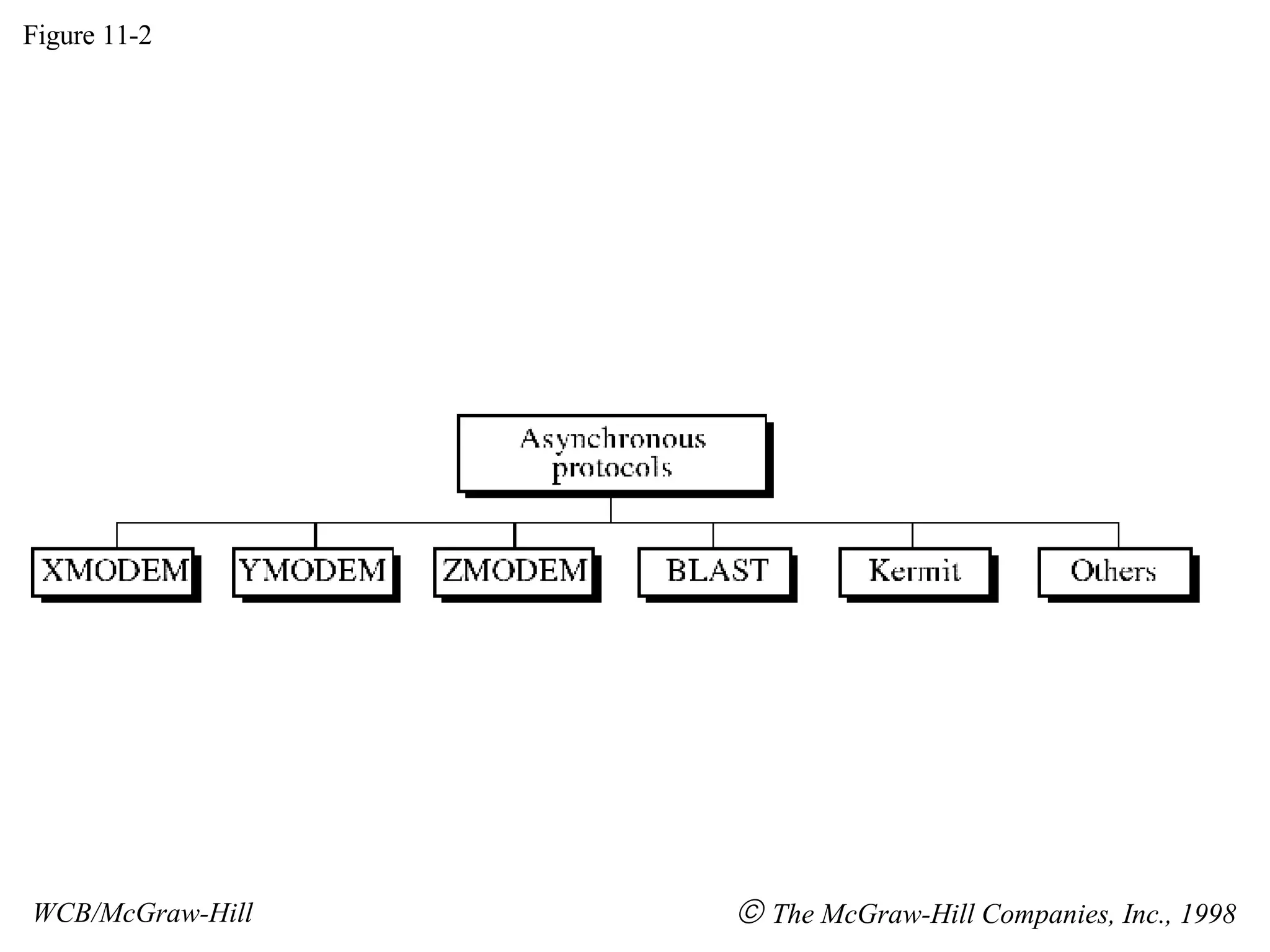

3. Figure 11-2 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

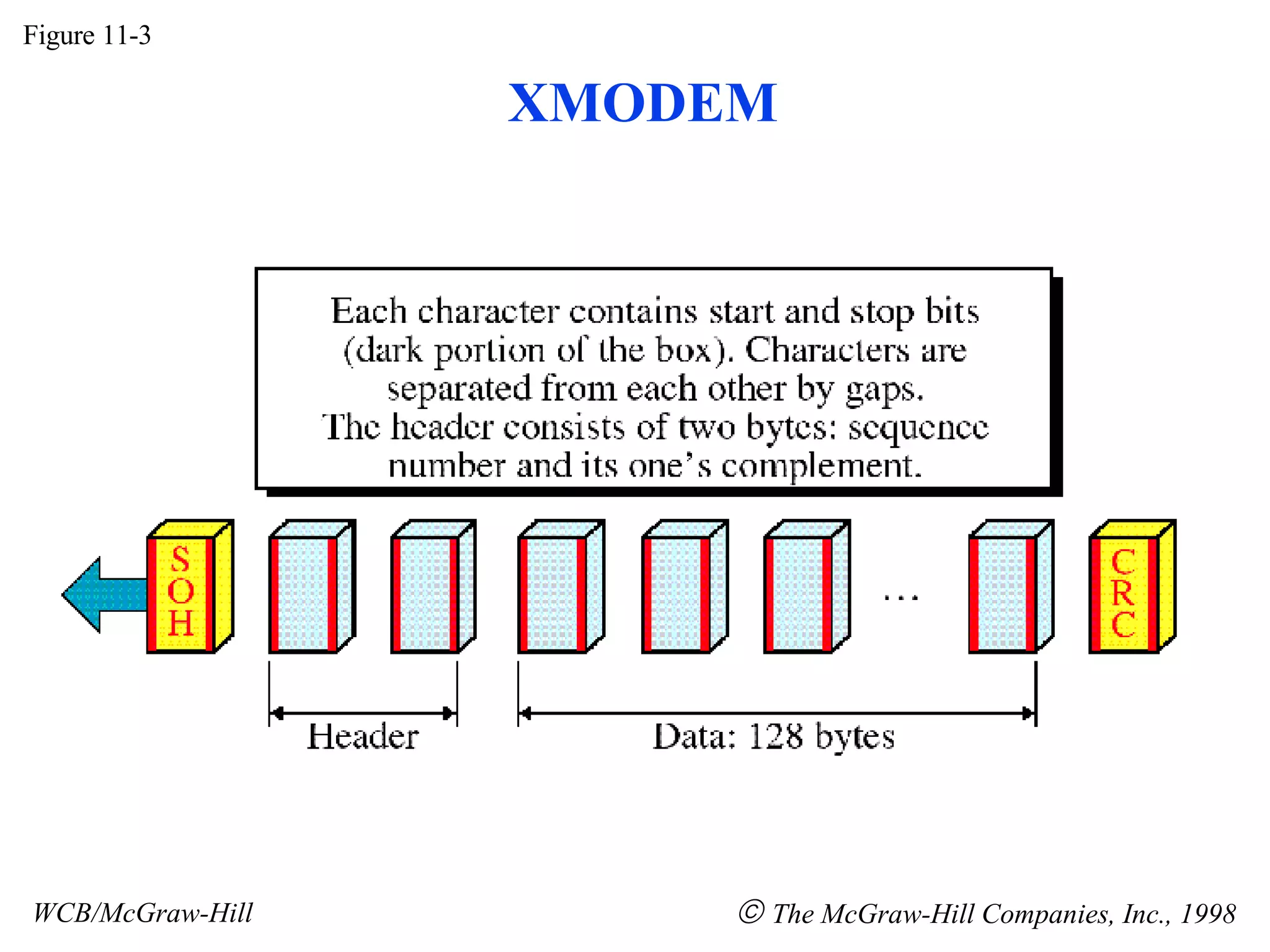

4. XMODEM Figure 11-3 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

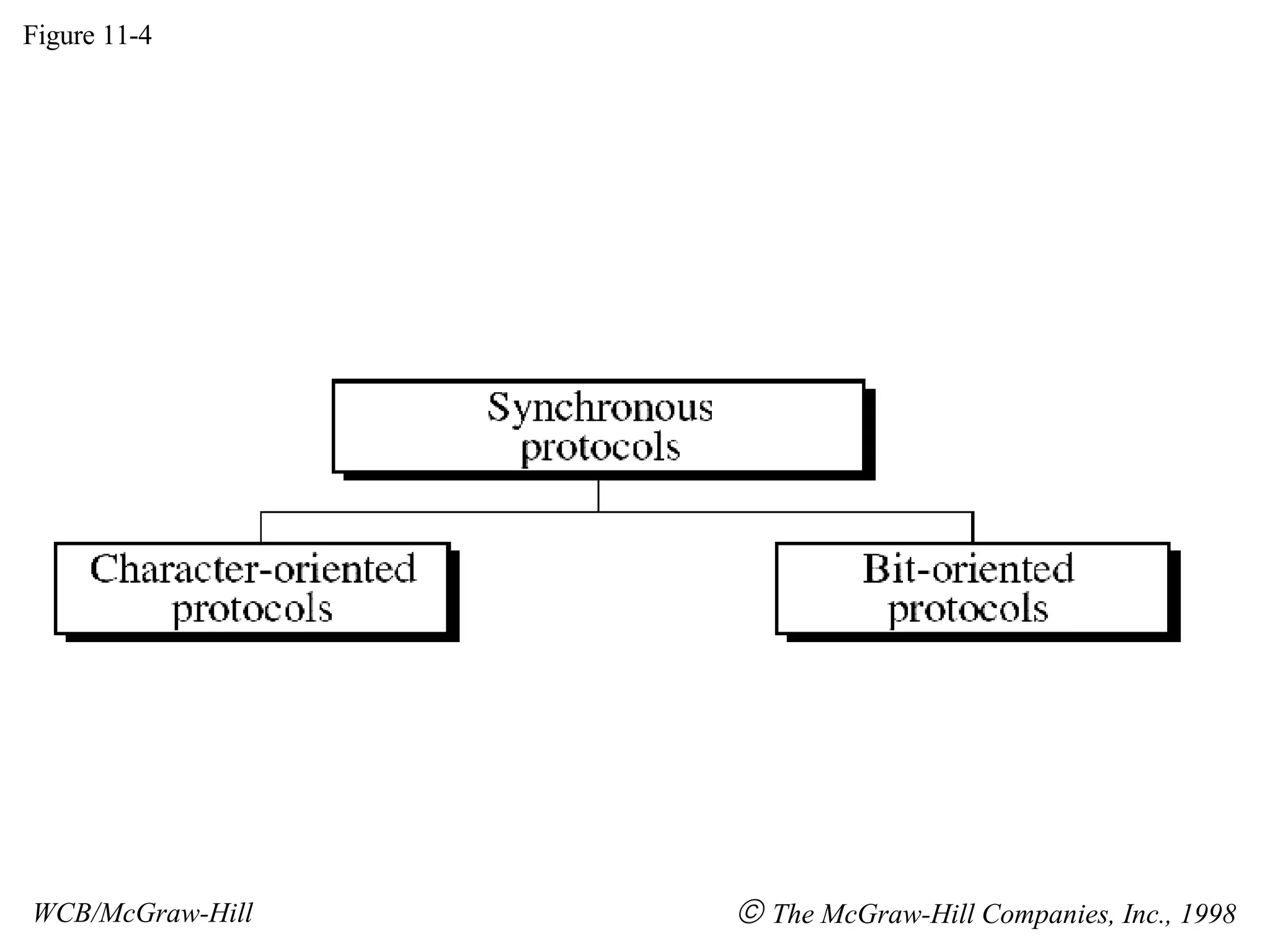

5. Figure 11-4 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

6. Figure 11-5 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

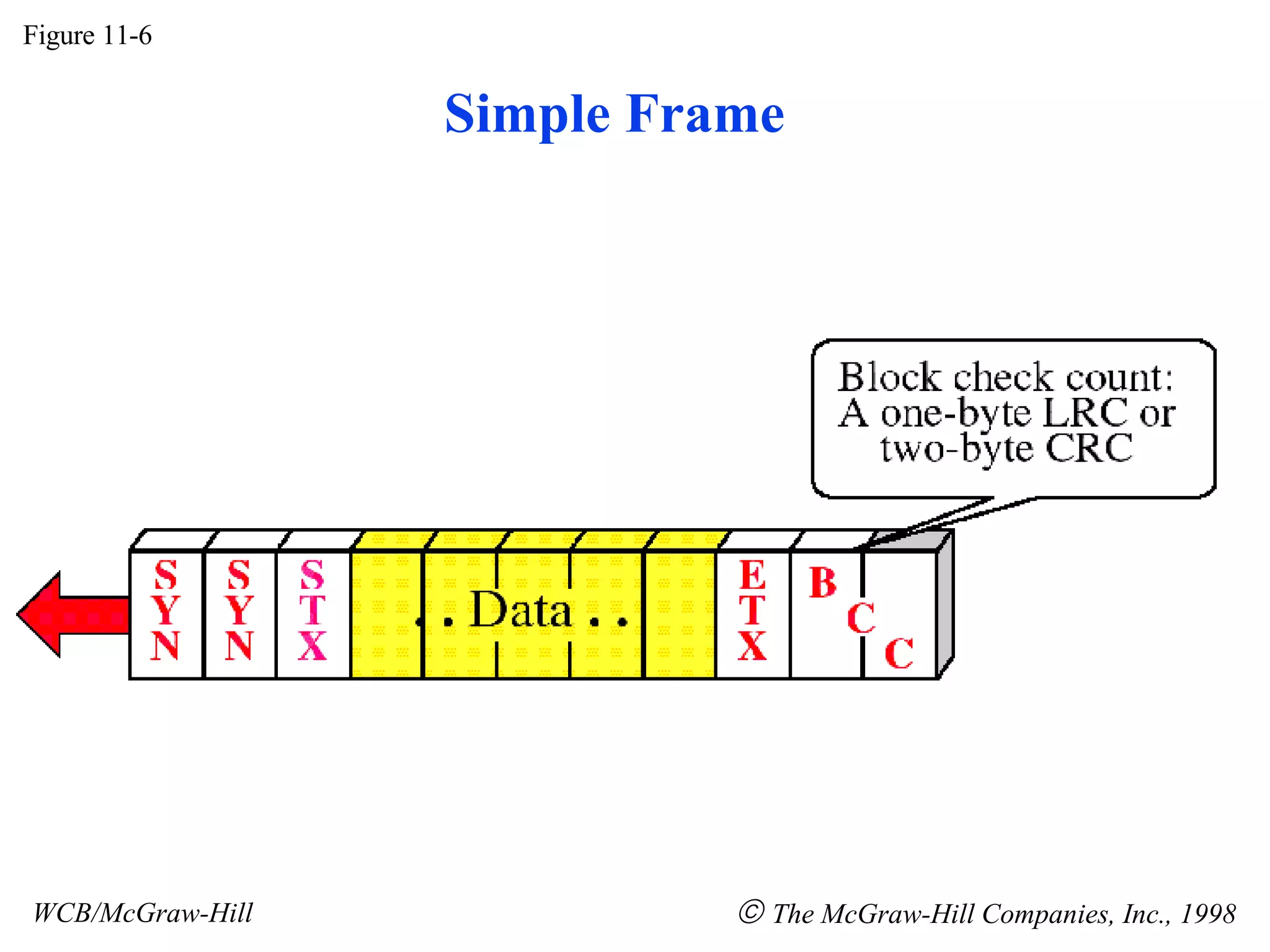

7. Simple Frame Figure 11-6 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

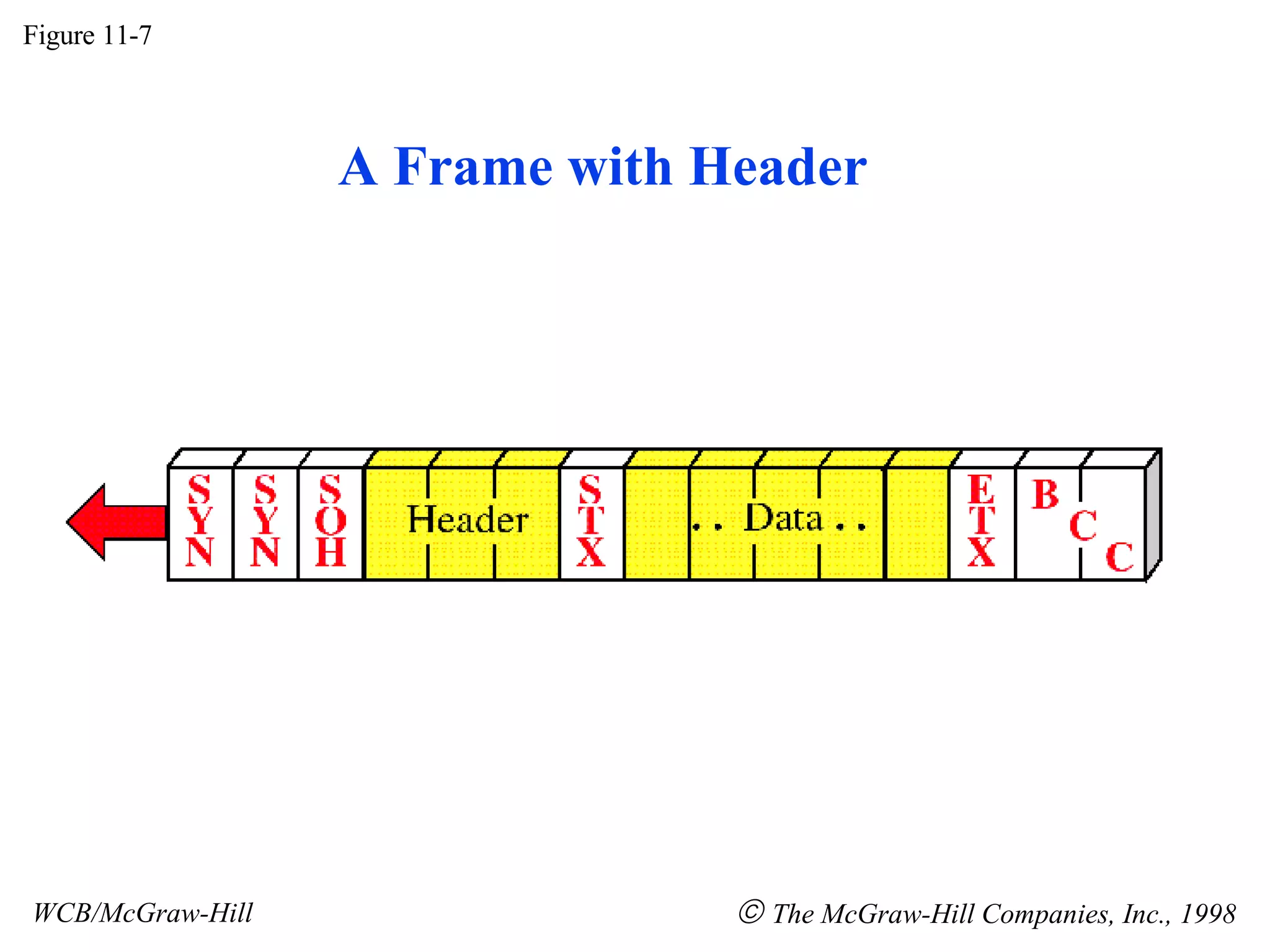

8. A Frame with Header Figure 11-7 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

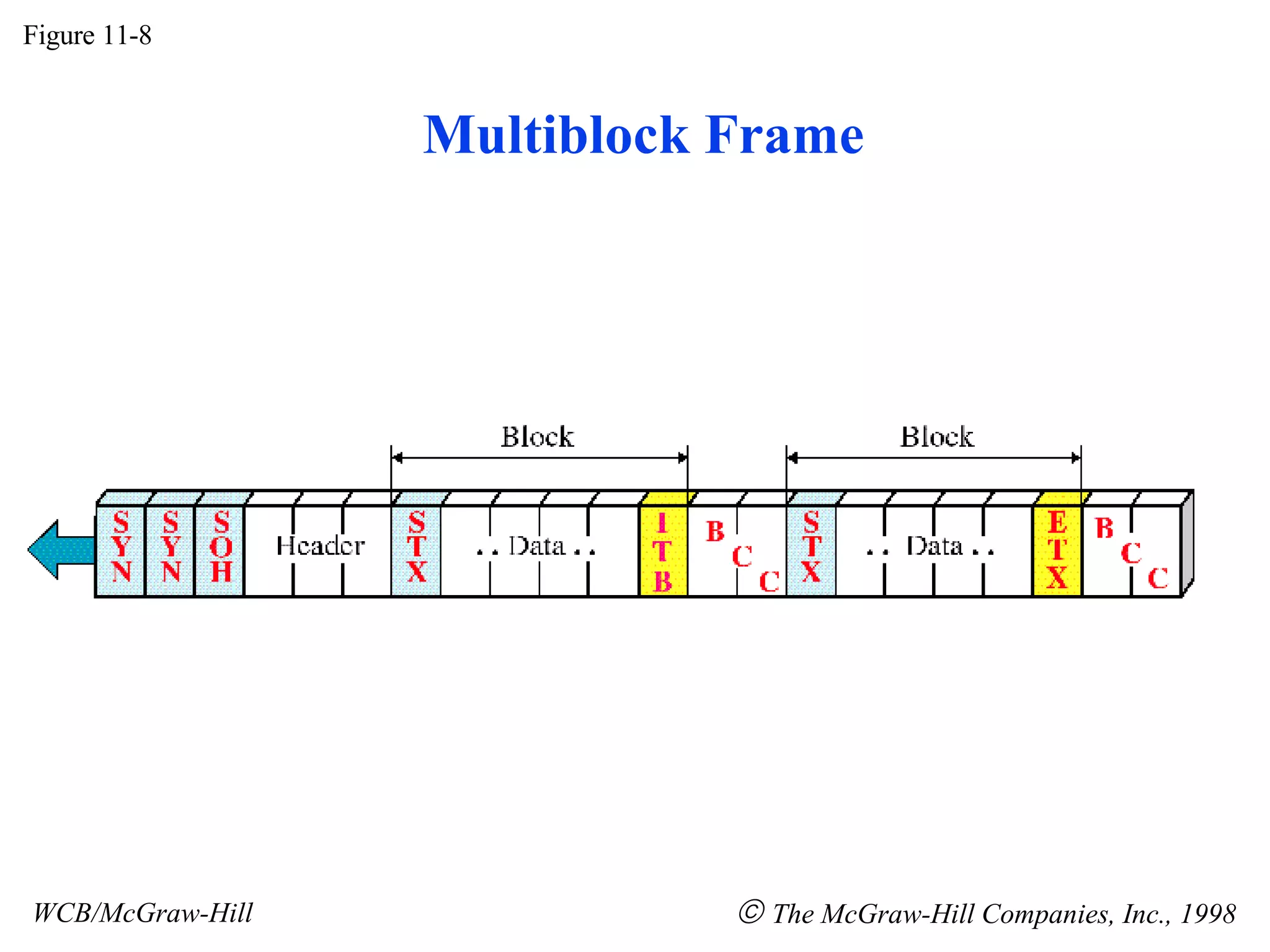

9. Multiblock Frame Figure 11-8 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

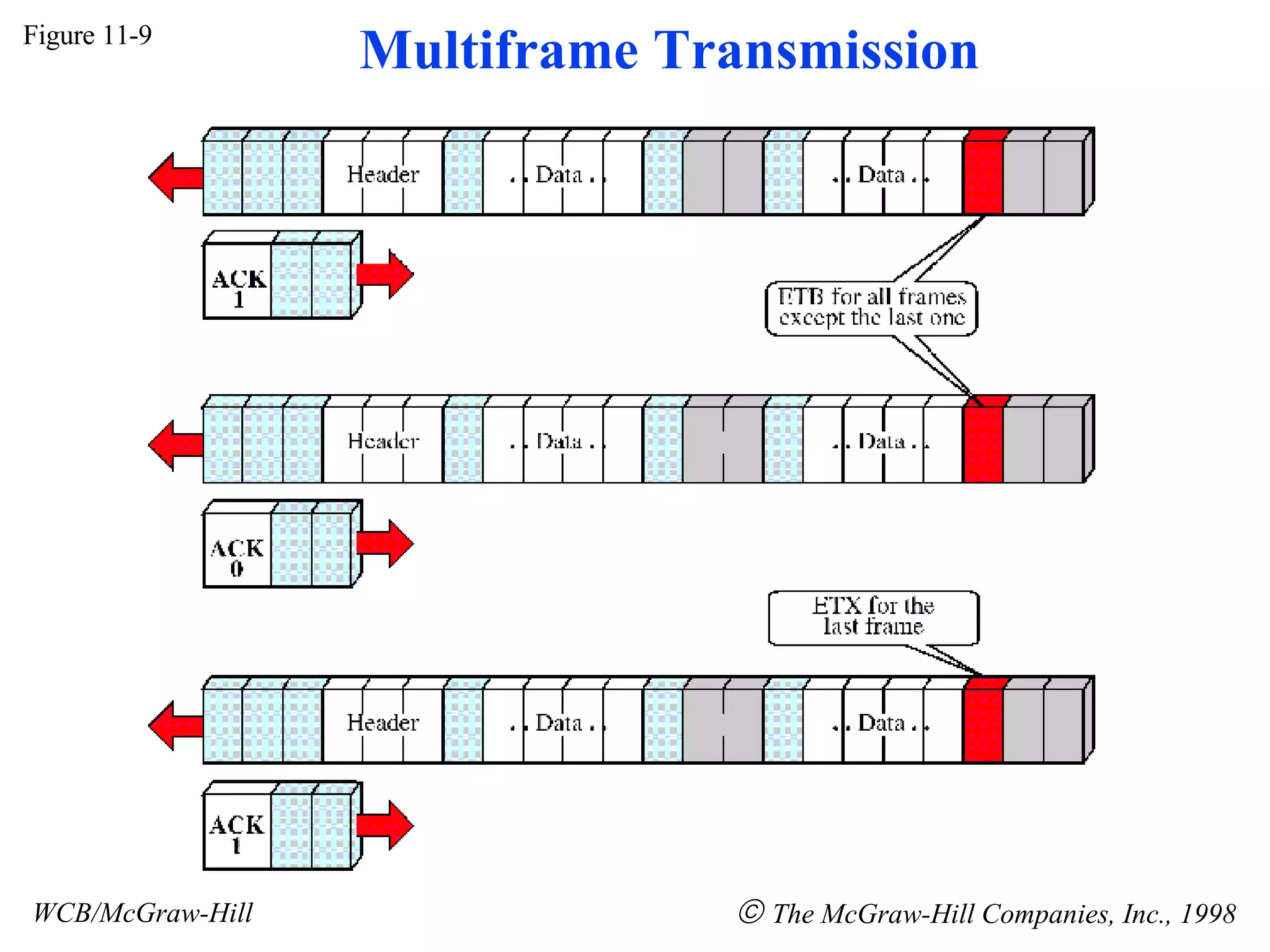

10. Figure 11-9 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998 Multiframe Transmission

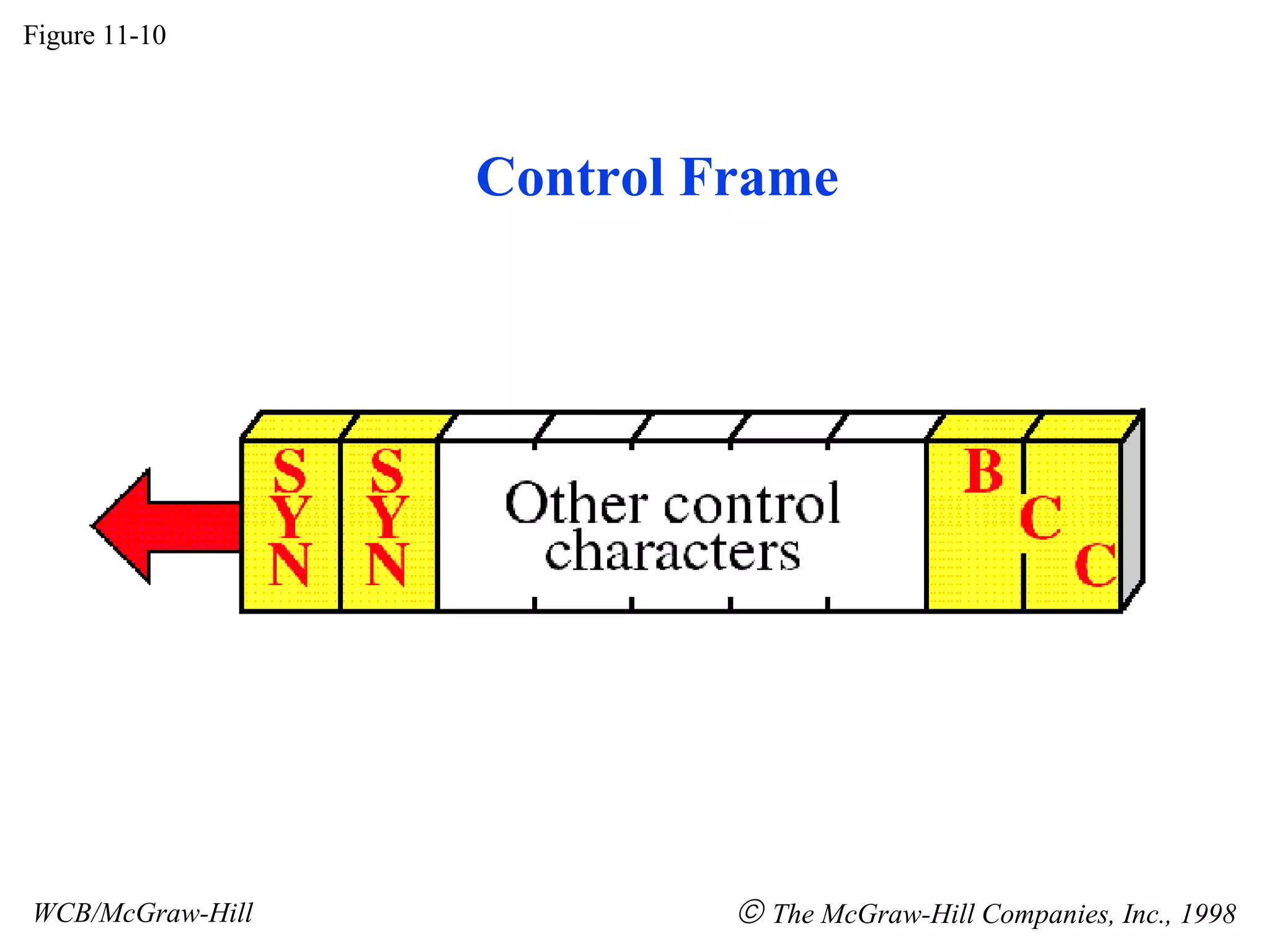

11. Control Frame Figure 11-10 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998

12. Figure 11-11 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998 Control Frames

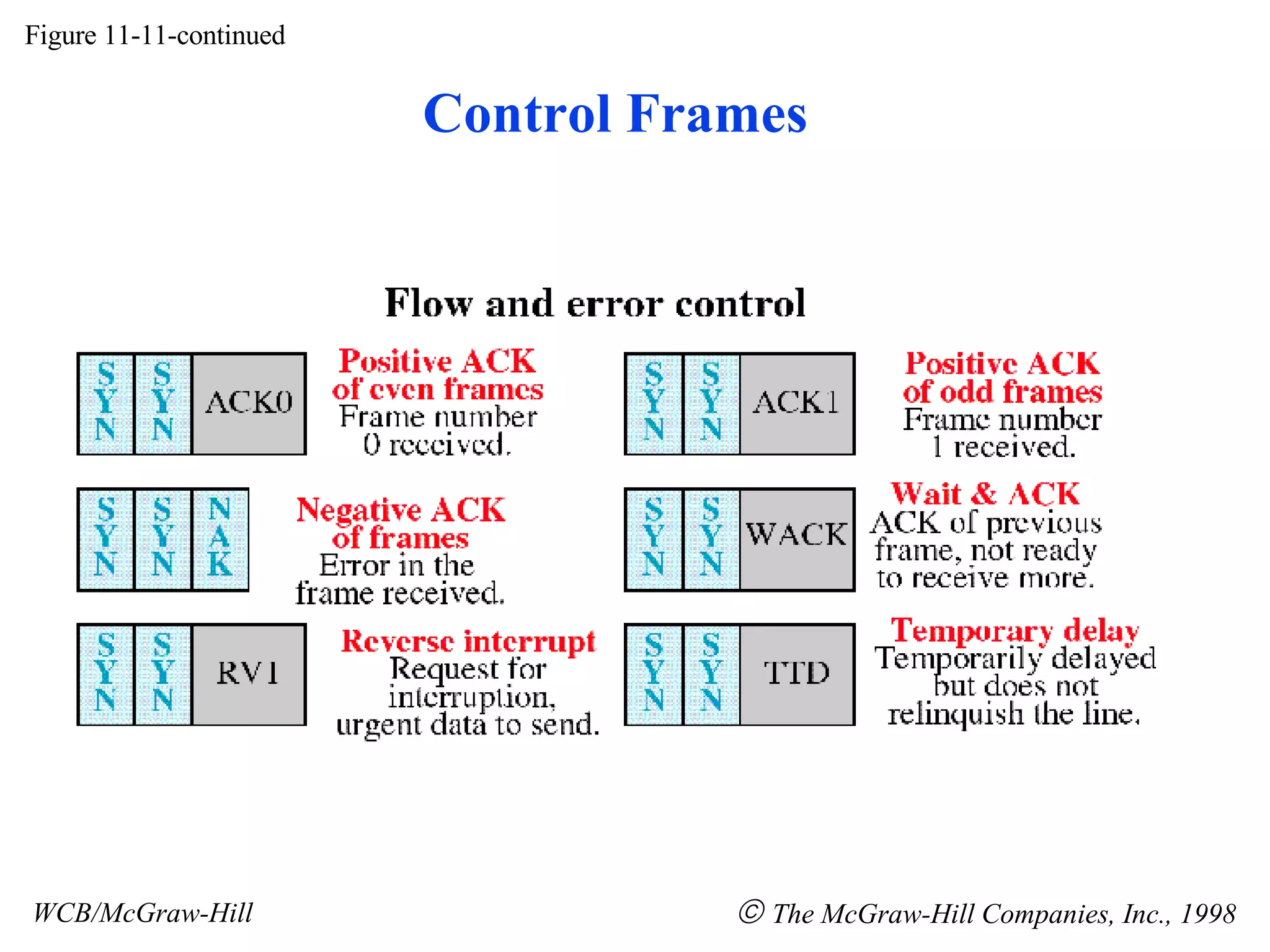

13. Figure 11-11-continued WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998 Control Frames

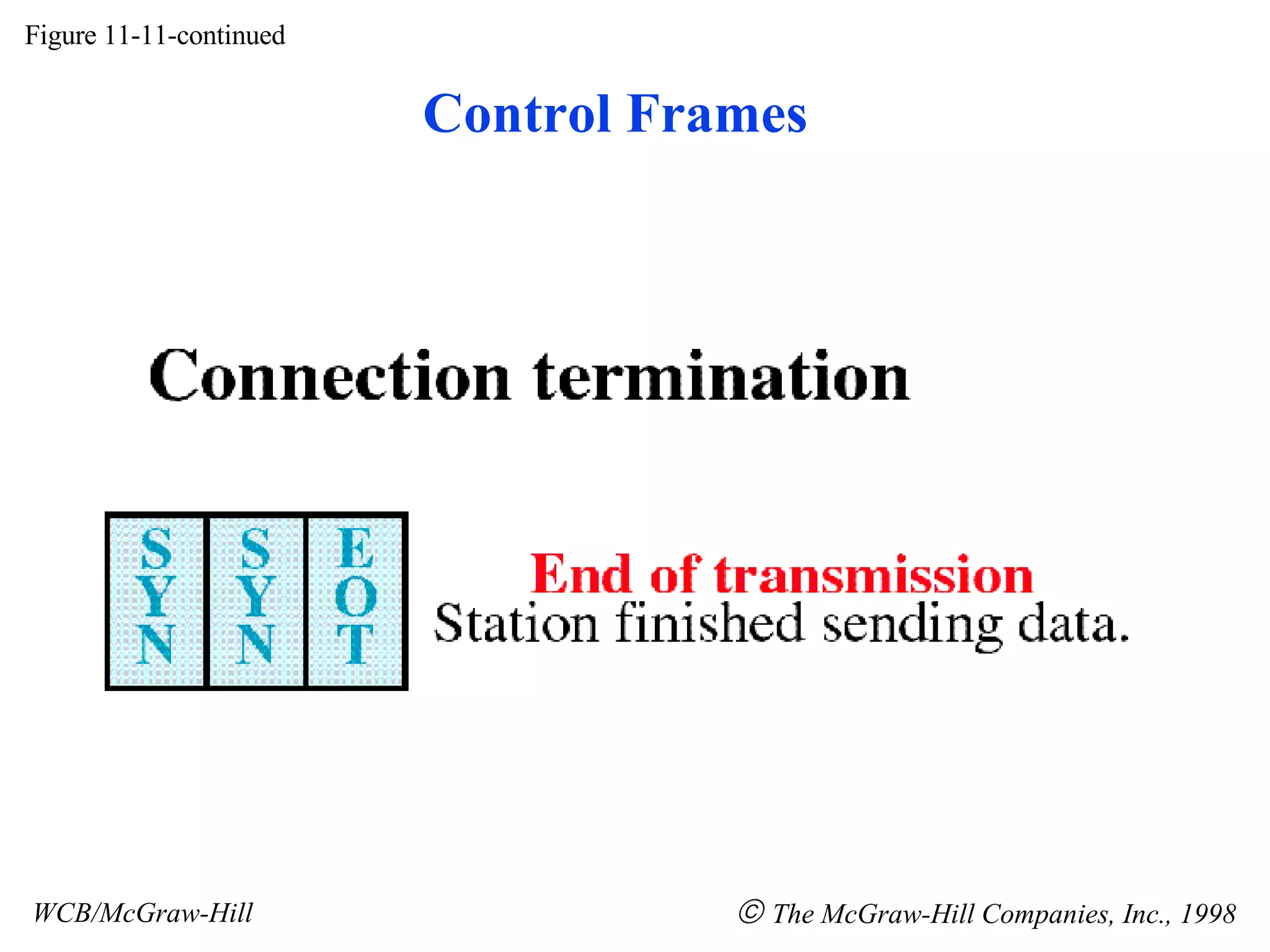

14. Figure 11-11-continued WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998 Control Frames

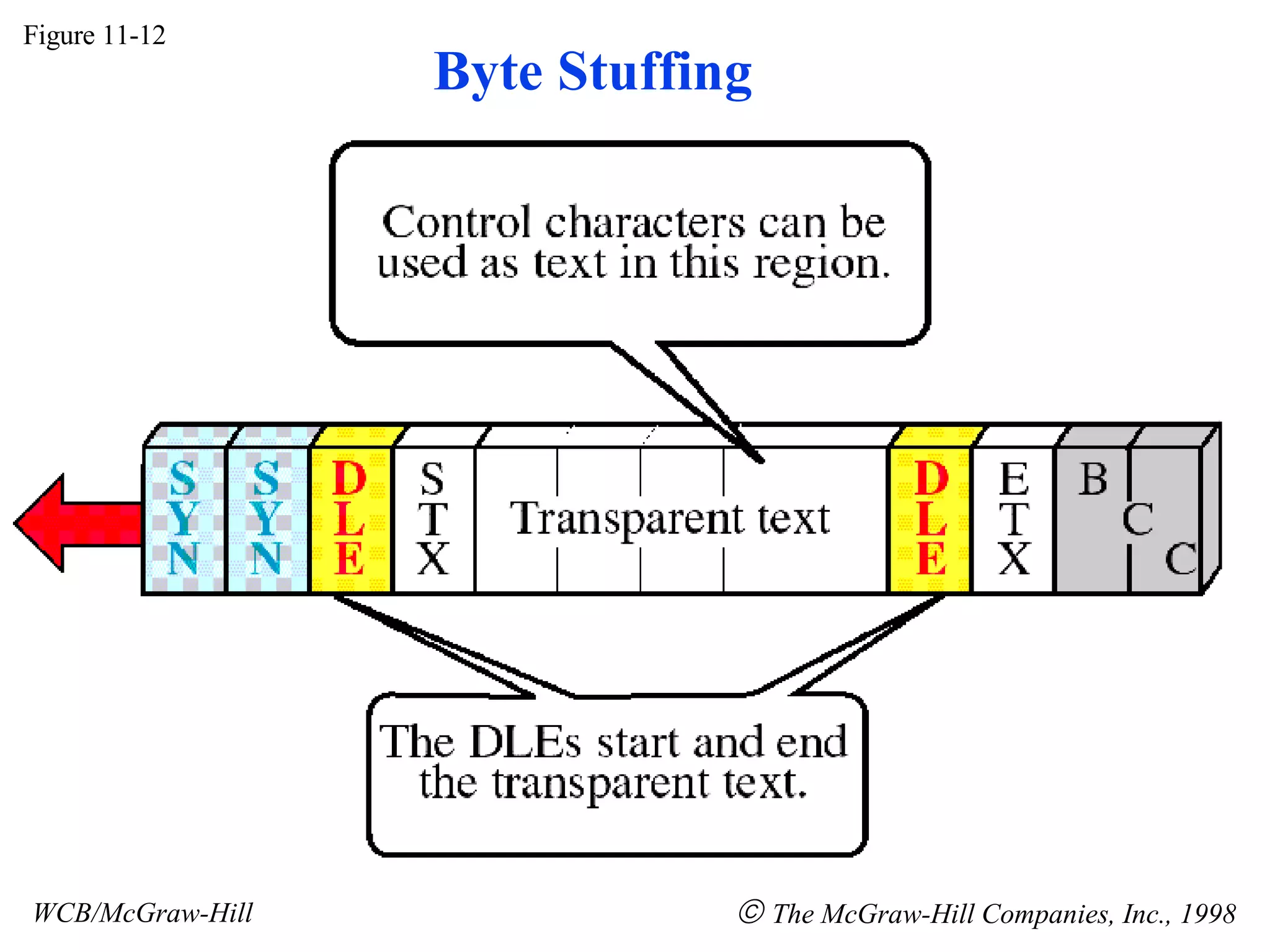

15. Figure 11-12 WCB/McGraw-Hill  The McGraw-Hill Companies, Inc., 1998 Byte Stuffing
