C-Data provides a comprehensive portfolio of fiber access networking solutions including GPON OLTs, EPON OLTs, XGS-PON OLTs, ONUs, HFC solutions, and a cloud management system to meet the needs of residential, enterprise, and campus deployments globally with over 10 subsidiaries worldwide.

1. C-Data FTTx Solution
Shenzhen C-Data Technology Co., Ltd.

2. CONTENTS
C-Data Company
Introduction
01
C-Data HFC
&EOC Solution
03
Thinking and
Plan for Next
04
02
C-Data FTTx Solution
Meets Different Needs

3. Shenzhen C-Data Technology Co., Ltd., established in 2009, is
a globally leading provider of information and communication products and solutions.
With over 10 subsidiaries and divisions worldwide, our company operates in 50+
countries and regions.
We firmly believe that research and development drive innovation, and our products
create value. Committed to realizing our corporate vision of " Connecting the World
with Data Technology," C-Data delivers efficient and convenient products and
services to government-enterprise, household, and individual users.
Globa branch offices
10+
Patent
130+
Global employees
700+
Engineers
150+
About Us

4. Milestone
2021
Established C-Data, focusing
on the development and sales
of EOC and PON products.
Expanded PON products to
overseas markets, marking
C-Data's international
expansion.
Achieved annual product
sales exceeding 100 million
RMB. Became a key player in
the China ODM market.
Implemented SMT line for
independent production of
products. Established Leihua
(NHN) subsidiary, focusing on
the domestic market.
Set up a subsidiary of CERES,
focusing on wireless product lines.
Became the core supplier in
China's radio and television
industry. Established Wuhan R&D
center to strengthen software
development capabilities.
2013
2015
2016
2018
2019
2020 2022
2009
2023
Established OTN
Division/HFC/Switch business
departments, focusing on
WDM/HFC/Switch product
lines.
Upgraded product lines and
solutions, enhancing manufacturing
and marketing services.
C-Data Shanwei Industrial Park
commences operations.
Expanded production scale with
the establishment of Shanwei
production base.
Increased R&D investment,
established the cloud
platform team.

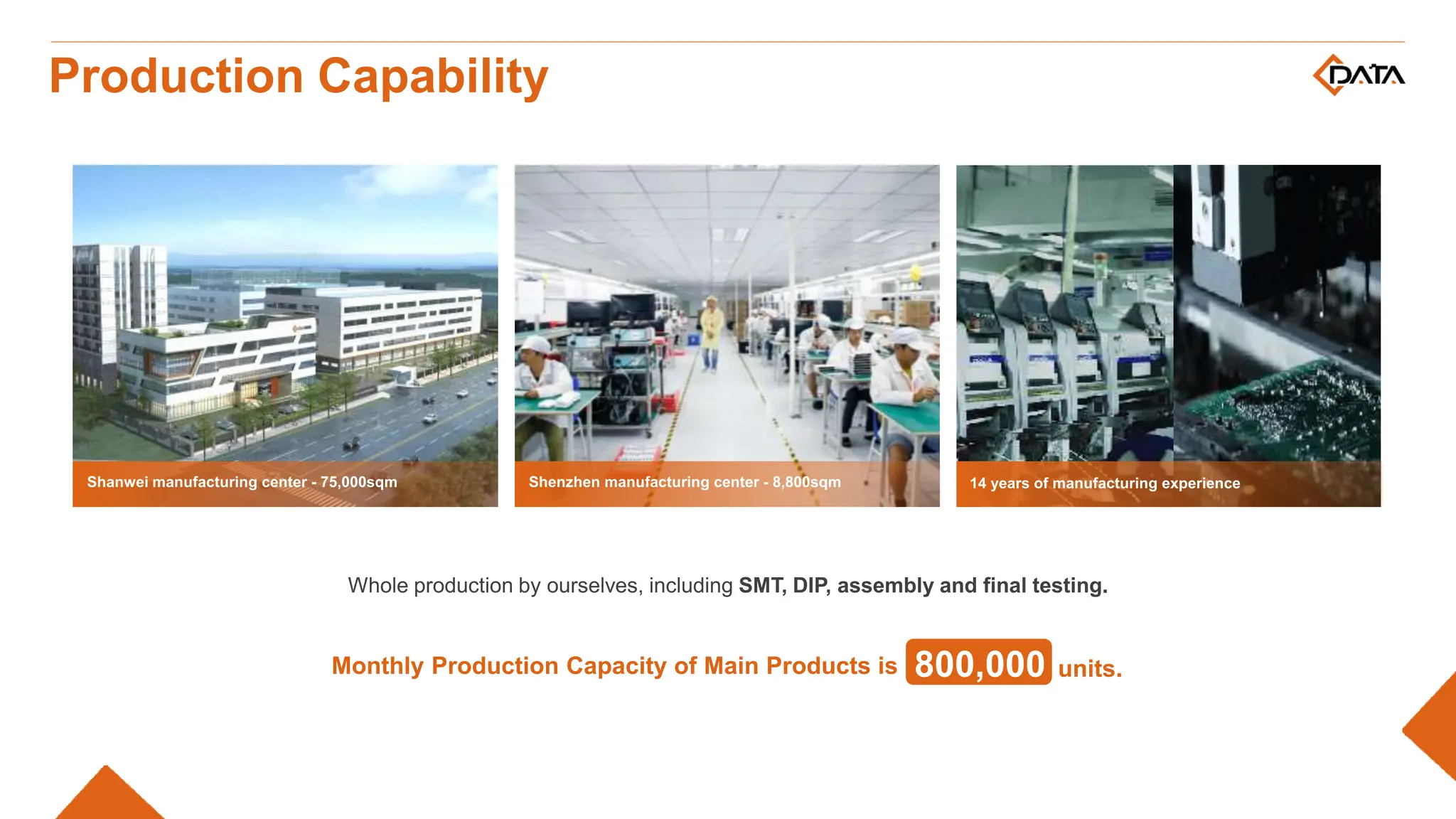

5. Production Capability
800,000 units.

6. Advantages Overview
Global Reach
The Shortest Chain from Factory to
Customers
Innovation at the Core
Customer-Focused Approach
R&D
Controllable & Faster
Own SMT/DIP Factory Reliability and Performance
Own Manufacture
Technical Support
Commercial Service
Professional & On-Call
Marketing & Strategy

7. C-Data
Home Networking
Enterprise Networking
FTTx Access Networking
EOC&HFC Solution
Smart Home Application
CCSS
C-Data Cloud Service System
Products & Solution
From OLTs to ONUs, HFC to Wireless Access Devices, and Switches to Cloud Platforms, C-Data offers a wide range of
cutting-edge products and solutions to meet diverse customer needs. Our comprehensive portfolio ensures that you have
access to the latest technologies in the industry.

8. CONTENTS
02
C-Data FTTx Solution
Meets Different Needs

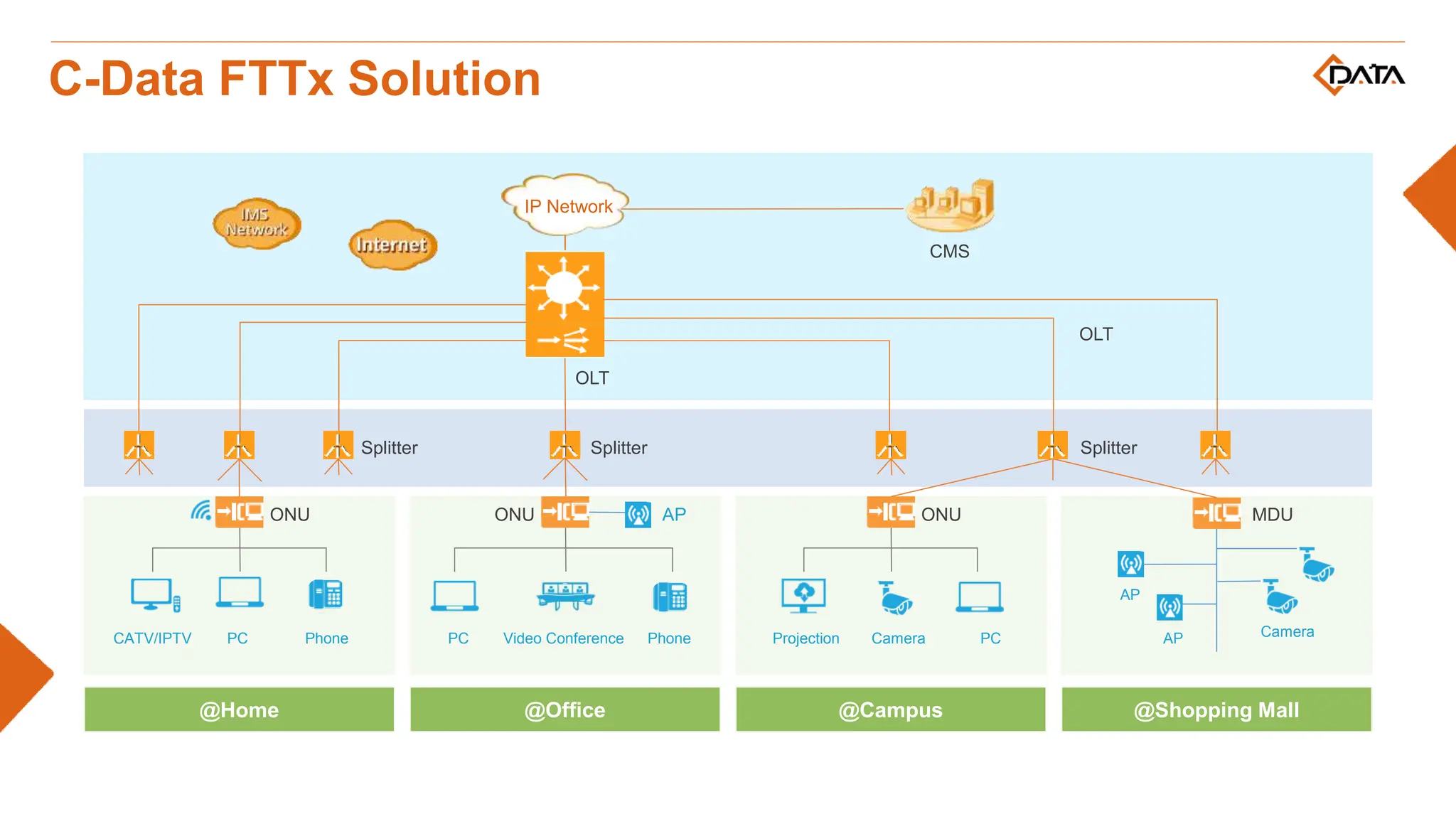

9. C-Data FTTx Solution
@Home @Office @Campus @Shopping Mall
OLT
AP
ONU ONU MDU
OLT
Splitter Splitter Splitter
CMS
CATV/IPTV PC Phone PC Video Conference Phone Projection Camera PC
AP
Camera
AP
ONU
IP Network

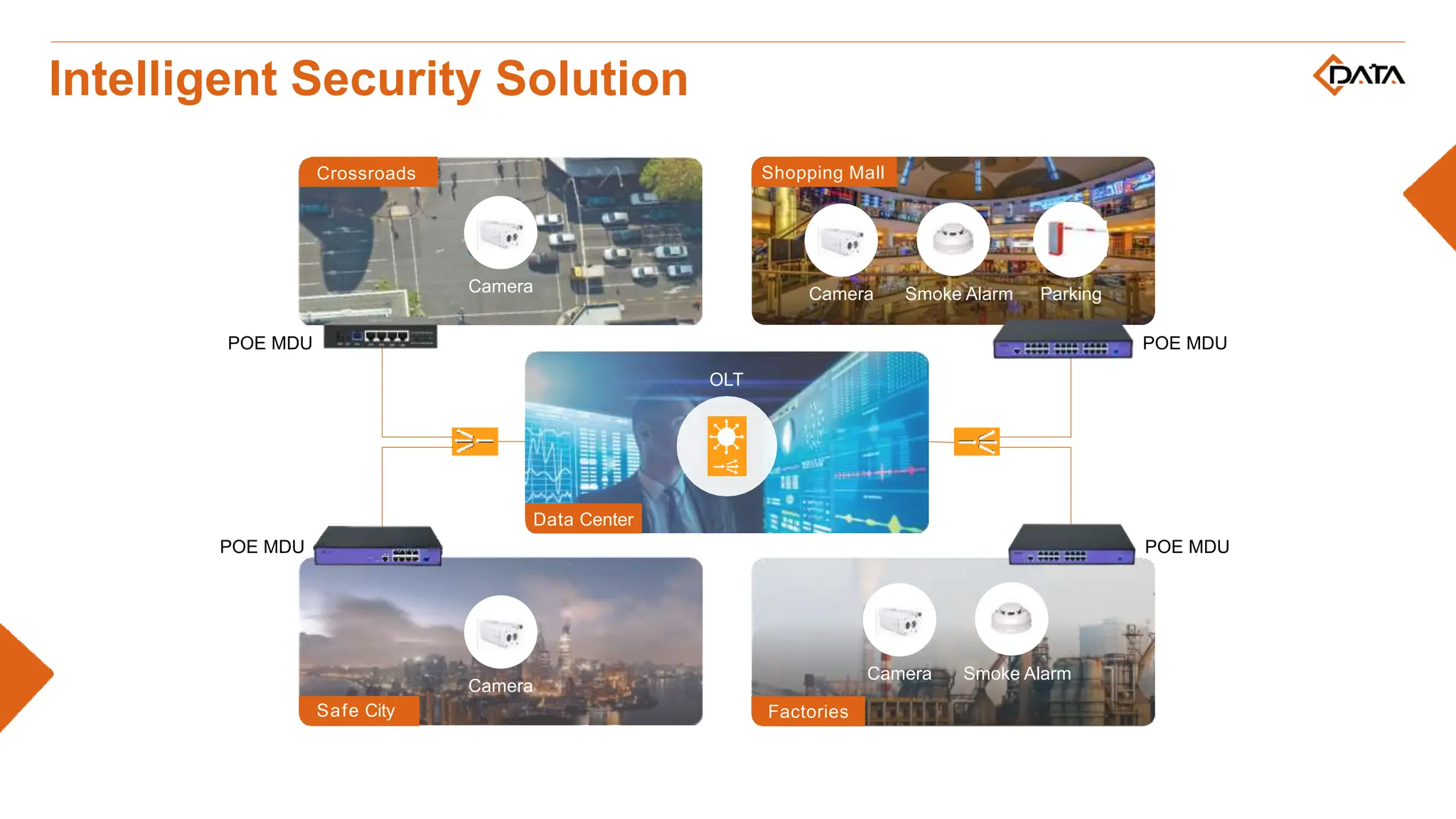

10. POE MDU
POE MDU POE MDU
POE MDU
Camera
Crossroads
Camera Parking
Smoke Alarm
Shopping Mall
Data Center
OLT
Camera
Camera
Smoke Alarm
Camera
Factories
Safe City
Intelligent Security Solution

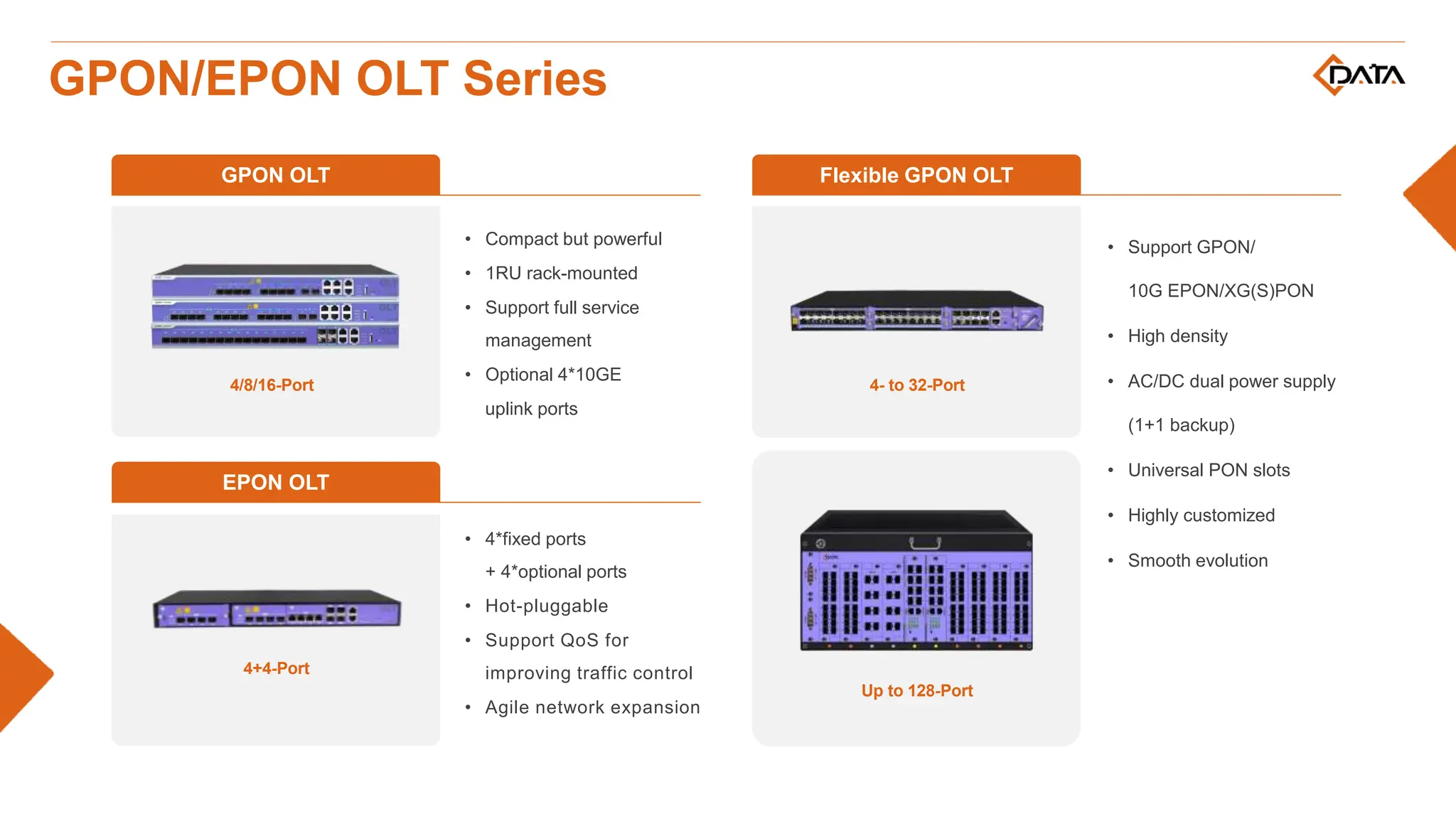

11. GPON/EPON OLT Series
GPON OLT Flexible GPON OLT
• Compact but powerful
• 1RU rack-mounted
• Support full service
management
• Optional 4*10GE
uplink ports
Up to 128-Port
• Support GPON/
10G EPON/XG(S)PON
• High density
• AC/DC dual power supply
(1+1 backup)
• Universal PON slots
• Highly customized
• Smooth evolution
4- to 32-Port
4/8/16-Port
4+4-Port
• 4*fixed ports
+ 4*optional ports
• Hot-pluggable
• Support QoS for
improving traffic control
• Agile network expansion
EPON OLT

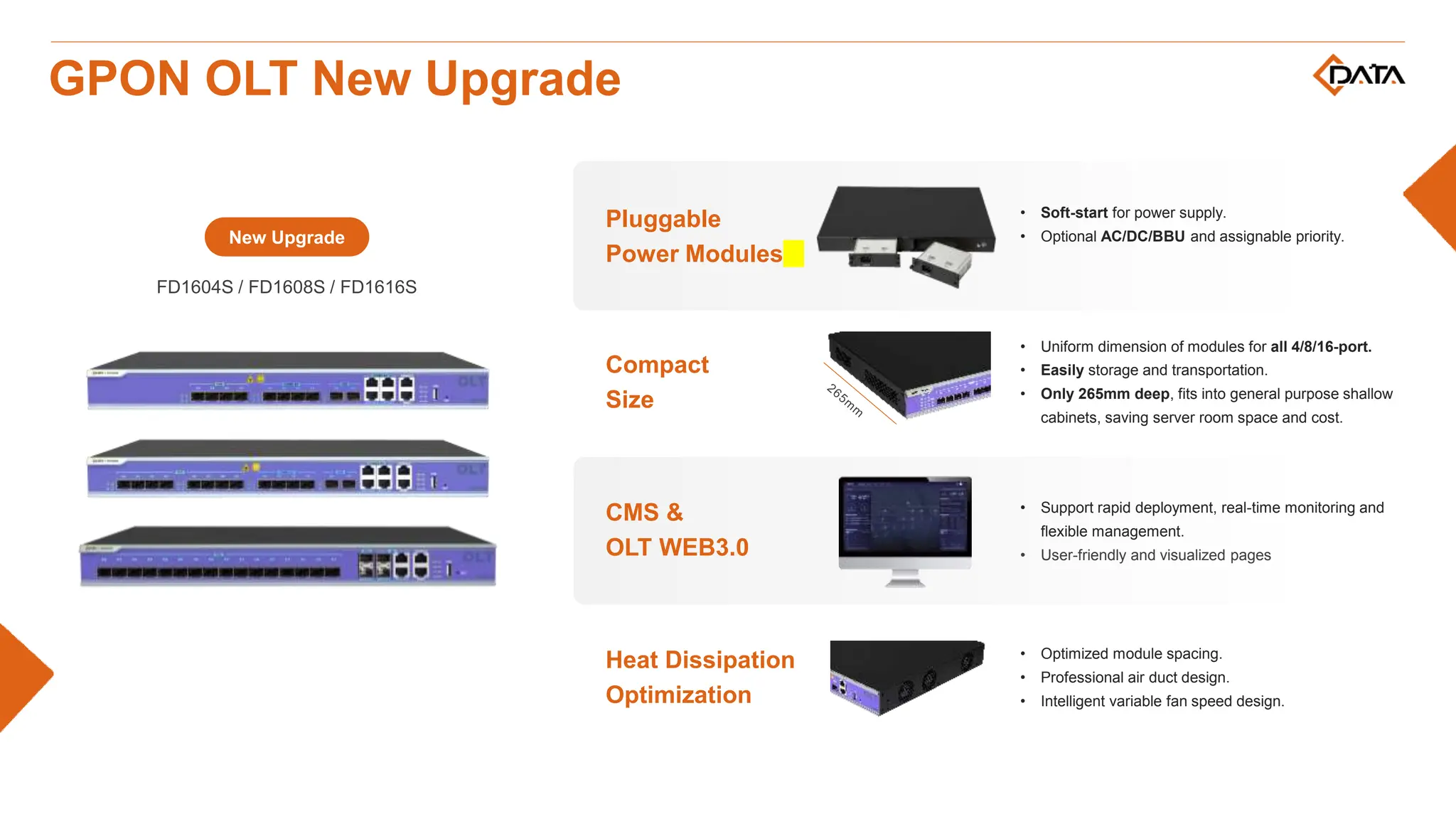

12. New Upgrade
FD1604S / FD1608S / FD1616S
Heat Dissipation
Optimization
• Optimized module spacing.
• Professional air duct design.
• Intelligent variable fan speed design.
Compact
Size
• Uniform dimension of modules for all 4/8/16-port.
• Easily storage and transportation.
• Only 265mm deep, fits into general purpose shallow
cabinets, saving server room space and cost.
CMS &
OLT WEB3.0
• Support rapid deployment, real-time monitoring and
flexible management.
• User-friendly and visualized pages
Pluggable
Power Modules
• Soft-start for power supply.
• Optional AC/DC/BBU and assignable priority.
GPON OLT New Upgrade

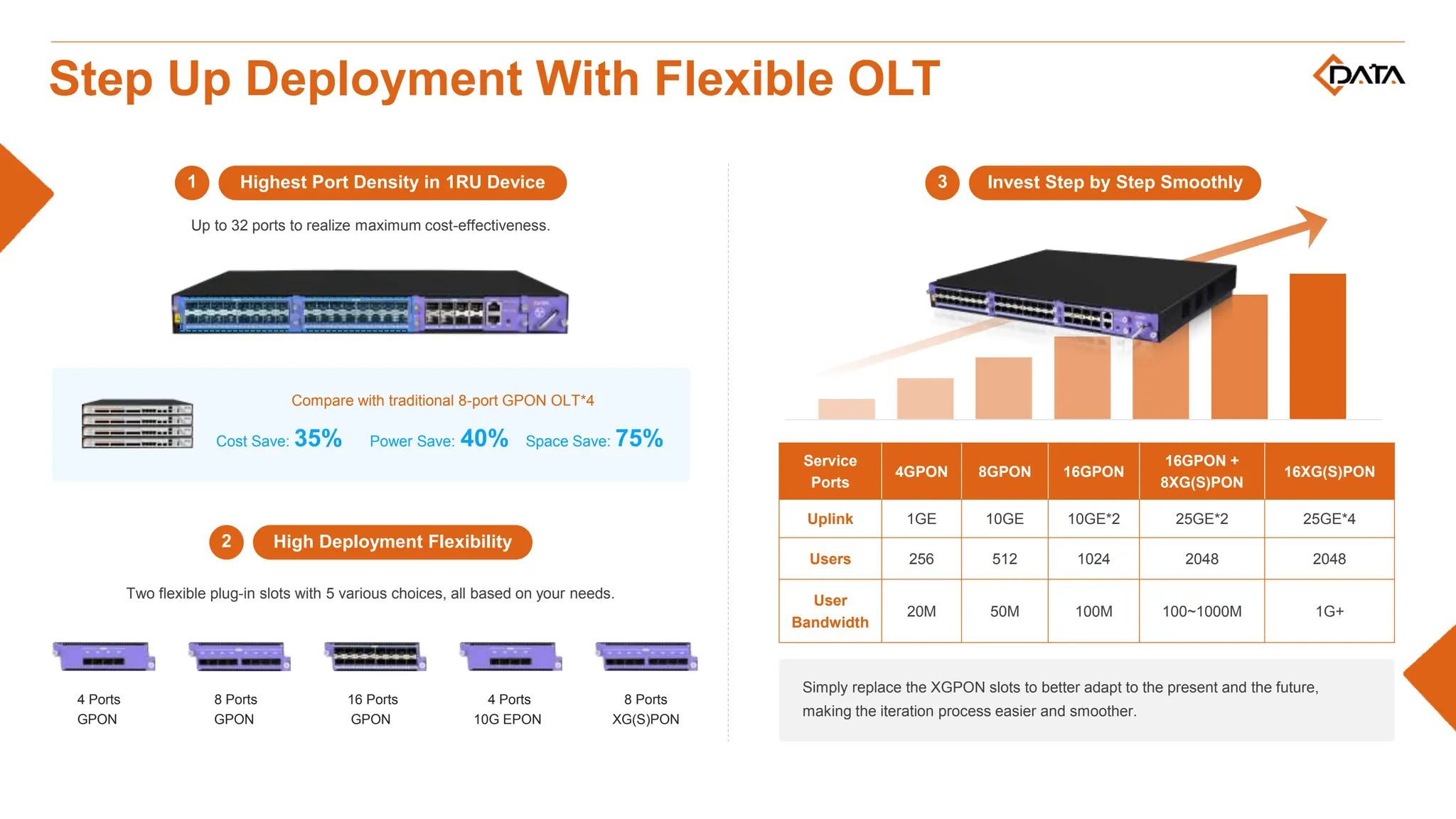

13. Simply replace the XGPON slots to better adapt to the present and the future,
making the iteration process easier and smoother.
Two flexible plug-in slots with 5 various choices, all based on your needs.
4 Ports
GPON
8 Ports
GPON
16 Ports
GPON
4 Ports
10G EPON
8 Ports
XG(S)PON
Up to 32 ports to realize maximum cost-effectiveness.
Service
Ports
4GPON 8GPON 16GPON
16GPON +
8XG(S)PON
16XG(S)PON
Uplink 1GE 10GE 10GE*2 25GE*2 25GE*4
Users 256 512 1024 2048 2048
User
Bandwidth
20M 50M 100M 100~1000M 1G+
Cost Save: 35% Power Save: 40% Space Save: 75%
Compare with traditional 8-port GPON OLT*4
Step Up Deployment With Flexible OLT
Highest Port Density in 1RU Device
1
High Deployment Flexibility
2
Invest Step by Step Smoothly
3

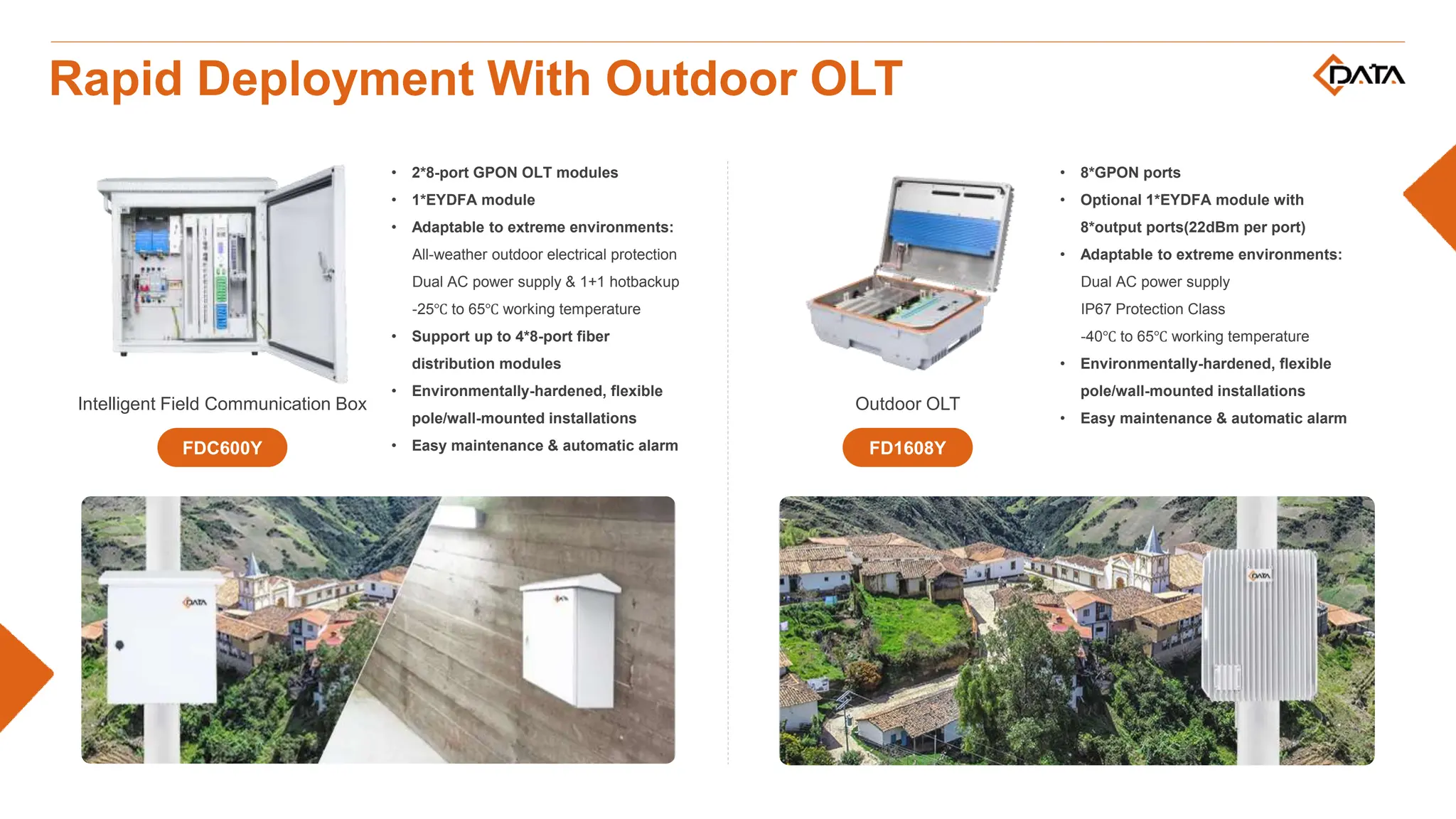

14. • 2*8-port GPON OLT modules
• 1*EYDFA module
• Adaptable to extreme environments:
All-weather outdoor electrical protection
Dual AC power supply & 1+1 hotbackup
-25℃ to 65℃ working temperature
• Support up to 4*8-port fiber
distribution modules
• Environmentally-hardened, flexible
pole/wall-mounted installations
• Easy maintenance & automatic alarm
Rapid Deployment With Outdoor OLT
FDC600Y
• 8*GPON ports
• Optional 1*EYDFA module with
8*output ports(22dBm per port)
• Adaptable to extreme environments:
Dual AC power supply
IP67 Protection Class
-40℃ to 65℃ working temperature
• Environmentally-hardened, flexible
pole/wall-mounted installations
• Easy maintenance & automatic alarm
Intelligent Field Communication Box
FD1608Y
Outdoor OLT

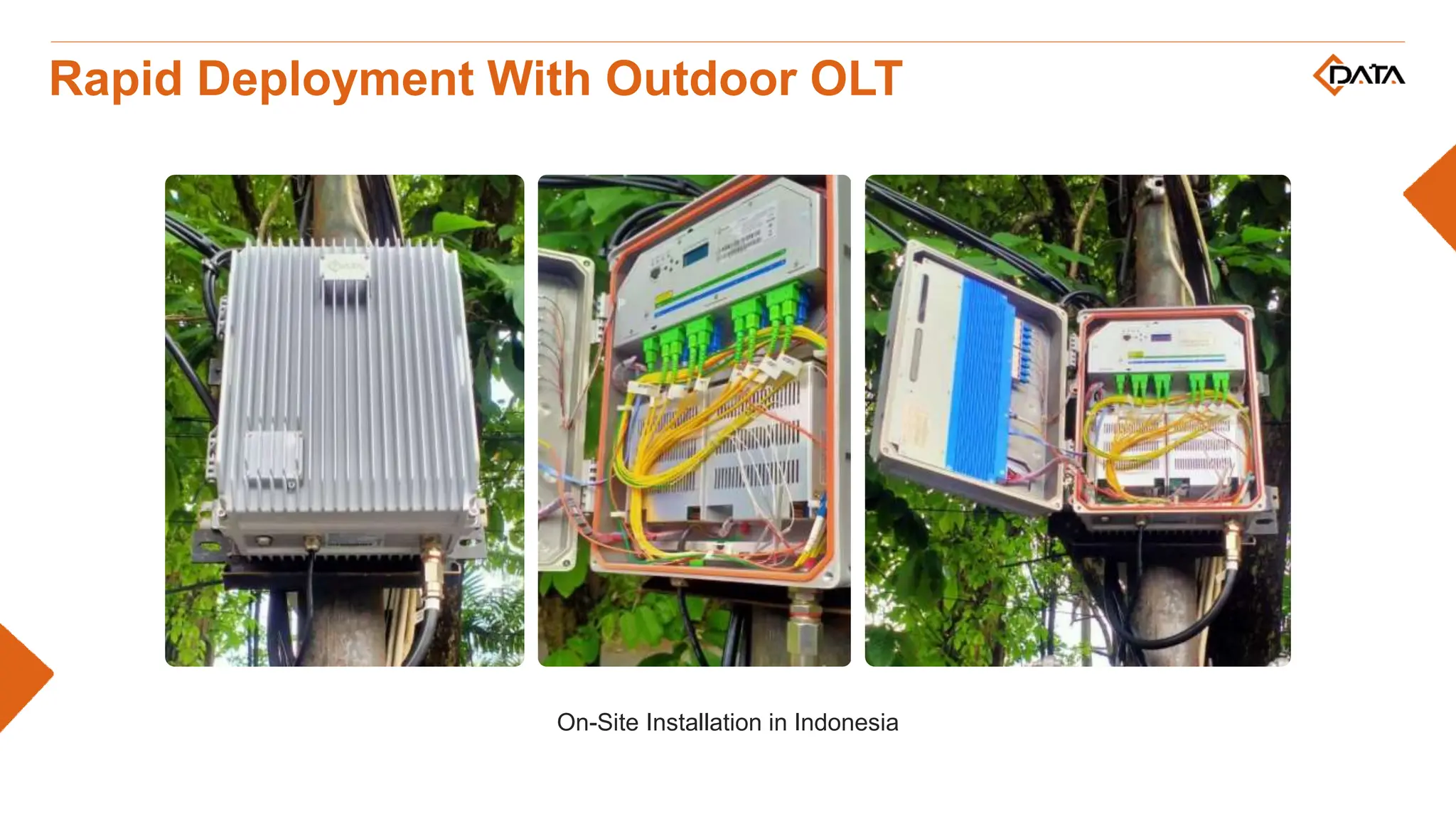

15. On-Site Installation in Indonesia
Rapid Deployment With Outdoor OLT

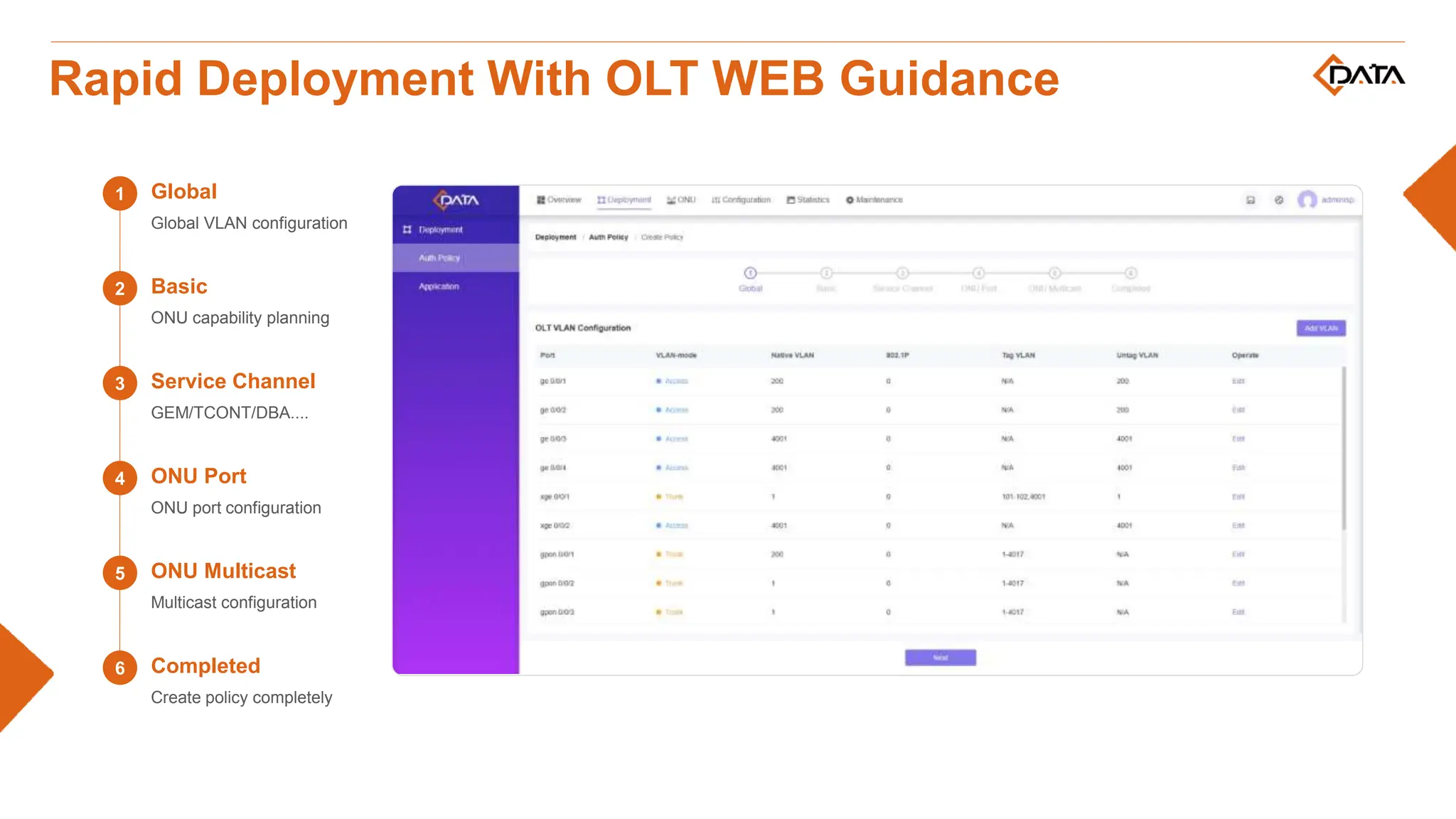

16. 1 Global
Global VLAN configuration
Rapid Deployment With OLT WEB Guidance
2
3
4
Basic
ONU capability planning
Service Channel
GEM/TCONT/DBA....
ONU Port
ONU port configuration
ONU Multicast
Multicast configuration
Completed
Create policy completely
5
6

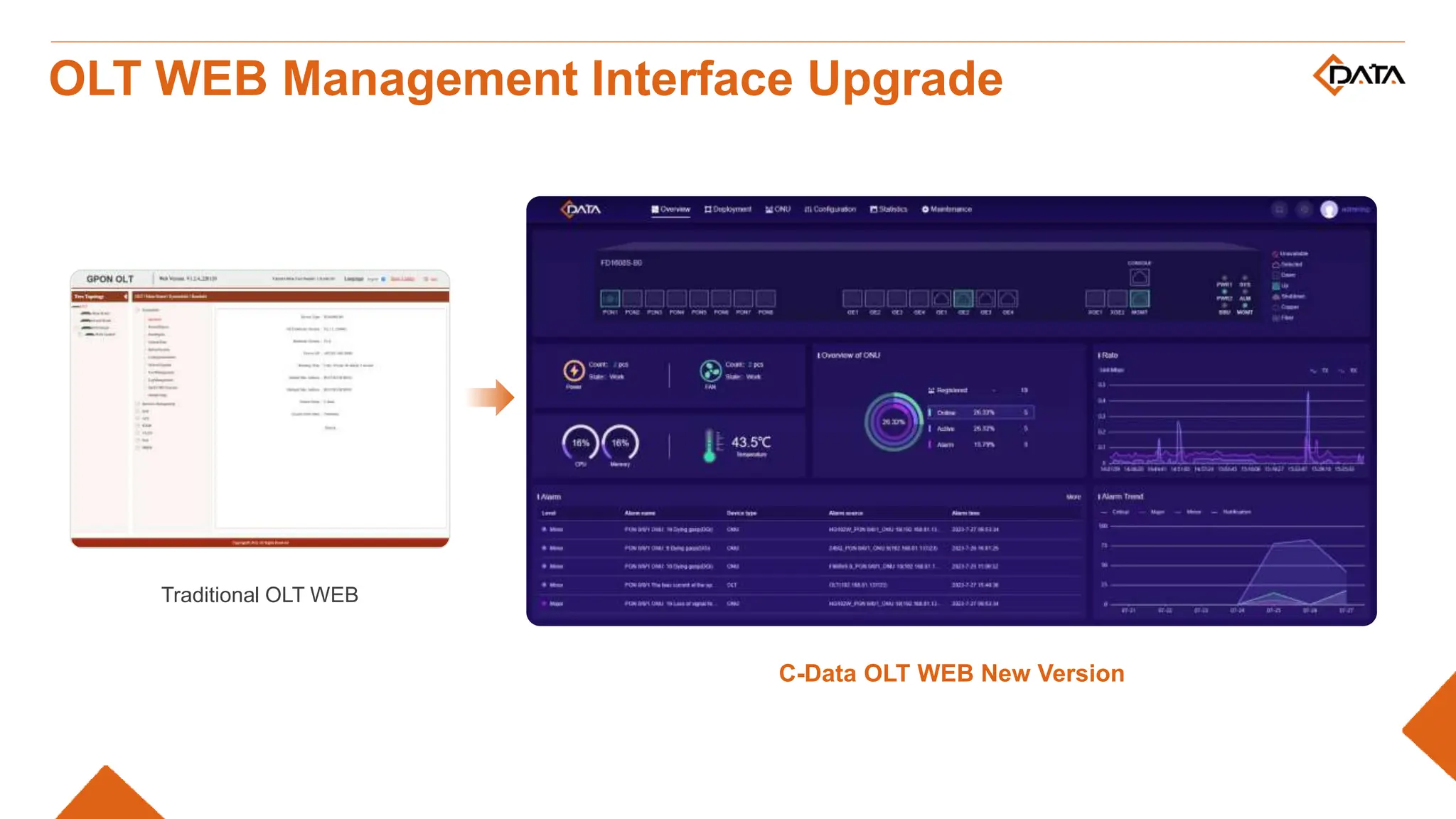

17. Traditional OLT WEB
C-Data OLT WEB New Version
OLT WEB Management Interface Upgrade

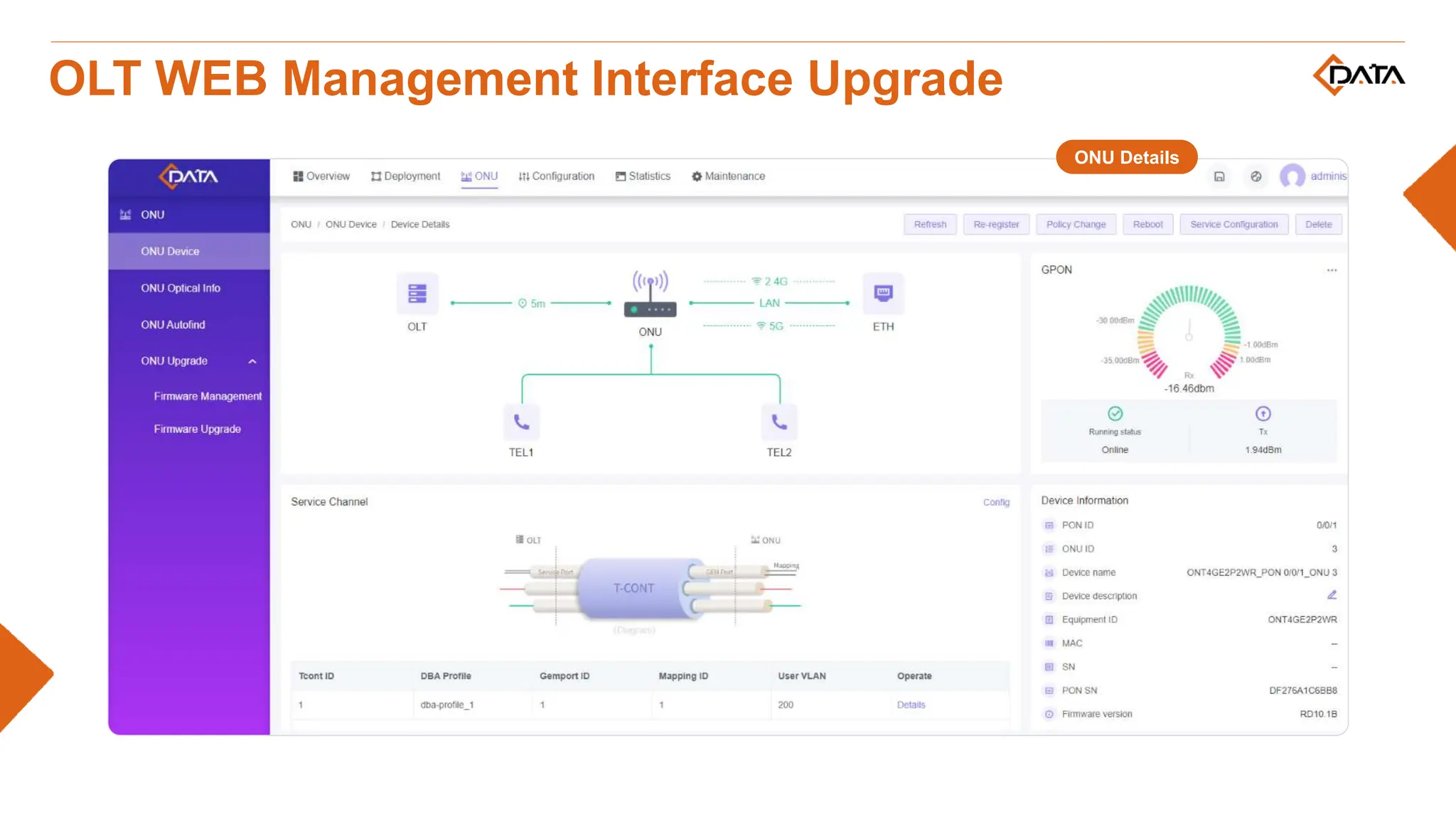

18. OLT WEB Management Interface Upgrade
ONU Details

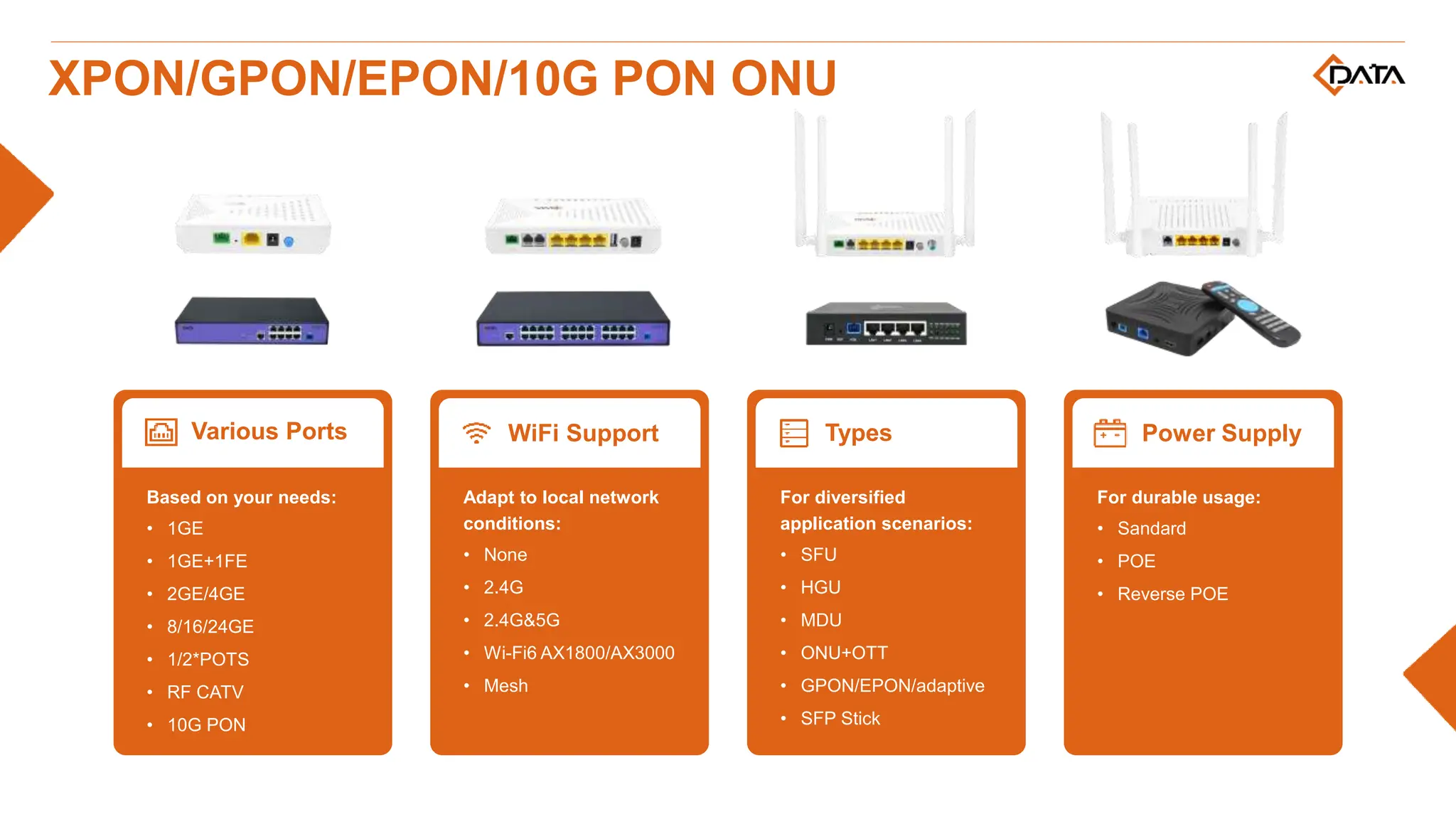

19. For diversified
application scenarios:
• SFU
• HGU
• MDU
• ONU+OTT
• GPON/EPON/adaptive
• SFP Stick
Adapt to local network
conditions:
• None
• 2.4G
• 2.4G&5G
• Wi-Fi6 AX1800/AX3000
• Mesh
Based on your needs:
• 1GE
• 1GE+1FE
• 2GE/4GE
• 8/16/24GE
• 1/2*POTS
• RF CATV
• 10G PON
For durable usage:
• Sandard
• POE
• Reverse POE
XPON/GPON/EPON/10G PON ONU
Power Supply
WiFi Support
Various Ports Types

20. Always choose the one that best
suits your business scenarios.
Ready-to-Launch
Abundant Models Cost Effective
Simple deployment, user-friendly
configuration, and intuitive management.
No Complexity, Minimal Operator
Requirements
Achieve the optimal balance for proven technology and
products at the right price.
Every Dollar Counts
Easy to Use
Full Series of ONU

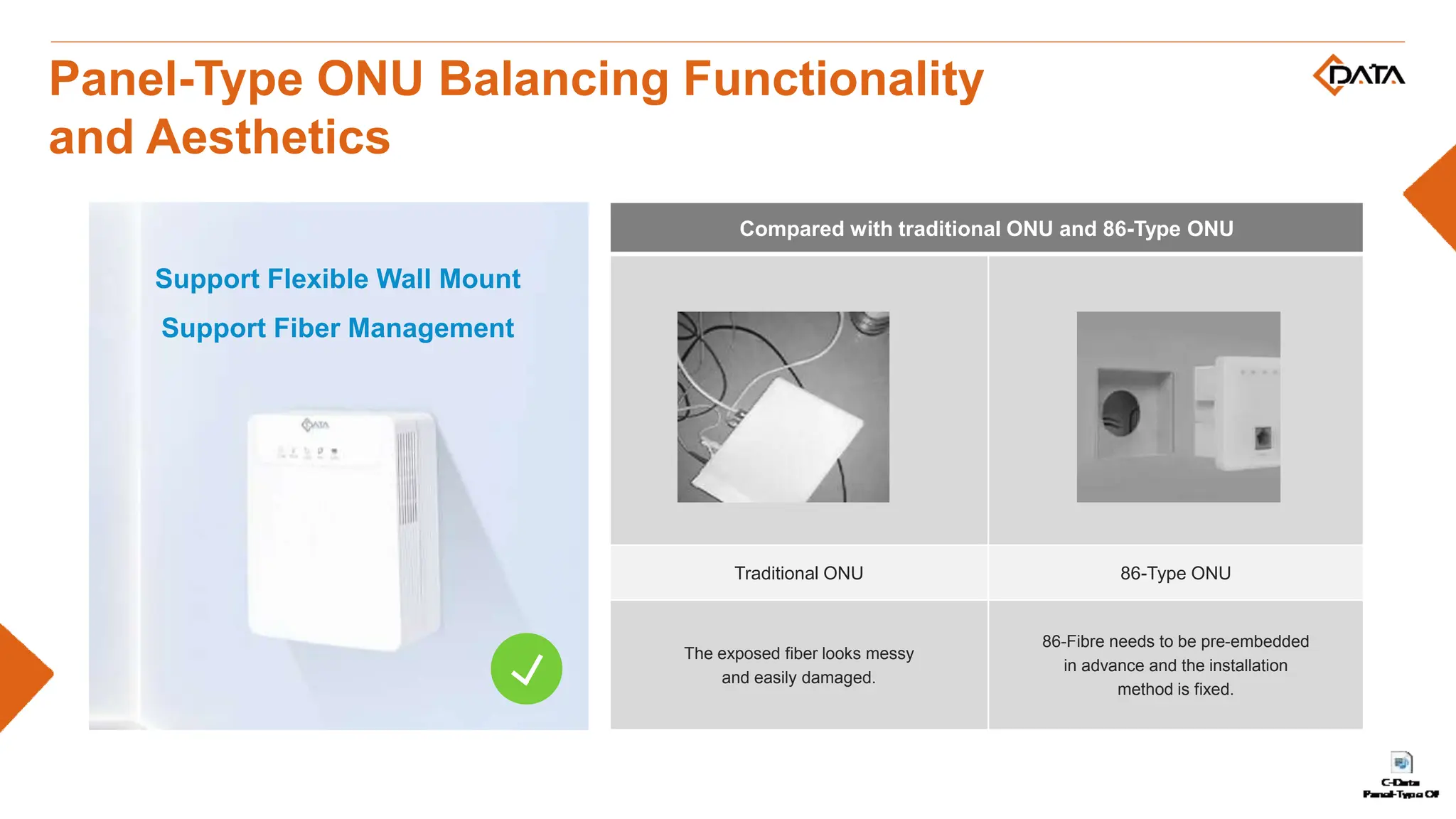

21. Compared with traditional ONU and 86-Type ONU
Traditional ONU 86-Type ONU
The exposed fiber looks messy
and easily damaged.
86-Fibre needs to be pre-embedded
in advance and the installation
method is fixed.
Support Flexible Wall Mount
Support Fiber Management
Panel-Type ONU Balancing Functionality
and Aesthetics

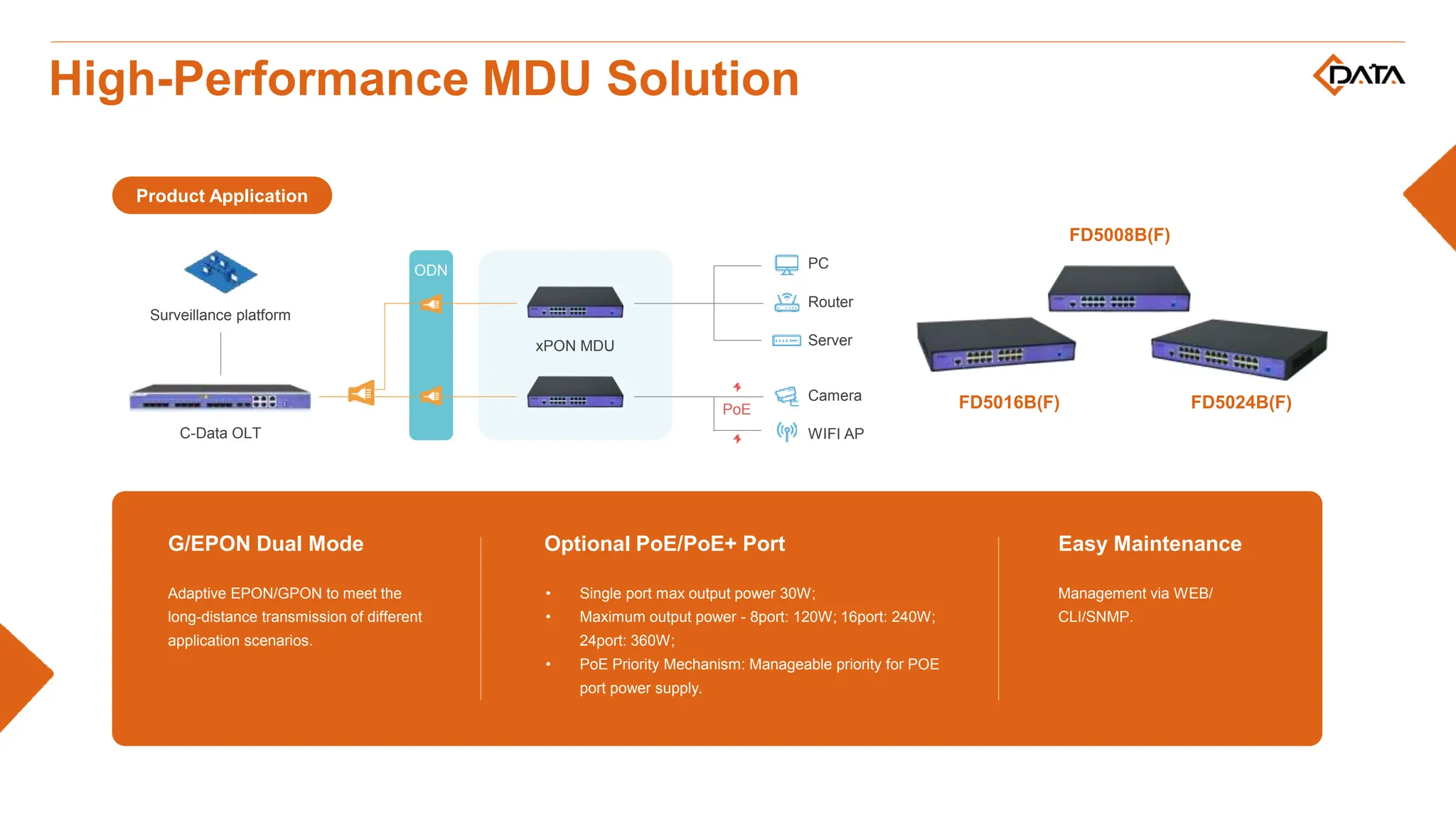

22. G/EPON Dual Mode
Adaptive EPON/GPON to meet the
long-distance transmission of different
application scenarios.
Optional PoE/PoE+ Port
• Single port max output power 30W;
• Maximum output power - 8port: 120W; 16port: 240W;
24port: 360W;
• PoE Priority Mechanism: Manageable priority for POE
port power supply.
Easy Maintenance
Management via WEB/
CLI/SNMP.
High-Performance MDU Solution
Product Application
Surveillance platform
C-Data OLT
PC
Router
Server
Camera
WIFI AP
PoE
xPON MDU
ODN
FD5008B(F)
FD5016B(F) FD5024B(F)

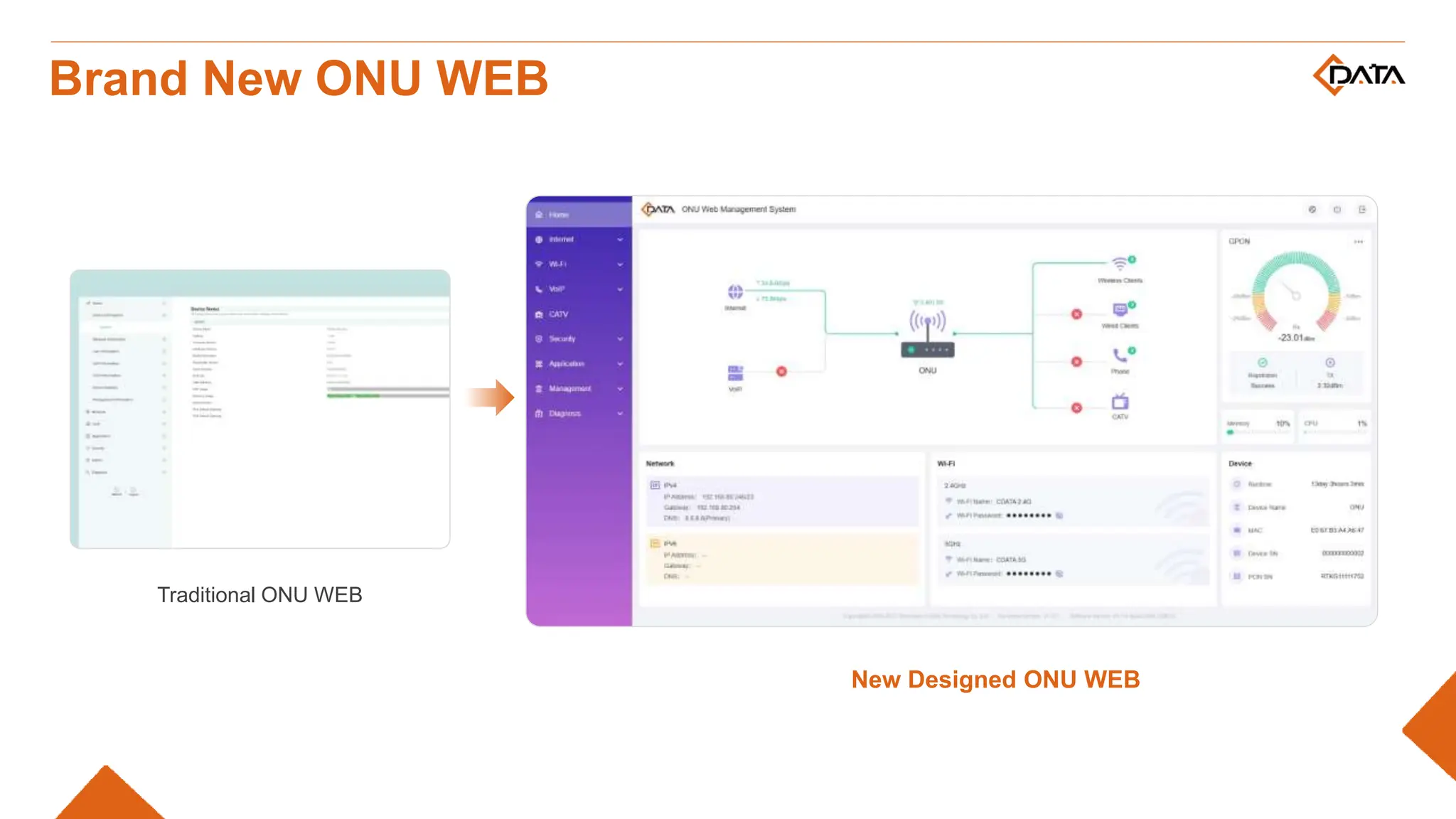

23. Brand New ONU WEB
New Designed ONU WEB
Traditional ONU WEB

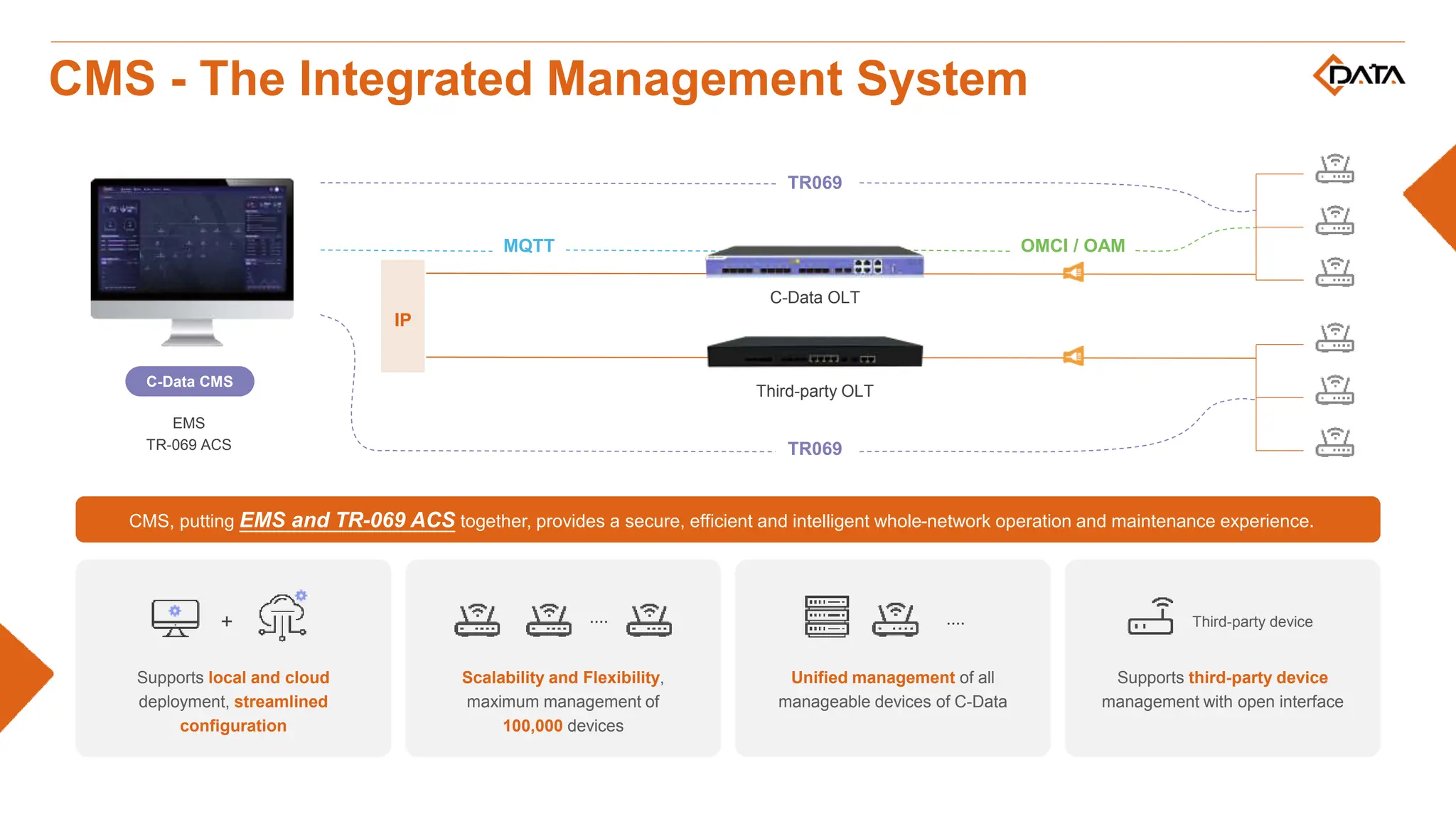

24. Supports local and cloud
deployment, streamlined
configuration
+
Scalability and Flexibility,
maximum management of
100,000 devices
Unified management of all
manageable devices of C-Data
····
Supports third-party device
management with open interface
Third-party device
····
CMS, putting EMS and TR-069 ACS together, provides a secure, efficient and intelligent whole-network operation and maintenance experience.
CMS - The Integrated Management System
TR069
TR069
MQTT OMCI / OAM
C-Data OLT
Third-party OLT
EMS
TR-069 ACS
C-Data CMS
IP

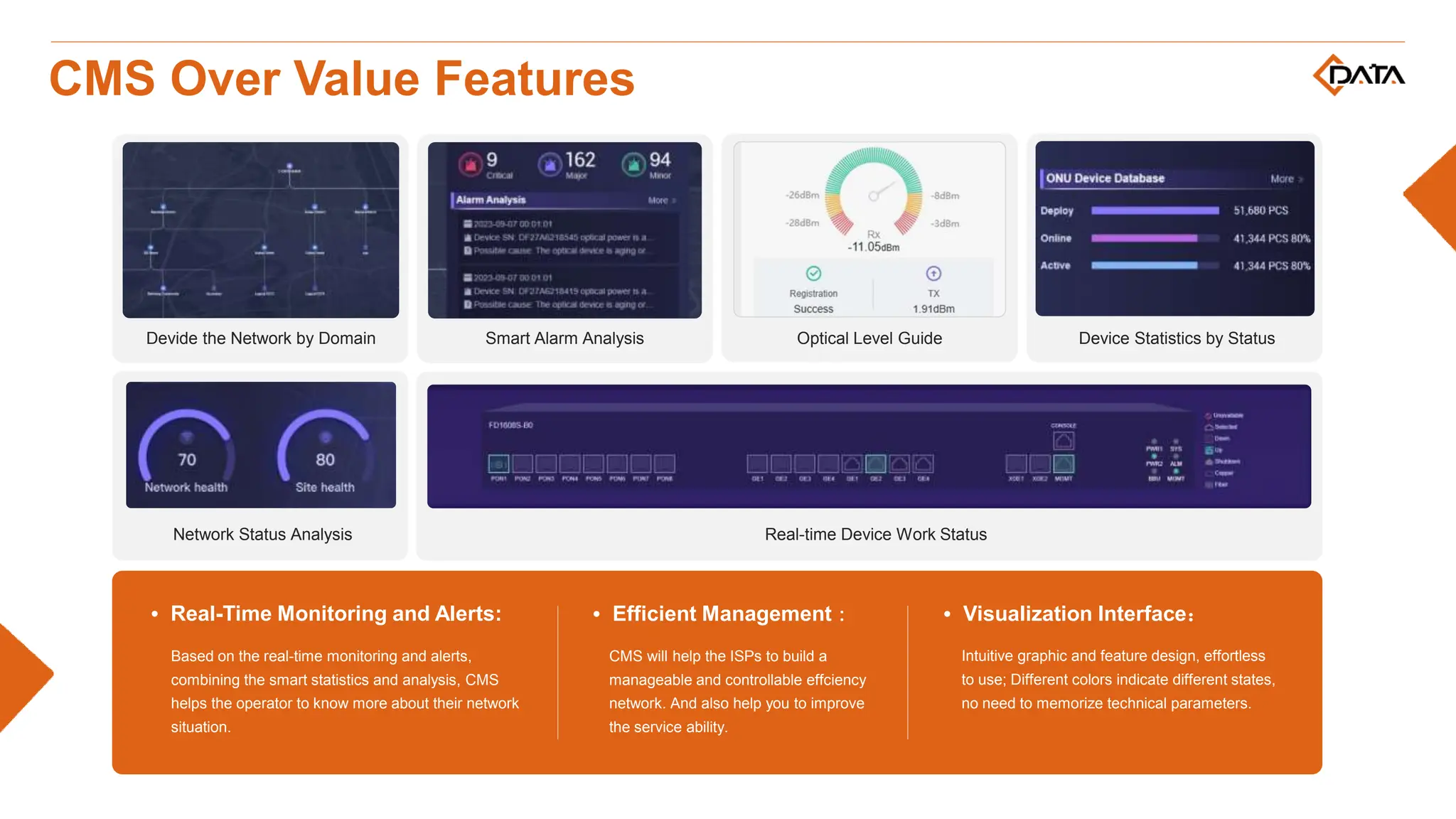

25. CMS Over Value Features
Devide the Network by Domain Smart Alarm Analysis Optical Level Guide
Network Status Analysis Real-time Device Work Status
Device Statistics by Status
• Real-Time Monitoring and Alerts:
Based on the real-time monitoring and alerts,
combining the smart statistics and analysis, CMS
helps the operator to know more about their network
situation.
• Efficient Management：
CMS will help the ISPs to build a
manageable and controllable effciency
network. And also help you to improve
the service ability.
• Visualization Interface：
Intuitive graphic and feature design, effortless
to use; Different colors indicate different states,
no need to memorize technical parameters.

26. CONTENTS
C-Data HFC
&EOC Solution
03

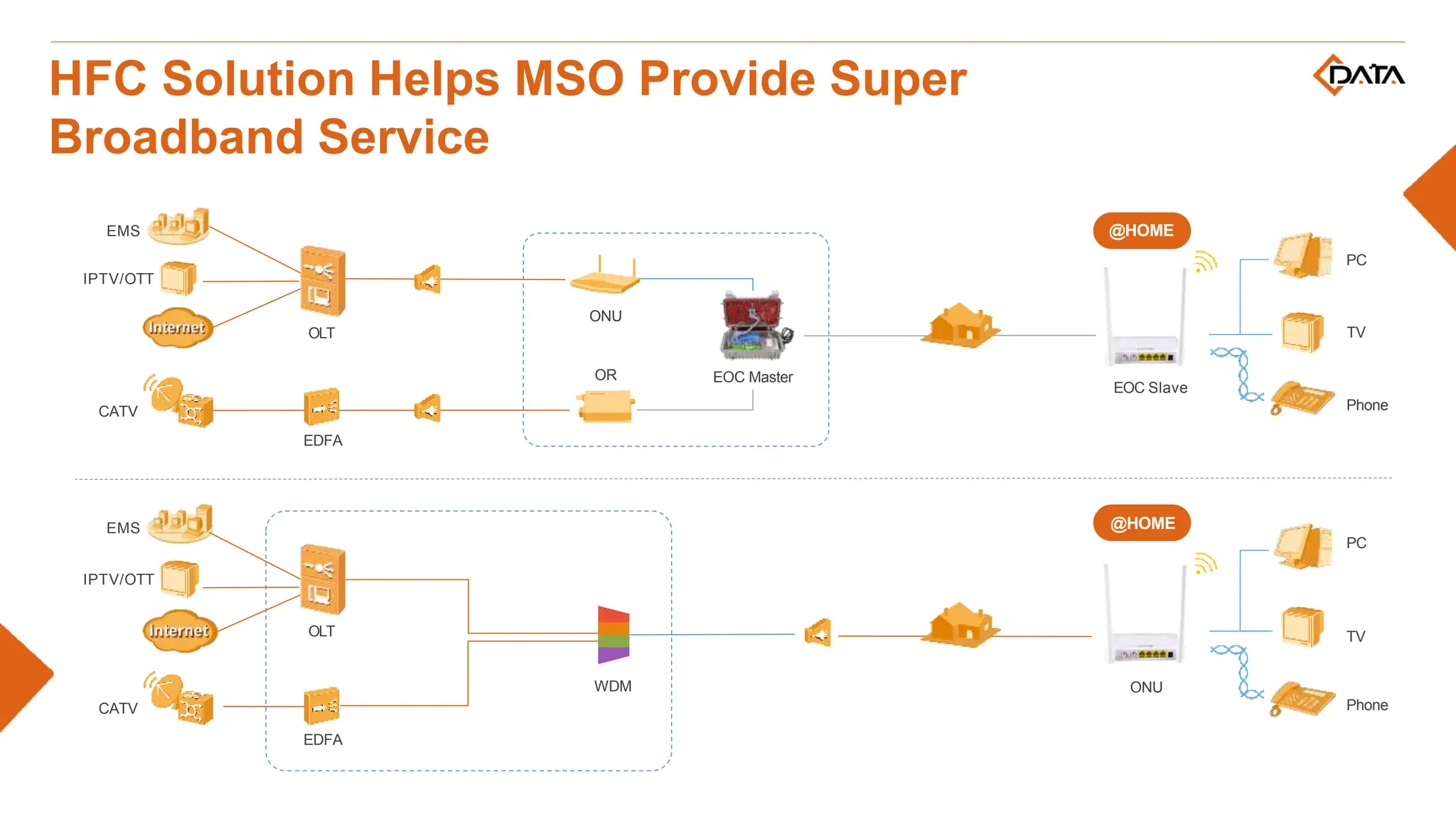

27. HFC Solution Helps MSO Provide Super
Broadband Service
EMS
IPTV/OTT
ONU
@HOME
PC
Phone
TV
CATV
EDFA
OLT
WDM
IPTV/OTT
CATV
EDFA
OLT
EMS
PC
Phone
EOC Slave
@HOME
TV
ONU
OR EOC Master

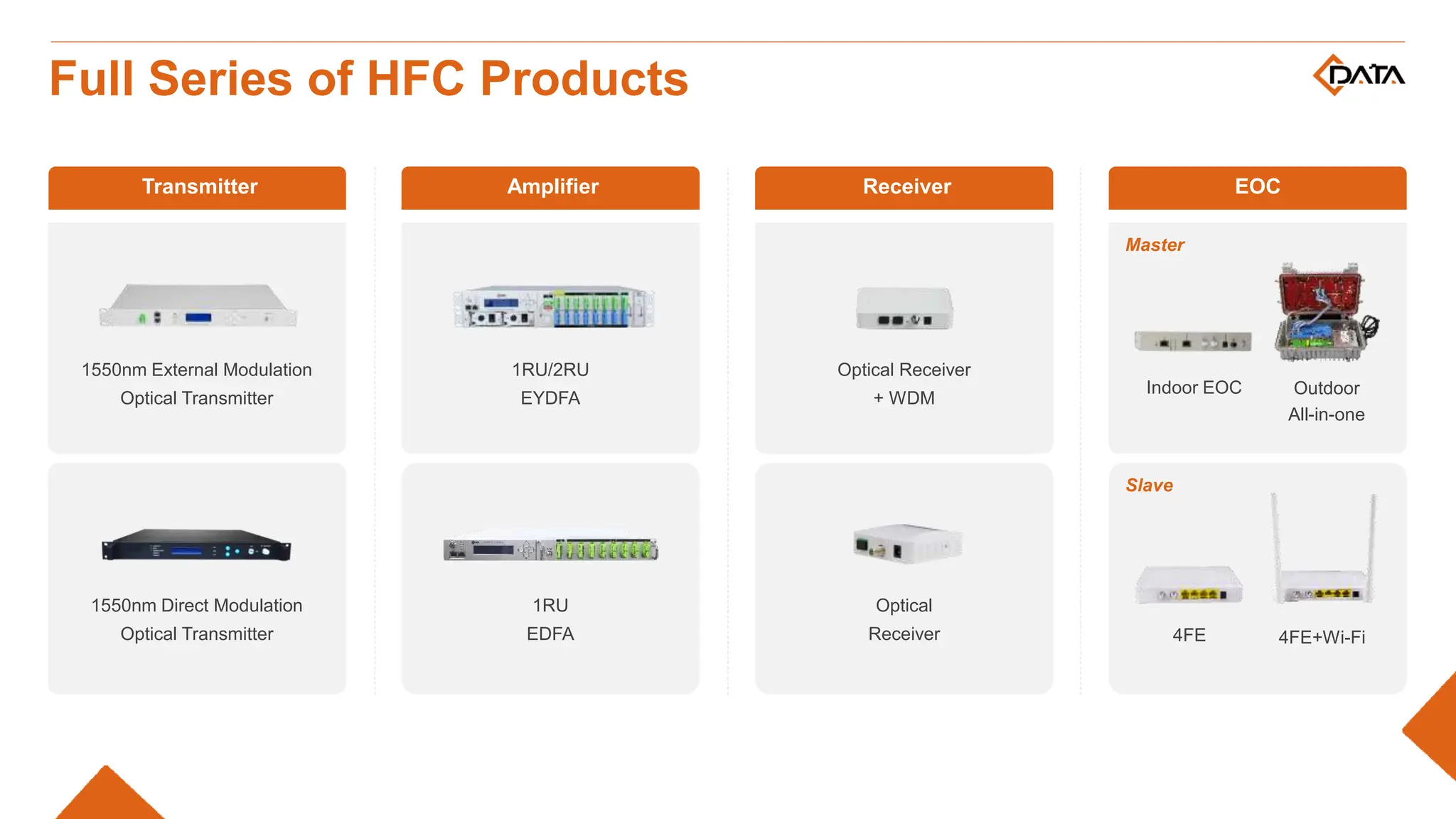

28. Transmitter Amplifier Receiver EOC
1550nm External Modulation
Optical Transmitter
1550nm Direct Modulation
Optical Transmitter
1RU/2RU
EYDFA
1RU
EDFA
Optical Receiver
+ WDM
Indoor EOC Outdoor
All-in-one
4FE 4FE+Wi-Fi
Master
Optical
Receiver
Slave
Full Series of HFC Products

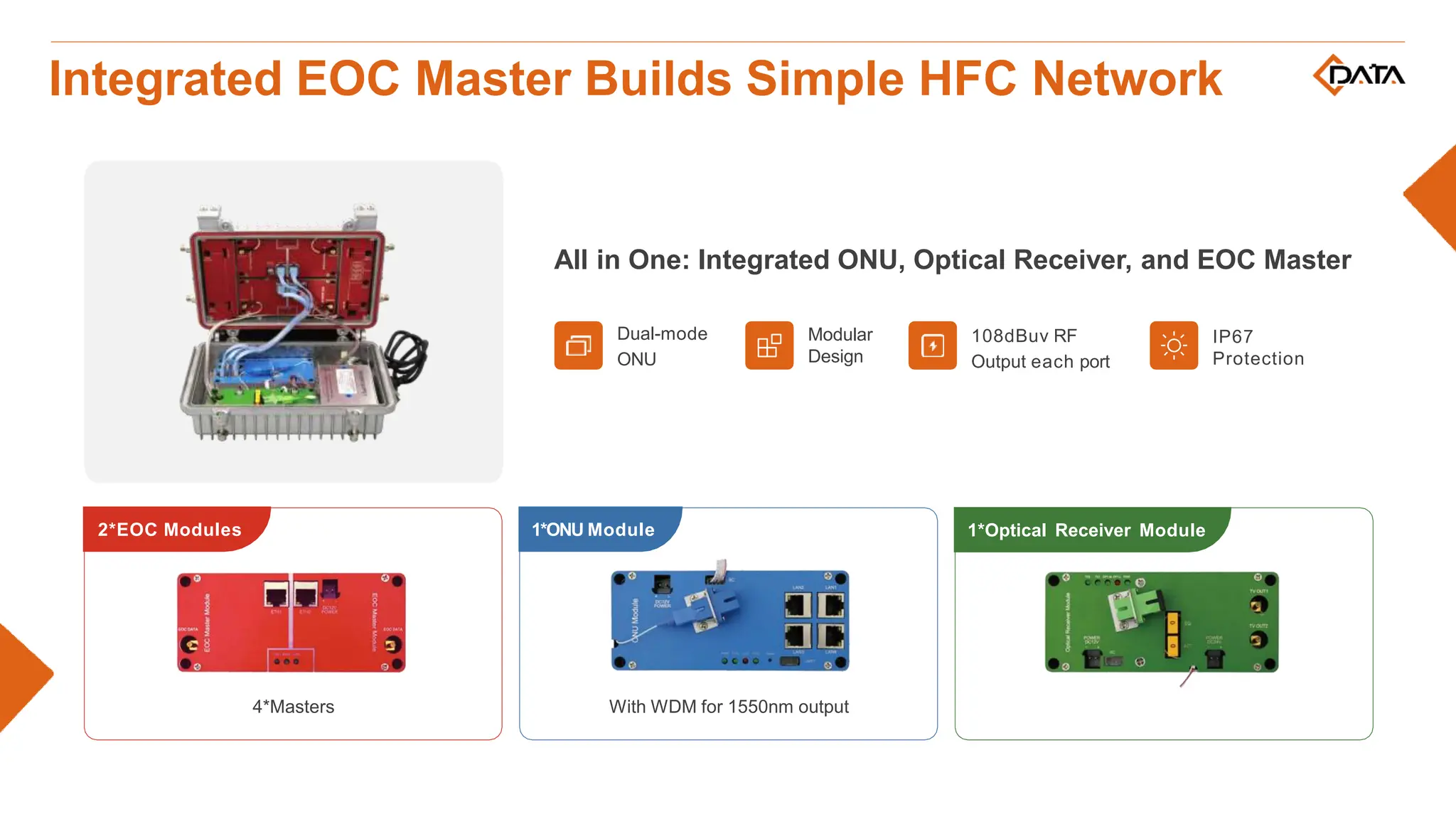

29. EOC Module
1*ONU Module 1*Optical Receiver Module
2*EOC Modules
All in One: Integrated ONU, Optical Receiver, and EOC Master
Integrated EOC Master Builds Simple HFC Network
4*Masters With WDM for 1550nm output
108dBuv RF
Output each port
Modular
Design
Dual-mode
ONU
IP67
Protection

30. CONTENTS
Thinking and
Plan for Next
04

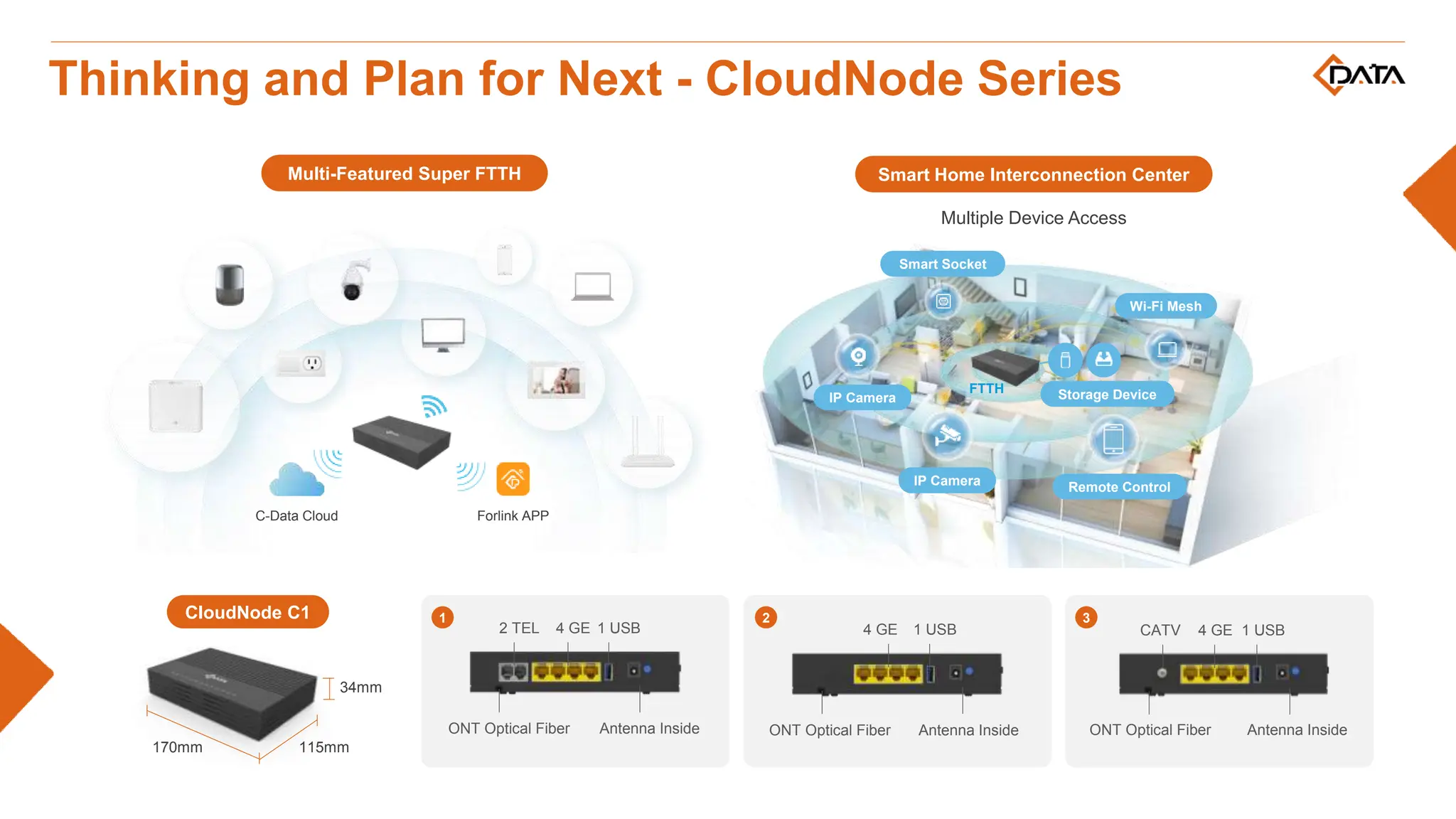

31. Thinking and Plan for Next - CloudNode Series
Multiple Device Access
Multi-Featured Super FTTH Smart Home Interconnection Center
2 TEL
ONT Optical Fiber Antenna Inside
4 GE 1 USB
ONT Optical Fiber Antenna Inside
4 GE 1 USB CATV
ONT Optical Fiber Antenna Inside
4 GE 1 USB
115mm
170mm
34mm
CloudNode C1
C-Data Cloud Forlink APP
IP Camera
IP Camera
Smart Socket
Wi-Fi Mesh
Remote Control
Storage Device
FTTH
1 2 3

32. • Remote diagnosis and
maintain capability.
• Keep whole network in your
hand.
• Strong and multiple service.
• Flexibility deploy solution.
• Lower running cost.
• Based on deployed basic network.
• More value-added service will
bring more business opportunity
and growing ARPU value.
• Besides bandwidth, more familiar
applications can be offered to final
users.
• One station service will bring more
benefits for both operators and
subscribers.
Benefits for Network Operaters
