The document describes Excelway's product range of compact vehicles for cleaning and maintenance. It offers a wide range of solutions including suction sweepers from 2m3 to 4m3 capacity, as well as multiservice units ranging from 2,500kg to 3,500kg payload. The vehicles are designed for versatility, durability, safety, and cost-effectiveness to adapt to any job or situation throughout the year.

1. Product Range
The most complete range of compact vehicles for cleaning and maintenance

2. www.excelway.eu
B 200 H
2 m3
4 m3
B 400 H
The Excelway range is synonymous with versatility, robustness, safety, efficiency and cost effectiveness. The vehicles
stand out for their exceptional durability and ability to adapt to any situation. Whatever the need, there is a unit from the
Excelway range for each application (sweeping, flushing, maintenance, cleaning, snow, etc.).
Careful design work is also carried out by Excelway, combining aesthetics and functionality. The products are characterised
by their high performance and the very best conditions in terms of safety, comfort, handling, visibility, ergonomics, loading
capacity and resistance. Concepts that, when combined, provide a higher return on investment.
Available with a range of traction and steering configurations, incorporating exclusively 4WD versions in sweepers and
flushers, hydrostatic transmission, components of the very highest capacity and numerous adaptable accessories, the
Excelway range offers the widest variety of solutions for all-year round use.
2EXCELWAYRANGE
Robustness, safety and versatility
EXCELWAY RANGE
Pages 04 - 05
EUROPEAN MANUFACTURER
1. Headquarters 2. Assembly plant 3. Test, demonstration and training area 4. Warehouse for completed machines
Pages 06 - 07

3. www.excelway.eu
BD 202 HL
1 m3
2500 kg
M 200 H
3500 kg
M 350 H
Our priority is the customer, which is why we provide a full range of solutions and services that undoubtedly contribute to improving your
collaboration with Excelway.
A DISTRIBUTION NETWORK AT YOUR SERVICE
Excelway has a wide range of official distributors all over the world. Go to our website to find the one closest to you.
http://www.excelway.eu/dealers/
Page 11Pages 08-09 Page 10
SERVICES
FINANCING
SPARE PARTS
TECHNICAL SUPPORT
TRAINING
MAINTENANCE
WEBSPACE FOR CUSTOMERS

4. www.excelway.eu

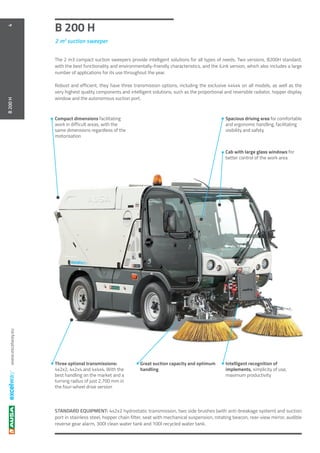

B 200 H
2 m3
suction sweeper
4B200H
The 2 m3 compact suction sweepers provide intelligent solutions for all types of needs. Two versions, B200H standard,
with the best functionality and environmentally-friendly characteristics, and the iLink version, which also includes a large
number of applications for its use throughout the year.
Robust and efficient, they have three transmission options, including the exclusive 4x4x4 on all models, as well as the
very highest quality components and intelligent solutions, such as the proportional and reversible radiator, hopper display
window and the autonomous suction port.
STANDARD EQUIPMENT: 4x2x2 hydrostatic transmission, two side brushes (with anti-breakage system) and suction
port in stainless steel, hopper chain filter, seat with mechanical suspension, rotating beacon, rear-view mirror, audible
reverse gear alarm, 300l clean water tank and 100l recycled water tank.
Great suction capacity and optimum
handling
Three optional transmissions:
4x2x2, 4x2x4 and 4x4x4. With the
best handling on the market and a
turning radius of just 2,700 mm in
the four-wheel drive version
Compact dimensions facilitating
work in difficult areas, with the
same dimensions regardless of the
motorisation
Spacious driving area for comfortable
and ergonomic handling, facilitating
visibility and safety
Cab with large glass windows for
better control of the work area
Intelligent recognition of
implements, simplicity of use,
maximum productivity

5. www.excelway.eu
B 200 H
iLink® System
48.12019.00
100/285
92/380
2700/3300
2700/3300
14000
14000
B 200 H EURO lll/V
B 200 H EURO Vl
2
2
m3 m3/h
CV/Par
Ref. M480
- Turning radius of just 2,700 mm with four-wheel drive.
- Low consumption and emission engines (savings of up to 5 tons in CO2 emissions).
- Despite its compact size, it has a big payload.
- 4-star PM2.5/10 certificate.
Advantages
Characteristics
The iLink concept of our B200H sweeper enables
intensive use throughout the year; not only does it
sweep with maximum efficiency and productivity
but it can also be used as a cold water flusher,
hot water scraper (both with a water capacity of
2,000 litres) or as a winter maintenance unit with
its 1.1 m3
spreader and its snow brush or plough.
All of this combined with our exclusive FlowTrack
4x4x4 drive system.

6. www.excelway.euB400H
Spacious driving area for comfortable
and ergonomic handling, facilitating
visibility and safety
Compact dimensions
and low weight, facilitating
use in all situations
Cameras in the suction port and rear
area for maximum control of the
work area
Maximum work comfort and
movement, the best option for long
sweeping distances thanks to its
chassis and suspension system
STANDARD EQUIPMENT: Hydrostatic transmission, two side brushes, screen with camera in the suction port and rear
area, seat with air suspension, rotating beacon, rear-view mirror and audible reverse gear alarm.
B 400 H
4 m3
suction sweeper
Suction sweeper for multiple municipal applications. Easy maintenance and use, together with very low consumption and
emissions, make this unit the intelligent choice.
Option of high speed (see approvals) and different implements thanks to the exclusive Link system.
Robust design,
with simple, low-cost
maintenance
Excellent suction capacity for
working in the most difficult areas
with more requirements
6

7. www.excelway.eu
B 400 H
48.12019.00
Link® System
Ref. M470
4560 40/62 13100B 400 H 4
m3 Km/h m3/h
- Standard Link system that allows you to swap the sweeper for a brush cutter or an
elevator basket, snow brush/plough, salt spreader, open bed, etc.
- Low consumption and emission engines (savings of up to 5 tons in CO2 emissions).
- Two or three brushes, suction hose or water gun options, etc.
Advantages
The Link concept of our B400H sweeper enables
intensive use throughout the year; not only does it
sweep with maximum efficiency and productivity,
but it can also be used as a brush cutter or elevator
basket or as a winter maintenance unit with its
1.3 m3
spreader and its snow brush or plough.
Characteristics

8. www.excelway.eu
M 200 H
The AUSA M200H compact multiservice unit with up to 2,500 kg of loading capacity provides intelligent solutions for all
types of needs. Infinite range of applications for use of the machine all-year round.
Robust and efficient, they have different transmission options, including 4WD in both models. They are fitted with the
highest quality components and have the most compact dimensions on the market.
Multiservice unit with 2,500 kg capacity
8M200H
STANDARD EQUIPMENT: Hydrostatic transmission, seat with suspension, iLink system, rotating beacon, rear-view
mirror and audible reverse gear alarm.
Spacious driving area for comfortable
and ergonomic handling, facilitating
visibility and safety
Cab with large glass windows for
better control of the work area
Large loading capacity with a
width of just 1.3 m
Compact dimensions facilitating
work in difficult areas, with the same
dimensions regardless of the moto-
risation
Intelligent recognition of
implements, simplicity of use,
maximum productivity
Three optional transmissions:
4x2x2, 4x2x4 and 4x4x4. With the
best handling on the market and a
turning radius of just 2,700 mm in
the four-wheel drive version

9. www.excelway.eu
M 200 HRef. M481
100/285
92/380
2700/3300
2700/3300
1300
1300
M 200 H EURO lll/V
M 200 H EURO Vl
2500
2500
CV/Par
- Standard iLink system that enables use of the 2,000 litre hot and cold water unit,
snow plough/brush, salt spreader, open bed, etc.
- Automatic recognition of implements.
- Low consumption and emission engines (savings of up to 5 tons in CO2 emissions).
- Payload of up to 2,500 kg.
- Turning radius of just 2,700 mm with four-wheel drive.
Advantages
- 2,000 l water tank made of rotomoulded plastic.
- Pressurised water flushing system with a telescopic front bar of
three sections with a flushing width of 1,300 mm to 2,500 mm.
- 5 separate water outlets plus 2 ‘duckbill’ side outlets.
- Proportional water flow control.
- Spray bar control via a single lever joystick for right / left / up /
down movements.
- Pressurised water cleaning unit with gun, nozzle and hose with
automatic reel (150 bar).
- 2,000 l water tank made of rotomoulded plastic.
- Hot water pressure washer, hot water diesel boiler with low CO2
emissions. Adjustment of temperature up to 80 degrees (300 bar
working pressure; flow of 21 l/min).
- Proportional water flow control.
- Control via a single lever joystick for right / left / up / down
movements.
- Pressurised water cleaning unit with gun, nozzle and hose with
automatic reel (150 bar; 16 m hose length).
HOT WATER UNITCOLD WATER UNIT
Characteristics

10. www.excelway.eu

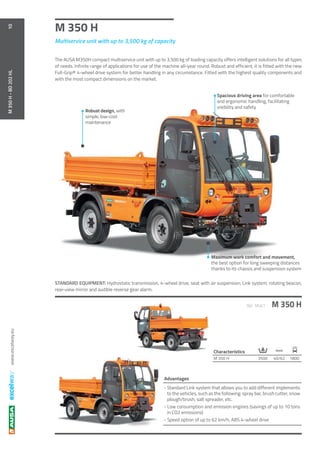

M 350 H
M 350 HRef. M461
40/62 1800M 350 H 3500
Km/h
10M350H-BD202HL
STANDARD EQUIPMENT: Hydrostatic transmission, 4-wheel drive, seat with air suspension, Link system, rotating beacon,
rear-view mirror and audible reverse gear alarm.
- Standard Link system that allows you to add different implements
to the vehicles, such as the following: spray bar, brush cutter, snow
plough/brush, salt spreader, etc.
- Low consumption and emission engines (savings of up to 10 tons
in CO2 emissions)
- Speed option of up to 62 km/h, ABS 4-wheel drive
Advantages
Maximum work comfort and movement,
the best option for long sweeping distances
thanks to its chassis and suspension system
Spacious driving area for comfortable
and ergonomic handling, facilitating
visibility and safety
Robust design, with
simple, low-cost
maintenance
Multiservice unit with up to 3,500 kg of capacity
The AUSA M350H compact multiservice unit with up to 3,500 kg of loading capacity offers intelligent solutions for all types
of needs. Infinite range of applications for use of the machine all-year round. Robust and efficient, it is fitted with the new
Full-Grip® 4-wheel drive system for better handling in any circumstance. Fitted with the highest quality components and
with the most compact dimensions on the market.
Characteristics

11. www.excelway.eu
BD 202 HL
BD 202 HL
Ref. M173
BD 202 HL 1 422300
m3
Simplicity and robustness
Low consumption and
operating costs
4-wheel drive with snow
equipment option
Mechanical sweeper for industrial applications with multiple functions. Easy maintenance and use, together with low consumption and
emissions, make this unit the intelligent choice. Robust and efficient, it has a 4-wheel drive system as standard and is fitted with the very
highest quality components.
- High productivity and very low maintenance unit.
- 4-wheel drive transmission as standard for access to difficult areas.
- Exclusive side tipping and tipping at height.
- Option of fitting water gun and salt spreader.
Advantages
STANDARD EQUIPMENT: Two-speed hydrostatic transmission, permanent 4-wheel drive system, ROPS/FOPS overhead guard, tipping at
height, 2 brushes with lateral displacement and humidification system.
Characteristics
Mechanical sweeper with 1 m3 capacity

12. www.excelway.eu
B 200 H EURO 3-5 / EURO 6
4x2x2 4x2x4 4x4x4
5000
3500
1990
1300
4195
VOLKSWAGEN / VM MOTORI*
2.0 TDI / R754*
75 / 68*
285@1750 / 380@2600*
4 / 4*
5,3 / 5,3*
40
25
37
2700
225/70 R15
2000
1580
1200
14.000
2 - 3
2500/2800
11
X
300
12,5
2,5
-
-
-
-
X
X**
X**
X**
X**
B 400 H
6400
4560
2170
1700
4470
VOLKSWAGEN
2.0 TDI
75
285@1750
4
6,5
40/62***
40/62***
28
4773
225/70 R15
4000
1600
1400
13.000
-
2-3
2000/2700
7
-
-
580
12,5
2,75
-
-
-
-
-
X
-
-
X
X
3400
27
3300
3500
37
2700
GENERAL
Maximum authorised weight
Unladen weight
Total height
Total width
Total length
ENGINE
Make
Model
Power
Torque
No. cylinders
Consumption
DRIVING
Maximum speed
Maximum operation speed
Gradeability (at full load)
External turning radius
Suspension
Rear suspension
Tyres
WASTE HOPPER
Capacity
Material
Tipping height
Tipping width
Turbine capacity
SWEEPING SYSTEM
No. brushes
Port and arms material
Effective maximum width of sweep
Sprinklers
4-STAR PM2.5/10
WATER TANK
Capacity
Material
Water pump flow
Water pump pressure
Maximum water temperature
SPRAY/SCRAPER BAR/HEAD
No. nozzles
Material
Effective maximum width
APPLICATIONS
Sweeping
Cold water flushing
Hot water flushing
Snow
Others
12TECHNICALDATA
TECHNICAL DATA
UNIT
Kg
Kg
mm
mm
mm
mm
-
-
kW
Nm@rpm
-
l/h
-
km/h
km/h
%
mm
-
-
-
n
l
-
mm
mm
m3/h
-
-
-
mm
-
-
l
-
l/min
bar
º
-
-
mm
-
-
-
-
-
Amortiguador hidráulico y muelles
Amort. hidráulico, ballestas y barra torsión
Aluminio
Acero inoxidable
Acero Inoxidable
Amortiguador hidráulico y muelles
Amort. hidráulico, muelle y barra torsión
Acero inoxidable
Acero inoxidable
Rotomolding HDPE

13. www.excelway.eu
M 200 H EURO 3-5 / EURO 6
4x2x2 4x2x4 4x4x4
M 350 H BD 202 HL
5000
2415
1990
1300
3800
VOLKSWAGEN / VM MOTORI*
2.0 TDI / R754*
75 / 68*
285@1750 / 380@2600*
4 / 4*
5,3 / 5,3*
40
25
37
2700
225/70 R15
1200
800
1300
-
-
-
-
-
-
2000***
80/21
60/300
-/75
20/14
2500/1300
-
X
X
X
X
6400
3290 - 4080
2240
1750
4427
VOLKSWAGEN
2.0 TDI
75
285@1750
4
6,5
40/62***
40/62***
38
4773
225/70 R17.5
1250
1540
1750
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
X
X
2375
27
3300
80/21
60/300
-/75
20/14
2500/1300
2415
37
2700
80/21
60/300
-/75
20/14
2500/1300
-
2300
2275
2175
3500/4990
KUBOTA
V1505
22.7
95,6@2000
4
6,47
20
20
42
4190
10.0/80-12”TL (10PR)
900
1500
900
-
2
1720
4
-
350
12,5
2,5
-
-
-
-
-
-
X
-
-
-
-
Acero
Acero
Rotomolding HDPE
Amortiguador hidráulico y muelles
Amortiguador hidráulico y ballestas
Aluminio
Amortiguador hidráulico y muelles
Amort. hidráulico, ballestas y barra torsión
Acero inoxidable
Rotomolding HDPE
Inox/SteelInox/Steel Inox/Steel
* Euro Vl ** iLink Option *** Check homologations

14. www.excelway.eu
B 200 H
B 400 H
M 200 H
1300
1543
1900 1317816
4398
2047
1900 11707301300
3800
1990
1900 11707301300
3800
1990
1400
1710
2000
14DIMENSIONS
DIMENSIONS

15. www.excelway.eu
M 350 H
BD 202 HL
2172
1325 2203
4330 1710
1414
4410
803

16. www.excelway.eu
A48X030201
-
A48X030101
A48X030103
A48X090102
A48X090109
A48X090106
A48X090107
A48X090100
A48X090109
A48X090101
-
A48X090103
A48X090104
-
A48409040X
A48X080601
l
A48X080102
l
A48X080201
A48X080407
A48X080401
A48X080404
A48X080405
A48X080301
A48X080305
A48X040201
A48X040202
A48X040203
A48X080502
A48X070201
-
A48X130101
A48X130102
B 200 H

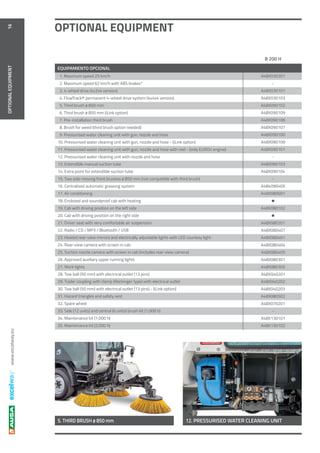

16OPTIONALEQUIPMENT
OPTIONAL EQUIPMENT
5. THIRD BRUSH ø 850 mm
EQUIPAMIENTO OPCIONAL
1. Maximum speed 25 km/h
2. Maximum speed 62 km/h with ABS brakes*
3. 4-wheel drive (4x2x4 version)
4. FlowTrack® permanent 4-wheel drive system (4x4x4 version)
5. Third brush ø 850 mm
6. Third brush ø 850 mm (iLink option)
7. Pre-installation third brush
8. Brush for weed (third brush option needed)
9. Pressurised water cleaning unit with gun, nozzle and hose
10. Pressurised water cleaning unit with gun, nozzle and hose - (iLink option)
11. Pressurised water cleaning unit with gun, nozzle and hose with reel - (only EUROV engine)
12. Pressurised water cleaning unit with nozzle and hose
13. Extendible manual suction tube
14. Extra point for extendible suction tube
15. Two side-moving front brushes ø 850 mm (not compatible with third brush)
16. Centralised automatic greasing system
17. Air conditioning
18. Enclosed and soundproof cab with heating
19. Cab with driving position on the left side
20. Cab with driving position on the right side
21. Driver seat with very comfortable air suspension
22. Radio / CD / MP3 / Bluetooth / USB
23. Heated rear-view mirrors and electrically adjustable lights with LED courtesy light
24. Rear-view camera with screen in cab
25. Suction nozzle camera with screen in cab (includes rear-view camera)
26. Approved auxiliary upper running lights
27. Work lights
28. Tow ball (50 mm) with electrical outlet (13 pins)
29. Trailer coupling with clamp (Rockinger type) with electrical outlet
30. Tow ball (50 mm) with electrical outlet (13 pins) - (iLink option)
31. Hazard triangles and safety vest
32. Spare wheel
33. Side (12 units) and central (6 units) brush kit (1,000 h)
34. Maintenance kit (1,000 h)
35. Maintenance kit (2,000 h)
12. PRESSURISED WATER CLEANING UNIT

17. www.excelway.eu
B 400 H BD 202 HLM 200 H M 350 H
A47007035
A47007034
-
-
A47003031
-
-
-
A47002054
-
-
-
A47002053
-
A47001035
-
A47004035
l
A47004013
l
A47006015
A47006017
-
-
l
-
-
-
-
-
A47010011
A47009902
-
A47006022
A47006023
A46107035
A46107034
-
-
-
-
-
-
-
-
-
-
-
-
-
-
A46104033
l
l
A46104012
A46106015
A46106017
-
-
-
-
-
A46105011
A46105012
-
A46110011
A46109902
-
A46106022
A48X030201
-
A48X030101
A48X030103
-
-
-
-
-
-
-
-
-
-
-
A48509040X
A48X080601
l
l
A48X080103
A48X080201
A48X080407
A48X080401
A48X080404
-
-
A48X080305
A48X040201
A48X040202
-
A48X080502
A48X070201
-
A48X130101
-
-
-
-
-
-
-
-
-
-
-
A17300003
-
-
-
A17300004
A17300002
-
-
A17300025
A17300016
-
-
-
-
-
-
A17300023
-
-
-
A17300020
A17300005
A17300018
-
24-25. REAR-VIEW CAMERA13. EXTENDIBLE MANUAL SUCTION TUBE
l Standard equipment

18. www.excelway.eu
B 200 H
A48X100101
A48X090302
-
A48X090303
-
A48X090201
-
A48X090301
A48X090501
A48X090505
A48X090603
-
-
-
A48X090606
A48X090601
A48X090503
A48X090504
A48X090701
A48X090702
A48X090703

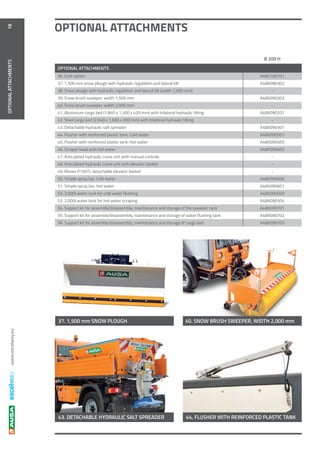

18OPTIONALATTACHMENTS
OPTIONAL ATTACHMENTS
OPTIONAL ATTACHMENTS
36. iLink option
37. 1,500 mm snow plough with hydraulic regulation and lateral tilt
38. Snow plough with hydraulic regulation and lateral tilt (width 2,000 mm)
39. Snow brush sweeper, width 1,500 mm
40. Snow brush sweeper, width 2,000 mm
41. Aluminium cargo bed (1,840 x 1,300 x 420 mm) with trilateral hydraulic tilting
42. Steel cargo bed (2,640 x 1,600 x 300 mm) with trilateral hydraulic tilting
43. Detachable hydraulic salt spreader
44. Flusher with reinforced plastic tank. Cold water
45. Flusher with reinforced plastic tank. Hot water
46. Scraper head with hot water
47. Articulated hydraulic crane unit with manual controls
48. Articulated hydraulic crane unit with elevator basket
49. Movex P150TL detachable elevator basket
50. Simple spray bar. Cold water
51. Simple spray bar. Hot water
52. 2,000l water tank for cold water flushing
53. 2,000l water tank for hot water scraping
54. Support kit for assembly/disassembly, maintenance and storage of the sweeper tank
55. Support kit for assembly/disassembly, maintenance and storage of water flushing tank
56. Support kit for assembly/disassembly, maintenance and storage of cargo bed
44. FLUSHER WITH REINFORCED PLASTIC TANK43. DETACHABLE HYDRAULIC SALT SPREADER
37. 1,500 mm SNOW PLOUGH 40. SNOW BRUSH SWEEPER, WIDTH 2,000 mm

19. www.excelway.eu
B 400 H BD 202 HLM 350 HM 200 H
-
-
A47003022
-
A47003023
-
A47002031
A47002061
-
-
-
-
-
A46102091
-
-
-
-
-
-
-
l
A48X090302
-
A48X090303
-
A48X090201
-
A48X090301
A48X090501
A48X090505
A48X090603
-
-
-
A48X090606
A48X090601
A48X090503
A48X090504
-
A48X090702
A48X090703
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
A46103022
-
A46103023
-
A46102031
A46102061
-
-
-
A46102071
A46102073
A46102091
-
-
-
-
-
-
-
42. STEEL CARGO BED41. ALUMINIUM CARGO BED
52. 2,000 l WATER TANK FOR COLD WATER FLUSHING46. SCRAPER HEAD WITH HOT WATER
l Standard equipment

20. www.excelway.eu

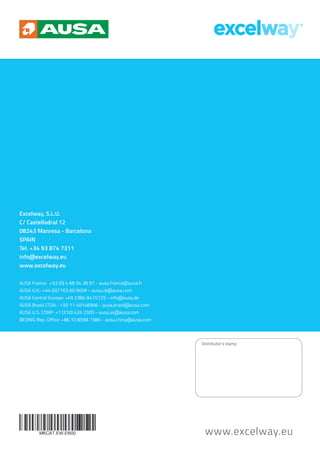

Excelway, S.L.U.
C/ Castelladral 12
08243 Manresa - Barcelona
SPAIN
Tel. +34 93 874 7311
info@excelway.eu
www.excelway.eu
AUSA France: +33 (0) 4 68 54 38 97 - ausa.france@ausa.fr
AUSA U.K.: +44 (0)7703 60 9009 - ausa.uk@ausa.com
AUSA Central Europe: +49 2384 9415725 - info@ausa.de
AUSA Brasil LTDA: : +55 11 40146906 - ausa.brasil@ausa.com
AUSA U.S. CORP: +1 (310) 426 2305 - ausa.us@ausa.com
BEIJING Rep. Office: +86 10 8598 7386 - ausa.china@ausa.com
Distributor’s stamp
