CAO_Basic_Structure_of_computer_ppt

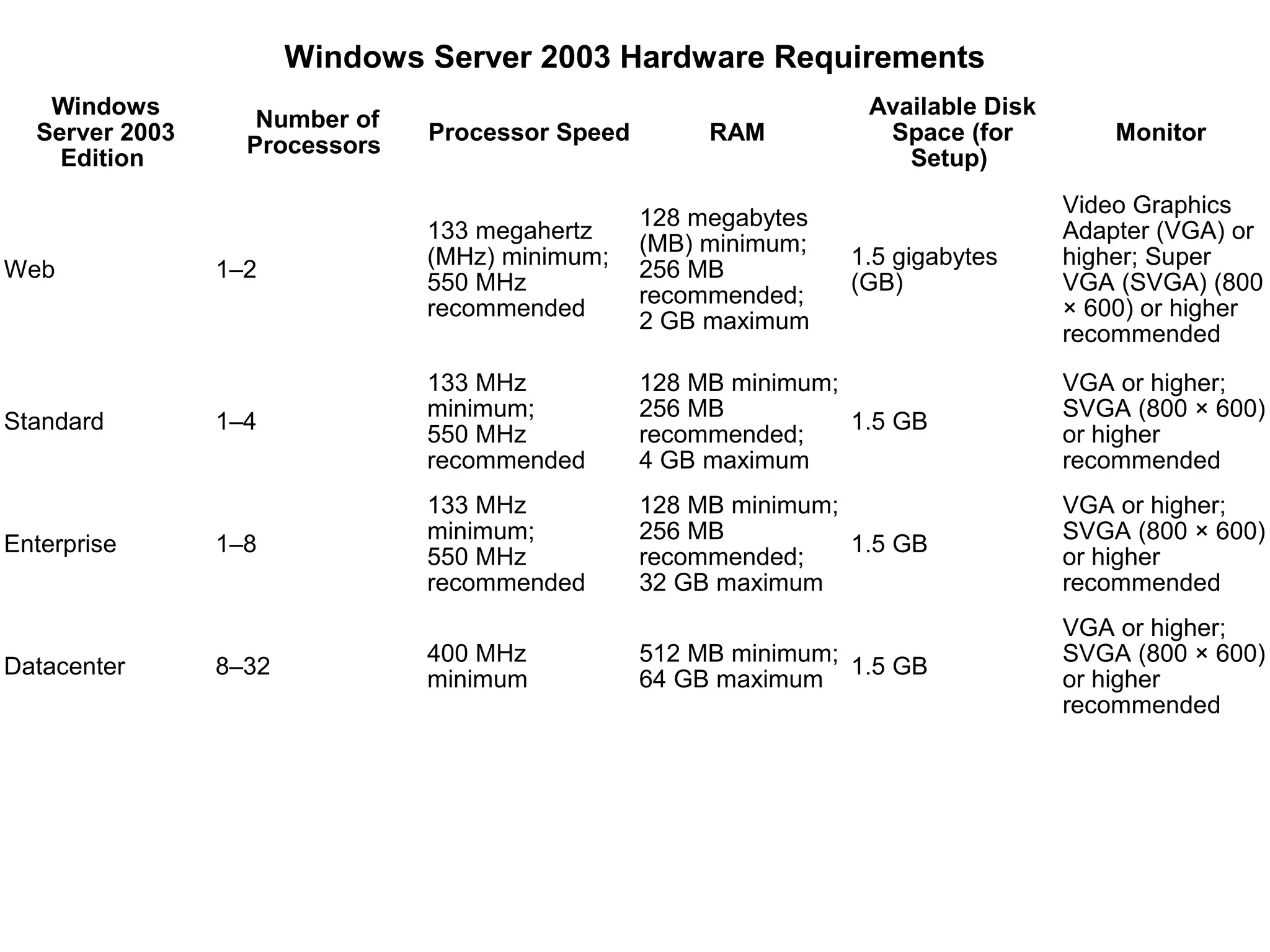

Windows Server 2003 Hardware Requirements
Windows Available Disk
Number of
Server 2003 Processor Speed RAM Space (for Monitor
Processors
Edition Setup)
Video Graphics
128 megabytes
133 megahertz Adapter (VGA) or
(MB) minimum;
(MHz) minimum; 1.5 gigabytes higher; Super
Web 1–2 256 MB
550 MHz (GB) VGA (SVGA) (800
recommended;
recommended × 600) or higher
2 GB maximum
recommended
133 MHz 128 MB minimum; VGA or higher;
minimum; 256 MB SVGA (800 × 600)
Standard 1–4 1.5 GB
550 MHz recommended; or higher
recommended 4 GB maximum recommended
133 MHz 128 MB minimum; VGA or higher;
minimum; 256 MB SVGA (800 × 600)
Enterprise 1–8 1.5 GB
550 MHz recommended; or higher
recommended 32 GB maximum recommended
VGA or higher;
400 MHz 512 MB minimum; SVGA (800 × 600)
Datacenter 8–32 1.5 GB
minimum 64 GB maximum or higher
recommended

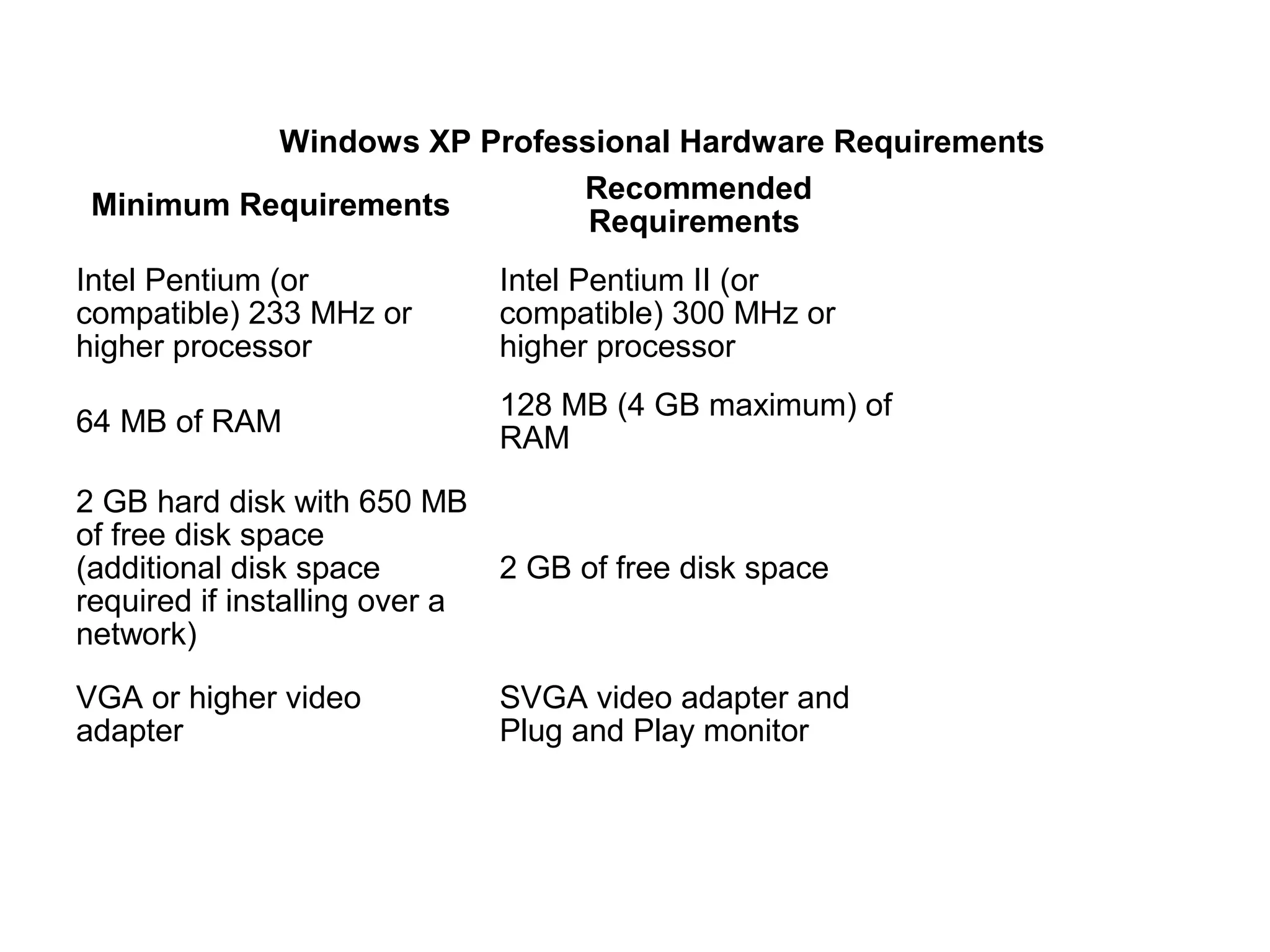

Windows XP Professional Hardware Requirements
Recommended
Minimum Requirements
Requirements
Intel Pentium (or Intel Pentium II (or
compatible) 233 MHz or compatible) 300 MHz or
higher processor higher processor
128 MB (4 GB maximum) of
64 MB of RAM
RAM

2 GB hard disk with 650 MB
of free disk space
(additional disk space 2 GB of free disk space
required if installing over a
network)

VGA or higher video SVGA video adapter and
adapter Plug and Play monitor

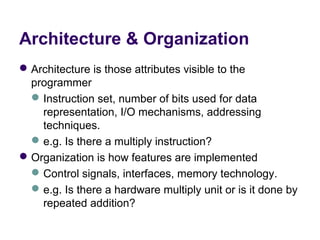

Architecture & Organization
 Architecture is those attributes visible to the
programmer
 Instruction set, number of bits used for data
representation, I/O mechanisms, addressing
techniques.
 e.g. Is there a multiply instruction?
 Organization is how features are implemented
 Control signals, interfaces, memory technology.
 e.g. Is there a hardware multiply unit or is it done by
repeated addition?

Chapter 1. Basic
Structure of Computers

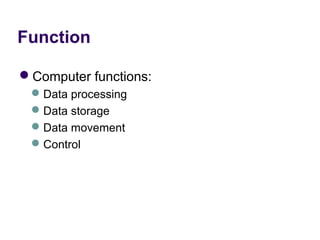

Function

Computer functions:
 Data processing
 Data storage
 Data movement
 Control

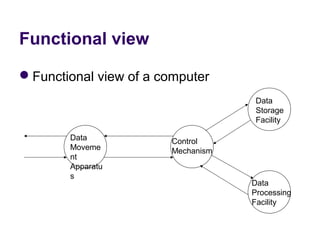

Functional view

Functional view of a computer
Data
Storage
Facility

Data Control
Moveme Mechanism
nt
Apparatu
s
Data
Processing
Facility

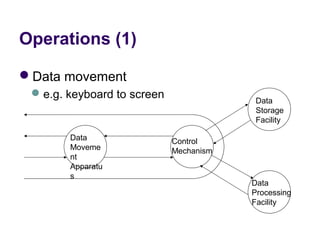

Operations (1)

Data movement
 e.g. keyboard to screen
Data
Storage
Facility

Data Control
Moveme Mechanism
nt
Apparatu
s
Data
Processing
Facility

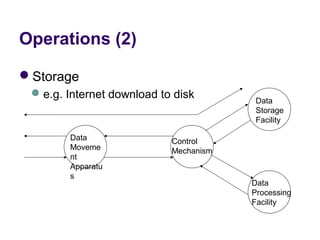

Operations (2)

Storage
 e.g. Internet download to disk
Data
Storage
Facility

Data Control
Moveme Mechanism
nt
Apparatu
s
Data
Processing
Facility

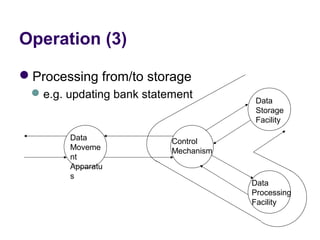

Operation (3)

Processing from/to storage
 e.g. updating bank statement
Data
Storage
Facility

Data Control
Moveme Mechanism
nt
Apparatu
s
Data
Processing
Facility

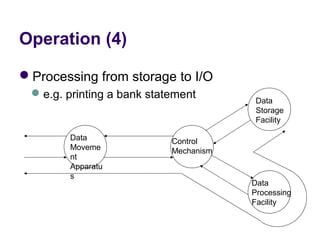

Operation (4)

Processing from storage to I/O
 e.g. printing a bank statement
Data
Storage
Facility

Data Control
Moveme Mechanism
nt
Apparatu
s
Data
Processing
Facility

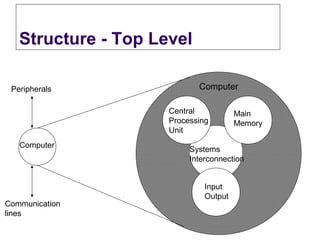

Structure - Top Level

Peripherals Computer

Central Main
Processing Memory
Unit
Computer
Systems
Interconnection

Input
Output
Communication
lines

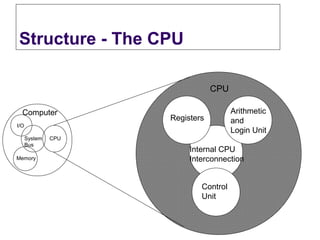

Structure - The CPU

CPU

Computer Arithmetic
Registers and
I/O
Login Unit
System CPU
Bus
Internal CPU
Memory Interconnection

Control
Unit

Functional Units
Arithmetic
Input and
logic

Memory

Output Control

I/O Processor

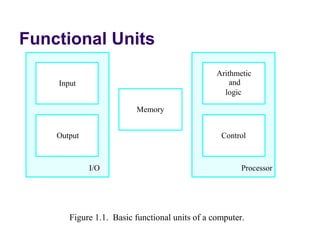

Figure 1.1. Basic functional units of a computer.

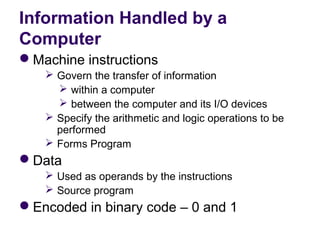

Information Handled by a
Computer
Machine instructions
 Govern the transfer of information
 within a computer
 between the computer and its I/O devices
 Specify the arithmetic and logic operations to be
performed
 Forms Program
Data
 Used as operands by the instructions
 Source program
Encoded in binary code – 0 and 1

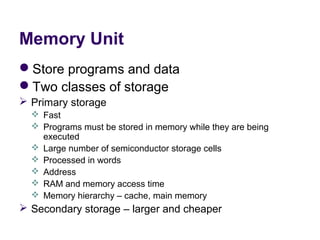

Memory Unit
Store programs and data
Two classes of storage
 Primary storage
 Fast
 Programs must be stored in memory while they are being
executed
 Large number of semiconductor storage cells
 Processed in words
 Address
 RAM and memory access time
 Memory hierarchy – cache, main memory
 Secondary storage – larger and cheaper

Arithmetic and Logic Unit
(ALU)
Most computer operations are executed in
ALU of the processor.
Load the operands into memory – bring them
to the processor – perform operation in ALU
– store the result back to memory or retain in
the processor.
Registers
ALU – Faster than other devices

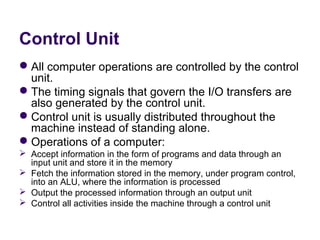

Control Unit
 All computer operations are controlled by the control
unit.
 The timing signals that govern the I/O transfers are
also generated by the control unit.
 Control unit is usually distributed throughout the
machine instead of standing alone.
 Operations of a computer:
 Accept information in the form of programs and data through an
input unit and store it in the memory
 Fetch the information stored in the memory, under program control,
into an ALU, where the information is processed
 Output the processed information through an output unit
 Control all activities inside the machine through a control unit

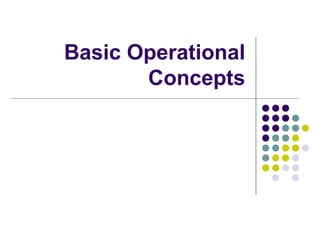

Basic Operational
Concepts

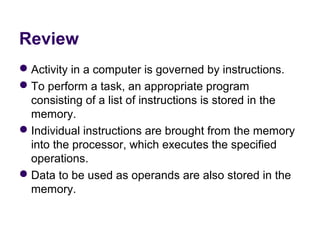

Review
 Activity in a computer is governed by instructions.
 To perform a task, an appropriate program
consisting of a list of instructions is stored in the
memory.
 Individual instructions are brought from the memory
into the processor, which executes the specified
operations.
 Data to be used as operands are also stored in the
memory.

A Typical Instruction
 Add LOCA, R0 or Load r2,LOCB or Store R4,LOC
 Add the operand at memory location LOCA to the
operand in a register R0 in the processor.
 Place the sum into register R0.
 The original contents of LOCA are preserved.
 The original contents of R0 is overwritten.
 Instruction is fetched from the memory into the
processor – the operand at LOCA is fetched and
added to the contents of R0 – the resulting sum is
stored in register R0.

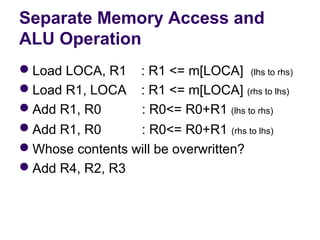

Separate Memory Access and
ALU Operation
Load LOCA, R1    : R1 <= m[LOCA]  (lhs to rhs)
Load R1, LOCA    : R1 <= m[LOCA] (rhs to lhs)
Add R1, R0           : R0<= R0+R1 (lhs to rhs)
Add R1, R0           : R0<= R0+R1 (rhs to lhs)
Whose contents will be overwritten?
Add R4, R2, R3

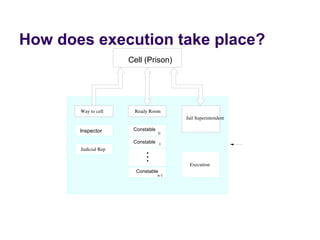

How does execution take place?
Cell (Prison)

Way to cell Ready Room
Jail Superintendent

Inspector Constable
0

Constable 1
Judicial Rep

Execution
Constable
n1

Connection Between the
Processor and the Memory
Memory

MAR MDR
Control

PC R
0

R
1 Processor
IR

ALU
R
n 1

n general purpose
registers

Figure 1.2. Connections between the processor and the memory.

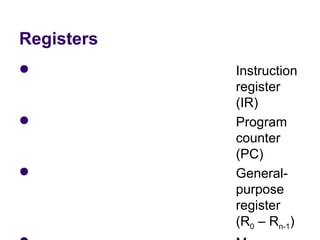

Registers
 Instruction
register
(IR)
 Program
counter
(PC)
 General-
purpose
register
(R0 – Rn-1)

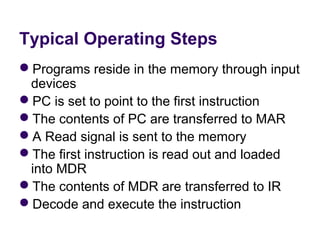

Typical Operating Steps
Programs reside in the memory through input
devices
PC is set to point to the first instruction
The contents of PC are transferred to MAR
A Read signal is sent to the memory
The first instruction is read out and loaded
into MDR
The contents of MDR are transferred to IR
Decode and execute the instruction

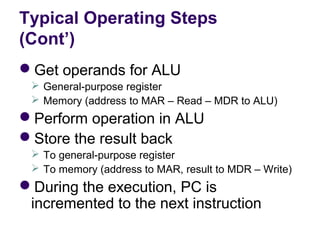

Typical Operating Steps
(Cont’)
Get operands for ALU
 General-purpose register
 Memory (address to MAR – Read – MDR to ALU)
Perform operation in ALU
Store the result back
 To general-purpose register
 To memory (address to MAR, result to MDR – Write)
During the execution, PC is
incremented to the next instruction

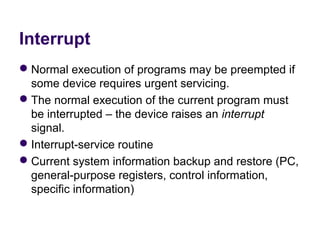

Interrupt
 Normal execution of programs may be preempted if
some device requires urgent servicing.
 The normal execution of the current program must
be interrupted – the device raises an interrupt
signal.
 Interrupt-service routine
 Current system information backup and restore (PC,
general-purpose registers, control information,
specific information)

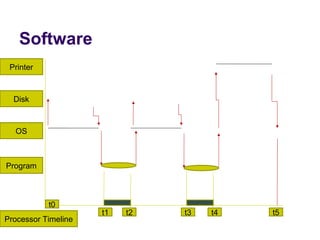

Software
Printer

Disk

OS

Program

t0
t1 t2 t3 t4 t5
Processor Timeline

Chapter 2. Machine
Instructions and
Programs

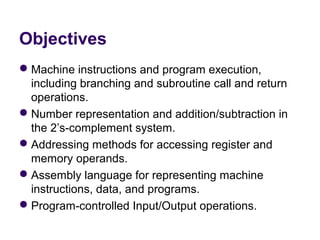

Objectives
 Machine instructions and program execution,
including branching and subroutine call and return
operations.
 Number representation and addition/subtraction in
the 2’s-complement system.
 Addressing methods for accessing register and
memory operands.
 Assembly language for representing machine
instructions, data, and programs.
 Program-controlled Input/Output operations.

Number, Arithmetic
Operations, and
Characters

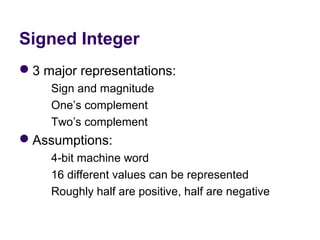

Signed Integer
3 major representations:
          Sign and magnitude
          One’s complement
          Two’s complement
Assumptions:
          4-bit machine word
          16 different values can be represented
          Roughly half are positive, half are negative

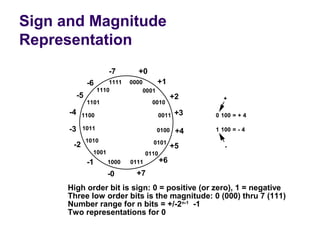

Sign and Magnitude
Representation
-7 +0
-6 1111 0000 +1
1110 0001
-5 +2 +
1101 0010
-4 1100 0011 +3 0 100 = + 4

-3 1011 0100 +4 1 100 = - 4
1010 0101
-2 +5 -
1001 0110
-1 1000 0111 +6
-0 +7
High order bit is sign: 0 = positive (or zero), 1 = negative
Three low order bits is the magnitude: 0 (000) thru 7 (111)
Number range for n bits = +/-2n-1 -1
Two representations for 0

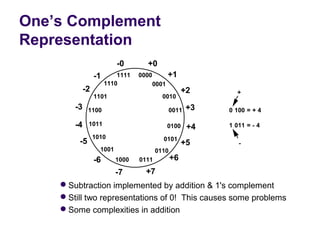

One’s Complement
Representation
-0 +0
-1 1111 0000 +1
1110 0001
-2 +2 +
1101 0010
-3 1100 0011 +3 0 100 = + 4

-4 1011 0100 +4 1 011 = - 4
1010 0101
-5 +5 -
1001 0110
-6 1000 0111 +6
-7 +7
Subtraction implemented by addition & 1's complement
Still two representations of 0! This causes some problems
Some complexities in addition

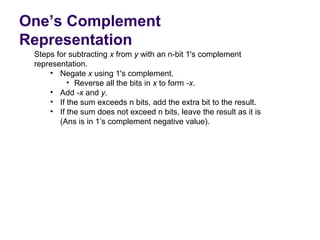

One’s Complement
Representation
Steps for subtracting x from y with an n-bit 1's complement
representation.
• Negate x using 1's complement.
• Reverse all the bits in x to form -x.
• Add -x and y.
• If the sum exceeds n bits, add the extra bit to the result.
• If the sum does not exceed n bits, leave the result as it is
(Ans is in 1’s complement negative value).

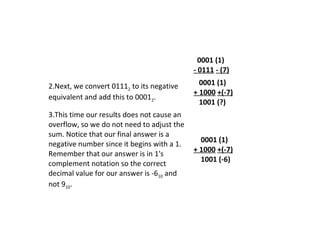

0001 (1)
- 0111 - (7)

2.Next, we convert 01112 to its negative 0001 (1)
+ 1000 +(-7)
equivalent and add this to 00012.
1001 (?)
3.This time our results does not cause an
overflow, so we do not need to adjust the
sum. Notice that our final answer is a
0001 (1)
negative number since it begins with a 1.
+ 1000 +(-7)
Remember that our answer is in 1's
1001 (-6)
complement notation so the correct
decimal value for our answer is -610 and
not 910.

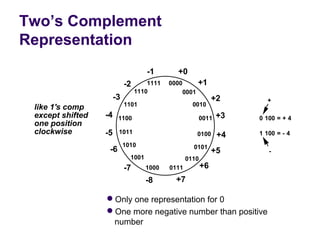

Two’s Complement
Representation
-1 +0
-2 1111 0000 +1
1110 0001
-3 +2 +
1101 0010
like 1's comp
except shifted -4 1100 0011 +3 0 100 = + 4
one position
clockwise -5 1011 0100 +4 1 100 = - 4
1010 0101
-6 +5 -
1001 0110
-7 1000 0111 +6
-8 +7

Only one representation for 0
One more negative number than positive
number

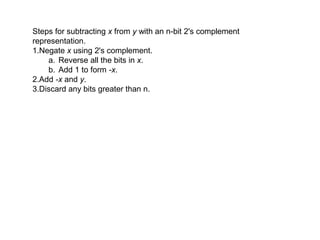

Steps for subtracting x from y with an n-bit 2's complement
representation.
1.Negate x using 2's complement.
a. Reverse all the bits in x.
b. Add 1 to form -x.
2.Add -x and y.
3.Discard any bits greater than n.

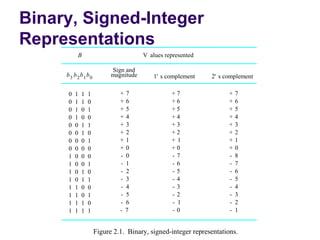

Binary, Signed-Integer
Representations
B V alues represented

Sign and
b3 b2b1b0 magnitude 1' s complement 2' s complement

0 1 1 1 +7 +7 + 7
0 1 1 0 +6 +6 + 6
0 1 0 1 +5 +5 + 5
0 1 0 0 +4 +4 + 4
0 0 1 1 +3 +3 + 3
0 0 1 0 +2 +2 + 2
0 0 0 1 +1 +1 + 1
0 0 0 0 +0 +0 + 0
1 0 0 0 - 0 -7 - 8
1 0 0 1 - 1 -6 - 7
1 0 1 0 - 2 -5 - 6
1 0 1 1 - 3 -4 - 5
1 1 0 0 - 4 -3 - 4
1 1 0 1 - 5 -2 - 3
1 1 1 0 - 6 - 1 - 2
1 1 1 1 - 7 -0 - 1

Figure 2.1. Binary, signed-integer representations.

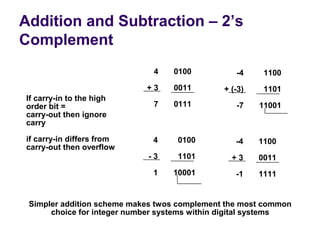

Addition and Subtraction – 2’s
Complement
4 0100 -4 1100
+3 0011 + (-3) 1101
If carry-in to the high
order bit = 7 0111 -7 11001
carry-out then ignore
carry

if carry-in differs from 4 0100 -4 1100
carry-out then overflow
-3 1101 +3 0011
1 10001 -1 1111

Simpler addition scheme makes twos complement the most common
choice for integer number systems within digital systems

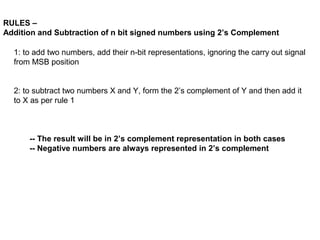

RULES –
Addition and Subtraction of n bit signed numbers using 2’s Complement

1: to add two numbers, add their n-bit representations, ignoring the carry out signal
from MSB position

2: to subtract two numbers X and Y, form the 2’s complement of Y and then add it
to X as per rule 1

-- The result will be in 2’s complement representation in both cases
-- Negative numbers are always represented in 2’s complement

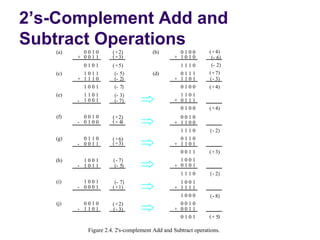

2’s-Complement Add and
Subtract Operations
(a) 0010 ( + 2) (b) 0100 ( + 4)
+ 0011 ( + 3) + 1010 (- 6)
0101 ( + 5) 1110 (- 2)
(c) 1011 (- 5) (d) 0111 ( + 7)
+ 1110 (- 2) + 1101 ( - 3)
1001 (- 7) 0100 ( + 4)
(e) 1101 (- 3) 1101
- 1001 (- 7) + 0111
0100 ( + 4)
(f) 0010 ( + 2) 0010
- 0100 ( + 4) + 1100
1110 ( - 2)
(g) 0110 ( + 6) 0110
- 0011 ( + 3) + 1101
0011 ( + 3)
(h) 1001 ( - 7) 1001
- 1011 (- 5) + 0101
1110 ( - 2)
(i) 1001 (- 7) 1001
- 0001 ( + 1) + 1111
1000 ( - 8)
(j) 0010 ( + 2) 0010
- 1101 ( - 3) + 0011
0101 ( + 5)

Figure 2.4. 2's-complement Add and Subtract operations.

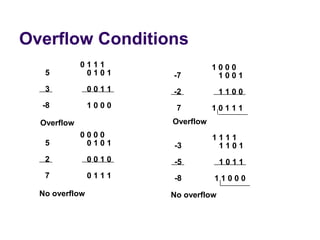

Overflow Conditions
0111 1000
5 0101 -7 1001
3 0011 -2 1100
-8 1000 7 10111
Overflow Overflow
0000 1111
5 0101 -3 1101
2 0010 -5 1011
7 0111 -8 11000
No overflow No overflow

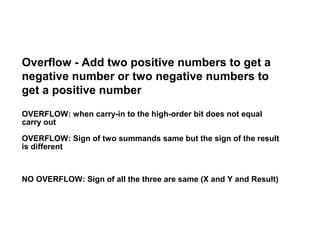

Overflow - Add two positive numbers to get a
negative number or two negative numbers to
get a positive number
OVERFLOW: when carry-in to the high-order bit does not equal
carry out

OVERFLOW: Sign of two summands same but the sign of the result
is different

NO OVERFLOW: Sign of all the three are same (X and Y and Result)

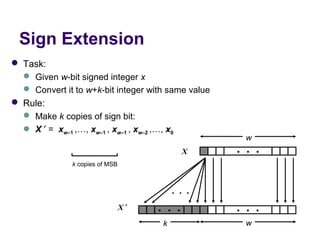

Sign Extension
 Task:
 Given w-bit signed integer x
 Convert it to w+k-bit integer with same value
 Rule:
 Make k copies of sign bit:
 X ′ = xw–1 ,…, xw–1 , xw–1 , xw–2 ,…, x0
w
X • • •
k copies of MSB

• • •

X′ • • • • • •
k w

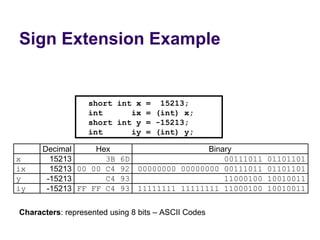

Sign Extension Example

short int x = 15213;
int ix = (int) x;
short int y = -15213;
int iy = (int) y;

Decimal Hex Binary
x 15213 3B 6D 00111011 01101101
ix 15213 00 00 C4 92 00000000 00000000 00111011 01101101
y -15213 C4 93 11000100 10010011
iy -15213 FF FF C4 93 11111111 11111111 11000100 10010011

Characters: represented using 8 bits – ASCII Codes

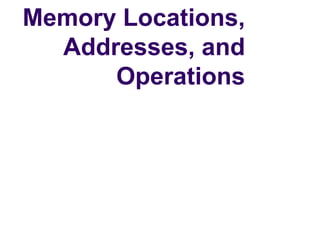

Memory Locations,
Addresses, and
Operations

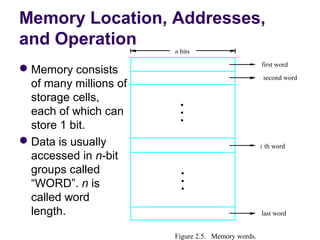

Memory Location, Addresses,
and Operation
n bits
first word
 Memory consists
second word
of many millions of
storage cells,
•
each of which can •
•
store 1 bit.
 Data is usually i th word
accessed in n-bit
groups called •
“WORD”. n is •
•
called word
length. last word

Figure 2.5. Memory words.

and Operation
32-bit word length example
32 bits

b 31 b 30 b1 b0

•
•
•
Sign bit: b 31= 0 for positive numbers
b 31= 1 for negative numbers

(a) A signed integer

8 bits 8 bits 8 bits 8 bits

ASCII ASCII ASCII ASCII
character character character character

(b) Four characters

and Operation

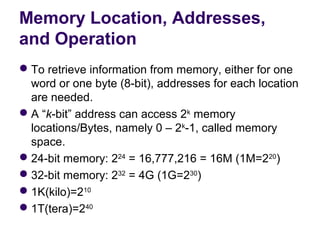

 To retrieve information from memory, either for one
word or one byte (8-bit), addresses for each location
are needed.
 A “k-bit” address can access 2k memory
locations/Bytes, namely 0 – 2k-1, called memory
space.
 24-bit memory: 224 = 16,777,216 = 16M (1M=220)
 32-bit memory: 232 = 4G (1G=230)
 1K(kilo)=210
 1T(tera)=240

and Operation
 It is
impractical
to assign
distinct
addresses
to individual
bit locations
in the
memory.
 The most
practical

Big-Endian and Little-Endian
Assignments
Big-Endian: lower byte addresses are used for the most significant bytes of the word
Little-Endian: opposite ordering. lower byte addresses are used for the less significant
bytes of the word
Word
address Byte address Byte address

0 0 1 2 3 0 3 2 1 0

4 4 5 6 7 4 7 6 5 4

• •
• •
• •

k k k k k k k k k k
2 -4 2 -4 2 -3 2- 2 2 - 1 2 - 4 2- 1 2 - 2 2 -3 2 -4

(a) Big-endian assignment (b) Little-endian assignment

Figure 2.7. Byte and word addressing.

and Operation

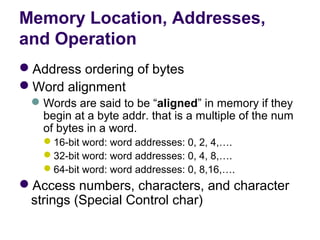

Address ordering of bytes
Word alignment
 Words are said to be “aligned” in memory if they
begin at a byte addr. that is a multiple of the num
of bytes in a word.
16-bit word: word addresses: 0, 2, 4,….
32-bit word: word addresses: 0, 4, 8,….
64-bit word: word addresses: 0, 8,16,….
Access numbers, characters, and character
strings (Special Control char)

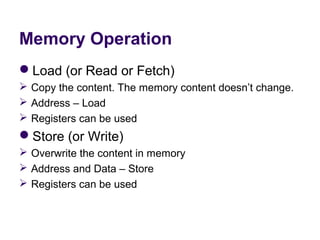

Memory Operation
Load (or Read or Fetch)
 Copy the content. The memory content doesn’t change.
 Address – Load
 Registers can be used
Store (or Write)
 Overwrite the content in memory
 Address and Data – Store
 Registers can be used

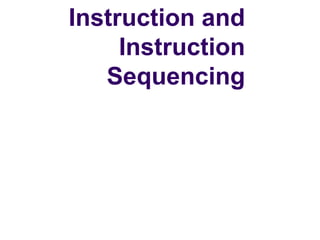

Instruction and
Instruction
Sequencing

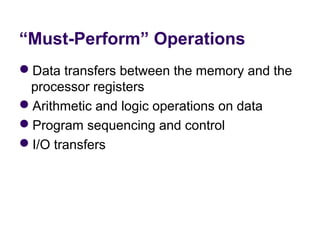

“Must-Perform” Operations
Data transfers between the memory and the
processor registers
Arithmetic and logic operations on data
Program sequencing and control
I/O transfers

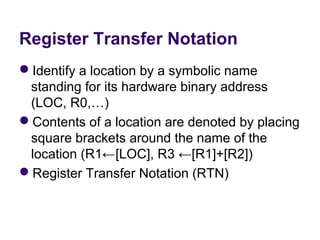

Register Transfer Notation
Identify a location by a symbolic name
standing for its hardware binary address
(LOC, R0,…)
Contents of a location are denoted by placing
square brackets around the name of the
location (R1←[LOC], R3 ←[R1]+[R2])
Register Transfer Notation (RTN)

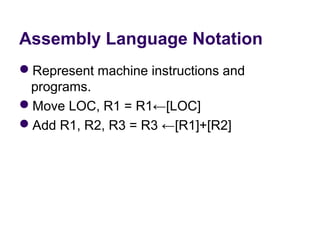

Assembly Language Notation
Represent machine instructions and
programs.
Move LOC, R1 = R1←[LOC]
Add R1, R2, R3 = R3 ←[R1]+[R2]

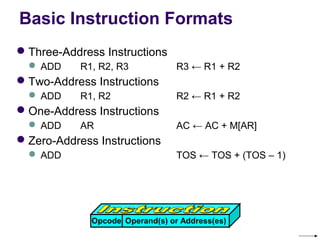

Basic Instruction Formats
 Three-Address Instructions
 ADD R1, R2, R3 R3 ← R1 + R2
 Two-Address Instructions
 ADD R1, R2 R2 ← R1 + R2
 One-Address Instructions
 ADD AR AC ← AC + M[AR]
 Zero-Address Instructions
 ADD TOS ← TOS + (TOS – 1)

Opcode Operand(s) or Address(es)

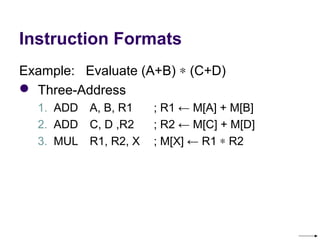

Instruction Formats
Example: Evaluate (A+B) ∗ (C+D)
 Three-Address
1. ADD A, B, R1 ; R1 ← M[A] + M[B]
2. ADD C, D ,R2 ; R2 ← M[C] + M[D]
3. MUL R1, R2, X ; M[X] ← R1 ∗ R2

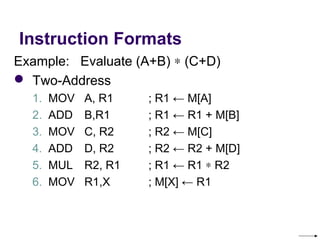

Instruction Formats
Example: Evaluate (A+B) ∗ (C+D)
 Two-Address
1. MOV A, R1 ; R1 ← M[A]
2. ADD B,R1 ; R1 ← R1 + M[B]
3. MOV C, R2 ; R2 ← M[C]
4. ADD D, R2 ; R2 ← R2 + M[D]
5. MUL R2, R1 ; R1 ← R1 ∗ R2
6. MOV R1,X ; M[X] ← R1

Instruction Formats
Example:   Evaluate
X = (A+B) ∗ (C+D)
 One-Address
1. LOAD A ; AC ← M[A]
2. ADD B ; AC ← AC + M[B]
3. STORE  T ; M[T] ← AC
4. LOAD C ; AC ← M[C]
5. ADD D ; AC ← AC + M[D]
6. MUL T ; AC ← AC ∗ M[T]
7. STORE  X ; M[X] ← AC

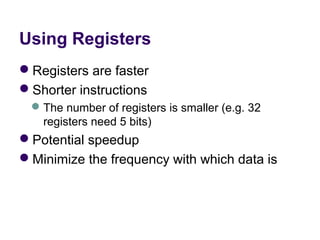

Using Registers
Registers are faster
Shorter instructions
 The number of registers is smaller (e.g. 32
registers need 5 bits)
Potential speedup
Minimize the frequency with which data is

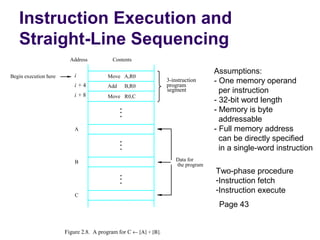

Instruction Execution and
Straight-Line Sequencing
Address Contents

i
Assumptions:
Begin execution here Move A,R0
i +4
3-instruction
program
- One memory operand
Add B,R0
segment   per instruction
i +8 Move R0,C
- 32-bit word length
- Memory is byte
  addressable
A - Full memory address
  can be directly specified
  in a single-word instruction
B Data for
the program
Two-phase procedure
-Instruction fetch
-Instruction execute
C
Page 43

Figure 2.8. A program for C ← [Α] + [Β].

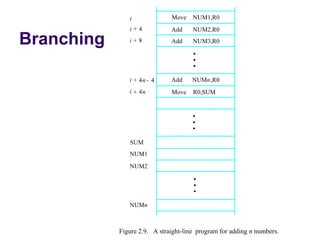

i Move NUM1,R0
i+4 Add NUM2,R0

Branching i+8 Add NUM3,R0

•
•
•
i + 4n - 4 Add NUMn,R0
i + 4n Move R0,SUM

•
•
•
SUM
NUM1
NUM2

•
•
•
NUMn

Figure 2.9. A straight-line program for adding n numbers.

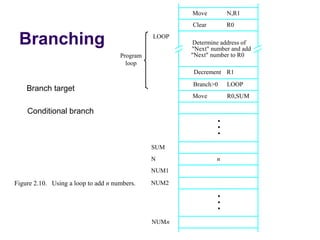

Move N,R1
Clear R0

Branching LOOP
Determine address of
"Next" number and add
Program "Next" number to R0
loop
Decrement R1
Branch>0 LOOP
Branch target
Move R0,SUM

Conditional branch
•
•
•
SUM
N n
NUM1

Figure 2.10. Using a loop to add n numbers. NUM2

•
•
•
NUMn

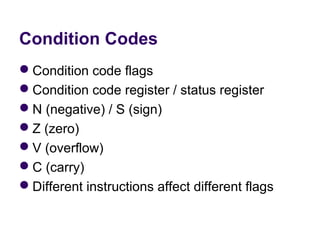

Condition Codes
Condition code flags
Condition code register / status register
N (negative) / S (sign)
Z (zero)
V (overflow)
C (carry)
Different instructions affect different flags

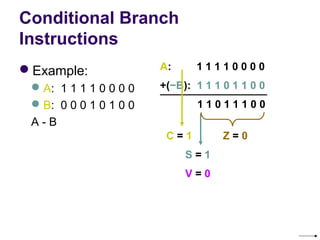

Conditional Branch
Instructions
Example: A: 11110000
 A: 1 1 1 1 0 0 0 0 +(−B): 1 1 1 0 1 1 0 0
 B: 0 0 0 1 0 1 0 0 11011100
A - B
C=1 Z=0
S=1
V=0

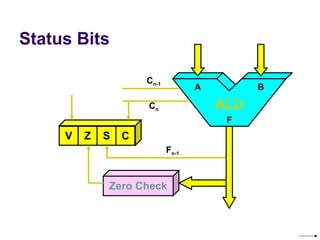

Status Bits

Cn-1
A B

Cn ALU
F
V Z S C
Fn-1

Zero Check

Generating Memory Addresses
How to specify the address of branch target?
Can we give the memory operand address
directly in a single Add instruction in the
loop?
Use a register to hold the address of NUM1;
then increment by 4 on each pass through
the loop.

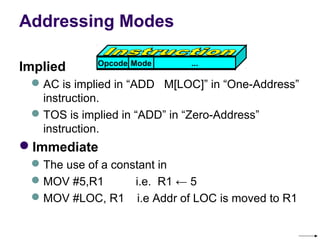

Addressing Modes

Opcode Mode ...
Implied
 AC is implied in “ADD   M[LOC]” in “One-Address”
instruction.
 TOS is implied in “ADD” in “Zero-Address”
instruction.
Immediate
 The use of a constant in
 MOV #5,R1          i.e.  R1 ← 5
 MOV #LOC, R1    i.e Addr of LOC is moved to R1

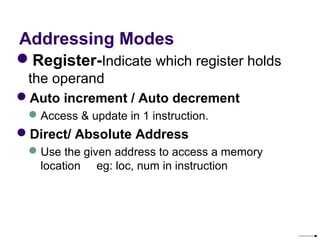

Addressing Modes
Register-Indicate which register holds
the operand
Auto increment / Auto decrement
 Access & update in 1 instruction.
Direct/ Absolute Address
 Use the given address to access a memory
location eg: loc, num in instruction

Addressing Modes
Indirect Address
 Indicate the memory location/ Register that holds
the address of the memory location that holds the
data
R1/LOC = 101

100
101 0 1 0 4
102
103
104 1 1 0 A

Addressing Modes

Relative Address
0
 EA = PC + Offset
1
Offset = -100 L 2

Could be Positive +
or Negative
(2’s Complement)
100
PC = 103
101
102 Branch>0 L
103
104

Addressing Modes
Indexed
 EA = Index (X) + Relative Addr (Ri)

Useful with X=2
“Autoincrement” or
“Autodecrement”
+

100
Ri = 100
101
Could be Positive
or Negative 102 1 1 0 A
(2’s Complement) 103
104

Addressing Modes
Base Register
 EA = Base Register + Relative Addr (Ri)

Could be Positive Ri = 2
or Negative
(2’s Complement)
+

100 0 0 0 5
BR = 100
101 0 0 1 2
102 0 0 0 A
Usually points 103 0 1 0 7
to the beginning 104 0 0 5 9
of an array

Addressing Modes
Name Assem bler syn tax Addressing function
 The different
ways in which Immediate #Value Op erand = Value
the location of
an operand is Register Ri EA = Ri
specified in Absolute (Direct) LOC EA = LOC
an instruction
are referred to Indirect (Ri ) EA = [Ri ]
as addressing (LOC) EA = [LOC]
modes.
Index X(R i) EA = [Ri ] + X

Basewith index (Ri ,Rj ) EA = [Ri ] + [Rj ]
Basewith index X(R i,Rj ) EA = [Ri ] + [Rj ] + X
and offset

Relative X(PC) EA = [PC] + X

Autoincrement (Ri )+ EA = [Ri ] ;
Increment Ri

Autodecrement − (Ri ) Decrement Ri ;
EA = [Ri]

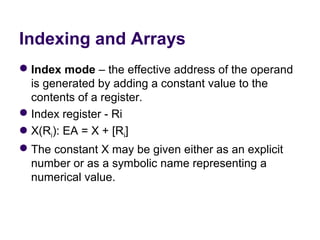

Indexing and Arrays
 Index mode – the effective address of the operand
is generated by adding a constant value to the
contents of a register.
 Index register - Ri
X(Ri): EA = X + [Ri]
 The constant X may be given either as an explicit
number or as a symbolic name representing a
numerical value.

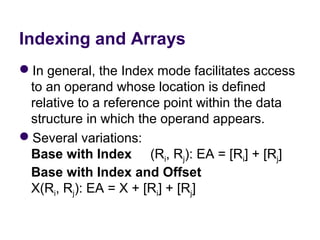

Indexing and Arrays
In general, the Index mode facilitates access
to an operand whose location is defined
relative to a reference point within the data
structure in which the operand appears.
Several variations:
Base with Index (Ri, Rj): EA = [Ri] + [Rj]
Base with Index and Offset
X(Ri, Rj): EA = X + [Ri] + [Rj]

Relative Addressing
 Relative mode – the effective address is
determined by the Index mode using the program
counter in place of the general-purpose register.
 X(PC) – note that X is a signed number
 Branch>0 LOOP
 This location is computed by specifying it as an
offset from the current value of PC.
 Branch target may be either before or after the
branch instruction, the offset is given as a signed
num.

Additional Modes
 Autoincrement mode – the effective address of the operand is
the contents of a register specified in the instruction. After
accessing the operand, the contents of this register are
automatically incremented to point to the next item in a list.
 (Ri)+. The increment is 1 for byte-sized operands, 2 for 16-bit
operands, and 4 for 32-bit operands.
 Autodecrement mode: -(Ri) – decrement first
Move N,R1
Move #NUM1,R2 Initialization
Clear R0
LOOP Add (R2)+,R0
Decrement R1
Branch>0 LOOP
Move R0,SUM

Figure 2.16. The Autoincrement addressing mode used in the program of Figure 2.12.

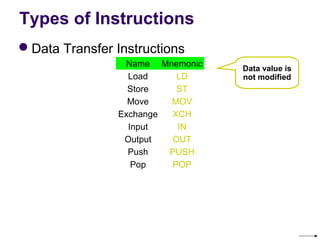

Types of Instructions
Data Transfer Instructions
Name Mnemonic
Data value is
Load LD not modified
Store ST
Move MOV
Exchange XCH
Input IN
Output OUT
Push PUSH
Pop POP

Data Transfer Instructions
Mode Assembly Register Transfer
Direct address LD   ADR AC ← M[ADR]
Indirect address LD   @ADR AC ← M[M[ADR]]
Relative address LD   $ADR AC ← M[PC+ADR]
Immediate operand LD   #NBR AC ← NBR
Index addressing LD   ADR(X) AC ← M[ADR+X]
Register LD   R1 AC ← R1
Register indirect LD   (R1) AC ← M[R1]
Autoincrement LD   (R1)+ AC ← M[R1], R1 ← R1+1
AutoDecrement LD   -(R1) R1 ← R1-1,AC ← M[R1]

Data Manipulation Instructions
Arithmetic Name Mnemonic
Increment INC
Logical & Bit Manipulation Decrement DEC
Add ADD
Shift Subtract SUB
Multiply MUL
Divide DIV
Name Mnemonic Add with carry ADDC
Clear CLR Subtract with borrow SUBB
Complement COM Negate NEG
Name Mnemonic
AND AND Logical shift right SHR
OR OR Logical shift left SHL
Exclusive-OR XOR Arithmetic shift right SHRA
Clear carry CLRC Arithmetic shift left SHLA
Set carry SETC Rotate right ROR
Complement Rotate left ROL
COMC
carry Rotate right through
Enable interrupt EI RORC
carry

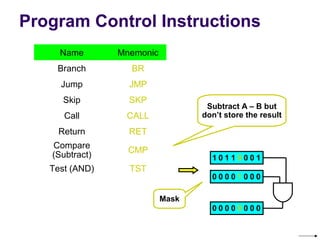

Program Control Instructions
Name Mnemonic
Branch BR
Jump JMP
Skip SKP
Subtract A – B but
Call CALL don’t store the result

Return RET
Compare
CMP
(Subtract) 10110001
Test (AND) TST
00001000

Mask
00000000

Conditional Branch
Instructions

Mnemonic Branch Condition Tested Condition
BZ Branch if zero Z = 1
BNZ Branch if not zero Z = 0
BC Branch if carry C = 1
BNC Branch if no carry C = 0
BP Branch if plus S = 0
BM Branch if minus S = 1
BV Branch if overflow V = 1
BNV Branch if no overflow V = 0

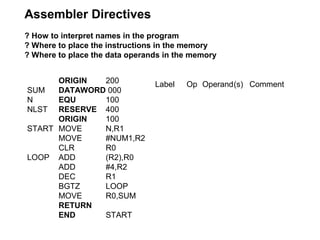

Assembler Directives
? How to interpret names in the program
? Where to place the instructions in the memory
? Where to place the data operands in the memory

ORIGIN 200 Label Op Operand(s) Comment
SUM DATAWORD 000
N EQU 100
NLST RESERVE 400
ORIGIN 100
START MOVE N,R1
MOVE #NUM1,R2
CLR R0
LOOP ADD (R2),R0
ADD #4,R2
DEC R1
BGTZ LOOP
MOVE R0,SUM
RETURN
END START

Number Notation
ADD #93,R1 (decimal)

ADD #$5D,R1 (hexadecimal)

ADD #%01011101,R1 (binary)

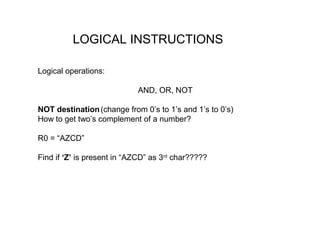

LOGICAL INSTRUCTIONS

Logical operations:

AND, OR, NOT

NOT destination (change from 0’s to 1’s and 1’s to 0’s)
How to get two’s complement of a number?

R0 = “AZCD”

Find if ‘Z’ is present in “AZCD” as 3rd char?????

Logical Shifts
 Logical shift – shifting left (LShiftL) and shifting right
(LShiftR)
C R0 0

before: 0 0 1 1 1 0 . . . 0 1 1

after: 1 1 1 0 . . . 0 1 1 0 0

(a) Logical shift left LShiftL #2,R0

0 R0 C

before: 0 1 1 1 0 . . . 0 1 1 0

after: 0 0 0 1 1 1 0 . . . 0 1

(b) Logical shift rght
i LShiftR #2,R0

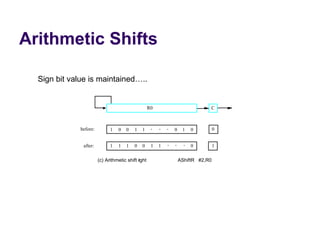

Arithmetic Shifts

Sign bit value is maintained…..

R0 C

before: 1 0 0 1 1 . . . 0 1 0 0

after: 1 1 1 0 0 1 1 . . . 0 1

(c) Arithmetic shift rght
i AShiftR #2,R0

C R0

before: 0 1 1 1 0 . . . 0 1 1

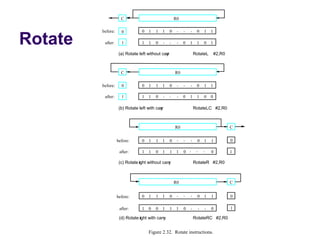

Rotate
0

after: 1 1 1 0 . . . 0 1 1 0 1

(a) Rotate left without carr
y RotateL    #2,R0

C R0

before: 0 0 1 1 1 0 . . . 0 1 1

after: 1 1 1 0 . . . 0 1 1 0 0

(b) Rotate left with carr
y RotateLC   #2,R0

R0 C

before: 0 1 1 1 0 . . . 0 1 1 0

after: 1 1 0 1 1 1 0 . . . 0 1

(c) Rotate r
ight without carr
y RotateR   #2,R0

R0 C

before: 0 1 1 1 0 . . . 0 1 1 0

after: 1 0 0 1 1 1 0 . . . 0 1

(d) Rotate r
ight with carr
y RotateRC   #2,R0

Figure 2.32. Rotate instructions.

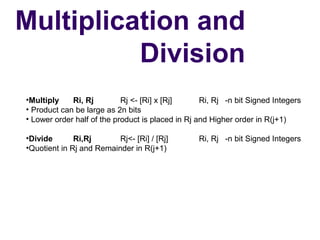

Multiplication and
Division
•Multiply Ri, Rj Rj <- [Ri] x [Rj] Ri, Rj -n bit Signed Integers
• Product can be large as 2n bits
• Lower order half of the product is placed in Rj and Higher order in R(j+1)

•Divide Ri,Rj Rj<- [Ri] / [Rj] Ri, Rj -n bit Signed Integers
•Quotient in Rj and Remainder in R(j+1)

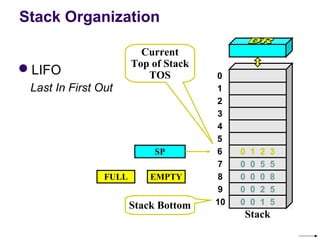

Stack Organization

Current
Top of Stack
LIFO TOS 0
Last In First Out 1
2
3
4
5
SP 6 0 1 2 3
7 0 0 5 5
FULL EMPTY 8 0 0 0 8
9 0 0 2 5
Stack Bottom 10 0 0 1 5
Stack

Stack Organization

Current 1 6 9 0
Top of Stack
PUSH TOS 0
SP ← SP – 1 1
M[SP] ← DR 2
3
If (SP = 0) then (FULL ← 1) 4
EMPTY ← 0 5 1 6 9 0
SP 6 0 1 2 3
7 0 0 5 5
9 0 0 2 5
Stack

Stack Organization
Current
Top of Stack
POP TOS 0
DR ← M[SP] 1
SP ← SP + 1 2
3
If (SP = 11) then (EMPTY ← 1) 4
FULL ← 0 5 1 6 9 0
SP 6 0 1 2 3
7 0 0 5 5
9 0 0 2 5
Stack

Stack Routines
Push Operation:
Subtract #4, SP
Move NEWITEM, (SP)

Pop Operation:
Move (SP), ITEM
Add #4, SP

Routines with boundary checking:
SAFEPUSH Compare #1500, SP
Branch<= STACKFULL
Move NEWITEM, -(SP)

SAFEPOP Compare #2000, SP
Branch>0 STACKEMPTY
Move (SP)+, ITEM

Subroutines:
Call Instruction is used to branch to a subroutine which performs following operations:
•Store the contents of the PC in the Link Register
•Branch to the target address specified in the instruction

Return Instruction in the Subroutine
•Branch to the address in the Link Register

Mem Loc Calling Pgm Mem Loc Subroutine SUB

200 Call SUB 1000 1st Instruction
204 nxt Instruction …
… Return

1000

PC 204

Link
204
Call Return

Subroutines Nesting and
Processor Stack:

• Subroutine Nesting: one Subroutine call another
• Single link register – Problem (Contents overwritten)

• Return address are generated and used in LIFO
• Processor Stack is used to maintain these return addresses
• Stack pointer Register (SP) is used to point to Processor Stack
• Call Instruction – Pushes the contents of PC to Processor Stack
• Return Instruction – Pops the return address from the stack to the PC

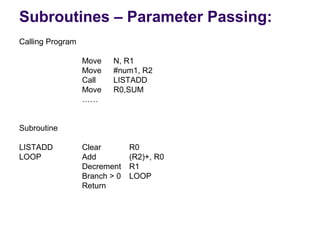

Subroutines – Parameter Passing:
Calling Program

Move N, R1
Move #num1, R2
Call LISTADD
Move R0,SUM
……

Subroutine

LISTADD Clear R0
LOOP Add (R2)+, R0
Decrement R1
Branch > 0 LOOP
Return

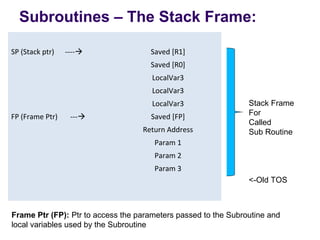

Subroutines – The Stack Frame:

SP (Stack ptr) ---- Saved [R1]
Saved [R0]
LocalVar3
LocalVar3
LocalVar3 Stack Frame
FP (Frame Ptr) --- Saved [FP] For
Called
Return Address Sub Routine
Param 1
Param 2
Param 3
<-Old TOS

Frame Ptr (FP): Ptr to access the parameters passed to the Subroutine and
local variables used by the Subroutine

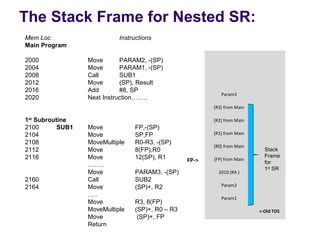

The Stack Frame for Nested SR:
Mem Loc Instructions
Main Program

2000 Move PARAM2, -(SP)
2004 Move PARAM1, -(SP)
2008 Call SUB1
2012 Move (SP), Result
2016 Add #8, SP
Param3
2020 Next Instruction……..
[R3] from Main

1st Subroutine [R2] from Main
2100 SUB1 Move FP,-(SP)
2104 Move SP,FP [R1] from Main
2108 MoveMultiple R0-R3, -(SP)
[R0] from Main
2112 Move 8(FP),R0 Stack
2116 Move 12(SP), R1 Frame
FP-> [FP] from Main
for
……..
1st SR
Move PARAM3, -(SP) 2010 (RA )
2160 Call SUB2
2164 Move (SP)+, R2 Param2
…..
Param1
Move R3, 8(FP)
MoveMultiple (SP)+, R0 – R3 <-Old TOS
Move (SP)+, FP
Return

The Stack Frame for Nested SR:
Mem Loc Instructions
1st Subroutine
2100 SUB1 Move FP,-(SP) [R0] from SUB1
2104 Move SP,FP
2108 MoveMultiple R0-R3, -(SP) FP-> [FP] from SUB1
Stack
2112 Move 8(FP),R0
2164
Frame
2116 Move 12(SP), R1 for
…….. 2nd SR
Param3
Move PARAM3, -(SP)
2160 Call SUB2 [R3] from Main
2164 Move (SP)+, R2
….. [R2] from Main
Move R3, 8(FP)
MoveMultiple (SP)+, R0 – R3 [R1] from Main
Move (SP)+, FP
[R0] from Main
Return Stack
Frame
FP-> [FP] from Main
for
2nd Subroutine
1st SR
3100 SUB2 Move FP,-(SP) 2010 (RA )
3104 Move SP,FP
3108 MoveMultiple R0-R1, -(SP) Param2
3112 Move 8(FP),R0
Param1
……
Move R1, 8(FP) <-Old TOS
MoveMultiple (SP)+, R0 – R1
Move (SP)+, FP
Return

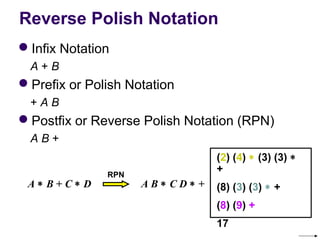

Reverse Polish Notation
Infix Notation
A + B
Prefix or Polish Notation
+ A B
Postfix or Reverse Polish Notation (RPN)
A B +
(2) (4) ∗ (3) (3) ∗
RPN
+
A∗ B+C∗ D AB∗ CD∗ + (8) (3) (3) ∗ +
(8) (9) +
17

Example
(A + B) ∗ [C ∗ (D + E) + F]

(A B +) (D E +) C F+∗
∗

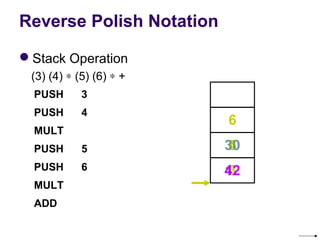

Stack Operation
(3) (4) ∗ (5) (6) ∗ +
PUSH 3
PUSH 4
6
MULT
PUSH 5 30
5
4
PUSH 6 3
42
12
MULT
ADD

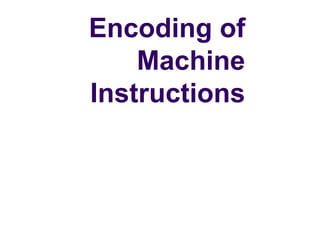

Encoding of
Machine
Instructions

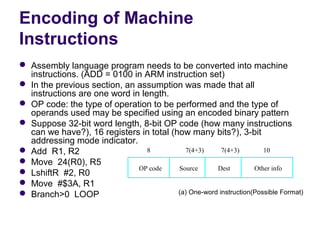

Encoding of Machine
Instructions
 Assembly language program needs to be converted into machine
instructions. (ADD = 0100 in ARM instruction set)
 In the previous section, an assumption was made that all
instructions are one word in length.
 OP code: the type of operation to be performed and the type of
operands used may be specified using an encoded binary pattern
 Suppose 32-bit word length, 8-bit OP code (how many instructions
can we have?), 16 registers in total (how many bits?), 3-bit
addressing mode indicator.
 Add  R1, R2 8 7(4+3) 7(4+3) 10
 Move  24(R0), R5
OP code Source Dest Other info
 LshiftR  #2, R0
 Move  #$3A, R1
 Branch>0  LOOP (a) One-word instruction(Possible Format)

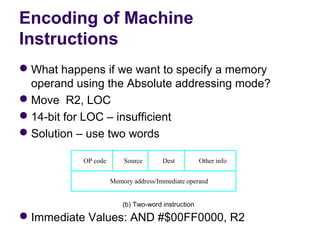

Encoding of Machine
Instructions
 What happens if we want to specify a memory
operand using the Absolute addressing mode?
 Move R2, LOC
 14-bit for LOC – insufficient
 Solution – use two words

OP code Source Dest Other info

Memory address/Immediate operand

(b) Two-word instruction

 Immediate Values: AND #$00FF0000, R2

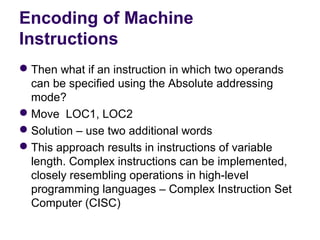

Encoding of Machine
Instructions
 Then what if an instruction in which two operands
can be specified using the Absolute addressing
mode?
 Move LOC1, LOC2
 Solution – use two additional words
 This approach results in instructions of variable
length. Complex instructions can be implemented,
closely resembling operations in high-level
programming languages – Complex Instruction Set
Computer (CISC)

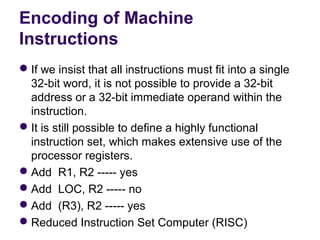

Encoding of Machine
Instructions
 If we insist that all instructions must fit into a single
32-bit word, it is not possible to provide a 32-bit
address or a 32-bit immediate operand within the
instruction.
 It is still possible to define a highly functional
instruction set, which makes extensive use of the
processor registers.
 Add  R1, R2 ----- yes
 Add  LOC, R2 ----- no
 Add  (R3), R2 ----- yes
 Reduced Instruction Set Computer (RISC)

CAO_Basic_Structure_of_computer_ppt

More Related Content

Similar to CAO_Basic_Structure_of_computer_ppt

Recently uploaded

CAO_Basic_Structure_of_computer_ppt
