Building a fully-automated Fast Data
Platform
Bernd Zuther, codecentric AG

2. 2 . 1

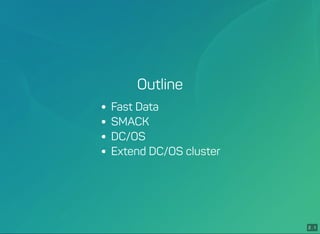

Outline
Fast Data
SMACK
DC/OS
Extend DC/OS cluster

3. 3 . 1
In the beginning of Big Data there
was
HADOOP

4. 3 . 2
BATCH
SEEMS TO BE GOOD
map and reduce was everywhere

5. 3 . 3
But now Business does not wait.
It always demands more...
EVER FASTER

6. 3 . 4
Updating machine learning models as new information
arrives
Detecting anomalies, faults, performance problems, etc.
and taking timely action
Aggregating and processing data on arrival for
downstream storage and analytics

7. 3 . 5

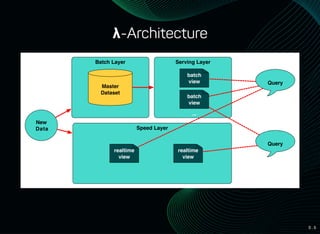

λ-Architecture
Batch Layer
Speed Layer
Serving Layer
Master
Dataset
batch
view
batch
view
...
realtime
view
realtime
view
Query
Query
New
Data

8. 3 . 6

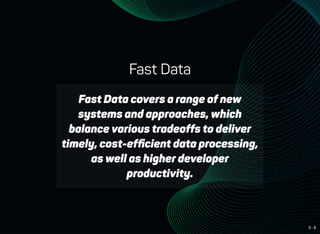

Fast Data
Fast Data covers a range of new
systems and approaches, which
balance various tradeoffs to deliver
timely, cost-efficient data processing,
as well as higher developer
productivity.

9. 3 . 7

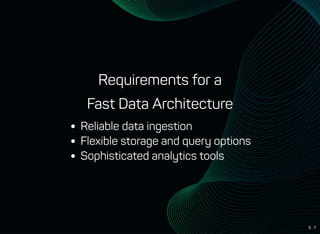

Requirements for a
Fast Data Architecture
Reliable data ingestion
Flexible storage and query options
Sophisticated analytics tools

10. 4 . 1

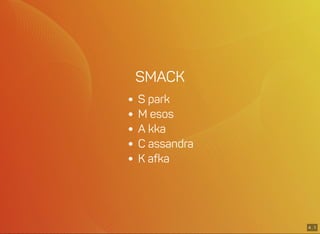

SMACK
S park
M esos
A kka
C assandra
K afka

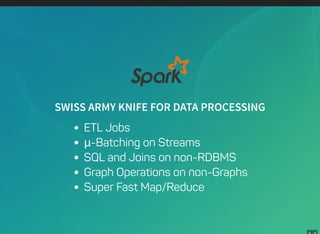

11. SWISS ARMY KNIFE FOR DATA PROCESSING
ETL Jobs
μ-Batching on Streams
SQL and Joins on non-RDBMS
Graph Operations on non-Graphs
Super Fast Map/Reduce

12. 4 . 2
4 . 3
How does it fit to a λ-Architectures?
Spark operations can be run unaltered in either batch or
stream mode
Serving layer uses a Resilient Distributed Dataset (RDD)
Speed layer can uses DStream

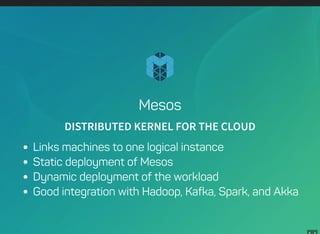

13. Mesos
DISTRIBUTED KERNEL FOR THE CLOUD
Links machines to one logical instance
Static deployment of Mesos
Dynamic deployment of the workload
Good integration with Hadoop, Kafka, Spark, and Akka

14. 4 . 4

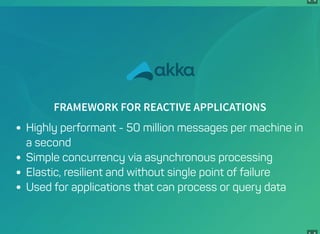

FRAMEWORK FOR REACTIVE APPLICATIONS
Highly performant - 50 million messages per machine in
a second
Simple concurrency via asynchronous processing
Elastic, resilient and without single point of failure
Used for applications that can process or query data

15. 4 . 5

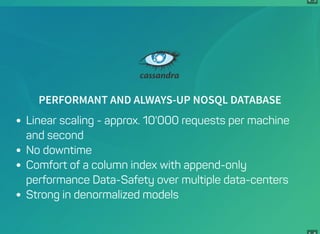

PERFORMANT AND ALWAYS-UP NOSQL DATABASE
Linear scaling - approx. 10'000 requests per machine
and second
No downtime
Comfort of a column index with append-only
performance Data-Safety over multiple data-centers
Strong in denormalized models

16. 4 . 6

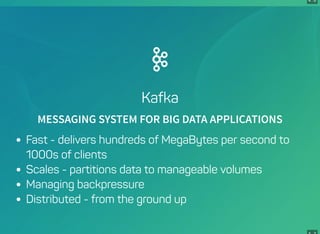

Kafka
MESSAGING SYSTEM FOR BIG DATA APPLICATIONS
Fast - delivers hundreds of MegaBytes per second to
1000s of clients
Scales - partitions data to manageable volumes
Managing backpressure
Distributed - from the ground up

17. 4 . 7
4 . 8

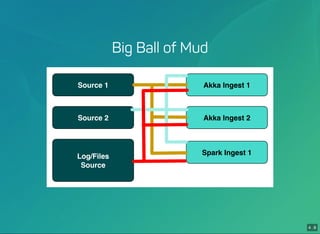

Big Ball of Mud
Source 1
Source 2
Log/Files
Source
Akka Ingest 1
Akka Ingest 2
Spark Ingest 1

18. 4 . 9
Kafka as a Multiplexer-Demultiplexer

19. 4 . 10

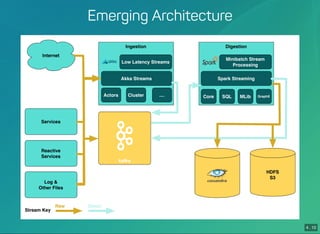

Emerging Architecture

20. 4 . 11

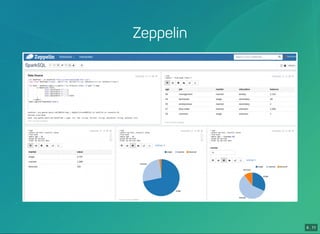

Zeppelin

21. 4 . 12

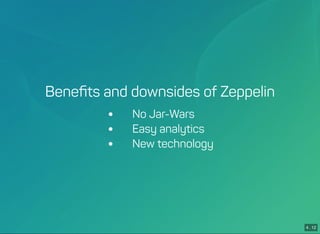

Benefits and downsides of Zeppelin
No Jar-Wars
Easy analytics
New technology

22. 4 . 13
Real World Example

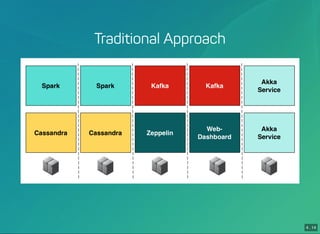

23. 4 . 14
Traditional Approach

24. 4 . 15

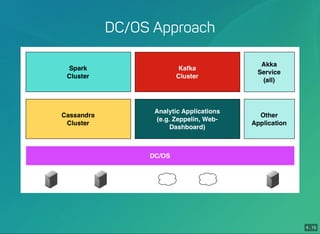

DC/OS Approach

25. 5 . 1
DC/OS

26. 5 . 2

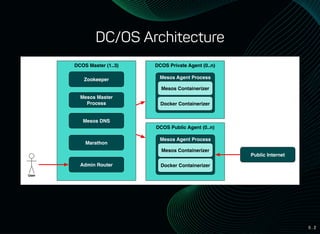

DC/OS Architecture
DCOS Master (1..3)
Zookeeper
Mesos Master
Process
Mesos DNS
Marathon
Admin Router
DCOS Private Agent (0..n)
Mesos Agent Process
Mesos Containerizer
Docker Containerizer
DCOS Public Agent (0..n)
Mesos Agent Process
Mesos Containerizer
Docker Containerizer
Public Internet
User

27. 5 . 3

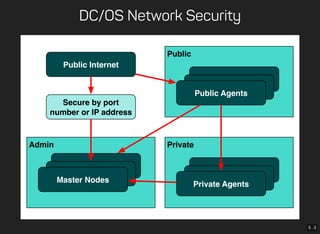

DC/OS Network Security
Admin
Public Internet
Secure by port
number or IP address
Master Nodes
Public
Public Agents
Private
Private Agents

28. 5 . 4

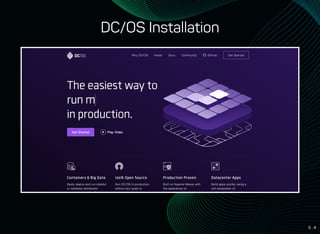

DC/OS Installation

29. 5 . 5

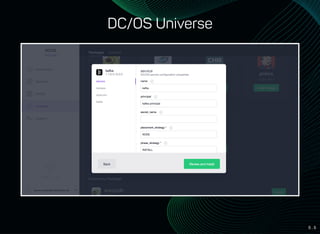

DC/OS Universe

30. 5 . 6

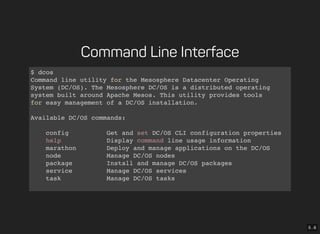

Command Line Interface
$ dcos
Command line utility for the Mesosphere Datacenter Operating
System (DC/OS). The Mesosphere DC/OS is a distributed operating
system built around Apache Mesos. This utility provides tools
for easy management of a DC/OS installation.
Available DC/OS commands:
config Get and set DC/OS CLI configuration properties
help Display command line usage information
marathon Deploy and manage applications on the DC/OS
node Manage DC/OS nodes
package Install and manage DC/OS packages
service Manage DC/OS services
task Manage DC/OS tasks
Get detailed command description with 'dcos <command> --help'.

31. 5 . 7
SMACK Installation - Databases/Tools
dcos package install --yes cassandra
dcos package install --yes kafka
dcos package install --yes spark
dcos kafka topic add METRO-Vehicles

32. 5 . 8

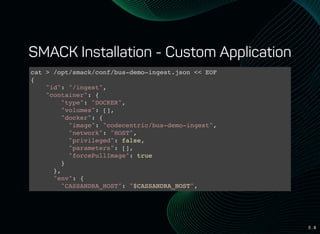

SMACK Installation - Custom Application
cat > /opt/smack/conf/bus-demo-ingest.json << EOF
{
"id": "/ingest",
"container": {
"type": "DOCKER",
"volumes": [],
"docker": {
"image": "codecentric/bus-demo-ingest",
"network": "HOST",
"privileged": false,
"parameters": [],
"forcePullImage": true
}
},
"env": {
"CASSANDRA_HOST": "$CASSANDRA_HOST",
"CASSANDRA_PORT": "$CASSANDRA_PORT",

33. 5 . 9

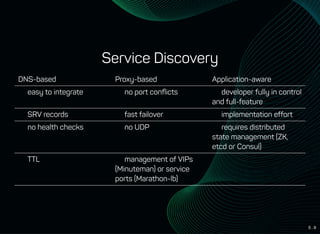

Service Discovery
DNS-based Proxy-based Application-aware
easy to integrate no port conflicts developer fully in control
and full-feature
SRV records fast failover implementation effort
no health checks no UDP requires distributed
state management (ZK,
etcd or Consul)
TTL management of VIPs
(Minuteman) or service
ports (Marathon-lb)

34. 5 . 10

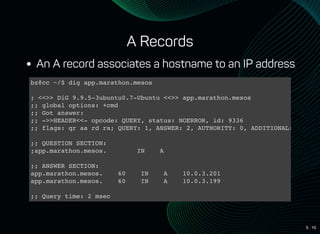

A Records
An A record associates a hostname to an IP address
bz@cc ~/$ dig app.marathon.mesos
; <<>> DiG 9.9.5-3ubuntu0.7-Ubuntu <<>> app.marathon.mesos
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 9336
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 0
;; QUESTION SECTION:
;app.marathon.mesos. IN A
;; ANSWER SECTION:
app.marathon.mesos. 60 IN A 10.0.3.201
app.marathon.mesos. 60 IN A 10.0.3.199
;; Query time: 2 msec
;; SERVER: 10.0.5.98#53(10.0.5.98)

35. 5 . 11

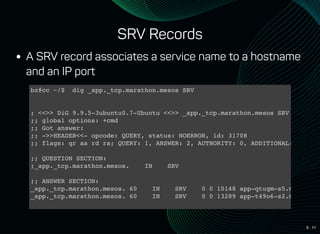

SRV Records
A SRV record associates a service name to a hostname
and an IP port
bz@cc ~/$ dig _app._tcp.marathon.mesos SRV
; <<>> DiG 9.9.5-3ubuntu0.7-Ubuntu <<>> _app._tcp.marathon.mesos SRV
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 31708
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 2
;; QUESTION SECTION:
;_app._tcp.marathon.mesos. IN SRV
;; ANSWER SECTION:
_app._tcp.marathon.mesos. 60 IN SRV 0 0 10148 app-qtugm-s5.marathon.
_app._tcp.marathon.mesos. 60 IN SRV 0 0 13289 app-t49o6-s2.marathon.
;; ADDITIONAL SECTION:

36. 5 . 12

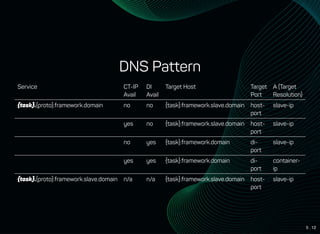

DNS Pattern
Service CT-IP
Avail
DI
Avail
Target Host Target
Port
A (Target
Resolution)
{task}.{proto}.framework.domain no no {task}.framework.slave.domain host-
port
slave-ip
yes no {task}.framework.slave.domain host-
port
slave-ip
no yes {task}.framework.domain di-
port
slave-ip
yes yes {task}.framework.domain di-
port
container-
ip
{task}.{proto}.framework.slave.domain n/a n/a {task}.framework.slave.domain host-
port
slave-ip

37. Benefits and downsides of DC/OS
Layer that abstract hardware
Applicaton run in a sandbox with and without Docker
Buildin service discovery
Effort to training the technology
Monitoring gets a bigger rule

38. 5 . 13
6 . 1

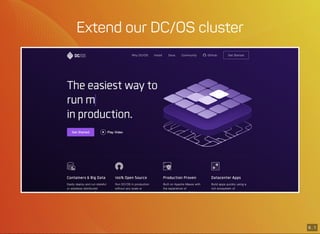

Extend our DC/OS cluster

39. 6 . 2

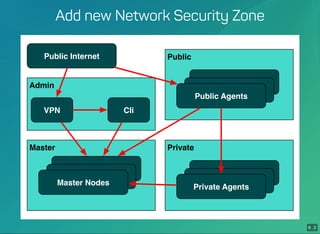

Add new Network Security Zone
Master
Public Internet
Master Nodes
Public
Public Agents
Private
Private Agents
Admin
VPN Cli

40. 6 . 3

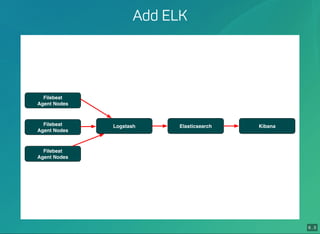

Add ELK
Filebeat
Agent Nodes
Filebeat
Agent Nodes
Filebeat
Agent Nodes
Logstash Elasticsearch Kibana

41. 6 . 4
Download Filebeat
- "content": |
[Unit]
Description=ELK: Download Filebeat
After=network-online.target
Wants=network-online.target
ConditionPathExists=!/opt/filebeat/filebeat
[Service]
Type=oneshot
StandardOutput=journal+console
StandardError=journal+console
ExecStartPre=/usr/bin/curl --fail --retry 20 --continue-at - --location
ExecStartPre=/usr/bin/mkdir -p /opt/filebeat /tmp/filebeat /etc/filebea
ExecStartPre=/usr/bin/tar -axf /tmp/filebeat.tar.xz -C /tmp/filebeat --
ExecStart=-/bin/mv /tmp/filebeat/filebeat /opt/filebeat/filebeat
ExecStartPost=-/usr/bin/rm -rf /tmp/filebeat.tar.xz /tmp/filebeat
"name": |-
filebeat-download.service

42. 6 . 5
Start Filebeat
- "command": |-
start
"content": |
[Unit]
Description=ELK: Filebeat collectes log file and send them to logstash
Requires=filebeat-download.service
After=filebeat-download.service
[Service]
Type=simple
StandardOutput=journal+console
StandardError=journal+console
ExecStart=/opt/filebeat/filebeat -e -c /etc/filebeat/filebeat.yml -
"enable": !!bool |-
true
"name": |-
filebeat.service

43. 6 . 6

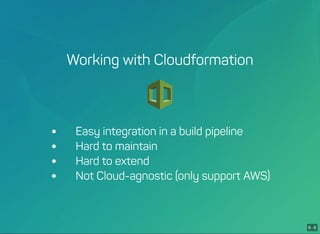

Working with Cloudformation
Easy integration in a build pipeline
Hard to maintain
Hard to extend
Not Cloud-agnostic (only support AWS)

44. 6 . 7

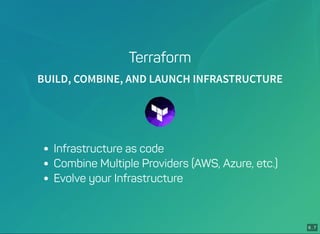

Terraform
BUILD, COMBINE, AND LAUNCH INFRASTRUCTURE
Infrastructure as code
Combine Multiple Providers (AWS, Azure, etc.)
Evolve your Infrastructure

45. 6 . 8

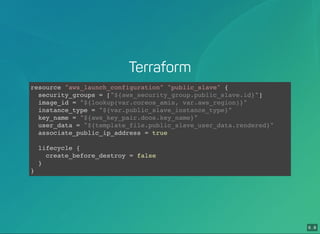

Terraform
resource "aws_launch_configuration" "public_slave" {
security_groups = ["${aws_security_group.public_slave.id}"]
image_id = "${lookup(var.coreos_amis, var.aws_region)}"
instance_type = "${var.public_slave_instance_type}"
key_name = "${aws_key_pair.dcos.key_name}"
user_data = "${template_file.public_slave_user_data.rendered}"
associate_public_ip_address = true
lifecycle {
create_before_destroy = false
}
}

46. 6 . 9

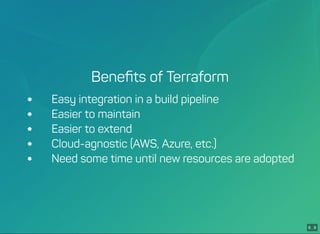

Benefits of Terraform
Easy integration in a build pipeline
Easier to maintain
Easier to extend
Cloud-agnostic (AWS, Azure, etc.)
Need some time until new resources are adopted

47. 6 . 10

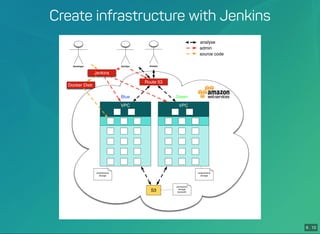

Create infrastructure with Jenkins

48. 6 . 11

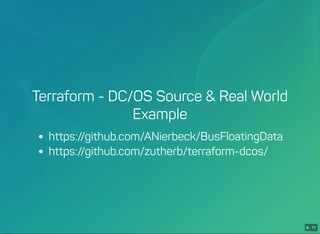

Terraform - DC/OS Source & Real World
Example
https://github.com/ANierbeck/BusFloatingData
https://github.com/zutherb/terraform-dcos/

49. 7 . 1

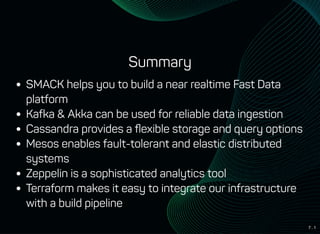

Summary
SMACK helps you to build a near realtime Fast Data
platform
Kafka & Akka can be used for reliable data ingestion
Cassandra provides a flexible storage and query options
Mesos enables fault-tolerant and elastic distributed
systems
Zeppelin is a sophisticated analytics tool
Terraform makes it easy to integrate our infrastructure
with a build pipeline

50. 7 . 2

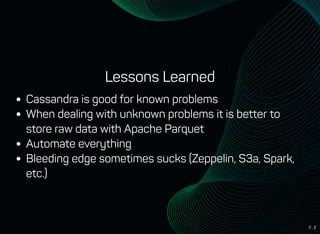

Lessons Learned
Cassandra is good for known problems
When dealing with unknown problems it is better to
store raw data with Apache Parquet
Automate everything
Bleeding edge sometimes sucks (Zeppelin, S3a, Spark,
etc.)

51. 7 . 3
Is your infrastructure a pet

52. 7 . 4
Treat your infrastructure like cattle

53. 7 . 5
If you want your infrastructure like cattle
KEEP CALM
AND
AUTOMATE EVERYTHING

54. 7 . 6

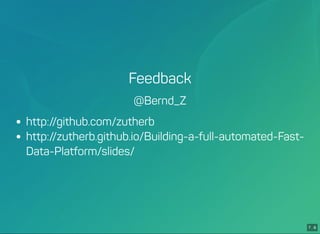

Feedback
@Bernd_Z
http://github.com/zutherb
http://zutherb.github.io/Building-a-full-automated-Fast-
Data-Platform/slides/

55. 7 . 7
The End
Copyright 2016
