Brady BMP71 Label Printer with USB Connectivity
The Brady BMP71 portable label printer prints labels at 300 dpi and 1.5 inches per second. It has a QWERTY keyboard and LCD screen and can print labels up to 2 inches wide and 40 inches long. The label printer supports various label materials and formats, has built-in label design templates, and can be used standalone or with a computer via USB. It is powered by a rechargeable battery and is easy to use for applications like wire marking, equipment identification, and barcoding.
![Monarch Promotional Labeling [Pricinggunsworld.com]](https://cdn.slidesharecdn.com/ss_thumbnails/monarchpromotionallabeling-090518231517-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Brady BMP71 Label Printer with USB Connectivity
- 1. The Brady BMP71Portable Label Printer prints via thermal transfer at 300 dots per inch (dpi) on a variety of materials, has automatic label formatting, and prints at 1.5? per second. With a QWERTY keyboard (standard on most computers), the Brady BMP71 prints in character sizes up to 2” wide. For use in identifying a variety of items, from cables to equipment, this labeler prints single- or multi-line, in character sizes from 4 to 170 point. Use the BMP71 to create self-laminating labels, heat-shrink sleeves, die-cut labels, and continuous tape labels with 300 dpi for clear, crisp printing. Thermal transfer printing stays bright and lasts longer than direct thermal printing. This printer can be used by itself, or with a computer, and connects via USB. The BMP71 has built-in wizards for electrical, datacomm, and general identification labels, barcodes, and over 500 graphics, and includes a time/date stamp, if desired. It’s easy to store, retrieve, and delete label files, with 200 MB storage for over 100,000 unique label files. Print single or multiple copies of labels, or create complex labels with multiple sections. The full-color LCD is easy-to-read and displays exactly how the label will appear, with indicators displaying 1 / 11
- 2. the installed labelpart, label size and color, label and area status, current font size and rotation, amount of material remaining, and the remaining battery charge, to help make labeling easier and more intuitive Built-in touch cell in labels and ribbons allows labeler to automatically format label. Labeler can hold a continuous roll up to 50’ long, and print a label up to 40” (1016 mm) long. The label printer runs on a rechargeable battery or optional AC power, and has a sleep mode to save power when not in use. Labeler operates in temperatures from 40 to 120 degrees F (4 to 49 degrees C) and comes with a 12-month manufacturer warranty. Label printers, also called label makers or labelers, are a type of computer printer that print on rolled stock or fanfold stock. Label printers are used for many purposes, including asset management, price marking, packaging labels, laboratory specimen marking, and naming file folders. Label printers use a variety of printing technologies, such as laser, thermal transfer and direct thermal mechanisms. Some label printers may interface with a computer to create special types of labels, such as barcodes, while other label printers can create special content using the printer’s own operating system. Brady Corporation manufactures signs, tags, printers, and other industrial safety and identification products. Brady was founded in 1914, is headquartered in Milwaukee, Wisconsin, and meets International Organization for Standardization (ISO) 9000 standards. Visit the Brady Label Printer Store to see more Brady label printers BMP71 Highlights Multiple Printing Options Mirror Frame Reverse Save Time. BMP71 comes with built in design wizards for a variety of applications including: Electrical Voice and data communications Safety & general Identification Cut Material Waste. Large, full color graphical screen shows you: What your label will look like Label material and ribbon part number Label color and size Remaining material, ribbon and battery life What’s in the Box? BMP 71 label printer 2 / 11
- 3. Hard case Rechargeable batterypack Battery charger/AC power supply Roll of M71-31-423 labels M71-R6000 ribbon cartridge Cleaning strip USB cable CD containing instructions, print driver, and tutorial Text Options Multiple font sizes including auto-sizing Super & sub scripts Vertical text Underline, italics, and bold Expand or condense More Types of Labels Colored continuous tapes for equipment ID and safety warnings PermaSleeve Wire Marker Sleeve Self-laminating wire & cable markers Terminal block and patch panel markers Face plate & outlet markers General-purpose industrial die-cut labels More Symbols Code 39 and 128 bar codes 500+ Symbols including electrical, voice/data, safety & protection, warning, and maching & operational Function BMP71 Printer Specifications Label Types / Application Functions 3 / 11
- 4. Banner Portrait, BannerLandscape, Wire, Flag Labels, Patch Panel, Terminal Block, DESI Strip, 110 Block, 66 Block, Pipe Markers, Safety Labels, Fixed Length Applications Circuit Board Labeling, Data Communications Labeling, Facility, Safety & Maintenance Identification, General & Industrial Labeling, Healthcare ID, Laboratory ID, Security ID, Panel ID, Wire & Cable Marking, Pipe Marking Print Technology Thermal Transfer Print Resolution 300 dpi Print Speed 38 mm/sec Color Capability Single Color Printing Keyboard QWERTY Backlit Screen Yes Portability Yes Weight 5.49 lbs. Power Supply Rechargable Batter, AC Power PC Connect Printing 4 / 11

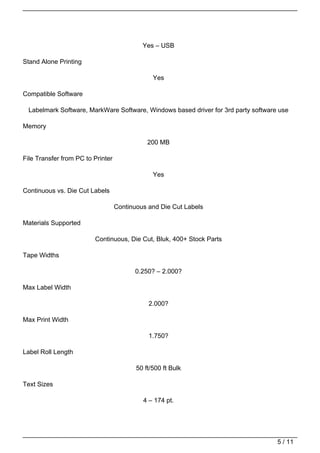

- 5. Yes – USB StandAlone Printing Yes Compatible Software Labelmark Software, MarkWare Software, Windows based driver for 3rd party software use Memory 200 MB File Transfer from PC to Printer Yes Continuous vs. Die Cut Labels Continuous and Die Cut Labels Materials Supported Continuous, Die Cut, Bluk, 400+ Stock Parts Tape Widths 0.250? – 2.000? Max Label Width 2.000? Max Print Width 1.750? Label Roll Length 50 ft/500 ft Bulk Text Sizes 4 – 174 pt. 5 / 11
- 6. Multi-Line Print Yes Print Rotation Yes Serialization Yes – Multiple and Linked Barcode 39 and 128 Symbols Over 500 Brady BMP71 Labels Indoor Outdoor Labels Economy Polypropylene Tape (B-529) – For use indoors on smooth, flat surfaces I/O Vinyl Film (B-595) – Aggresive permanent adhesive, very pliable, conforms to rough surfaces, excellent resistance to oils, detergents, dirt, and many solvents. 6 / 11
- 7. General Labels Paper Labels(B-424) – White matte paper labels Polyester Labels – Clear glossy(B-430), white glossy(B-459), metallized glossy(B-486), white matte General Adhesive Wire & Cable Makers Repositionable Vinyl Cloth Labels (B-498) – Industrial strength labels ideal for curved surfaces. Firm adhesive can be removed cleanly and reapplied. Nylon Cloth Labels (B-499) – Durable industrial strength labels designed to conform to curved surfaces. Self-Laminating Wire Markers Self-Laminating Vinyl Labels (B-427) – Has a protected printing area with superior chemical and abrasion resistance with a non-printed clear area that wraps around and over-laminates the printed text. 7 / 11
- 8. Voice and DataCommunications Polypropylene Tags (B-412) – Designed for high legibility and tensile strength Polyester Labels (B-422) – Permanent adhesive, good for powder-coated or textured surfaces Pre-Printed Die Cut Labels Polyester Labels (B-428) – For applications that utilize bar codes, alphanumerics, graphic symbols and logos and require nameplate-like quality. Polyester Labels (B-423) -Permanent Polyester Labels With Gloss Finish Raised Panel Labels Foam Backed Polyester Labels (B-593) – Customized rectangular and control button legend plates with less hassle and wasted time than engraved plates. Aggressive adhesive and solvent resistant. 8 / 11
- 9. Circuit Board &Component ID Polyester Labels – White glossy (B-423) and metallized matte (B-428) Polyimide Labels – Amber matte (B-426) and white glossy (B-457) Fiber Optic Flags Polypropylene Labels (B-425) Allows for more legible information on smaller diameter wires. Excellent solvent resistance and print performance. Tags Polyethylene Tags (B-145) – 9.5 mil cross laminated polyethylene film with a thermal transfer printable topcoat. used for a variety of tag applications including ID of multi-conductor cables, equipment, lockout, safety warning repair, and work in progress. 9 / 11

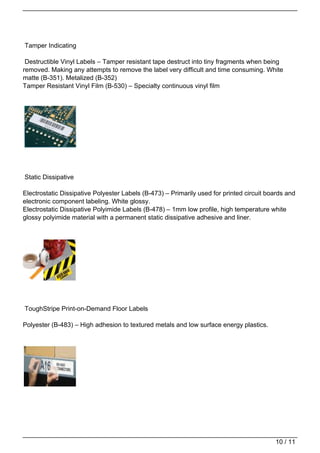

- 10. Tamper Indicating DestructibleVinyl Labels – Tamper resistant tape destruct into tiny fragments when being removed. Making any attempts to remove the label very difficult and time consuming. White matte (B-351). Metalized (B-352) Tamper Resistant Vinyl Film (B-530) – Specialty continuous vinyl film Static Dissipative Electrostatic Dissipative Polyester Labels (B-473) – Primarily used for printed circuit boards and electronic component labeling. White glossy. Electrostatic Dissipative Polyimide Labels (B-478) – 1mm low profile, high temperature white glossy polyimide material with a permanent static dissipative adhesive and liner. ToughStripe Print-on-Demand Floor Labels Polyester (B-483) – High adhesion to textured metals and low surface energy plastics. 10 / 11
- 11. Temporary & Removable Repositionable Vinyl (B-581) – Indoor labels designed with special adhesive that makes it easy to remove and re-apply. High gloss, durable, flexible, pressure sensitive adhesion. Product Features Portable label printer is a labeling tool for identifying a variety of items, like cables, file folders, and equipment Check Out The Full Indepth Details Here: Brady BMP71 Label Printer with USB Connectivity 11 / 11 Powered by TCPDF (www.tcpdf.org)
