1. Block Replacement Algorithms
FIFO & Belady's Anomaly
Bindu Agarwalla
1 Tuesday, March 16, 2021

2. Block Replacement
• A replacement policy determines, out of all possible candidates,
which one should be evicted from the cache upon arrival of a new
piece of data.
• We evaluate an algorithm by running it on a particular string of
memory references and computing the number of block misses.
The string of memory references is called a reference string.
• Reference strings can be generated.
– Artifically (By using a random-number generator).
– We can trace a given system and record the address of each memory reference.
Tuesday, March 16,

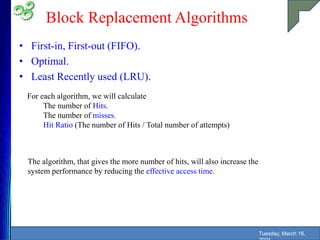

3. Block Replacement Algorithms
• First-in, First-out (FIFO).
• Optimal.
• Least Recently used (LRU).
Tuesday, March 16,
For each algorithm, we will calculate
The number of Hits.
The number of misses.
Hit Ratio (The number of Hits / Total number of attempts)
The algorithm, that gives the more number of hits, will also increase the
system performance by reducing the effective access time.

4. Block Replacement Algorithms
Assumptions:
1. Three blocks are given to the process.
2. Initially all three blocks are empty.
• First-in, First-out (FIFO): When a block must be replaced, the
oldest is chosen.
Implementation:
By using a FIFO Queue: We replace the block at the head of
the queue. When a block is brought into memory we insert it
at the tail of the queue.
Tuesday, March 16,

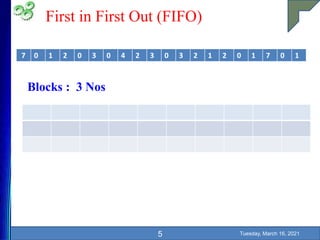

5. First in First Out (FIFO)
Tuesday, March 16, 2021
5
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
Blocks : 3 Nos

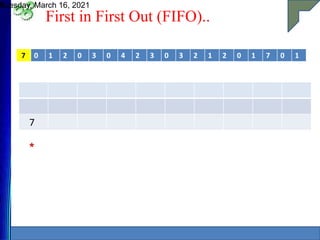

6. First in First Out (FIFO)..
Tuesday, March 16, 2021
6
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
7
*

7. First in First Out (FIFO)..
Tuesday, March 16, 2021
7
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
0
7 7
* *

8. First in First Out (FIFO)..
Tuesday, March 16, 2021
8
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1
0 0
7 7 7
* * *

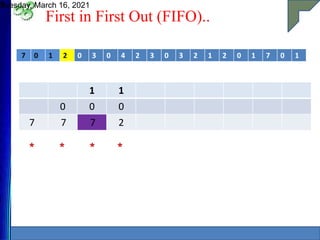

9. First in First Out (FIFO)..
Tuesday, March 16, 2021
9
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1
0 0 0
7 7 7 2
* * * *

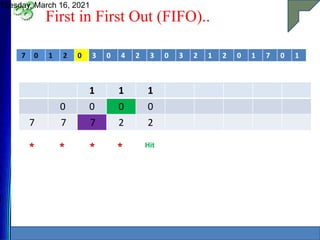

10. First in First Out (FIFO)..
Tuesday, March 16, 2021
10
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1
0 0 0 0
7 7 7 2 2
* * * * Hit

11. First in First Out (FIFO)..
Tuesday, March 16, 2021
11
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1
0 0 0 0 3
7 7 7 2 2 2
* * * * Hit
*

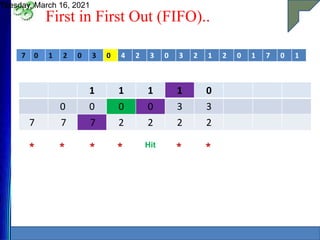

12. First in First Out (FIFO)..
Tuesday, March 16, 2021
12
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0
0 0 0 0 3 3
7 7 7 2 2 2 2
* * * * Hit
* *

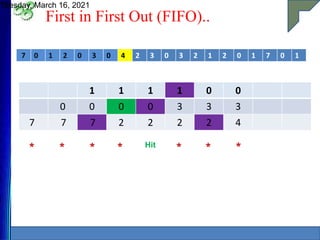

13. First in First Out (FIFO)..
Tuesday, March 16, 2021
13
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0
0 0 0 0 3 3 3
7 7 7 2 2 2 2 4
* * * * Hit
* * *

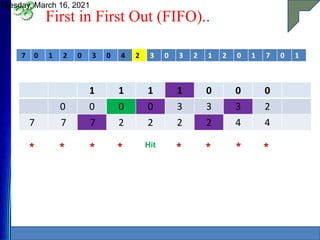

14. First in First Out (FIFO)..
Tuesday, March 16, 2021
14
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0
0 0 0 0 3 3 3 2
7 7 7 2 2 2 2 4 4
* * * * Hit
* * * *

15. First in First Out (FIFO)..
Tuesday, March 16, 2021
15
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *

16. First in First Out (FIFO)..
Tuesday, March 16, 2021
16
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3
2
0
*

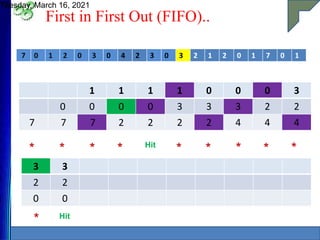

17. First in First Out (FIFO)..
Tuesday, March 16, 2021
17
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3
2 2
0 0
* Hit

18. First in First Out (FIFO)..
Tuesday, March 16, 2021
18
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3
2 2 2
0 0 0
* Hit Hit

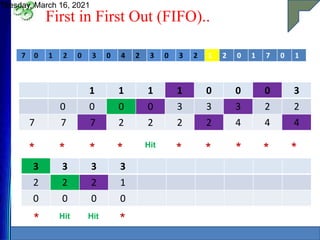

19. First in First Out (FIFO)..
Tuesday, March 16, 2021
19
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3
2 2 2 1
0 0 0 0
* Hit Hit
*

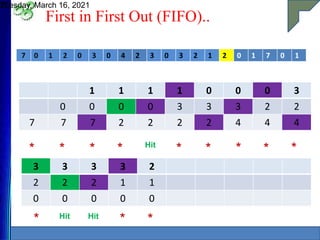

20. First in First Out (FIFO)..
Tuesday, March 16, 2021
20
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2
2 2 2 1 1
0 0 0 0 0
* Hit Hit
* *

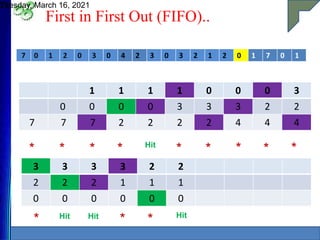

21. First in First Out (FIFO)..
Tuesday, March 16, 2021
21
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2 2
2 2 2 1 1 1
0 0 0 0 0 0
* Hit Hit
* * Hit

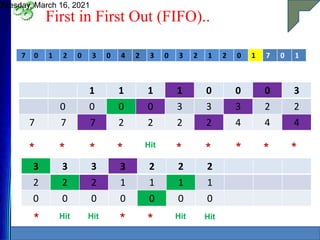

22. First in First Out (FIFO)..
Tuesday, March 16, 2021
22
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2 2 2
2 2 2 1 1 1 1
0 0 0 0 0 0 0
* Hit Hit
* * Hit Hit

23. First in First Out (FIFO)..
Tuesday, March 16, 2021
23
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2 2 2 2
2 2 2 1 1 1 1 1
0 0 0 0 0 0 0 7
* Hit Hit
* * Hit Hit
*

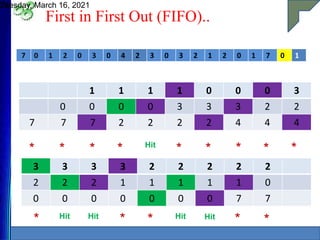

24. First in First Out (FIFO)..
Tuesday, March 16, 2021
24
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2 2 2 2 2
2 2 2 1 1 1 1 1 0
0 0 0 0 0 0 0 7 7
* Hit Hit
* * Hit Hit
* *

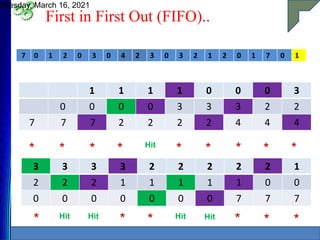

25. First in First Out (FIFO)..
Tuesday, March 16, 2021
25
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2 2 2 2 2 1
2 2 2 1 1 1 1 1 0 0
0 0 0 0 0 0 0 7 7 7
* Hit Hit
* * Hit Hit
* * *

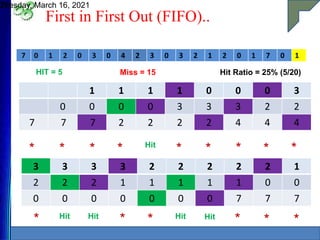

26. First in First Out (FIFO)..
Tuesday, March 16, 2021
26
7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
1 1 1 1 0 0 0 3
0 0 0 0 3 3 3 2 2
7 7 7 2 2 2 2 4 4 4
* * * * Hit
* * * * *
3 3 3 3 2 2 2 2 2 1
2 2 2 1 1 1 1 1 0 0
0 0 0 0 0 0 0 7 7 7
* Hit Hit
* * Hit Hit
* * *
HIT = 5 Miss = 15 Hit Ratio = 25% (5/20)

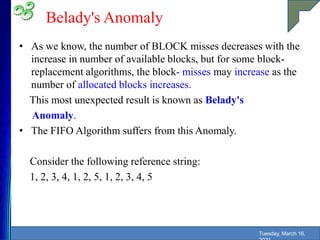

27. Belady's Anomaly
• As we know, the number of BLOCK misses decreases with the
increase in number of available blocks, but for some block-
replacement algorithms, the block- misses may increase as the
number of allocated blocks increases.
This most unexpected result is known as Belady's
Anomaly.
• The FIFO Algorithm suffers from this Anomaly.
Consider the following reference string:
1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5
Tuesday, March 16,

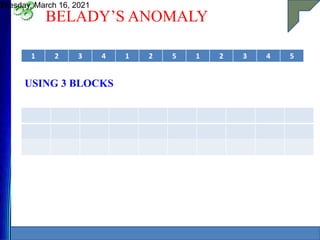

28. BELADY’S ANOMALY
Tuesday, March 16, 2021
28
1 2 3 4 1 2 5 1 2 3 4 5
USING 3 BLOCKS

29. BELADY’S ANOMALY
Tuesday, March 16, 2021
29
1
*
1 2 3 4 1 2 5 1 2 3 4 5

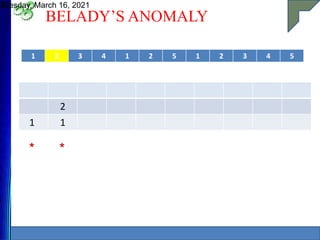

30. BELADY’S ANOMALY
Tuesday, March 16, 2021
30
1 2 3 4 1 2 5 1 2 3 4 5
2
1 1
* *

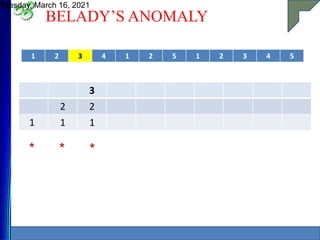

31. BELADY’S ANOMALY
Tuesday, March 16, 2021
31
1 2 3 4 1 2 5 1 2 3 4 5
3
2 2
1 1 1
* * *

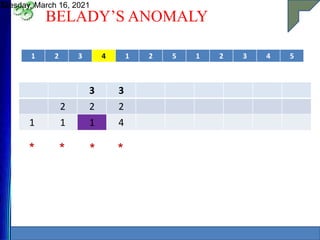

32. BELADY’S ANOMALY
Tuesday, March 16, 2021
32
1 2 3 4 1 2 5 1 2 3 4 5
3 3
2 2 2
1 1 1 4
* * * *

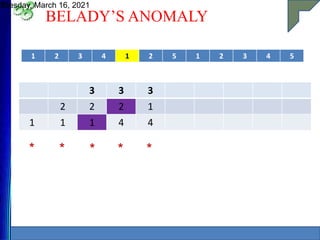

33. BELADY’S ANOMALY
Tuesday, March 16, 2021
33
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3
2 2 2 1
1 1 1 4 4
* * * * *

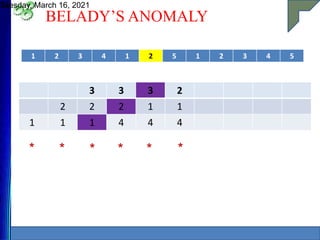

34. BELADY’S ANOMALY
Tuesday, March 16, 2021
34
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2
2 2 2 1 1
1 1 1 4 4 4
* * * * * *

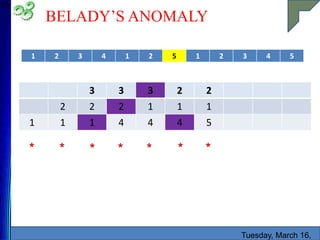

35. BELADY’S ANOMALY
Tuesday, March 16,
35
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2 2
2 2 2 1 1 1
1 1 1 4 4 4 5
* * * * * * *

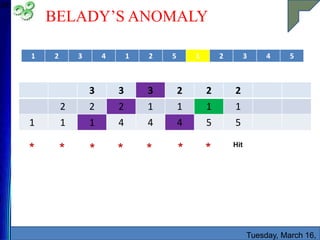

36. BELADY’S ANOMALY
Tuesday, March 16,
36
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2 2 2
2 2 2 1 1 1 1
1 1 1 4 4 4 5 5
* * * * * * * Hit

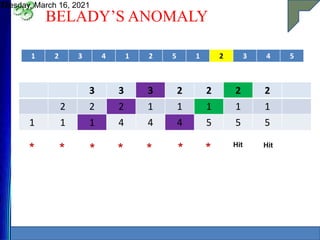

37. BELADY’S ANOMALY
Tuesday, March 16, 2021
37
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2 2 2 2
2 2 2 1 1 1 1 1
1 1 1 4 4 4 5 5 5
* * * * * * * Hit Hit

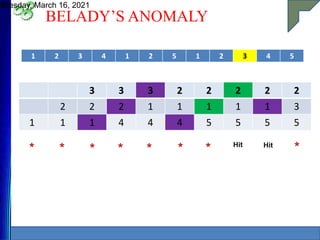

38. BELADY’S ANOMALY
Tuesday, March 16, 2021
38
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2 2 2 2 2
2 2 2 1 1 1 1 1 3
1 1 1 4 4 4 5 5 5 5
* * * * * * * Hit Hit
*

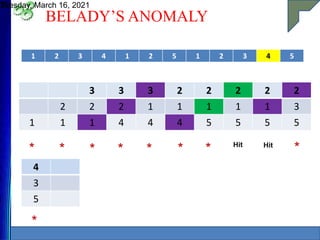

39. BELADY’S ANOMALY
Tuesday, March 16, 2021
39
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2 2 2 2 2
2 2 2 1 1 1 1 1 3
1 1 1 4 4 4 5 5 5 5
* * * * * * * Hit Hit
*
4
3
5
*

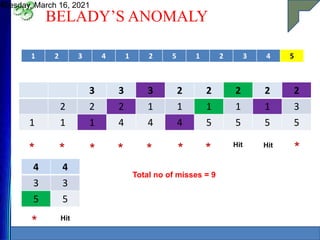

40. BELADY’S ANOMALY
Tuesday, March 16, 2021
40
1 2 3 4 1 2 5 1 2 3 4 5
3 3 3 2 2 2 2 2
2 2 2 1 1 1 1 1 3
1 1 1 4 4 4 5 5 5 5
* * * * * * * Hit Hit
*
4 4
3 3
5 5
* Hit
Total no of misses = 9

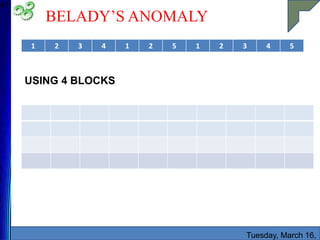

41. BELADY’S ANOMALY
Tuesday, March 16,
41
1 2 3 4 1 2 5 1 2 3 4 5
USING 4 BLOCKS

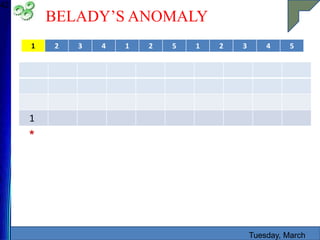

42. BELADY’S ANOMALY
Tuesday, March
42
1
*
1 2 3 4 1 2 5 1 2 3 4 5

43. BELADY’S ANOMALY
Tuesday, March
43
1 2 3 4 1 2 5 1 2 3 4 5
2
1 1
* *

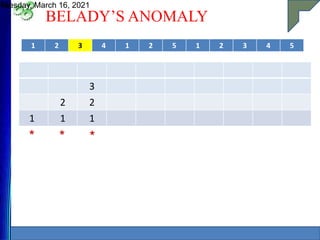

44. BELADY’S ANOMALY
Tuesday, March 16, 2021
44
1 2 3 4 1 2 5 1 2 3 4 5
3
2 2
1 1 1
* * *

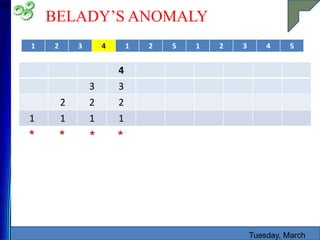

45. BELADY’S ANOMALY
Tuesday, March
45
1 2 3 4 1 2 5 1 2 3 4 5
* * * *
4
3 3
2 2 2
1 1 1 1

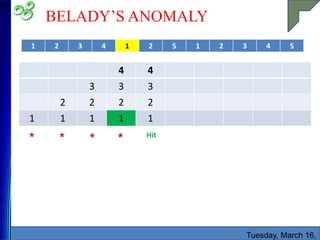

46. BELADY’S ANOMALY
Tuesday, March 16,
46
1 2 3 4 1 2 5 1 2 3 4 5
* * * * Hit
4 4
3 3 3
2 2 2 2
1 1 1 1 1

47. BELADY’S ANOMALY
Tuesday, March 16, 2021
47
1 2 3 4 1 2 5 1 2 3 4 5
* * * * Hit
4 4 4
3 3 3 3
2 2 2 2 2
1 1 1 1 1 1
Hit

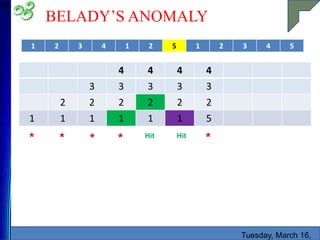

48. BELADY’S ANOMALY
Tuesday, March 16,
48
1 2 3 4 1 2 5 1 2 3 4 5
* * * * *
Hit
4 4 4 4
3 3 3 3 3
2 2 2 2 2 2
1 1 1 1 1 1 5
Hit

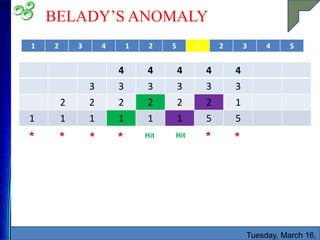

49. BELADY’S ANOMALY
Tuesday, March 16,
49
1 2 3 4 1 2 5 1 2 3 4 5
* * * * *
Hit
4 4 4 4 4
3 3 3 3 3 3
2 2 2 2 2 2 1
1 1 1 1 1 1 5 5
Hit
*

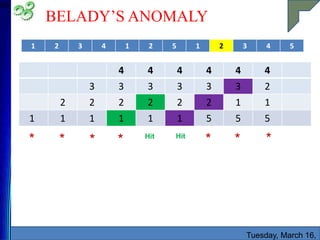

50. BELADY’S ANOMALY
Tuesday, March 16,
50
1 2 3 4 1 2 5 1 2 3 4 5
* * * * * *
*
Hit
4 4 4 4 4 4
3 3 3 3 3 3 2
2 2 2 2 2 2 1 1
1 1 1 1 1 1 5 5 5
Hit

51. BELADY’S ANOMALY
Tuesday, March 16,
51
1 2 3 4 1 2 5 1 2 3 4 5
* * * * *
* *
* Hit
4 4 4 4 4 4 3
3 3 3 3 3 3 2 2
2 2 2 2 2 2 1 1 1
1 1 1 1 1 1 5 5 5 5
Hit

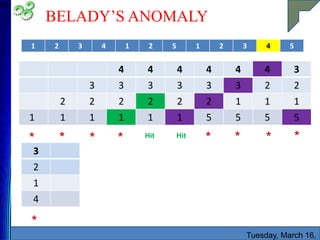

52. BELADY’S ANOMALY
Tuesday, March 16,
52
1 2 3 4 1 2 5 1 2 3 4 5
3
2
1
4
*
* * * * *
* *
* Hit
4 4 4 4 4 4 3
3 3 3 3 3 3 2 2
2 2 2 2 2 2 1 1 1
1 1 1 1 1 1 5 5 5 5
Hit

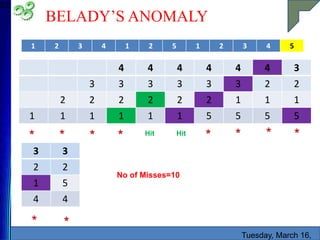

53. BELADY’S ANOMALY
Tuesday, March 16,
53
1 2 3 4 1 2 5 1 2 3 4 5
3 3
2 2
1 5
4 4
*
* * * * *
* *
* Hit
4 4 4 4 4 4 3
3 3 3 3 3 3 2 2
2 2 2 2 2 2 1 1 1
1 1 1 1 1 1 5 5 5 5
Hit
*
No of Misses=10
