CLIENT: Biotech Instruments, Mumbai
PRODUCT: Physiotherapy Device

3. w w w . d e s m a n i a . c o m

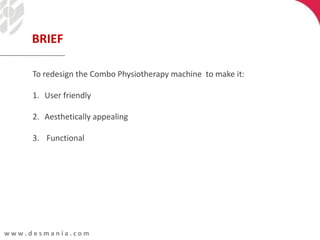

To redesign the Combo Physiotherapy machine to make it:
1. User friendly
2. Aesthetically appealing
3. Functional
BRIEF

4. w w w . d e s m a n i a . c o m
1. Hospitals
2. Clinics
3. Gyms
TARGET AUDIENCE

5. w w w . d e s m a n i a . c o m

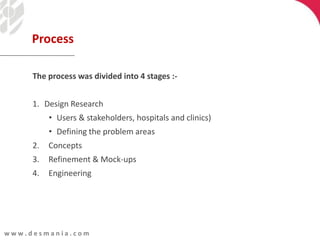

The process was divided into 4 stages :-
1. Design Research
• Users & stakeholders, hospitals and clinics)
• Defining the problem areas
2. Concepts
3. Refinement & Mock-ups
4. Engineering
Process

6. w w w . d e s m a n i a . c o m
Problem Areas

7. w w w . d e s m a n i a . c o m

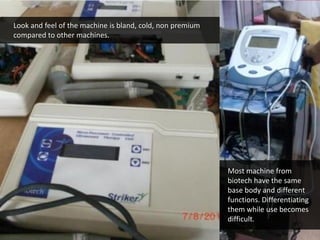

Look and feel of the machine is bland, cold, non premium
compared to other machines.
Most machine from
biotech have the same
base body and different
functions. Differentiating
them while use becomes
difficult.

8. w w w . d e s m a n i a . c o m

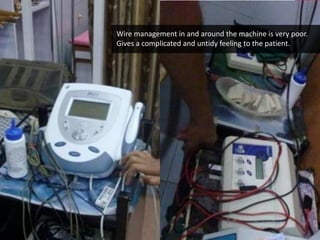

Wire management in and around the machine is very poor.
Gives a complicated and untidy feeling to the patient.

9. w w w . d e s m a n i a . c o m
The applicator handle does not have a
strong grip. It is uncomfortable to hold it.

10. w w w . d e s m a n i a . c o m

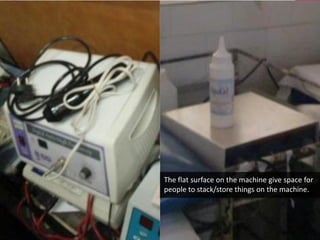

The flat surface on the machine give space for
people to stack/store things on the machine.

11. w w w . d e s m a n i a . c o m

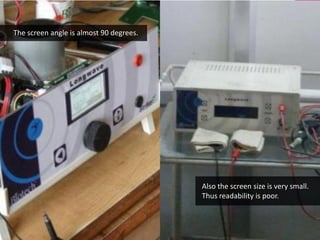

The screen angle is almost 90 degrees.
Also the screen size is very small.
Thus readability is poor.

12. w w w . d e s m a n i a . c o m

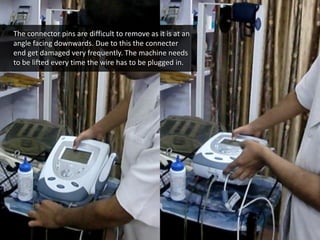

The connector pins are difficult to remove as it is at an
angle facing downwards. Due to this the connecter
end get damaged very frequently. The machine needs
to be lifted every time the wire has to be plugged in.

13. w w w . d e s m a n i a . c o m

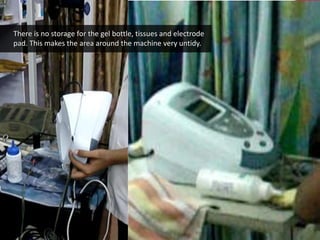

There is no storage for the gel bottle, tissues and electrode
pad. This makes the area around the machine very untidy.

14. w w w . d e s m a n i a . c o m
Machine should be comfortable to use with both hands.

15. w w w . d e s m a n i a . c o m

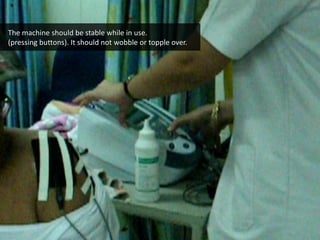

The machine should be stable while in use.
(pressing buttons). It should not wobble or topple over.

16. w w w . d e s m a n i a . c o m
Machine should have a smart software and
an easy interface to assist the doctors.

17. w w w . d e s m a n i a . c o m

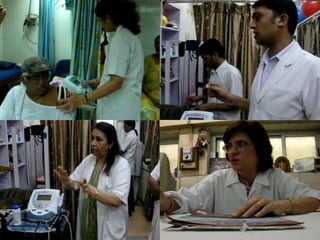

Users

18. w w w . d e s m a n i a . c o m

19. w w w . d e s m a n i a . c o m

20. w w w . d e s m a n i a . c o m

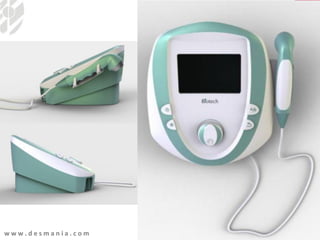

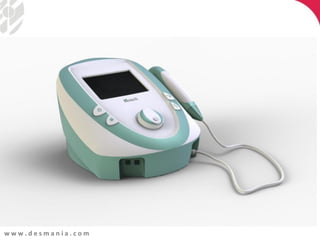

Concept 01

21. w w w . d e s m a n i a . c o m

22. w w w . d e s m a n i a . c o m

23. w w w . d e s m a n i a . c o m

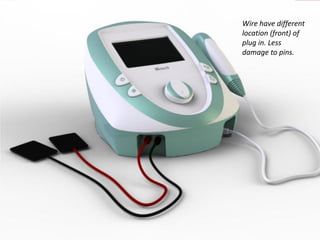

Wire have different
location (front) of
plug in. Less
damage to pins.

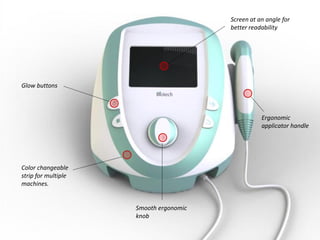

24. w w w . d e s m a n i a . c o m

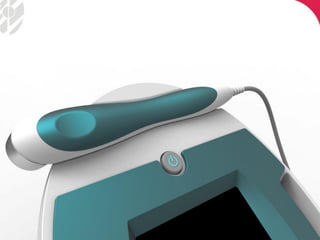

Ergonomic
applicator handle
Screen at an angle for
better readability
Glow buttons
Smooth ergonomic
knob
Color changeable
strip for multiple
machines.

25. w w w . d e s m a n i a . c o m

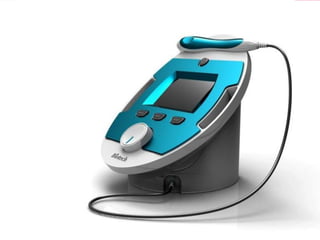

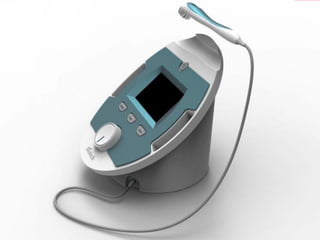

Concept 02

26. w w w . d e s m a n i a . c o m

27. w w w . d e s m a n i a . c o m

28. w w w . d e s m a n i a . c o m

29. w w w . d e s m a n i a . c o m

30. w w w . d e s m a n i a . c o m

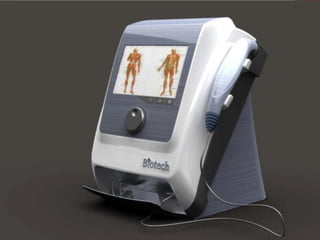

Concept 03

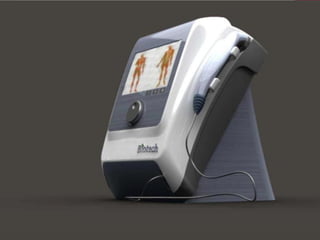

31. w w w . d e s m a n i a . c o m

32. w w w . d e s m a n i a . c o m

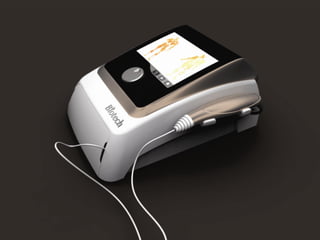

33. w w w . d e s m a n i a . c o m

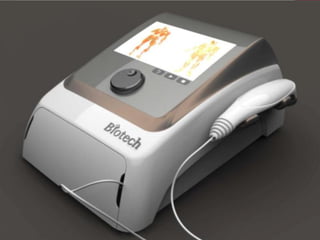

34. w w w . d e s m a n i a . c o m

35. w w w . d e s m a n i a . c o m
Concept 04

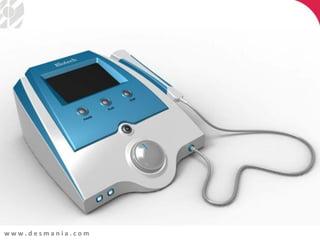

36. w w w . d e s m a n i a . c o m

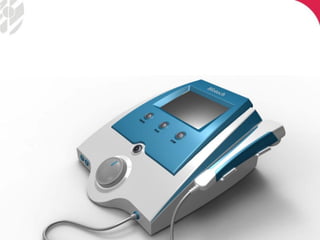

37. w w w . d e s m a n i a . c o m

38. w w w . d e s m a n i a . c o m
Different Colour panels

39. w w w . d e s m a n i a . c o m

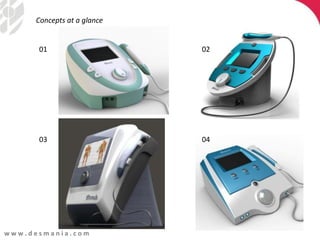

Concepts at a glance
01 02
03 04

40. w w w . d e s m a n i a . c o m

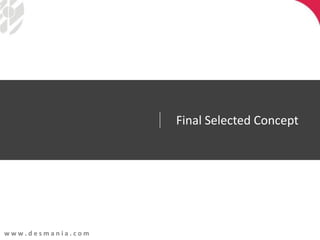

Final Selected Concept

41. w w w . d e s m a n i a . c o m

42. w w w . d e s m a n i a . c o m

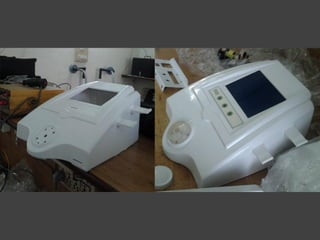

Mock Ups

43. w w w . d e s m a n i a . c o m

44. w w w . d e s m a n i a . c o m

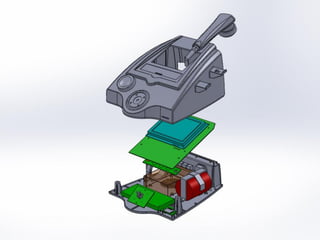

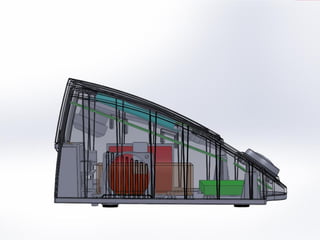

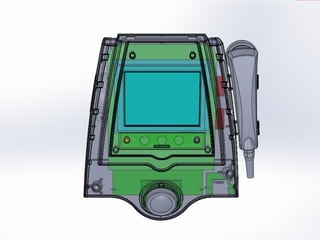

Engineering

45. w w w . d e s m a n i a . c o m

46. w w w . d e s m a n i a . c o m

47. w w w . d e s m a n i a . c o m

48. w w w . d e s m a n i a . c o m

49. w w w . d e s m a n i a . c o m
Before & After

50. w w w . d e s m a n i a . c o m
Original metal &
Plastic construction
New Model
• A complete new Plastic Injection Molded
construction suitable for mass production
• Will also be exported and competes against
international products in this category.
• A broader and coloured touch screen display for
better usability

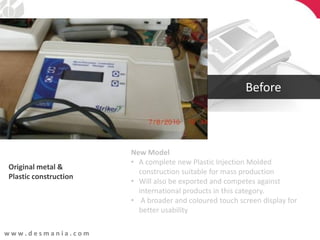

Before

51. w w w . d e s m a n i a . c o m
Original metal &
Plastic construction
New Model

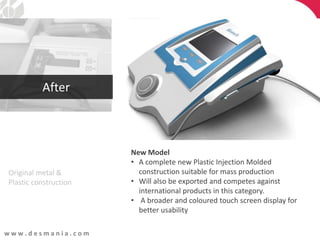

• A complete new Plastic Injection Molded
construction suitable for mass production
• Will also be exported and competes against
international products in this category.
• A broader and coloured touch screen display for
better usability
After

52. w w w . d e s m a n i a . c o m
Salient Features
(Currently Under Production)

53. w w w . d e s m a n i a . c o m

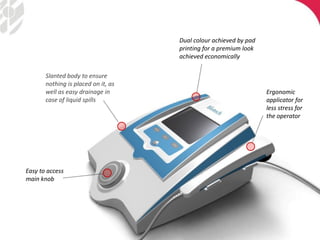

Slanted body to ensure
nothing is placed on it, as
well as easy drainage in
case of liquid spills
Easy to access
main knob
Dual colour achieved by pad
printing for a premium look
achieved economically
Ergonomic
applicator for
less stress for
the operator

54. w w w . d e s m a n i a . c o m
