1. DEFENSE
Laser Profilometry
Revolutionizing Gun Tube Inspections
BEMIS™ - Bore Erosion Measurement and
Inspection System
Laser-based Inspections
for 5.56mm to 155mm Weapon Bores
Defense Systems Group
Mr. Daniel Bonnizzio, Director
www.laser-ndt.com

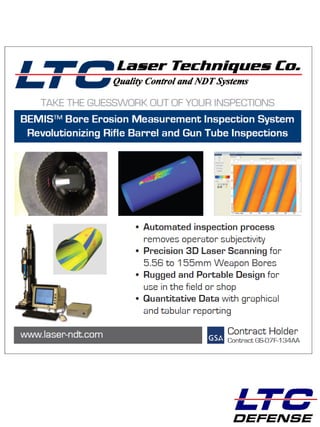

2. DEFENSE

3. DEFENSE

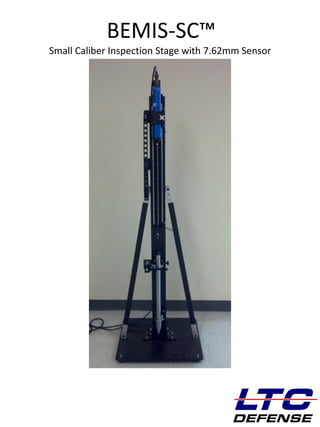

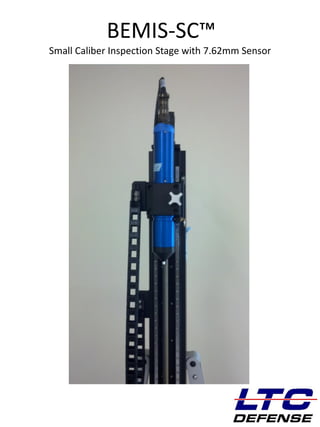

BEMIS-SC™
Small Caliber Inspection Stage with 7.62mm Sensor

4. DEFENSE

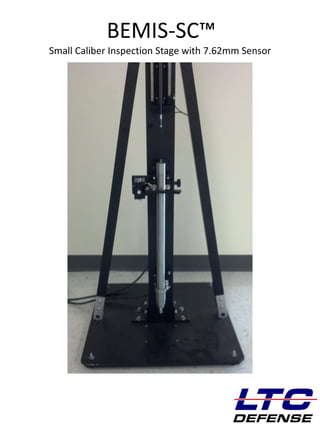

BEMIS-SC™
Small Caliber Inspection Stage with 7.62mm Sensor

5. DEFENSE
BEMIS-SC™
Small Caliber Inspection Stage with 7.62mm Sensor

6. DEFENSE

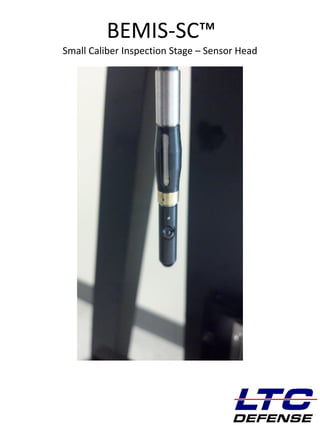

BEMIS-SC™
Small Caliber Inspection Stage – Sensor Head

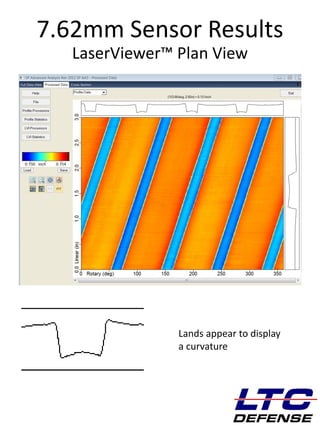

7. DEFENSE
7.62mm Sensor Results
LaserViewer™ Plan View
Lands appear to display
a curvature

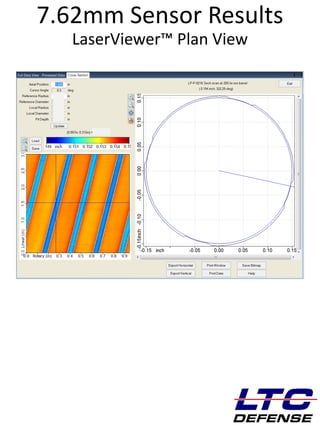

8. DEFENSE
7.62mm Sensor Results
LaserViewer™ Plan View

9. DEFENSE

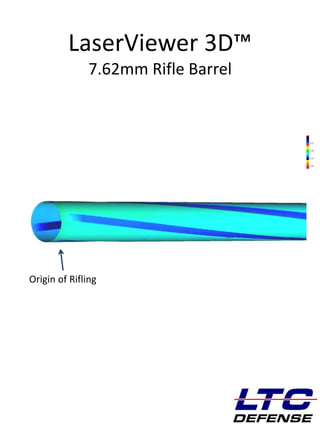

LaserViewer 3D™
7.62mm Rifle Barrel
Origin of Rifling

10. DEFENSE

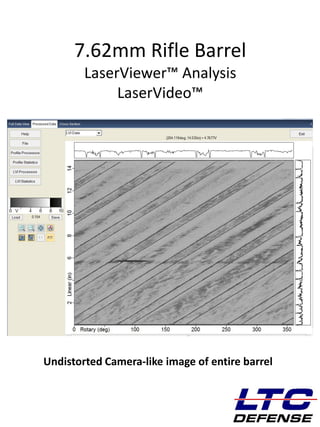

7.62mm Rifle Barrel
LaserViewer™ Analysis
LaserVideo™
Undistorted Camera-like image of entire barrel

11. DEFENSE
0.298
0.2985
0.299
0.2995
0.3
0.3005
0.301
1 3 5 7 9 11 13 15

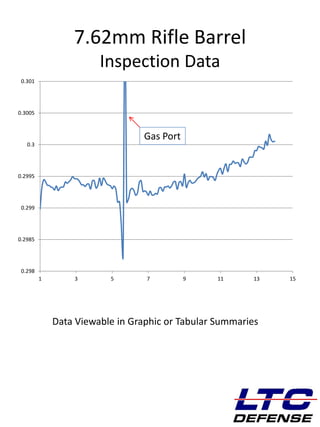

7.62mm Rifle Barrel
Inspection Data
Data Viewable in Graphic or Tabular Summaries
Gas Port

12. DEFENSE

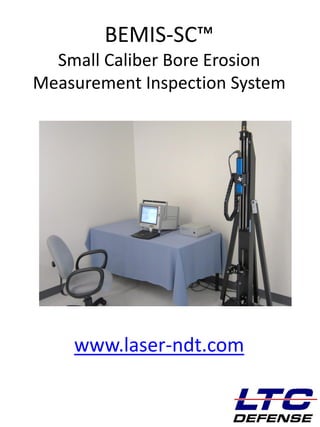

BEMIS-SC™
Small Caliber Bore Erosion
Measurement Inspection System
www.laser-ndt.com
