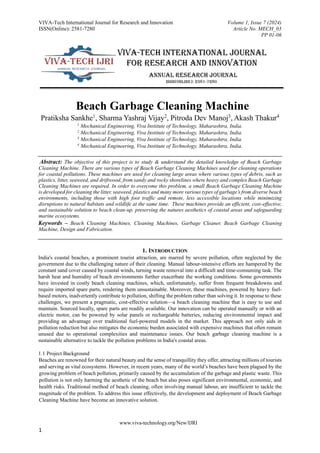

Beach Garbage Cleaning Machine

VIVA-Tech International Journal for Research and Innovation Volume 1, Issue 7 (2024)
ISSN(Online): 2581-7280 Article No. MECH_03
PP 01-06
www.viva-technology.org/New/IJRI
1
Beach Garbage Cleaning Machine
Pratiksha Sankhe1
, Sharma Yashraj Vijay2
, Pitroda Dev Manoj3
, Akash Thakur4
1
Mechanical Engineering, Viva Institute of Technology, Maharashtra, India.
2
3
4
Abstract: The objective of this project is to study & understand the detailed knowledge of Beach Garbage
Cleaning Machine. There are various types of Beach Garbage Cleaning Machines used for cleaning operations
for coastal pollutions. These machines are used for cleaning large areas where various types of debris, such as
plastics, litter, seaweed, and driftwood, from sandy and rocky shorelines where heavy and complex Beach Garbage
Cleaning Machines are required. In order to overcome this problem, a small Beach Garbage Cleaning Machine
is developed for cleaning the litter, seaweed, plastics and many more various types of garbage’s from diverse beach
environments, including those with high foot traffic and remote, less accessible locations while minimizing
disruptions to natural habitats and wildlife at the same time. These machines provide an efficient, cost-effective,
and sustainable solution to beach clean-up, preserving the natures aesthetics of coastal areas and safeguarding
marine ecosystems.
Keywords – Beach Cleaning Machines, Cleaning Machines, Garbage Cleaner, Beach Garbage Cleaning
Machine, Design and Fabrication.
1. INTRODUCTION
India's coastal beaches, a prominent tourist attraction, are marred by severe pollution, often neglected by the
government due to the challenging nature of their cleaning. Manual labour-intensive efforts are hampered by the
constant sand cover caused by coastal winds, turning waste removal into a difficult and time-consuming task. The
harsh heat and humidity of beach environments further exacerbate the working conditions. Some governments
have invested in costly beach cleaning machines, which, unfortunately, suffer from frequent breakdowns and
require imported spare parts, rendering them unsustainable. Moreover, these machines, powered by heavy fuel-
based motors, inadvertently contribute to pollution, shifting the problem rather than solving it. In response to these
challenges, we present a pragmatic, cost-effective solution—a beach cleaning machine that is easy to use and
maintain. Sourced locally, spare parts are readily available. Our innovation can be operated manually or with an
electric motor, can be powered by solar panels or rechargeable batteries, reducing environmental impact and
providing an advantage over traditional fuel-powered models in the market. This approach not only aids in
pollution reduction but also mitigates the economic burden associated with expensive machines that often remain
unused due to operational complexities and maintenance issues. Our beach garbage cleaning machine is a
sustainable alternative to tackle the pollution problems in India's coastal areas.
1.1 Project Background
Beaches are renowned for their natural beauty and the sense of tranquillity they offer, attracting millions of tourists
and serving as vital ecosystems. However, in recent years, many of the world’s beaches have been plagued by the
growing problem of beach pollution, primarily caused by the accumulation of the garbage and plastic waste. This
pollution is not only harming the aesthetic of the beach but also poses significant environmental, economic, and
health risks. Traditional method of beach cleaning, often involving manual labour, are insufficient to tackle the
magnitude of the problem. To address this issue effectively, the development and deployment of Beach Garbage
Cleaning Machine have become an innovative solution.

PP 01-06
2

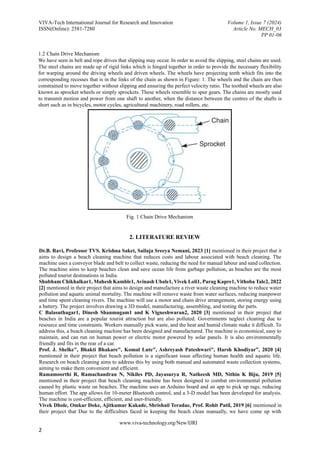

1.2 Chain Drive Mechanism
We have seen in belt and rope drives that slipping may occur. In order to avoid the slipping, steel chains are used.
The steel chains are made up of rigid links which is hinged together in order to provide the necessary flexibility
for warping around the driving wheels and driven wheels. The wheels have projecting teeth which fits into the
corresponding recesses that is in the links of the chain as shown in Figure: 1. The wheels and the chain are then
constrained to move together without slipping and ensuring the perfect velocity ratio. The toothed wheels are also
known as sprocket wheels or simply sprockets. These wheels resemble to spur gears. The chains are mostly used
to transmit motion and power from one shaft to another, when the distance between the centres of the shafts is
short such as in bicycles, motor cycles, agricultural machinery, road rollers, etc.
Fig. 1 Chain Drive Mechanism
2. LITERATURE REVIEW
Dr.B. Ravi, Professor TVS. Krishna Saket, Sailaja Sreeya Nemani, 2023 [1] mentioned in their project that it
aims to design a beach cleaning machine that reduces costs and labour associated with beach cleaning. The
machine uses a conveyor blade and belt to collect waste, reducing the need for manual labour and sand collection.
The machine aims to keep beaches clean and save ocean life from garbage pollution, as beaches are the most
polluted tourist destinations in India.
Shubham Chikhalkar1, Mahesh Kamble1,Avinash Ubale1, Vivek Loli1, Parag Kapre1, Vithoba Tale2, 2022
[2] mentioned in their project that aims to design and manufacture a river waste cleaning machine to reduce water
pollution and aquatic animal mortality. The machine will remove waste from water surfaces, reducing manpower
and time spent cleaning rivers. The machine will use a motor and chain drive arrangement, storing energy using
a battery. The project involves drawing a 3D model, manufacturing, assembling, and testing the parts.
C Balasuthagar1, Dinesh Shanmugam1 and K Vigneshwaran2, 2020 [3] mentioned in their project that
beaches in India are a popular tourist attraction but are also polluted. Governments neglect cleaning due to
resource and time constraints. Workers manually pick waste, and the heat and humid climate make it difficult. To
address this, a beach cleaning machine has been designed and manufactured. The machine is economical, easy to
maintain, and can run on human power or electric motor powered by solar panels. It is also environmentally
friendly and fits in the rear of a car.
Prof. J. Shelke", Bhakti Bhakare", Komal Lute", Ashreyash Pateshwari", Harsh Khodiyar”, 2020 [4]
mentioned in their project that beach pollution is a significant issue affecting human health and aquatic life.
Research on beach cleaning aims to address this by using both manual and automated waste collection systems,
aiming to make them convenient and efficient.
Ramamoorthi R, Ramachandran N, Nikiles PD, Jayasurya R, Natheesh MD, Nithin K Biju, 2019 [5]
mentioned in their project that beach cleaning machine has been designed to combat environmental pollution
caused by plastic waste on beaches. The machine uses an Arduino board and an app to pick up rags, reducing
human effort. The app allows for 10-meter Bluetooth control, and a 3-D model has been developed for analysis.
The machine is cost-efficient, efficient, and user-friendly.
Vivek Dhole, Omkar Doke, Ajitkumar Kakade, Shrishail Teradae, Prof. Rohit Patil, 2019 [6] mentioned in
their project that Due to the difficulties faced in keeping the beach clean manually, we have come up with

PP 01-06
3

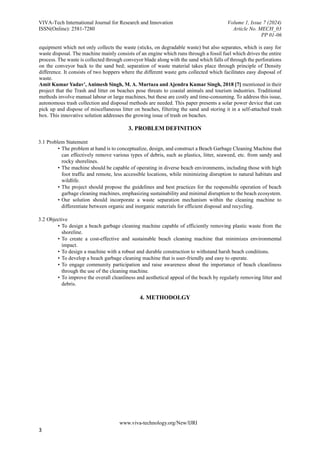

equipment which not only collects the waste (sticks, on degradable waste) but also separates, which is easy for
waste disposal. The machine mainly consists of an engine which runs through a fossil fuel which drives the entire
process. The waste is collected through conveyor blade along with the sand which falls of through the perforations
on the conveyor back to the sand bed; separation of waste material takes place through principle of Density
difference. It consists of two hoppers where the different waste gets collected which facilitates easy disposal of
waste.
Amit Kumar Yadav', Animesh Singh, M. A. Murtaza and Ajendra Kumar Singh, 2018 [7] mentioned in their
project that the Trash and litter on beaches pose threats to coastal animals and tourism industries. Traditional
methods involve manual labour or large machines, but these are costly and time-consuming. To address this issue,
autonomous trash collection and disposal methods are needed. This paper presents a solar power device that can
pick up and dispose of miscellaneous litter on beaches, filtering the sand and storing it in a self-attached trash
box. This innovative solution addresses the growing issue of trash on beaches.
3. PROBLEM DEFINITION
3.1 Problem Statement
• The problem at hand is to conceptualize, design, and construct a Beach Garbage Cleaning Machine that
can effectively remove various types of debris, such as plastics, litter, seaweed, etc. from sandy and
rocky shorelines.
• The machine should be capable of operating in diverse beach environments, including those with high
foot traffic and remote, less accessible locations, while minimizing disruption to natural habitats and
wildlife.
• The project should propose the guidelines and best practices for the responsible operation of beach
garbage cleaning machines, emphasizing sustainability and minimal disruption to the beach ecosystem.
• Our solution should incorporate a waste separation mechanism within the cleaning machine to
differentiate between organic and inorganic materials for efficient disposal and recycling.
3.2 Objective
• To design a beach garbage cleaning machine capable of efficiently removing plastic waste from the
shoreline.
• To create a cost-effective and sustainable beach cleaning machine that minimizes environmental
impact.
• To design a machine with a robust and durable construction to withstand harsh beach conditions.
• To develop a beach garbage cleaning machine that is user-friendly and easy to operate.
• To engage community participation and raise awareness about the importance of beach cleanliness
through the use of the cleaning machine.
• To improve the overall cleanliness and aesthetical appeal of the beach by regularly removing litter and
debris.
4. METHODOLGY

PP 01-06
4
4.2 Construction
• Main Frame: The mainframe component of the machine is a robust structure which supports the overall
components of the machine.
• Chain and Sprocket: The chain and sprocket arrangement are basically a chain drive mechanism which
is used to transmit the power from motor and to connect the rakes for the relative movement.
• Bearing: The bearing is used to reduce the vibrations of the overall machine while the rotation of the
shaft and also to support the shaft.
• Battery: The battery used here is to give power supply to the motor connected by a switch whenever
there is requirement.
• Rake: The rake is responsible for the collection of debris due to its geometrical structure which allows
the debris to get trapped in it and further transferring the debris into the waste collector tank.
• Motors: The motor is a very important component in this mechanism as it drives the chain drive
mechanism and we get a relative movement of the rake.
• Wheels: Wheels are used for the smooth displacement of the Beach Garbage Cleaning Machine in the
desired directions.
4.3 Working
A Beach Garbage Cleaning Machine is a common simple beach cleaning machine which operates through a
motorized system, devoid of automation. It consists of a motor-driven sprocket chain arrangement, a rake or scoop
mechanism that collects debris like plastic, litter, and seaweed from the sand. The collected waste is then
transported onto a storage tank for disposal. The machine relies solely on manual control and steering by an
operator, ensuring efficient and controlled beach clean-up without automation's complexity.
4.4 Power Transmission
Fig. 3 Power Transmission
4.5 Designed CAD Model
4.1 Flow Process Chart
Selection of
topic and
Components.
Selection of
Material and
Design of
parts to be
made.
Drawings
and
determining
sizes of the
parts to be
made.
Designing
CAD
Model.
Market
Survey and
Cost
Estimation
Getting
Approval
and ready for
fabrication.
Fig. 2 Flow Process Chart
Switch ON
the Motor.
Starts the
linear
movement of
the machine.
Chain Drive
Mechanism
Rake
Movement
Waste gets
trapped in
the rake.
Storage of
waste in the
collector
tank.

PP 01-06
5

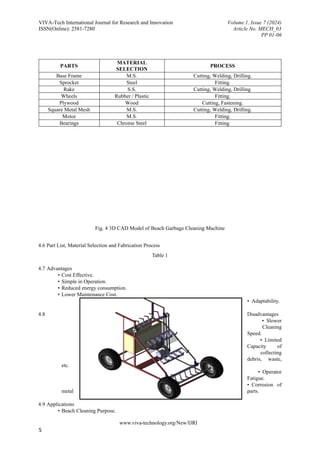

Fig. 4 3D CAD Model of Beach Garbage Cleaning Machine
4.6 Part List, Material Selection and Fabrication Process
Table 1
4.7 Advantages
• Cost Effective.
• Simple in Operation.
• Reduced energy consumption.
• Lower Maintenance Cost.
• Adaptability.
4.8 Disadvantages
• Slower
Cleaning
Speed.
• Limited
Capacity of
collecting
debris, waste,
etc.
• Operator
Fatigue.
• Corrosion of
metal parts.
4.9 Applications
• Beach Cleaning Purpose.
PARTS
MATERIAL
SELECTION
PROCESS
Base Frame M.S. Cutting, Welding, Drilling.
Sprocket Steel Fitting.
Rake S.S. Cutting, Welding, Drilling.
Wheels Rubber / Plastic Fitting.
Plywood Wood Cutting, Fastening.
Square Metal Mesh M.S. Cutting, Welding, Drilling.
Motor M.S. Fitting.
Bearings Chrome Steel Fitting.

PP 01-06
6

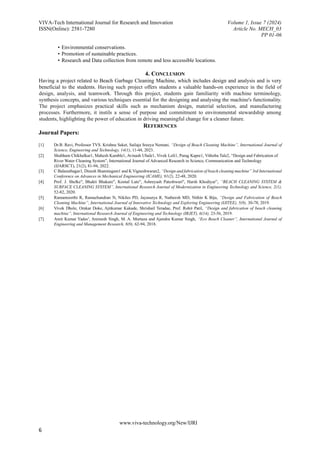

• Environmental conservations.
• Promotion of sustainable practices.
• Research and Data collection from remote and less accessible locations.
4. CONCLUSION
Having a project related to Beach Garbage Cleaning Machine, which includes design and analysis and is very
beneficial to the students. Having such project offers students a valuable hands-on experience in the field of
design, analysis, and teamwork. Through this project, students gain familiarity with machine terminology,
synthesis concepts, and various techniques essential for the designing and analysing the machine's functionality.
The project emphasizes practical skills such as mechanism design, material selection, and manufacturing
processes. Furthermore, it instils a sense of purpose and commitment to environmental stewardship among
students, highlighting the power of education in driving meaningful change for a cleaner future.
REFERENCES
Journal Papers:
[1] Dr.B. Ravi, Professor TVS. Krishna Saket, Sailaja Sreeya Nemani, “Design of Beach Cleaning Machine”, International Journal of
Science, Engineering and Technology, 14(1), 11-44, 2023.
[2] Shubham Chikhalkar1, Mahesh Kamble1, Avinash Ubale1, Vivek Loli1, Parag Kapre1, Vithoba Tale2, “Design and Fabrication of
River Water Cleaning System”, International Journal of Advanced Research in Science, Communication and Technology
(IJARSCT), 21(2), 81-94, 2022.
[3] C Balasuthagar1, Dinesh Shanmugam1 and K Vigneshwaran2, “Design and fabrication of beach cleaning machine” 3rd International
Conference on Advances in Mechanical Engineering (ICAME), 91(2), 22-48, 2020.
[4] Prof. J. Shelke", Bhakti Bhakare", Komal Lute", Ashreyash Pateshwari", Harsh Khodiyar”, “BEACH CLEANING SYSTEM &
SURFACE CLEANING SYSTEM”, International Research Journal of Modernization in Engineering Technology and Science, 2(1),
52-82, 2020.
[5] Ramamoorthi R, Ramachandran N, Nikiles PD, Jayasurya R, Natheesh MD, Nithin K Biju, “Design and Fabrication of Beach
Cleaning Machine”, International Journal of Innovative Technology and Exploring Engineering (IJITEE), 5(8), 30-78, 2019.
[6] Vivek Dhole, Omkar Doke, Ajitkumar Kakade, Shrishail Teradae, Prof. Rohit Patil, “Design and fabrication of beach cleaning
machine”, International Research Journal of Engineering and Technology (IRJET), 6(14), 23-56, 2019.
[7] Amit Kumar Yadav', Animesh Singh, M. A. Murtaza and Ajendra Kumar Singh, “Eco Beach Cleaner”, International Journal of
Engineering and Management Research, 8(9), 62-94, 2018.

Beach Garbage Cleaning Machine

More Related Content

Similar to Beach Garbage Cleaning Machine

More from vivatechijri

Recently uploaded

Beach Garbage Cleaning Machine
