This document provides technical specifications for several solar panel mounting brackets and microinverters made by Fujian Super Solar Energy Technology Co., Ltd. The brackets are designed to mount solar panels on balconies, walls, and flat areas. They are made of aluminum and stainless steel, have adjustable tilt angles, and come with accessories. The microinverters range in power from 350VA to 800VA, have MPPT and monitoring, wireless communication, and protection features. They are suitable for AC modules and rooftop installations.

2. Description
Technical datasheet
Features
Accessories
Wall Flat area
Application
Installa�on site
Tilt angle
Material
Color
Treatment
Solar panel
Panel orienta�on
Length of panel
Width of panel
Thinckness of panel
Warranty
Service life
Wall, flat area
36deg or DIY
AL6005-T5&SUS304
Natural
Anodizing
Framed
Landscape
1400-2400mm
700-1300mm
No limit
12 years
25 years
Basic but strong structure
Plug and play solar system for daily use
Suitable for commonly-sized panels
Highly pre-assembled and quick installa�on
This bracket can be simply load on the balcony
flooring. It can also be mounted on other flat area and
walls with expansion bolts, or with cement ballast.

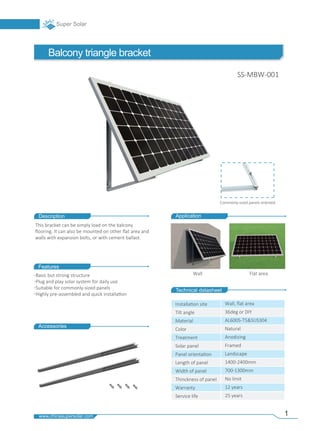

Balcony triangle bracket
SS-MBW-001
Commonly-sized panels oriented
1

3. 2
Accessories
Wall
Balcony railing Flat area
Technical datasheet
Railing adjustable triangle bracket
Description
Features
Application
Installa�on site
Adjustable �lt
Material
Color
Treatment
Solar panel
Panel orienta�on
Length of panel
Width of panel
Thinckness of panel
Warranty
Service life
Balcony, wall, flat area
18-36deg
AL6005-T5&SUS304
Natural
Anodizing
Framed
Landscape
1400-2400mm
700-1300mm
No limit
12 years
25 years
This bracket can be simply load on the balcony
flooring or be a�ached to balcony railings with curved
hooks. It can also be mounted on other flat area and
walls with expansion bolts, or with cement ballast.
Strong but angle adjustable structure
Li�le extra space required
No damage to the building structure
Suitable for commonly-sized panels
Highly pre-assembled and quick installa�on
Resale Packing Tilt angle adjustable
SS-MBW-002

4. 3
Description
Technical datasheet

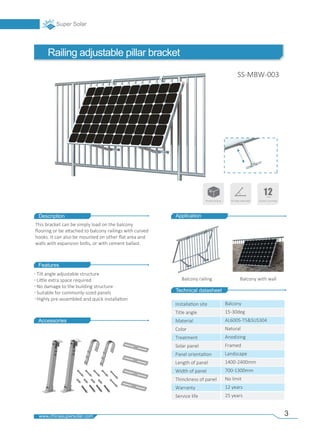

Railing adjustable pillar bracket
Features
Accessories
Balcony railing Balcony with wall
Application
Tilt angle adjustable structure
Li�le extra space required
No damage to the building structure
Suitable for commonly-sized panels
Highly pre-assembled and quick installa�on
This bracket can be simply load on the balcony
flooring or be a�ached to balcony railings with curved
hooks. It can also be mounted on other flat area and
walls with expansion bolts, or with cement ballast.
SS-MBW-003
Installa�on site
Title angle
Material
Color
Treatment
Solar panel
Panel orienta�on
Length of panel
Width of panel
Thinckness of panel
Warranty
Service life
Balcony
15-30deg
AL6005-T5&SUS304
Natural
Anodizing
Framed
Landscape
1400-2400mm
700-1300mm
No limit
12 years
25 years
Resale Packing Tilt angle adjustable

5. 4
Accessories
Technical datasheet

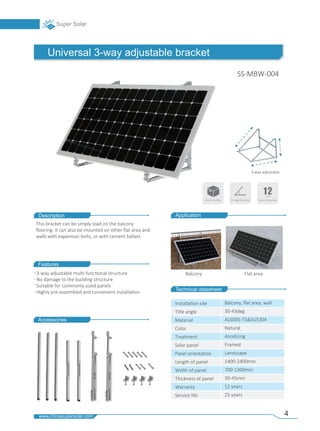

Universal 3-way adjustable bracket
Description
Features
Balcony Flat area
Application
Installa�on site
Title angle
Material
Color
Treatment
Solar panel
Panel orienta�on
Length of panel
Width of panel
Thickness of panel
Warranty
Service life
Balcony, flat area, wall
30-43deg
AL6005-T5&SUS304
Natural
Anodizing
Framed
Landscape
1400-2400mm
700-1300mm
30-45mm
12 years
25 years
This bracket can be simply load on the balcony
flooring. It can also be mounted on other flat area and
walls with expansion bolts, or with cement ballast.
3-way adjustable
3-way adjustable mul�-func�onal structure
No damage to the building structure
Suitable for commonly-sized panels
Highly pre-assembled and convenient installa�on
SS-MBW-004
Resale Packing Tilt angle adjustable

6. 5
Macroinverter
SS-350
Suitable for AC module applica�ons
Safer for roo�op solar sta�ons with integrated rapid
shutdown func�onality and isolated transformer
With reac�ve power control, compliant with
EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc.
Grid protec�on relay integrated
Sub-1G wireless solu�on allows stable
communica�on with Hoymiles gateway DTU
Description
Features
Technical datasheet
Input Data (DC)
Commonlyused module power(W)
Maximum input voltage(M)
MPPTvoltage range(V)
Start-up voltage(M)
Max input current (A)
Max input short circuit current (A)
Number of MPPTs
Number of nputs per MPPT
Output Data (AC)
Rated output power(VA)
Rated output current (A)
Nominal output voltage/range(M)
Nominal frequency/range(Hz)'
Power factor (adjustable)
Total harmonic distor�on
Max units per 12 AWG branch2
Max units per 10 AWG branch2
Mechanical Data
Ambient temperature range(℃)
Storage temperature range(℃)
Dimensions(WxH*D[mm])
Weight(kg)
Enclosure ra�ng
Super Solar SS-350 series microinverter benefits from
a new design architecture and is more suitable for AC
module applica�ons.
Each microinverter connects to one PV module.With
module level MPPT and real-�me monitoring
func�on, SS-350 series microinverter harvests more
energy and offers more convenient opera�on and
maintenance.
The new Sub-1G wireless communica�on solu�on
allows for more stable communica�on undervarious
environmental condi�ons.
280 to 470+
60
16-60
22
13
20
1
1
350
1.52
230/180~275
50/45-55
>0.99 default
0.8 leading….0.8 lagging
< 3%
13
21
-40 to +65
-40 to +85
184.5x204.5x26
1.71
Outdoor-IP67(NEMA 6)

7. 6

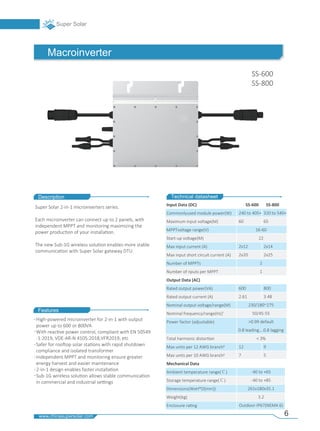

Macroinverter
SS-600
SS-800
SS-600 SS-800
Description
Features
Technical datasheet
Input Data (DC)
Commonlyused module power(W)
Maximum input voltage(M)
MPPTvoltage range(V)
Start-up voltage(M)
Max input current (A)
Max input short circuit current (A)
Number of MPPTs
Number of nputs per MPPT
Output Data (AC)
Rated output power(VA)
Rated output current (A)
Nominal output voltage/range(M)
Nominal frequency/range(Hz)'
Power factor (adjustable)
Total harmonic distor�on
Max units per 12 AWG branch2
Max units per 10 AWG branch2
Mechanical Data
Ambient temperature range(℃)
Storage temperature range(℃)
Dimensions(WxH*D[mm])
Weight(kg)
Enclosure ra�ng
Super Solar 2-in-1 microinverters series.
Each microinverter can connect up to 2 panels, with
independent MPPT and monitoring maximizing the
power produc�on of your installa�on.
The new Sub-1G wireless solu�on enables more stable
communica�on with Super Solar gateway DTU.
High-powered microinverter for 2-in-1 with output
power up to 600 or 800VA
With reac�ve power control, compliant with EN 50549
-1:2019, VDE-AR-N 4105:2018,VFR2019, etc
Safer for roo�op solar sta�ons with rapid shutdown
compliance and isolated transformer
Independent MPPT and monitoring ensure greater
energy harvest and easier maintenance
2-in-1 design enables faster installa�on
Sub-1G wireless solu�on allows stable communica�on
in commercial and industrial se�ngs
240 to 405+
60
2x12
2x20
600
2.61
12
7
16-60
22
2
1
230/180~275
50/45-55
>0.99 default
0.8 leading….0.8 lagging
< 3%
-40 to +65
-40 to +85
261x180x35.1
3.2
Outdoor-IP67(NEMA 6)
320 to 540+
65
2x14
2x25
800
3.48
9
5
