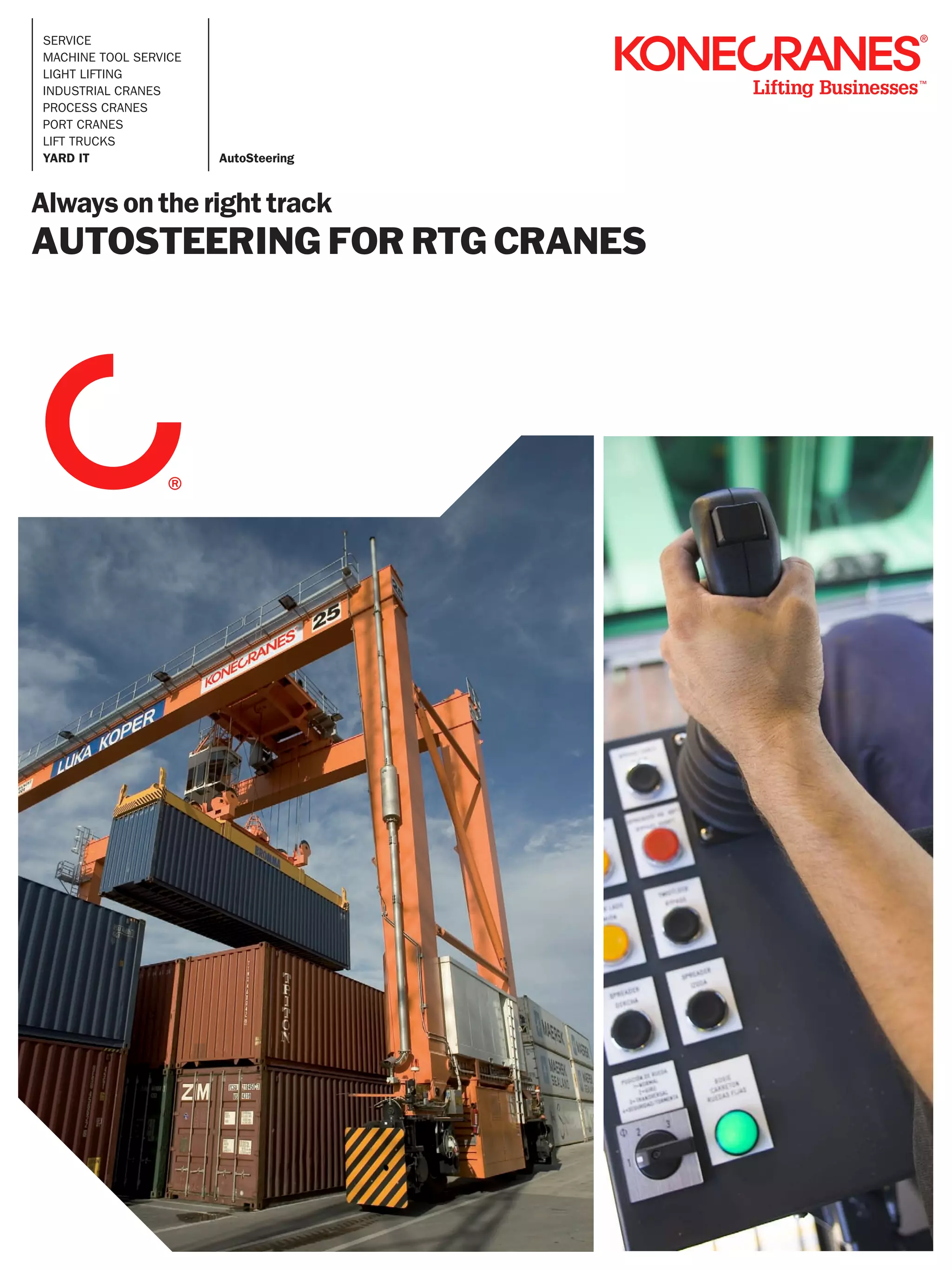

YARD IT AutoSteering
Always on the right track
Autosteering for RTG Cranes

2. Efficiency
at every
Safety turn
through The AutoSteering module offers a clean upgrade
accuracy
path for further RTG automation. Key steps to
full automation are:
• utoStop – automatically stops the gantry
A
and trolley travel when a target container slot
The YardIT AutoSteering module is designed is reached. This allows for full speed motion
to be the backbone in a series of modular until deceleration is automatically initiated.
automation tools for RTGs. Optimizing the deceleration profile and timing
through a programmed ramp decreases the RTG
Konecranes RTG autosteering delivers a range cycle time.
of decisive advantages, including improved • utoMove – enables fully automatic operation
A
worker safety and increased driver productivity. It of RTG gantry and trolley. When a target
keeps the RTG gantry on a pre-programmed path container slot is transmitted to the RTG, the
without driver steering inputs, allowing your driver spreader automatically moves on top of the
to stay focused on other tasks. More precise target slot. Hoisting (both up and down) is semi-
steering means a more precisely optimized stack automatic.
alignment that permits greater stack density and • utoGrab – enables the RTG to perform the
A
also helps prevent collisions caused by loose, final movement of the spreader grabbing
unpredicted configurations. container fully automatically.
• eleMove module – allows a single operator
T
Konecranes has the RAAS feature (“Shadow-
to operate several RTGs in teleoperation.
support”) built into the AutoSteering-package.
Gantry and trolley travel are fully automatic,
In practice the two-antenna solution means that
whereas the final hoist-lowering, micromotions,
the position/direction of the crane is not lost
lock/unlock functions and initial hoist lift are
even if one of the antennae temporarily loses
performed manually through a teleoperation
satellite connection due, for example, to a large
station. The remotely located operator receives
obstacle such as an STS crane or building. RAAS
video feed from the RTG and operates the RTG
is Konecranes’ own patented GPS-calculation
with controls similar to a regular RTG cabin.
feature (ReAcquisition Accelerator System) and is
exclusive to Konecranes.
The main features of the
AutoSteering module are:
• win dual-frequency DGPS receiver for accuracy
T
Fully Automated
and redundancy
• ual DGPS receiver antennas on the opposite
D Remote Operation
ends of the gantry for accurate heading
determination AutoGrab
• ull integration to PLC systems, including AC
F
drive encoders AutoMove
• raphical deviation display in the operator cabin
G
• Automatic slow-down/fast ramp-down in the AutoStop (Gantry & Trolley)
event of excessive deviation
TOS Interface
Geometric superiority of the two-antenna
solution vs the one-antenna solution AutoSteering
Base
• Step-by-step automation
station for container operators
• Safe operation
• Does not interfere with daily
Konecranes has over 200 operations
AutoSteering modules already • Minimal labour issues
successfully installed in • Reasonable costs
Konecranes RTGs. • Utilizes existing investments
Accuracy
