The document discusses various topics related to implementing authentication and authorization in LoopBack applications. It covers setting up SSL, configuring OAuth2, adding third-party login support using Passport strategies, defining roles and ACLs, and deploying LoopBack apps for microservices and hyper-scale.

1. Shubhra Kar | Products & Education
twitter:@shubhrakar
{“Node.js”: “APIs @hyperscale”}

2. SSL – Setup in Loopback.io
$ openssl genrsa -out privatekey.pem 1024
$ openssl req -new -key privatekey.pem -out certrequest.csr
$ openssl x509 -req -in certrequest.csr -signkey privatekey.pem -out
certificate.pem
var path = require('path'),
fs = require("fs");
exports.privateKey = fs.readFileSync(path.join(__dirname,
'./private/privatekey.pem')).toString();
exports.certificate = fs.readFileSync(path.join(__dirname,
'./private/certificate.pem')).toString();

3. SSL – App Usage in Loopback.io
var https = require('https');
var sslConfig = require('./ssl-config');
...
var options = {
key: sslConfig.privateKey,
cert: sslConfig.certificate
};
…
server.listen(app.get('port'), function() {
var baseUrl = (httpOnly? 'http://' : 'https://') + app.get('host') + ':' +
app.get('port');
app.emit('started', baseUrl);
console.log('LoopBack server listening @ %s%s', baseUrl, '/');
});
return server;

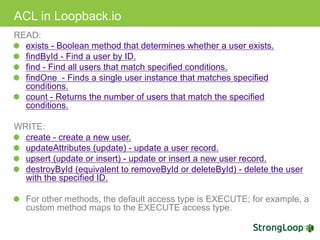

4. ACL in Loopback.io
READ:
exists - Boolean method that determines whether a user exists.
findById - Find a user by ID.
find - Find all users that match specified conditions.
findOne - Finds a single user instance that matches specified
conditions.
count - Returns the number of users that match the specified
conditions.
WRITE:
create - create a new user.
updateAttributes (update) - update a user record.
upsert (update or insert) - update or insert a new user record.
destroyById (equivalent to removeById or deleteById) - delete the user
with the specified ID.
For other methods, the default access type is EXECUTE; for example, a
custom method maps to the EXECUTE access type.

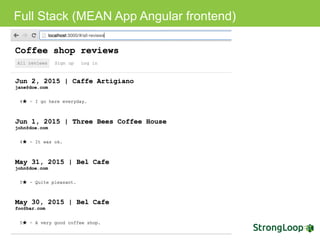

5. Full Stack (MEAN App Angular frontend)

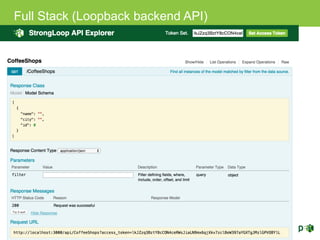

6. Full Stack (Loopback backend API)

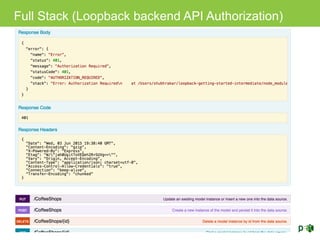

7. Full Stack (Loopback backend API Authorization)

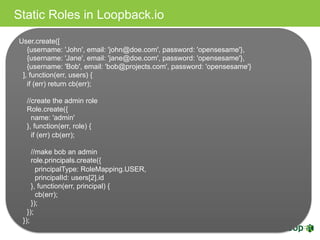

8. Static Roles in Loopback.io
User.create([
{username: 'John', email: 'john@doe.com', password: 'opensesame'},
{username: 'Jane', email: 'jane@doe.com', password: 'opensesame'},
{username: 'Bob', email: 'bob@projects.com', password: 'opensesame'}
], function(err, users) {
if (err) return cb(err);
//create the admin role
Role.create({
name: 'admin'
}, function(err, role) {
if (err) cb(err);
//make bob an admin
role.principals.create({
principalType: RoleMapping.USER,
principalId: users[2].id
}, function(err, principal) {
cb(err);
});
});
});

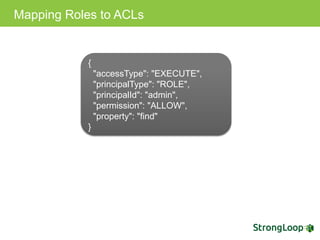

9. Mapping Roles to ACLs
{
"accessType": "EXECUTE",
"principalType": "ROLE",
"principalId": "admin",
"permission": "ALLOW",
"property": "find"
}

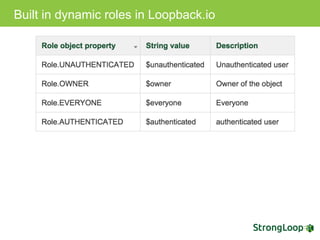

10. Built in dynamic roles in Loopback.io

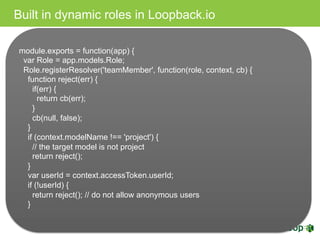

11. Built in dynamic roles in Loopback.io
module.exports = function(app) {
var Role = app.models.Role;
Role.registerResolver('teamMember', function(role, context, cb) {
function reject(err) {
if(err) {
return cb(err);
}
cb(null, false);
}
if (context.modelName !== 'project') {
// the target model is not project
return reject();
}
var userId = context.accessToken.userId;
if (!userId) {
return reject(); // do not allow anonymous users
}

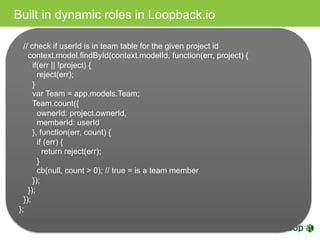

12. Built in dynamic roles in Loopback.io
// check if userId is in team table for the given project id
context.model.findById(context.modelId, function(err, project) {
if(err || !project) {
reject(err);
}
var Team = app.models.Team;
Team.count({
ownerId: project.ownerId,
memberId: userId
}, function(err, count) {
if (err) {
return reject(err);
}
cb(null, count > 0); // true = is a team member
});
});
});
};

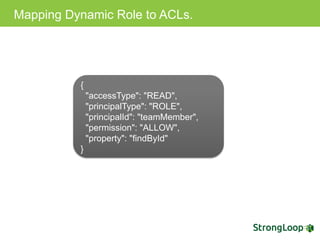

13. Mapping Dynamic Role to ACLs.
{
"accessType": "READ",
"principalType": "ROLE",
"principalId": "teamMember",
"permission": "ALLOW",
"property": "findById"
}

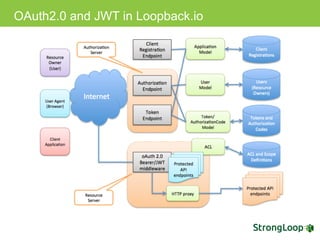

14. OAuth2.0 and JWT in Loopback.io

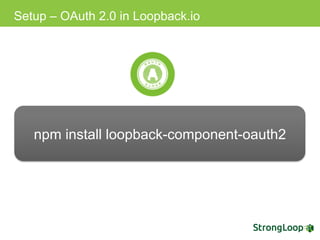

15. Setup – OAuth 2.0 in Loopback.io
npm install loopback-component-oauth2

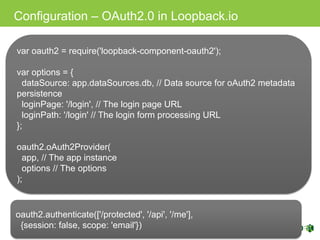

16. Configuration – OAuth2.0 in Loopback.io
var oauth2 = require('loopback-component-oauth2');
var options = {
dataSource: app.dataSources.db, // Data source for oAuth2 metadata
persistence
loginPage: '/login', // The login page URL
loginPath: '/login' // The login form processing URL
};
oauth2.oAuth2Provider(
app, // The app instance
options // The options
);
oauth2.authenticate(['/protected', '/api', '/me'],
{session: false, scope: 'email'})

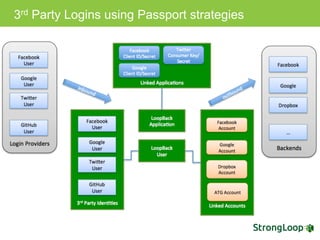

18. 3rd Party Logins using Passport strategies

19. Setup of passport component in Loopback.io
npm install loopback-component-passport

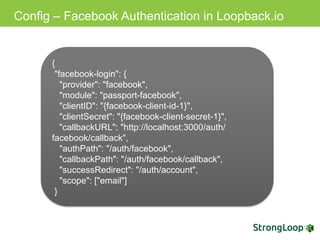

20. Config – Facebook Authentication in Loopback.io
{
"facebook-login": {
"provider": "facebook",
"module": "passport-facebook",
"clientID": "{facebook-client-id-1}",
"clientSecret": "{facebook-client-secret-1}",
"callbackURL": "http://localhost:3000/auth/facebook
/callback",
"authPath": "/auth/facebook",
"callbackPath": "/auth/facebook/callback",
"successRedirect": "/auth/account",
"scope": ["email"]
}

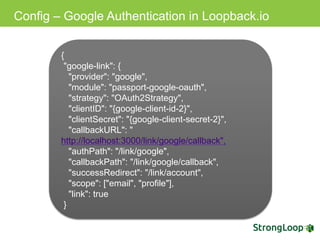

21. Config – Google Authentication in Loopback.io
{
"google-link": {
"provider": "google",
"module": "passport-google-oauth",
"strategy": "OAuth2Strategy",
"clientID": "{google-client-id-2}",
"clientSecret": "{google-client-secret-2}",
"callbackURL": "http://localhost:3000/link/google/
callback",
"authPath": "/link/google",
"callbackPath": "/link/google/callback",
"successRedirect": "/link/account",
"scope": ["email", "profile"],
"link": true
}

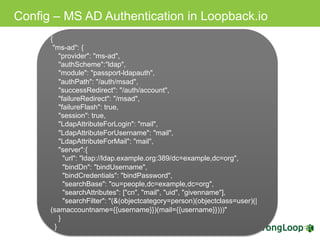

22. Config – MS AD Authentication in Loopback.io
{
"ms-ad": {
"provider": "ms-ad",
"authScheme":"ldap",
"module": "passport-ldapauth",
"authPath": "/auth/msad",
"successRedirect": "/auth/account",
"failureRedirect": "/msad",
"failureFlash": true,
"session": true,
"LdapAttributeForLogin": "mail",
"LdapAttributeForUsername": "mail",
"LdapAttributeForMail": "mail",
"server":{
"url": "ldap://ldap.example.org:389/dc=example,dc=org",
"bindDn": "bindUsername",
"bindCredentials": "bindPassword",
"searchBase": "ou=people,dc=example,dc=org",
"searchAttributes": ["cn", "mail", "uid", "givenname"],
"searchFilter": "(&(objectcategory=person)(objectclass=user)(|(s
amaccountname={{username}})(mail={{username}})))"
}
}

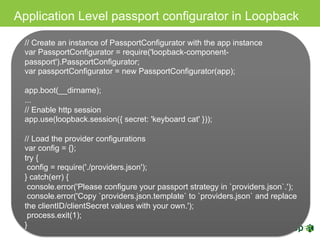

23. Application Level passport configurator in Loopback
// Create an instance of PassportConfigurator with the app instance
var PassportConfigurator = require('loopback-component-
passport').PassportConfigurator;
var passportConfigurator = new PassportConfigurator(app);
app.boot(__dirname);
...
// Enable http session
app.use(loopback.session({ secret: 'keyboard cat' }));
// Load the provider configurations
var config = {};
try {
config = require('./providers.json');
} catch(err) {
console.error('Please configure your passport strategy in `providers.json`.');
console.error('Copy `providers.json.template` to `providers.json` and
replace the clientID/clientSecret values with your own.');
process.exit(1);
}

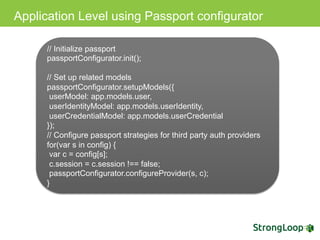

24. Application Level using Passport configurator
// Initialize passport
passportConfigurator.init();
// Set up related models
passportConfigurator.setupModels({
userModel: app.models.user,
userIdentityModel: app.models.userIdentity,
userCredentialModel: app.models.userCredential
});
// Configure passport strategies for third party auth providers
for(var s in config) {
var c = config[s];
c.session = c.session !== false;
passportConfigurator.configureProvider(s, c);
}

25. Synchronous API “Re-Composition” is an anti-pattern

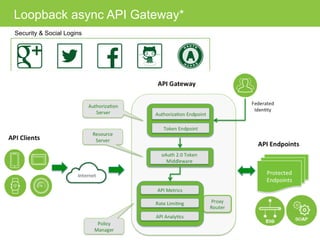

26. Security & Social Logins
Loopback async API Gateway*

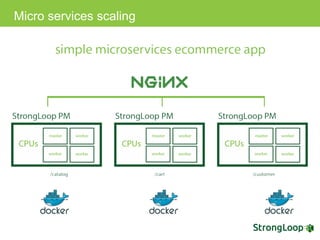

28. Micro services scaling

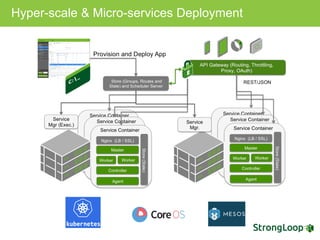

29. Hyper-scale & Micro-services Deployment
