The document discusses the Atom Interface, which aims to increase accessibility and readability of structured data by modeling relationships between elements. It does this through a Flash-based menu interface that dynamically generates structure from XML and allows customization of node colors, sizes, and connections to improve understanding. Questions are welcomed.

1. Atom Interface Flash implementation Krystian Samp [email_address] 08.08.2007 Jedrzej Gontarczyk [email_address]

2. Atom Interface The idea

3. The idea behind Atom Interface To increase accessibility of nodes having different depth levels

4. The idea behind Atom Interface To improve readability of actual structure

5. The idea behind Atom Interface To model relations between structure(s) elements

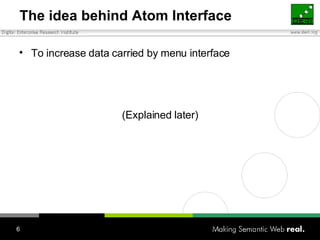

6. The idea behind Atom Interface To increase data carried by menu interface (Explained later)

7. Atom Interface Technical details

8. Why Flash? Easy to use in browser Good support for XML Allows to display and redraw dynamic content Great for web user interfaces (except for right click support!)

9. Flash = Availability

10. Flash menu in browser Integrated

11. Flash menu in browser Overlay

12. Traditionally: Node name --------------------------- Structure (depth level) ---------------- In Atom Interface: Color ----------------------------------- Text size -------------- Parenthood ------------------------------- Information Carried by menu

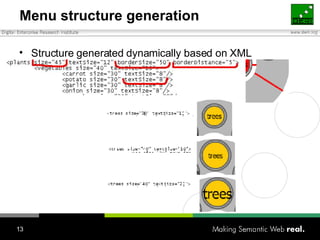

13. Menu structure generation Structure generated dynamically based on XML

14. Customization - TODO Node Color Support for multiple menus (+ connections between elements) Animation

15. Menu and navigation

16. Thank You for attending Yes, thank You Oh, any questions ?
