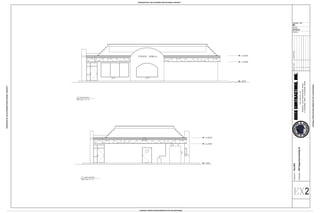

This document contains elevation drawings for a building with dimensions for the top of the roof edge, bottom of an awning, and top of the slab. The south elevation shows window dimensions of 12/4 x 6/4 and 9/10 x 6/0 tall with sills of 1/10 and 3/0 x 7/0 tall windows. The east elevation is identical.

1. ELEV. 11'-6"
TOP OF ROOF EDGE
ELEV. 8'-8"
BOTTOM OF AWNING
ELEV. 0'-0"
TOP OF SLAB
ELEV. 11'-6"
TOP OF ROOF EDGE
ELEV. 8'-8"
BOTTOM OF AWNING
ELEV. 0'-0"
TOP OF SLAB
12/4 x 6/4 TALL
1/10 SILL
9/10 x 6/0 TALL
1/10 SILL
3/0 x 7/0 TALL
3/0 x 7/0 TALL
0/10 x 1/8 TALL
3/10 SILL
3/0 x 6/8 TALL
2
SOUTH ELEVATION
SCALE : 1/4" = 1'-0"
1
EX2
EAST ELEVATION
SCALE : 1/4" = 1'-0"
2
EX2
