1. Energy Management Information System

2. STRUKTURA ISGEa
TCP/IP
TCP/IP

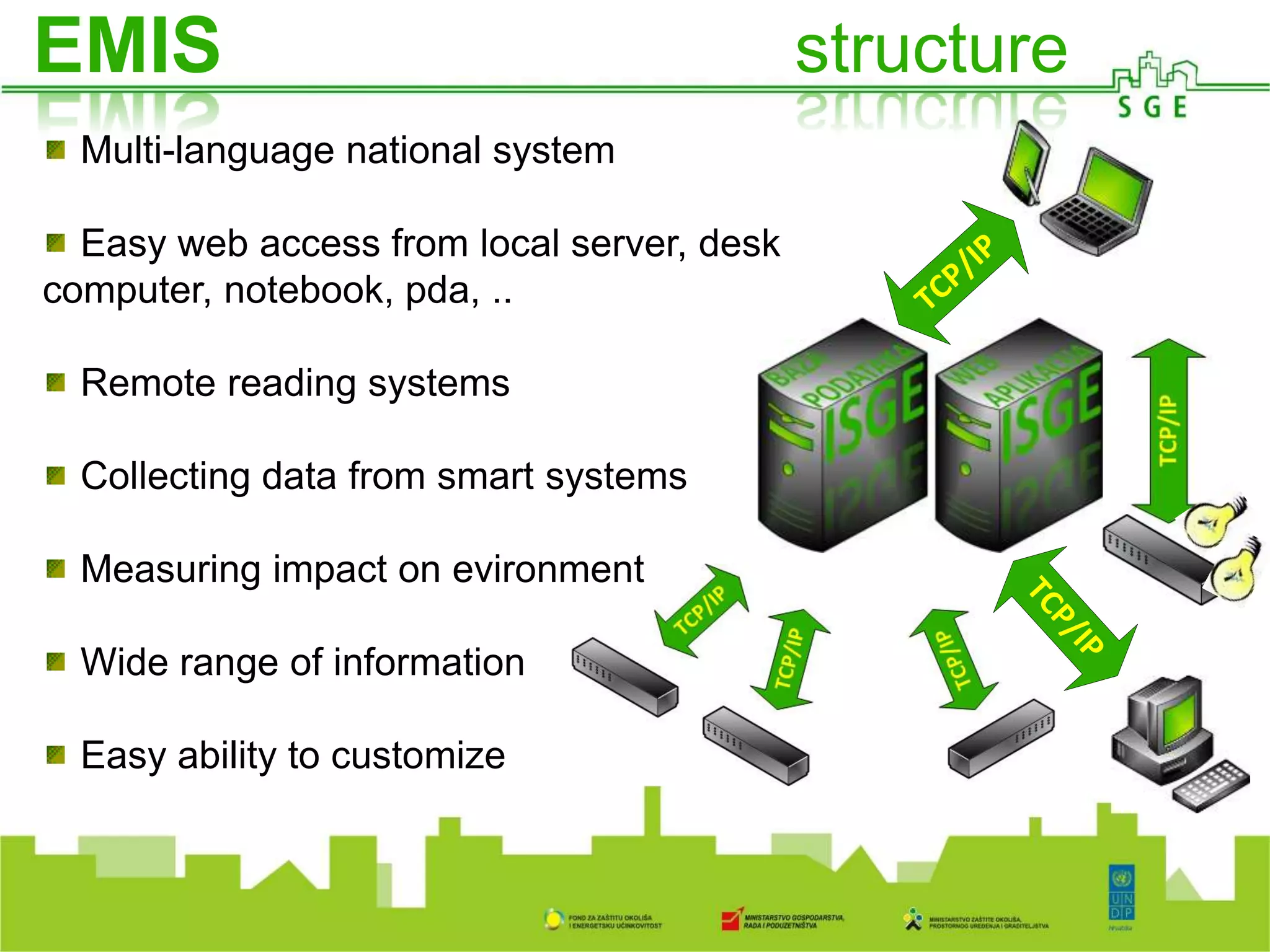

EMIS structure
Multi-language national system
Easy web access from local server, desk
computer, notebook, pda, ..
Remote reading systems
Collecting data from smart systems
Measuring impact on evironment
Wide range of information
Easy ability to customize

3. A
O ISGE-u

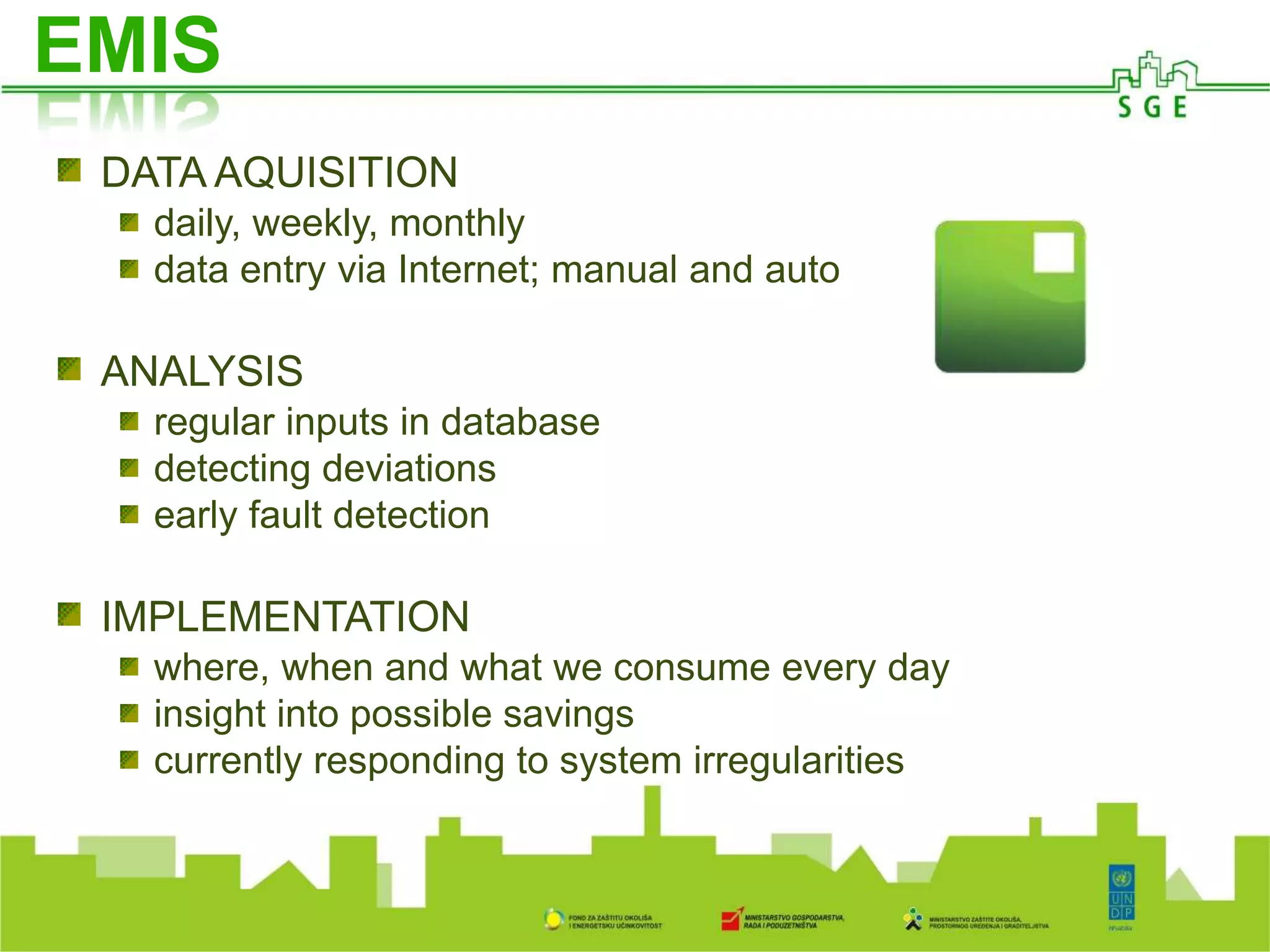

DATA AQUISITION
daily, weekly, monthly
data entry via Internet; manual and auto
ANALYSIS
regular inputs in database
detecting deviations
early fault detection
IMPLEMENTATION
where, when and what we consume every day
insight into possible savings
currently responding to system irregularities
EMIS

4. A
O ISGE-u
Different user interfaces for each user role
Advance database filtering
Excel, RTF export interface
Assortmenet of different building types
Custom definition of energy and water bills
Automatic readings
Indicators of consumption
ET curves, QUSUM graphs
“Locking” verified places of consumption
Custom reports
Energy certificates/audits module
Communication with other vendors databases
Advanced Analyzer module
...
EMIS functionalities

5. EMIS login page

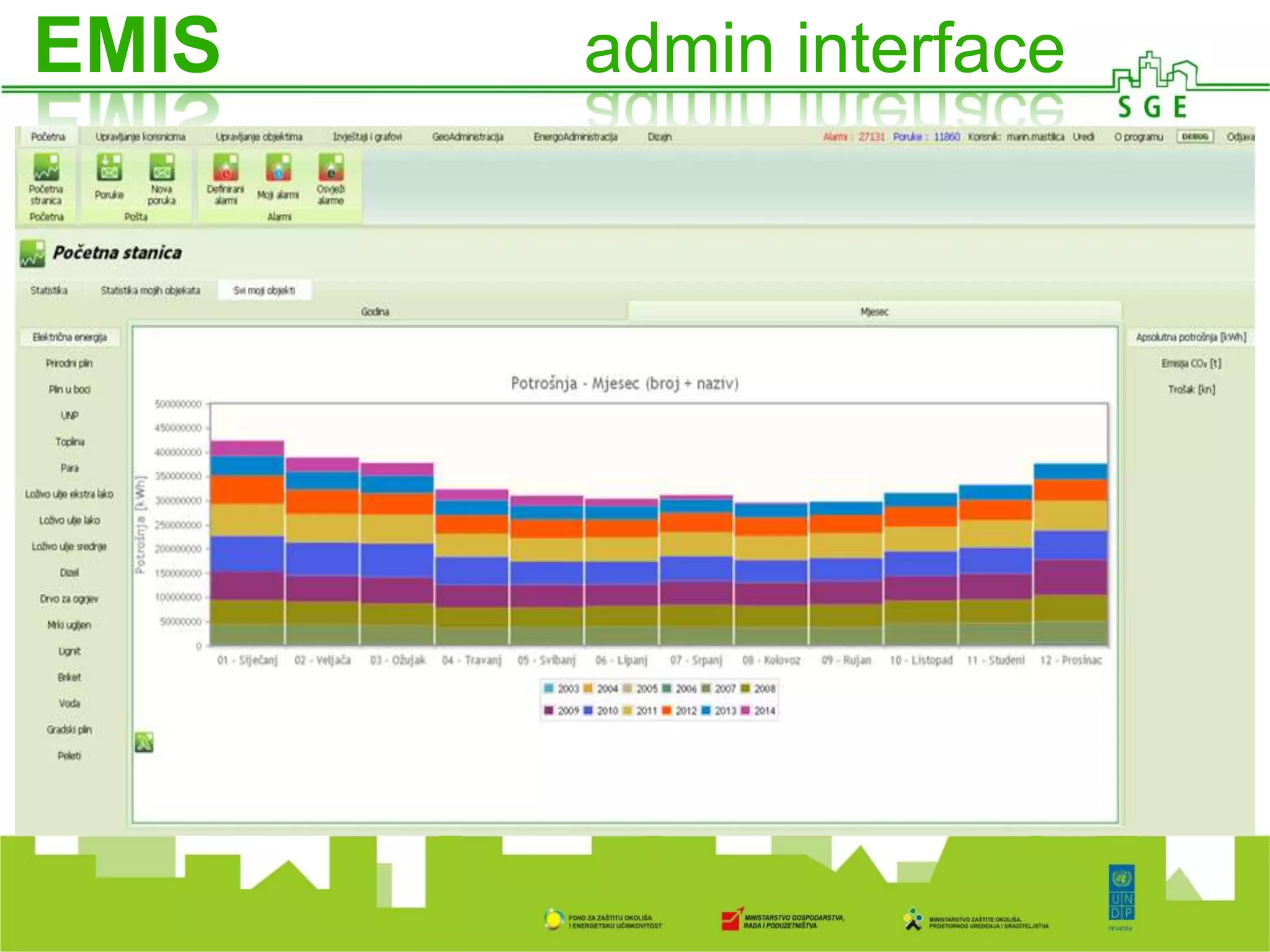

6. EMIS admin interface

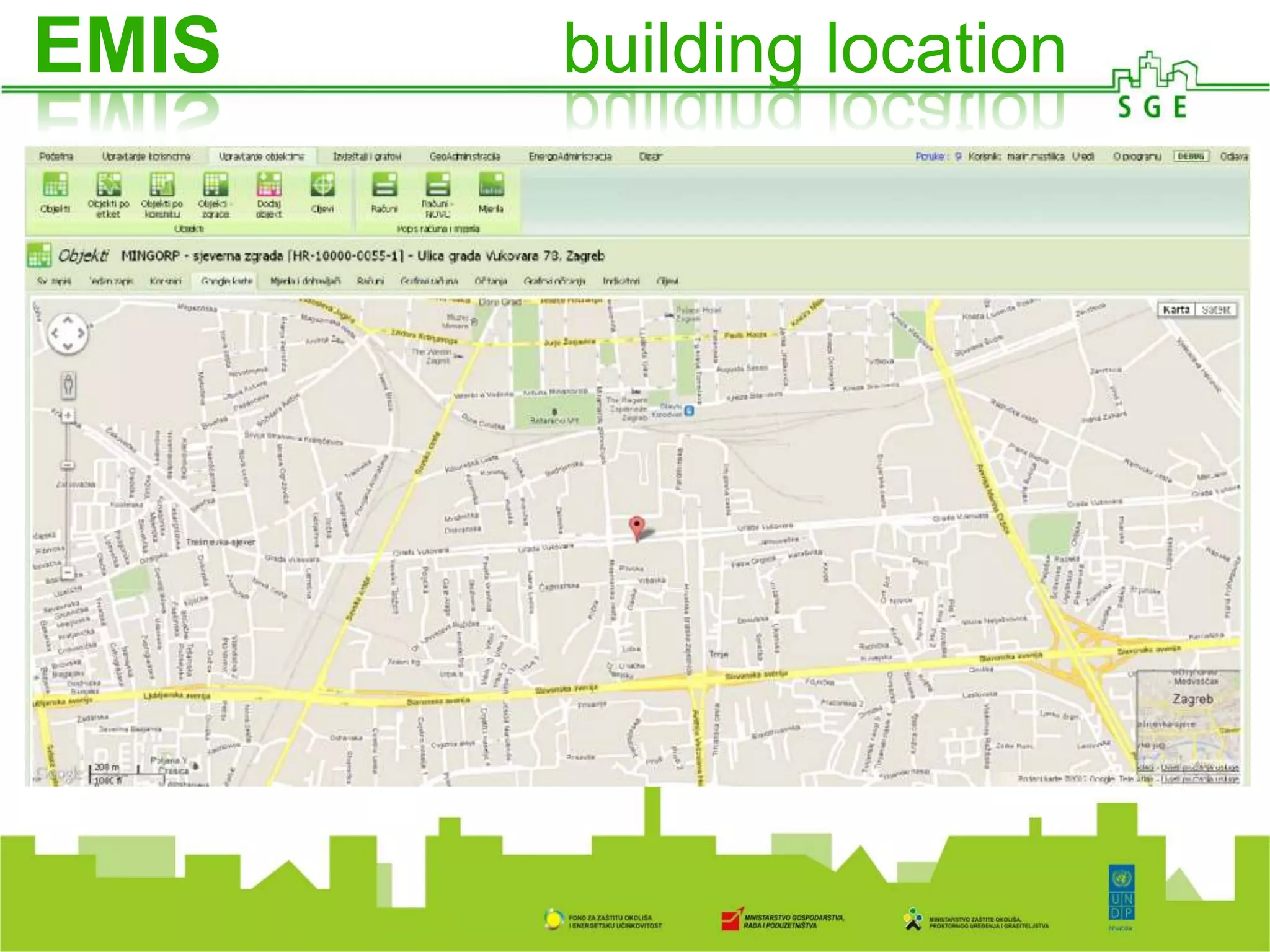

7. EMIS building location

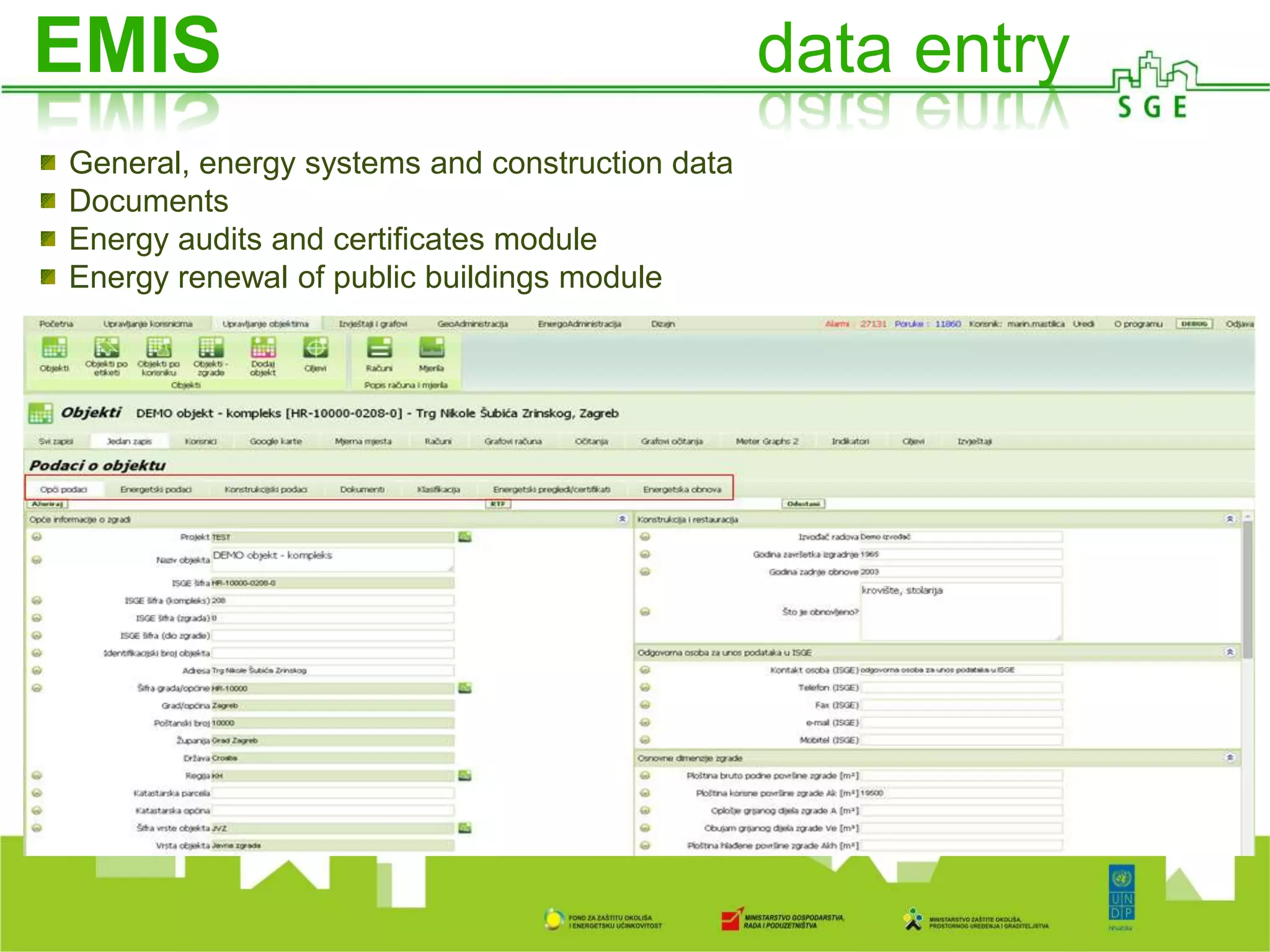

8. EMIS data entry
General, energy systems and construction data
Documents
Energy audits and certificates module
Energy renewal of public buildings module

9. EMIS energy bills entry

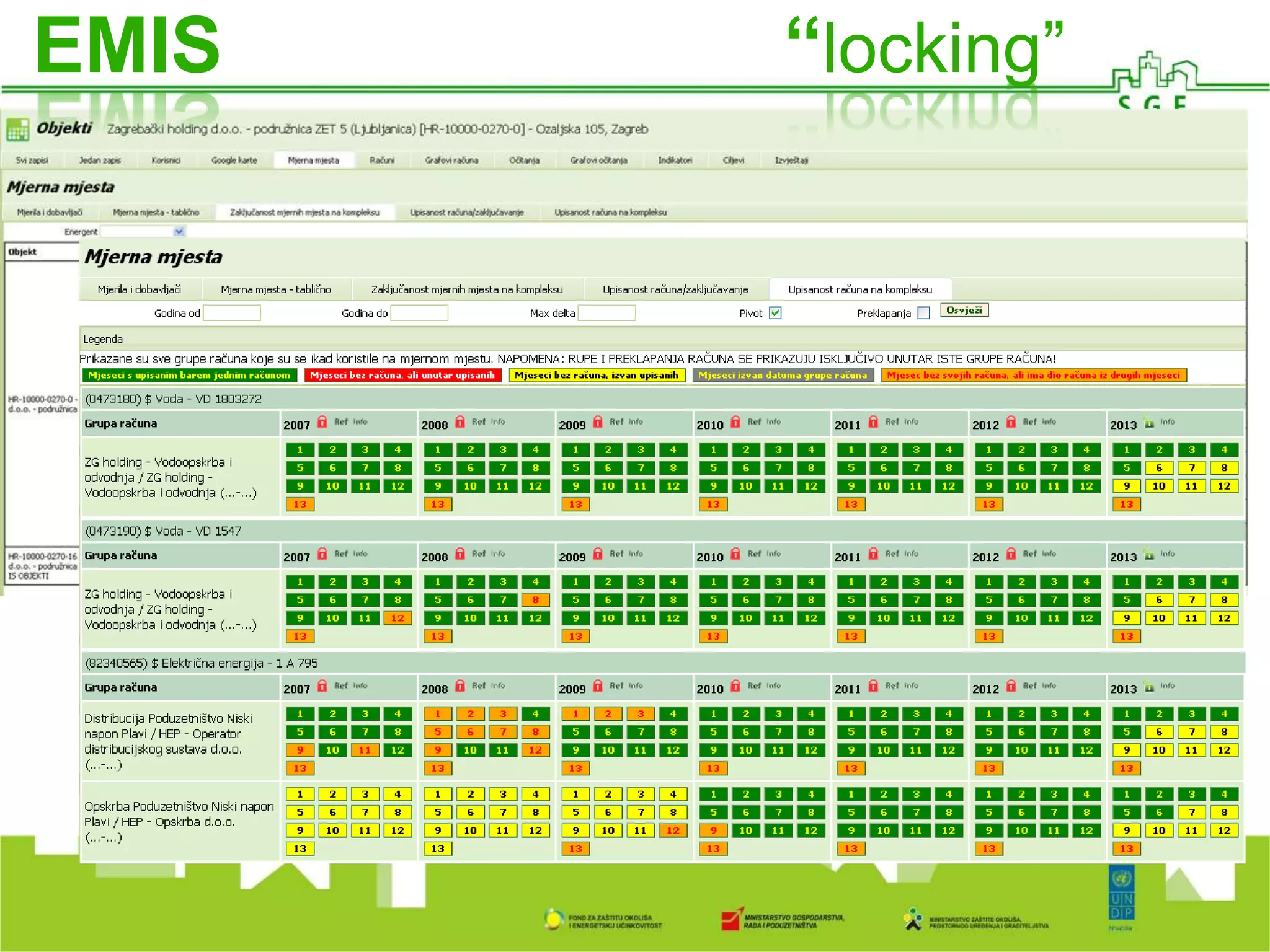

10. EMIS “locking”

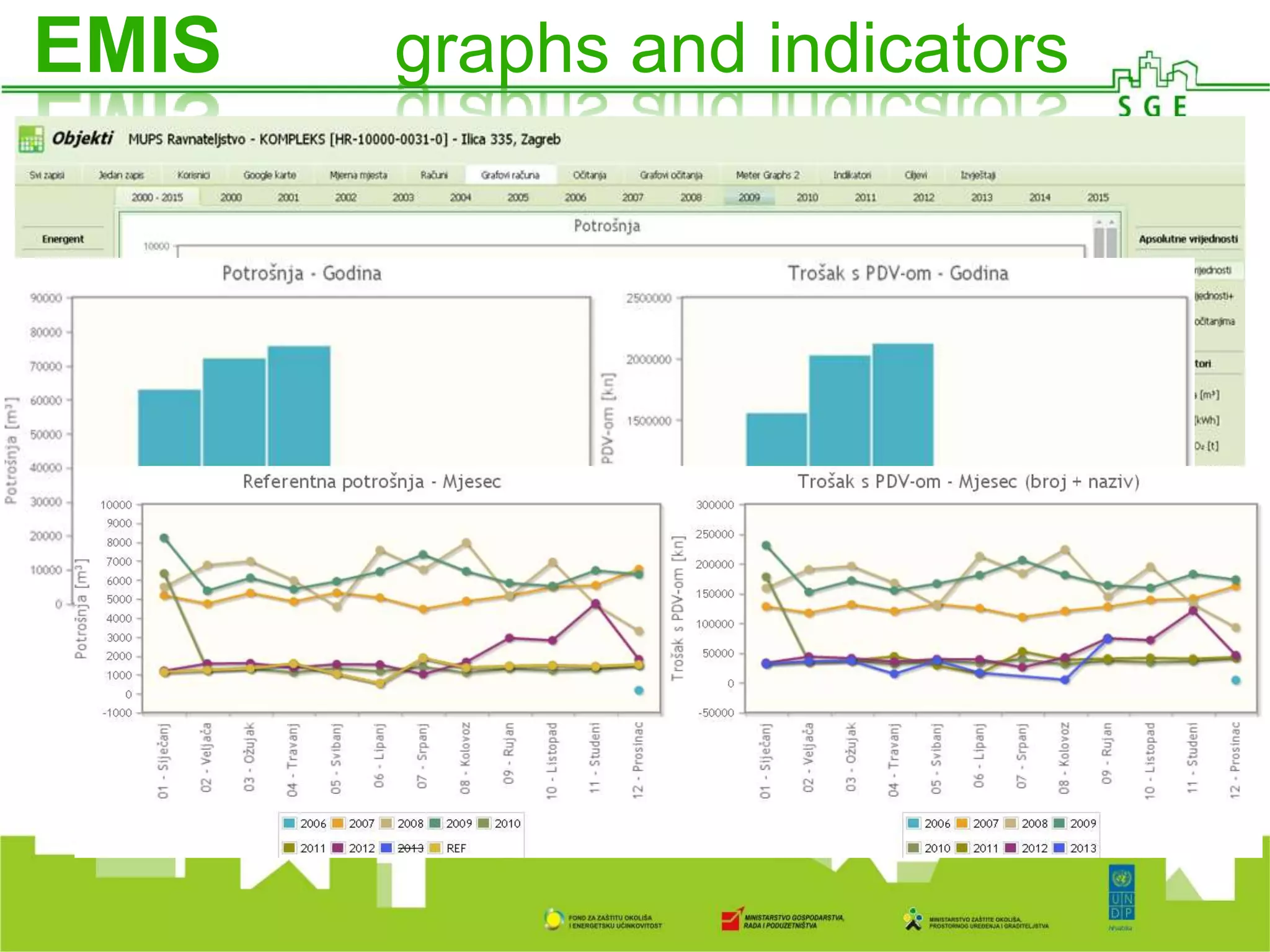

11. EMIS graphs and indicators

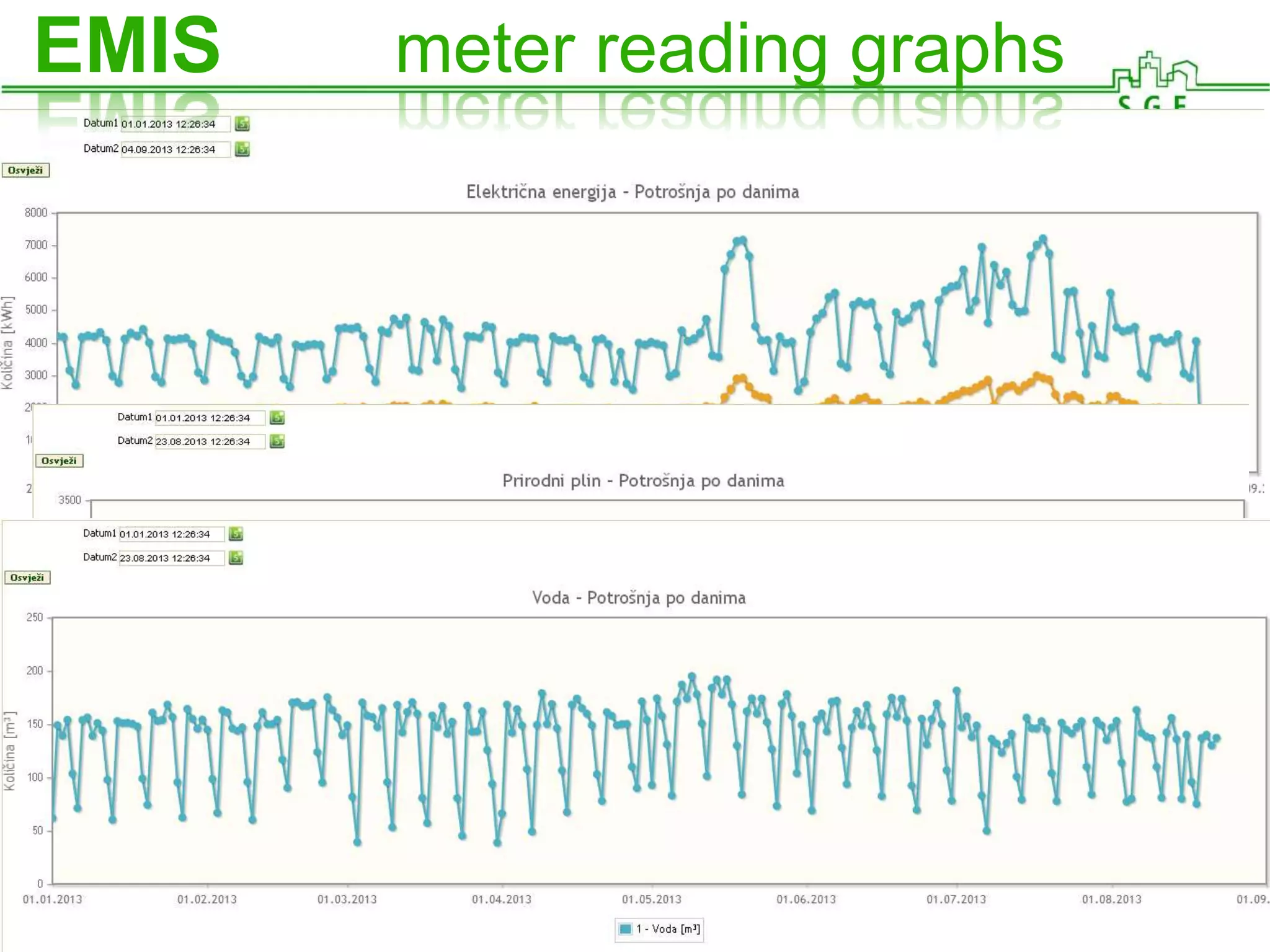

12. EMIS meter reading graphs

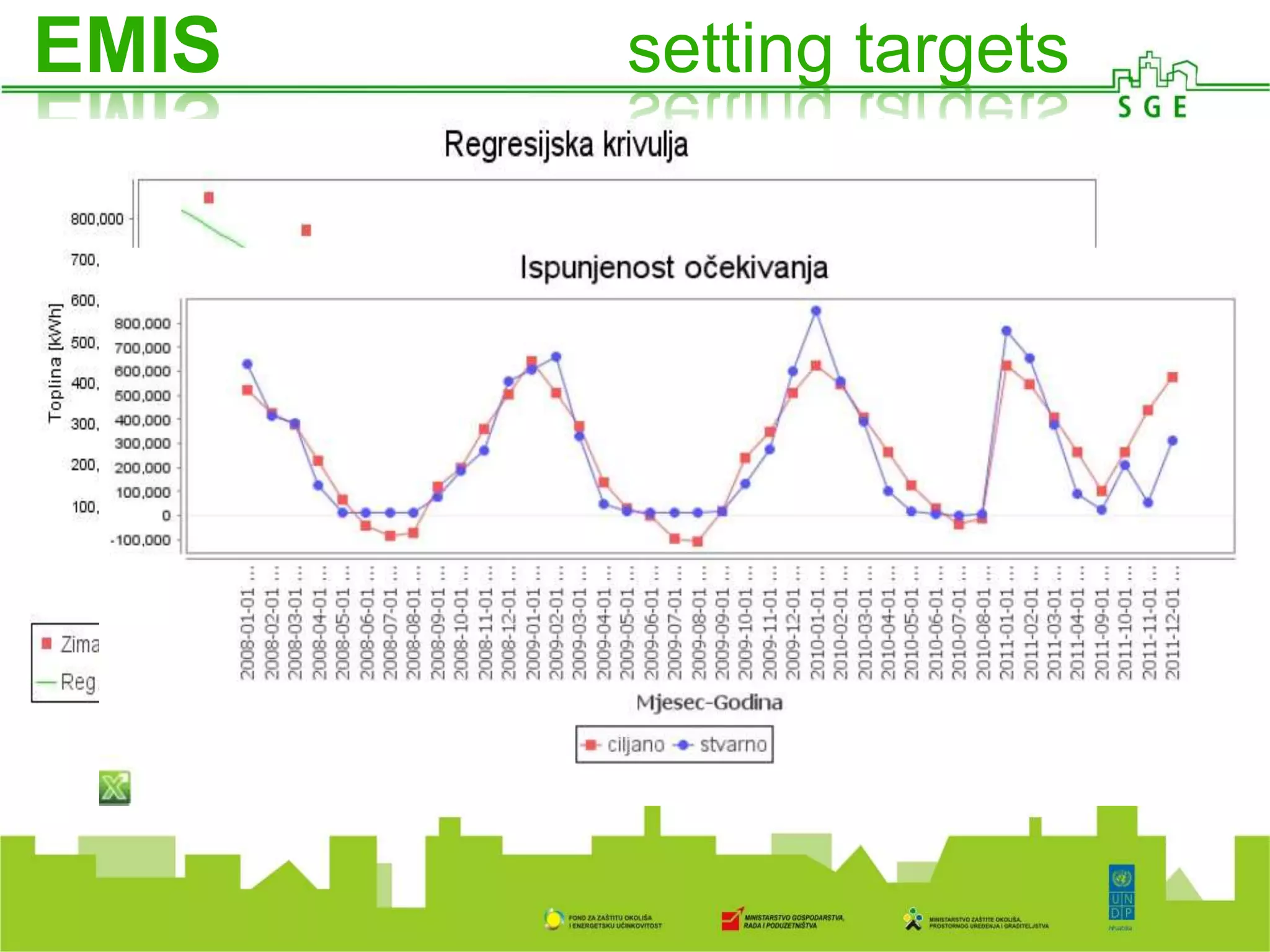

13. EMIS setting targets

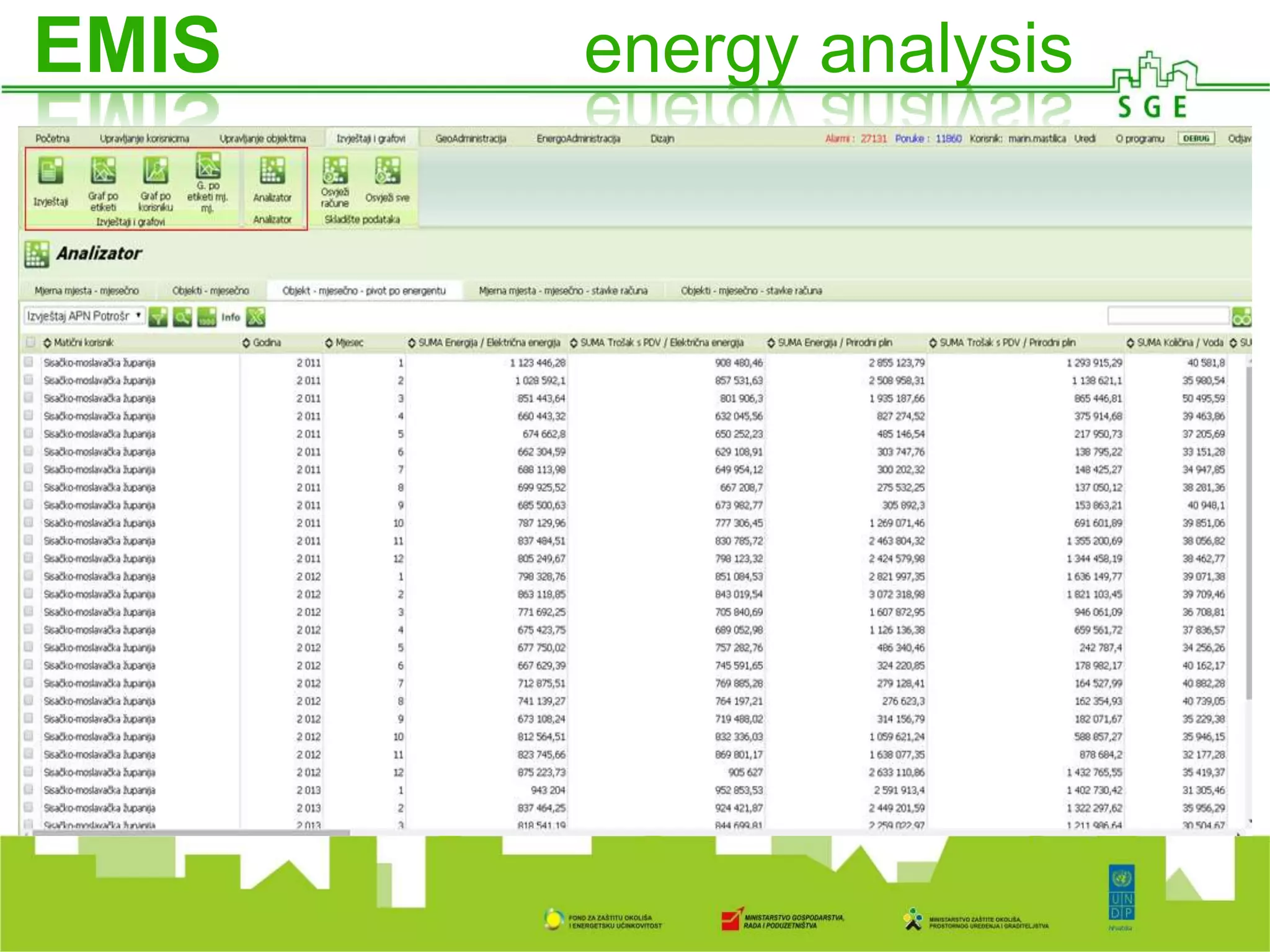

14. EMIS energy analysis

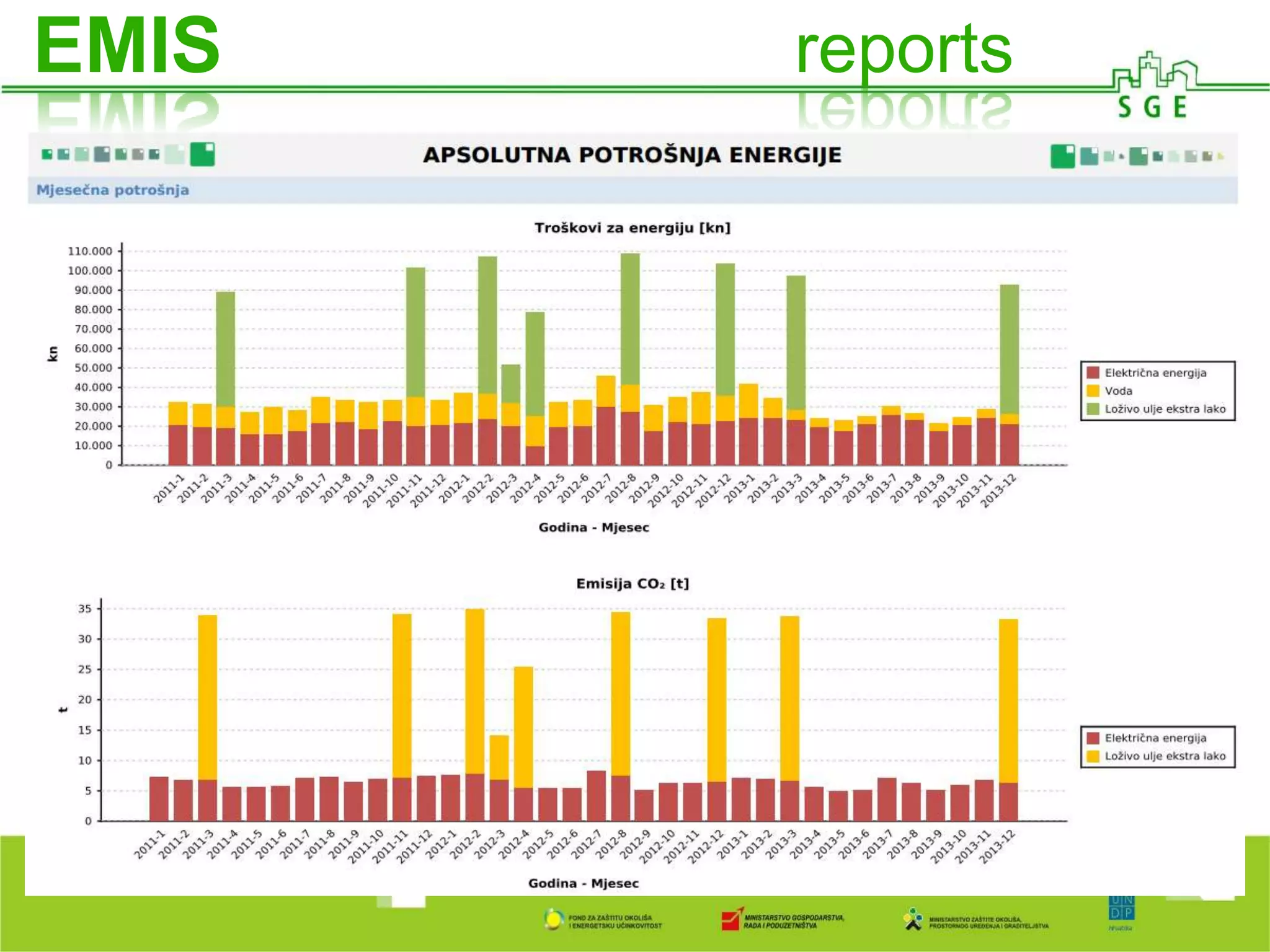

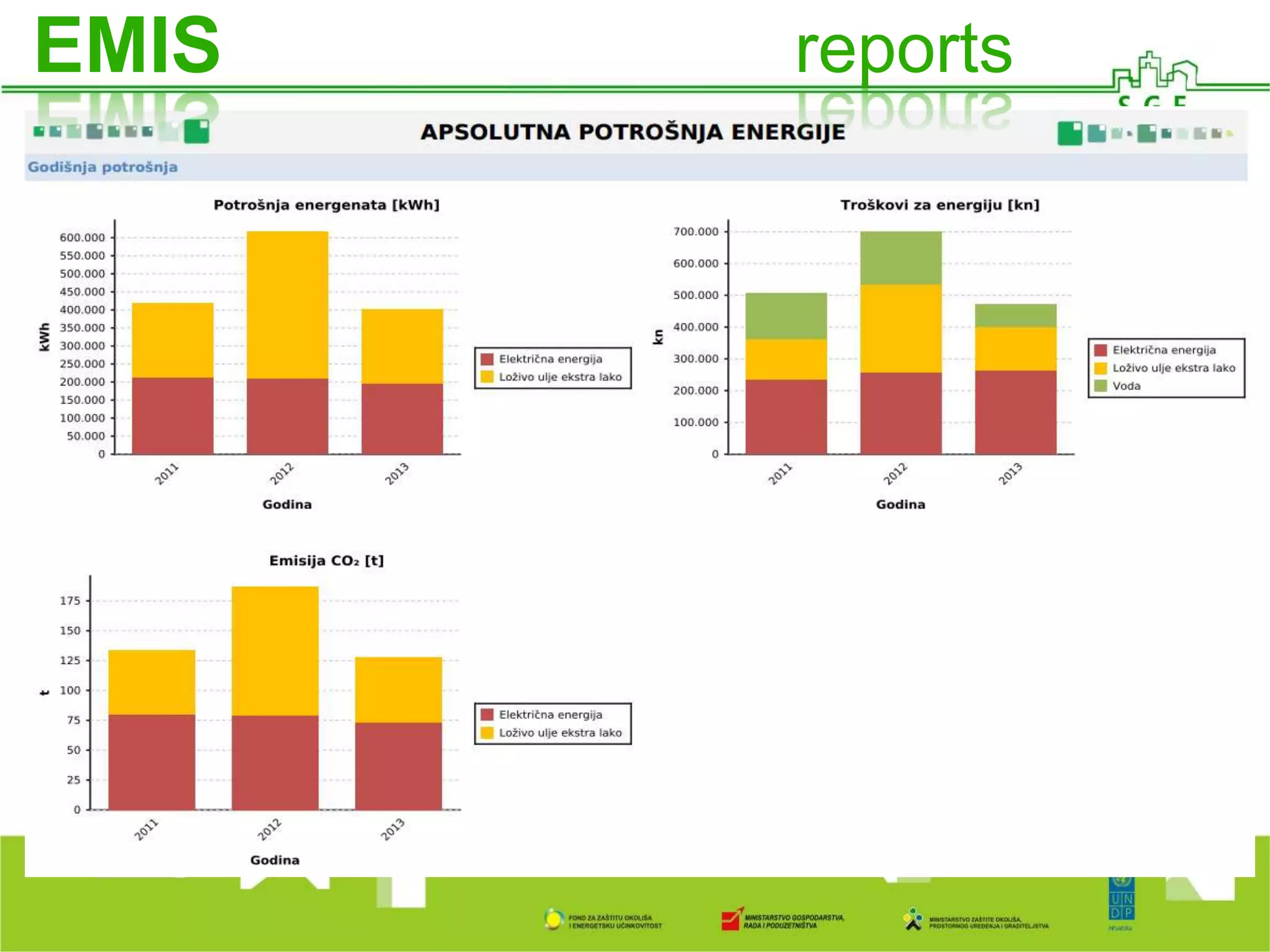

15. EMIS reports

16. EMIS reports

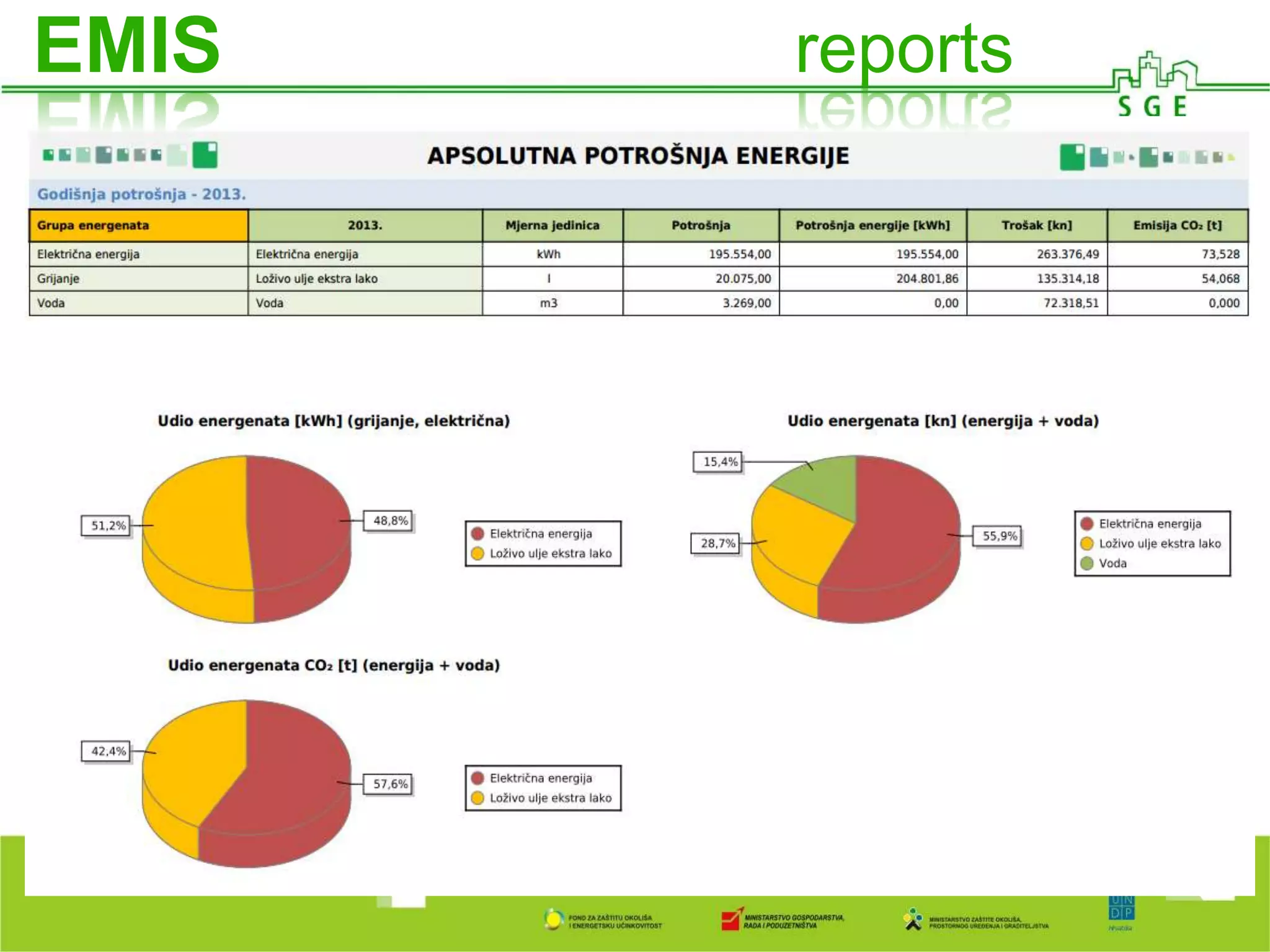

17. EMIS reports

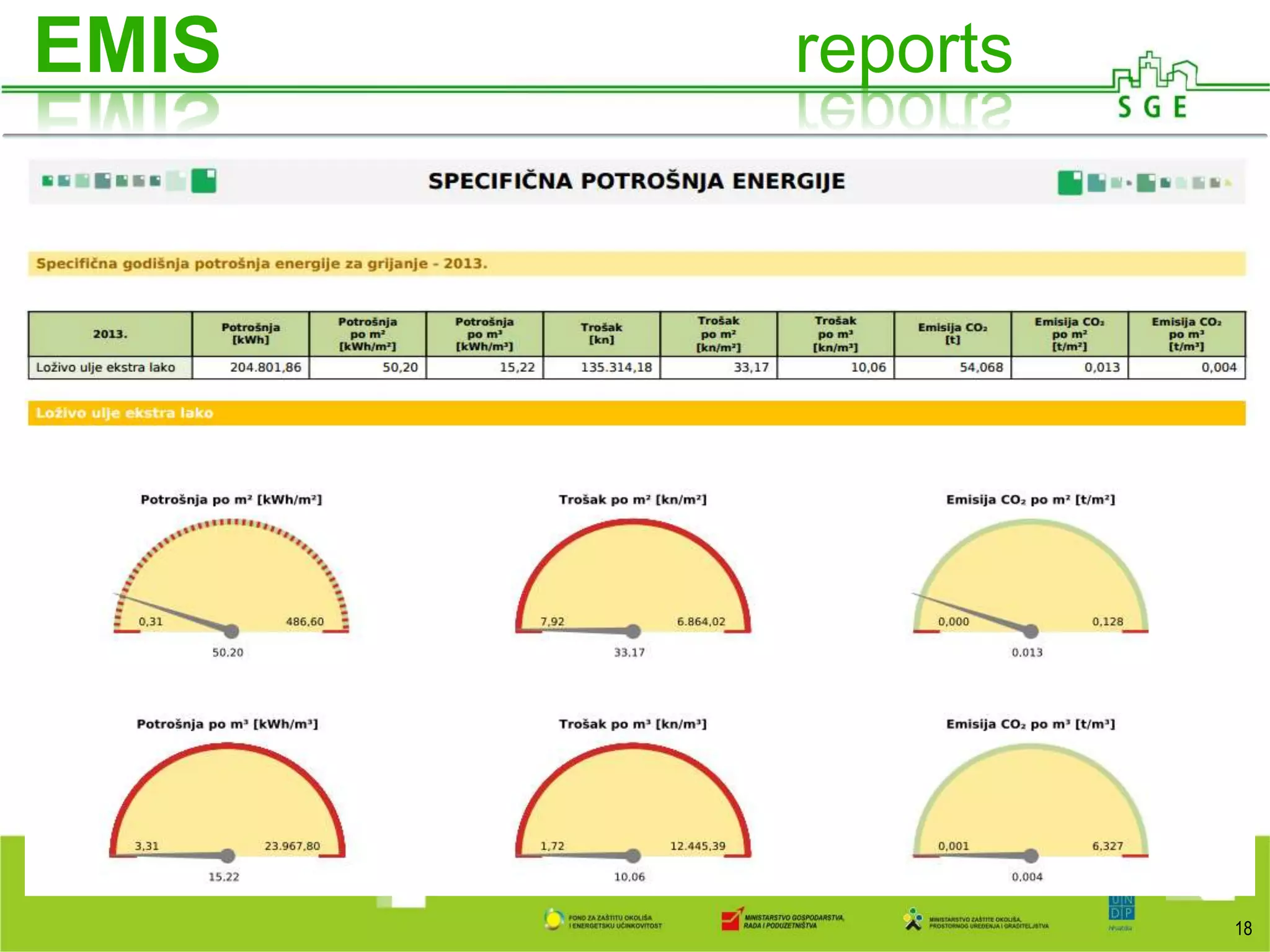

18. 18
EMIS reports

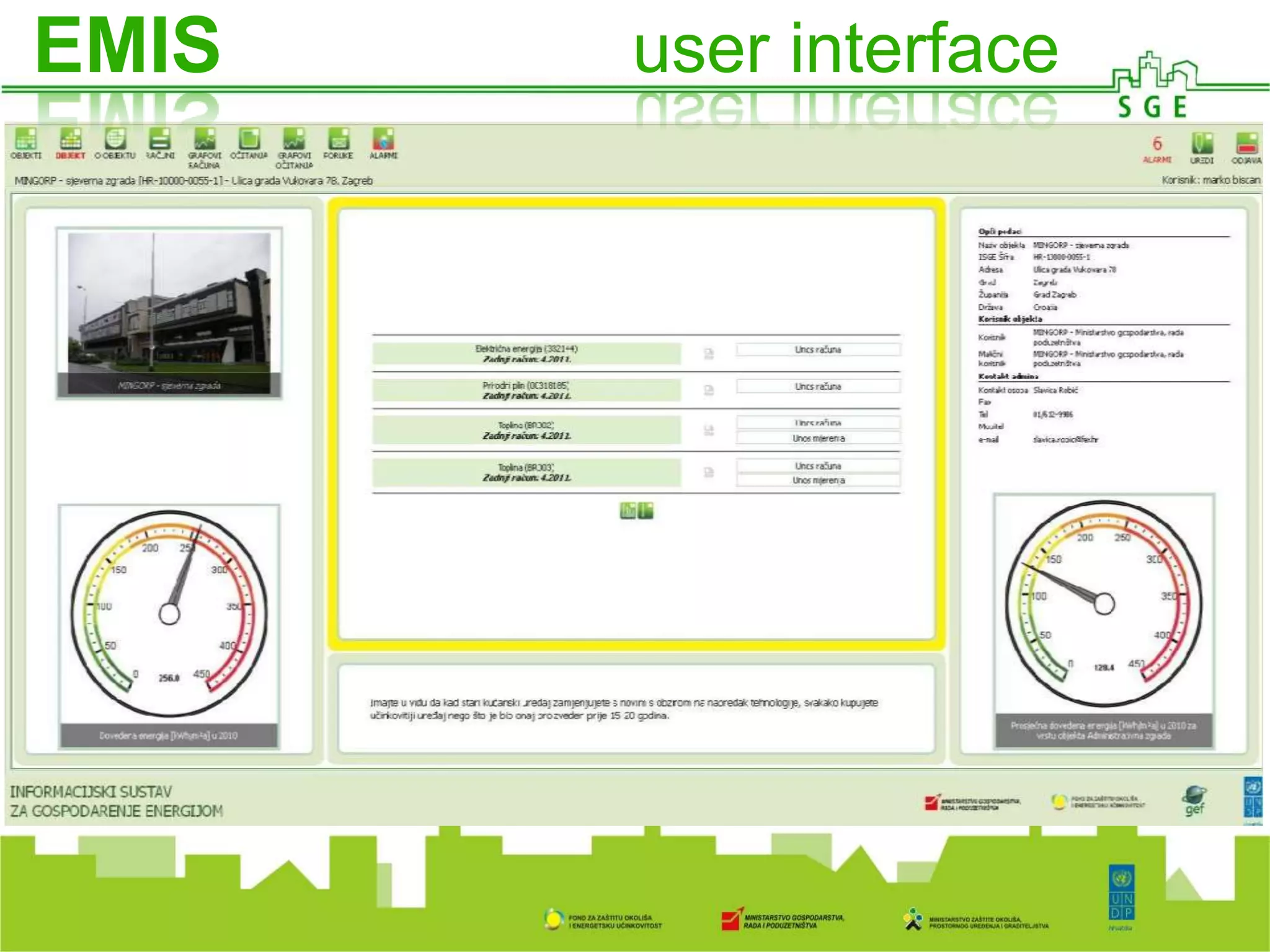

19. EMIS user interface

20. July 2015.:

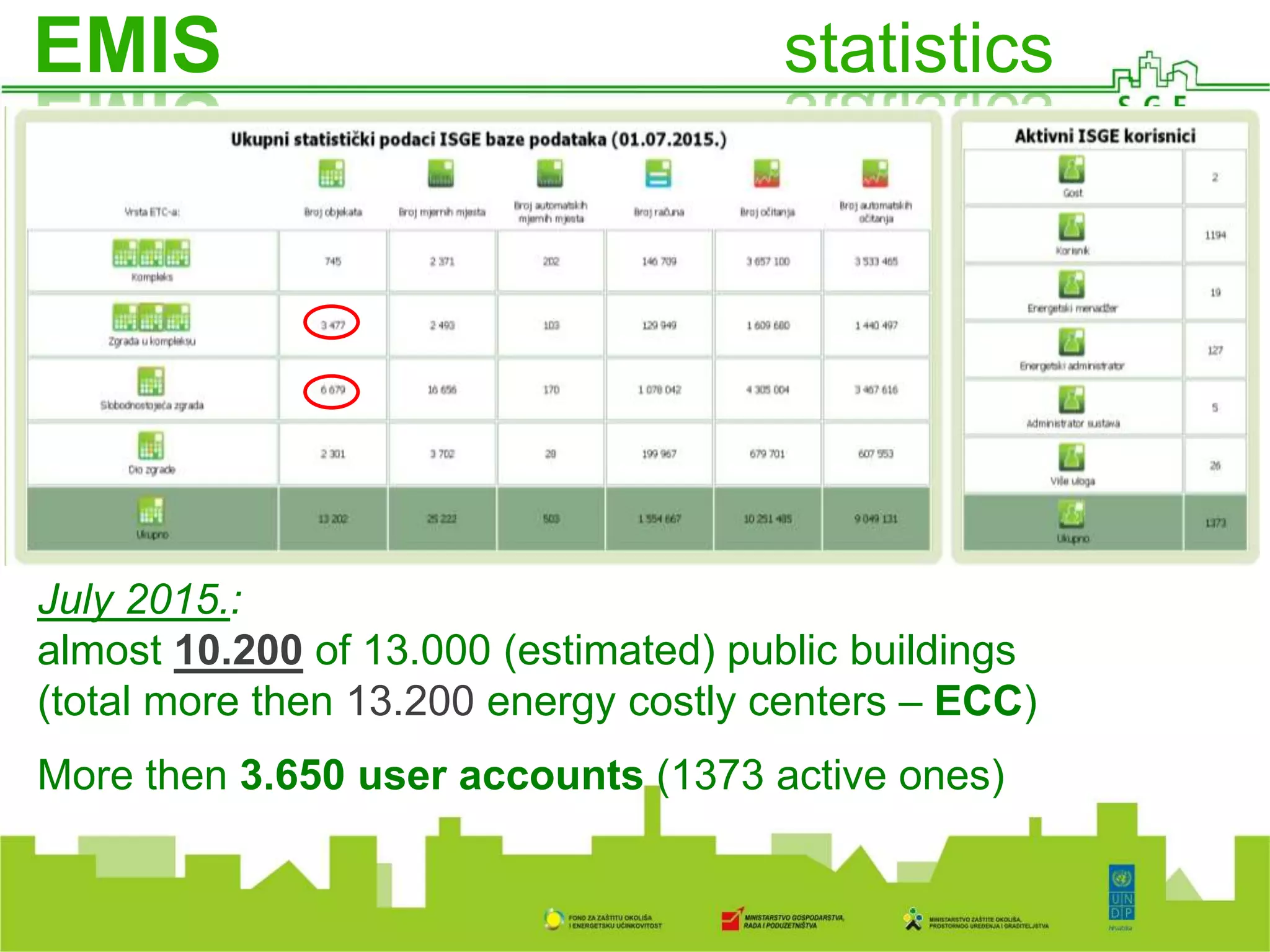

almost 10.200 of 13.000 (estimated) public buildings
(total more then 13.200 energy costly centers – ECC)
More then 3.650 user accounts (1373 active ones)
EMIS statistics

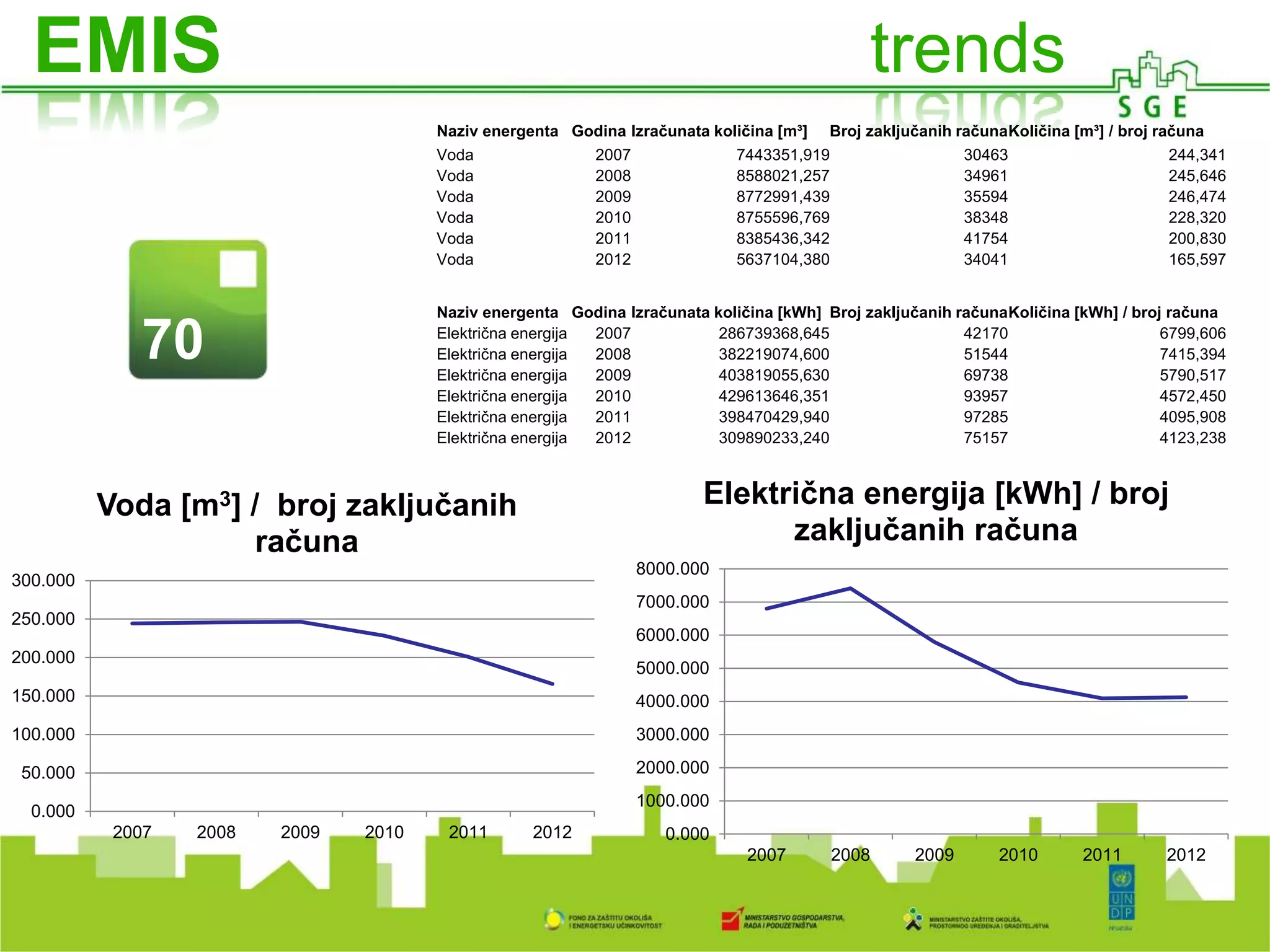

21. Naziv energenta Godina Izračunata količina [m³] Broj zaključanih računaKoličina [m³] / broj računa
Voda 2007 7443351,919 30463 244,341
Voda 2008 8588021,257 34961 245,646
Voda 2009 8772991,439 35594 246,474
Voda 2010 8755596,769 38348 228,320
Voda 2011 8385436,342 41754 200,830
Voda 2012 5637104,380 34041 165,597
Naziv energenta Godina Izračunata količina [kWh] Broj zaključanih računaKoličina [kWh] / broj računa
Električna energija 2007 286739368,645 42170 6799,606
Električna energija 2008 382219074,600 51544 7415,394
Električna energija 2009 403819055,630 69738 5790,517
Električna energija 2010 429613646,351 93957 4572,450
Električna energija 2011 398470429,940 97285 4095,908
Električna energija 2012 309890233,240 75157 4123,238
70
%
0.000
50.000
100.000
150.000
200.000
250.000
300.000
2007 2008 2009 2010 2011 2012
Voda [m3] / broj zaključanih
računa
0.000
1000.000
2000.000
3000.000
4000.000
5000.000
6000.000
7000.000
8000.000
2007 2008 2009 2010 2011 2012
Električna energija [kWh] / broj
zaključanih računa
EMIS trends

22. 1.554.667 energy bills and water bills** (around 5.000 per week)
25.222 meter consumption points for 18 energy sources
503 automatic meter points
10.251.485 readings, of which:
9.049.131 automatic SCADA readings
1.202.354 manual readings
* - different agencies, government institutions, President of
Republic’s Office, Croatia Government and Parlament, etc.
** - energy consumption (no. of bills):
electric energy: 874.438
water: 422.629
natural gas: 186.079
extra light fuel oil: 31.488
112 cities (of127)
20 counites (20 w/o ZG)
20 Ministries (20)
28 community
31 other institutions*
EMIS statistics

23. EMIS user manuals and seminars

24. A
O ISGE-u
CONSTANT APPLICATION DEVELOPMENT (2015.)
Connecting EMIS database with bigest energy vendors (direct
input of energy and water bills into database)
Energy Certificate/Audit module (EE measures and
implementation)
Public buildings renewal module (contracts and realization)
New Public lighting module (static, dynamic data, reports)
Constant upgrade of reporting systems
(reports for one ECC, group of ECC, labels, all “Main user”
buildings, pie charts, line and bar charts for every type of
consumption)
EMIS adaptations

25. A
O ISGE-u
GOALS
National energy analysis sistem in all 127 cities, 21 counties
and every government bodies
EMIS REPLICATION
Region and beyond - Bosnia and Herzegovina, Montenegro (in
collaboration with GIZ, USAID, UNDP), Serbia, Romania, Russia
FUTHER STEPS
Constant development and implementation of EMIS,
User education,
Monetary and energy savings,
Public awareness
EMIS numbers and goals

26. THANK YOU
Energy Management Information System
Informacijski sustav za gospodarenje energijom
www.isge.hr
