1. SSO and fine grained
authorization in the cloud
Oliver Wulff

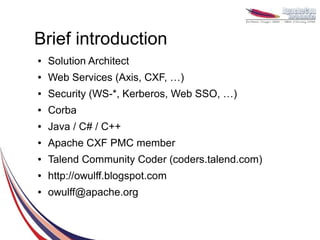

2. Brief introduction
● Solution Architect
● Web Services (Axis, CXF, …)
● Security (WS-*, Kerberos, Web SSO, …)
● Corba
● Java / C# / C++
● Apache CXF PMC member
● Talend Community Coder (coders.talend.com)
● http://owulff.blogspot.com
● owulff@apache.org

3. Agenda
● Authentication & Authorization
in Web Applications
● Apache CXF Fediz
● Fediz and STS Use cases
● Relying Party IDP
● Fediz Roadmap

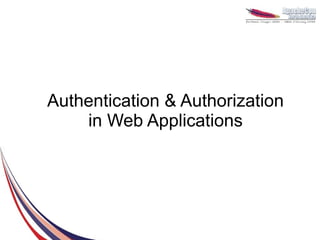

4. Authentication & Authorization
in Web Applications

5. Application Security 10 years ago
● SSO solution using Reverse Proxy
● Proprietary SSO token / protocol
● Same product at Reverse Proxy, Application
Server andcentral Security Service
● Security tokens validated by
remote Security Server
● Role Based Access Control (Java, .NET API)
● User/ID management internal

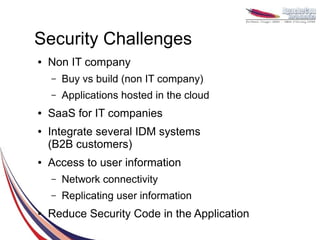

6. Security Challenges
● Non IT company
– Buy vs build (non IT company)
– Applications hosted in the cloud
● SaaS for IT companies
● Integrate several IDM systems
(B2B customers)
● Access to user information
– Network connectivity
– Replicating user information
● Reduce Security Code in the Application

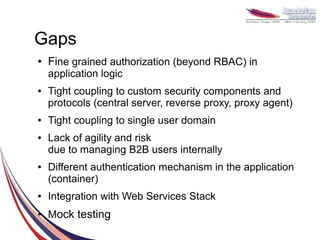

7. Gaps
● Fine grained authorization (beyond RBAC) in
application logic
● Tight coupling to custom security components and
protocols (central server, reverse proxy, proxy agent)
● Tight coupling to single user domain
● Lack of agility and risk
due to managing B2B users internally
● Different authentication mechanism in the application
(container)
● Integration with Web Services Stack
●
Mock testing

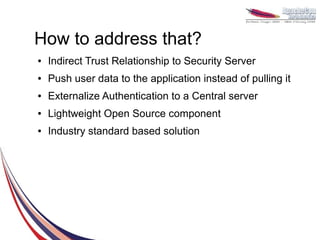

8. How to address that?
● Indirect Trust Relationship to Security Server
● Push user data to the application instead of pulling it
● Externalize Authentication to a Central server
● Lightweight Open Source component
● Industry standard based solution

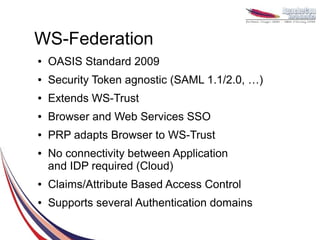

9. WS-Federation
● OASIS Standard 2009
● Security Token agnostic (SAML 1.1/2.0, …)
● Extends WS-Trust
● Browser and Web Services SSO
● PRP adapts Browser to WS-Trust
● No connectivity between Application
and IDP required (Cloud)
● Claims/Attribute Based Access Control
● Supports several Authentication domains

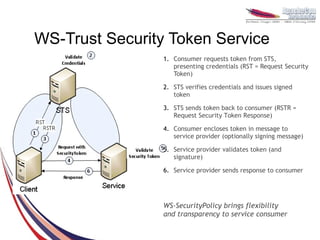

10. WS-Trust Security Token Service
1. Consumer requests token from STS,
presenting credentials (RST = Request Security
Token)
2. STS verifies credentials and issues signed
token
3. STS sends token back to consumer (RSTR =
Request Security Token Response)
4. Consumer encloses token in message to
service provider (optionally signing message)
5. Service provider validates token (and
signature)
6. Service provider sends response to consumer
WS-SecurityPolicy brings flexibility
and transparency to service consumer

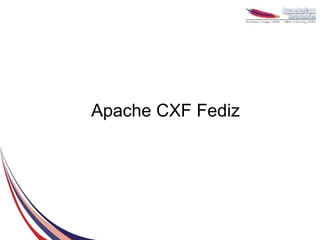

11. Apache CXF Fediz

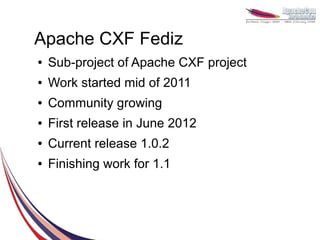

12. Apache CXF Fediz
● Sub-project of Apache CXF project
● Work started mid of 2011
● Community growing
● First release in June 2012
● Current release 1.0.2
● Finishing work for 1.1

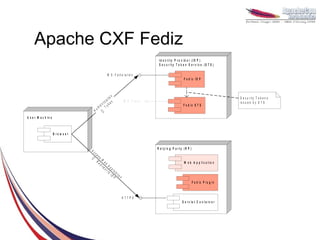

13. Apache CXF Fediz
Id e n tity P r o v id e r (ID P )
S e c u r ity T o k e n S e r v ic e (S T S )
W S - F e d e r a tio n
F e d iz ID P
n
tio S e c u r ity T o k e n s
t ic a e n W S -T ru s t is s u e d b y S T S
en Tok F e d iz S T S
u th
A

U s e r M a c h in e
B ro w s e r
R e ly in g P a r ty (R P )
A
cc
es
s

W
W e b A p p lic a tio n
R
eb ec
ed
A to
ir
p p ID
t
lic P
at
io
n
F e d iz P lu g in
H TTP S
S e r v le t C o n ta in e r

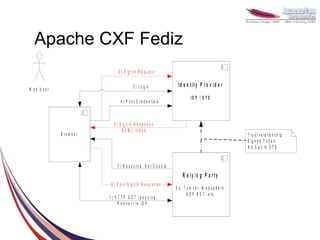

14. Apache CXF Fediz
2 ) S ig n In R e q u e s t
3 ) L o g in Id e n tity P r o v id e r
W eb U ser
ID P / S T S
4 ) P o s t C r e d e n tia ls
5 ) S ig n In R e s p o n s e
S A M L to k e n
B ro w s e r T r u s t r e la t io n s h ip
S ig n e d T o k e n
N o C a ll to S T S
7 ) R e s o u r c e , S e t C o o k ie
R e ly in g P a r ty
6 ) P o s t S ig n In R e s p o n s e
E x . T o m c a t, W e b s p h e re ,
A S P .N E T , e tc .
1 ) H T T P G E T re s o u rc e
R e d ir e c t to I D P

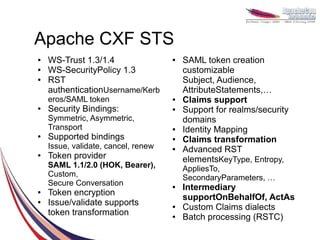

15. Apache CXF STS
● WS-Trust 1.3/1.4 ● SAML token creation
● WS-SecurityPolicy 1.3 customizable
● RST Subject, Audience,
authenticationUsername/Kerb AttributeStatements,…
eros/SAML token ● Claims support
● Security Bindings: ● Support for realms/security
Symmetric, Asymmetric, domains
Transport ● Identity Mapping
● Supported bindings ● Claims transformation
Issue, validate, cancel, renew ● Advanced RST
● Token provider elementsKeyType, Entropy,
SAML 1.1/2.0 (HOK, Bearer), AppliesTo,
Custom, SecondaryParameters, …
Secure Conversation ● Intermediary
● Token encryption
supportOnBehalfOf, ActAs
● Issue/validate supports ● Custom Claims dialects
token transformation ● Batch processing (RSTC)

16. Fediz IDP / STS
● Username / password authentication
● User store (File, LDAP, JAAS)
– File store
– LDAPLoginModule
– Other JAAS Login Module
● Claims/Role store (File, LDAP)
– LdapClaimsHandler
– FileClaimsHandler
– custom
● SAML Token creation customizable
● Small footprint (Mock testing)
● Wiki http://cxf.apache.org/fediz-idp.html

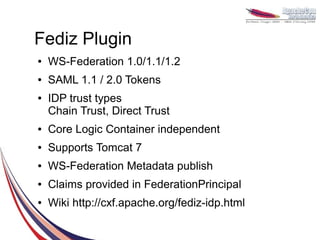

17. Fediz Plugin
● WS-Federation 1.0/1.1/1.2
● SAML 1.1 / 2.0 Tokens
● IDP trust types
Chain Trust, Direct Trust
● Core Logic Container independent
● Supports Tomcat 7
● WS-Federation Metadata publish
● Claims provided in FederationPrincipal
● Wiki http://cxf.apache.org/fediz-idp.html

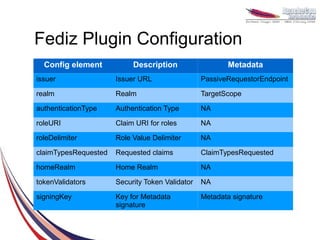

18. Fediz Plugin Configuration
Config element Description Metadata
issuer Issuer URL PassiveRequestorEndpoint
realm Realm TargetScope
authenticationType Authentication Type NA
roleURI Claim URI for roles NA
roleDelimiter Role Value Delimiter NA
claimTypesRequested Requested claims ClaimTypesRequested
homeRealm Home Realm NA
tokenValidators Security Token Validator NA
signingKey Key for Metadata Metadata signature
signature

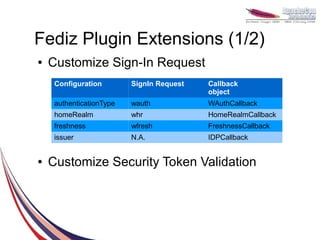

19. Fediz Plugin Extensions (1/2)
● Customize Sign-In Request
Configuration SignIn Request Callback
object
authenticationType wauth WAuthCallback
homeRealm whr HomeRealmCallback
freshness wfresh FreshnessCallback
issuer N.A. IDPCallback
● Customize Security Token Validation

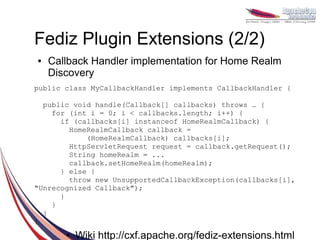

20. Fediz Plugin Extensions (2/2)
● Callback Handler implementation for Home Realm
Discovery
public class MyCallbackHandler implements CallbackHandler {
public void handle(Callback[] callbacks) throws … {
for (int i = 0; i < callbacks.length; i++) {
if (callbacks[i] instanceof HomeRealmCallback) {
HomeRealmCallback callback =
(HomeRealmCallback) callbacks[i];
HttpServletRequest request = callback.getRequest();
String homeRealm = ...
callback.setHomeRealm(homeRealm);
} else {
throw new UnsupportedCallbackException(callbacks[i],
"Unrecognized Callback");
}
}
}
}
● Wiki http://cxf.apache.org/fediz-extensions.html

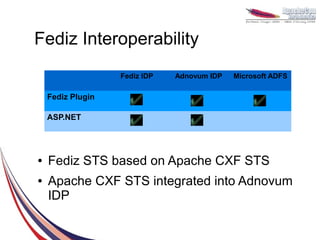

21. Fediz Interoperability
Fediz IDP Adnovum IDP Microsoft ADFS
Fediz Plugin
ASP.NET
● Fediz STS based on Apache CXF STS
● Apache CXF STS integrated into Adnovum
IDP

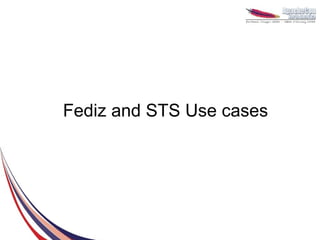

22. Fediz and STS Use cases

23. STS: Use case Web SSO
Fediz example “simpleWebapp”
https://localhost:8443/fedizhelloworld/secure/fedservlet

24. Standards
● WS-Federation 1.2
● WS-Trust 1.3
● SAML 2.0
● OASIS Identity Metasystem
CXF STS capabilities
● RST UsernameKerberos
● SAML 2.0 Bearer
● Claims from LDAP
● Claim data in
AttributeStatement
Federation plugin
● SAML token validation
(WSS4J, OpenSAML)
● Creates security context

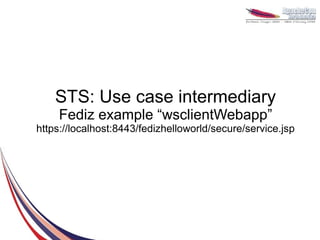

25. STS: Use case intermediary
Fediz example “wsclientWebapp”
https://localhost:8443/fedizhelloworld/secure/service.jsp

26. Standards
● WS-Trust 1.3
● SAML 2.0
● WS-SecurityPolicy
CXF STS capabilities
CXF capabilities ● RST SAML token [4,6]
● Issued token assertion(WS-SecurityPolicy) ● SAML 2.0 Bearer [6]
● SecondaryParameters ● Custom Token [4]
● OnBehalfOf (BinarySecurityToken)
● Token caching ● Token transformation [4,6]
● Identity Mapping[4]
● OnBehalfOf [4,6]

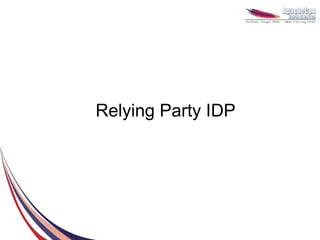

27. Relying Party IDP

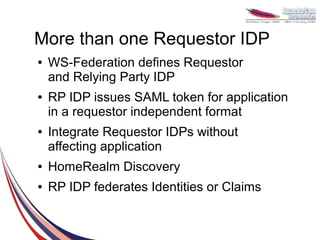

28. More than one Requestor IDP
● WS-Federation defines Requestor
and Relying Party IDP
● RP IDP issues SAML token for application
in a requestor independent format
● Integrate Requestor IDPs without
affecting application
● HomeRealm Discovery
● RP IDP federates Identities or Claims

29. Internal ID management
Federate identites
R e q u e s to r Id P
● CXF IdentityMapper
R e q u e s to r Id P
m y c o m p a n y .c o m ● Relationship: FederateIdentity
APAC
m y c o m p a n y .c o m
EM EA
R P - Id P
H o m e r e a lm
d is c o v e r y
3
Id P
m y c o m p a n y .c o m
2
B ro w s e r
In tr a n e t
1
R e ly in g P a r ty
A p p lic a tio n
C o n ta in e r
Ex. Tom cat

30. Hyprid ID management
R e q u e s to r Id P
F a b r ik a m .c o m
In te r n a l
R e q u e s to r Id P
m y c o m p a n y .c o m
R e q u e s to r Id P
APAC B ro w s e r
m y c o m p a n y .c o m
3 f a b r ik a m .c o m
EM EA
R P -Id P 2
H o m e r e a lm
d is c o v e r y
3
Id P
m y c o m p a n y .c o m
2
B ro w s e r
In tr a n e t 1
1
R e ly in g P a r ty
A p p lic a tio n
C o n ta in e r
Ex. Tom cat Federate identities
● CXF IdentityMapper
● Relationship: FederateIdentity

31. External requestor IDPs (SaaS)
R e q u e s to r Id P
F a b r ik a m .c o m
In te r n a l
R e q u e s to r Id P
m y c o m p a n y .c o m
R e q u e s to r Id P
APAC B ro w s e r
m y c o m p a n y .c o m
3 f a b r ik a m .c o m
EM EA
R P -Id P 2
H o m e r e a lm
d is c o v e r y
3
Id P
m y c o m p a n y .c o m
2
B ro w s e r
In tr a n e t 1 2
B ro w s e r
a d a ta m .c o m
1
R e ly in g P a r ty 1
A p p lic a tio n
3
C o n ta in e r
Ex. Tom cat
R e q u e s to r Id P
Federate claims/attributes a d a ta m .c o m
● CXF ClaimsMapper E x te rn a l
● Relationship: FederateClaims

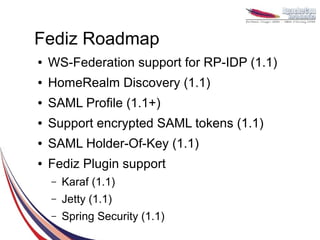

32. Fediz Roadmap
● WS-Federation support for RP-IDP (1.1)
● HomeRealm Discovery (1.1)
● SAML Profile (1.1+)
● Support encrypted SAML tokens (1.1)
● SAML Holder-Of-Key (1.1)
● Fediz Plugin support
– Karaf (1.1)
– Jetty (1.1)
– Spring Security (1.1)

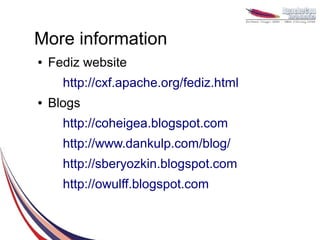

33. More information
● Fediz website
http://cxf.apache.org/fediz.html
● Blogs
http://coheigea.blogspot.com
http://www.dankulp.com/blog/
http://sberyozkin.blogspot.com
http://owulff.blogspot.com

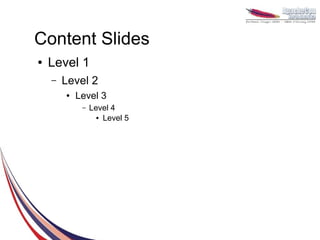

34. Content Slides
● Level 1
– Level 2
● Level 3
– Level 4
● Level 5

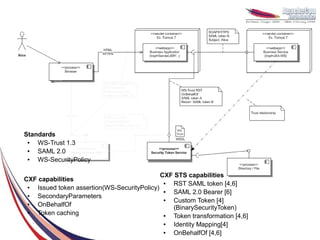

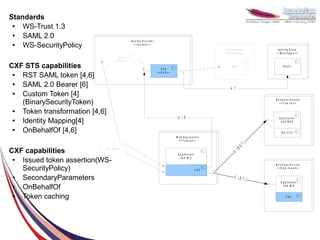

35. Standards
● WS-Trust 1.3
● SAML 2.0
Id e n tity P r o v id e r
● WS-SecurityPolicy < < S o la r is > >
Id e n tit y S to r e Id e n tity S to r e
< < W in d o w s > > < < M a in f r a m e > >
ID P
< < N e v is > >
CXF STS capabilities
2 .1
LDAP RACF
STS 2 .2
RST SAML token [4,6]
<<CXF>>
●
● SAML 2.0 Bearer [6] 4 .1
● Custom Token [4]
(BinarySecurityToken) B u s in e s s S e r v ic e
2
< < T o m c a t> >
● Token transformation [4,6]
4 / 6
Identity Mapping[4]
A p p lic a t io n
● J A X -R P C
● OnBehalfOf [4,6] Not CXF
W e b A p p lic a tio n
< < T o m c a t> >
T )
( BS
CXF capabilities B ro w s e r
5
3 A p p lic a tio n
● Issued token assertion(WS- 1
J A X -W S
B u s in e s s S e r v ic e
SecurityPolicy) F e d e r a t io n _ _ CXF
< < O S G i K a ra f> >
● SecondaryParameters 7 (S T )
A p p lic a t io n
● OnBehalfOf J A X -W S
● Token caching CXF
