This document discusses unit testing in Angular 2. It introduces the Angular 2 test API and differences from previous versions. It then covers decisions to make when unit testing like what framework to use and how to set up tests. Finally, it provides recipes for unit testing different scenarios like simple components, components communicating with services, routing, and nested components. It emphasizes the importance of writing unit tests and lists resources for learning more about Angular testing.

1. Angular 2 Unit Testing
October 25, 2016
Vikram Subramanian
Google

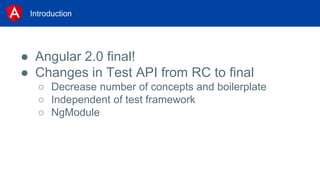

2. Introduction
● Angular 2.0 final!
● Changes in Test API from RC to final
○ Decrease number of concepts and boilerplate
○ Independent of test framework
○ NgModule

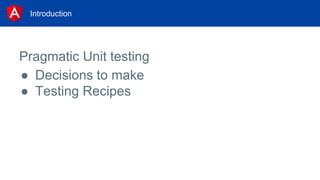

3. Introduction
Pragmatic Unit testing
● Decisions to make
● Testing Recipes

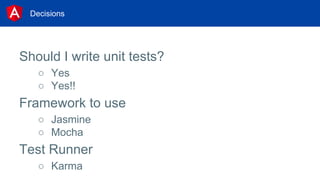

4. Decisions
Should I write unit tests?
○ Yes
○ Yes!!
Framework to use
○ Jasmine
○ Mocha
Test Runner
○ Karma

5. Decisions - Angular specific
● Testing Module Setup
○ How much to mock?
○ Isolation vs Being close to production
● Test Method Setup
○ () => { }
○ async() => { }
○ fakeAsync() => { }

6. Decisions - Angular specific (contd.)
● Locating elements
○ Using DOM API
○ Using DebugElement
● Dispatching events
○ Using DOM API
○ Using DebugElement

7. Recipes
Simple Component with templateUrl

8. Recipes - Simple Component with templateUrl
[app.component.ts]
@Component({
moduleId: module.id,
selector: 'my-app',
templateUrl: 'app.component.html'
})
export class AppComponent {}
[app.component.html]
<h1>My First Angular App</h1>

9. Recipes - Simple Component with templateUrl
[app.component.spec.ts]
...
beforeEach(async(() => {
TestBed.configureTestingModule({imports: [AppModule]});
// Precompile components with templateUrl.
TestBed.compileComponents();
}));
...

10. Recipes - Simple Component with templateUrl
[app.component.spec.ts]
...
// Synchronous test method.
it('displays properly', () => {
let fixture = TestBed.createComponent(AppComponent);
fixture.detectChanges();
expect(fixture.nativeElement.textContent).toBe("My First Angular App");
});
...

11. Recipes
Component communicating with backend service

12. Component
Users Service
Backend
Angular App

13. Recipes - Component Communicating with Backend service
beforeEach(async(() => {
TestBed.configureTestingModule({imports: [AppModule]});
// Override providers for the UsersService in the App module.
TestBed.overrideModule(AppModule,
{set:
{providers: [{provide: UsersService, useClass: MockUsersService}]}
}
);
TestBed.compileComponents();
}));

14. Recipes - Component Communicating with Backend service
it('displays user details on click', async(() => {
...
// Locate the fetch button.
let debugFetchButton = fixture.debugElement.query(By.css('button'));
expect(debugFetchButton).not.toBe(null);
// Trigger the click event through the DOM.
debugFetchButton.nativeElement.click();
...
}

15. Recipes - Component Communicating with Backend service
it('displays users list on click', async(() => {
...
// Wait for the async getUsers to complete and Angular to become stable.
fixture.whenStable().then(() => {
// Trigger rendering component state to DOM.
fixture.detectChanges();
// Check that the user list is displayed.
...
}
}

16. Recipes - Component Communicating with Backend service
// fakeAsync() version.
it('displays user details on click(fakeAsync)', fakeAsync(() => {
...
// Trigger the click event through the DOM.
debugFetchButton.nativeElement.click();
// Wait for Promise resolution and Angular to stabilize.
tick();
fixture.detectChanges();
...
}

17. Recipes - Component Communicating with Backend service
import {XHRBackend} from '@angular/http';
import {MockBackend} from '@angular/http/testing';
...
// Setup for mocking the HTTP Backend.
beforeEach(() => {
TestBed.configureTestingModule({
imports: [HttpModule],
providers: [
UsersService,
{ provide: XHRBackend, useClass: MockBackend }
]
...

18. Recipes - Component Communicating with Backend service
it('returns all users', async(() => {
let backend = TestBed.get(XHRBackend);
let http = TestBed.get(Http);
let service = new UsersService(http);
let fakeUsers = makeUsers();
let options = new ResponseOptions({status: 200, body: fakeUsers});
let response = new Response(options);
backend.connections.subscribe(
(c: MockConnection) => c.mockRespond(response));
service.getUsers().then(users => { ...

19. Recipes
Testing Application Routing

20. Recipes - Testing Application Routing
TestBed.configureTestingModule({
imports: [
RouterTestingModule.withRoutes(ROUTES),
AppModule
]
});

21. Recipes - Testing Application Routing
// async version
router.navigateByUrl('/about');
fixture.whenStable().then(() => {
fixture.detectChanges();
// Verify we navigated to About page.
let desc = fixture.debugElement.query(By.css('.description'));
expect(desc).not.toBe(null);
expect(desc.nativeElement.textContent).toContain('All about this sample');
});

22. Recipes - Testing Application Routing
// fakeAsync Version
router.navigateByUrl('/about');
tick();
fixture.detectChanges();
// Verify we navigated to About page.
let desc = fixture.debugElement.query(By.css('.description'));
expect(desc).not.toBe(null);
expect(desc.nativeElement.textContent).toContain('All about this sample');

23. Recipes
Testing Nested Components

24. Recipes - Testing Nested Components
[app.component.html]
<app-banner></app-banner>
<app-welcome></app-welcome>
<user-details></user-details>

25. Testing nested components - Approach 1
Don’t mock out anything
beforeEach(async(() => {
TestBed.configureTestingModule({imports: [AppModule]});
TestBed.compileComponents();
}));

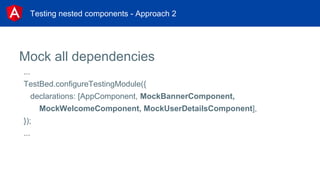

26. Testing nested components - Approach 2
Mock all dependencies
...
TestBed.configureTestingModule({
declarations: [AppComponent, MockBannerComponent,
MockWelcomeComponent, MockUserDetailsComponent],
});
...

27. Testing nested components - Approach 3
Shallow Testing - NO_ERRORS_SCHEMA
...
TestBed.configureTestingModule({
declarations: [AppComponent],
schemas: [NO_ERRORS_SCHEMA],
});
...

28. WRITE UNIT TESTS!!

29. Resources
● Angular.io Testing Guide
● Testing Angular 2 - Julie Ralph
● Three ways to test Angular 2 components

30. Acknowledgements
● Mashhood Rastgar, Gerard Sans - Ideas for the talk
● Jasmine Plunker template - Ken Rimple - @krimple
● Ward and the docs team for putting up the best docs

32. Backup
Properties of good unit tests
● Fast
● Isolated
● Repeatable
● Self-verifying
● Timely
Source: https://pragprog.com/magazines/2012-01/unit-tests-are-first
