1. Patrick Schroeder

2. Typescript
Components
NgModules
Data Binding
Directives
Pipes
Inputs / Outputs
Observables
Routing
and more…
What you’ll Learn

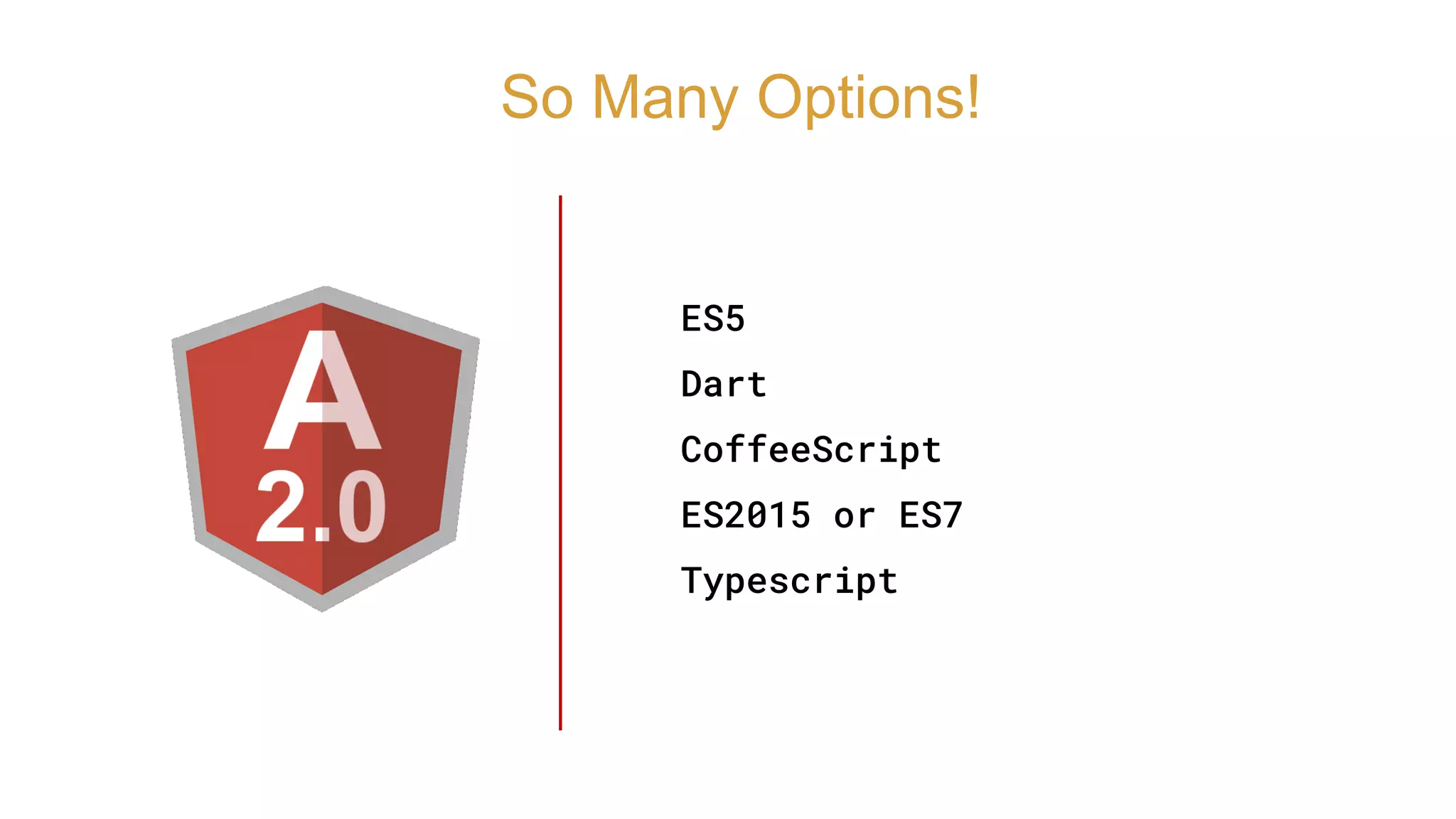

4. ES5
Dart
CoffeeScript
ES2015 or ES7
Typescript
So Many Options!

5. SPA (single-page app)
o index.html
Dynamic, Rich, & Fast
Browser-Loaded
Cleaner Code
o if conditions, loops, vars
o data-binding {{ bindMe }}
What is Angular?

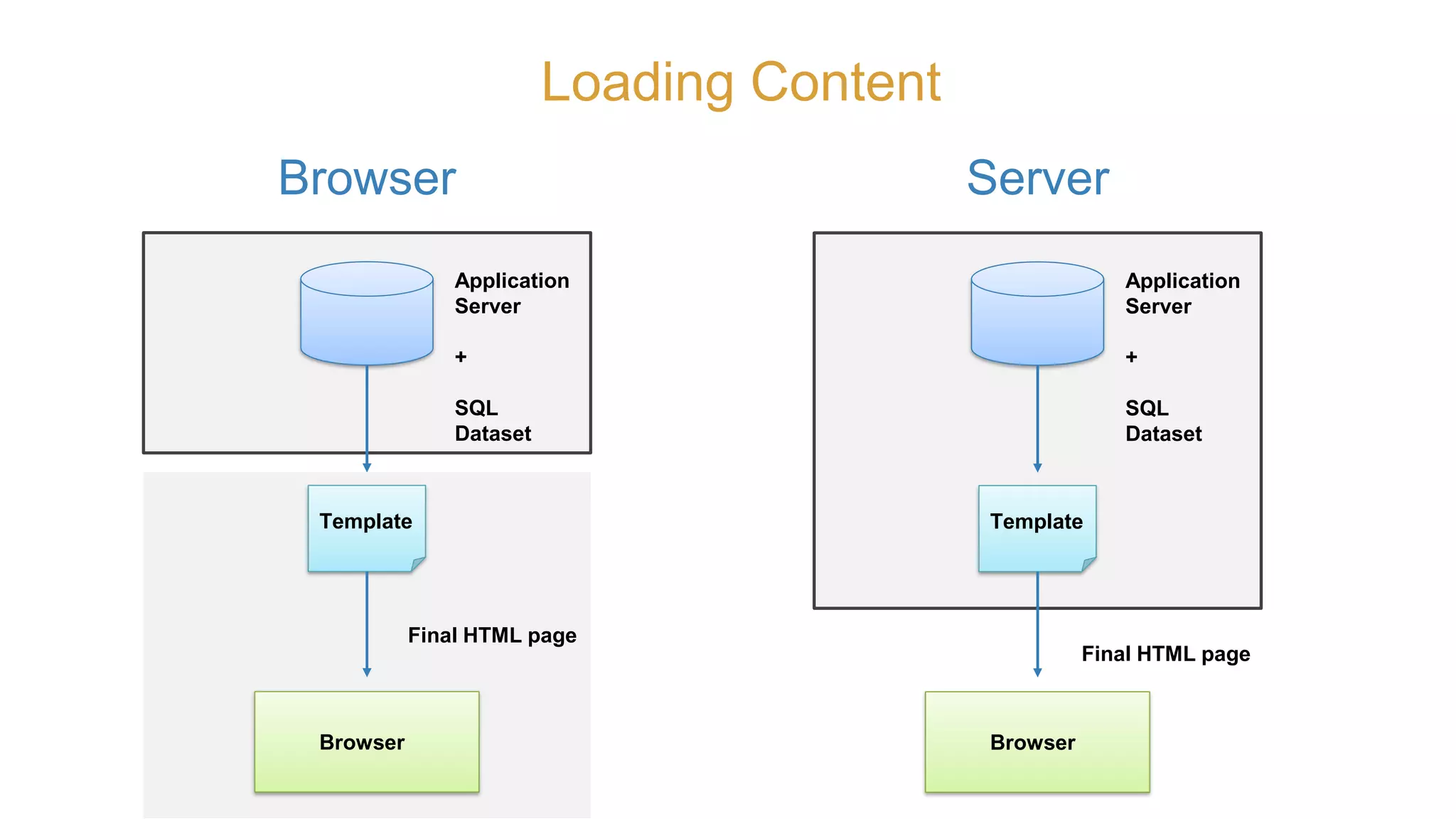

6. Loading Content
Server
Application
Server
+
SQL
Dataset
Template
Browser
Final HTML page
Browser
Application
Server
+
SQL
Dataset
Template
Browser
Final HTML page

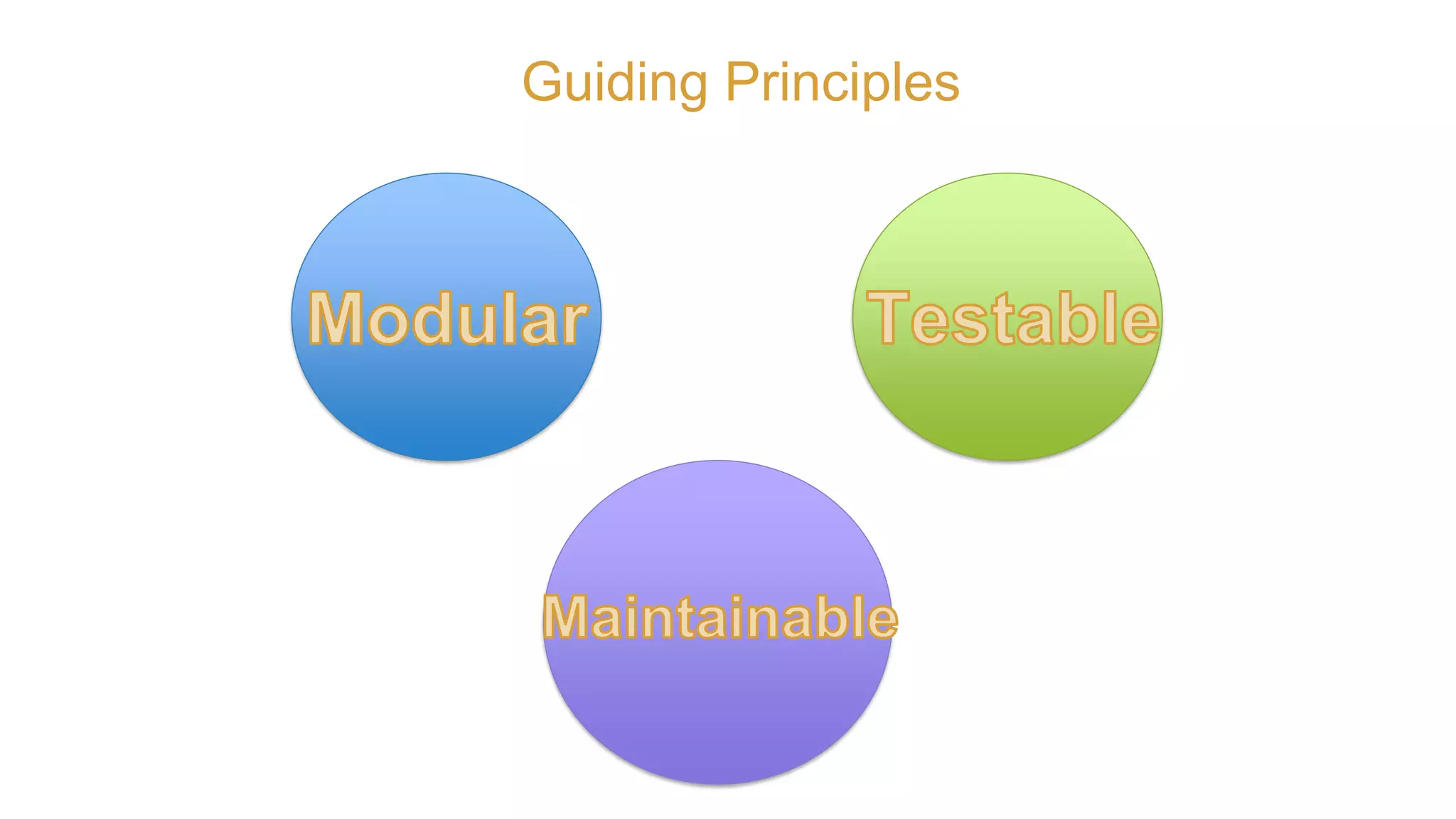

7. Guiding Principles

8. Fast Friendly Modern
Angular 2 Features

10. Fast
Angular 2 Features
 Initial Loads
 Change Detection
 Rendering

11. Friendly
Angular 2 Features
 Simplified API
 Better Patterns

12. Modern
Angular 2 Features
 Components
 Responsive

13. ES2015
Javascript Advances
 Classes
 Modules
 Decorators

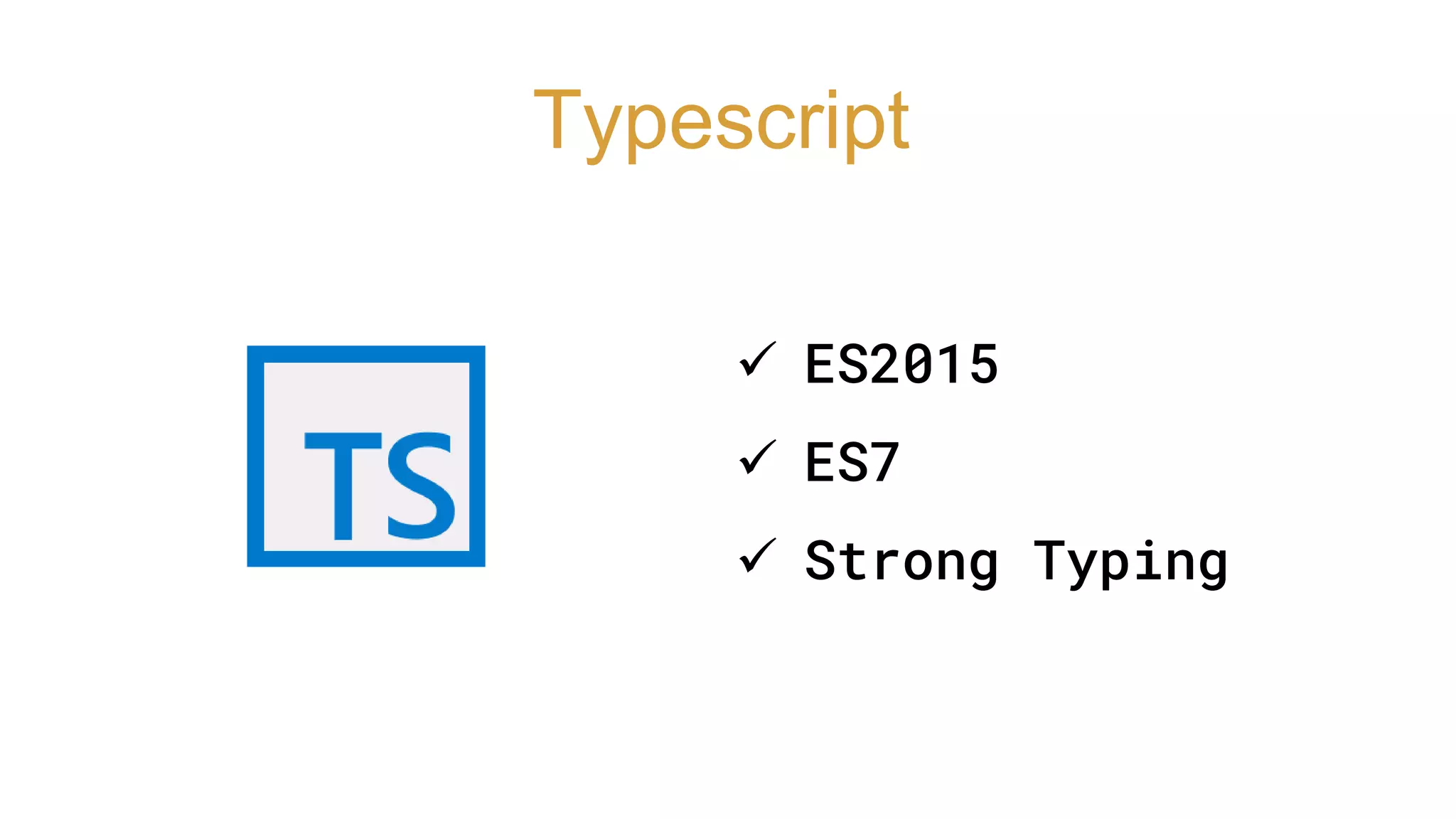

14. Typescript
 ES2015
 ES7
 Strong Typing

15. Typescript Features

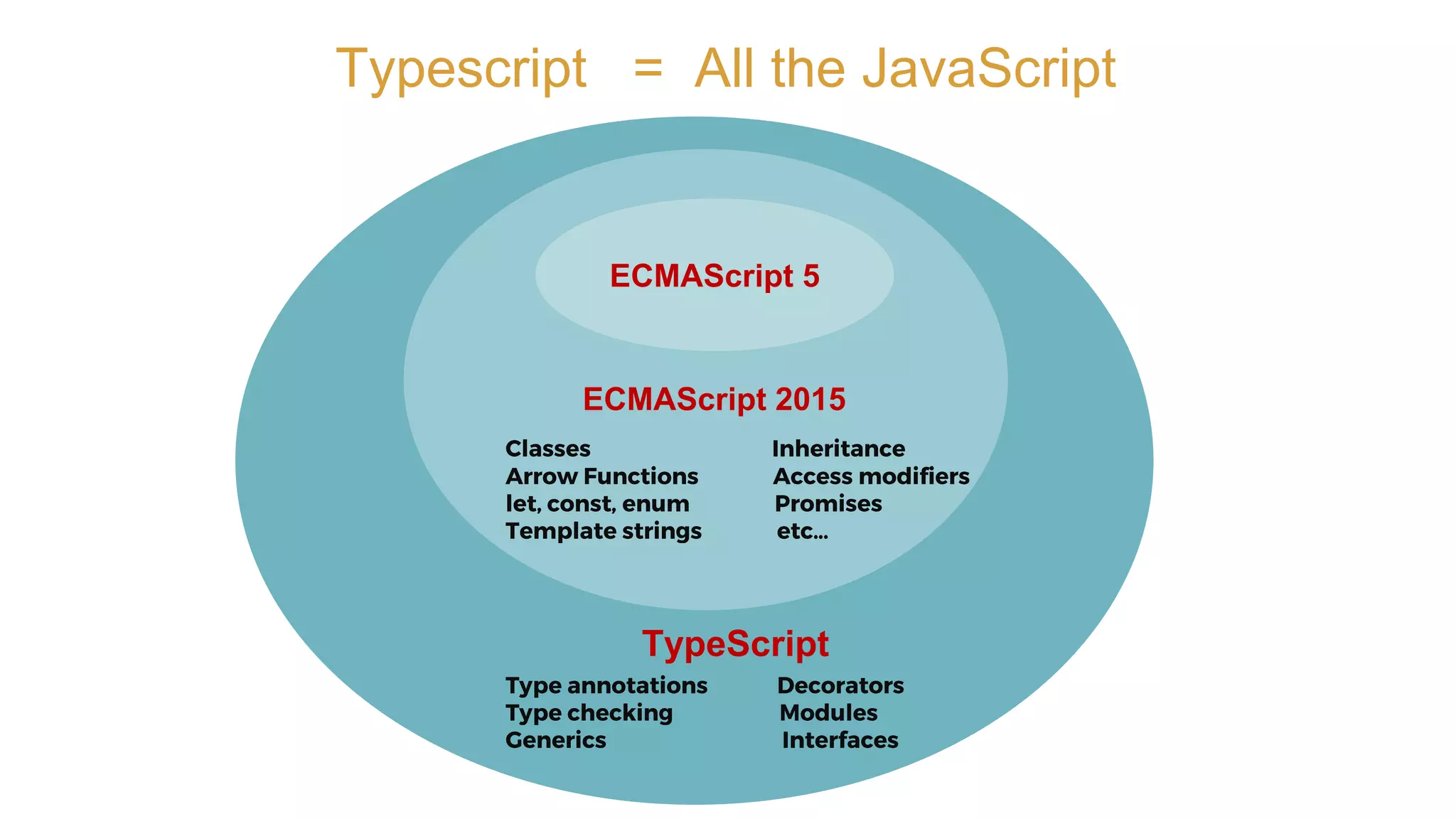

16. White
ECMAScript 5
ECMAScript 2015
TypeScript
Typescript = All the JavaScript

17. Creates Strong Typing
var myVar: string = “Happy”;
Strings, Booleans, Arrays
Type Annotations

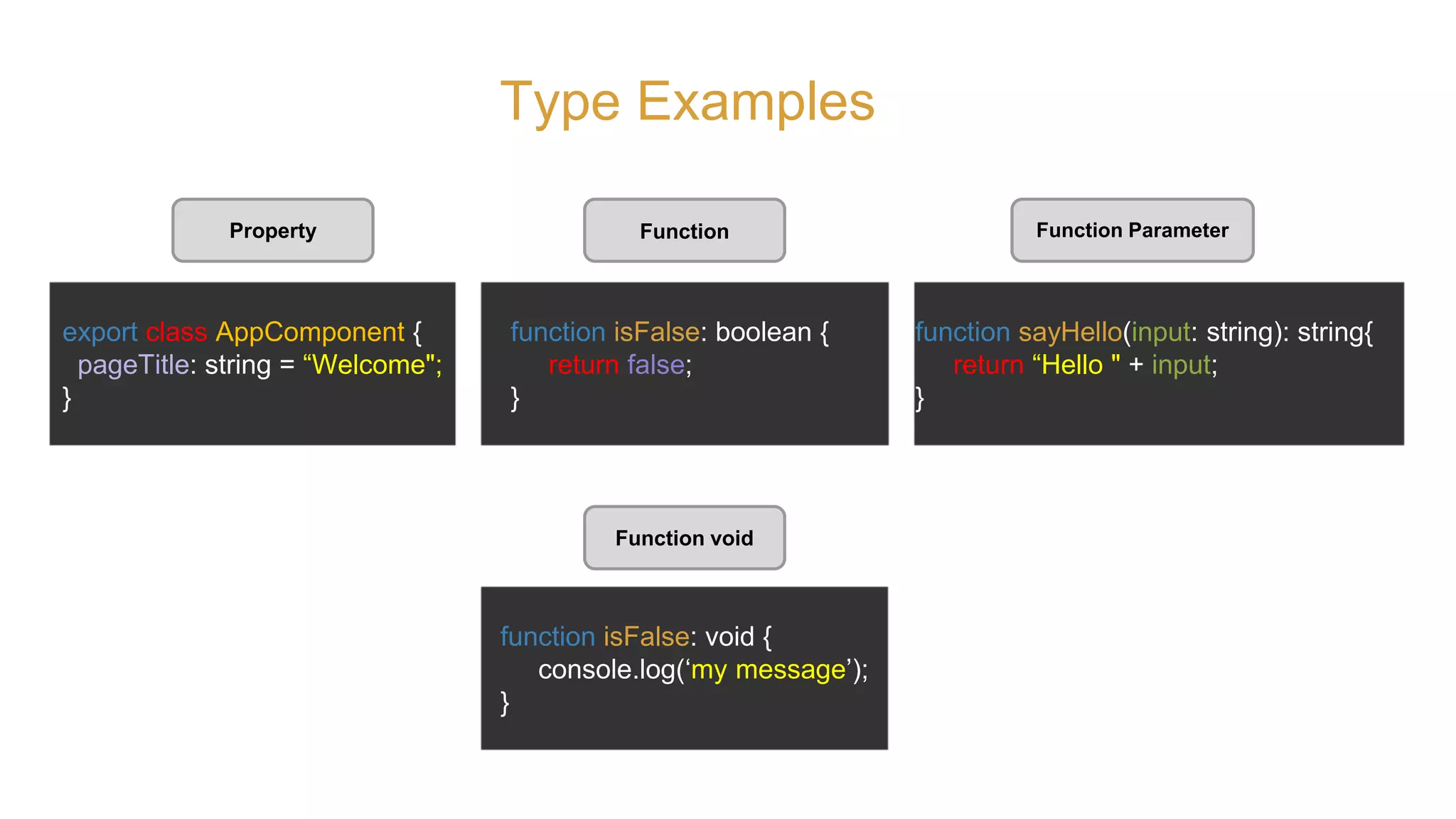

18. Function Function ParameterProperty
export class AppComponent {
pageTitle: string = “Welcome";
}
function isFalse: boolean {
return false;
}
function sayHello(input: string): string{
return “Hello " + input;
}
Type Examples
Function void
function isFalse: void {
console.log(‘my message’);
}

19. Syntax Checking = Fewer Bugs
IDE Support
o code completion, highlighting, error checking
Strong Typing Benefits

20. Enhanced JavaScript
Strong Typing
IDE Support
TypeScript Benefits

21. Angular 2 Setup

22. Developer Environment
• editors and plugins
Get going!
• angular.io Quickstart
Setup Revisited
• file explanation
Setup

23. Install Node.js
Text Editor
Install Plugins
Developer Environment

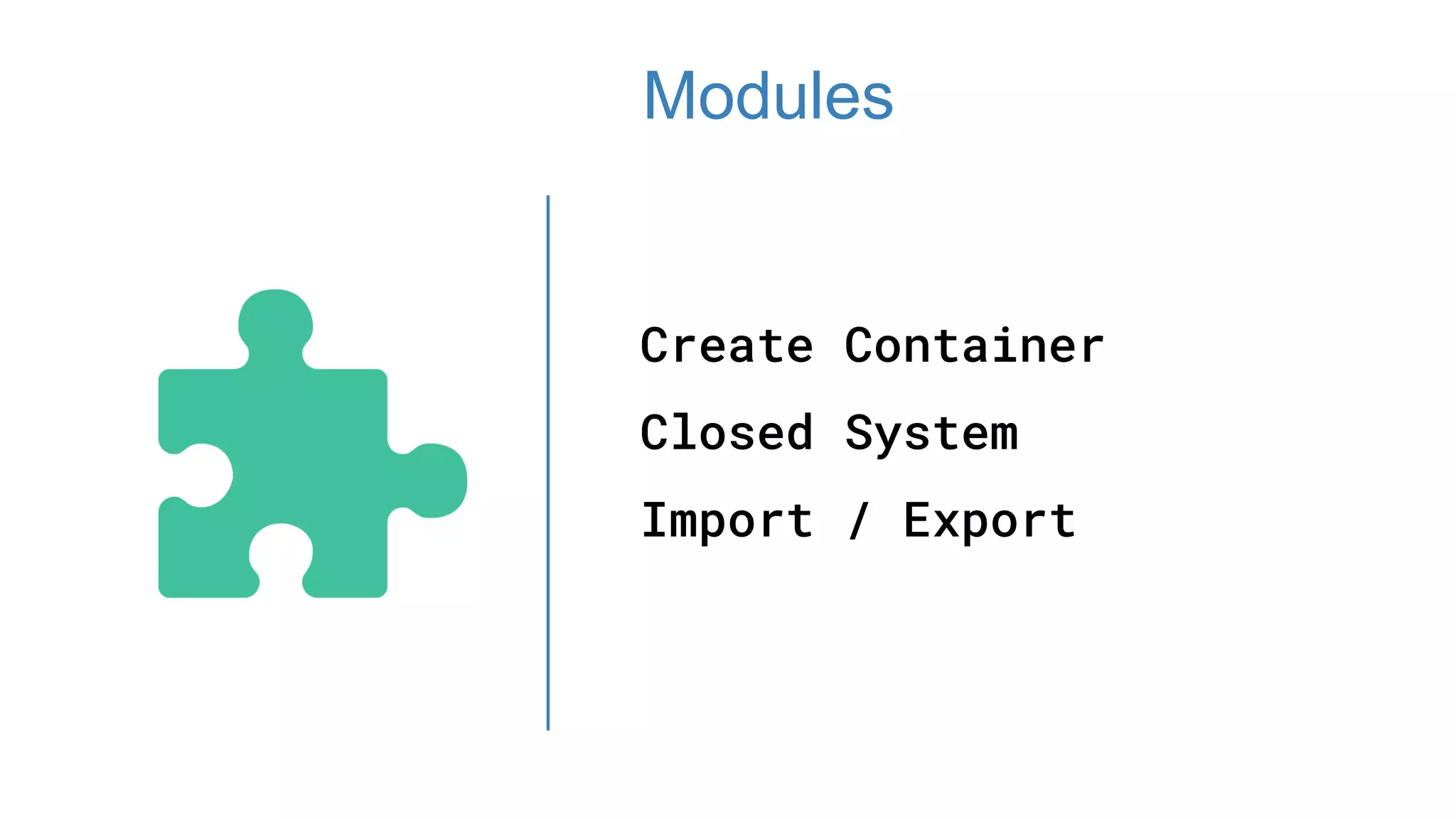

24. Create Container
Closed System
Import / Export
Modules

25. NgModules

26. @NgModule
Load Components
Bootstrapping
NgModule

27. NgModule
“Used in order to help us
organize our application into
cohesive blocks of functionality”

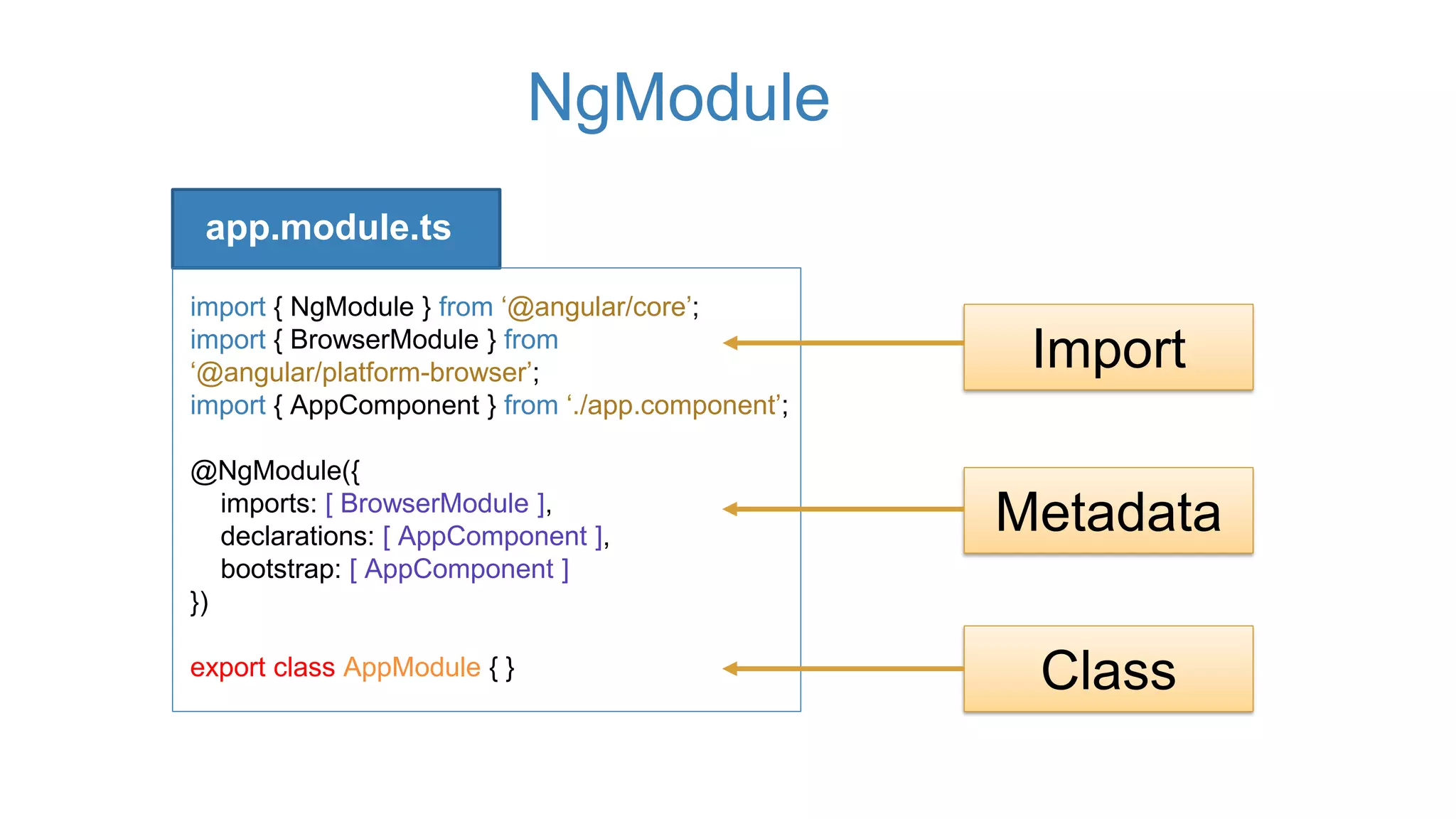

28. NgModule
app.module.ts
import { NgModule } from ‘@angular/core’;
import { BrowserModule } from
‘@angular/platform-browser’;
import { AppComponent } from ‘./app.component’;
@NgModule({
imports: [ BrowserModule ],
declarations: [ AppComponent ],
bootstrap: [ AppComponent ]
})
export class AppModule { } Class
Metadata
Import

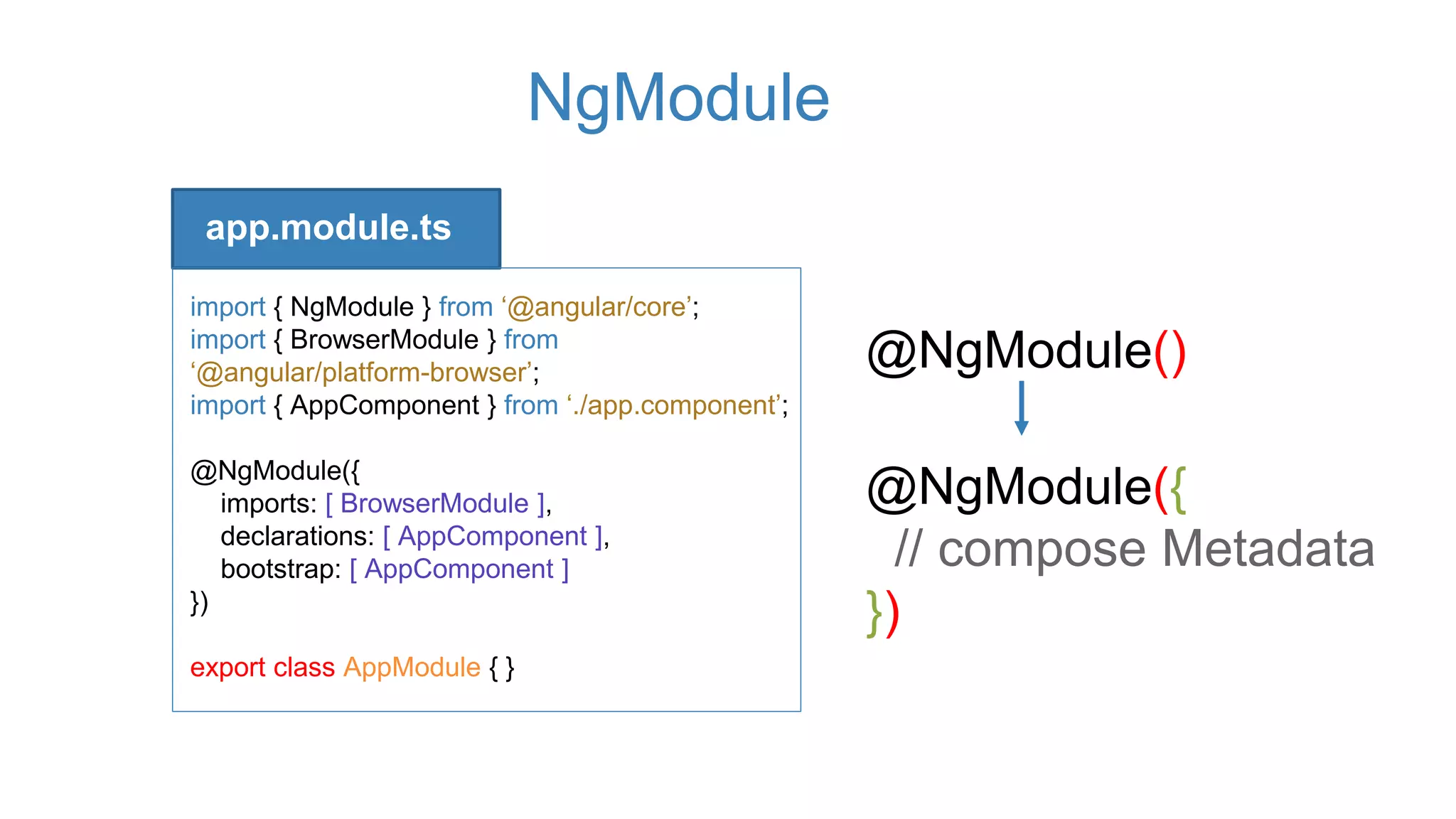

29. NgModule
app.module.ts
import { NgModule } from ‘@angular/core’;
import { BrowserModule } from
‘@angular/platform-browser’;
import { AppComponent } from ‘./app.component’;
@NgModule({
imports: [ BrowserModule ],
declarations: [ AppComponent ],
bootstrap: [ AppComponent ]
})
export class AppModule { }
@NgModule()
@NgModule({
// compose Metadata
})

30. Bootstrapping

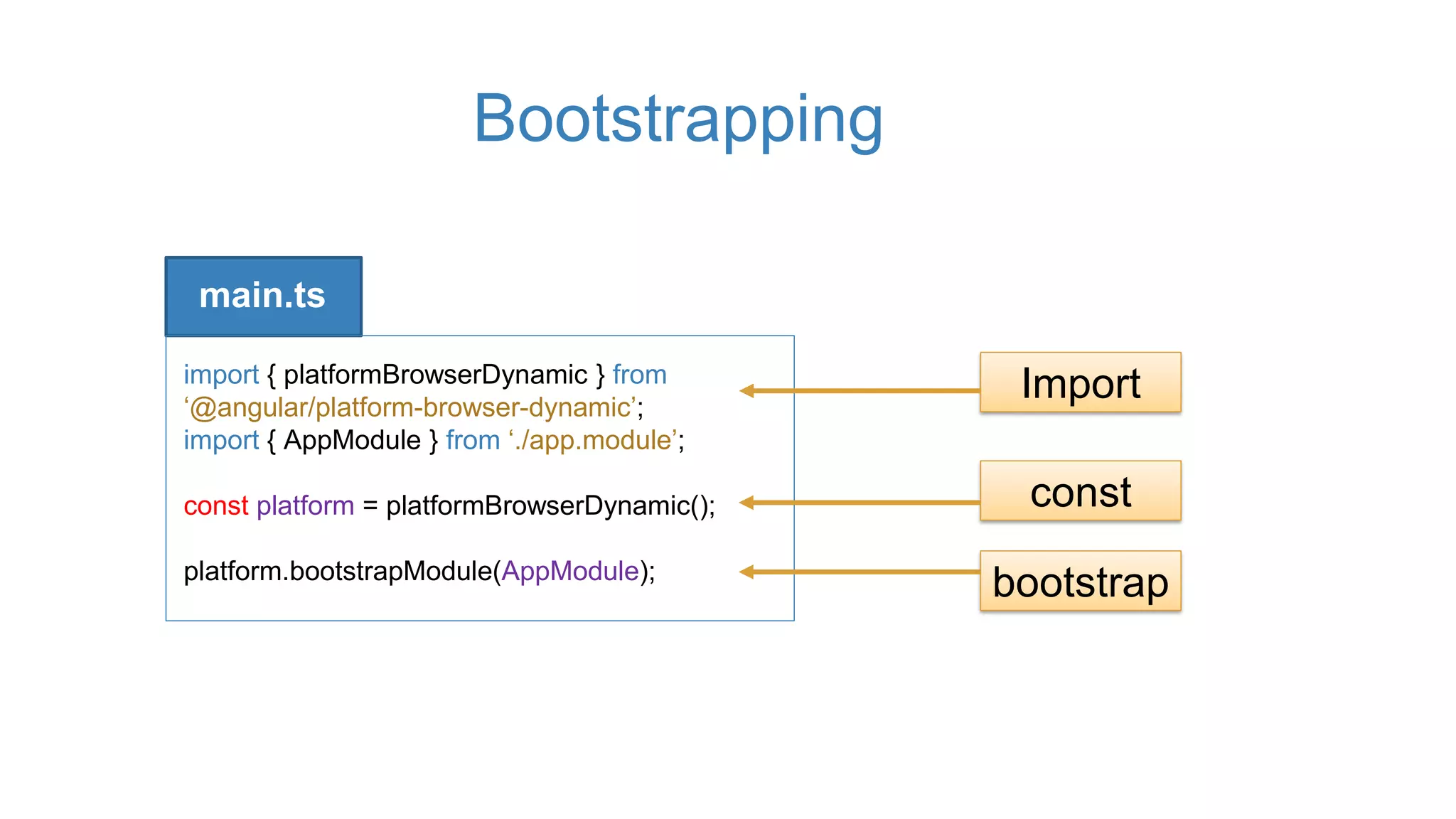

31. Bootstrapping
main.ts
import { platformBrowserDynamic } from
‘@angular/platform-browser-dynamic’;
import { AppModule } from ‘./app.module’;
const platform = platformBrowserDynamic();
platform.bootstrapModule(AppModule);
bootstrap
const
Import

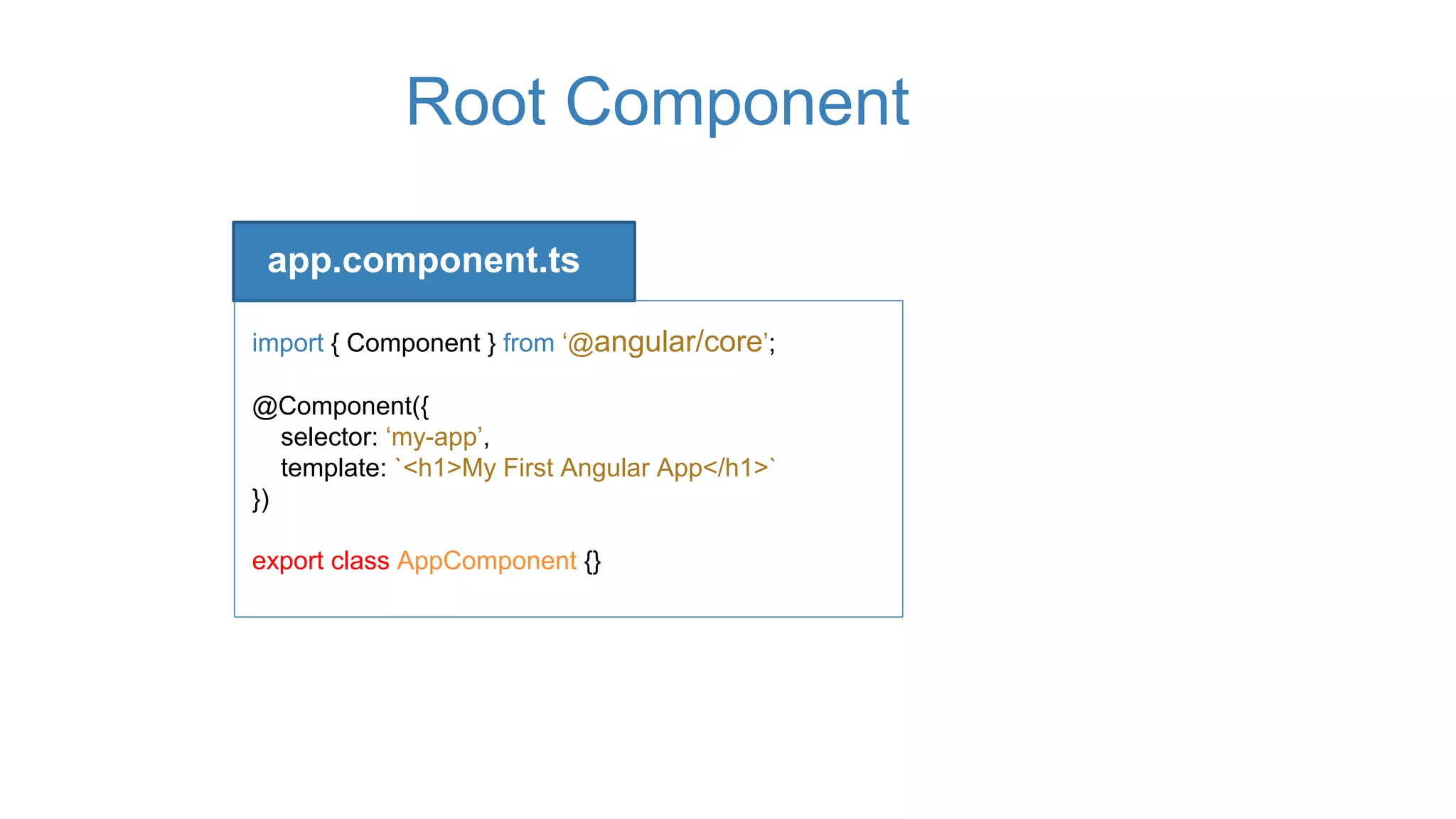

32. Root Component
app.component.ts
import { Component } from ‘@angular/core’;
@Component({
selector: ‘my-app’,
template: `<h1>My First Angular App</h1>`
})
export class AppComponent {}

33. Why Components?

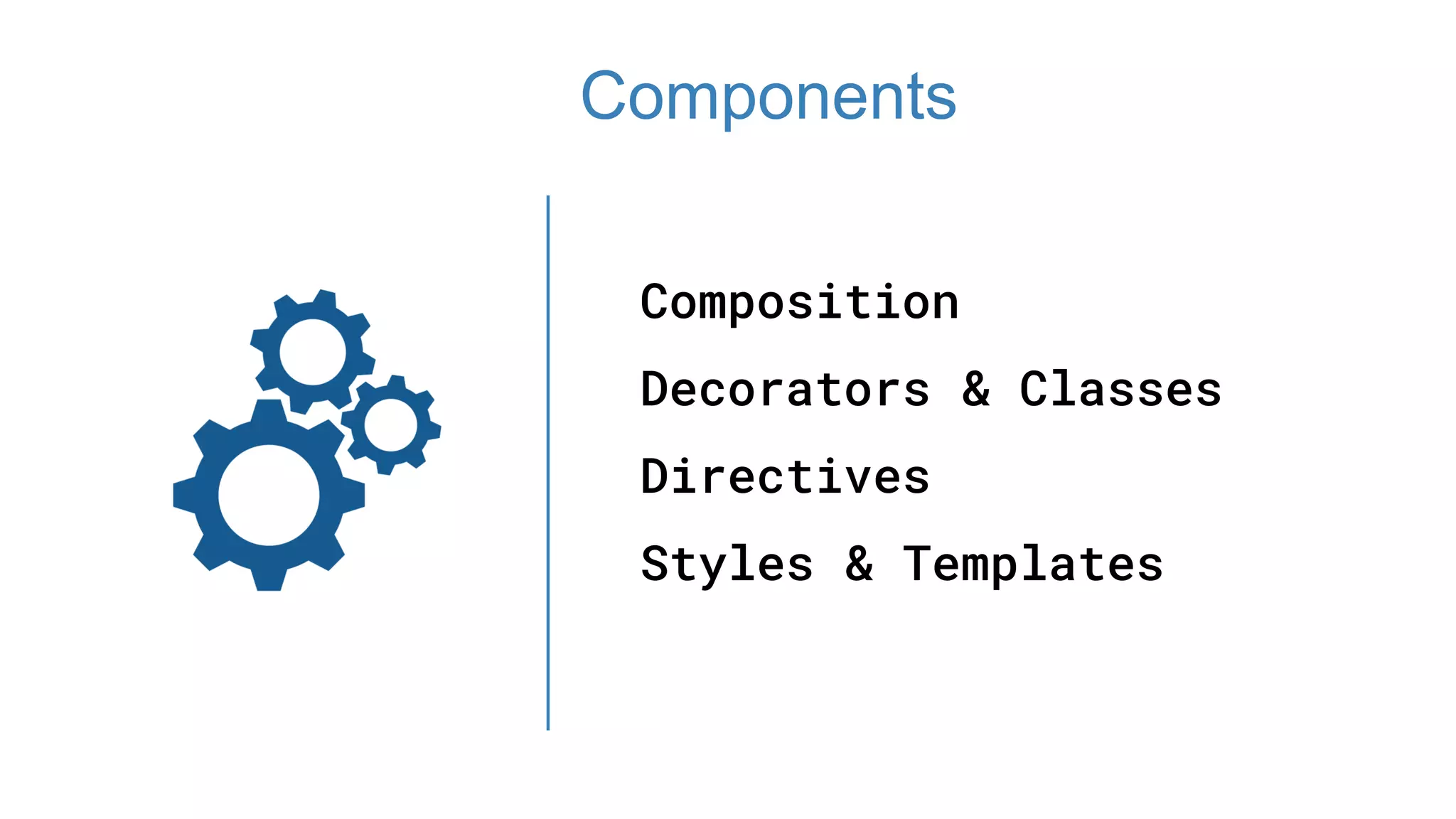

34. Composition
Decorators & Classes
Directives
Styles & Templates
Components

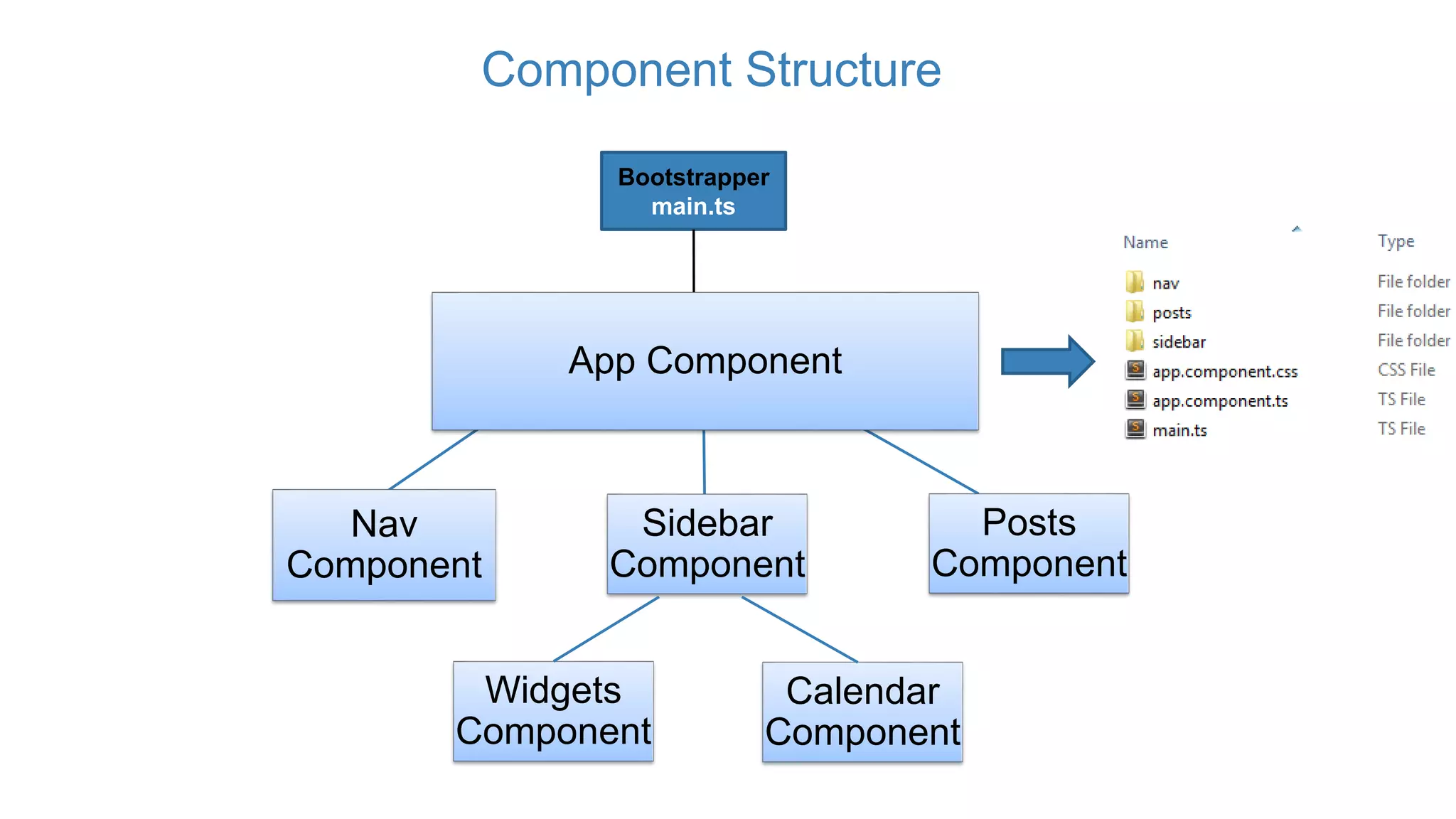

35. Bootstrapper
main.ts
App Component
Sidebar
Component
Posts
Component
Nav
Component
Component Structure
Widgets
Component
Calendar
Component

36. Building Components

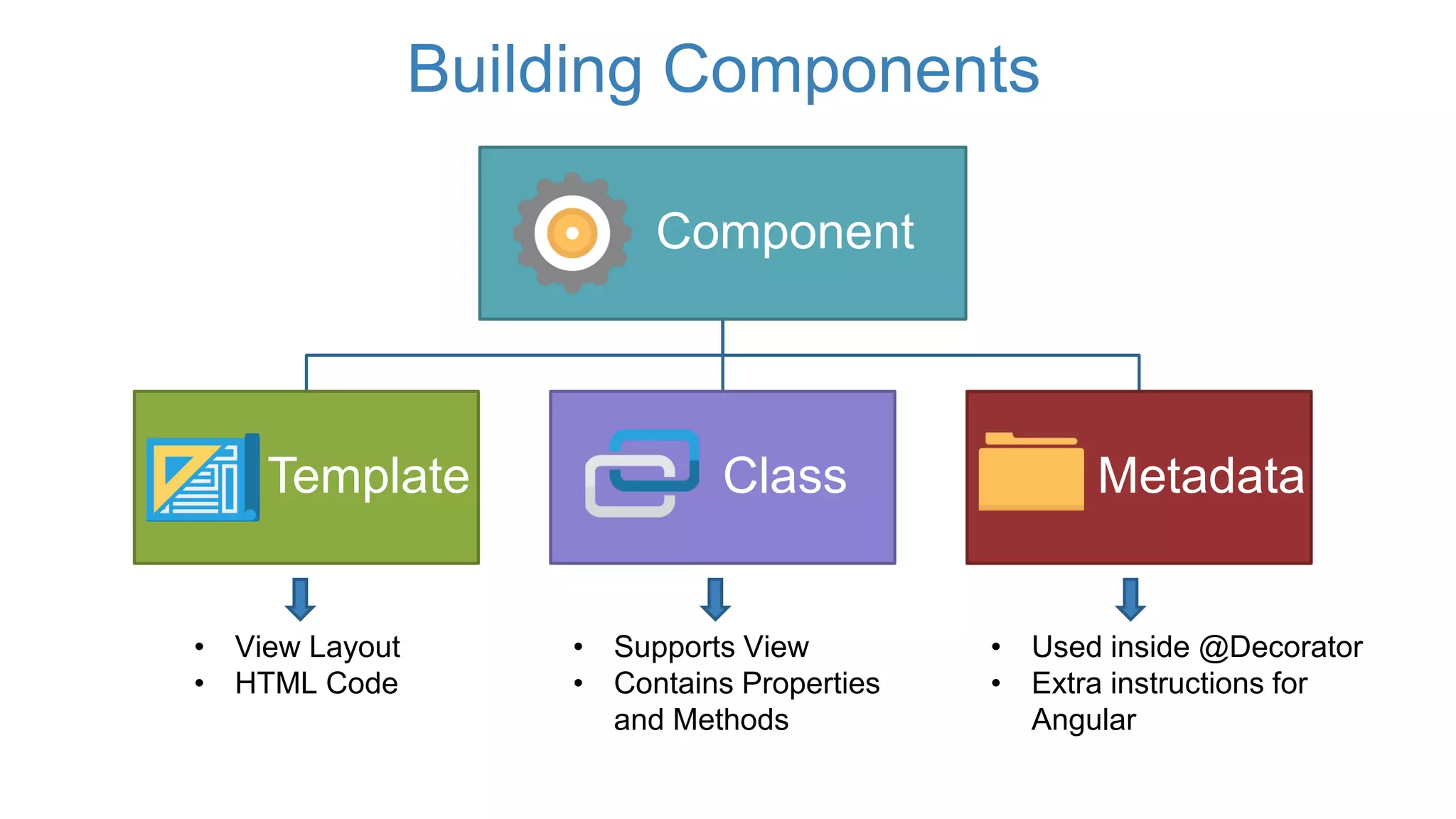

37. Building Components
Component
Template Class Metadata
• View Layout
• HTML Code
• Supports View
• Contains Properties
and Methods
• Used inside @Decorator
• Extra instructions for
Angular

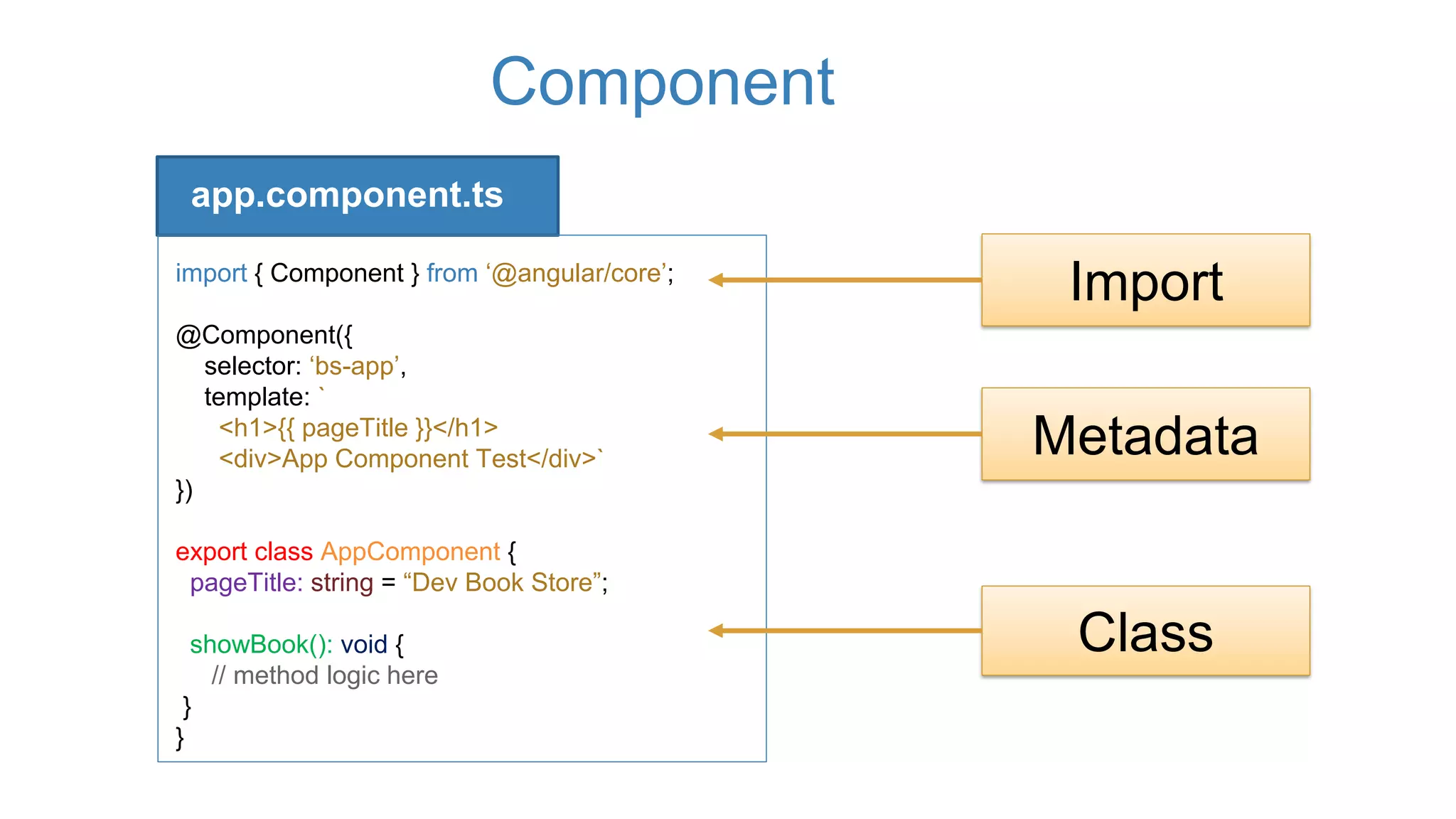

38. Component
app.component.ts
import { Component } from ‘@angular/core’;
@Component({
selector: ‘bs-app’,
template: `
<h1>{{ pageTitle }}</h1>
<div>App Component Test</div>`
})
export class AppComponent {
pageTitle: string = “Dev Book Store”;
showBook(): void {
// method logic here
}
}
Class
Metadata
Import

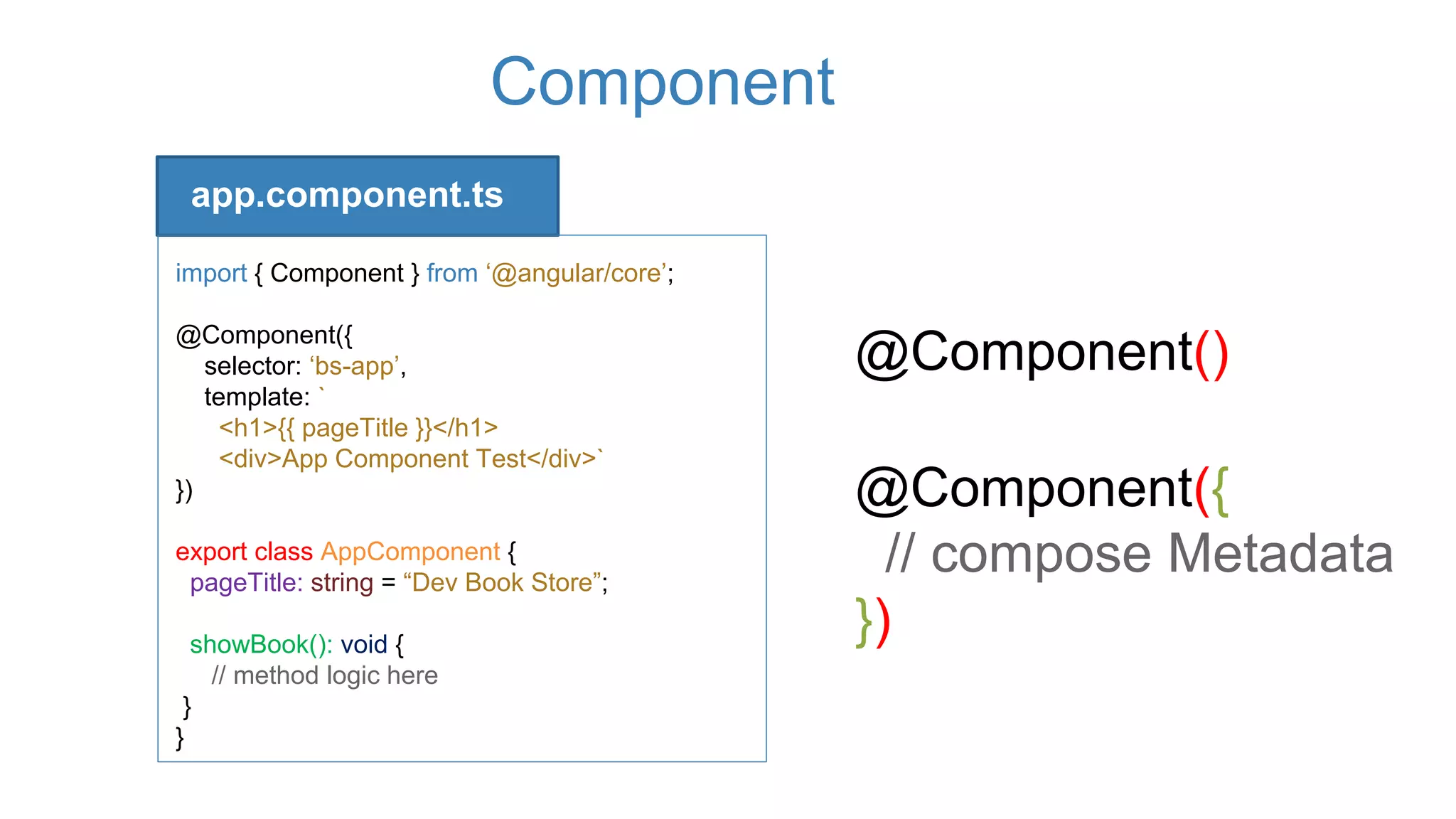

39. Component
app.component.ts
import { Component } from ‘@angular/core’;
@Component({
selector: ‘bs-app’,
template: `
<h1>{{ pageTitle }}</h1>
<div>App Component Test</div>`
})
export class AppComponent {
pageTitle: string = “Dev Book Store”;
showBook(): void {
// method logic here
}
}
@Component()
@Component({
// compose Metadata
})

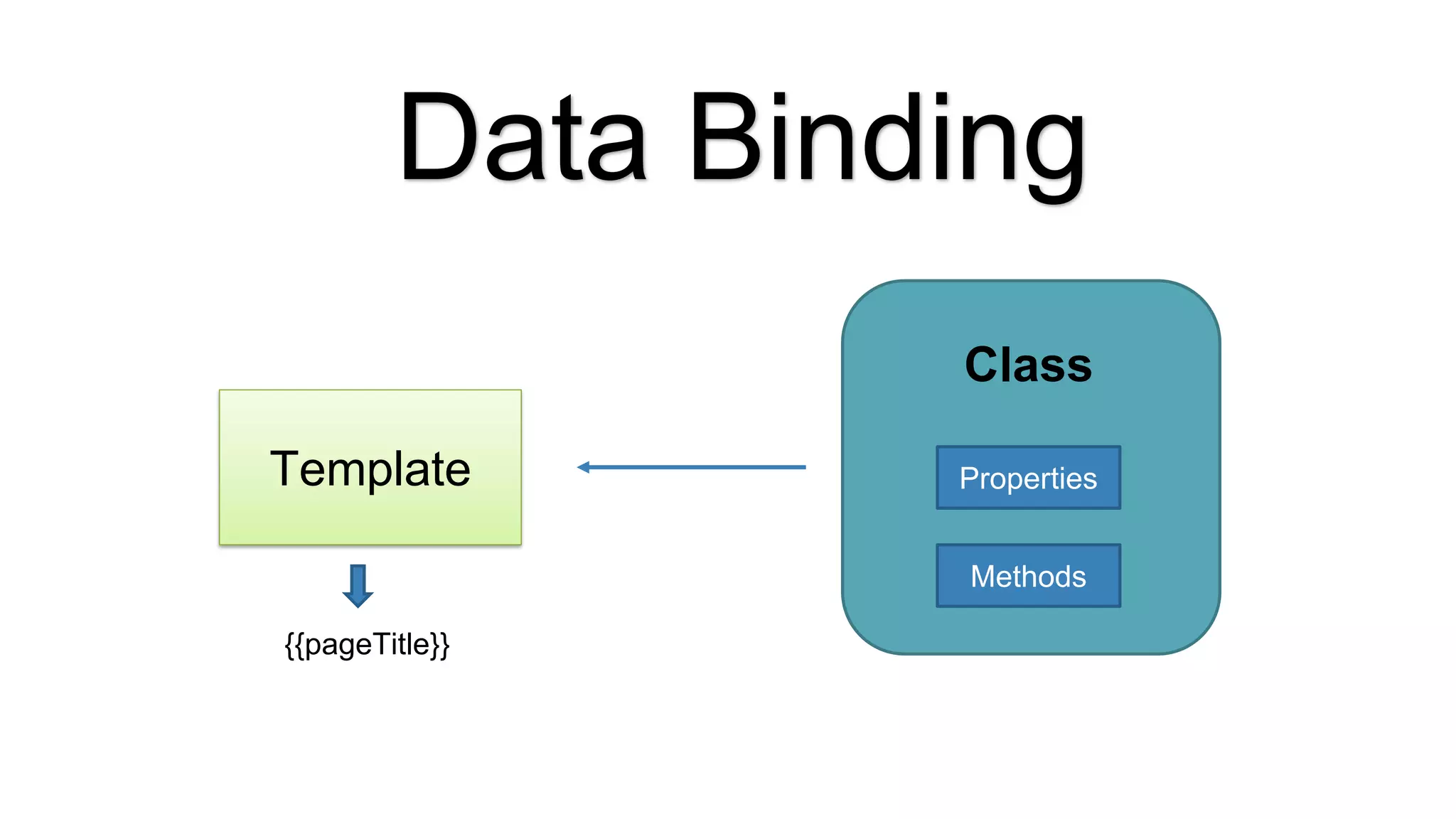

40. Data Binding
Template
Methods
Properties
Class
{{pageTitle}}

41. 1-way Binding
• {{pageTitle}}
2-way Binding
• [(ngModel)]=“searchFilter”
Event Binding
• (click)=“hideImage()”
Types of Data Binding

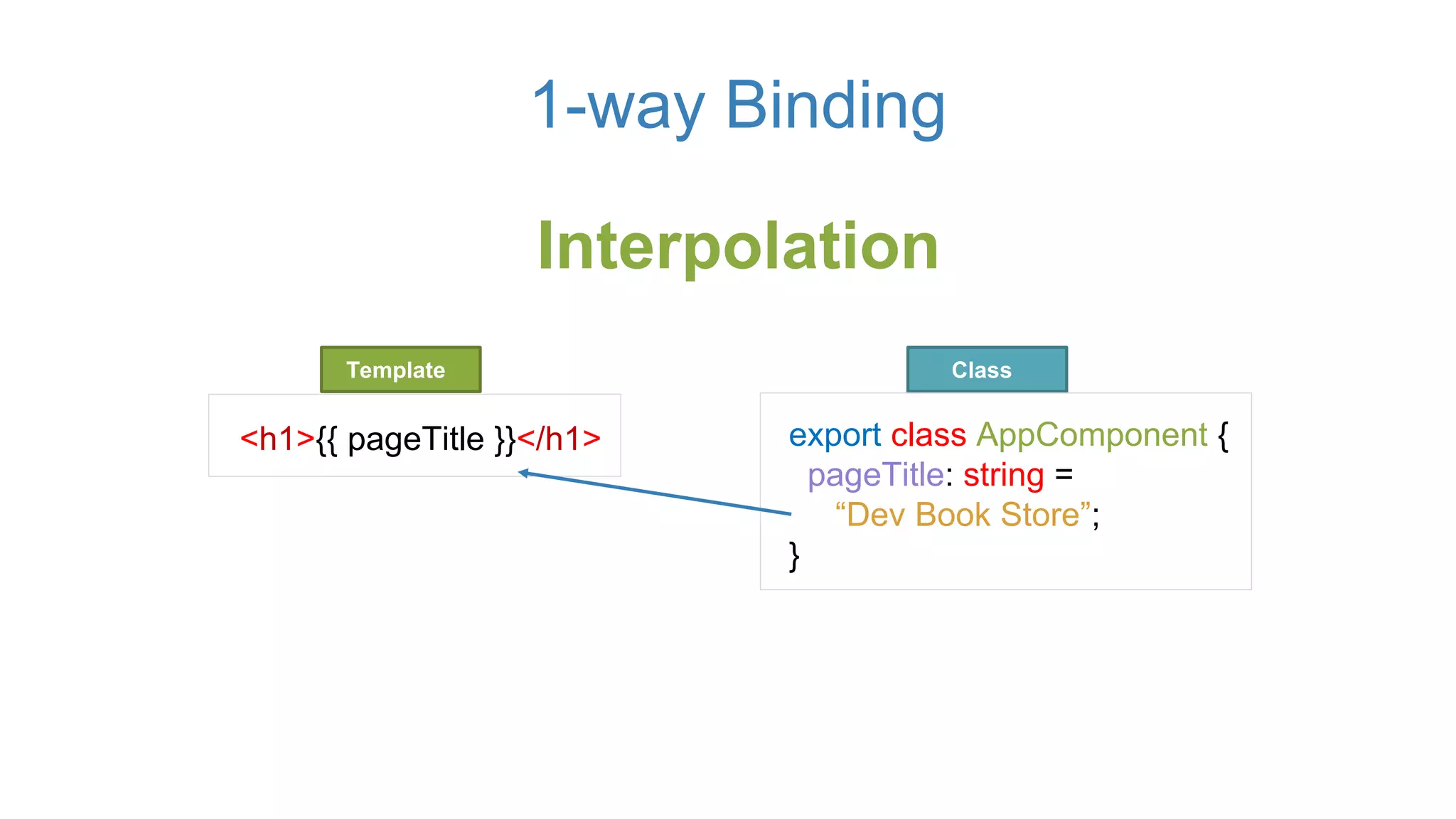

42. 1-way Binding
Interpolation
Template
export class AppComponent {
pageTitle: string =
“Dev Book Store”;
}
Class
<h1>{{ pageTitle }}</h1>

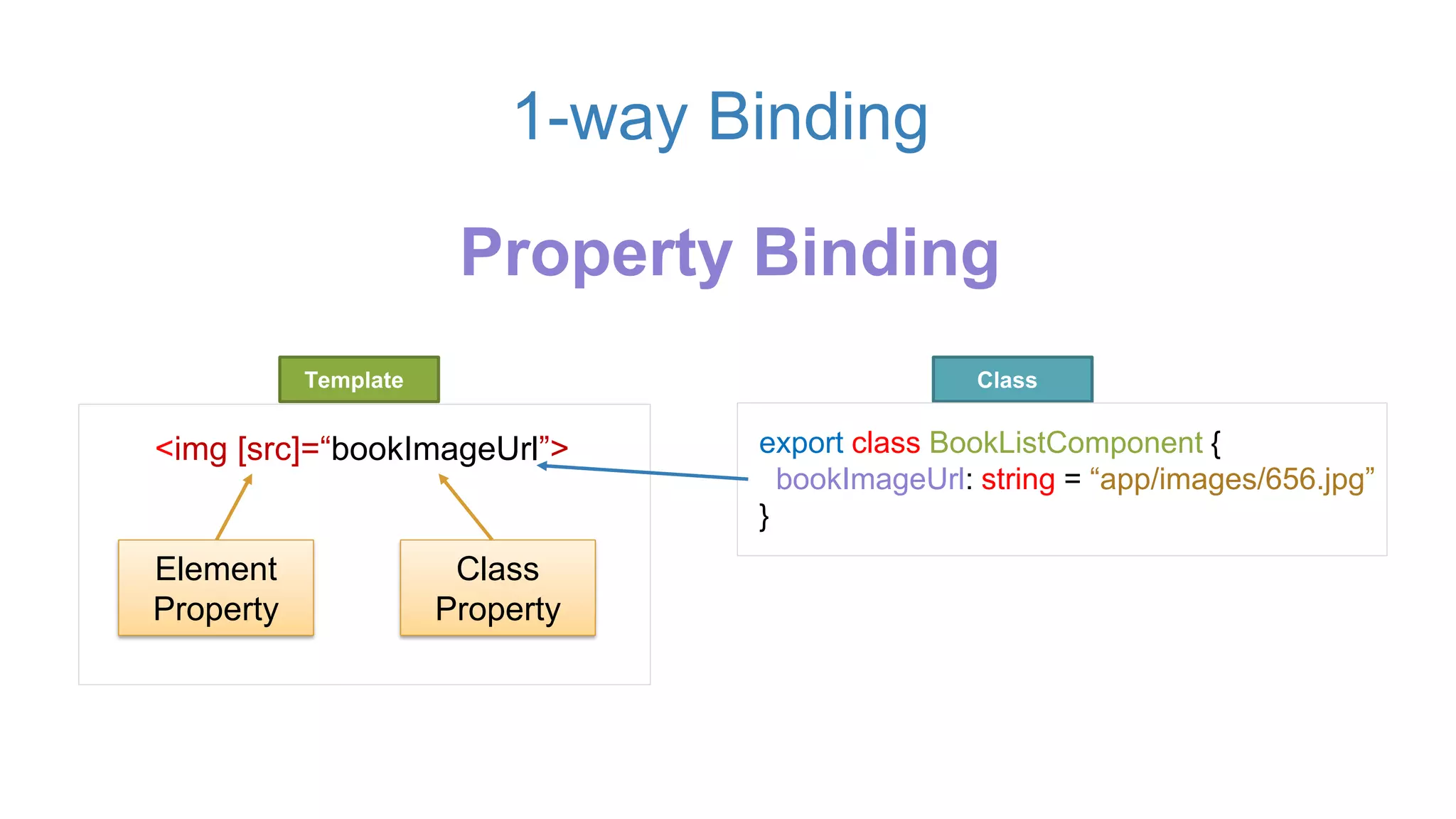

43. Property Binding
Template
<img [src]=“bookImageUrl”>
Element
Property
Class
Property
export class BookListComponent {
bookImageUrl: string = “app/images/656.jpg”
}
Class
1-way Binding

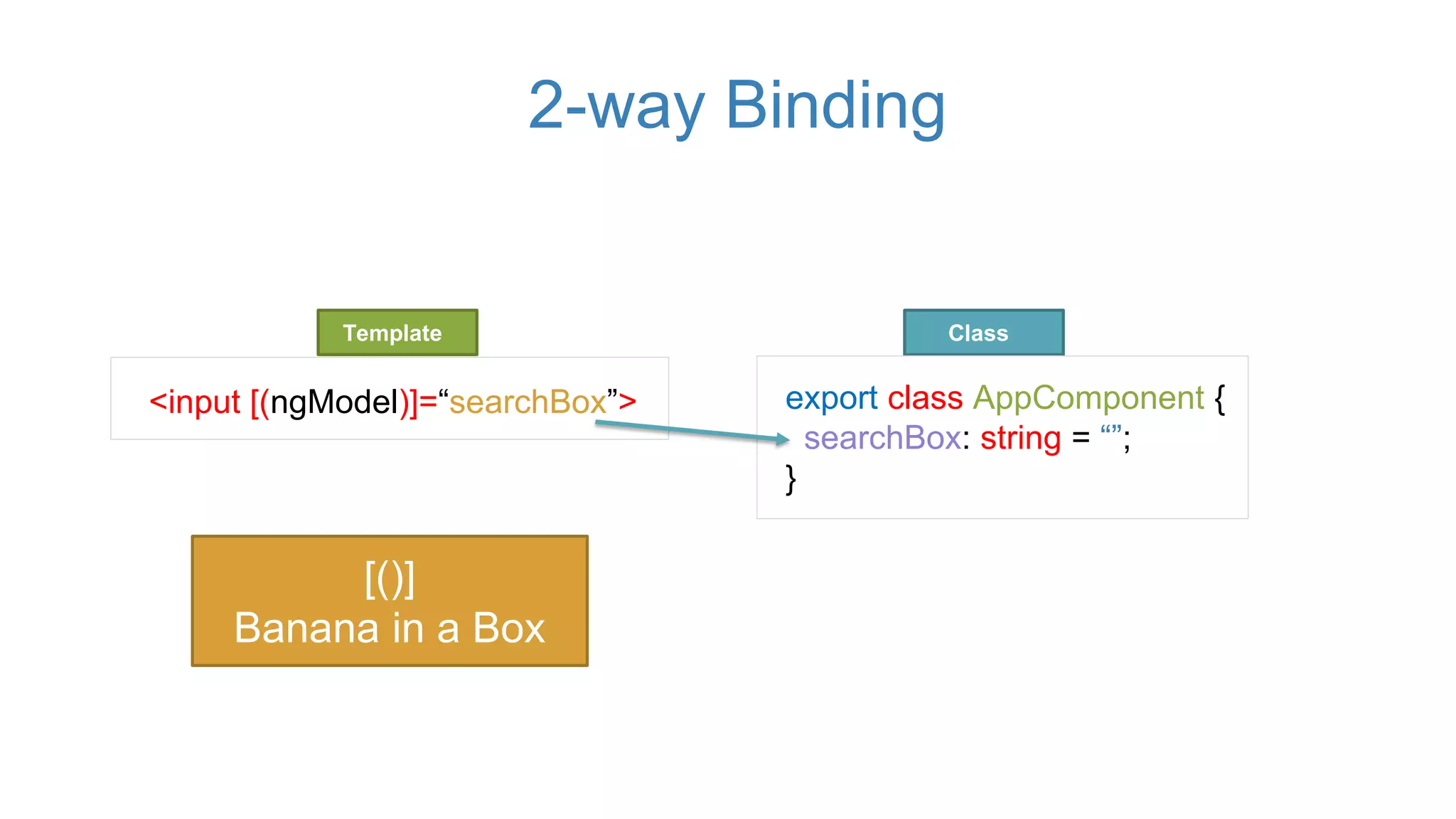

44. 2-way Binding
Template
export class AppComponent {
searchBox: string = “”;
}
Class
<input [(ngModel)]=“searchBox”>
[()]
Banana in a Box

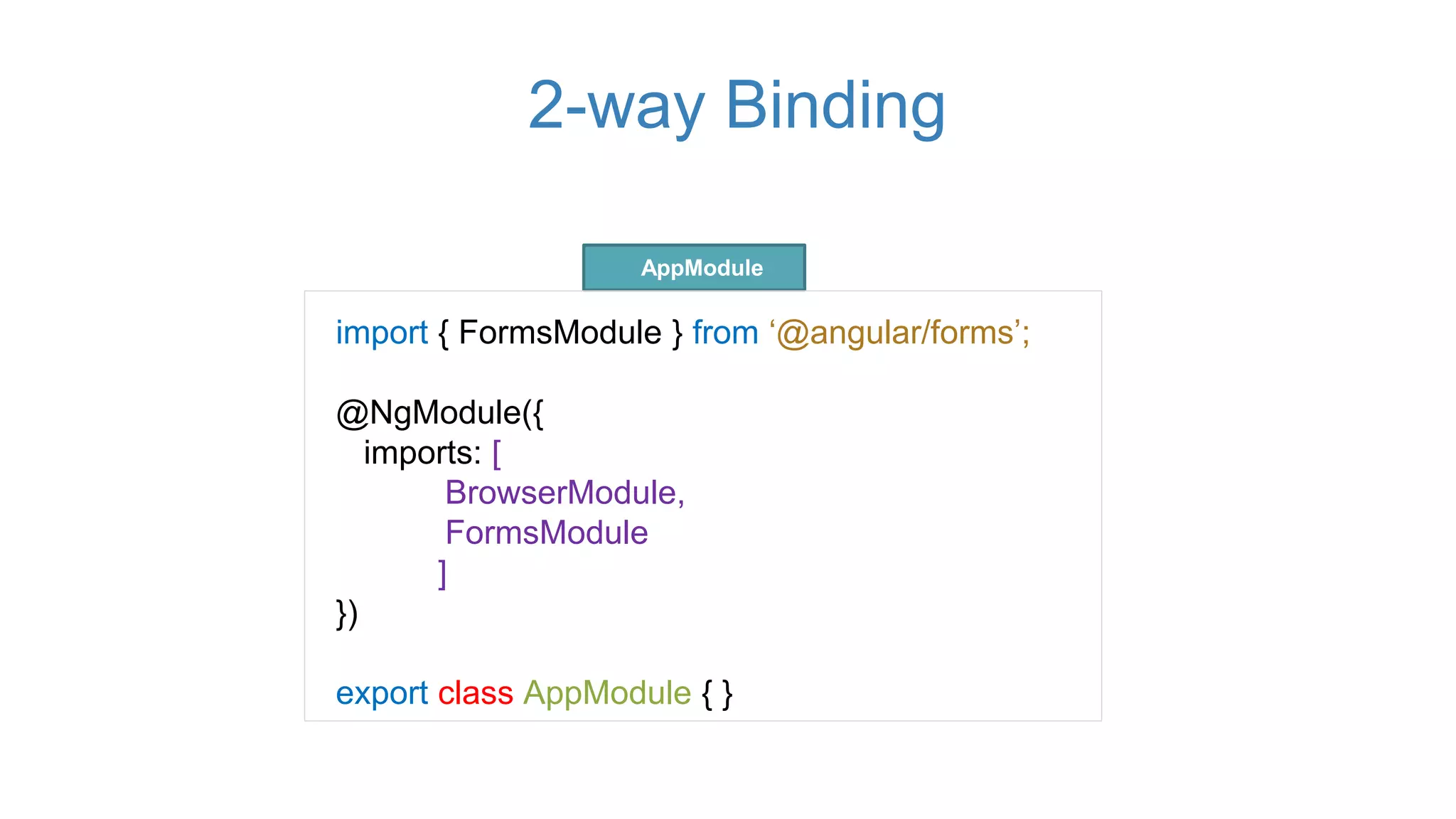

45. 2-way Binding
import { FormsModule } from ‘@angular/forms’;
@NgModule({
imports: [
BrowserModule,
FormsModule
]
})
export class AppModule { }
AppModule

46. NgModule
app.module.ts
import { NgModule } from ‘@angular/core’;
import { BrowserModule } from
‘@angular/platform-browser’;
import { AppComponent } from ‘./app.component’;
@NgModule({
imports: [ BrowserModule ],
declarations: [ AppComponent ],
bootstrap: [ AppComponent ]
})
export class AppModule { } Class
Metadata
Import

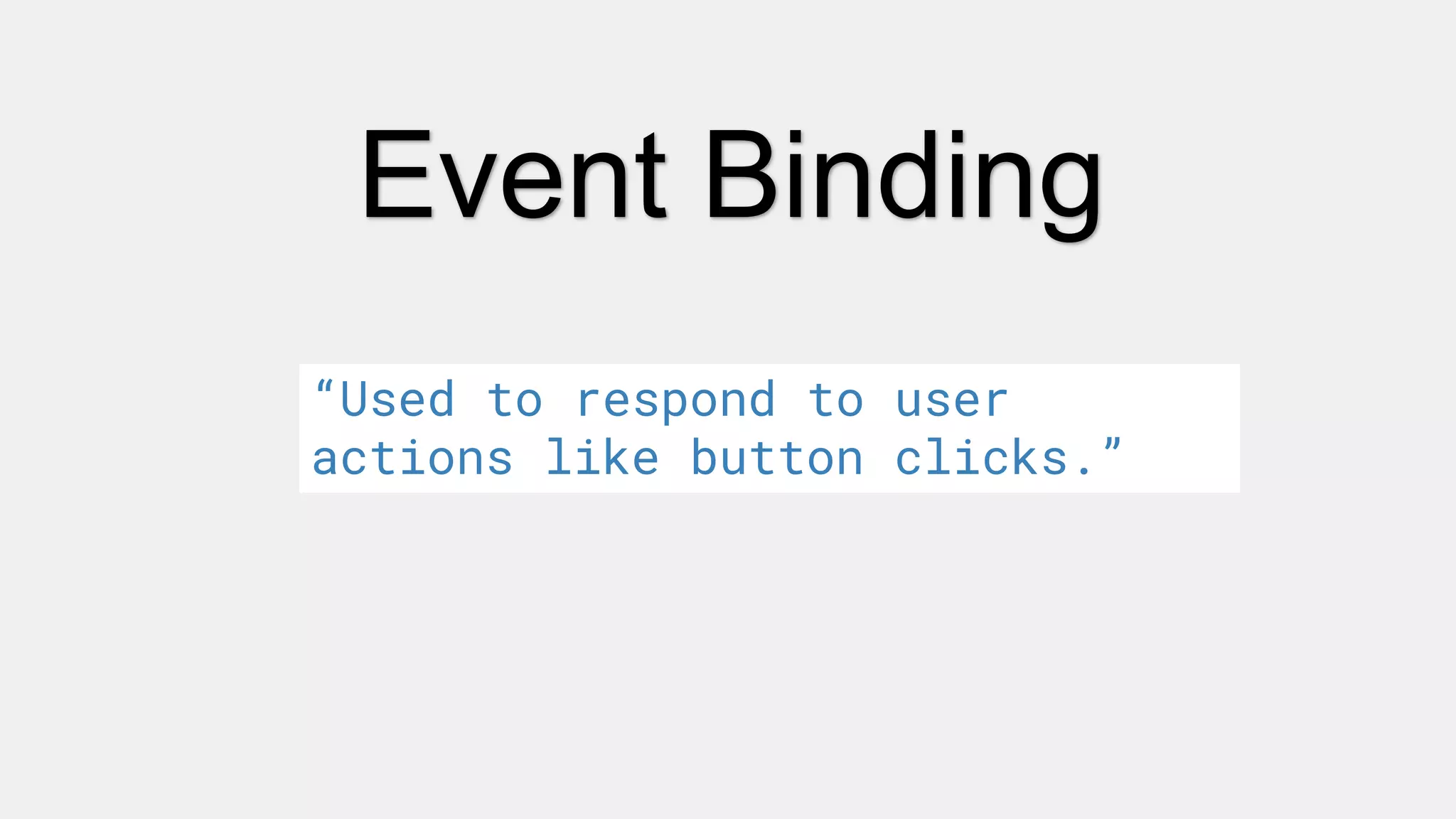

47. Event Binding
“Used to respond to user
actions like button clicks.”

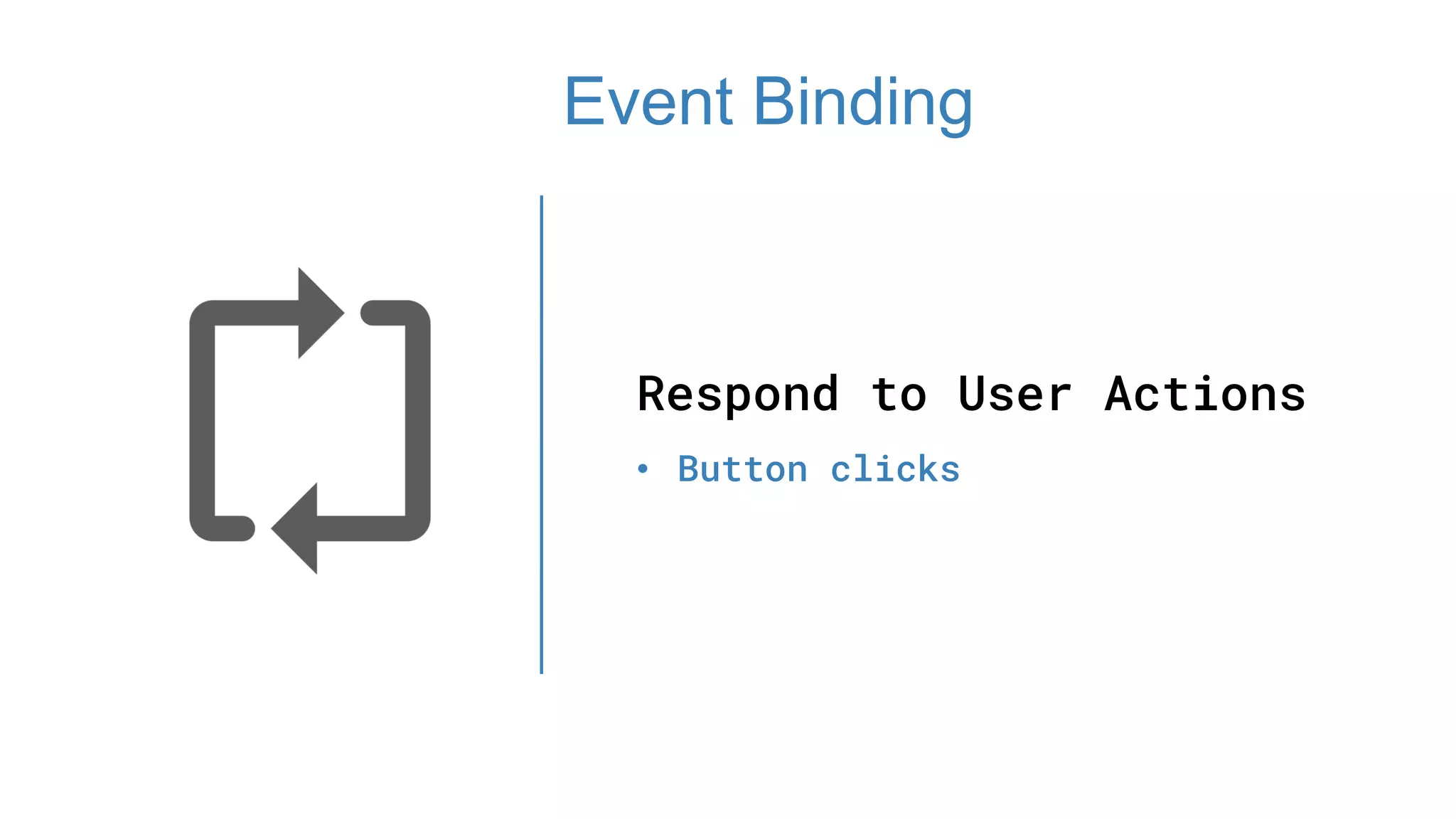

48. Respond to User Actions
• Button clicks
Event Binding

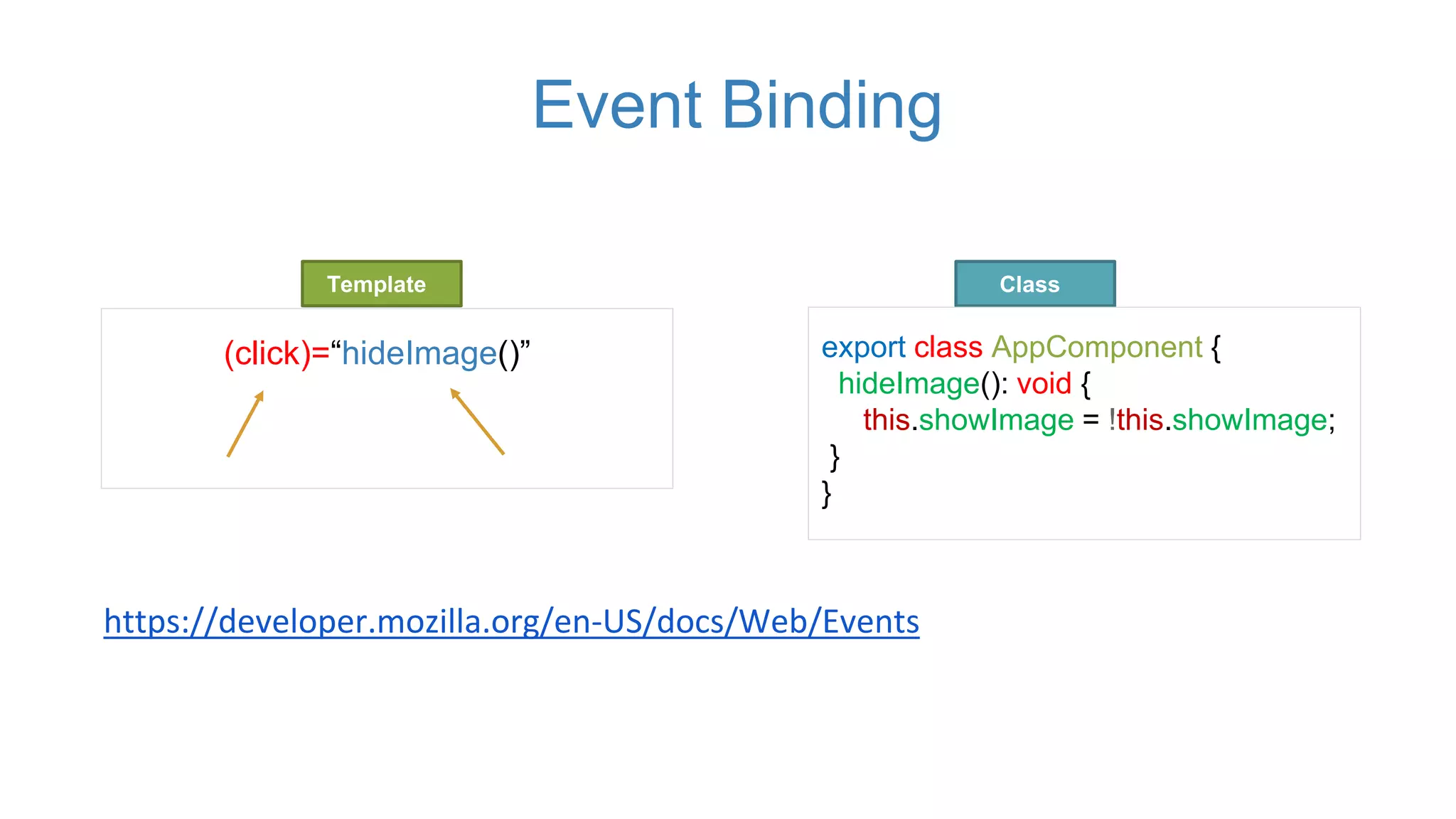

49. Template
(click)=“hideImage()” export class AppComponent {
hideImage(): void {
this.showImage = !this.showImage;
}
}
Class
Event Binding
https://developer.mozilla.org/en-US/docs/Web/Events

50. Directives

51. Directives
“An HTML element or attribute
that is used to enhance and
extend our HTML”

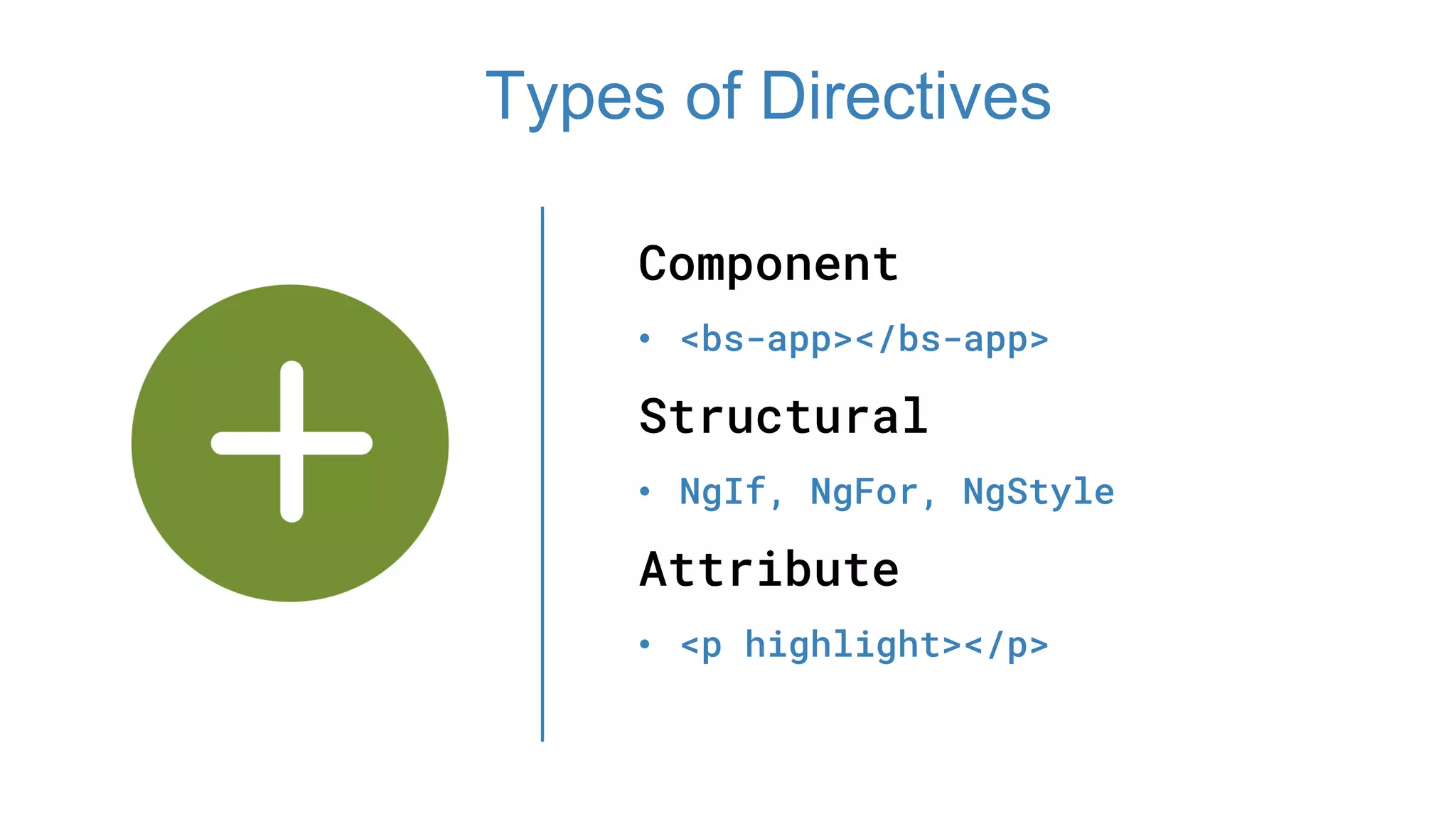

52. Component
• <bs-app></bs-app>
Structural
• NgIf, NgFor, NgStyle
Attribute
• <p highlight></p>
Types of Directives

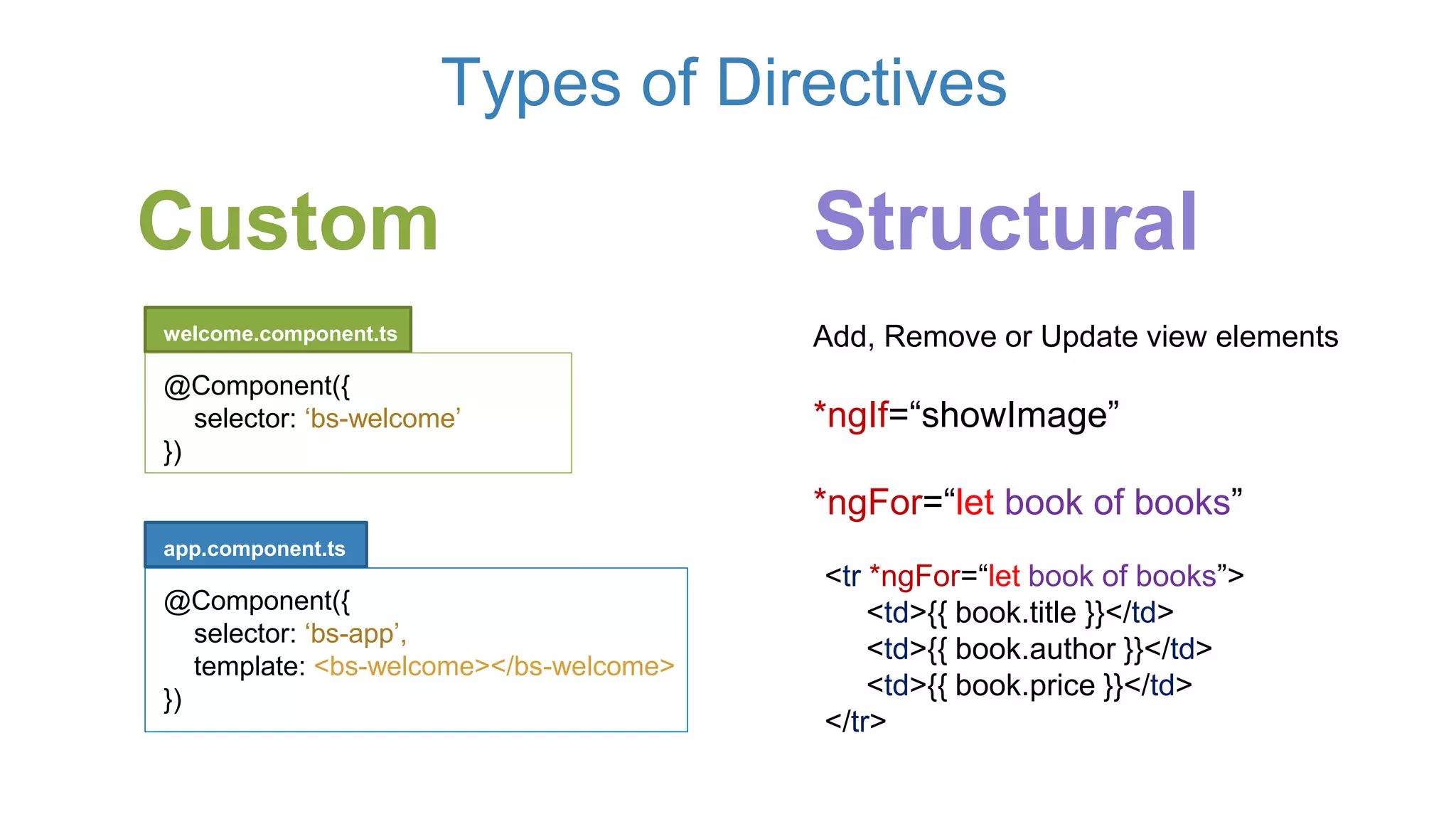

53. Types of Directives
Custom Structural
welcome.component.ts
@Component({
selector: ‘bs-welcome’
})
app.component.ts
@Component({
selector: ‘bs-app’,
template: <bs-welcome></bs-welcome>
})
*ngIf=“showImage”
*ngFor=“let book of books”
Add, Remove or Update view elements
<tr *ngFor=“let book of books”>
<td>{{ book.title }}</td>
<td>{{ book.author }}</td>
<td>{{ book.price }}</td>
</tr>

54. Structural Directives

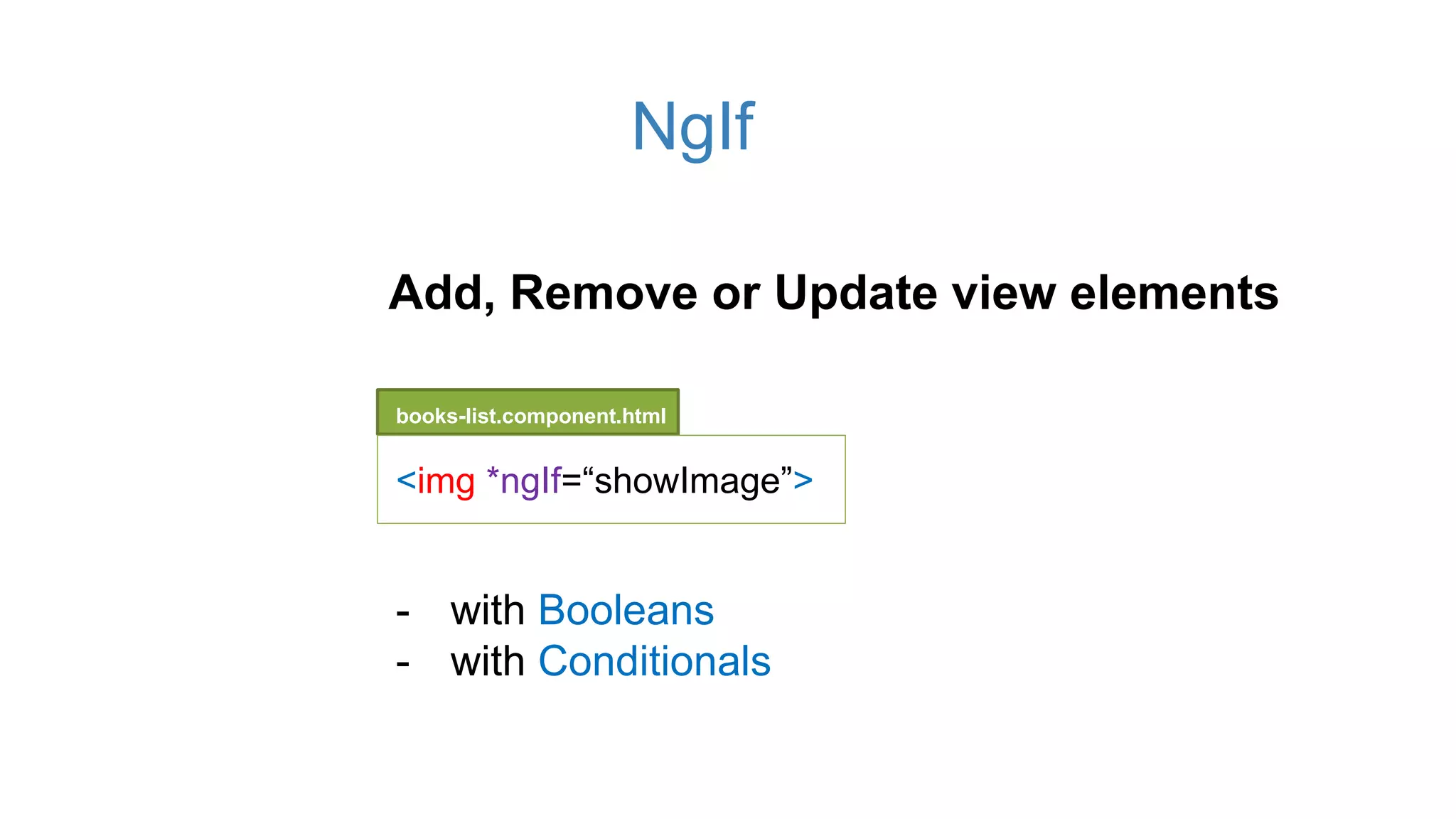

55. NgIf
books-list.component.html
<img *ngIf=“showImage”>
Add, Remove or Update view elements
- with Booleans
- with Conditionals

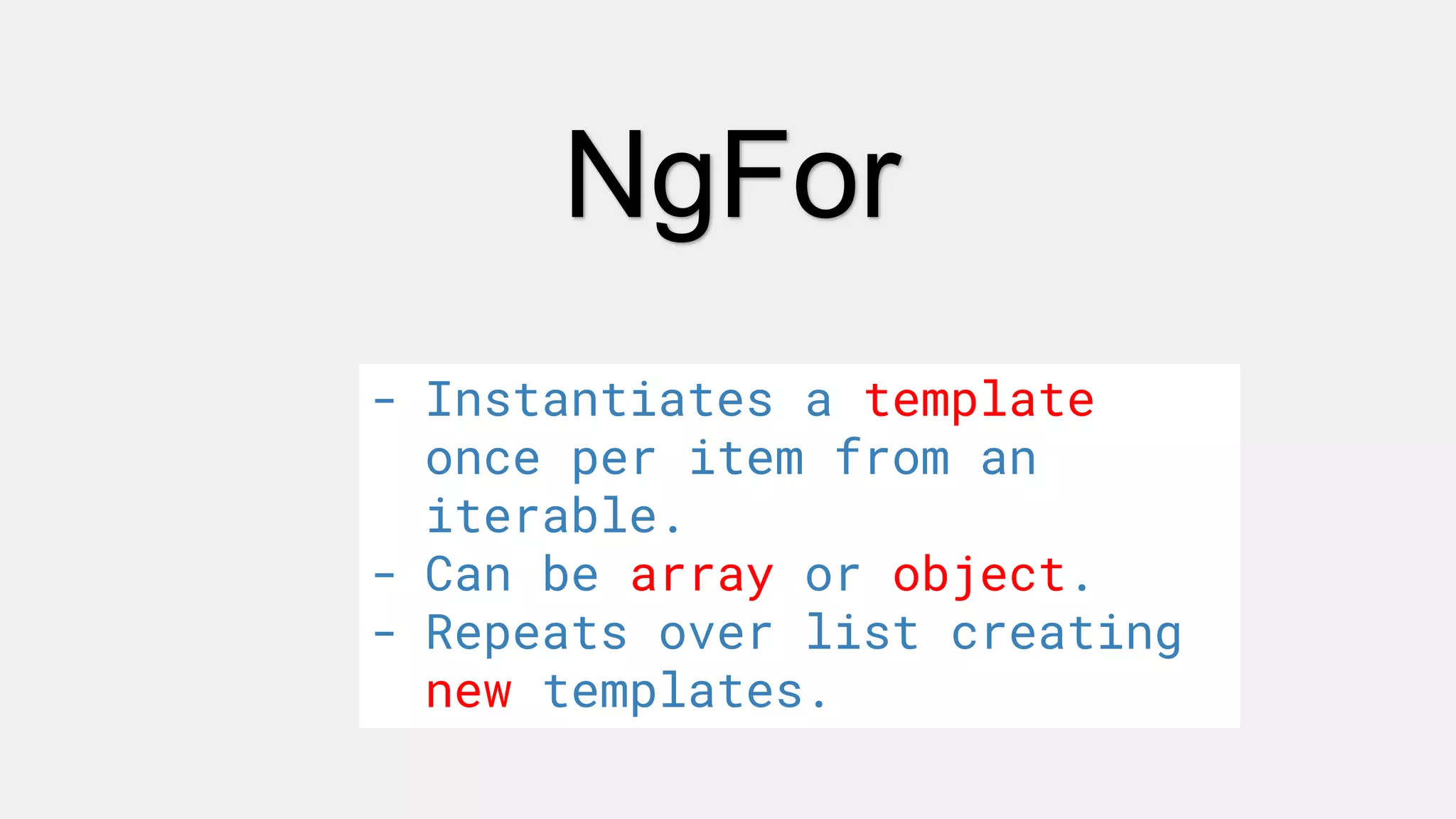

56. NgFor
- Instantiates a template
once per item from an
iterable.
- Can be array or object.
- Repeats over list creating
new templates.

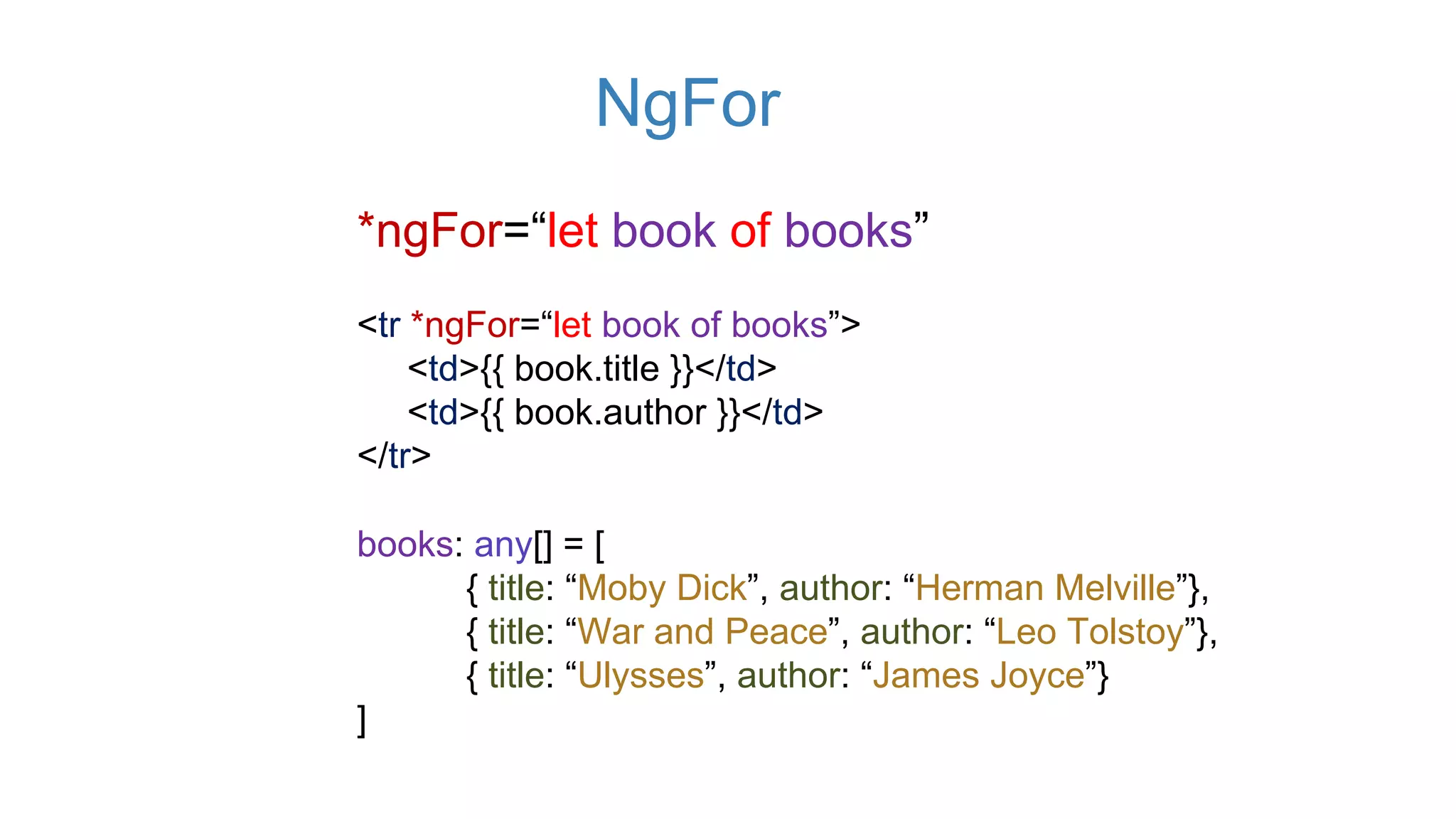

57. NgFor
*ngFor=“let book of books”
<tr *ngFor=“let book of books”>
<td>{{ book.title }}</td>
<td>{{ book.author }}</td>
</tr>
books: any[] = [
{ title: “Moby Dick”, author: “Herman Melville”},
{ title: “War and Peace”, author: “Leo Tolstoy”},
{ title: “Ulysses”, author: “James Joyce”}
]

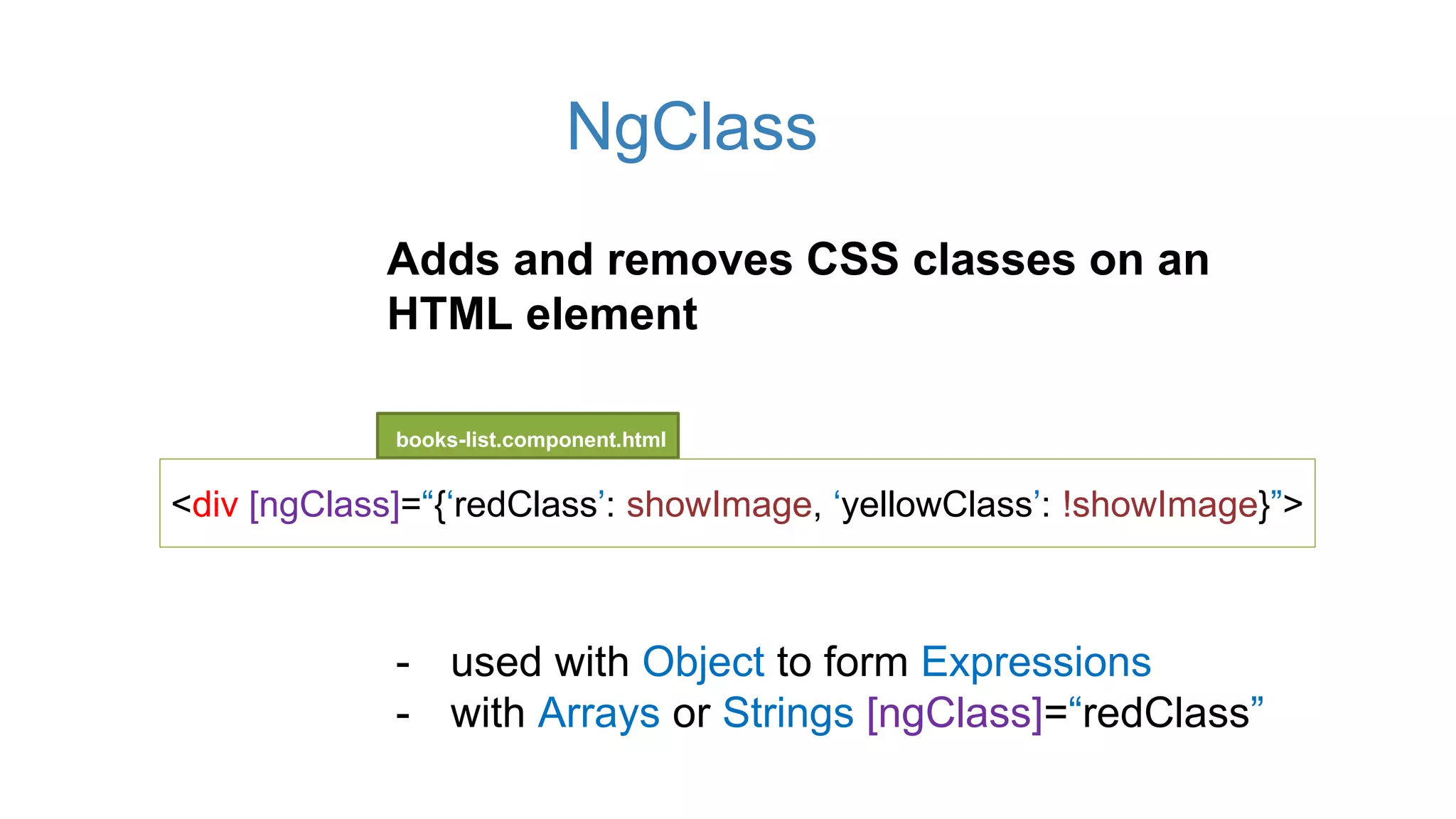

58. NgClass
books-list.component.html
<div [ngClass]=“{‘redClass’: showImage, ‘yellowClass’: !showImage}”>
Adds and removes CSS classes on an
HTML element
- used with Object to form Expressions
- with Arrays or Strings [ngClass]=“redClass”

59. Pipes

60. Pipes
“Allow us to transform
or format our data”

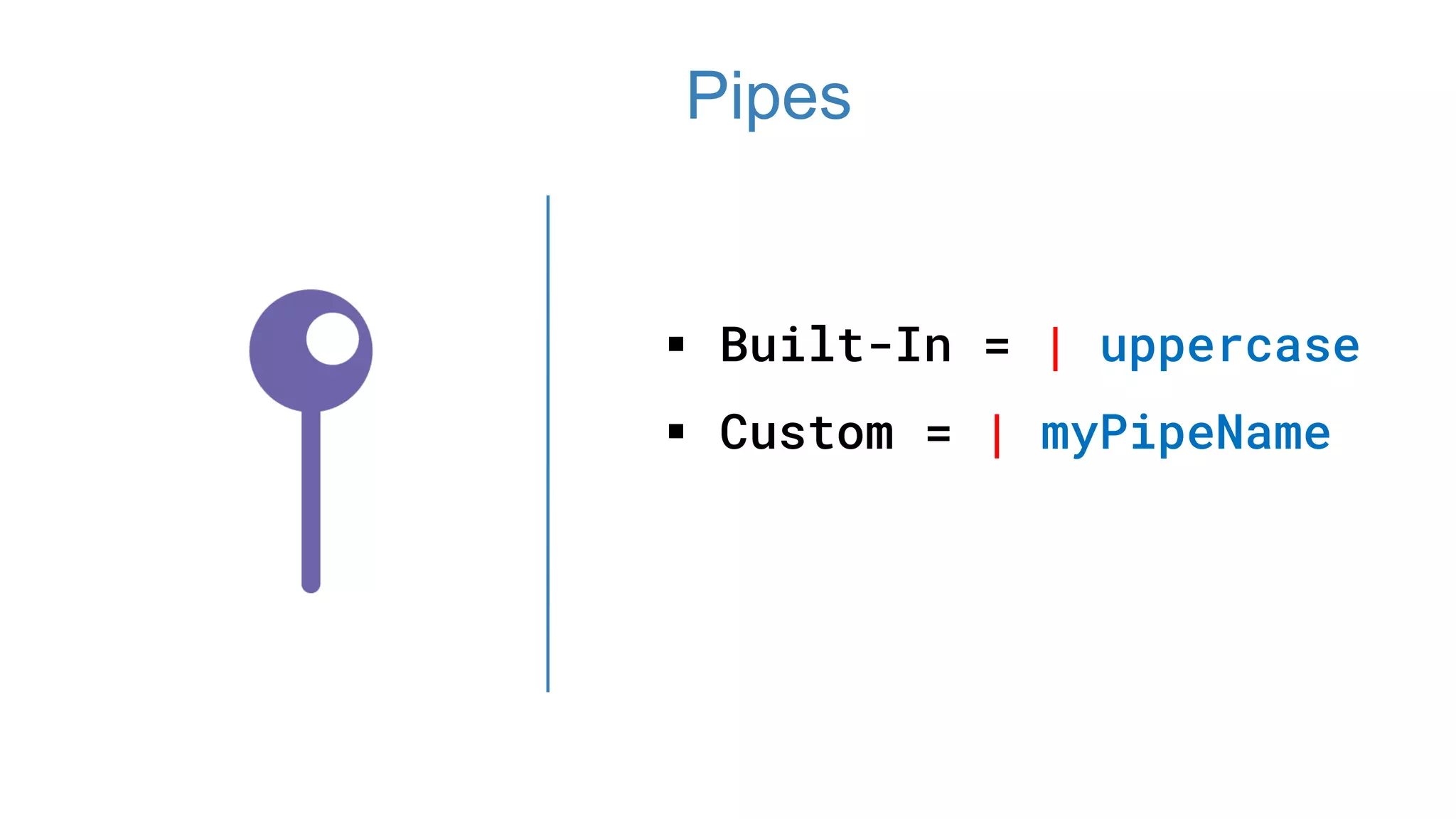

61.  Built-In = | uppercase
 Custom = | myPipeName
Pipes

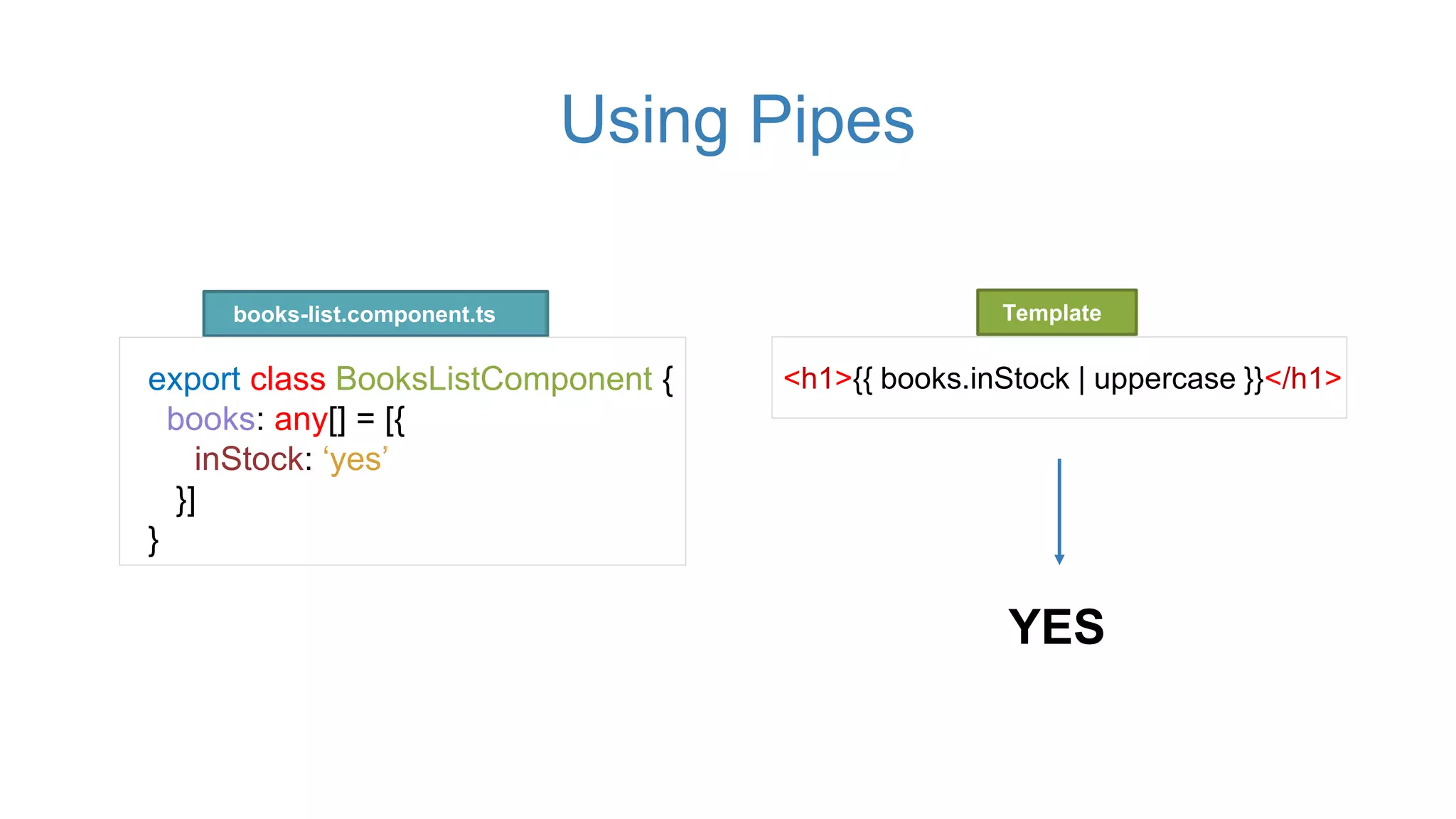

62. Using Pipes
Template
export class BooksListComponent {
books: any[] = [{
inStock: ‘yes’
}]
}
books-list.component.ts
<h1>{{ books.inStock | uppercase }}</h1>
YES

63. Built-In Pipes

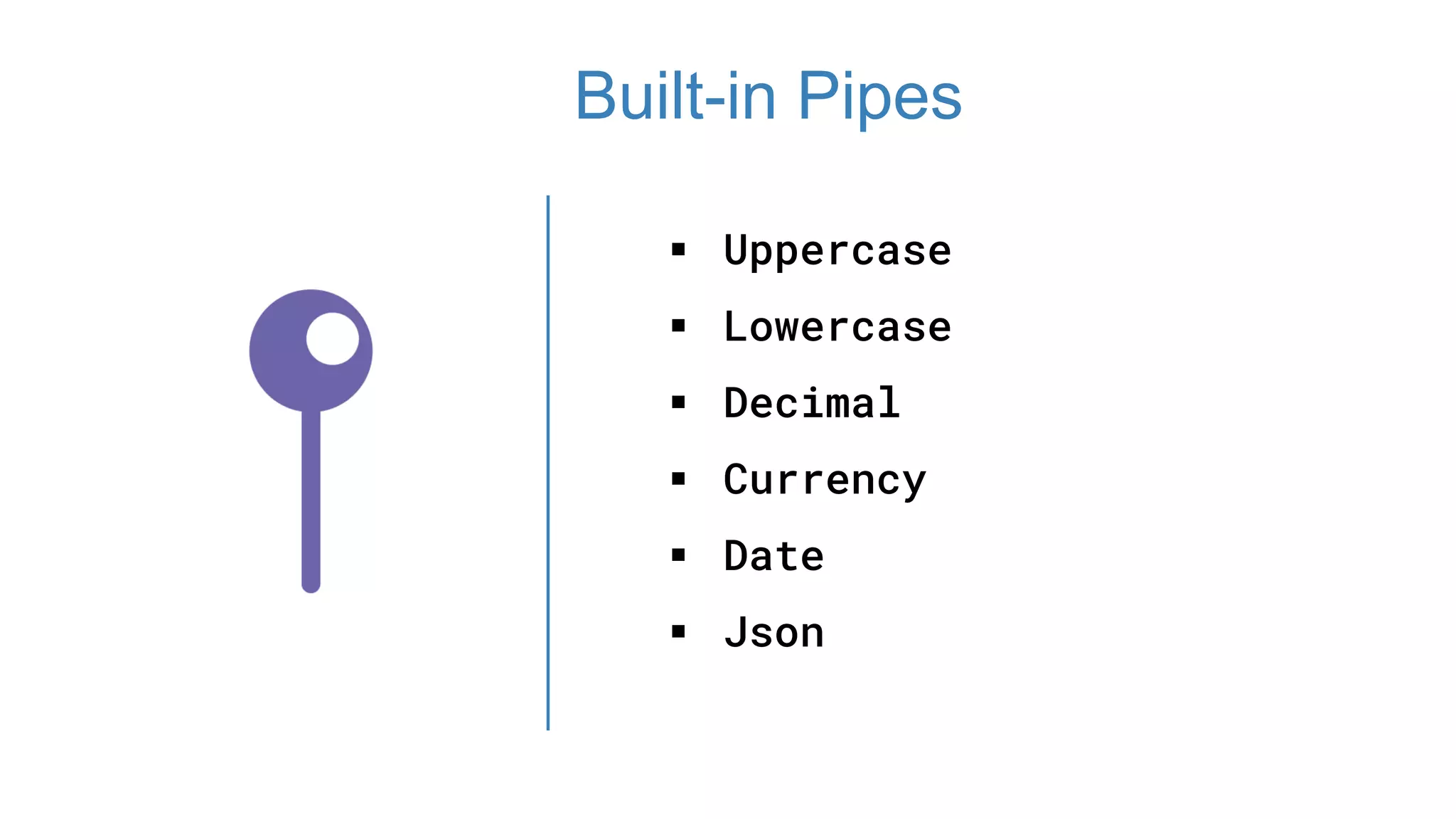

64.  Uppercase
 Lowercase
 Decimal
 Currency
 Date
 Json
Built-in Pipes

65. 1. Create File
2. Import into AppModule
3. Use in Template
Custom Pipes

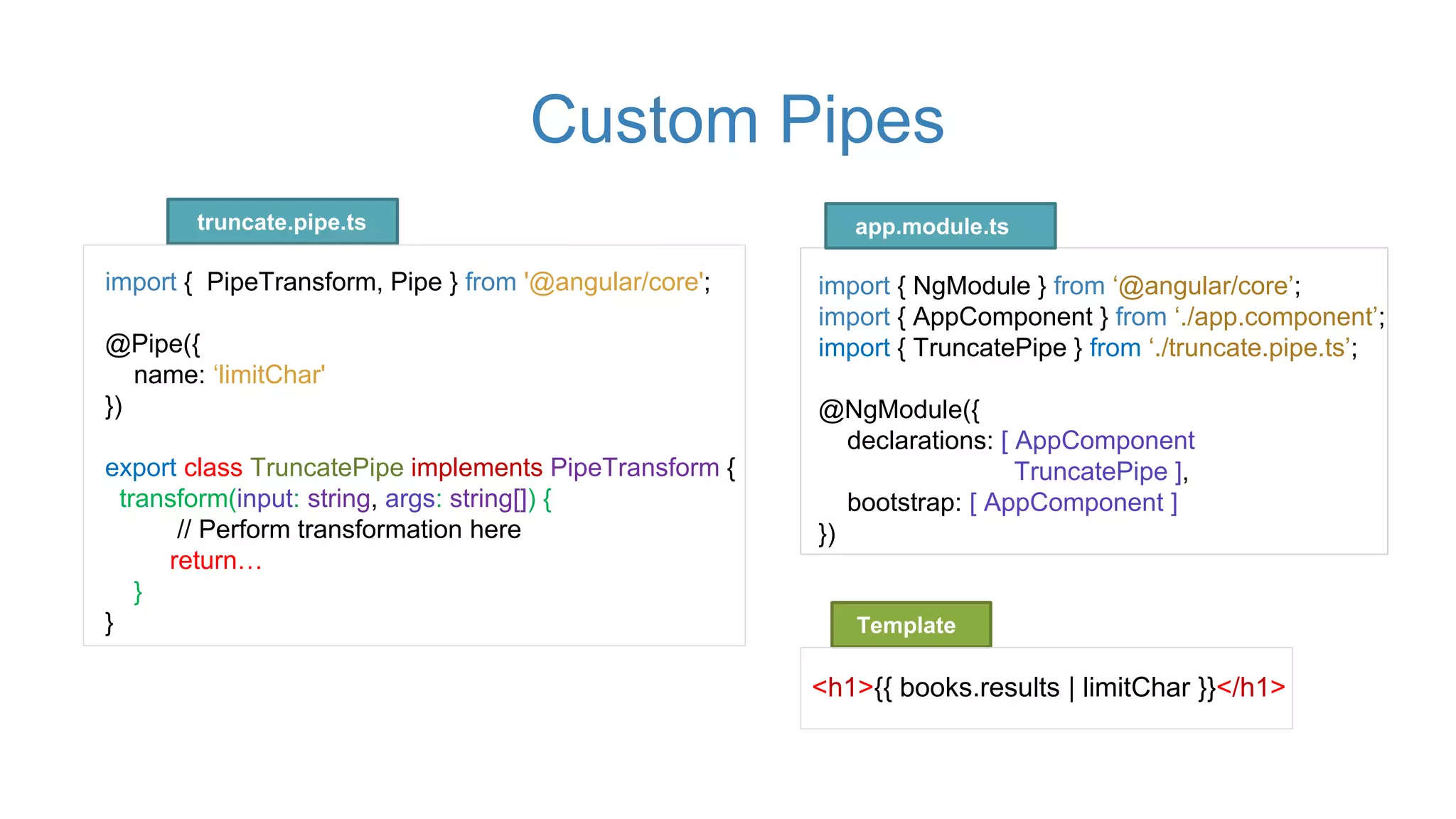

66. Custom Pipes
Template
import { PipeTransform, Pipe } from '@angular/core';
@Pipe({
name: ‘limitChar'
})
export class TruncatePipe implements PipeTransform {
transform(input: string, args: string[]) {
// Perform transformation here
return…
}
}
truncate.pipe.ts
<h1>{{ books.results | limitChar }}</h1>
import { NgModule } from ‘@angular/core’;
import { AppComponent } from ‘./app.component’;
import { TruncatePipe } from ‘./truncate.pipe.ts’;
@NgModule({
declarations: [ AppComponent
TruncatePipe ],
bootstrap: [ AppComponent ]
})
app.module.ts

67. Interface

68. Interface
“Used in Typescript to
define data types for
properties and methods”

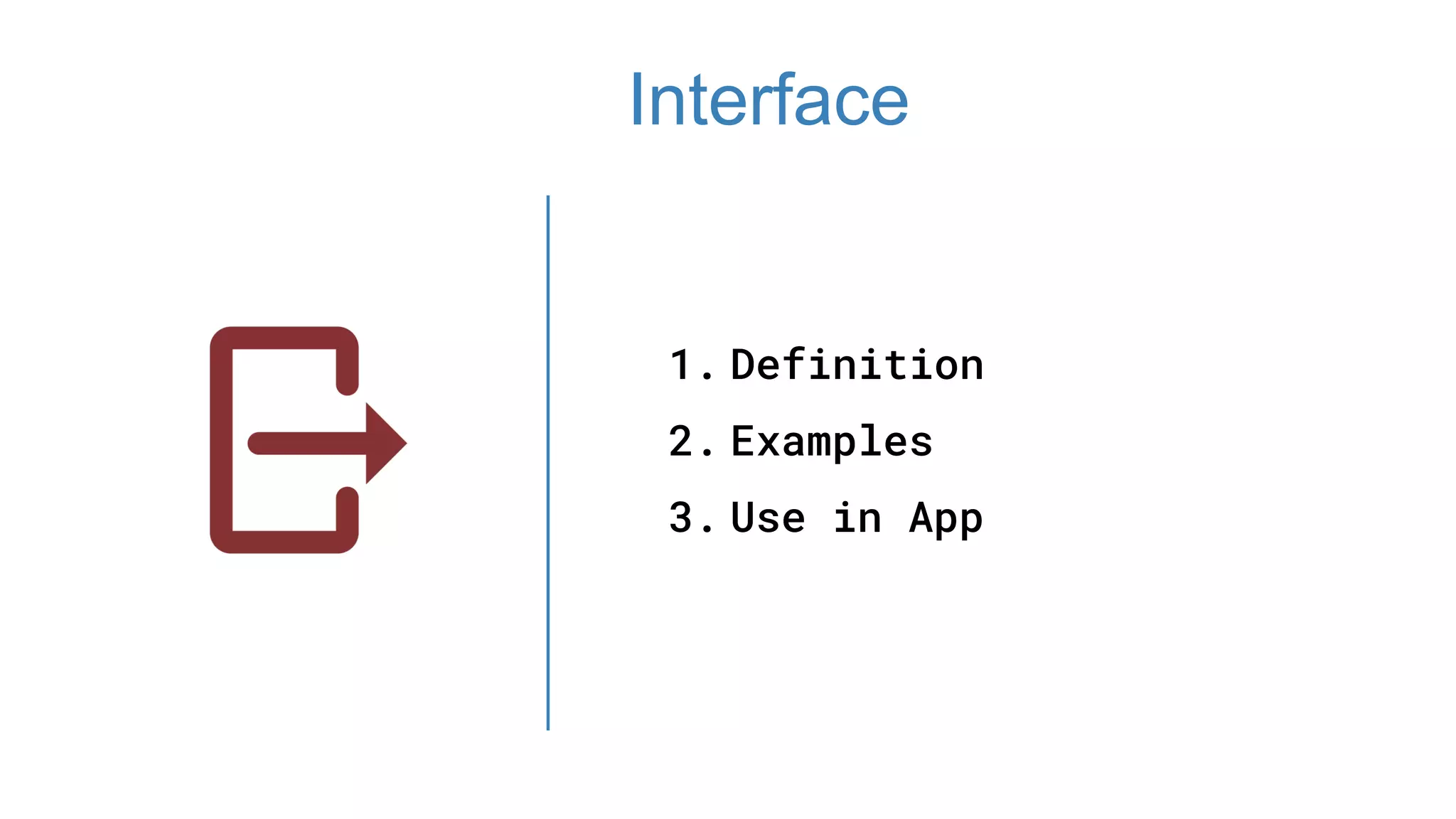

69. 1. Definition
2. Examples
3. Use in App
Interface

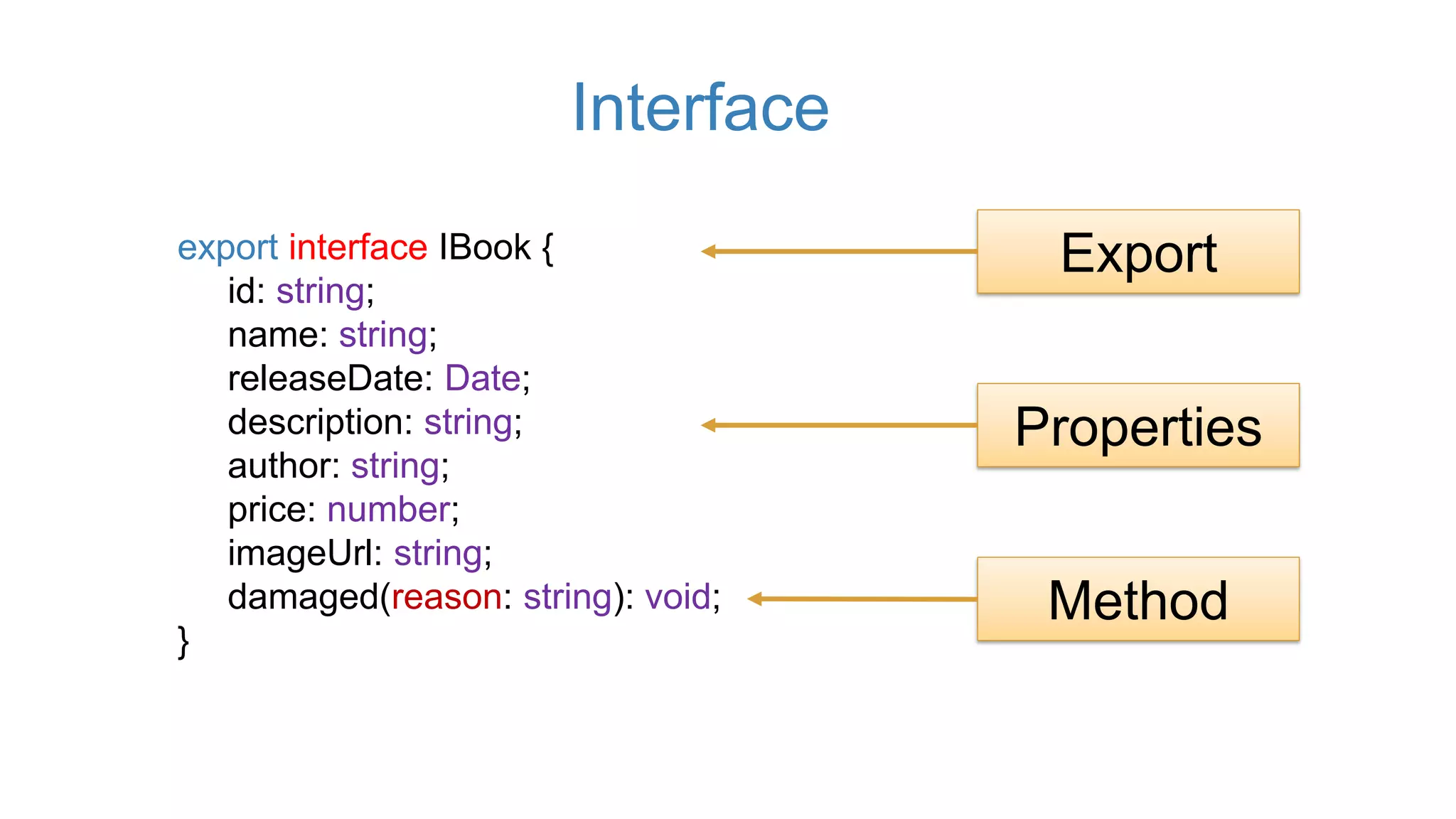

70. Interface
export interface IBook {
id: string;
name: string;
releaseDate: Date;
description: string;
author: string;
price: number;
imageUrl: string;
damaged(reason: string): void;
}
Method
Properties
Export

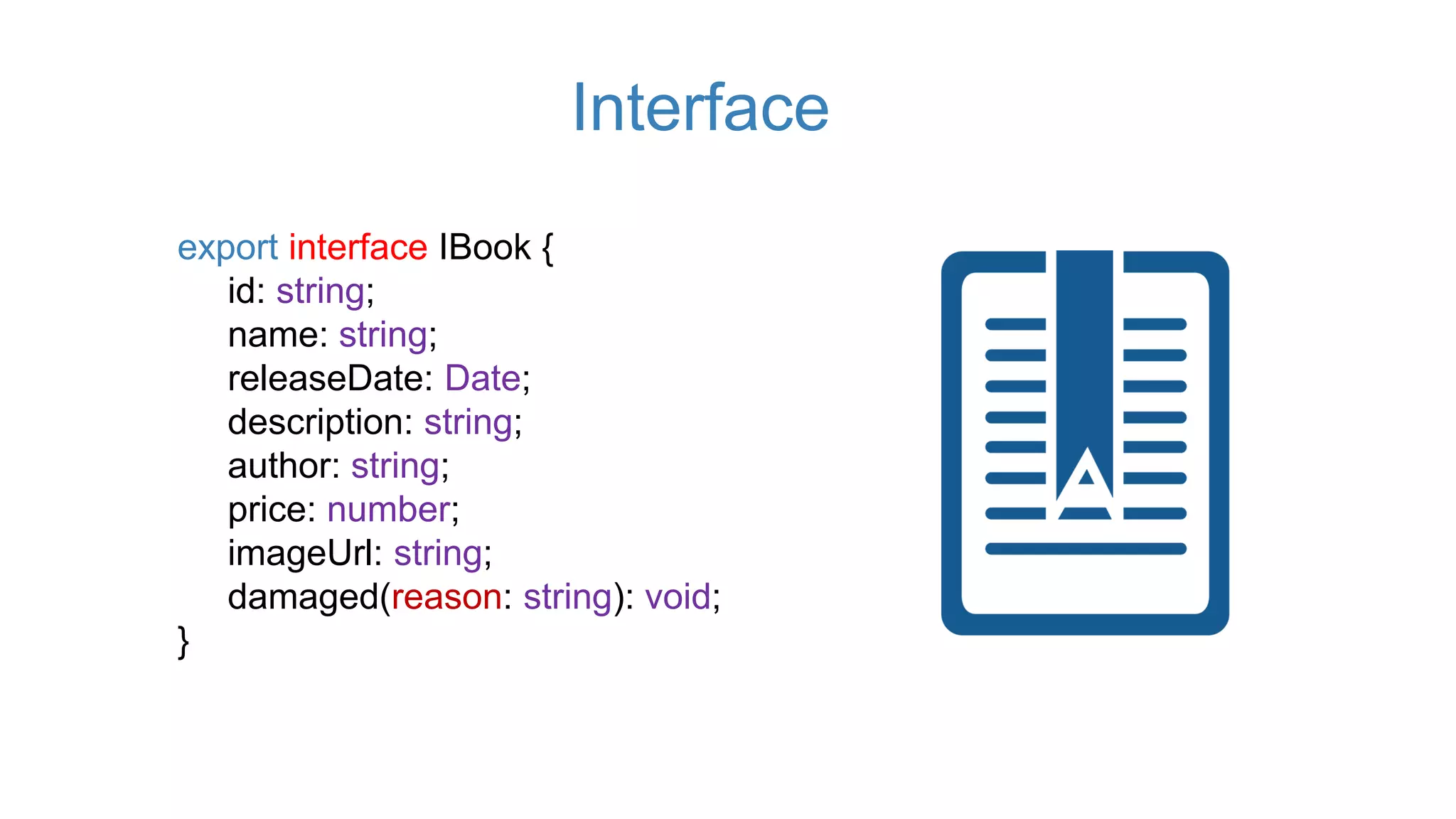

71. export interface IBook {
id: string;
name: string;
releaseDate: Date;
description: string;
author: string;
price: number;
imageUrl: string;
damaged(reason: string): void;
}
Interface

72. Strong Typing
Better Tooling
Development Time
Why Interfaces?

73. Lifecycle Hooks

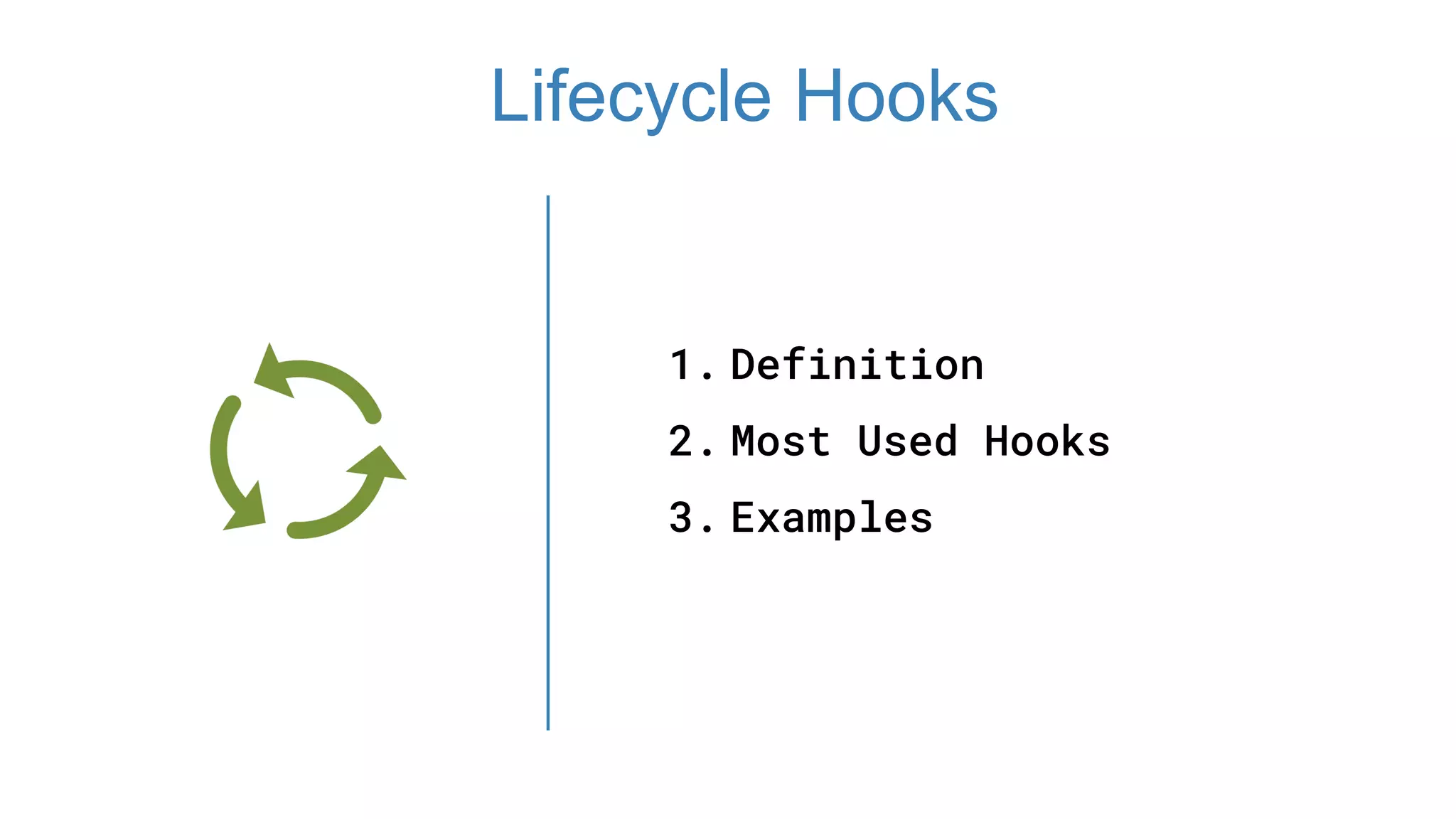

74. 1. Definition
2. Most Used Hooks
3. Examples
Lifecycle Hooks

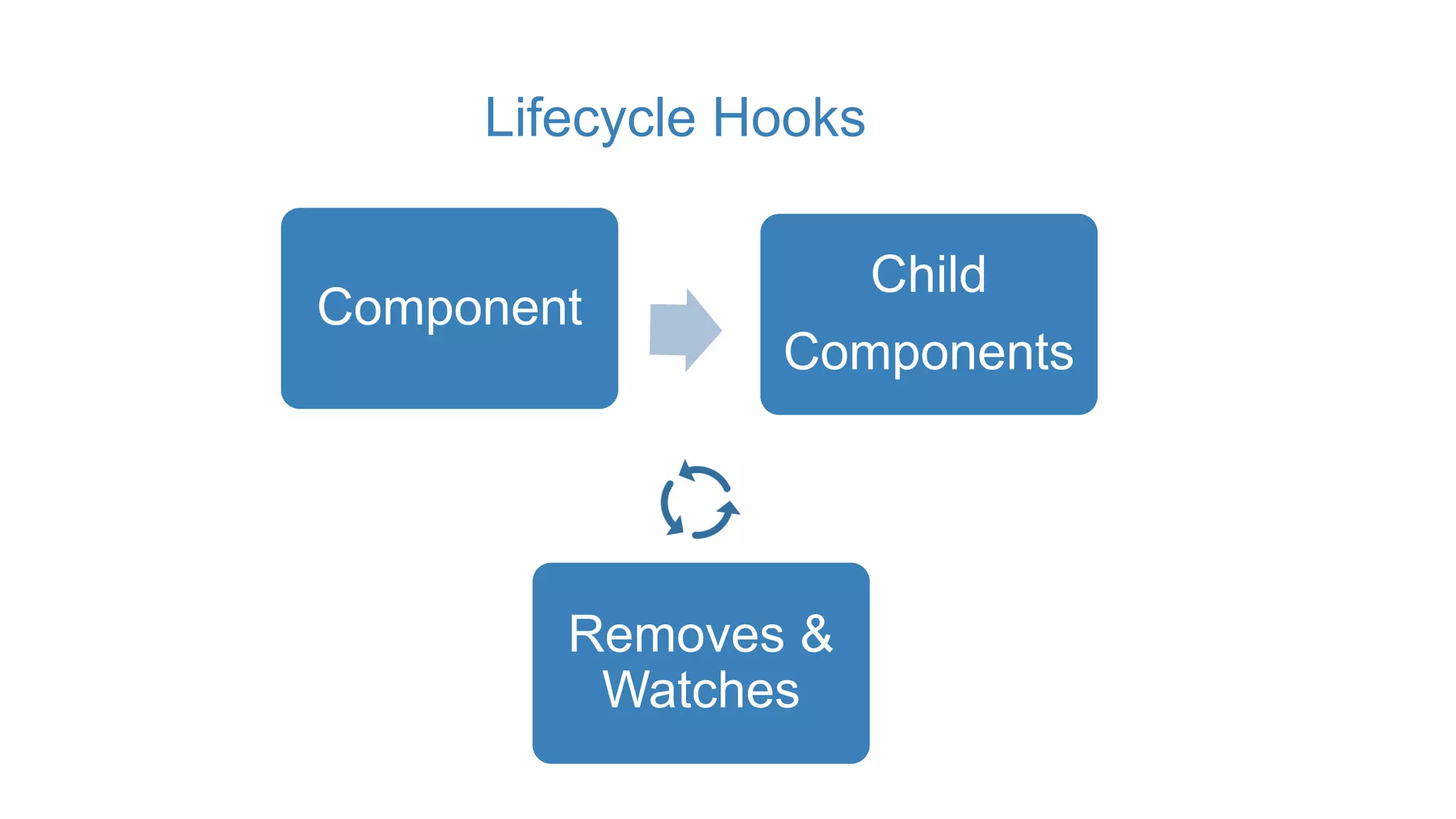

75. Lifecycle Hooks
Component
Child
Components
Removes &
Watches

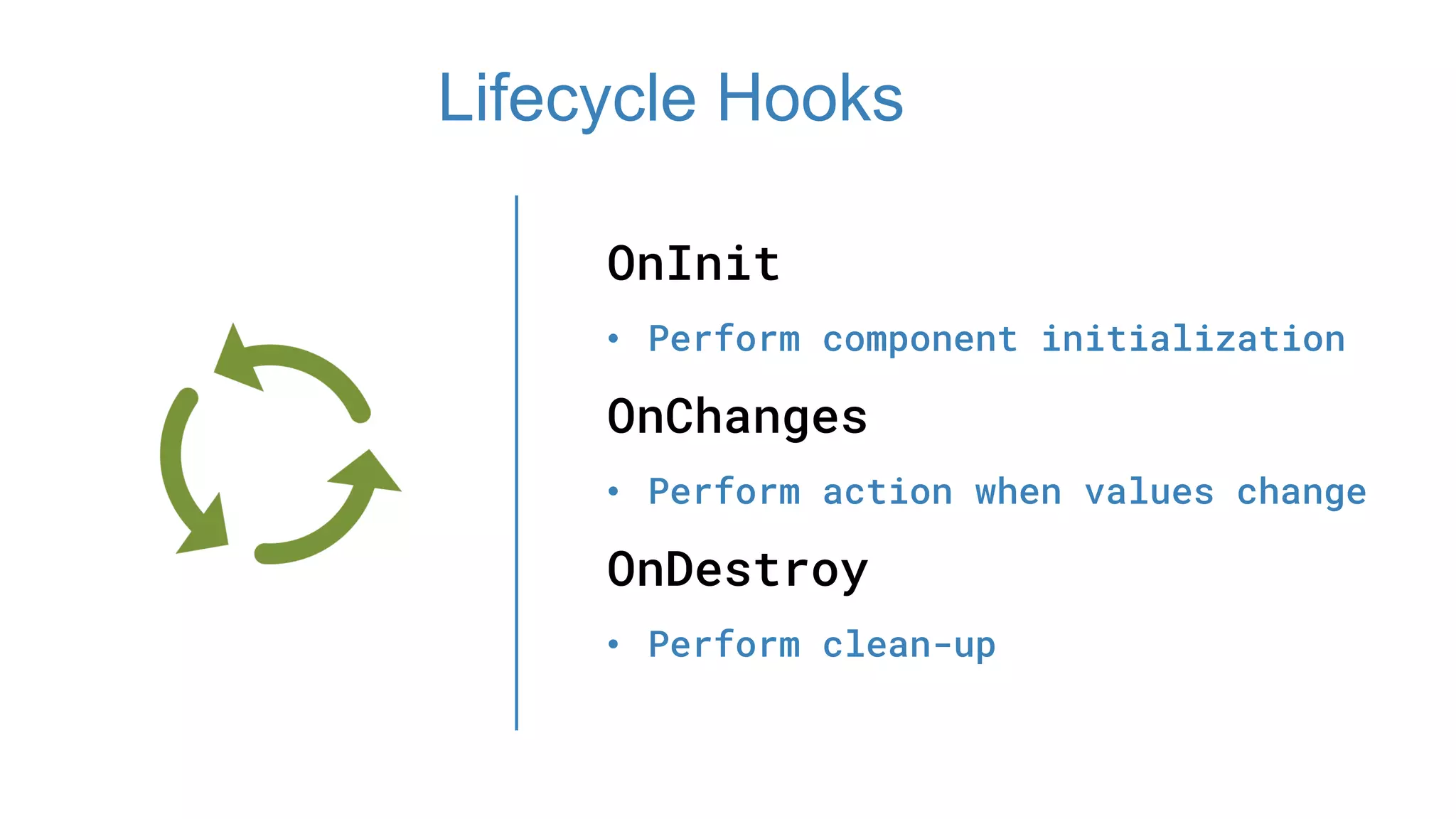

76. OnInit
• Perform component initialization
OnChanges
• Perform action when values change
OnDestroy
• Perform clean-up
Lifecycle Hooks

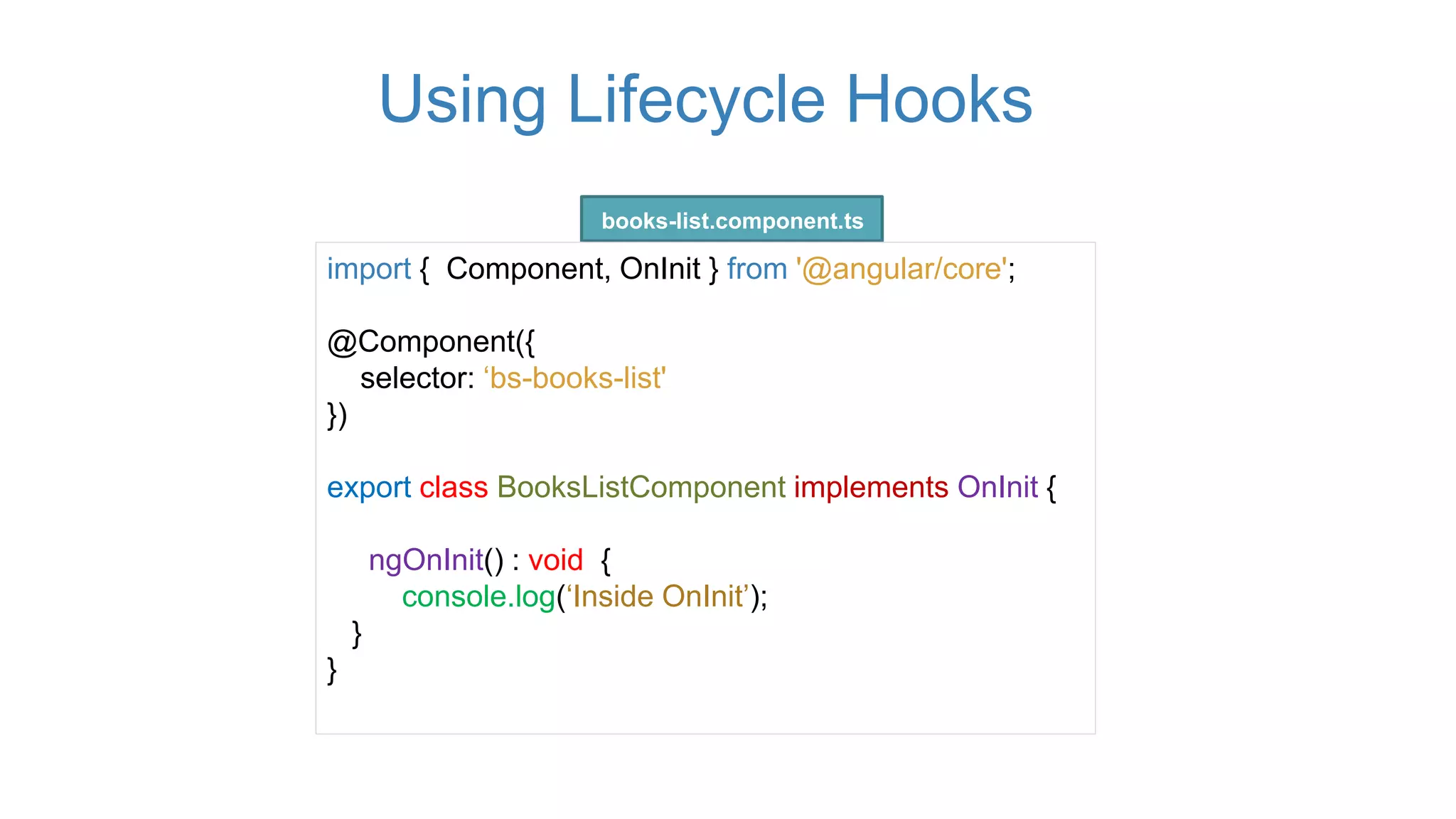

77. Using Lifecycle Hooks
import { Component, OnInit } from '@angular/core';
@Component({
selector: ‘bs-books-list'
})
export class BooksListComponent implements OnInit {
ngOnInit() : void {
console.log(‘Inside OnInit’);
}
}
books-list.component.ts

78. Inputs and Outputs

79. 1.Nested Components
2.@Input / @Output
3.Custom Events
Inputs and Outputs

80. Nested Components

81. Bootstrapper
main.ts
App Component

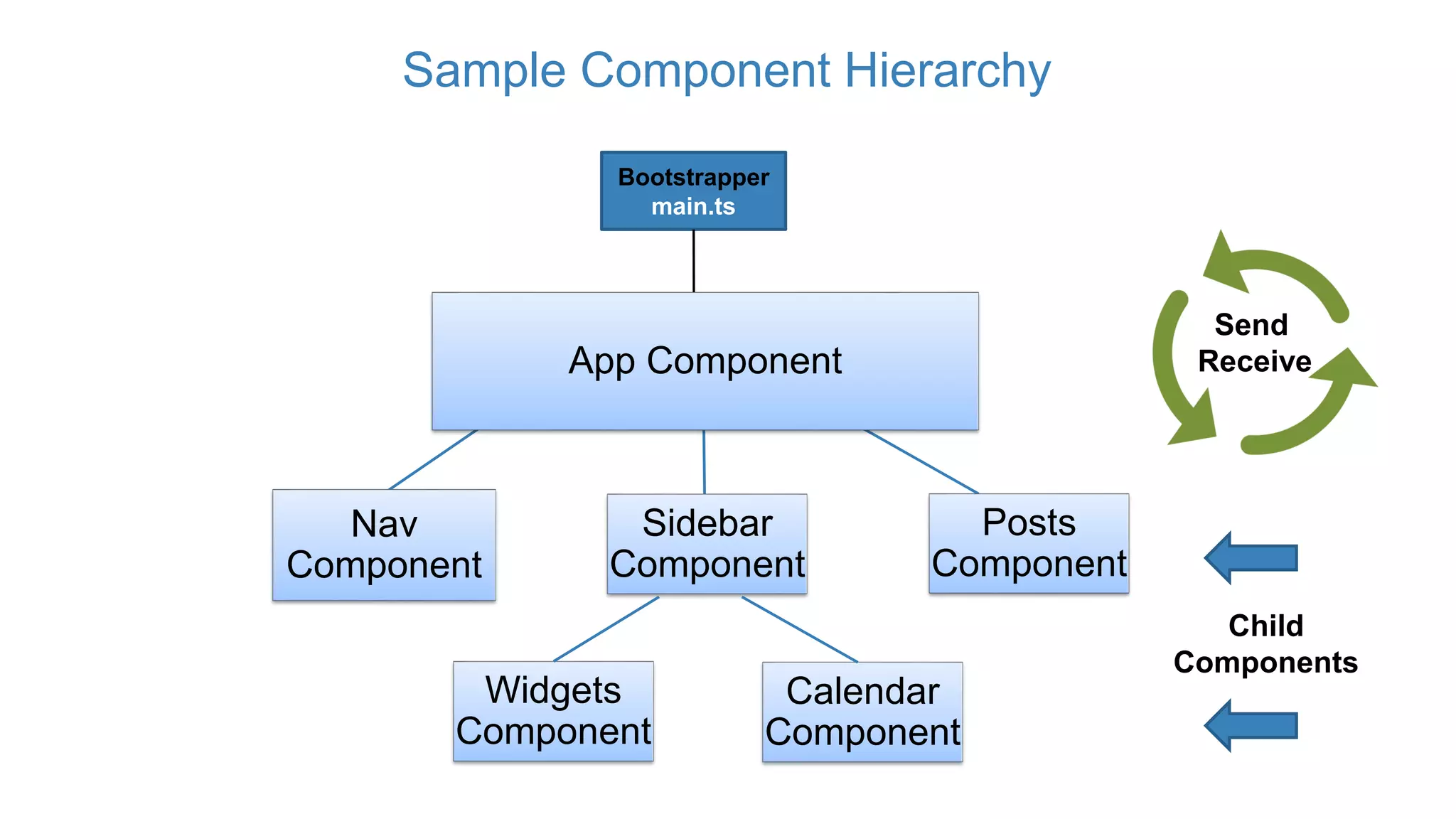

Sidebar
Component
Posts
Component
Nav
Component
Sample Component Hierarchy
Widgets
Component
Calendar
Component
Child
Components
Send
Receive

82. @Input
“Allows data to flow
from parent component
to child component”

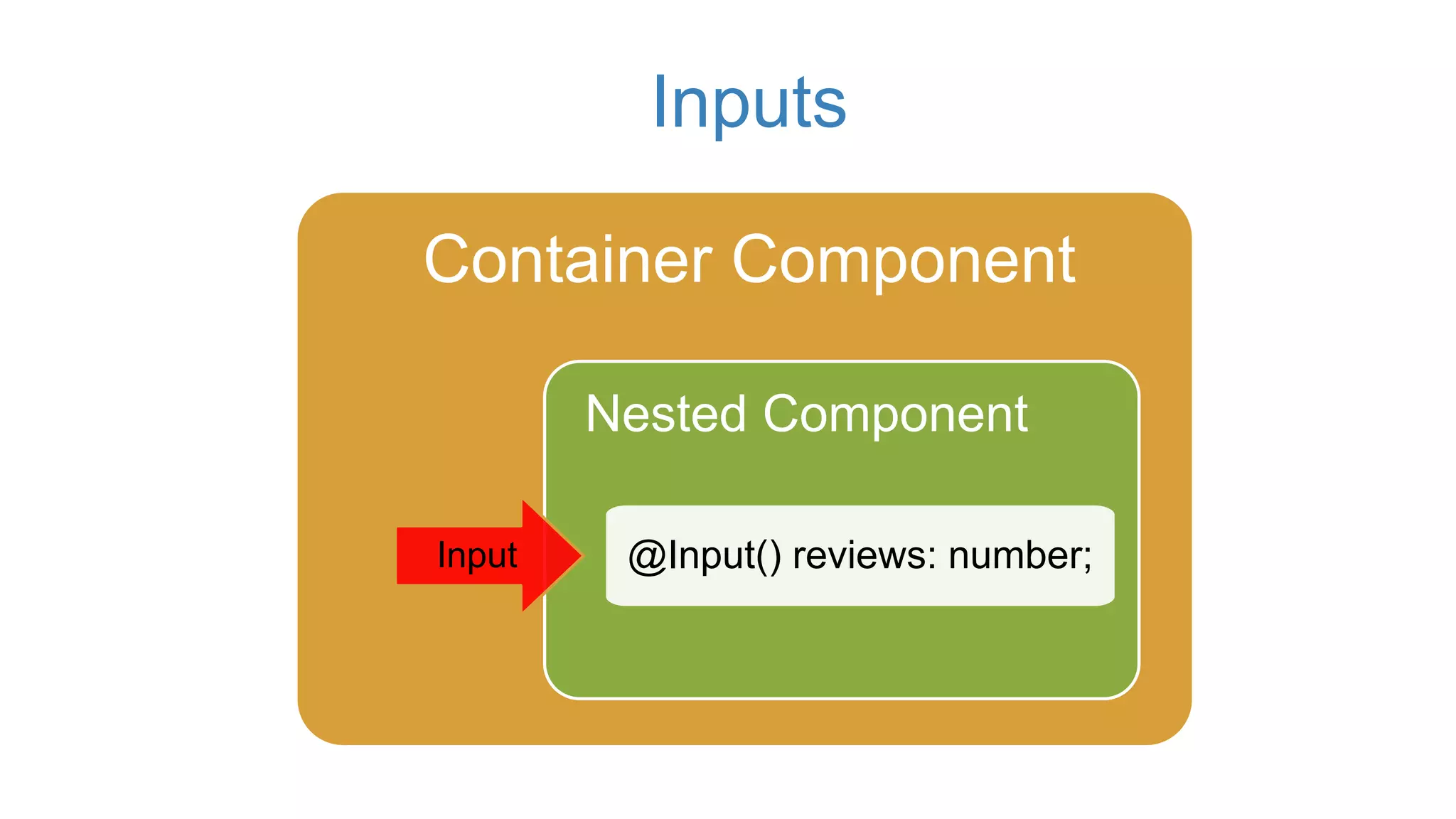

83. Inputs
Container Component
Nested Component
@Input() reviews: number;Input

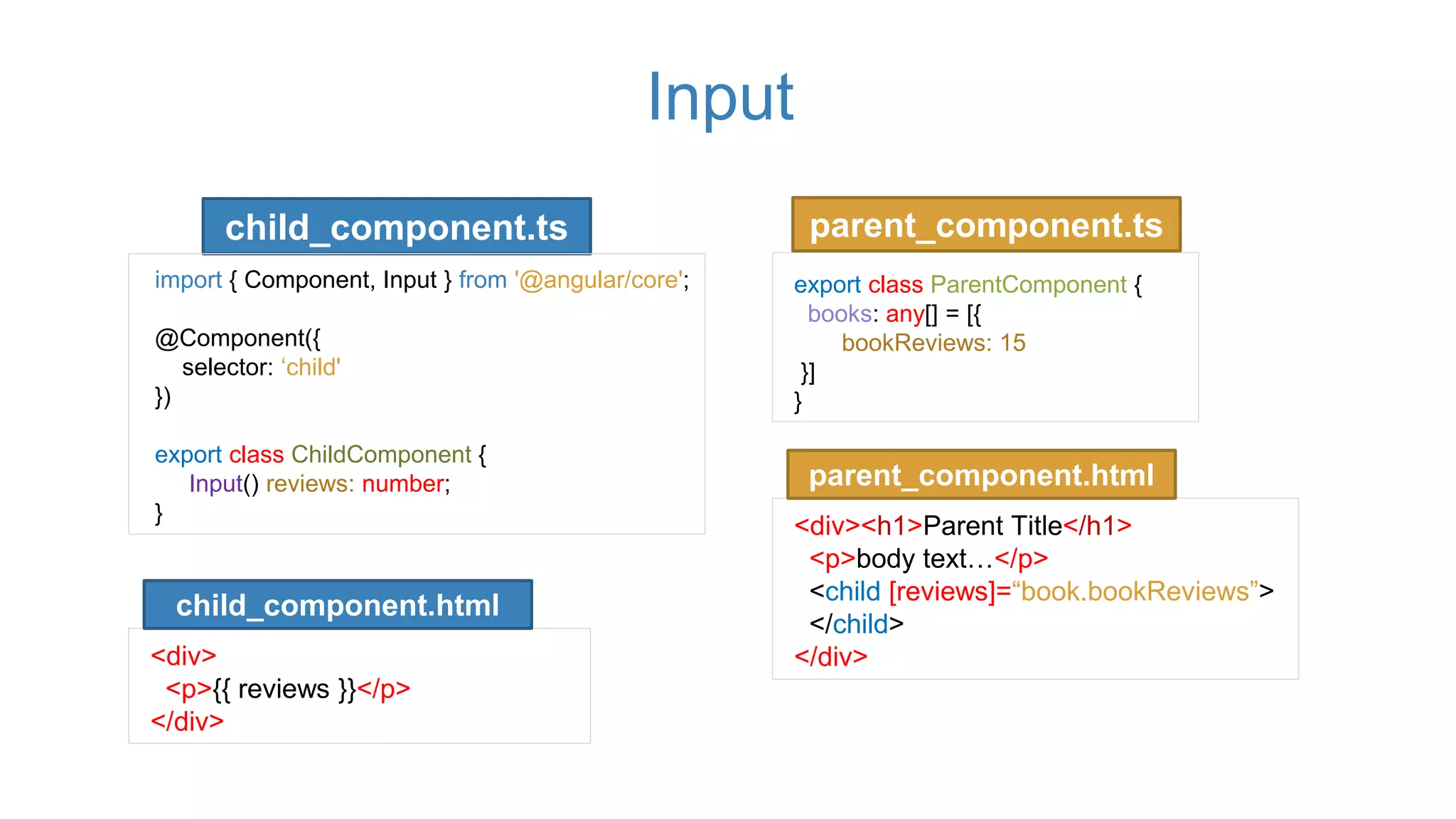

84. child_component.ts
export class ParentComponent {
books: any[] = [{
bookReviews: 15
}]
}
Input
parent_component.ts
import { Component, Input } from '@angular/core';
@Component({
selector: ‘child'
})
export class ChildComponent {
Input() reviews: number;
}
parent_component.html
<div><h1>Parent Title</h1>
<p>body text…</p>
<child [reviews]=“book.bookReviews”>
</child>
</div>
child_component.html
<div>
<p>{{ reviews }}</p>
</div>

85. @Output
“Custom events that pass
data from component to the
outside world.”

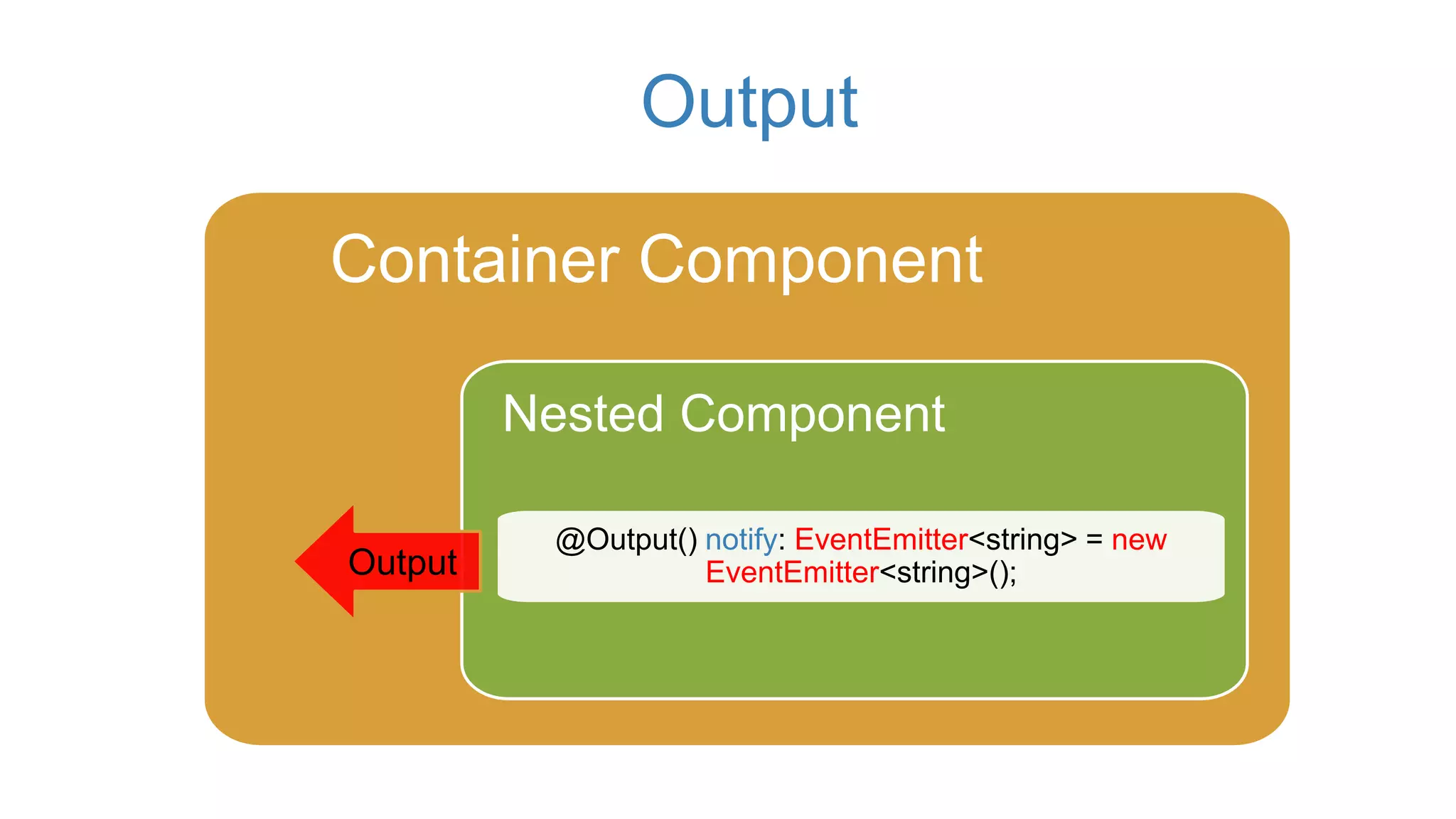

86. Output
Container Component
Nested Component
@Output() notify: EventEmitter<string> = new
EventEmitter<string>();Output

87. EventEmitter
“Listens for something to
happen and emits an event
when triggered”

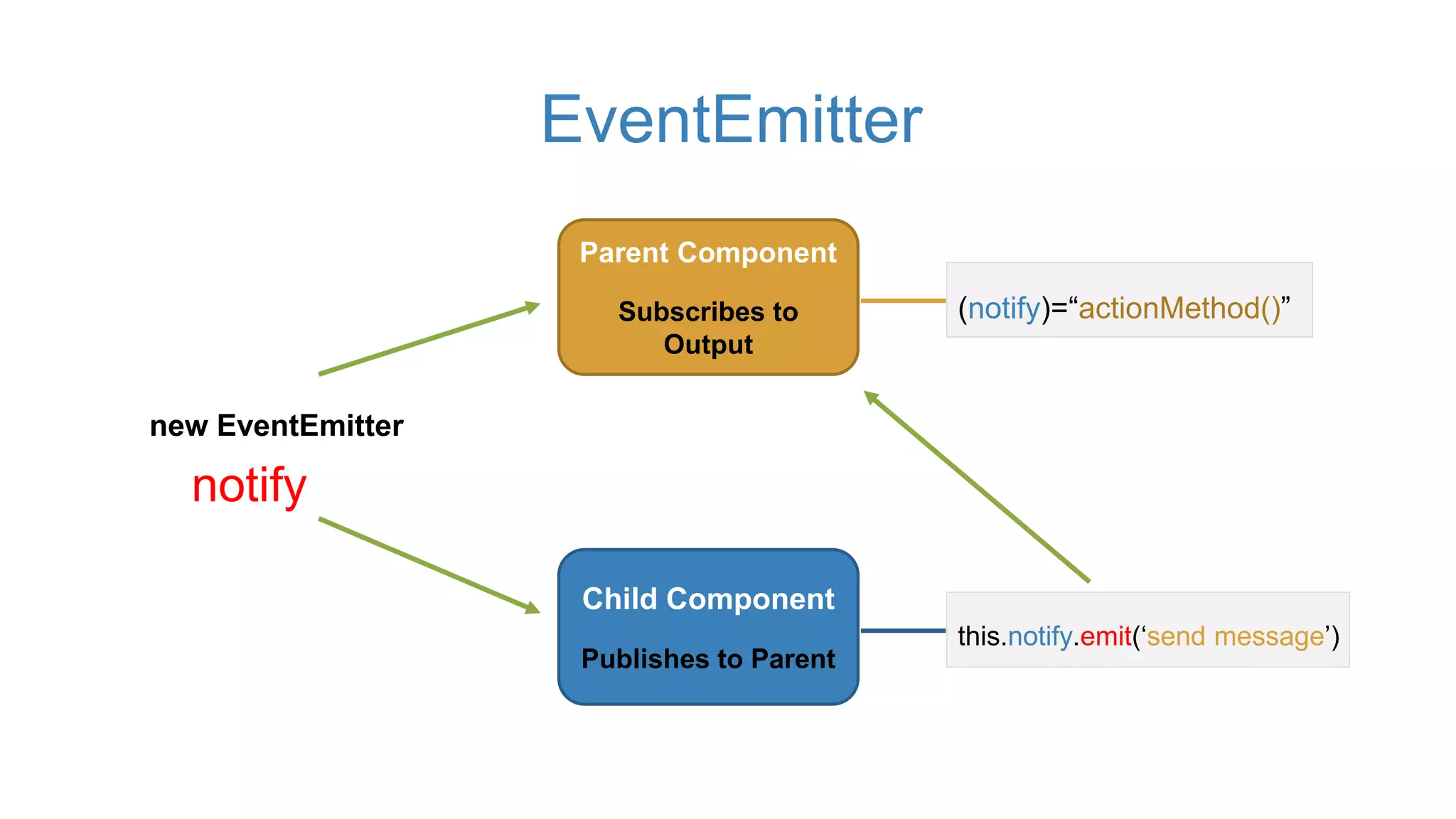

88. EventEmitter
notify
Child Component
Publishes to Parent
new EventEmitter
this.notify.emit(‘send message’)
Parent Component
Subscribes to
Output
(notify)=“actionMethod()”

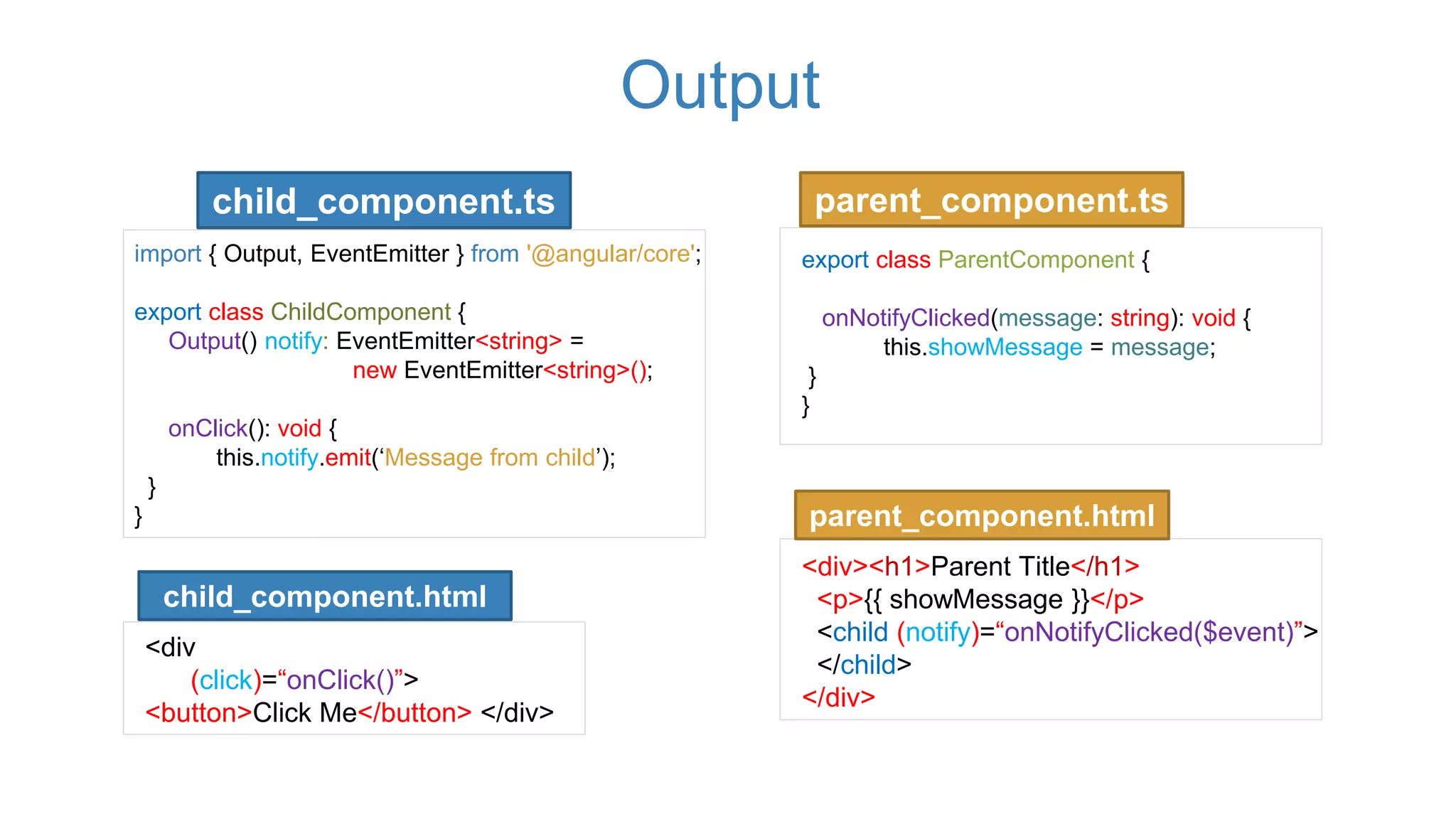

89. child_component.ts
export class ParentComponent {
onNotifyClicked(message: string): void {
this.showMessage = message;
}
}
Output
parent_component.ts
import { Output, EventEmitter } from '@angular/core';
export class ChildComponent {
Output() notify: EventEmitter<string> =
new EventEmitter<string>();
onClick(): void {
this.notify.emit(‘Message from child’);
}
} parent_component.html
<div><h1>Parent Title</h1>
<p>{{ showMessage }}</p>
<child (notify)=“onNotifyClicked($event)”>
</child>
</div>
child_component.html
<div
(click)=“onClick()”>
<button>Click Me</button> </div>

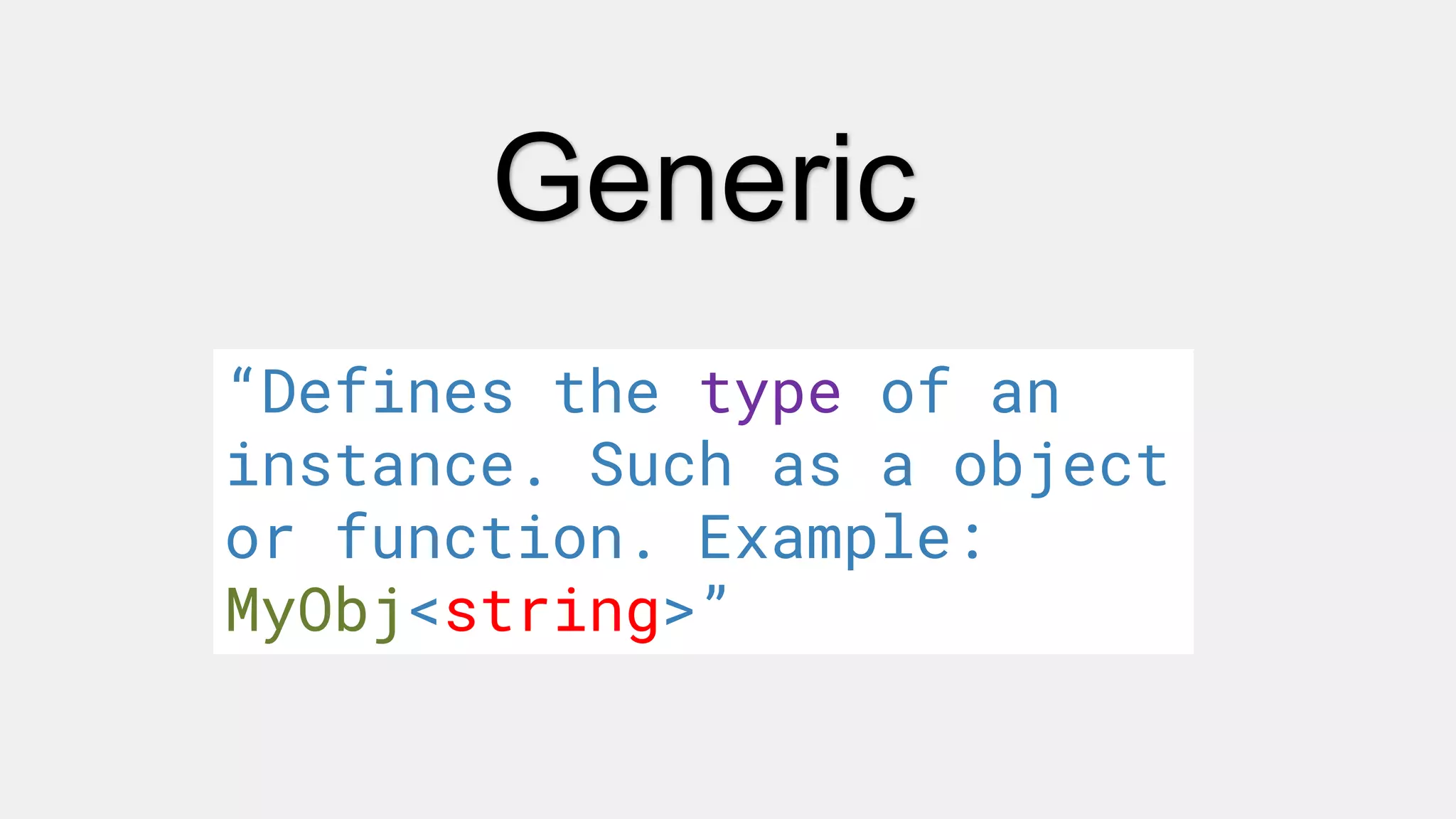

90. Generic
“Defines the type of an
instance. Such as a object
or function. Example:
MyObj<string>”

91. Services

92. What are Services
• Building
• Registering
• Injecting
Dependency Injection
• Singleton
Constructor
• Initial setup
Services

93. Service
“Used to encapsulate logic
that can be used across
multiple components”

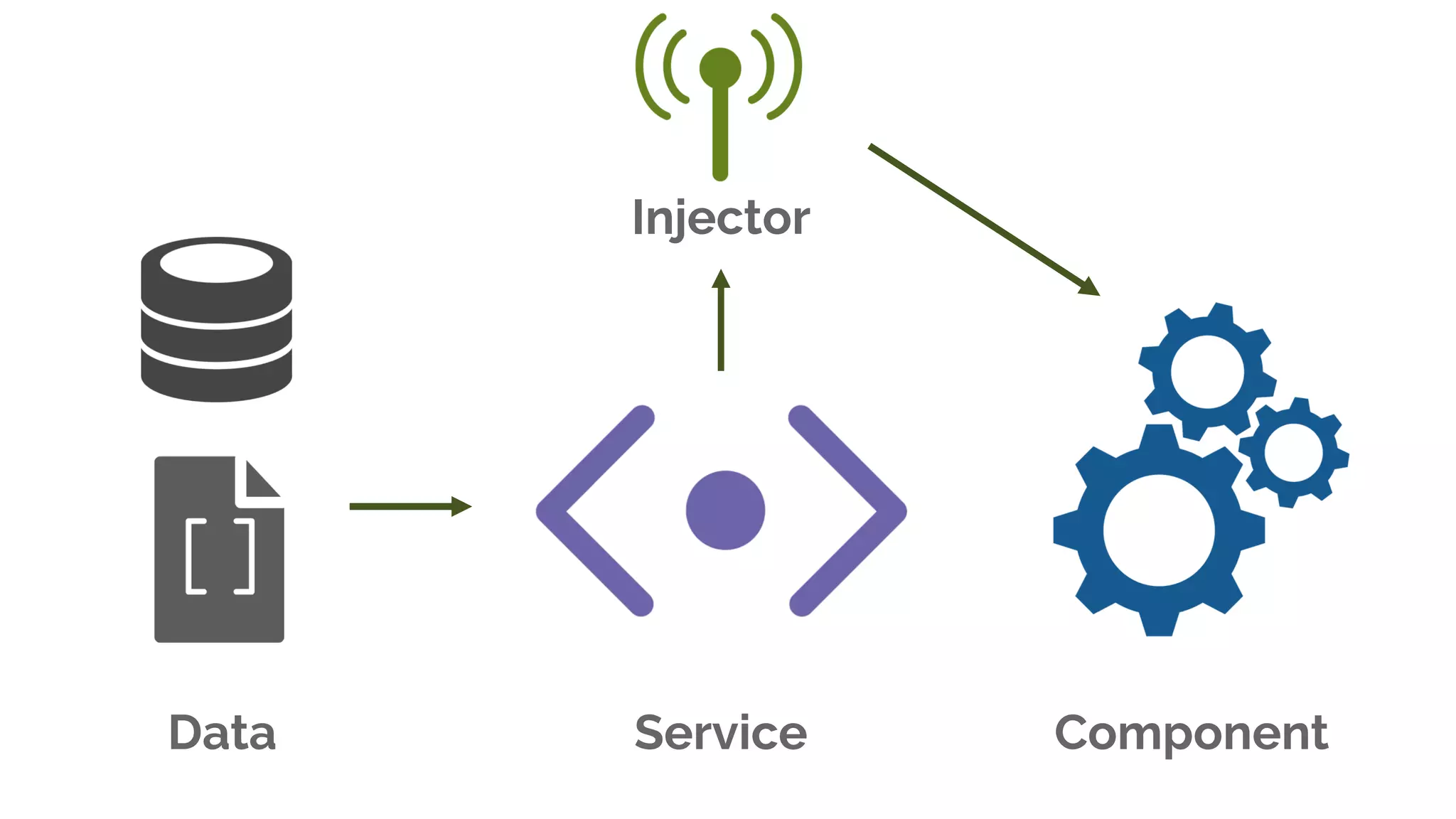

94. Data Service Component
Injector

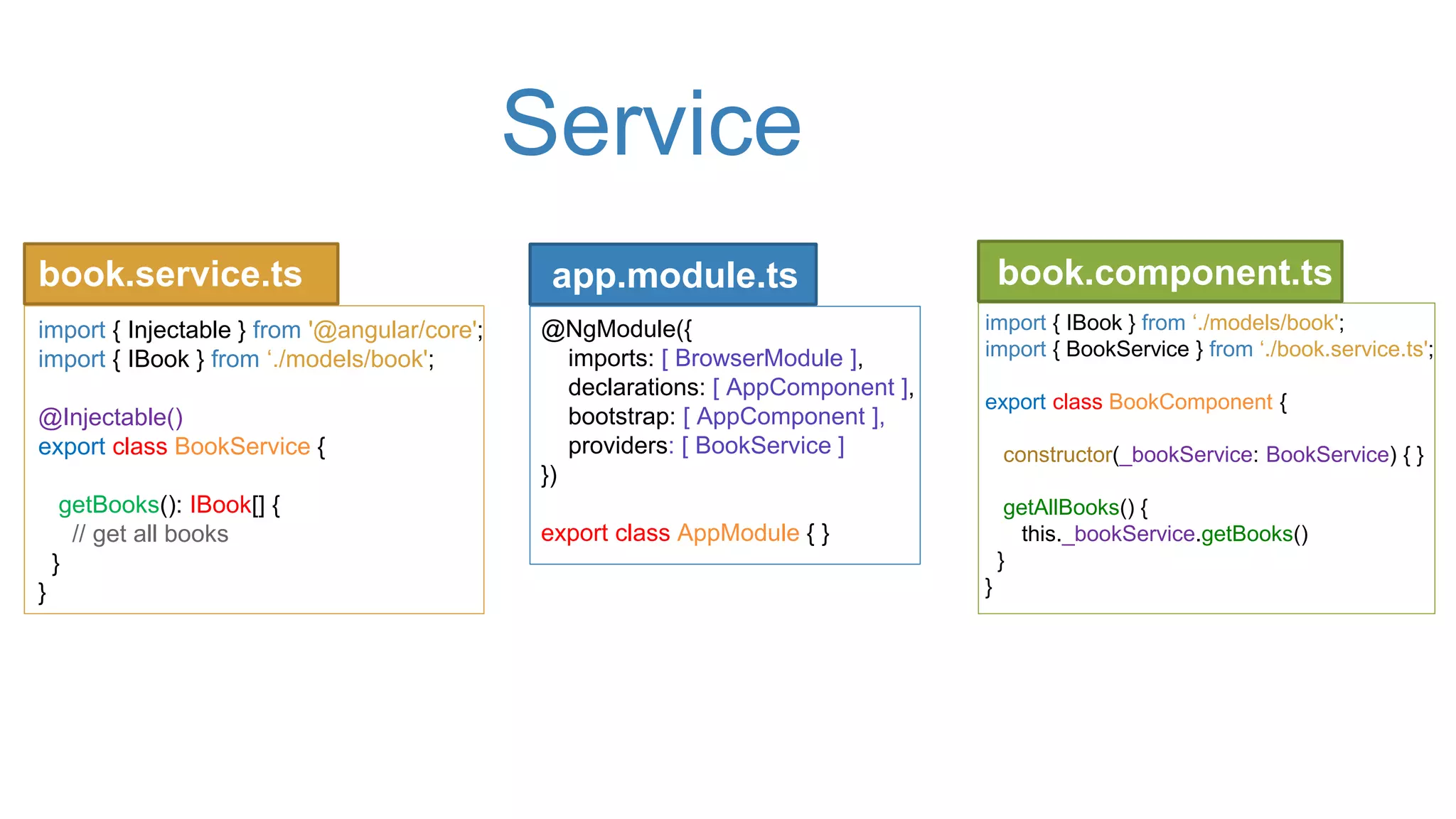

95. Service
@NgModule({
imports: [ BrowserModule ],
declarations: [ AppComponent ],
bootstrap: [ AppComponent ],
providers: [ BookService ]
})
export class AppModule { }
book.service.ts
import { Injectable } from '@angular/core';
import { IBook } from ‘./models/book';
@Injectable()
export class BookService {
getBooks(): IBook[] {
// get all books
}
}
import { IBook } from ‘./models/book';
import { BookService } from ‘./book.service.ts';
export class BookComponent {
constructor(_bookService: BookService) { }
getAllBooks() {
this._bookService.getBooks()
}
}
app.module.ts book.component.ts

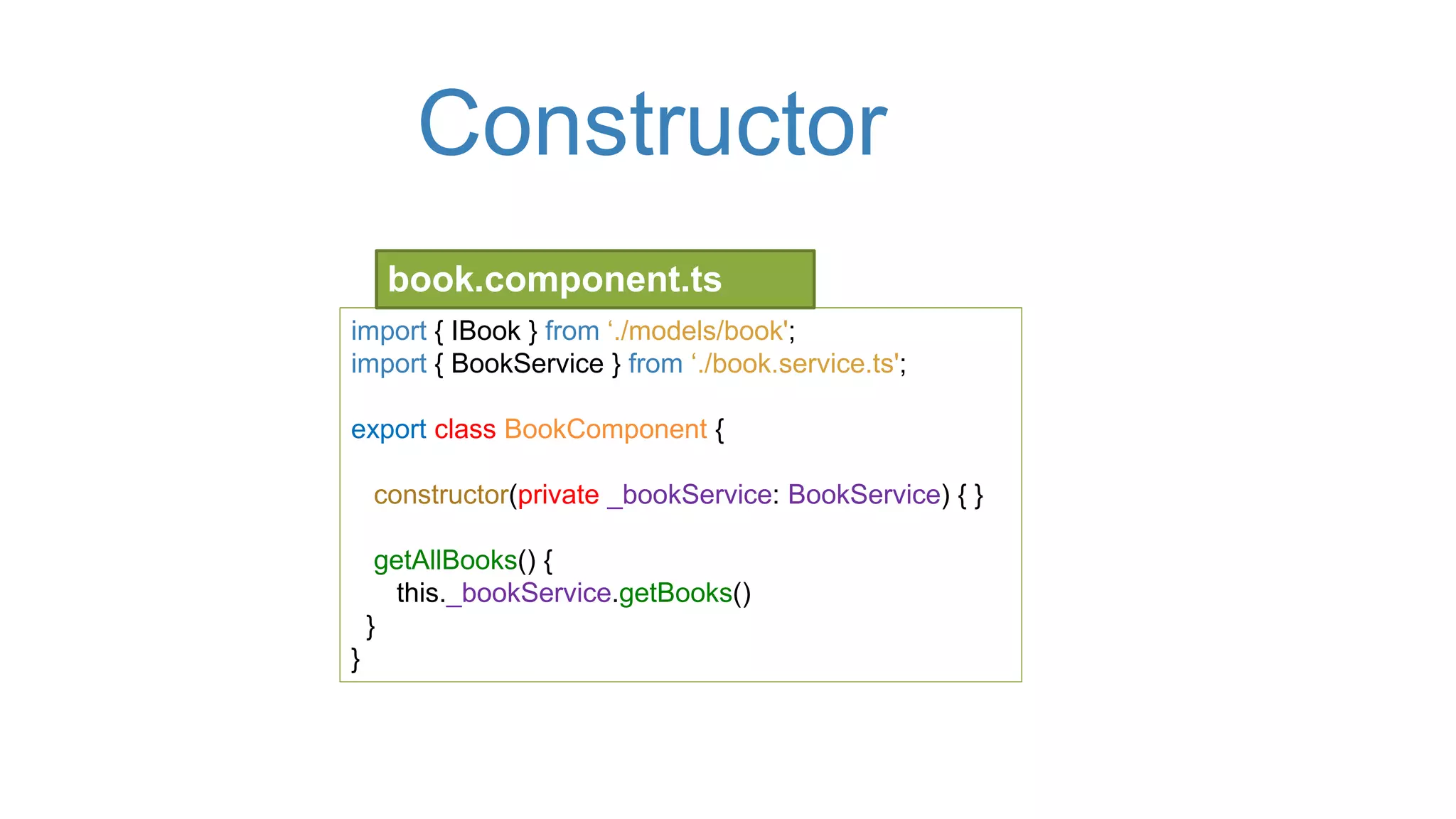

96. Constructor
import { IBook } from ‘./models/book';
import { BookService } from ‘./book.service.ts';
export class BookComponent {
constructor(private _bookService: BookService) { }
getAllBooks() {
this._bookService.getBooks()
}
}
book.component.ts

97. Special Method
Initial Setup
No Return Value
Constructor

98. HTTP & Observables

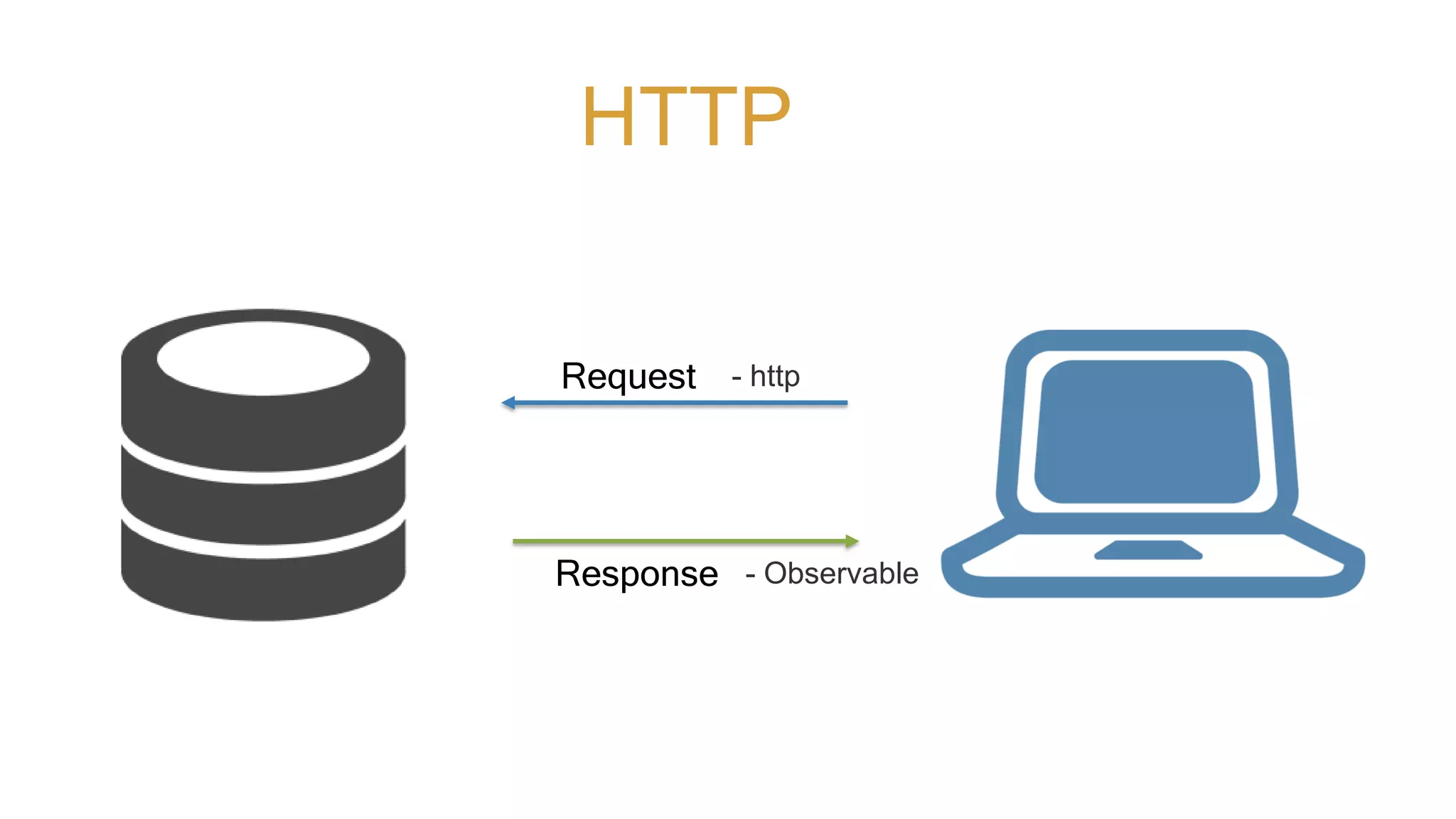

99. HTTP
Request
Response
- http
- Observable

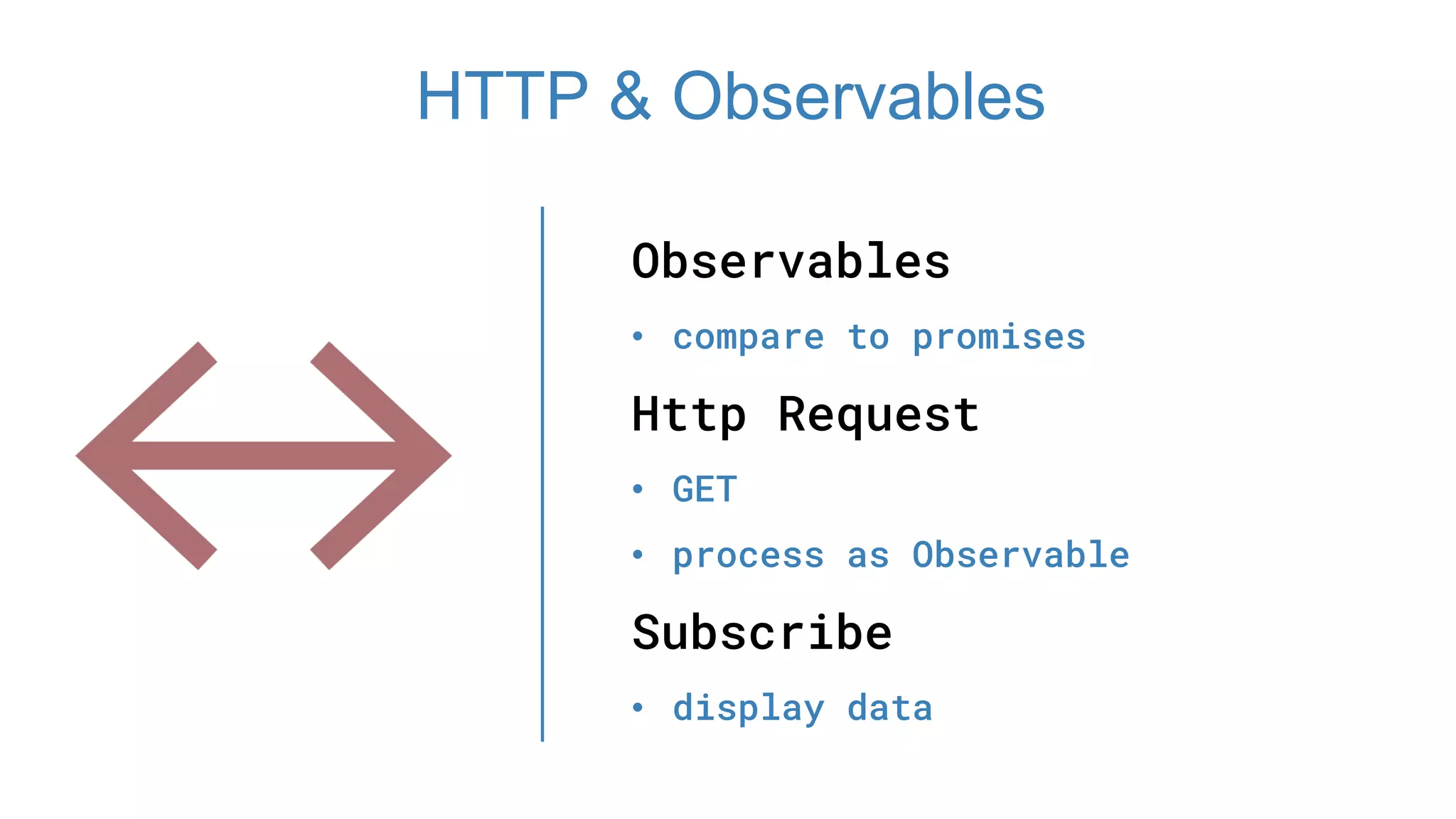

100. Observables
• compare to promises
Http Request
• GET
• process as Observable
Subscribe
• display data
HTTP & Observables

101. Observables

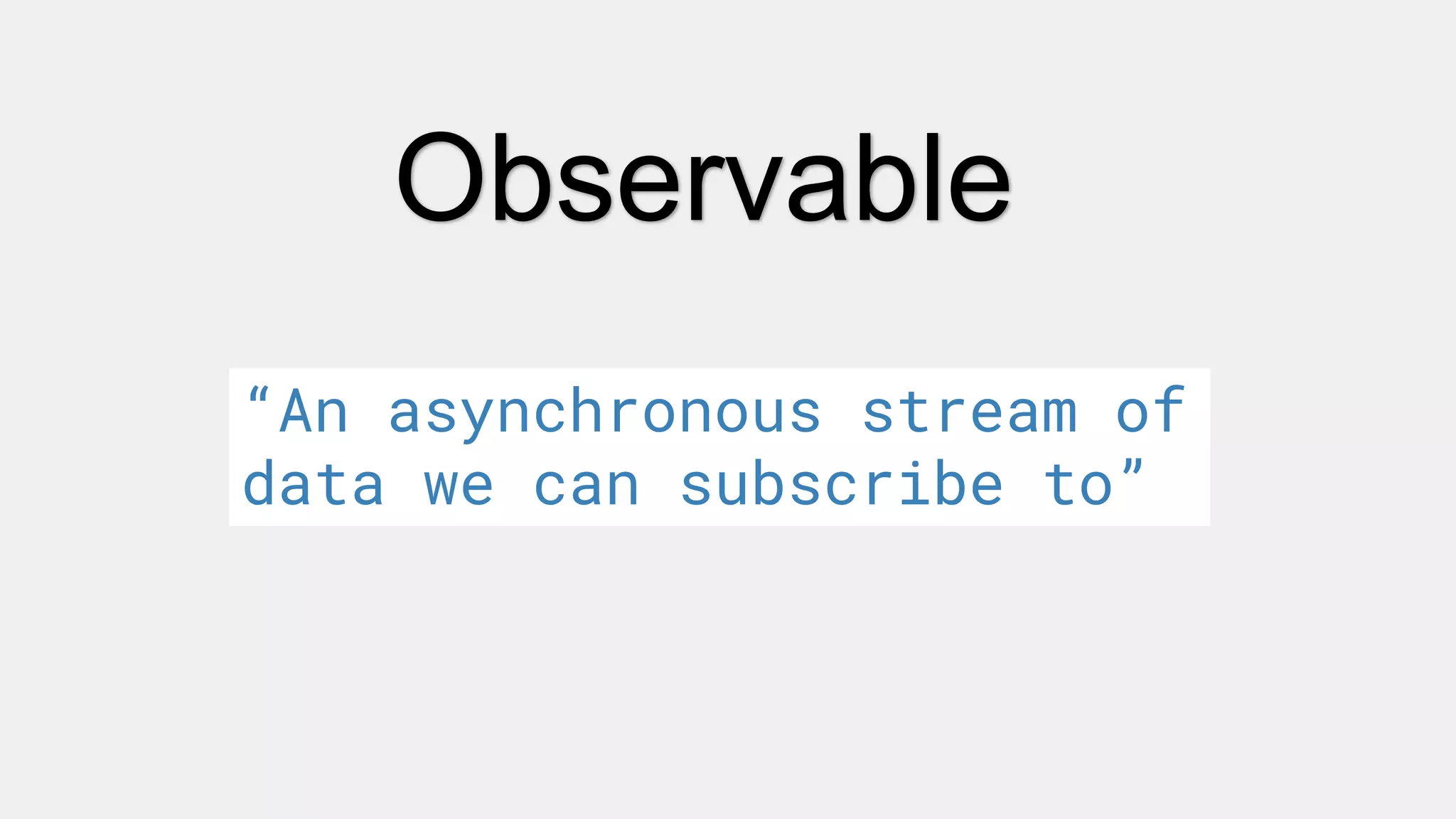

102. Observable
“An asynchronous stream of
data we can subscribe to”

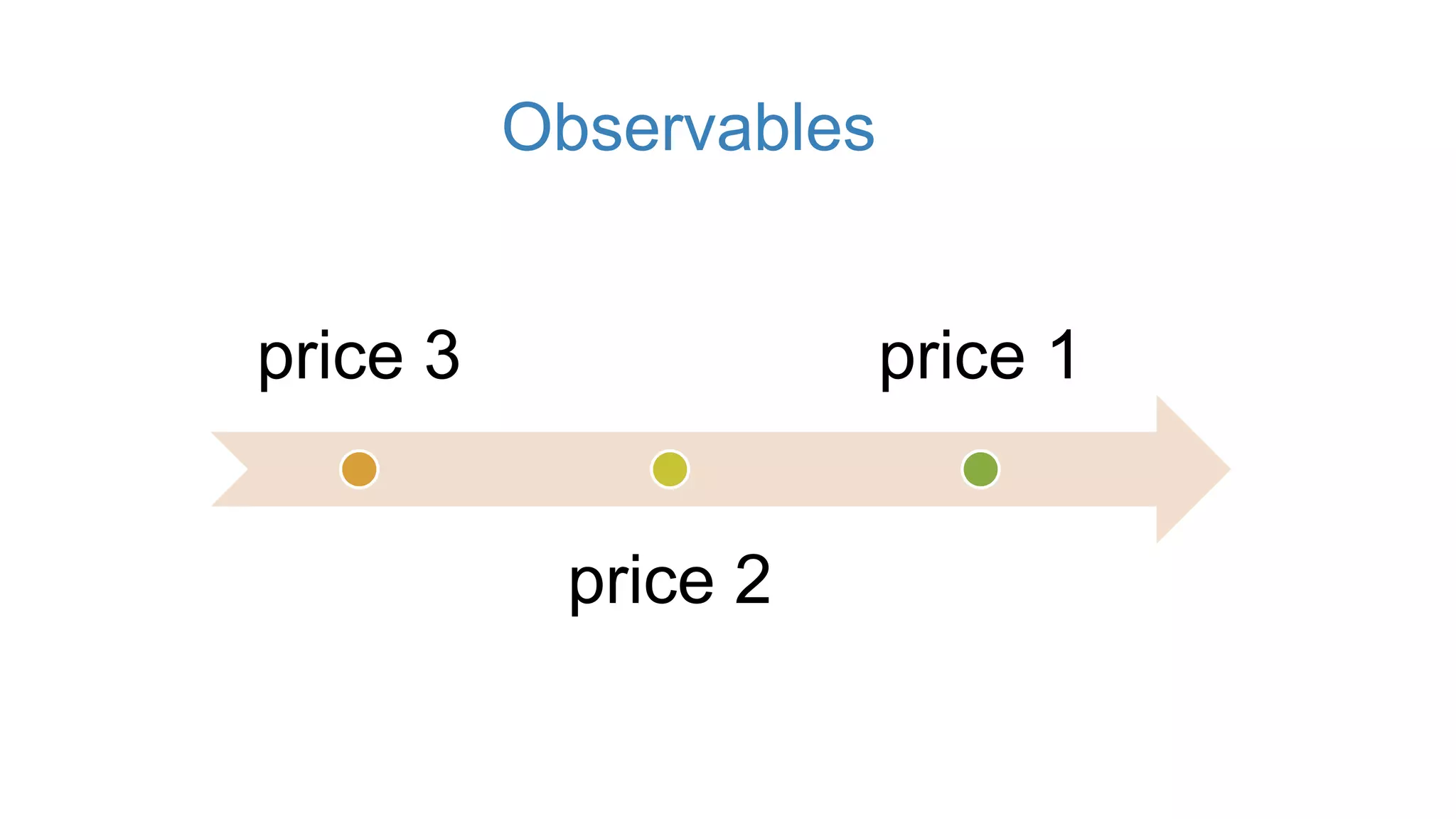

103. price 3
price 2
price 1
Observables

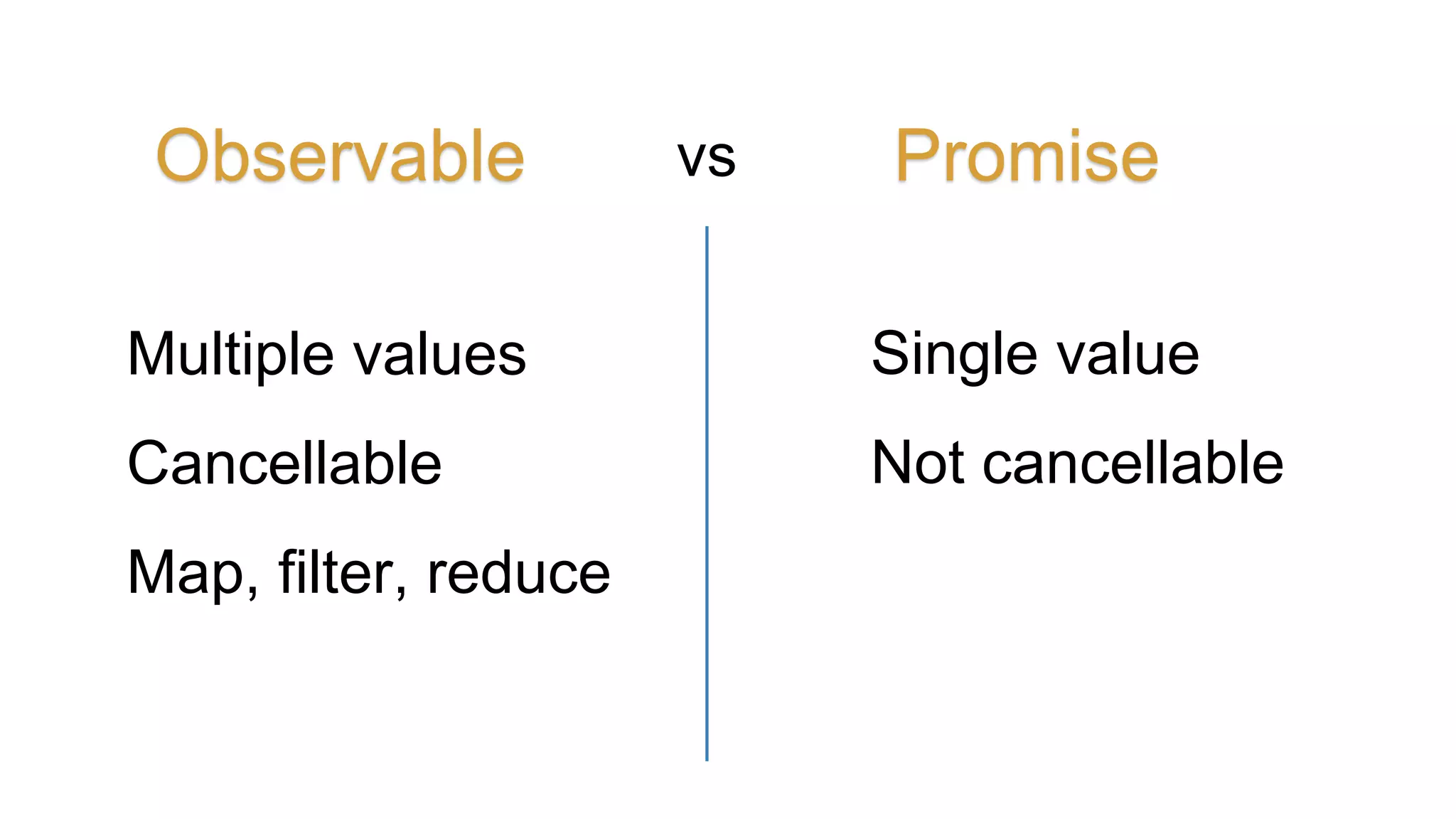

104. Single value
Not cancellable
Observable
Multiple values
Cancellable
Map, filter, reduce
Promisevs

105. HTTP

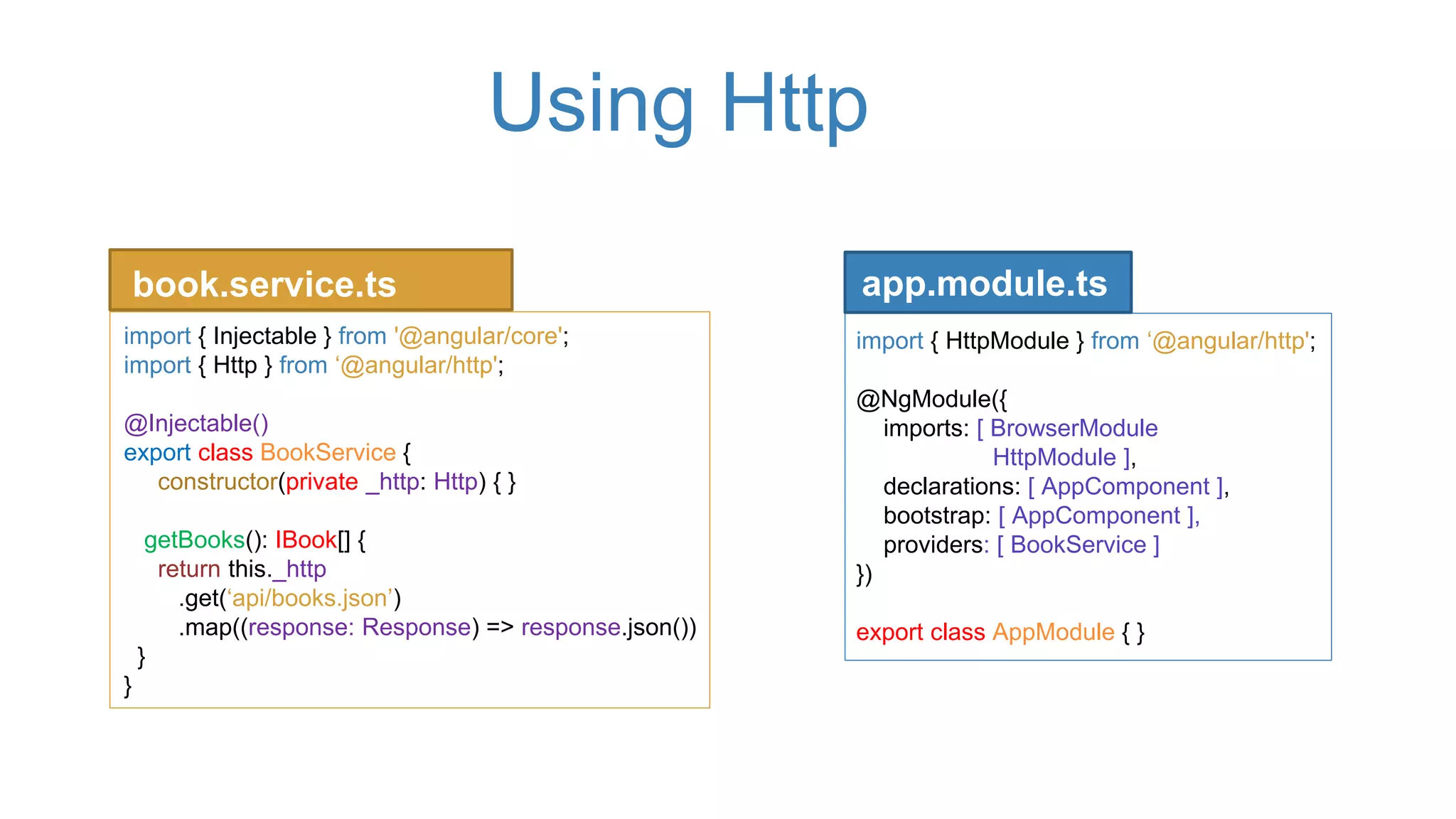

106. Using Http
import { HttpModule } from ‘@angular/http';
@NgModule({
imports: [ BrowserModule
HttpModule ],
declarations: [ AppComponent ],
bootstrap: [ AppComponent ],
providers: [ BookService ]
})
export class AppModule { }
book.service.ts
import { Injectable } from '@angular/core';
import { Http } from ‘@angular/http';
@Injectable()
export class BookService {
constructor(private _http: Http) { }
getBooks(): IBook[] {
return this._http
.get(‘api/books.json’)
.map((response: Response) => response.json())
}
}
app.module.ts

107. Routing

108. Simple Routing
• <router-outlet>
routerLink
• menu, buttons
Pass Parameters
• book-details
Routing

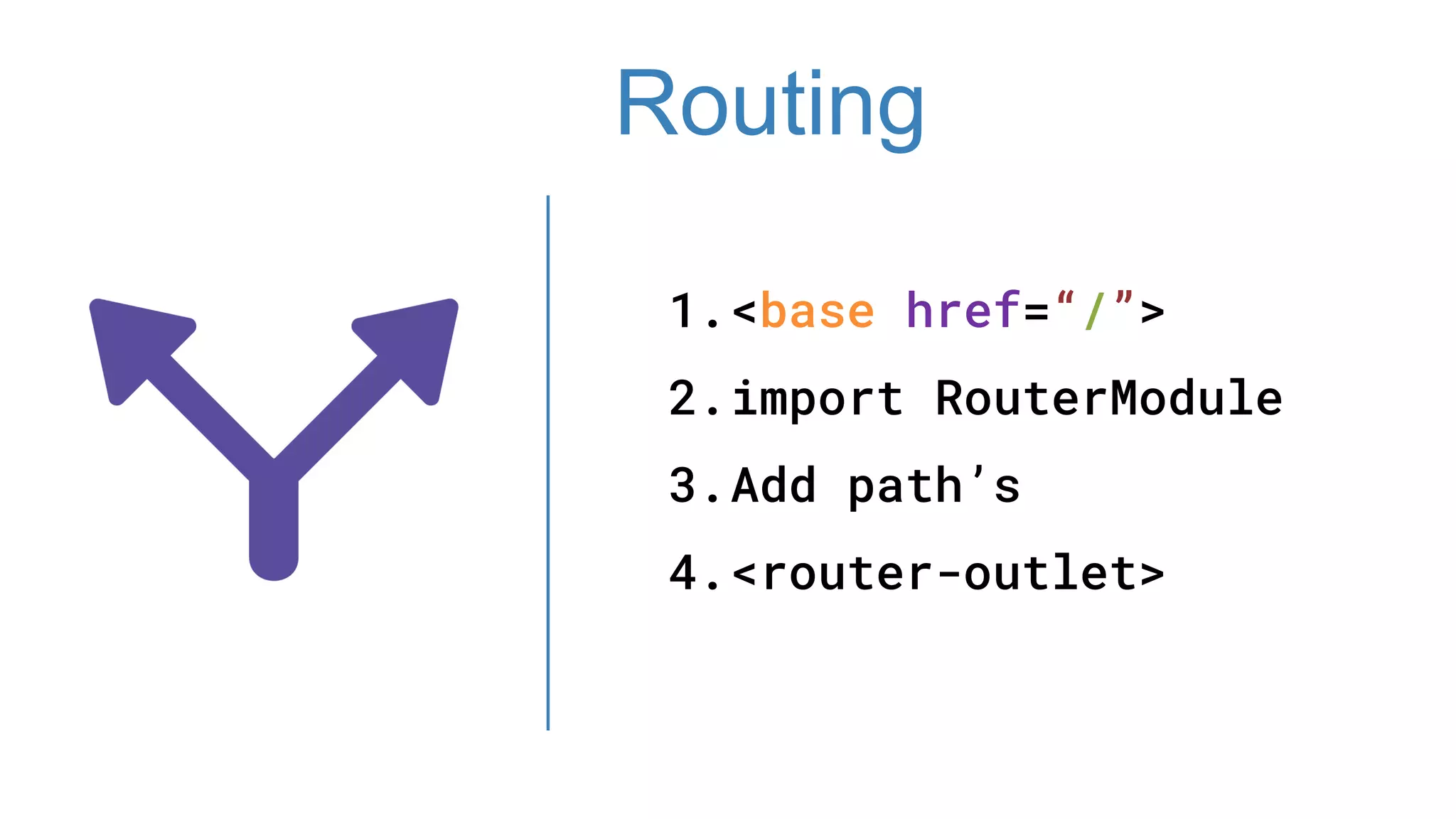

109. 1.<base href=“/”>
2.import RouterModule
3.Add path’s
4.<router-outlet>
Routing

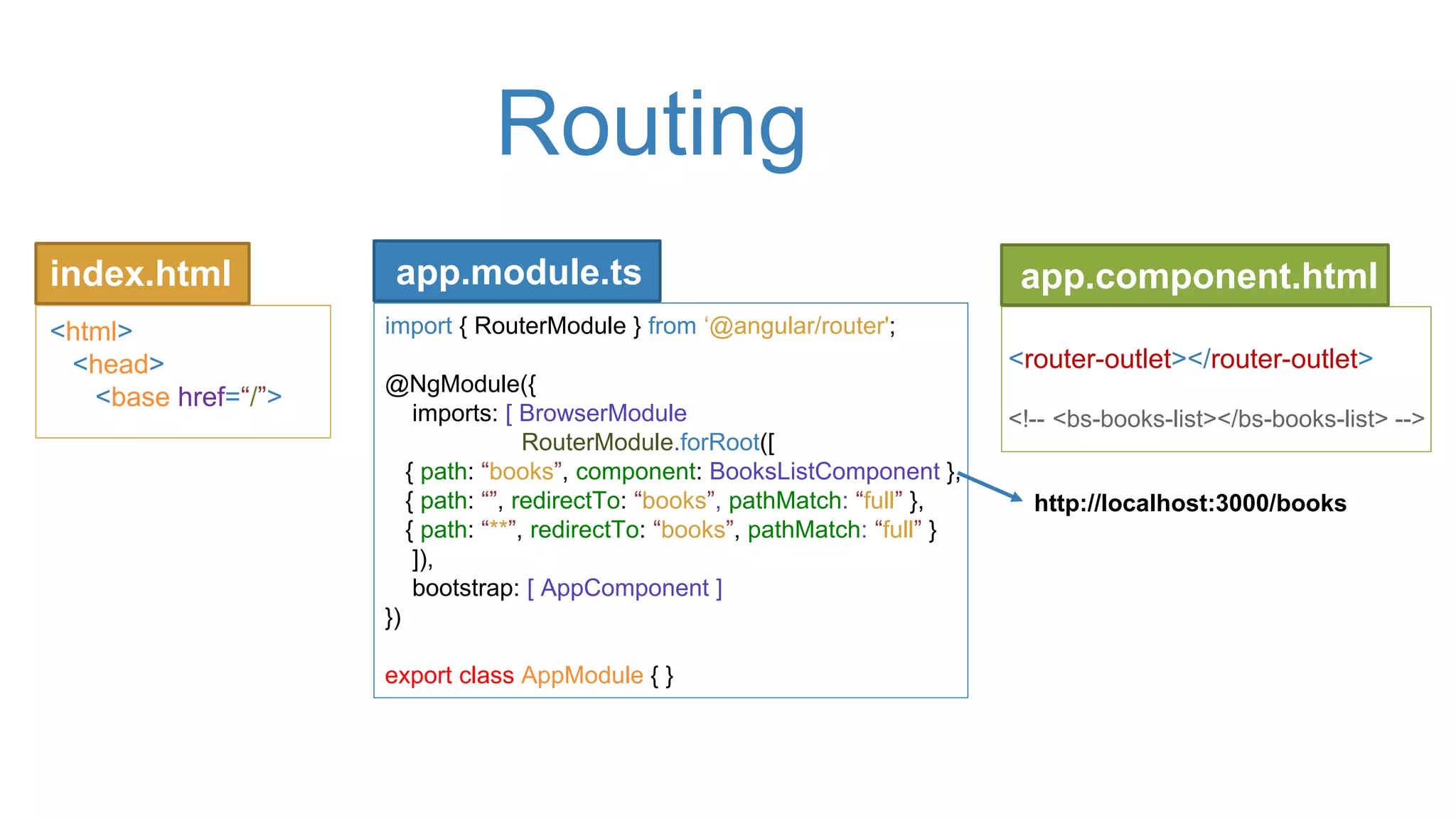

110. Routing
import { RouterModule } from ‘@angular/router';
@NgModule({
imports: [ BrowserModule
RouterModule.forRoot([
{ path: “books”, component: BooksListComponent },
{ path: “”, redirectTo: “books”, pathMatch: “full” },
{ path: “**”, redirectTo: “books”, pathMatch: “full” }
]),
bootstrap: [ AppComponent ]
})
export class AppModule { }
index.html
<html>
<head>
<base href=“/”>
<router-outlet></router-outlet>
<!-- <bs-books-list></bs-books-list> -->
app.module.ts app.component.html
http://localhost:3000/books

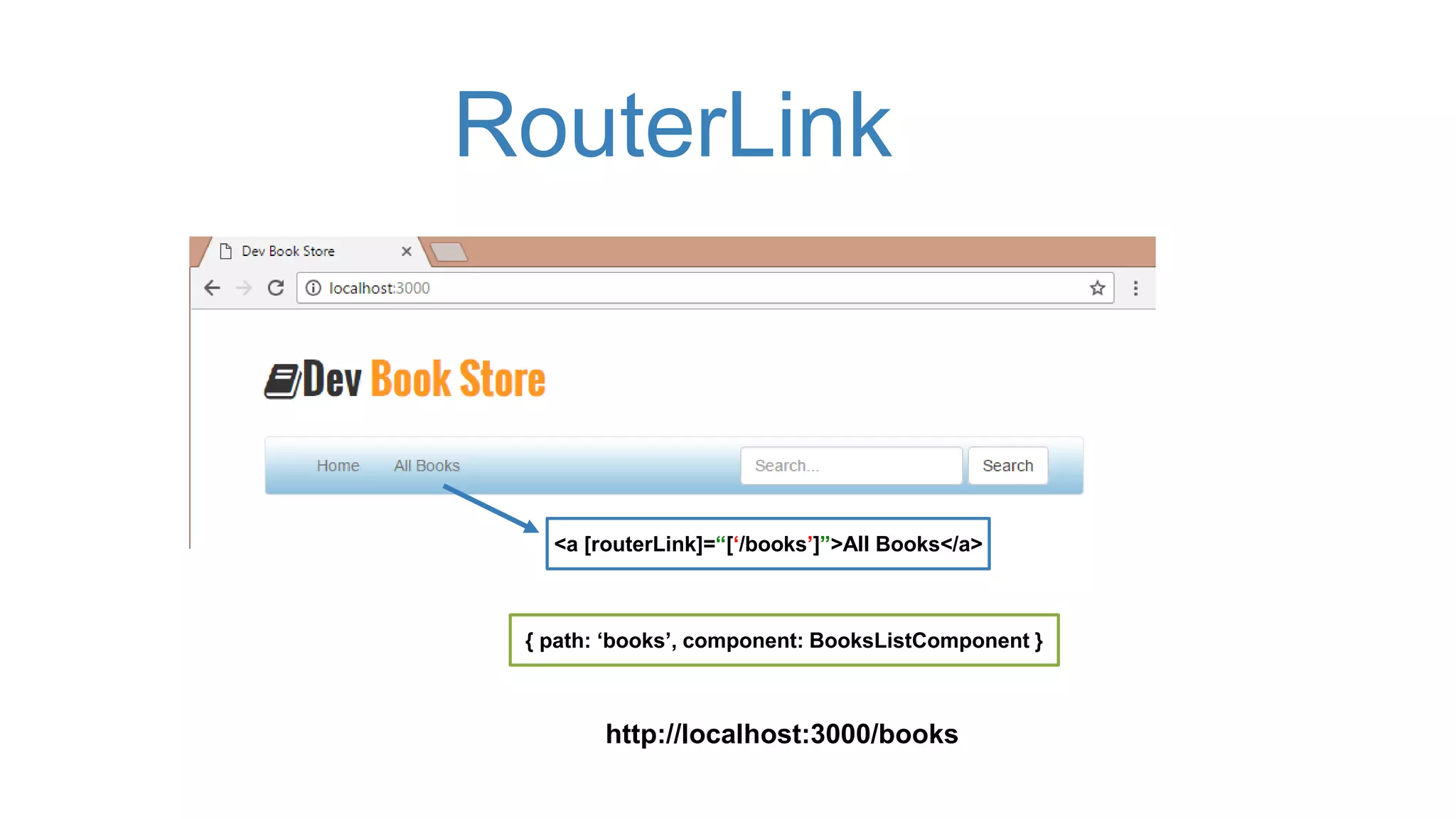

111. RouterLink
<a [routerLink]=“[‘/books’]”>All Books</a>
{ path: ‘books’, component: BooksListComponent }
http://localhost:3000/books

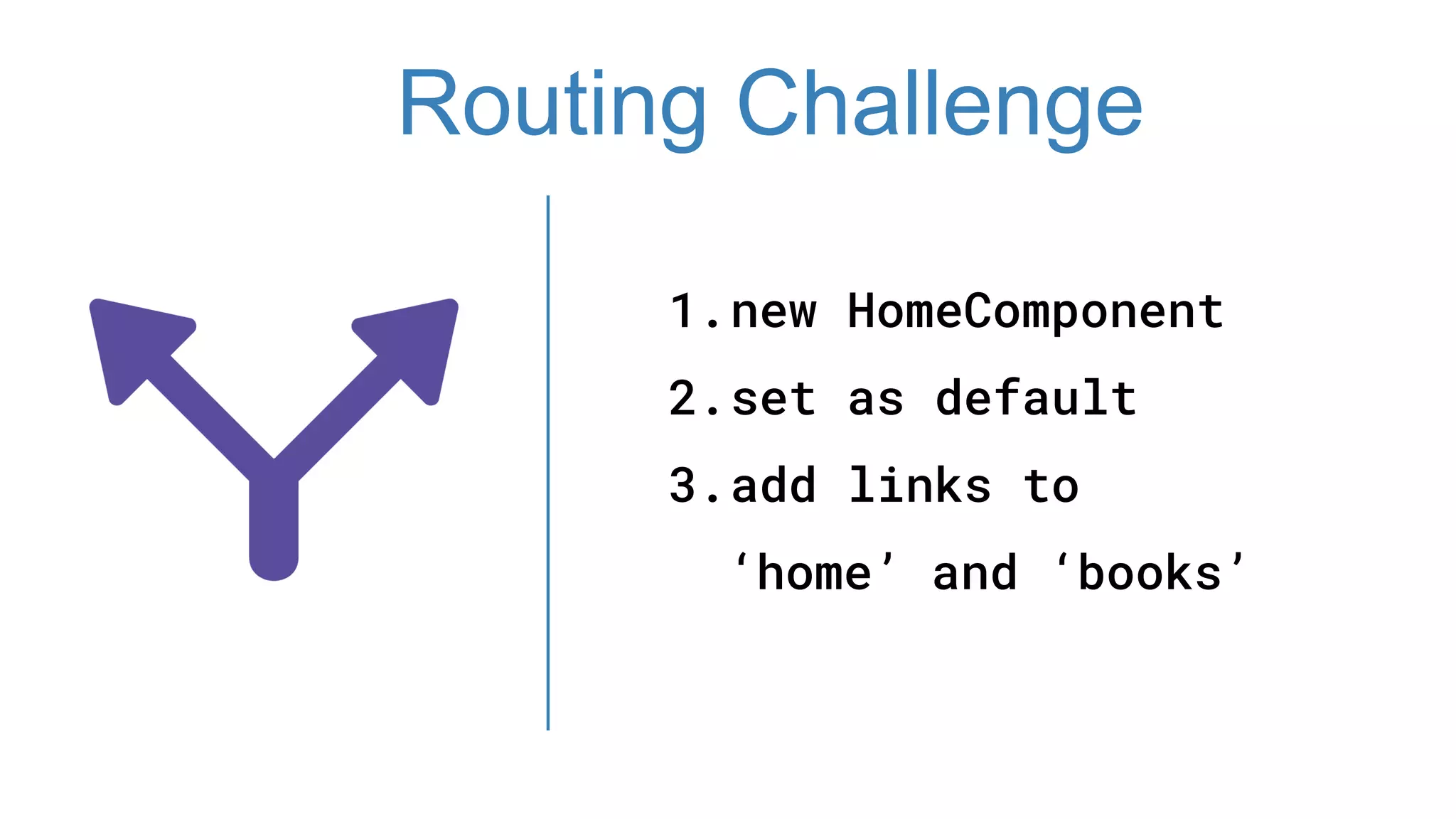

112. 1.new HomeComponent
2.set as default
3.add links to
‘home’ and ‘books’
Routing Challenge

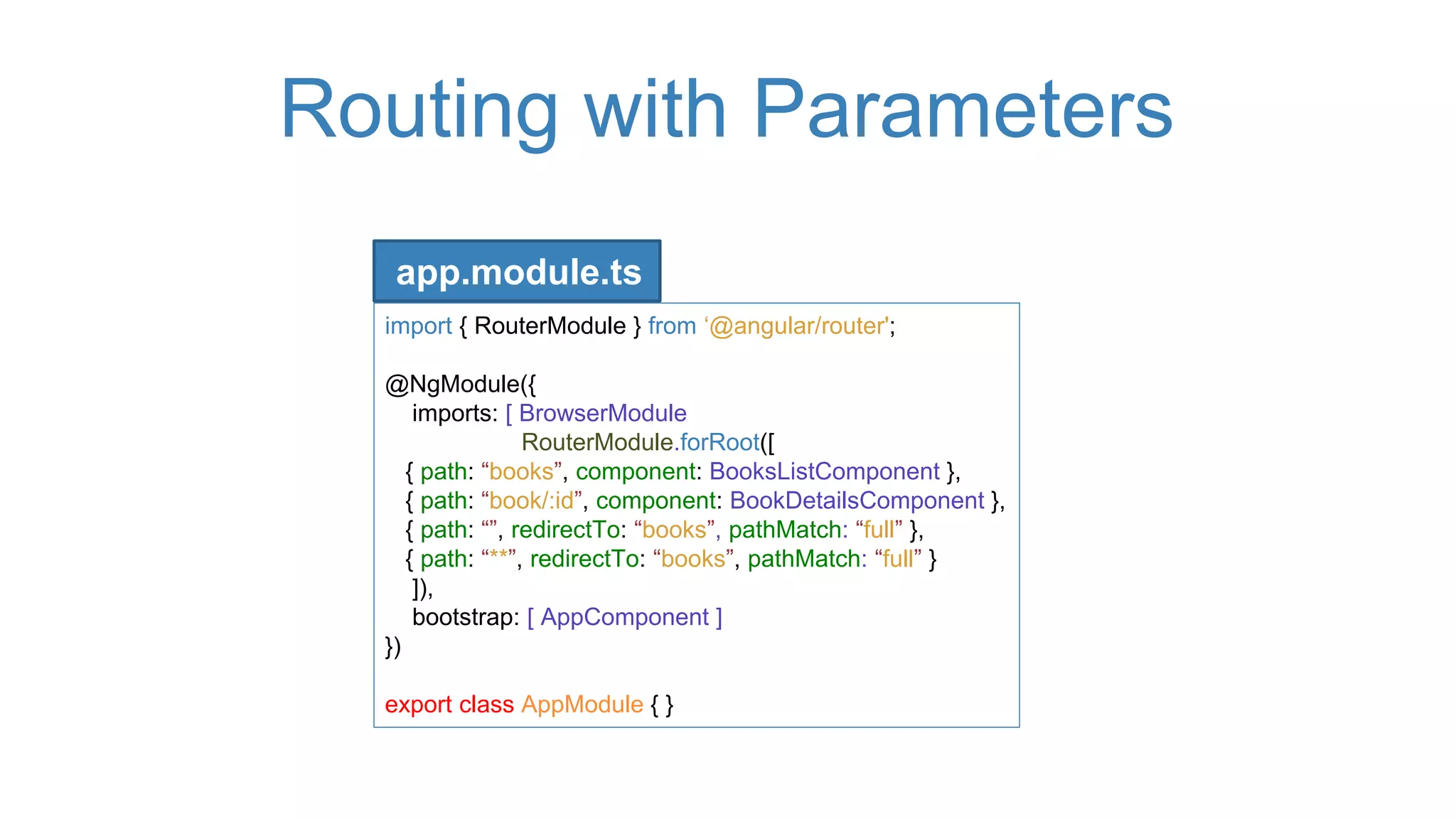

113. Routing with Parameters
import { RouterModule } from ‘@angular/router';
@NgModule({
imports: [ BrowserModule
RouterModule.forRoot([
{ path: “books”, component: BooksListComponent },
{ path: “book/:id”, component: BookDetailsComponent },
{ path: “”, redirectTo: “books”, pathMatch: “full” },
{ path: “**”, redirectTo: “books”, pathMatch: “full” }
]),
bootstrap: [ AppComponent ]
})
export class AppModule { }
app.module.ts

114. Passing Route Parameters
books-list.component.html
{ path: “book/:id”, component: BookDetailsComponent }
app.module.ts
<h4>
<a [routerLink]=“[‘/book’, book.id]”>
{{ book.name }}
</a>
</h4>

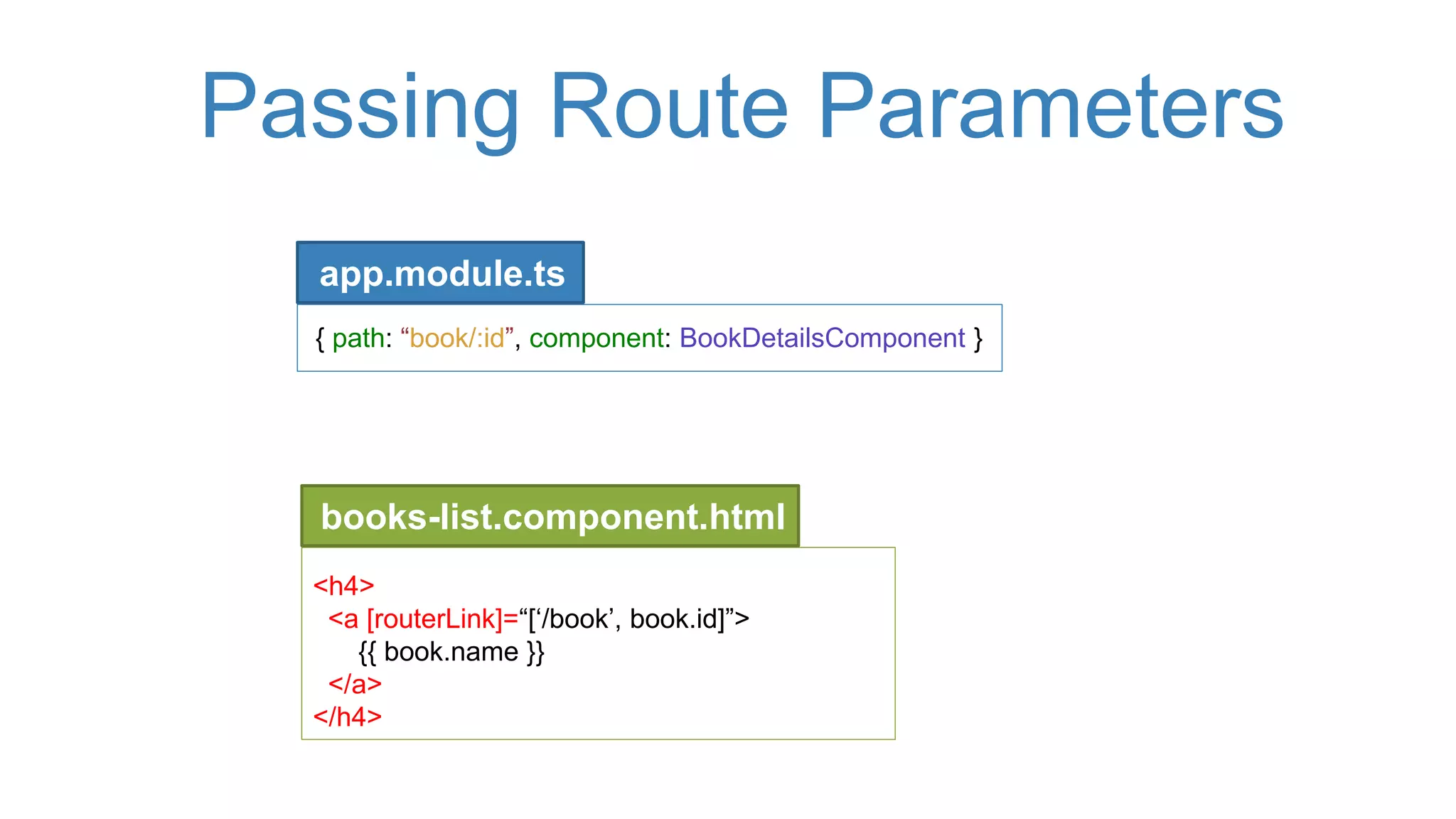

115. Passing Route Parameters
books-list.component.html
{ path: “book/:id”, component: BookDetailsComponent }
app.module.ts
<h4>
<a [routerLink]=“[‘/book’, book.id]”>
{{ book.name }}
</a>
</h4>
