The document discusses background threads in Android. It covers: 1. The main thread in Android is the UI thread, and long operations can block it and cause app unresponsiveness. 2. There are two rules for threading in Android - do not block the UI thread, and do not access UI from background threads. 3. Handlers and AsyncTask can be used to offload work to background threads and update the UI safely.

1. Android Programming
Lesson 9
Multiple Background
Threads
NGUYEN The Linh

2. Android Programming

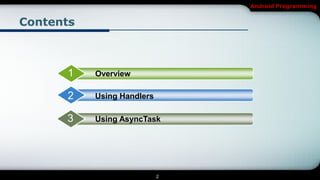

Contents
1 Overview
2 Using Handlers
3 Using AsyncTask
2

3. Android Programming
Multiple Background Threads
Overview
3

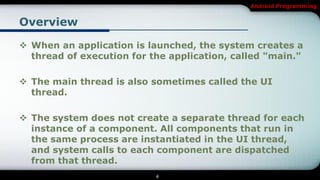

4. Android Programming
Overview
 When an application is launched, the system creates a
thread of execution for the application, called "main."
 The main thread is also sometimes called the UI
thread.
 The system does not create a separate thread for each
instance of a component. All components that run in
the same process are instantiated in the UI thread,
and system calls to each component are dispatched
from that thread.
4

5. Android Programming

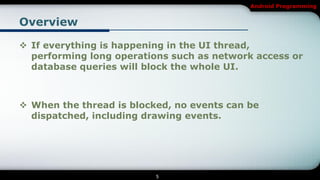

Overview
 If everything is happening in the UI thread,
performing long operations such as network access or
database queries will block the whole UI.
 When the thread is blocked, no events can be
dispatched, including drawing events.
5

6. Android Programming
Overview

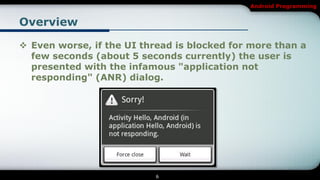

 Even worse, if the UI thread is blocked for more than a
few seconds (about 5 seconds currently) the user is
presented with the infamous "application not
responding" (ANR) dialog.
6

7. Android Programming
Overview
 The user might then decide to quit your application
and uninstall it if they are unhappy.
7

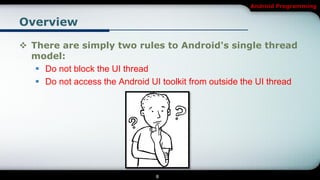

8. Android Programming
Overview
 There are simply two rules to Android's single thread
model:
 Do not block the UI thread
 Do not access the Android UI toolkit from outside the UI thread
8

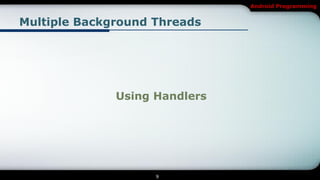

9. Android Programming
Multiple Background Threads
Using Handlers
9

10. Android Programming

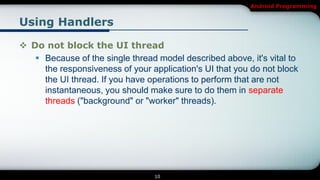

Using Handlers
 Do not block the UI thread
 Because of the single thread model described above, it's vital to
the responsiveness of your application's UI that you do not block
the UI thread. If you have operations to perform that are not
instantaneous, you should make sure to do them in separate
threads ("background" or "worker" threads).
10

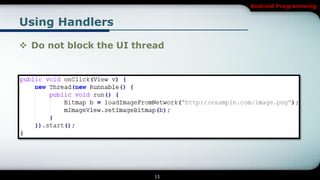

11. Android Programming
Using Handlers
 Do not block the UI thread
11

12. Android Programming
Using Handlers
 Do not block the UI thread

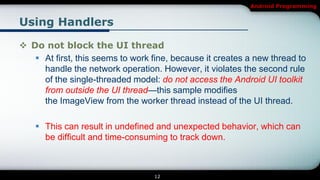

 At first, this seems to work fine, because it creates a new thread to
handle the network operation. However, it violates the second rule
of the single-threaded model: do not access the Android UI toolkit
from outside the UI thread—this sample modifies
the ImageView from the worker thread instead of the UI thread.
 This can result in undefined and unexpected behavior, which can
be difficult and time-consuming to track down.
12

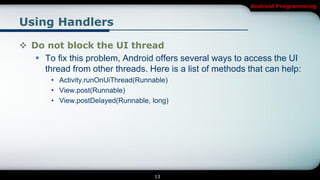

13. Android Programming
Using Handlers
 Do not block the UI thread
 To fix this problem, Android offers several ways to access the UI
thread from other threads. Here is a list of methods that can help:
• Activity.runOnUiThread(Runnable)
• View.post(Runnable)
• View.postDelayed(Runnable, long)
13

14. Android Programming
Using Handlers
 Do not block the UI thread
14

15. Android Programming

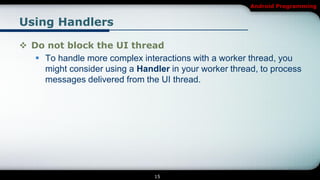

Using Handlers
 Do not block the UI thread
 To handle more complex interactions with a worker thread, you
might consider using a Handler in your worker thread, to process
messages delivered from the UI thread.
15

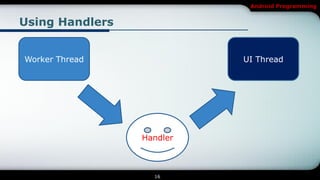

16. Android Programming
Using Handlers
Worker Thread UI Thread
Handler
16

17. Android Programming

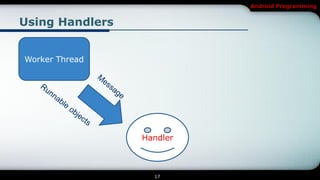

Using Handlers
Worker Thread
Handler
17

18. Android Programming
Using Handlers

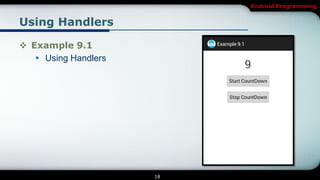

 Example 9.1
 Using Handlers
18

19. Android Programming

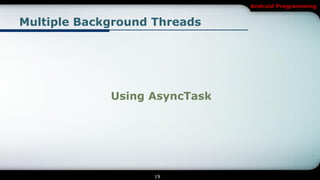

Multiple Background Threads
Using AsyncTask
19

20. Android Programming
Using AsyncTask

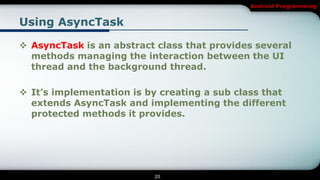

 AsyncTask is an abstract class that provides several
methods managing the interaction between the UI
thread and the background thread.
 It’s implementation is by creating a sub class that
extends AsyncTask and implementing the different
protected methods it provides.
20

21. Android Programming
Using AsyncTask

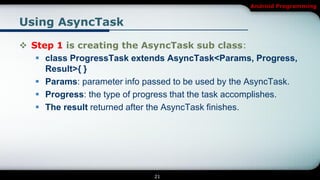

 Step 1 is creating the AsyncTask sub class:
 class ProgressTask extends AsyncTask<Params, Progress,
Result>{ }
 Params: parameter info passed to be used by the AsyncTask.
 Progress: the type of progress that the task accomplishes.
 The result returned after the AsyncTask finishes.
21

22. Android Programming

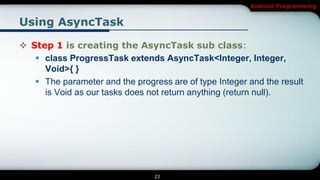

Using AsyncTask
 Step 1 is creating the AsyncTask sub class:
 class ProgressTask extends AsyncTask<Integer, Integer,
Void>{ }
 The parameter and the progress are of type Integer and the result
is Void as our tasks does not return anything (return null).
22

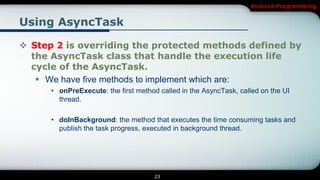

23. Android Programming
Using AsyncTask
 Step 2 is overriding the protected methods defined by
the AsyncTask class that handle the execution life
cycle of the AsyncTask.
 We have five methods to implement which are:
• onPreExecute: the first method called in the AsyncTask, called on the UI
thread.
• doInBackground: the method that executes the time consuming tasks and
publish the task progress, executed in background thread.
23

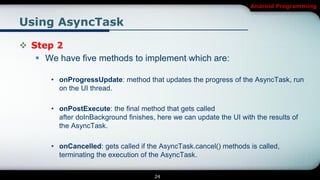

24. Android Programming
Using AsyncTask
 Step 2
 We have five methods to implement which are:
• onProgressUpdate: method that updates the progress of the AsyncTask, run
on the UI thread.
• onPostExecute: the final method that gets called
after doInBackground finishes, here we can update the UI with the results of
the AsyncTask.
• onCancelled: gets called if the AsyncTask.cancel() methods is called,
terminating the execution of the AsyncTask.
24

25. Android Programming

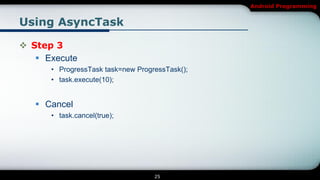

Using AsyncTask
 Step 3
 Execute
• ProgressTask task=new ProgressTask();
• task.execute(10);
 Cancel
• task.cancel(true);
25

26. Android Programming
Using AsyncTask

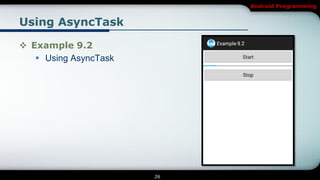

 Example 9.2
 Using AsyncTask
26

27. Android Programming
