Android STB User Guide

Android Set-Top-Box (STB)
USER GUIDE

©Dyyno, Inc. 2012 | All Rights Reserved

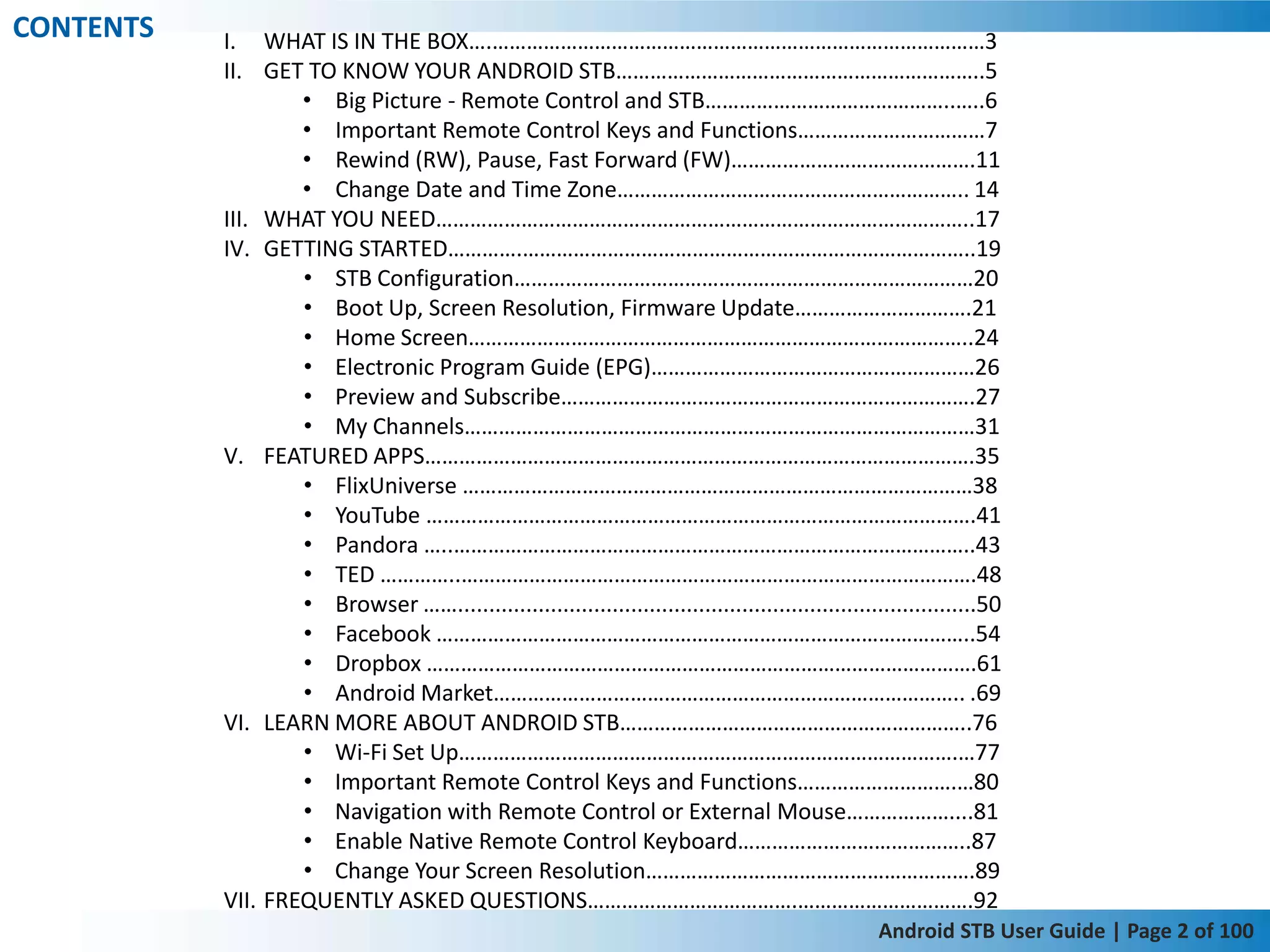

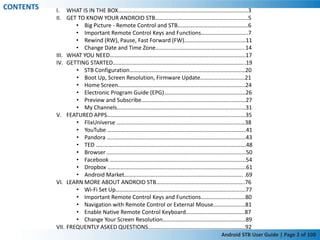

CONTENTS I. WHAT IS IN THE BOX….……………………………………………………………………………3
II. GET TO KNOW YOUR ANDROID STB………………………………………………………..5
• Big Picture - Remote Control and STB……………………………………..…..6
• Important Remote Control Keys and Functions……………………………7
• Rewind (RW), Pause, Fast Forward (FW)…………………………………….11
• Change Date and Time Zone…………………………………………………….. 14
III. WHAT YOU NEED…………………………………………………………………………………..17
IV. GETTING STARTED………….……………………………………………………………………..19
• STB Configuration………………………………………………………………………20
• Boot Up, Screen Resolution, Firmware Update………………………….21
• Home Screen……………………………………………………………………………..24
• Electronic Program Guide (EPG)…………………………………………………26
• Preview and Subscribe……………………………………………………………….27
• My Channels………………………………………………………………………………31
V. FEATURED APPS…………………………………………………………………………………….35
• FlixUniverse ………………………………………………………………………………38
• YouTube …………………………………………………………………………………….41
• Pandora …..………………………………………………………………………………..43
• TED …………..……………………………………………………………………………….48
• Browser ……....................................................................................50
• Facebook …………………………………………………………………………………..54
• Dropbox …………………………………………………………………………………….61
• Android Market……………………………………………………………………….. .69
VI. LEARN MORE ABOUT ANDROID STB……………………………………………………..76
• Wi-Fi Set Up…………………………………………………………………………….…77
• Important Remote Control Keys and Functions……………………….…80
• Navigation with Remote Control or External Mouse………………....81

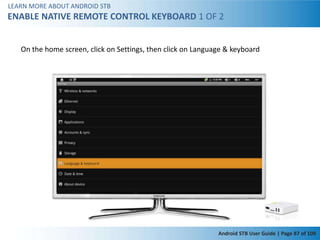

• Enable Native Remote Control Keyboard…………………………………..87
• Change Your Screen Resolution………………………………………………….89
VII. FREQUENTLY ASKED QUESTIONS……………………………….………………………….92
Android STB User Guide | Page 2 of 100

I. WHAT IS IN THE BOX?


I. WHAT IS IN THE BOX?

Android STB

Power Adapter HDMI Cable Batteries IR Remote Control


II. GET TO KNOW YOUR ANDROID STB


GET TO KNOW YOUR ANDROID STB
BIG PICTURE - REMOTE CONTROL AND STB

[01] Power On/Off
[02] Browser
[03] IME Change input method
IR NET & STATUS LEDs
[04] Mute
Power USB 2.0
[05] Up/Down/Left/Right buttons
for mouse, click OK to confirm,
and click Exit to cancel
[06] Digits and alphabetic buttons
[07] Volume+/-
[08] Page up/down
SD/SDHC/MS/MMC
card reader [09] Zoom in/down
[10] Home: go back to home screen
[11] Notification
AV out
LAN (RJ -45)
[12] Up/Down/Left/Right/OK buttons
DC in HDMI 1.3 Reset
[13] Menu
[14] Exit
[15] Move to left/right page
[16] Delete
[17] CVBS
[18] Rewind/Pause/Fast forward/stop


IMPORTANT REMOTE CONTROL KEYS AND FUNCTIONS 1 OF 4

Keys Functions
Browser Key disabled
IME Select “Input Method for the Keyboard”
(Input Method) (always select Remote Controller Input Method)
Left/UP/Right/Down Remote Control Mouse keys used for navigating
within the Android apps.
Left Mouse Click This key functions similar to the Left Click of an
external Mouse.
Right Mouse Click Ignore this key

IME (Input Method)


Keys Functions
0 Press “0” to get information about your Android device
ID, IP Address, etc.
9 Press “Menu”, then press “9” to get information about
the Electronic Program Guide (EPG) version number.
Press “Menu” again to go back to the EPG.
Page Up, Press “Page Up” or “Page Down” to browse through 5
Page Down channels at a time in the Program Guide.

Press “Page Up” or “Page Down” to scroll through the
list of videos in the Android apps.
@ Press “@” when entering your email in the Android
apps.
.com Press “.com” when entering your email in the Android
apps.
Zoom-in Ignore this key



Keys Functions
Zoom-out Ignore this key
Home If you are in any Android app, press “Home” to
return directly to the home screen.

If you browsing through the recorded videos of a
channel in the Program Guide, press “Home” to
return to the LIVE program.
Notification Ignore this key
OK Press “OK” to proceed to the next screen. This key
functions as a confirmation of an action.
Up/ Down/ Left / Use the “Arrows” around the OK button to
Right Arrows navigate in each direction in the Android box.

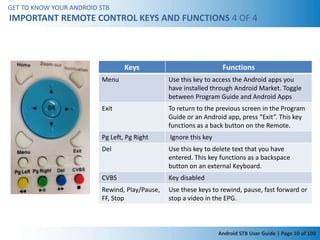

Keys Functions
Menu Use this key to access the Android apps you
have installed through Android Market. Toggle
between Program Guide and Android Apps
Exit To return to the previous screen in the Program
Guide or an Android app, press “Exit”. This key
functions as a back button on the Remote.
Pg Left, Pg Right Ignore this key
Del Use this key to delete text that you have
entered. This key functions as a backspace
button on an external Keyboard.
CVBS Key disabled
Rewind, Play/Pause, Use these keys to rewind, pause, fast forward or
FF, Stop stop a video in the EPG.


REWIND (RW), PAUSE, FAST FORWARD (FF) 1 0F 3

To RW, Pause or FF any recorded video in the EPG in 6 min intervals, press
the remote’s down arrow key twice. Press Left arrow key to RW or Right
arrow key to FF.


REWIND (RW), PAUSE, FAST FORWARD (FF) 2 OF 3

To RW, Pause or FF any recorded video in the EPG in 15 sec intervals,
press the remote’s down arrow key, press Left to select RW or Right to select FF.
After selecting RW, Pause or FF, press OK to perform that action.


REWIND (RW), PAUSE, FAST FORWARD (FF) 3 OF 3

To RW, Pause or FF any recorded video in the EPG in 15 sec intervals,
press the RW key, Pause key, or FF key on the Remote to perform that action.


CHANGE DATE AND TIME ZONE 1 OF 3

Select Settings from Program Guide or Android Apps Menu. Use the remote’s
arrow & OK keys to click on Date & time



Click on Select time zone



Select your time zone


III. WHAT YOU NEED


III. WHAT YOU NEED

1. Android STB and included accessories

2. TV

3. Internet via Ethernet cable. Ideally 2 - 4 Mbps


IV. GETTING STARTED


GETTING STARTED STEP-1
STB CONFIGURATION

1. Ensure that Internet on the Ethernet* cable is active

2. Connect Android STB, TV, and Ethernet cable

3. To connect to Wi-Fi, go to section VI


BOOT UP 1 OF 3

1. Power up your TV and Android STB
2. Android boot-up screen appears


CHOOSE SCREEN RESOLUTION 2 OF 3

3. Choose your TV Screen Resolution


FIRMWARE AND SOFTWARE UPDATE 3 OF 3

4. Android updates the latest firmware and software


HOME SCREEN:BIG PICTURE OF TV CHANNELS I FEATURED APPS

Home screen shows Channel Groups, Movies Group, Featured Apps

TV Channels or
Movies Groups

Featured Apps


HOME SCREEN: SELECT A CHANNEL GROUP I MOVIES GROUP

Select a Channel Group, Movies Group or featured app (use the Remote’s
up/down/left/right arrow keys ), then press OK to enter the selected
Channel Group


ELECTRONIC PROGRAM GUIDE (EPG)

In the Electronic Program Guide (EPG), select a channel (up/down) and a
program (left/right), then press OK


PREVIEW – TWO MINUTES FREE

Select “Preview two minutes free” then press OK to watch the channel’s
free preview

Program Guide


GETTING STARTED STEP -5 (CONTINUED)
WATCH PREVIEW – TWO MINUTES FREE

Watch Preview

Program Guide

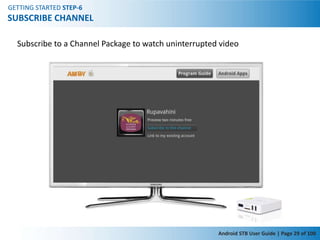

SUBSCRIBE CHANNEL

Subscribe to a Channel Package to watch uninterrupted video


GETTING STARTED STEP-6 (CONTINUED)
SUBSCRIBE CHANNEL PACKAGE ACTIVATION CODE

Subscribe to a Channel Package – Activation Code


GETTING STARTED STEP -7
MY CHANNELS ON HOME SCREEN

1. After subscribing, select My Channels (on the home screen) to access the
channels you just subscribed to

NOTE: Purchased Channel Groups are marked with a blue checkmark


MY CHANNELS EPG

2. My Channels EPG - select channel (up/down) and program (left/right), then
press OK to watch the video

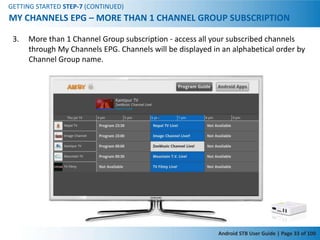

MY CHANNELS EPG – MORE THAN 1 CHANNEL GROUP SUBSCRIPTION

3. More than 1 Channel Group subscription - access all your subscribed channels
through My Channels EPG. Channels will be displayed in an alphabetical order by
Channel Group name.


WATCH SUBSCRIBED CHANNEL

4. Now you can watch you favorite channel uninterrupted


V. FEATURED APPS


FEATURED APPS
HOME SCREEN I 1 OF 2

Android Apps (on the home screen)


FEATURED APPS
HOME SCREEN I 2 OF 2

Android Apps (on the home screen)


FEATURED APPS
FLIX UNIVERSE I 1 OF 3

Enter Flix Universe app and browse the list of videos per Genre. Select a
Genre (up/down) and select a Movie (left/right), then press OK to
proceed to the next screen


FEATURED APPS

Get more information about the Movie, Watch a Free Preview, and
Subscribe to the Flix Universe app


FEATURED APPS

Now you can watch your favorite movie uninterrupted!


FEATURED APPS
YOUTUBE I 1 OF 2

Home Screen for YouTube App


FEATURED APPS
YOUTUBE I 2 OF 2

Watch YouTube Videos


FEATURED APPS
PANDORA I 1 OF 5

Enter Pandora app. Use an External or Remote’s Mouse, to place cursor
in the Email/Password text bar. Use an External or Remote’s Keyboard to enter
the login details.


FEATURED APPS
PANDORA I 2 OF 5

Search for an audio track using an External or the Remote’s Keyboard and
Create your Playlist


FEATURED APPS
PANDORA I 3 OF 5

Scroll through your Playlist using the Remote’s up/down arrow keys. Select
an audio track and press OK to listen to the track


FEATURED APPS
PANDORA I 4 OF 5

While listening to the track, press Menu on your Remote to Bookmark
or Share the track, access your Account Settings or Quit


FEATURED APPS

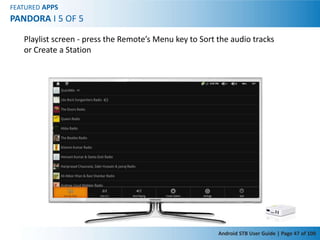

PANDORA I 5 OF 5

Playlist screen - press the Remote’s Menu key to Sort the audio tracks
or Create a Station


FEATURED APPS
TED I 1 OF 2

Enter TED app. Press up/down arrow keys to scroll through the list of
videos. To select a video, use an External or Remote’s Mouse


FEATURED APPS
TED I 2 OF 2

Select a video, then use an External or Remote’s Mouse to play the
video. Use the Remote’s left/right arrow keys to go to the next video


FEATURED APPS
BROWSER – EXTERNAL KEYBOARD I 1 OF 4

Click on Browser (home screen), then press OK .Use an External or the
Remote’s Keyboard to use the Google browser


FEATURED APPS

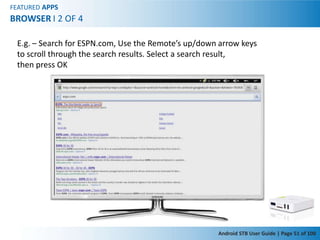

BROWSER I 2 OF 4

E.g. – Search for ESPN.com, Use the Remote’s up/down arrow keys
to scroll through the search results. Select a search result,
then press OK


FEATURED APPS
BROWSER I 3 OF 4

Browse through www.espn.com


FEATURED APPS
BROWSER I 4 OF 4

On the main Google Browser page, press the Remote’s
Menu key for additional options


FEATURED APPS
FACEBOOK I 1 OF 7

Enter Facebook app and click OK. Use an External or the Remote’s
Keyboard to enter the login details


FEATURED APPS
FACEBOOK I 2 OF 7

Press the Remote’s up/down arrow keys to browse through
the News Feed Select a News Feed, press OK to read an Article


FEATURED APPS
FACEBOOK I 3 OF 7

Press the Remote’s up/down arrow keys to scroll through an Article
Press Exit to go back to the News Feed


FEATURED APPS
FACEBOOK I 4 OF 7
Press the Remote’s up/down arrow keys to browse through the
News Feed. Use an External or Remote’s Mouse to click on a Photo.
To view the next Photo, exit to the previous screen and click on
another Photo


FEATURED APPS
FACEBOOK I 5 OF 7

Click on News Feed or Facebook to see the Facebook Menu


FEATURED APPS
FACEBOOK I 6 OF 7

Facebook Menu


FEATURED APPS
FACEBOOK I 7 OF 7

Click Menu on your Remote to change your Facebook Settings or to
Logout


FEATURED APPS
DROPBOX I 1 OF 4

Enter Dropbox app, use your native Remote Keyboard or an External
Keyboard to Login. Use an External or your Remote’s Mouse to click
on the “Skip” button and skip the Camera Upload step


FEATURED APPS
DROPBOX I 2 OF 4

Use your Remote’s up/down arrow keys to browse through your
Documents and Photos


FEATURED APPS
DROPBOX I 3 OF 4

Select an Image and press OK to view it on your TV
Press left/right arrow keys to see the next Image

NOTE: Use Dropbox for viewing Photos and PDFs

FEATURED APPS
DROPBOX I 4 OF 4

Press Menu on the Remote to access Dropbox Settings
Select Unlink device from Dropbox to logout from this app


FEATURED APPS
OFFICESUITE I 1 OF 4

Enter Office Suite Viewer 6 app. Use the Remote’s arrow keys to
navigate and click on Remote Files, then click on Add remote
account


FEATURED APPS

Use the Remote’s arrow keys to select Dropbox and enter the
login details using an External or the Remote’s Keyboard


FEATURED APPS

Use the Remote’s arrow keys to select Dropbox and enter
the login details using an External or the Remote’s Keyboard


FEATURED APPS

Once Dropbox account is added, have access to all your Dropbox files
through Remote files option in this app

NOTE: Use Office Suite Viewer for accessing Presentations, Excel, and Word files

FEATURED APPS
ANDROID MARKET I 1 OF 7

To access Android Market, you need to add a Gmail account
to the Android STB. You can add an existing account or create
a new one.


FEATURED APPS
Enter your login details using an External or Remote keyboard. Enter your Credit
Card details for purchasing Android Apps or skip this step


FEATURED APPS
Install Android apps on your Android STB through the
Android Market. All installed apps will be available in the
App Drawer (press the Remote’s Menu key to go to the App Drawer,
press Menu again to return to the EPG)


FEATURED APPS

To remove your Android Market account, go to Settings
(home screen) Click on Accounts & sync


FEATURED APPS

Select the Android Market account under Manage Accounts


FEATURED APPS

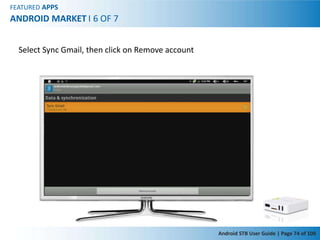

Select Sync Gmail, then click on Remove account


FEATURED APPS

Click on Remove account Confirm removal of Android Market account from the
Android STB


VI. LEARN MORE ABOUT ANDROID STB


LEARN MORE ABOUT ANDROID STB
WI-FI SET UP 1 OF 3

Select Wi-Fi option


WI-FI SET UP 2 OF 3

Select your Network


WI-FI SET UP 3 OF 3

Enter your Password and Get Connected


IMPORTANT REMOTE CONTROL KEYS AND FUNCTIONS

“0” key provides Android STB data  For any issues, contact the
Customer Support team of the
company that sold you the
Android STB and is providing the
streaming services.

 Please have the following
information with you prior to
calling Customer Support:
Press “Menu”, then press “9” key to get the o Client version (0 key)
EPG version number o Updater version (0 key)
o Device ID (0 key)
o EPG version (9 key)


NAVIGATION WITH REMOTE CONTROL OR EXTERNAL MOUSE

 The standard program guide on the Android box can be navigated
using the Remote Control’s basic keys.

 Why? - certain Android apps (e.g. Pandora, Twitter, Facebook)
need to be navigated using a mouse. These apps have been
developed for touch screens (Smartphones and Tablets) and are
not compatible with standard Set Top Box Remotes.

 When? – pressing the basic keys do not take you to the next step in the Android app, use
the Remote Control’s mouse or an external USB mouse.


NAVIGATION WITH REMOTE CONTROL KEYS

 On your Remote Control, when you press the
Left/Right/Up/Down keys, the mouse will be
activated and will move in the direction mentioned
on the key.

 To click on a button or to place your cursor, navigate
to that area and then press left mouse click.

 If you do not see the mouse pointer on the screen
when you press the Left/Right/Up/Down keys, the
pointer may be hidden behind the screen. Simply
keep pressing one of the keys until you see the
mouse pointer on the screen.


EXTERNAL KEYBOARD AND MOUSE

Connect a keyboard and mouse (Picture-A) to the Android box using the USB port
NOTE: You can also connect a Bluetooth mouse and keyboard to the STB (Picture-B)

Use the Keyboard to type in your login information in the Android apps or to search
for some content. Use the mouse for navigation within an Android app.

Picture-A Picture-B


REMOTE CONTROL OR EXTERNAL MOUSE POINTER


ENTER TEXT USING EXTERNAL KEYBOARD OR REMOTE CONTROL

 To enter your login details in the Android apps or to enter text to search for content,
you can use the native Remote Control keyboard.

o Navigate your cursor to the login
or search bar and then press
OK on the Remote.

o The native Remote Control
Keyboard will be displayed, use
the Remote’s arrow keys to select
the letter that you want to enter.

 As an alternative, you can also use an
external wired or Bluetooth enabled
keyboard through the USB port on the
Android box.


NUMERICAL TEXT WITH KEYBOARD I REMOTE CONTROL

 To enter numerical text, you can use the Remote Control keys or the native Remote
Control Keyboard

o Press the relevant number on your Remote to enter it in the text/search bar.
OR
o Place your cursor in the
text/search bar then press OK
to see the native Remote
Control Keyboard. navigate to
the button “?123” on the
Keyboard and press OK. The
numerical keyboard will be
activated, press that button
again to go back to the
alphabetical keyboard.


ENABLE NATIVE REMOTE CONTROL KEYBOARD 1 OF 2

On the home screen, click on Settings, then click on Language & keyboard


ENABLE NATIVE REMOTE CONTROL KEYBOARD 2 OF 2

Under Language & keyboard, enable the Remote controller input method
option (disable all other keyboard options)


CHANGE YOUR SCREEN RESOLUTION 1 OF 3

Click on Settings (home screen) - Use the Remote’s arrow
& OK keys to click on Display



Select Output mode



Select 720p Resolution
Note: Please do not set resolution to 1080p or 1080i because these settings may void the
Android STB completely


VII. Frequently Asked Questions


FREQUENTLY ASKED QUESTIONS
CONNECT 2 TV SETS TO ONE ANDROID STB

Question: How do i connect 2 TV sets - one HDMI and the other
Composite, to one Android STB?

Answer: You can connect 2 TV sets to one Android STB, follow steps below:

1) Cllick on Settings (home screen) - Use the remote’s arrow & OK keys
to click on Display
2) Select Output Mode
3) Select 480i resolution for NTSC + COMPOSITE/ HDMI
4) Select 576i resolution for PAL + COMPOSITE /HDMI

Please note that Video Quality will degrade on the HDMI TV because 480i and
576i are lower resolution than 720p


UPDATE ANDROID STB WITH SD CARD (1 OF 3)

Question: How do i update my Android STB with SD Card?

Answer: Android STB can be updated with latest Operating System using
SD Card provided by the company that sold you the Android STB .
Follow the Steps below
1) Insert the SD Card into the SD card reader
2) Keep the Reset Button depressed with sharper end of a pen /pencil,
keep the power cord plugged into DC in and turn on the power button
of Android STB



3) Operating System Update begins and TV screen looks as below.
Release the Reset Button, when upgrading message appears
on the screen. Track the upgrade status with the blue bar highlighted
below



4) After completion of Operating System update, system reboots itself


DOWNLOAD NEW OPERATING SYSTEM ON A SD CARD ( 1 of 2)
Question: How do i download a new OS onto an SD card?

Answer: There are following steps to download a new Operating System on
your SD Card
1) A link will be sent to you from the company that sold the Android STB
to you as a compressed zip file, update.zip
2) Click on the link to download the file update.zip on your computer
3) Open a DOS Command Prompt ( see image on next page)
 Select Start Button on Windows Taskbar
 Type cmd in the search bar, select cmd Program and DOS
Command Prompt appears
4) Change directory to where file is: Type DOS Command
cd c:Documents&settings<user>Desktop
5) Rename the file: Type DOS Command
move update.zip update.img
6) Copy update.img from your computer to a SD card: Type DOS
Command (f: in the command is SD Card drive)
copy update.img f:

DOWNLOAD NEW OPERATING SYSTEM ON A SD CARD (2 of 2)

7) Safely remove SD Card from your computer, Right click on the
Safely Remove Hardware Icon on Windows Taskbar and select
Safely Remove Hardware before pulling out the SD card from
your computer
8) Follow the steps in section ‘ UPDATE ANDROID STB WITH SD
CARD’ to update Operating System on your Android STB

Step 3

Step 5

Step 6


MY PICTURE FREEZES OFTEN

Question: What do I do when my picture freezes?

Answer: Try the following steps
1) YouTube Test: Play YouTube App on STB. If the YouTube video plays,
power off and on the Android STB
2) If the YouTube video freezes as well, check your Ethernet / Wi-Fi
connection
3) For any issues, contact the Customer Support team of the company
that sold you the Android STB and is providing the streaming services


Android STB User Guide

More Related Content

Similar to Android STB User Guide

Recently uploaded

Android STB User Guide
