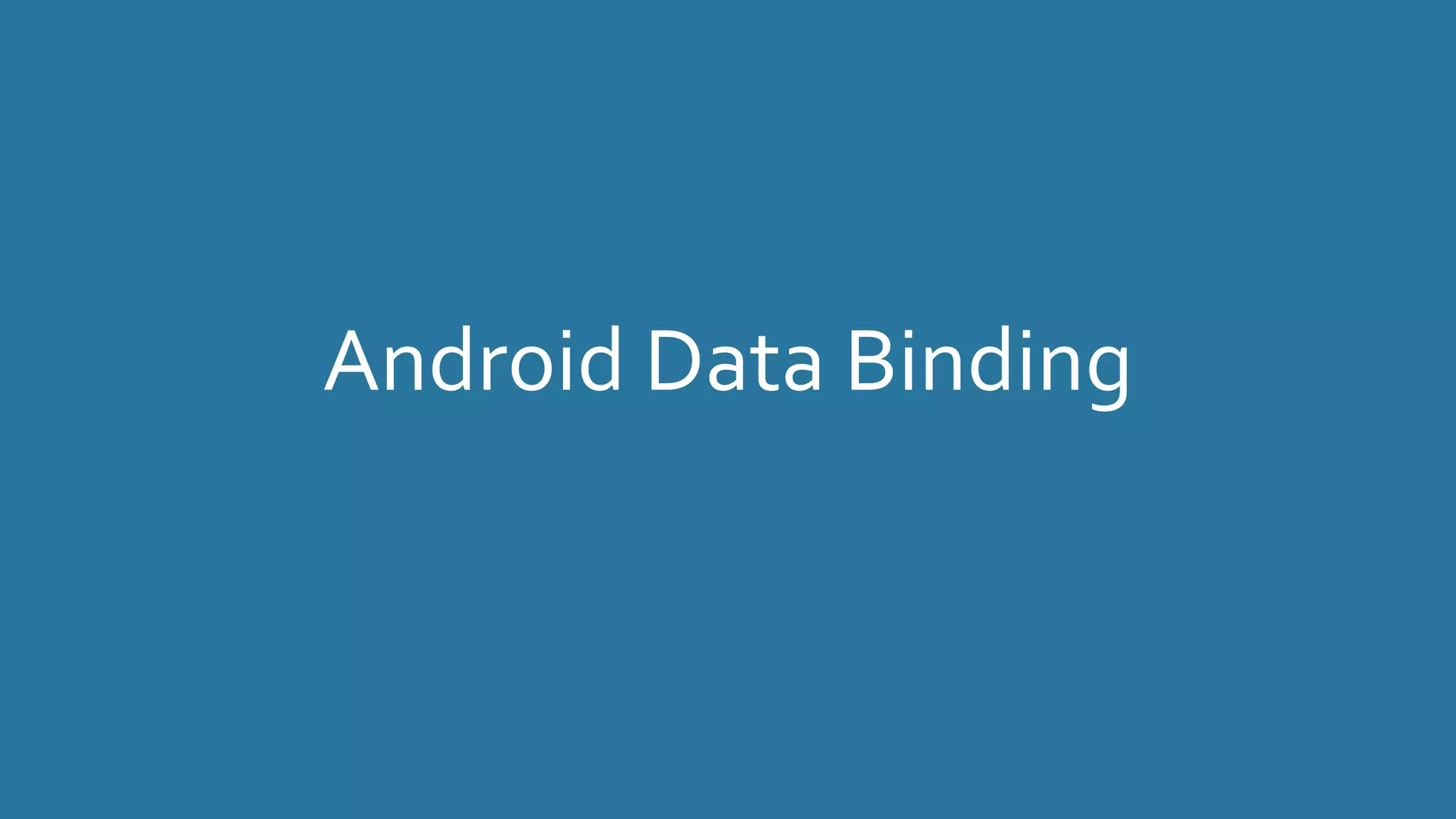

1. Android Data Binding

2. About me

3. About me
•‫اندروید‬ ‫نویس‬ ‫برنامه‬4‫سال‬

4. About me
•‫اندروید‬ ‫نویس‬ ‫برنامه‬4‫سال‬
•‫پرهات‬ ‫در‬ ‫کار‬ ‫به‬ ‫مشغول‬

5. About me
•‫اندروید‬ ‫نویس‬ ‫برنامه‬4‫سال‬
•‫پرهات‬ ‫در‬ ‫کار‬ ‫به‬ ‫مشغول‬
•‫رسان‬ ‫پیام‬ ‫های‬ ‫برنامه‬ ‫روی‬ ‫کاری‬ ‫تجربه‬

6. About me
•‫اندروید‬ ‫نویس‬ ‫برنامه‬4‫سال‬
•‫پرهات‬ ‫در‬ ‫کار‬ ‫به‬ ‫مشغول‬
•‫رسان‬ ‫پیام‬ ‫های‬ ‫برنامه‬ ‫روی‬ ‫کاری‬ ‫تجربه‬
•‫کاتلین‬ ‫دار‬ ‫دوست‬

7. About me
•‫اندروید‬ ‫نویس‬ ‫برنامه‬4‫سال‬
•‫پرهات‬ ‫در‬ ‫کار‬ ‫به‬ ‫مشغول‬
•‫رسان‬ ‫پیام‬ ‫های‬ ‫برنامه‬ ‫روی‬ ‫کاری‬ ‫تجربه‬
•‫کاتلین‬ ‫دار‬ ‫دوست‬
•https://github.com/DHosseiny

8. About me
•‫اندروید‬ ‫نویس‬ ‫برنامه‬4‫سال‬
•‫پرهات‬ ‫در‬ ‫کار‬ ‫به‬ ‫مشغول‬
•‫رسان‬ ‫پیام‬ ‫های‬ ‫برنامه‬ ‫روی‬ ‫کاری‬ ‫تجربه‬
•‫کاتلین‬ ‫دار‬ ‫دوست‬
•https://github.com/DHosseiny
@hosseinydavid

9. What is Data Binding?

10. What is Data Binding?
•‫به‬ ‫داده‬ ‫منابع‬ ‫اتصال‬View‫در‬ ‫ها‬xmllayout

11. What is Data Binding?
•‫به‬ ‫داده‬ ‫منابع‬ ‫اتصال‬View‫در‬ ‫ها‬xmllayout
•‫خودکار‬ ‫آپدیت‬ ‫توانایی‬UI‫داده‬ ‫تغییر‬ ‫با‬

12. What is Data Binding?
•‫به‬ ‫داده‬ ‫منابع‬ ‫اتصال‬View‫در‬ ‫ها‬xmllayout
•‫خودکار‬ ‫آپدیت‬ ‫توانایی‬UI‫داده‬ ‫تغییر‬ ‫با‬
•Say no to findViewById

13. Why Data Binding?

14. Why Data Binding?
•‫تر‬ ‫ساده‬ ‫و‬ ‫تمیزتر‬ ‫کد‬

15. Why Data Binding?
•‫تر‬ ‫ساده‬ ‫و‬ ‫تمیزتر‬ ‫کد‬
•‫کاهش‬ ‫بدون‬performance

16. Why Data Binding?
•‫تر‬ ‫ساده‬ ‫و‬ ‫تمیزتر‬ ‫کد‬
•‫کاهش‬ ‫بدون‬performance
•‫کاهش‬ ‫به‬ ‫کمک‬Null Pointer Exception

17. Why not Data Binding?

18. Why not Data Binding?
•‫شوند‬ ‫می‬ ‫داده‬ ‫نشان‬ ‫کامپایل‬ ‫زمان‬ ‫در‬ ‫کد‬ ‫نوشتن‬ ‫زمان‬ ‫جای‬ ‫به‬ ‫خطاها‬

19. Why not Data Binding?
•‫شوند‬ ‫می‬ ‫داده‬ ‫نشان‬ ‫کامپایل‬ ‫زمان‬ ‫در‬ ‫کد‬ ‫نوشتن‬ ‫زمان‬ ‫جای‬ ‫به‬ ‫خطاها‬
•IDE Support‫ضعیف‬

20. Why not Data Binding?
•‫شوند‬ ‫می‬ ‫داده‬ ‫نشان‬ ‫کامپایل‬ ‫زمان‬ ‫در‬ ‫کد‬ ‫نوشتن‬ ‫زمان‬ ‫جای‬ ‫به‬ ‫خطاها‬
•IDE Support‫ضعیف‬
•IDE Support‫ضعیف‬

21. Why not Data Binding?
•‫شوند‬ ‫می‬ ‫داده‬ ‫نشان‬ ‫کامپایل‬ ‫زمان‬ ‫در‬ ‫کد‬ ‫نوشتن‬ ‫زمان‬ ‫جای‬ ‫به‬ ‫خطاها‬
•IDE Support‫ضعیف‬
•IDE Support‫ضعیف‬
•IDE Support‫ضعیف‬

22. How to start?
.1build.gradle

23. How to start?
.1build.gradle
android {
...
dataBinding {
enabled = true
}
}

24. How to start?
.1build.gradle
.2Layout tag
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:id="@+id/text_name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
</FrameLayout>

25. How to start?
.1build.gradle
.2Layout tag
<layout>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:id="@+id/text_name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
</FrameLayout>
</layout>

26. How to start?
.1build.gradle
.2Layout tag
<layout>
<data>
<variable
name="user"
type="ir.logcat.databinding.User" />
</data>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:id="@+id/text_name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
</FrameLayout>
</layout>

27. How to start?
.1build.gradle
.2Layout tag
<layout>
<data>
<variable
name="user"
type="ir.logcat.databinding.User" />
</data>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:id="@+id/text_name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@{user.name}"
/>
</FrameLayout>
</layout>

28. How to start?
.1build.gradle
.2Layout tag
<layout>
<data>
<variable
name="user"
type="ir.logcat.databinding.User" />
</data>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:id="@+id/text_name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@{user.name}"
/>
</FrameLayout>
</layout>
@{}

29. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
}
}

30. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityMainBinding binding = DataBindingUtil.setContentView(this,
R.layout.activity_main);
}
}

31. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityMainBinding binding = DataBindingUtil.setContentView(this,
R.layout.activity_main);
}
}

32. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityMainBinding binding = DataBindingUtil.setContentView(this,
R.layout.activity_main);
}
}

33. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityMainBinding binding = DataBindingUtil.setContentView(this,
R.layout.activity_main);
binding.setUser(user);
}
}

34. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityMainBinding binding = DataBindingUtil.setContentView(this,
R.layout.activity_main);
binding.setUser(user);
binding.textName.setText("Android Developers");
}
}

35. How to start?
.1build.gradle
.2Layout tag
.3inflate
public class MainActivity extends AppCompatActivity {
User user;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityMainBinding binding = DataBindingUtil.setContentView(this,
R.layout.activity_main);
binding.setUser(user);
binding.textName.setText("Android Developers");
}
}
Type Safe

36. Inflation
• DataBindingUtil.setContentView(activity, R.layout.activity_main);

37. Inflation
• DataBindingUtil.setContentView(activity, R.layout.activity_main);
For Activity

38. Inflation
• DataBindingUtil.setContentView(activity, R.layout.activity_main);
• ListItemBinding binding = ListItemBinding.inflate(inflater,
parent, attachToParent);
For Activity

39. Inflation
• DataBindingUtil.setContentView(activity, R.layout.activity_main);
• ListItemBinding binding = ListItemBinding.inflate(inflater,
parent, attachToParent);
For Activity
For Any layout

40. Inflation
• DataBindingUtil.setContentView(activity, R.layout.activity_main);
• ListItemBinding binding = ListItemBinding.inflate(inflater,
parent, attachToParent);
• ListItemBinding binding = ListItemBinding.bind(view);
For Activity
For Any layout

41. Inflation
• DataBindingUtil.setContentView(activity, R.layout.activity_main);
• ListItemBinding binding = ListItemBinding.inflate(inflater,
parent, attachToParent);
• ListItemBinding binding = ListItemBinding.bind(view);
For Activity
For Any layout
For inflated view

42. Basics

43. Basics
Java Xml

44. Basics
Java
package ir.logcat.databinding;
import android.view.View;
Xml

45. Basics
Java
package ir.logcat.databinding;
import android.view.View;
Xml
<layout>
<data>
<import type="android.view.View" />

46. Basics
Java
package ir.logcat.databinding;
import android.view.View;
private User user;
Xml
<layout>
<data>
<import type="android.view.View" />

47. Basics
Java
package ir.logcat.databinding;
import android.view.View;
private User user;
Xml
<layout>
<data>
<import type="android.view.View" />
<variable
name="user"
type="ir.parsdroidgroup.databinding.User"
/>
</data>

48. Basics
Java
package ir.logcat.databinding;
import android.view.View;
private User user;
@Override
protected void onCreate(Bundle
savedInstanceState) {
...
}
Xml
<layout>
<data>
<import type="android.view.View" />
<variable
name="user"
type="ir.parsdroidgroup.databinding.User"
/>
</data>

49. Basics
Java
package ir.logcat.databinding;
import android.view.View;
private User user;
@Override
protected void onCreate(Bundle
savedInstanceState) {
...
}
Xml
<layout>
<data>
<import type="android.view.View" />
<variable
name="user"
type="ir.parsdroidgroup.databinding.User"
/>
</data>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
</LinearLayout>
</layout>

50. Live coding

51. Live coding

52. Operators And Keywords

53. Supported Operators and keywords

54. Supported Operators and keywords
• Mathematical + - / * %

55. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +

56. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||

57. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=

58. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf

59. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null

60. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null
• Cast

61. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null
• Cast
• Method calls

62. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null
• Cast
• Method calls
• Array access []

63. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null
• Cast
• Method calls
• Array access []
• Ternary operator ?:

64. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null
• Cast
• Method calls
• Array access []
• Ternary operator ?:
• Elvis operator ??

65. Supported Operators and keywords
• Mathematical + - / * %
• String concatenation +
• Logical && ||
• Comparison == < > <= >=
• instanceOf
• null
• Cast
• Method calls
• Array access []
• Ternary operator ?:
• Elvis operator ??
• Lambdas and Method references

66. Examples
android:text="@{String.valueOf(index + 1)}“
android:visibility="@{age < 13 ? View.GONE : View.VISIBLE}“
android:transitionName='@{"image_" + id}'
android:text="@{user.displayName ?? user.lastName}"
android:text="@{list[index]}"

67. Missing Operators
• this
• super
• new
• Explicit generic invocation

68. Custom Setters

69. Custom Setters

70. Custom Setters
• Automatic Setters

71. Custom Setters
• Automatic Setters
• BindingAdapters

72. Custom Setters
• Automatic Setters
• BindingAdapters
• Renamed Setters

73. Custom Setters
• Automatic Setters
• BindingAdapters
• Renamed Setters
• Binding Conversion

74. Custom Setters
• Automatic Setters
• BindingAdapters
• Renamed Setters
• Binding Conversion

75. Automatic Setters
<android.support.v4.widget.DrawerLayout
android:layout_width="match_parent"
android:layout_height="match_parent“
/>

76. Automatic Setters
<android.support.v4.widget.DrawerLayout
android:layout_width="match_parent"
android:layout_height="match_parent“
/>
void setScrimColor(int color)

77. Automatic Setters
<android.support.v4.widget.DrawerLayout
android:layout_width="match_parent"
android:layout_height="match_parent“
bind:srcrimColor="@{@color/scrim}"
/>
void setScrimColor(int color)

78. Automatic Setters

79. Automatic Setters
<TextView
bind:onClickListener="@{viewModel.onClickListener}"
/>

80. Automatic Setters
<TextView
bind:onClickListener="@{viewModel.onClickListener}"
/>
public class MyViewModel {
public View.OnClickListener onClickListener = v -> {
//handle click
};
}

81. Automatic Setters
<TextView
bind:onClickListener="@{viewModel.onClickListener}"
/>
public class MyViewModel {
public void onClickListener(View view){
//handle click
}
}

82. Automatic Setters
<TextView
bind:onClickListener="@{(view) -> viewModel.onClickListener()}"
/>
public class MyViewModel {
public void onClickListener(){
//handle click
}
}

83. Automatic Setters
<TextView
bind:onClickListener="@{() -> viewModel.onClickListener()}"
/>
public class MyViewModel {
public void onClickListener(){
//handle click
}
}

84. Binding Adapters

85. Binding Adapters
<imageView
android:src="@{user.imageUrl}"
/>

86. Binding Adapters
<imageView
android:src="@{user.imageUrl}"
/>
@BindingAdapter("android:src")
public static void loadImage(ImageView imageView, String url) {
if (url == null) return;
RequestOptions requestOptions = RequestOptions.circleCropTransform();
Glide.with(imageView.getContext())
.load(url)
.apply(requestOptions)
.into(imageView);
}

87. Binding Adapters
<imageView
android:src="@{user.imageUrl}"
bind:placeholder="@{R.drawable.placeholder}"
/>
@BindingAdapter("android:src")
public static void loadImage(ImageView imageView, String url) {
if (url == null) return;
RequestOptions requestOptions = RequestOptions.circleCropTransform();
Glide.with(imageView.getContext())
.load(url)
.apply(requestOptions)
.into(imageView);
}

88. Binding Adapters
<imageView
android:src="@{user.imageUrl}"
bind:placeholder="@{R.drawable.placeholder}"
/>
@BindingAdapter(value = {"android:src", "bind:placeholder"}, requireAll = false)
public static void loadImage(ImageView imageView, String url, int placeHolder) {
if (url == null) return;
RequestOptions requestOptions = RequestOptions.circleCropTransform();
if (placeHolder != 0) {
requestOptions = requestOptions.placeholder(placeHolder);
}
Glide.with(imageView.getContext())
.load(url)
.apply(requestOptions)
.into(imageView);
}

89. Observation

90. BaseObservable

91. BaseObservable
public class User {
private String name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name = name;
}
public String getName() {
return this.name;
}
}

92. BaseObservable
public class User extends BaseObservable {
private String name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name = name;
}
public String getName() {
return this.name;
}
}

93. BaseObservable
public class User extends BaseObservable {
private String name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name = name;
notifyPropertyChanged(BR.name);
}
public String getName() {
return this.name;
}
}

94. BaseObservable
public class User extends BaseObservable {
private String name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name = name;
notifyPropertyChanged(BR.name);
}
@Bindable
public String getName() {
return this.name;
}
}

95. ObservableField and it’s primitive friends
ObservableField<T>

96. ObservableField and it’s primitive friends
ObservableField<T>
ObservableBoolean
ObservableByte
ObservableChar
ObservableShort
ObservableInt
ObservableLong
ObservableFloat
ObservableDouble

97. ObservableField and it’s primitive friends
ObservableField<T>
ObservableBoolean
ObservableByte
ObservableChar
ObservableShort
ObservableInt
ObservableLong
ObservableFloat
ObservableDouble
ObservableParcelable<T>

98. ObservableField and it’s primitive friends
ObservableField<T>
ObservableBoolean
ObservableByte
ObservableChar
ObservableShort
ObservableInt
ObservableLong
ObservableFloat
ObservableDouble
ObservableParcelable<T>
ObservableList<T>
ObservableArrayList<T>

99. ObservableField and it’s primitive types
public class User {
private String name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name = name;
}
public String getName() {
return this.name;
}
}

100. ObservableField and it’s primitive types
public class User {
private ObservableField<String> name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name = name;
}
public String getName() {
return this.name;
}
}

101. ObservableField and it’s primitive types
public class User {
private ObservableField<String> name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name.set(name);
}
public String getName() {
return this.name;
}
}

102. ObservableField and it’s primitive types
public class User {
private ObservableField<String> name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name.set(name);
}
public String getName() {
return this.name.get();
}
}

103. ObservableField and it’s primitive types
public class User {
private ObservableField<String> name;
public User(String name) {
this.name = name;
}
public void setName(String name) {
this.name.set(name);
}
public String getName() {
return this.name.get();
}
}
<TextView android:text="@{user.name}" />
