This document discusses different techniques for handling background operations and threads in Android, including AsyncTask, IntentService, and JobScheduler. AsyncTask is meant for simple operations that need to update the UI. IntentService provides a straightforward way to perform simple background tasks without affecting the UI. JobScheduler allows scheduling jobs that will be run under certain conditions like charging or idle state.

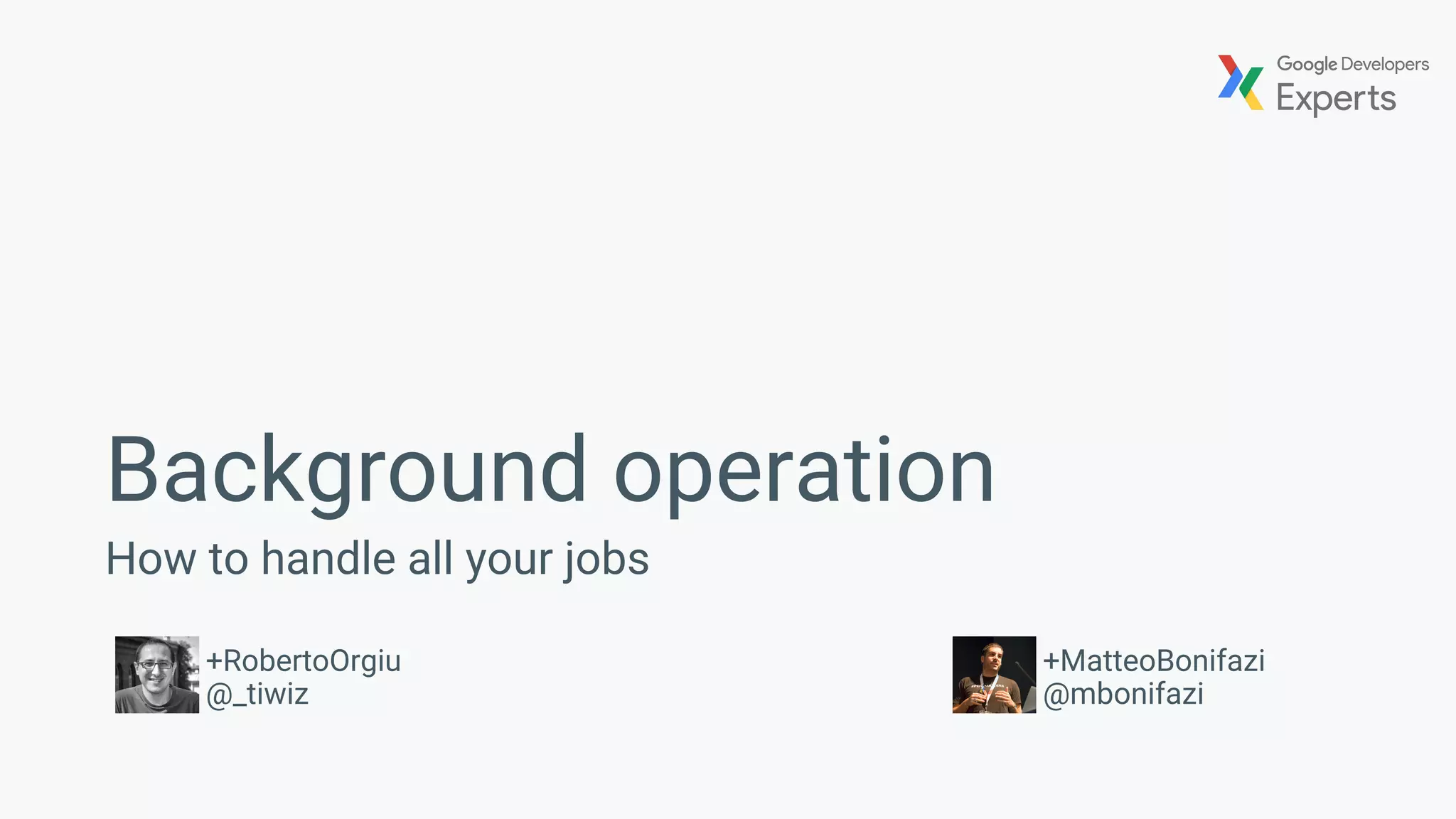

1. Background operation
How to handle all your jobs
+RobertoOrgiu
@_tiwiz
+MatteoBonifazi
@mbonifazi

2. Threading & Background Tasks
Multithreading is essential if you want an Android app
with a great user experience, but how do you know which
techniques can help solve your problem?

3. Android threads
Android application has at least one main thread
The runtime env manages the UI thread.
Long-running foreground operations can cause problems
and interfere with the responsiveness of your user interface,
which can even cause system errors.
Android offers several classes that help you off-load
operations onto a separate thread that runs in the
background.

4. AsyncTask

5. AsyncTask represents a convenient way to
offload work from the main thread.

6. AsyncTask
Is meant for simple operations
Allows to run instructions in the background and to
synchronize again with the main thread. It also reporting
progress of the running tasks. AsyncTasks should be used
for short background operations which need to update the
user interface.

7. AsyncTask example
private class DownloadWebPageTask extends AsyncTask<String, Void, String> {
@Override
protected String doInBackground(String... urls) {
OkHttpClient client = new OkHttpClient();
Request request =new Request.Builder().url(urls[0]).build();
Response response = client.newCall(request).execute();
…..
}
@Override
protected void onPostExecute(String result) {
textView.setText(result);
}
}
Run your code as a callback on UI ThreadRun your code on a new Thread

8. Parallel execution - AsyncTask
// ImageLoader extends AsyncTask
DownloadWebPageTask imageLoader = new DownloadWebPageTask( imageView );
// Execute in parallel
imageLoader.executeOnExecutor( AsyncTask.THREAD_POOL_EXECUTOR,
"http://url.com/image.png" );

9. Intent Service

10. IntentService provides straightforward
structure for running an operation on a single
background thread.

11. IntentService
Preferred way to perform simple background
operations
Allows it to handle long-running operations without
affecting your user interface's responsiveness.
It isn't affected by most user interface lifecycle events, so it
continues to run in circumstances that would shut down an
AsyncTask

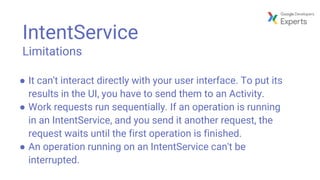

12. IntentService
Limitations
● It can't interact directly with your user interface. To put its
results in the UI, you have to send them to an Activity.
● Work requests run sequentially. If an operation is running
in an IntentService, and you send it another request, the
request waits until the first operation is finished.
● An operation running on an IntentService can't be
interrupted.

13. IntentService lifecycle
public class RSSPullService extends IntentService {
public RSSPullService() {
super(RSSPullService.class.getName());
}
@Override
protected void onHandleIntent(Intent workIntent) {
// Gets data from the incoming Intent
String dataString = workIntent.getDataString();
...
// Do work here, based on the contents of dataString
...
}
Other callbacks of a regular Service
component, such as onStartCommand() are
automatically invoked by IntentService.
Put here your background job

14. IntentService in the AndroidManifest
<application
android:icon="@drawable/icon"
android:label="@string/app_name">
...
<!--
Because android:exported is set to "false",
the service is only available to this app.
-->
<service
android:name=".RSSPullService"
android:exported="false"/>
...
<application/>
The Activity that sends work requests to
the service uses an explicit Intent

15. Create a work request to the IntentService
mServiceIntent = new Intent(getActivity(), RSSPullService.class);
mServiceIntent.setData(Uri.parse(dataUrl));
...
// Starts the IntentService
getActivity().startService(mServiceIntent);

16. Going forward
Youtube Video
https://www.youtube.com/watch?v=jtlRNNhane
https://www.youtube.com/watch?v=9FweabuBi1U
https://www.youtube.com/watch?v=tBHPmQQNiS8
Reference Link
https://developer.android.com/guide/components/processes-and-threads.html
https://developer.android.com/training/run-background-service/index.html
https://developer.android.com/training/multiple-threads/index.html

17. JobScheduler

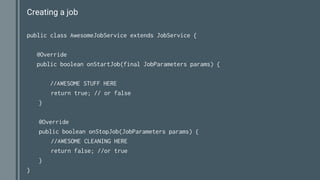

18. Creating a job
public class AwesomeJobService extends JobService {
@Override
public boolean onStartJob(final JobParameters params) {
//AWESOME STUFF HERE
return true; // or false
}
@Override
public boolean onStopJob(JobParameters params) {
//AWESOME CLEANING HERE
return false; //or true
}
}

19. Scheduling a job
ComponentName component = new ComponentName(context, AwesomeJobService.class);
JobInfo.Builder builder = new JobInfo.Builder(jobId, component)
.setRequiredNetworkType(JobInfo.NETWORK_TYPE_ANY)
.setRequiresDeviceIdle(true)
...
.setRequiresCharging(false);
builder.setExtras(parameters);
JobScheduler s = (JobScheduler) getSystemService(Context.JOB_SCHEDULER_SERVICE);
s.schedule(builder.build());

20. Going forward - 2
Reference Link
https://developer.android.com/topic/performance/scheduling.html
https://developer.android.com/reference/android/app/job/JobScheduler.html
https://github.com/googlesamples/android-JobScheduler/

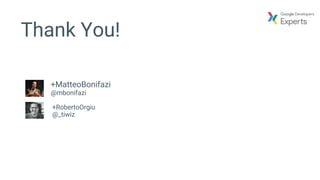

21. +MatteoBonifazi
@mbonifazi
Thank You!
+RobertoOrgiu
@_tiwiz
