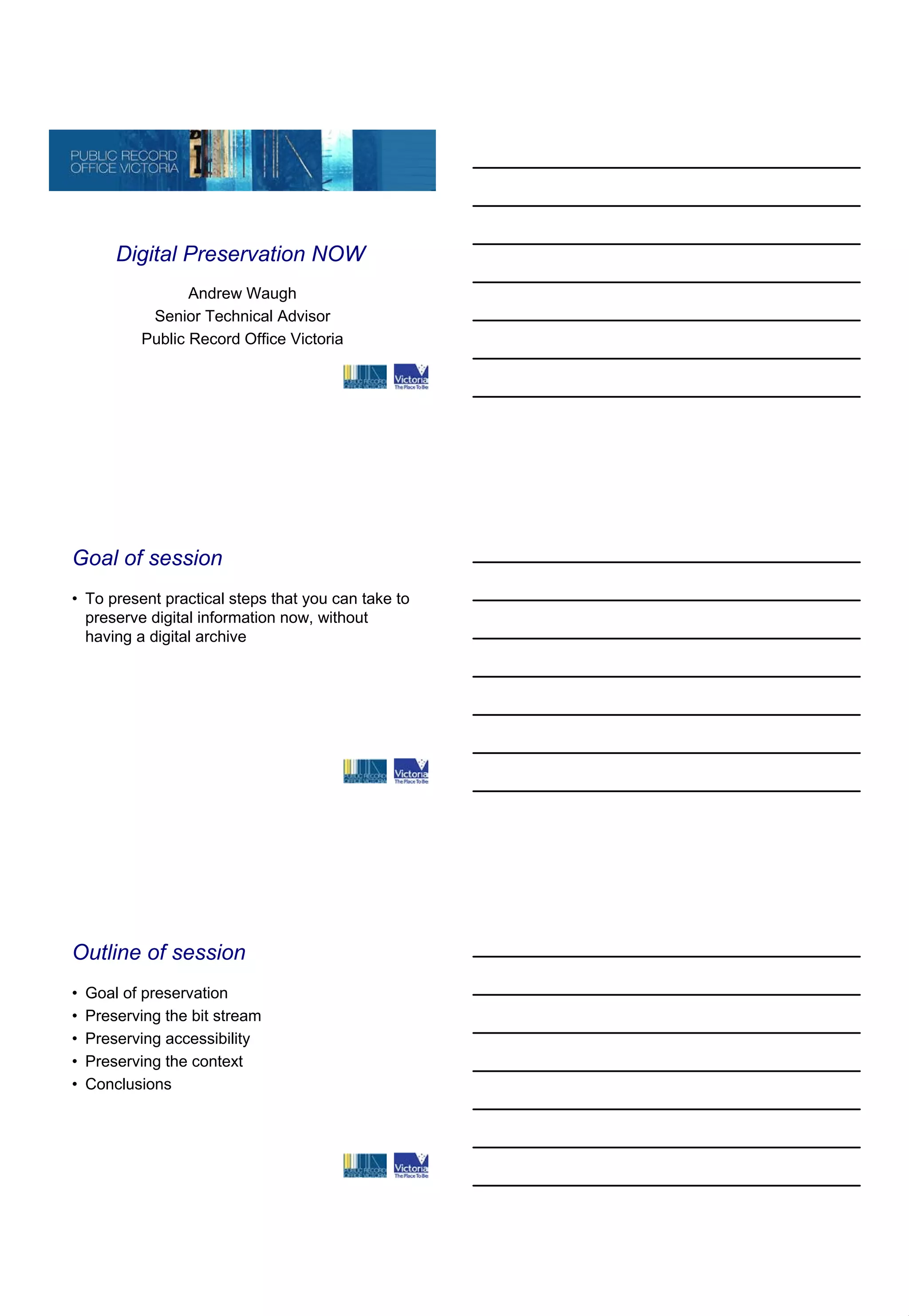

1. Digital Preservation NOW
Andrew Waugh
Senior Technical Advisor
Public Record Office Victoria
Goal of session
• To present practical steps that you can take to
preserve digital information now, without
having a digital archive
Outline of session
• Goal of preservation
• Preserving the bit stream
• Preserving accessibility
• Preserving the context
• Conclusions

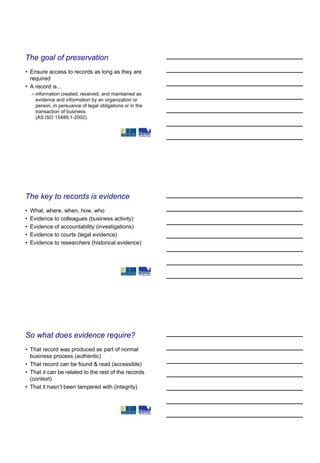

2. The goal of preservation
• Ensure access to records as long as they are
required
• A record is…
– information created, received, and maintained as
evidence and information by an organization or
person, in persuance of legal obligations or in the
transaction of business
(AS ISO 15489.1-2002)
The key to records is evidence
• What, where, when, how, who
• Evidence to colleagues (business activity)
• Evidence of accountability (investigations)
• Evidence to courts (legal evidence)
• Evidence to researchers (historical evidence)
So what does evidence require?
• That record was produced as part of normal
business process (authentic)
• That record can be found & read (accessible)
• That it can be related to the rest of the records
(context)
• That it hasn’t been tampered with (integrity)

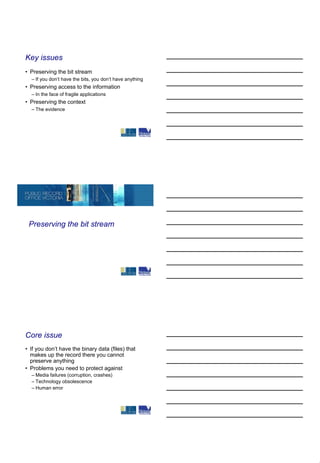

3. Key issues
• Preserving the bit stream
– If you don’t have the bits, you don’t have anything
• Preserving access to the information
– In the face of fragile applications
• Preserving the context
– The evidence
Preserving the bit stream
Core issue
• If you don’t have the binary data (files) that
makes up the record there you cannot
preserve anything
• Problems you need to protect against
– Media failures (corruption, crashes)
– Technology obsolescence
– Human error

4. Basically a solved problem
• A core function of your IT department
– Day to day operation of storage systems
– Back-up/restore and disaster recovery
– Periodic replacement of media and technology
Recommendations
• Store on at least two pieces of media, ideally two
technologies or (less ideally) two brands
• Store in at least two sites
• Information not being accessed must be periodically
checked for corruption
• Track individual pieces of media – include brand and
batch
• Always use mainstream technology in widespread
use
Storage media (disc)
• Default storage choice should be on-line (disc)
storage unless massive storage required
– e.g. 3 Terabytes RAID 5 ~$4000
• RAID 1 or 6 (or derivatives) to guard against
disc failures. RAID 5 is problematic now.
• Expect to replace each disc within 5 years
• External (USB) discs not recommended for
long term storage (> 1 year)

5. Storage media (tape)
• Choice when greater storage capacity than
economic with disc
– Be sure to factor in whole of life costs including media
replacement and operator costs
• Preferred formats LTO Ultrium, IBM 3592, T10000
• Tape robots are preferred over manual handling
• Get expert advice on tape solutions as these are no
longer common – use only for large organisations
• NEVER EVER choose leading edge technology,
always stay within industry standard
Storage media (optical)
• Prefer CD-R (phthalocyanine dye)
• Can use CD-R (azo dye) or DVD-R, but monitor
carefully
• Do not use CD-RW, DVD-RW, or CD-R (cyanine
dye)
• Use ‘name brands’, and archival quality if possible
• Refresh in 2 to 5 years
• Unlikely to be generally economic compared with
disc or tape due to high operator cost and low
capacity
Monitor…
• Recommend statistical sampling of data to
– check for corruption of copies (checksums)
– deterioration of media
• Technology watch to guard against obsolete media
– plan for media refresh every 2 to 10 years
• Track individual pieces of media (if used)
– Ensure that none are lost
– Ensure that all are tested and refreshed

6. Back-up & disaster recovery
• Ensure that
– Your IT organisation has both a back-up and
disaster recovery regime
– It is effective (periodically test restoration)
Preserving accessibility
Software fragility
• Without software to interpret and display the
content, the data is lost
– Software may not run on the current version of the
operating system or current computer
– Current software version may not accurately deal
with files from older versions
– You may not have the required software

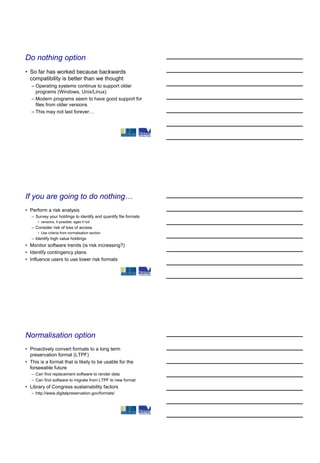

7. Do nothing option
• So far has worked because backwards
compatibility is better than we thought
– Operating systems continue to support older
programs (Windows, Unix/Linux)
– Modern programs seem to have good support for
files from older versions
– This may not last forever…
If you are going to do nothing…
• Perform a risk analysis
– Survey your holdings to identify and quantify file formats
• versions, if possible, ages if not
– Consider risk of loss of access
• Use criteria from normalisation section
– Identify high value holdings
• Monitor software trends (is risk increasing?)
• Identify contingency plans
• Influence users to use lower risk formats
Normalisation option
• Proactively convert formats to a long term
preservation format (LTPF)
• This is a format that is likely to be usable for the
forseeable future
– Can find replacement software to render data
– Can find software to migrate from LTPF to new format
• Library of Congress sustainability factors
– http://www.digitalpreservation.gov/formats/

8. Characteristics of a good LTPF
• Supports critical features of your data
• Published file format specification
• Independent implementations
• Wide community adoption
• Simple
• Formal standard
• Public domain
• Low risk conversion
If you normalise
• Don’t jump out of the frying pan
– Still need to do the analysis presented for ‘do
nothing case’
– Just fewer formats
• Develop test regime to test conversion into
nominated format
– Suite of ‘typical’ documents illustrating critical
features
LTPF suggestions
• Documents
– PDF/A, ODF
• Images
– TIFF, JPEG2000, JPEG (if already in JPEG)
• Video
– MPEG2 or MPEG4

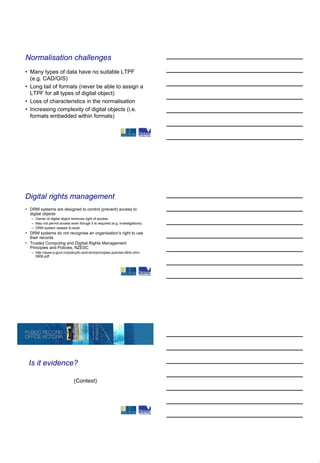

9. Normalisation challenges
• Many types of data have no suitable LTPF
(e.g. CAD/GIS)
• Long tail of formats (never be able to assign a
LTPF for all types of digital object)
• Loss of characteristics in the normalisation
• Increasing complexity of digital objects (i.e.
formats embedded within formats)
Digital rights management
• DRM systems are designed to control (prevent) access to
digital objects
– Owner of digital object removes right of access
– May not permit access even though it is required (e.g. investigations)
– DRM system ceases to exist
• DRM systems do not recognise an organisation’s right to use
their records
• Trusted Computing and Digitial Rights Management
Principles and Policies, NZESC
– http://www.e.govt.nz/policy/tc-and-drm/principles-policies-06/tc-drm-
0906.pdf
Is it evidence?
(Context)

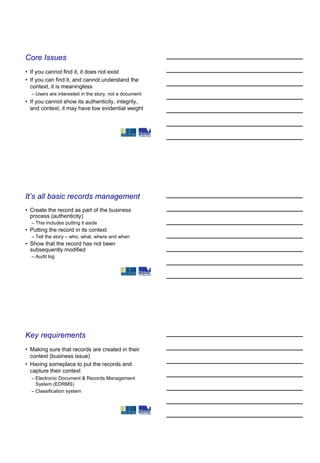

10. Core Issues
• If you cannot find it, it does not exist
• If you can find it, and cannot understand the
context, it is meaningless
– Users are interested in the story, not a document
• If you cannot show its authenticity, integrity,
and context, it may have low evidential weight
It’s all basic records management
• Create the record as part of the business
process (authenticity)
– This includes putting it aside
• Putting the record in its context
– Tell the story – who, what, where and when
• Show that the record has not been
subsequently modified
– Audit log
Key requirements
• Making sure that records are created in their
context (business issue)
• Having someplace to put the records and
capture their context
– Electronic Document & Records Management
System (EDRMS)
– Classification system

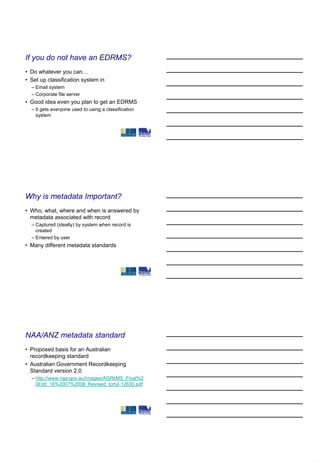

11. If you do not have an EDRMS?
• Do whatever you can…
• Set up classification system in
– Email system
– Corporate file server
• Good idea even you plan to get an EDRMS
– It gets everyone used to using a classification
system
Why is metadata Important?
• Who, what, where and when is answered by
metadata associated with record
– Captured (ideally) by system when record is
created
– Entered by user
• Many different metadata standards
NAA/ANZ metadata standard
• Proposed basis for an Australian
recordkeeping standard
• Australian Government Recordkeeping
Standard version 2.0
– http://www.naa.gov.au/Images/AGRkMS_Final%2
0Edit_16%2007%2008_Revised_tcm2-12630.pdf

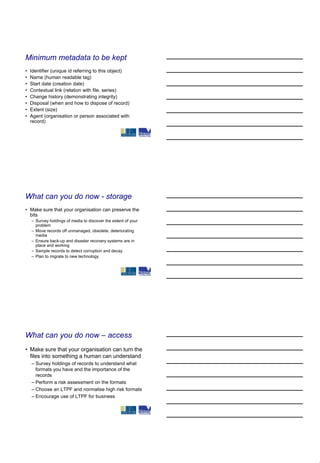

12. Minimum metadata to be kept
• Identifier (unique id referring to this object)
• Name (human readable tag)
• Start date (creation date)
• Contextual link (relation with file, series)
• Change history (demonstrating integrity)
• Disposal (when and how to dispose of record)
• Extent (size)
• Agent (organisation or person associated with
record)
What can you do now - storage
• Make sure that your organisation can preserve the
bits
– Survey holdings of media to discover the extent of your
problem
– Move records off unmanaged, obsolete, deteriorating
media
– Ensure back-up and disaster recovery systems are in
place and working
– Sample records to detect corruption and decay
– Plan to migrate to new technology
What can you do now – access
• Make sure that your organisation can turn the
files into something a human can understand
– Survey holdings of records to understand what
formats you have and the importance of the
records
– Perform a risk assessment on the formats
– Choose an LTPF and normalise high risk formats
– Encourage use of LTPF for business

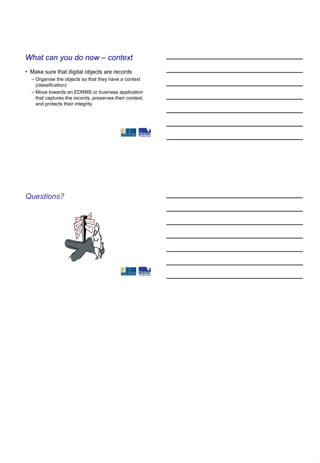

13. What can you do now – context
• Make sure that digital objects are records
– Organise the objects so that they have a context
(classification)
– Move towards an EDRMS or business application
that captures the records, preserves their context,
and protects their integrity
Questions?
