The document provides information about an Andrew FXL-780 jacketed flexible coaxial cable, including specifications, ordering information, payment options, shipping details, warranty, and additional services available from the seller Launch 3 Telecom. Key details are the cable's 50 ohm impedance, 7/8 inch diameter, operating frequency band of 100-5300 MHz, and same day shipping availability.

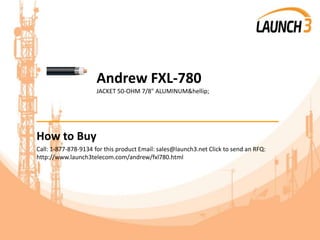

2. Andrew FXL-780
JACKET 50-OHM 7/8" ALUMINUM…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/fxl780.html

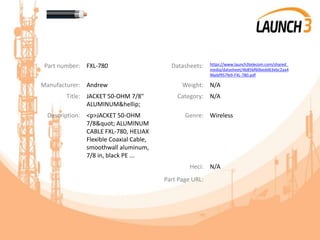

3. Part number: FXL-780 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/4b85bf60bedd63ebc2aa4
96ebf957fe9-FXL-780.pdf
Manufacturer: Andrew Weight: N/A
Title: JACKET 50-OHM 7/8"
ALUMINUM…
Category: N/A
Description: <p>JACKET 50-OHM
7/8&quot; ALUMINUM
CABLE FXL-780, HELIAX
Flexible Coaxial Cable,
smoothwall aluminum,
7/8 in, black PE ...
Genre: Wireless
Heci: N/A
Part Page URL:

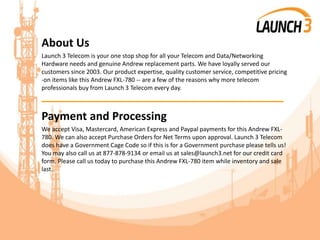

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew FXL-780 -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew FXL-
780. We can also accept Purchase Orders for Net Terms upon approval. Launch 3 Telecom
does have a Government Cage Code so if this is for a Government purchase please tells us!
You may also call us at 877-878-9134 or email us at sales@launch3.net for our credit card
form. Please call us today to purchase this Andrew FXL-780 item while inventory and sale
last.

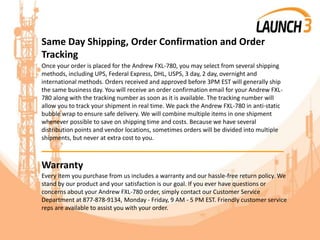

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew FXL-780, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew FXL-
780 along with the tracking number as soon as it is available. The tracking number will
allow you to track your shipment in real time. We pack the Andrew FXL-780 in anti-static
bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew FXL-780 order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

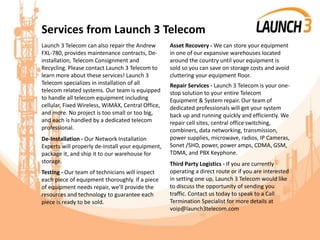

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
FXL-780, provides maintenance contracts, De-
installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

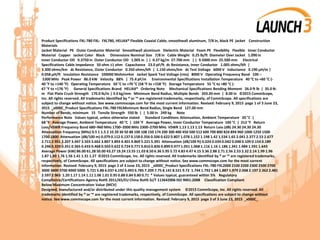

7. Product Specifications FXL-780 FXL- FXL780, HELIAX® Flexible Coaxial Cable, smoothwall aluminum, 7/8 in, black PE jacket Construction
Materials
Jacket Material PE Outer Conductor Material Smoothwall aluminum Dielectric Material Foam PE Flexibility Flexible Inner Conductor
Material Copper Jacket Color Black Dimensions Nominal Size 7/8 in Cable Weight 0.25 lb/ft Diameter Over Jacket 1.090 in
Inner Conductor OD 0.3750 in Outer Conductor OD 1.005 in | | 0.37 kg/m 27.700 mm | | 9.5000 mm 25.500 mm Electrical
Specifications Cable Impedance 50 ohm ±1 ohm Capacitance 23.0 pF/ft dc Resistance, Inner Conductor 1.005 ohms/kft |
3.300 ohms/km dc Resistance, Outer Conductor 0.350 ohms/kft | 1.150 ohms/km dc Test Voltage 6000 V Inductance 0.190 µH/m |
0.058 µH/ft Insulation Resistance 100000 Mohms•km Jacket Spark Test Voltage (rms) 8000 V Operating Frequency Band 100 –
5300 MHz Peak Power 86.0 kW Velocity 88% | 75.4 pF/m Environmental Specifications Installation Temperature 40 °C to +60 °C (-
40 °F to +140 °F) Operating Temperature 50 °C to +70 °C (58 °F to +158 °F) Storage Temperature 55 °C to +80 °C (-
67 °F to +176 °F) General Specifications Brand HELIAX® Ordering Note Mechanical Specifications Bending Moment 26.0 ft lb | 35.0 N-
m Flat Plate Crush Strength 170.0 lb/in | 3.0 kg/mm Minimum Bend Radius, Multiple Bends 203.20 mm | 8.00 in ©2015 CommScope,
Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are
subject to change without notice. See www.commscope.com for the most current information. Revised: February 9, 2015 page 1 of 3 June 23,
2015 _x000C_Product Specifications FXL-780 FXLMinimum Bend Radius, Single Bend 127.00 mm
Number of Bends, minimum 15 Tensile Strength 550 lb | | 5.00 in 249 kg Note
Performance Note Values typical, unless otherwise stated Standard Conditions Attenuation, Ambient Temperature 20 °C |
68 °F Average Power, Ambient Temperature 40 °C | 104 °F Average Power, Inner Conductor Temperature 100 °C | 212 °F Return
Loss/VSWR Frequency Band 680–960 MHz 1700–2000 MHz 2300–2700 MHz VSWR 1.13 1.13 1.13 Return Loss (dB) 24.30 24.30 24.30
Attenuation Frequency (MHz) 0.5 1 1.5 2 10 20 30 50 88 100 108 150 174 200 300 400 450 500 512 600 700 800 824 894 960 1000 1250 1500
1700 1800 Attenuation (dB/100 m) 0.079 0.112 0.137 0.158 0.356 0.506 0.622 0.807 1.078 1.152 1.198 1.42 1.534 1.65 2.041 2.377 2.53 2.677
2.711 2.951 3.207 3.447 3.503 3.662 3.807 3.893 4.401 4.869 5.221 5.391 Attenuation (dB/100 ft) 0.024 0.034 0.042 0.048 0.109 0.154 0.189
0.246 0.329 0.351 0.365 0.433 0.468 0.503 0.622 0.724 0.771 0.816 0.826 0.899 0.977 1.051 1.068 1.116 1.16 1.186 1.341 1.484 1.591 1.643
Average Power (kW) 86.00 61.28 50.00 43.27 19.24 13.55 11.03 8.50 6.36 5.95 5.72 4.83 4.47 4.15 3.36 2.88 2.71 2.56 2.53 2.32 2.14 1.99 1.96
1.87 1.80 1.76 1.56 1.41 1.31 1.27 ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current
information. Revised: February 9, 2015 page 2 of 3 June 23, 2015 _x000C_Product Specifications FXL-780 FXL2000 2100 2200 2300 2500 2700
3000 3400 3700 4000 5000 5.721 5.88 6.037 6.192 6.493 6.785 7.209 7.75 8.141 8.521 9.72 1.744 1.792 1.84 1.887 1.979 2.068 2.197 2.362 2.481
2.597 2.963 1.20 1.17 1.14 1.11 1.06 1.01 0.95 0.88 0.84 0.80 0.71 * Values typical, guaranteed within 5% Regulatory
Compliance/Certifications Agency RoHS 2011/65/EU China RoHS SJ/T 113642006 ISO 9001:2008 Classification Compliant
Below Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system ©2015 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: February 9, 2015 page 3 of 3 June 23, 2015 _x000C_
