The document outlines the benefits of adding titanium boron to aluminum as a grain refiner, which enhances the uniformity of alloy distribution, reduces porosity, and improves mechanical properties. It details the composition and physical characteristics of titanium boron aluminum rod, including its shape and tensile strength. Continuous injection of this rod is presented as an effective treatment for all aluminum alloys.

1. KBL NEW METALS
www.kblmetals.com kbl@kblmetals.com

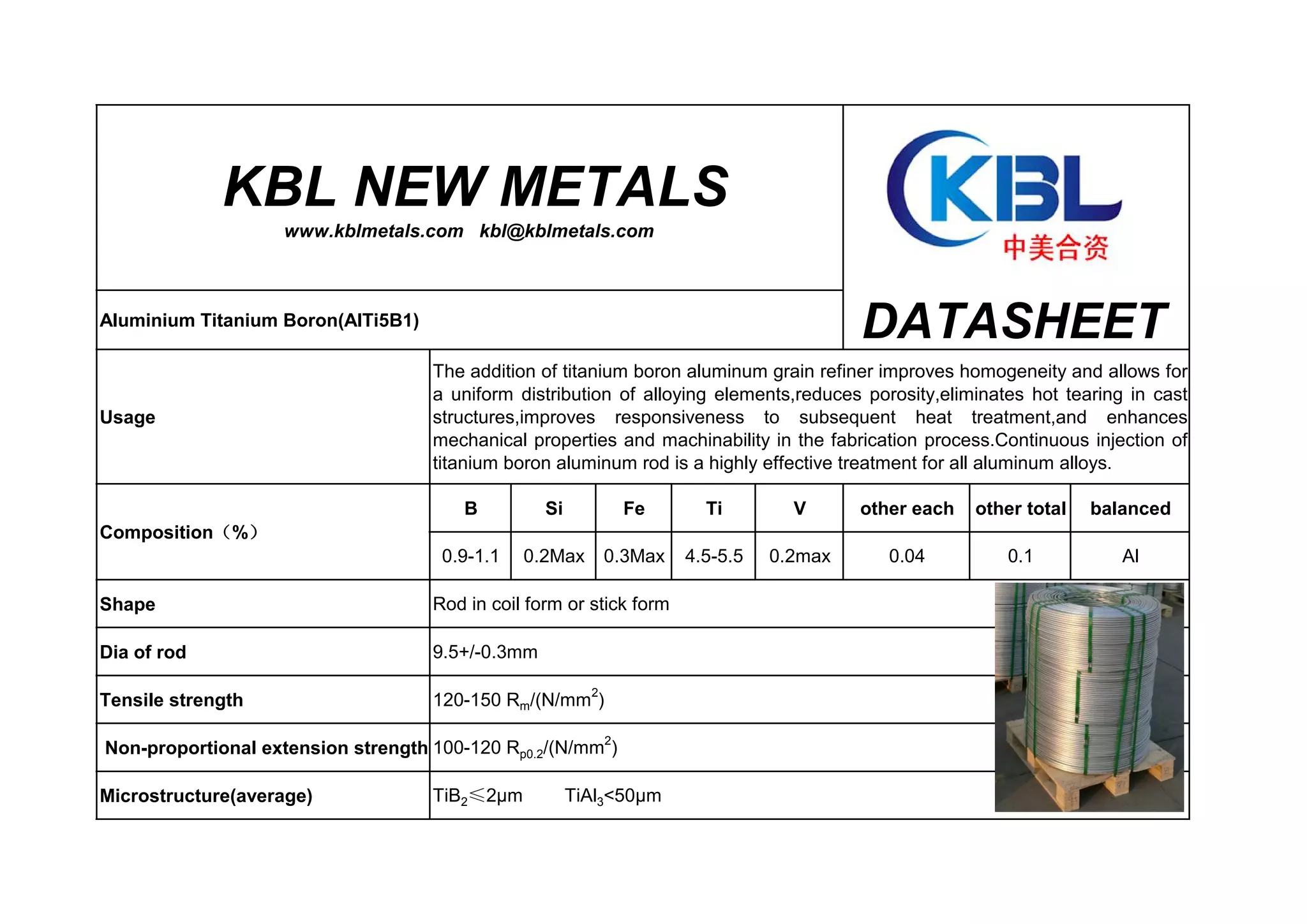

DATASHEETAluminium Titanium Boron(AlTi5B1)
Usage
The addition of titanium boron aluminum grain refiner improves homogeneity and allows for
a uniform distribution of alloying elements,reduces porosity,eliminates hot tearing in cast
structures,improves responsiveness to subsequent heat treatment,and enhances
mechanical properties and machinability in the fabrication process.Continuous injection of
titanium boron aluminum rod is a highly effective treatment for all aluminum alloys.
Composition（%）
B Si Fe Ti V other each other total balanced
0.9-1.1 0.2Max 0.3Max 4.5-5.5 0.2max 0.04 0.1 Al
Shape Rod in coil form or stick form
Dia of rod 9.5+/-0.3mm
Tensile strength 120-150 Rm/(N/mm2
)
Non-proportional extension strength 100-120 Rp0.2/(N/mm2
)
Microstructure(average) TiB2≤2μm TiAl3<50μm
