Alpha Products 15 email

Product Catalogue
lphaproductsDelivering solutions for the future
α

1lphaproductsDelivering solutions for the future
α
2
4
6
6
7
8
9
9
10
11
11
12
13
14
15
16
16
Interactive Touchscreens
Touchscreen Software
Commercial Grade Displays
Alpha Digital Posters
Video Walls
Digital Signage
Radio Channel
Visitor Entry System
3D Printers
Classroom Monitoring System
PC’s – Android & Small Form Factor

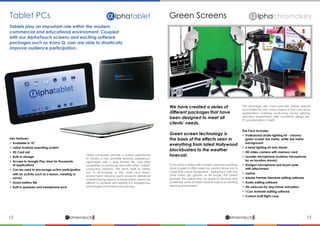

Tablets PC’s
Green Screens
Visualisers
Website Design & Management

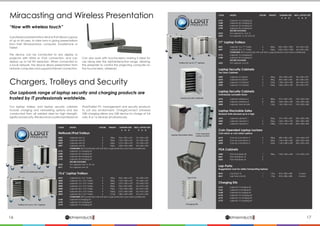

Miracasting and Wireless Presentation
Ancillaries (Alpha Present, Mira-Casting,
Cables, Faceplates, Loxit Products)

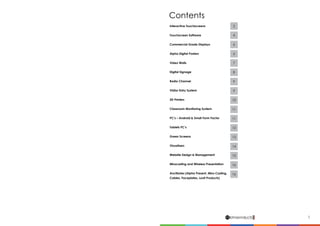

Contents

2 3lphaproductsDelivering solutions for the future
αlphaproductsDelivering solutions for the future
α

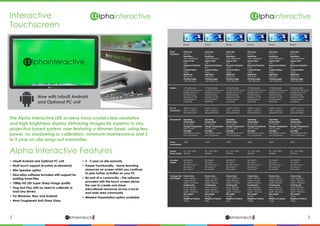

Interactive
Touchscreen
The Alpha Interactive LED screens have crystal clear resolution
and high brightness display delivering images far superior to any
projection based system; now featuring a slimmer bezel, using less
power, no shadowing or calibration, minimum maintenance and 3
to 5 year on-site swap-out warranties.
Alpha Interactive Features
• Inbuilt Android and Optional PC unit
• Multi touch support (4 points as standard)
• 50w Speaker option
• Education software included with support for
existing Smart files
• 1080p HD LED Super Sharp Image quality
• Plug and Play with no need to calibrate or
load any drivers
• For Windows, Mac and Android
• 4mm Toughened Anti Glare Glass
• 3 - 5 year on site warranty
• Freeze Functionality - leave teaching
resources on screen whilst you continue
to plan further activities on your PC
• Be part of a community – the software
provided with the touch screen allows
the user to create and share
educational resources across a local
and wide area community
• Wireless Presentation option available
Now with Inbuilt Android
and Optional PC unit
Panel
Parameter
Feature
PC I/O
Connectors
Environment
Power
consumption

System
Power Supply
Included
Cables
Package Size
and Weight
Panel size:
42 inch
Resolution:
1920*1080@60HZ
Aspect ratio:
16:9
Response time(ms):
6ms
Contrast Ration:
1000:1
Brightness:
380cd/m2
Viewing Angle:
178°/178°(H/V)
Anti glare glass
4 point Infa-red touch
Multiple touch on
Windows/Mac
Speaker: 2*15W
Android Built-in
(optional)
HDMI*3, VGA*1,
USB*1, AUDIO*3,
MICROPHONE*1
Operating
Temperature:
0°C to 40°C
Storage Temperature:
-20°C to 60°C
Humidity:
20%-80% RH at 40°C,
non-condensing
130W
AC 110V~240V,
50/60HZ
3M HDMI*1,
3M VGA*1,
3M USB touch* 1,
3M power *1,
3M Audio*1
Product size:
width 1048.00 x
height 642.00 x
depth 74.2.00mm
Packing size:
width 1160.00 x
height 770.00 x
depth 155.00mm
Net weight:
30.3kg
Weight (w/Carton):
34.6kg
Panel size:
47 inch
Resolution:
1920*1080@60HZ
Aspect ratio:
16:9
Response time(ms):
6ms
Contrast Ration:
1000:1
Brightness:
400cd/m2
Viewing Angle:
178°/178°(H/V)
Anti glare glass
Multiple touch on
Windows/Mac
Speaker: 2*15W
Android Built-in
(optional)
HDMI*3, VGA*1,
USB*1, AUDIO*3,
MICROPHONE*1
Operating
Temperature:
0°C to 40°C
-20°C to 60°C
Humidity:
20%-80% RH at 40°C,
non-condensing
130W
AC 110V~240V,
50/60HZ
3M HDMI*1,
3M VGA*1,
3M USB touch* 1,
3M power *1,
3M Audio*1
Product size:
width 1151.00 x
height 696.70 x
depth 73.00mm
Packing size:
width 1270.00 x
height 820.00 x
depth 155.00mm
Net weight:
43.2kg
Weight (w/Carton):
48kg
Panel size:
65 inch
Resolution:
1920*1080@60HZ
Aspect ratio:
16:9
Response time(ms):
6.5ms
Contrast Ration:
1000:1
Brightness:
400cd/m2
Viewing Angle:
178°/178°(H/V)
Anti glare glass
Multiple touch on
Windows/Mac
Speaker: 2*15W
Android Built-in
(optional)
HDMI*3, VGA*1,
USB*1, AUDIO*3,
MICROPHONE*1
Operating
Temperature:
0°C to 40°C
-20°C to 60°C
Humidity:
20%-80% RH at 42°C,
non-condensing
260W
AC 110V~240V,
50/60HZ
3M HDMI*1,
3M VGA*1,
3M USB touch* 1,
3M power *1,
3M Audio*1
Product size:
width 1543.00 x
height 915.00 x
depth 83.00mm
Packing size:
width 1650.00 x
height 1050.00 x
depth 170.00mm
Net weight:
67.3kg
Weight (w/Carton):
73.5kg
Panel size:
58 inch
Resolution:
1920*1080@60HZ
Aspect ratio:
16:9
Response time(ms):
6.5ms
Contrast Ration:
1000:1
Brightness:
400cd/m2
Viewing Angle:
178°/178°(H/V)
Anti glare glass
Multiple touch on
Windows/Mac
Speaker: 2*15W
Android Built-in
(optional)
HDMI*3, VGA*1,
USB*1, AUDIO*3,
MICROPHONE*1
Operating
Temperature:
0°C to 40°C
-20°C to 60°C
Humidity:
20%-80% RH at 41°C,
non-condensing
160W
AC 110V~240V,
50/60HZ
3M HDMI*1,
3M VGA*1,
3M USB touch* 1,
3M power *1,
3M Audio*1
Product size:
width 1383.00 x
height 834.00 x
depth 71.00mm
Packing size:
width 1485.00 x
height 950.00 x
depth 155.00mm
Net wight:
51.5kg
Weight (w/Carton):
57kg
Panel size:
70 inch
Resolution:
1920*1080@60HZ
Aspect ratio:
16:9
Response time(ms):
6ms
Contrast Ration:
1000:1
Brightness:
450cd/m2
Viewing Angle:
178°/178°(H/V)
Anti glare glass
Multiple touch on
Windows/Mac
Speaker: 2*15W
Android Built-in
(optional)
HDMI*3, VGA*1,
USB*1, AUDIO*3,
MICROPHONE*1
Operating
Temperature:
0°C to 40°C
-20°C to 60°C
Humidity:
20%-80% RH at 42°C,
non-condensing
480W
AC 110V~240V,
50/60HZ
3M HDMI*1,
3M VGA*1,
3M USB touch* 1,
3M power *1,
3M Audio*1
Product size:
width 1770.00 x
height 1092.00 x
depth 98.00mm
Packing size:
width 1860.00 x
height 1207.00 x
depth 185.00mm
Net weight:
96kg
Weight (w/Carton):
115kg
Panel size:
84 inch
Resolution:
1920*1080@60HZ
Aspect ratio:
16:9
Response time(ms):
6ms
Contrast Ration:
1000:1
Brightness:
400cd/m2
Viewing Angle:
178°/178°(H/V)
Anti glare glass
Multiple touch on
Windows/Mac
Speaker: 2*15W
Android Built-in
(optional)
HDMI*3, VGA*1,
USB*1, AUDIO*3,
MICROPHONE*1
Operating
Temperature:
0°C to 40°C
-20°C to 60°C
Humidity:
20%-80% RH at 43°C,
non-condensing
520W
AC 110V~240V,
50/60HZ
3M HDMI*1,
3M VGA*1,
3M USB touch* 1,
3M power *1,
3M Audio*1
Product size:
width 2044.00 x
height 1236.00 x
depth 198.00mm
Packing size:
width 2139.00 x
height 1351.00 x
depth 198.00mm
Net weight:
121kg
Weight (w/Carton):
125kg
42 inch 47 inch 58 inch 65 inch 70 inch 84 inch

Daydream Education's Interactive Content Packs
provide a fun and engaging way of exploring key
curriculum-based topics, combining clear and
concise information with exciting and engaging
interactive activities.
The software contains easy to follow presentation
screens to improve understanding, plus a wide
variety of activities to reinforce learning and assess
understanding.
Interact with Daydream Education’s award-winning
educational apps through your Alpha Interactive
Touchscreens or Alpha Tablet.
The innovative and engaging apps are versatile
teaching and learning tools that provide a wide range
of interactivities, tutorials and assessments to engage
and enthuse students.
All apps, which are fully aligned to the new curriculum,
have been designed to break down barriers to learning
and improve pupil understanding.
Daydream Education’s Interactive Content Packs
Plus BETT Award Winning Maths Apps!
What’s included?
• Over 160 Interactive Resources - The Interactive Content packs
contain a wealth of curriculum-based content and interactivities to
engage students and encourage whole-class involvement.
• Over 3,000 Quiz Questions – The interactive and printable quizzes
provide a quick and easy way of assessment pupil understanding and
are great starter, summary or plenary activities.
• Over 200 Activities and Games – The multi-format Fun Features
provide and fun and informal way of assessing your students’ level of
understanding.
• Over 200 Readymade Worksheets – The challenging and engaging
worksheets provide quick and easy assessment tools that save valuable
preparation time.
α lphaproductsDelivering solutions for the future
α
A lphateach
Alpha touch screens are provided with a
comprehensive software package:
Alphateach
Alpha Teach Workbook lets presenters bring together
all their resources and access these instantly when
needed. Workbook is designed to help you build
activities and to facilitate the learning experience.
Workbook is interoperable with other software tools.
Workbook opens SMART Notebook files natively,
allowing you to edit and save content from these.
Easy page navigation, ink annotation, ink-to-text,
easy text entry, shapes, image placements etc.
Everything is instantly scaled, rotated, moved on the
page or between pages.
The same applies to video, flash, sound files, and
the built-in web browser. Look further and you’ll also
find the usual whiteboarding features: spotlight,
magnifier, full screen views, screen capture, screen
annotate, cropping, transparency eyedropper,
format painter etc.
Xorro-Q
Perfect for group brainstorming, audience polling,
surveys and assessments. Using Xorro-Q’s simple on-
screen dashboard, a teacher, trainer or presenter
can instantly invite audience participation.
Participants can receive questions on any browser-
capable device: mobile phones, ipads, tablets,
laptops etc. Responses are instantly available,
making it fun and engaging to students.
View and share audience feedback instantly! The
Xorro-Q response window indicates the participation
rate, and displays feedback as it arrives. View votes
and opinions, and drag-and-drop to incorporate
these into presentations or notes. Choose anonymous
activities or identify participants.
Schudio
Bring all the very latest online apps and tech into every classroom to inspire teachers and students alike.
The Schudio Learning Wall provides an instant way to provide access in the classroom to the very best and
brightest online tools, apps and solutions through any device. Customise the wall with links to any tool with
eye-catching buttons that scream use me.
Collaborate, inspire and motivate
Schudio learning wall includes a resources section to share resources internally via a user-friendly interface.
Provide quick and easy access to training resources, plenaries, useful web sites … anything the school needs
to share. Staff can submit resources to share best practice across the whole school.
Inspire Students through Music
Schudio learning wall comes with a fully responsive audio player. The school can upload MP3 files and
categorise the music to motivate, relax and focus students on the task at hand. The account comes with
some carefully selected music already in categories including Happy, Memory, Motivation, Problem Solving
and Relaxation.
Touchscreen Software Education Software

α

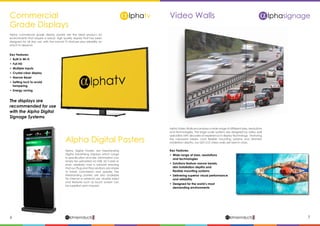

Commercial
Grade Displays
Alpha Digital Posters
Alpha commercial grade display panels are the ideal product for
environments that require a robust, high quality display that has been
designed for all day use, with the normal TV features plus reliability on
which to depend.
Alpha Digital Posters are freestanding
Digital Advertising Displays which range
in specification and size. Information can
simply be uploaded via USB, SD Cards or
even wirelessly over a network ensuring
that our Plug and Play solutions are simple
to install, commission and update. The
freestanding posters are also available
for internal or external use, double sided
and features such as touch screen can
be supplied upon request.
Key Features:
• Built in Wi-Fi
• Full HD
• Multiple Inputs
• Crystal clear display
• Narrow Bezel
• Setting lock to avoid
tampering
• Energy saving
The displays are
recommended for use
with the Alpha Digital
Signage Systems
Video Walls A lphasignage
Alpha Video Walls encompass a wide range of different sizes, resolutions
and technologies. The large scale systems are designed by video wall
specialists with decades of experience in display technology. Featuring
the narrowest bezels, most flexible mounting systems and slimmest
installation depths, our LED LCD video walls are best-in-class.
Key Features:
• Wide range of sizes, resolutions
and technologies
• Solutions feature narrow bezels,
slim installation depths and
flexible mounting systems
• Delivering superior visual performance
and reliability
• Designed for the world’s most
demanding environments

α
Digital Signage A lphasignage
Key Features:
Use any screen to display your channel
Alpha signage can be displayed on a TV, Projector,
IWB, Touch Screen, PC monitor, Tablet or even a smart
phone; communicating with any device anywhere
in the world.
Design your own layouts
Create any number of screen layouts with your own
backdrops and content areas.
User/Role Access
Give responsibility for different areas of the screen to the right
people - reception for welcome messages, kitchen for dinner
menus etc....
Schedule your layouts
Have one layout for the morning, a lunch-time layout from 12
noon till 2pm, then a different one playing in the afternoon -
you have all the control...
Bespoke Packages
Usingthelatesttechnologiesinhardwareitispossibletocreate
a tailored package that meets the clients requirements. From
commercial grade displays, free standing digital posters,
menu driven interactive screens to cables, wiring and all
ancillary products.
Create your own TV Channel
Alpha Signage - Improving on-site
communication.
Play all kinds of media
Display video, pictures, web pages, streaming
media, twitter and social feeds, RSS news, weather,
PowerPoint and many other formats.
Audio/Radio
Broadcast System
A lphaentryVisitor Entry System
The Alpha Entry management system allows you to
keep track of visitors in a more efficient and accurate
way. Visitors simply use the included touch screen to
enter details and to take a snapshot.
A label is printed (adhesive or non-adhesive) to be
worn by the visitor. Admin staff can browse the system
from within the school or externally for a full visitor log.
The screen can double as a visitor information board
(Digital Signage) allowing the customer to keep
visitors and parents up to date with the latest news.
Key Features:
• A range of screen sizes available
• AlphaEntry software included
• Easy to use
• Accurate visibility of visitors past and present
• Printer included
• Cost effective labels
• Web interface for reporting
• Integrated Digital Signage to display
messages to visitors
A unique software and hardware package that
allows a customer to broadcast audio content
throughout their site. Create your own in house
Radio Channel that communicates to Pupils, Staff,
Parents and Customers through internal and external
speaker systems.
Key Features:
• Create a playlist to play in a defined
sequence or shuffle mode
• Play streamed radio feeds from the internet
• Message breaks that are able to interrupt
playlists automatically and can be
scheduled to play at pre-determined
intervals
• Ability to mute the live stream and take
control of the audio making personal
announcements and messages
Ideal for installations to cover reception areas,
school halls, playgrounds, corridors or commercial
environments looking for another Innovative way to
communicate to their audience.
A lpharadio

α
3D Printers
Alpha3dPrinter Pro 506 Key Features:
• Print Size: 250 x 200 x 200mm
• Layer Thickness: 0.1mm - 0.4mm
• Nozzle Diameter: 0.4mm
• Print Speed: 300mm/s
• Accuracy: 0.1mm
• Control Surface: LCD Touch Surface
• Printing Material: ABS, PLA
Alpha3dPrinter D150 Key Features:
• Print Size: 140 x 140 x 140mm
• Layer Thickness: 0.15mm
• Nozzle Diameter: 0.4mm
• Print Speed: 400mm/s
• Control Surface: LCD Touch Surface
• Printing Material: PLA
Join the 3D printing revolution with
Alpha3dPrinter range.
Alpha3dPrinter incorporates state of the art printers that allow quick and simple
printing straight out of the box. The Alpha3dPrinter range is compatible with many
3D print software packages that will enable you to create your 3D objects. Please
see the information and product specification for each unit below.
Classroom Monitoring
Media Players
The AlphaMonitoring system allows you to monitor
and assess teaching in your selected classrooms
via a dashboard of connected cameras. This is
beneficial for a number of reasons including the
general monitoring of classroom activity through to
teaching assessments with real time guidance and
feedback.
Key Features:
• Two way audio
• Text based chat
• Recording of the video stream
for further review
• Closed system
(only for use inside the school)
Small Form Factor PC
The ultra-slim player/PC comes with the Intel Atom
dual-core processor, support HDMI and D-sub dual
interface for high-definition output capacity. The
ultra slim unit is designed to meet the VESA standard
mount, capable of mounting to the rear of LCD
monitor or a TV, can be fully utilized the limited space
environment. The extremely fan-less design that it’s
not only quiet and low in energy use, but also for
24/7 permanent operation. The unit has wide range
of application in digital signage player.
Key Features:
• Intel C1037U Dual Core
• 2GB DDR3 RAM
• 500GB Storage
• 1 x HDMI, 1x VGA, 1 x AUDIO,
6 x USB, 1 x xHEADPHONE
• Windows 7, Windows 8, Linux, etc
Android Player (supports touch)
Key Features:
• Android 4.4 firmware - Comes with the new
Android 4.4 firmware giving you the latest
updates and app compatibility from the store.
• Small compact media player - Small and
compact media player that can fit easily
anywhere in your environment. Install apps
from the millions available on the store further
enhancing the media player’s capabilities.
• Powerful Android quad core player - Armed
with the Amlogic 1.5Ghz Quadcore chipset the
Media Player, load and run apps faster.
• Miracast - Connect your phone or tablet to
the Android media player and screen cast
onto the large screen! Whether to use for
personal use such as sharing photos/videos or
for business use like sharing documents/PDF’s
or presentation software.
• Digital Signage – Can be used with our Digital
Signage Android app for form a complete
solution.
• Touch support – Is fully compatible with our
AlphaInteractive touch screen range creating
a fully interactive experience.

α
A lphatabletTablet PCs
Key Features:
• Available in 10”
• Latest Android operating system
• SD Card slot
• Built-in storage
• Access to Google Play store for thousands
of applications
• Can be used to encourage active participation
with an activity such as a lesson, meeting or
survey
• Good battery life
• Built in speakers and headphone jack
Tablet computers provide a unique opportunity
to create a truly portable learning experience.
Lightweight with a long battery life, they offer
possibilities not previously seen with other ‘mobile’
computing solutions. This lends itself to better
use of technology in the “work and learn”
environment; allowing quick access to reference
material during a lesson or presentation, previously
difficult to achieve with existing ICT; bringing key
advantages and enhanced learning.
Tablets play an important role within the modern,
commercial and educational environment. Coupled
with our AlphaTouch screens and exciting software
packages such as Xorro Q, user are able to drastically
improve audience participation.
Green Screens
We have created a series of
different packages that have
been designed to meet all
clients’ needs.
Green screen technology is
the basis of the effects seen in
everything from latest Hollywood
blockbusters to the weather
forecast.
The packages are cross-curricular, linking directly
(and indirectly) into many subjects in the curriculum;
organisation; scripting; producing; sound; lighting;
direction; presentation skills; backdrop design etc.
It’s an education in itself!
If you shoot a video with a single coloured backdrop
(blue or green is often used) our solution allows you to
make that colour transparent - replacing it with any
other video clip, graphic or still image. The system
provides the opportunity for pupils to discover and
undertake some of these creative roles in an exciting
learning environment.
The Pack Includes:
• Professional studio lighting kit - chroma
green screen 3x6 metre, white 3x6 metre
background
• 2 head lighting kit and stands
• HD video camera with memory card
• Lavalier microphone (outdoor microphone
for on location shoots)
• Shotgun microphone and boom pole
with attachment
• Laptop
• Adobe Premier Elements editing software
• Audio editing software
• HD webcam for stop frame animation
• I Can Animate editing software
• Custom built flight case
A lphachromakey

α
A lphavisualVisualisers
Visualisers are available with a range of different
cameras supporting varying resolutions including
extremely high resolution for science based work.
PO6C Key Features:
• Capture Size: A4
• Dual camera output:
- VGA camera is 2MP
- USB camera is 5MP
• VGA camera – capture live images directly
to screen, no computer required. VGA in/out
• Dual mode
• LED Lighting
• AC Adapter
• 3 x optical zoom
• Auto focus
• Remote control
The Alpha Visualisers are equipped with cutting-
edge technology, allowing you to display just about
anything from a piece of paper to a piano, in crystal
clear high definition.
X520B Key Features:
• Capture size up to A3
• Resolution 2592 x 1944
• Sensor 5 MP for main camera, 0.3 MP
for flexible cable
• Fixed focus
• Built in microphone
Visualisers allow you to easily display images of small objects
onto a large screen such as the Alpha Interactive range.
School Websites
Service
Some of the best features available with all School Websites
from Schudio. All features are included, but optional.
Key Features:
• Attractive, Responsive Design
• Meet OFSTED Requirements
• Blog
• User Accounts & Access Levels
• Password Protected Areas
• Social Links
• Calendar
• Menus & Pages
• Embeddable Media
• Photo Galleries
• Scheduled Publishing
• Google Analytics Integration
• Links with FREE Schudio App
• Outstanding Support
• Updates
• Courses
• Job Vacancies
• All sites mobile ready, fully responsive and
look great on any device
• Quick and easy to embed video, photos
(multiple photo upload as standard),
documents, flip books
• Full user permission control – give only the
right people access to the right parts of the site
and approve their content before it goes live
• Full blog included
• News, Events, Announcements modules
• Social media integration
• FREE school app – all accounts include the free
Schudio App which is branded as your own app
and has all your news, events, term dates,
contact details and push notifications powered
directly from your Schudio web site so you only
need to add the content to one place. There’s
no additional cost to you and it is free for parents.
Keep your audience connected with an
exciting and innovative website service designed
specifically for schools, colleges and Higher Education.
Content Management you can control from any device –
update content from iPads within your class, assembly etc
as events and news happens.

α
Chargers, Trolleys and Security
Miracasting and Wireless Presentation
Our Lapbank range of laptop security and charging products are
trusted by IT professionals worldwide.
“Now with wireless touch”
Our laptop trolleys and laptop security cabinets
include charging and networking options and are
constructed from all welded steel for high strength,
rigidityandsecurity.Wealsostockasuiteofprofessional
A professional presentation device that allows a group
of up to 64 users, to take turns in giving presentations
from their Windows/Mac computer, Smartphone or
Tablet.
The device can be connected to any display or
projector with HDMI or VGA connection, and can
display up to full HD resolution. When connected to
a local network, the device allows presentation from
network computers and supports internet connection.
Can also work with touchscreens making it ideal for
use along side the AlphaInteractive range, allowing
the presenter to control the projecting computer on
the touchscreen, wirelessly!
iPad/Tablet PC management and security products
to suit any environment. ChargeConnect Universal
USB charging allows any USB device to charge at full
rate, 8 or 16 devices simultaneously.
CODE MODEL DOORS WEIGHT LAPBANK SIZE MAX. LAPTOP SIZE
h w d h w d
Netbook/iPad Trolleys
6026 Lapbank mini 16 2 52kg 955 x 500 x 670 70 x 360 x 230
CHARGING (RCD protected with soft start, surge protection and mains conditioner)
6176 Lapbank 16 charging kit
SECURE DOCKING
6210 For Lapbank mini 16, 20, 24
6211 For Lapbank mini 32
15.6” Laptop Trolleys
6010 Lapbank 8 x 15.6” trolley 2 52kg 955 x 500 x 670 70 x 400 x 370
Trolleys for Netbooks/iPads
Trolleys for up to 15.6” laptops
CODE MODEL DOORS WEIGHT LAPBANK SIZE MAX. LAPTOP SIZE
h w d h w d
SECURE DOCKING
6210 For Lapbank 8, 10 & 12
6220 For Lapbank 16, 20, 24 & 30
17” Laptop Trolleys
6031 Lapbank 16 x 17” trolley 4 84kg 960 x 550 x 1000 65 x 435 x 320
6041 Lapbank 20 x 17” trolley 4 96kg 1250 x 550 x 1000 65 x 435 x 320
SECURE DOCKING
6222 For Lapbank 16 & 20
Laptop Security Cabinets
Two Door Cabinets
6305 Lapbank 6 Cabinet 2 45kg 630 x 600 x 450 85 x 340 x 370
Individually Lockable Doors
6510 Lapbank Letterbox 5 5 38kg 810 x 450 x 450 105 x 360 x 360
6520 Lapbank Letterbox 8 8 48kg 1240 x 450 x 450 105 x 360 x 360
6540 Lapbank Vehicle Safe 1 15kg 140 x 330 x 410 100 x 300 x 380
Laptop Stackable Safes
Modular Units stacked up to 6 high
6410 Lapbank Lapstack 1 1 20kg 270 x 490 x 530 200 x 485 x 485
Coin Operated Laptop Lockers
Coin return or coin retain options
6610 Coin-op Coin Return 3 3 30kg 580 x 450 x 450 134 x 446 x 370
PDA Cabinets
6340 PDA Floor Bank 30 1 78kg 1760 x 450 x 400 110 x 300 x 370
0601 PDA Wall Bank 12 2
0600 PDA Wall Bank 24 2
Lap-Porta
Ruggedized case for safely transporting laptops
0610 Lap-Porta 10 1 17kg 810 x 585 x 480 Custom
0621 Lap Porta mini 20 1 17kg 810 x 585 x 480 Custom
Charging Kits
Laptop Stackable Safes
Coin Operated
Laptop Lockers
Lap-Porta
Charging Kits
Trolleys for up to 17” laptops

α

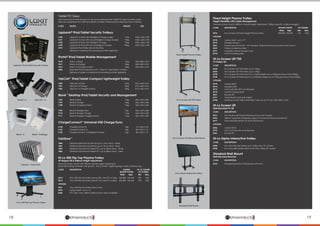

Tablet PC Sizes
Loxit manufacture their products to accommodate popular tablet PC sizes including cases.
Sizes are categorized by width and depth of tablet. Please advise tablet size when ordering.
CODE MODEL WEIGHT SIZE
Lapbank® iPad/Tablet Security Trolleys
6100 Lapbank 16 iPad with Intelligent Charge (Large) 71kg 1045 x 660 x 700
6101 Lapbank 16 iPad with Sync/Intelligent Charge (Large) 72kg 1045 x 660 x 700
6102 Lapbank 32 iPad with Intelligent Charge 79kg 1045 x 660 x 700
6103 Lapbank 32 iPad with Sync/Intelligent Charge 80kg 1045 x 660 x 700
6212 Lapbank iPad Trolley Secure Docking
Delivery to mainland UK excluding Scottish Highlands
iPorta® iPad/Tablet Mobile Management
7410 iPorta 16 Store 16kg 400 x 800 x 510
7411 iPorta 16 Charge 18kg 400 x 800 x 510
7412 iPorta 16 ChargeConnect 18kg 400 x 800 x 510
6006 Extended iPorta Warranty from 1 Year to 5 Years Return to Base
Delivery on pallet to mainland UK excluding Scottish Highlands
TabCart™ iPad/Tablet Compact Lightweight Trolley
7430 TabCart 16 Store 31kg 815 x 660 x 510
7431 TabCart 16 Charge 33kg 815 x 660 x 510
7432 TabCart 16 ChargeConnect 33kg 815 x 660 x 510
iBank™ Desktop iPad/Tablet Security and Management
7706 iBank 8 Store 12kg 360 x 300 x 360
7707 iBank 8 Charge 14kg 360 x 300 x 360
7708 iBank 8 ChargeConnect 14kg 360 x 300 x 360
7709 iBank 8 Wedge Store 9kg 360 x 300 x 360
7710 iBank 8 Wedge Charge 11kg 360 x 300 x 360
7711 iBank 8 Wedge ChargeConnect 11kg 360 x 300 x 360
ChargeConnect™ Universal USB Charge/Sync
6120 ChargeConnect 8 2kg 75 x 260 x 126
6123 ChargeConnect 16 2kg 80 x 325 x 115
6125 ChargeConnect 16 Intelligent Charge 2kg 80 x 325 x 115
TabStore™
7840 TabStore Desk Rack 8 Devices up to 15mm thick - White
7841 TabStore Desk Rack 8 Devices up to 15mm thick - Clear
7845 TabStore Toast Rack 8 Tablet PC’s up to 28mm thick - White
7846 TabStore Toast Rack 8 Tablet PC’s up to 28mm thick - Clear
Hi-Lo 500 Flip Top Plasma Trolley
90 Degree Tilt & 500mm Height Adjustment
Universal screen mount with 500mm electric height adjustment.
Share technology between user groups - touch screen, digital signage, video conferencing.
CODE DESCRIPTION SCREEN HT. TO CENTRE
MOUNT POINTS OF SCREEN
Wide High Min Max
8514 Hi-Lo 500 Flip Top Trolley Manual Tilt, max 55” or 55kg 200-880 100-440 700 1200
8515 Hi-Lo 500 Flip Top Trolley Electric Tilt, max 55” or 55kg 200-880 100-440 700 1200
OPTIONS
8521 Hi-Lo 500 Flip Top Trolley Base Cover
8970 Laptop Shelf - up to 17”
8520 PC Case 110w x 440h x 330d (custom sizes available)
Lapbank® iPad/Tablet Security Trolleys
iPorta® 16 TabCart™ 16
iBank™ 8 iBank™ 8 Wedge
Tabstore™ Desk Rack
Fixed Height Plasma Trolley
Height Flexibility with Cable Management
Universal screen mounts. 800mm manual height adjustment, 100kg capacity, cable managed.
CODE DESCRIPTION MOUNT POINTS OF SCREEN
Wide High Min Max
8996 Hi-Lo Screen Lift Fixed Height Plasma Trolley 200-800 100-440 750 1550
OPTIONS
8970 Laptop Shelf - up to 17”
8972 Speaker Shelves
8601 Screen Security Kit (42” - 65” Screens). Prevents removal of screen from mount
8969 Video Conference Shelf
8971 Lockable Laptop Storage Case
8974 AV/PC/Gaming Shelf
Hi-Lo Screen Lift 750
TV Trolley Lift
CODE DESCRIPTION
8960 Hi-Lo Screen Lift 750 Trolley up to 100kg
8964 Hi-Lo Screen Lift 750 Trolley up to 120kg
8750 Hi-Lo Screen Lift Multi-Mount 2 x 2 Fixed Height up to 100kg per Mount total 200kg
8760 Hi-Lo Screen Lift Multi-Mount 2 x 2 Electric Height up to 100kg per Mount total 200kg
OPTIONS
8970 Laptop Shelf
8972 Speaker Shelf
8973 Anti-Crush Bar with Auto-Reverse
8974 AV/PC/Gaming Shelf
8601 Security Kit
8771 Vanity Base Cover (per trolley)
8780 Multi-Mount 2x2 Video Wall Flight Case (up to 47”) x2 1250 x 820 x 1625
Hi-Lo Screen Lift
Wall Mounted TV Lift
CODE DESCRIPTION
8961 Hi-Lo Screen Lift Plasma Wall Mount up to 65” Screen
8963 300mm Long Pair of Extension Legs to Convert into Floor Mounted Lift
8977 Easy Install Bracket Kit for SL750 Wall Mount
OPTIONS
8556 Laptop Shelf
8973 Anti-Crush Bar with Auto-Reverse
8601 Security Kit
Hi-Lo Alpha Interactive Trolley
CODE DESCRIPTION
8505 Hi-Lo Duo Flip Top Trolley up to 100kg Max 70” Screen
8945 Hi-Lo Duo 680 Mobile LED/LCD Lift Max 100kg 70” Screen
Standard Wall Mount
Wall Mounted Bracket
CODE DESCRIPTION
8563 Standard Wall Mount Backplate with arms
Hi-Lo 500 Flip Top Plasma Trolley
Fixed Height Plasma Trolley
Hi-Lo Screen Lift 750 Trolley
Hi-Lo Screen Lift Plasma Wall Mount
Hi-Lo Alpha Interactive Trolley
Standard Wall Mount

α

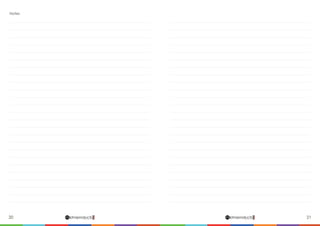

Notes

lphaproductsDelivering solutions for the future
α
Alpha family products manufactured and
distributed in the UK and Internationally by:
Business Source Solutions Ltd.
Unit 7 Chorley Business Park
Chorley
Lancashire
PR6 0BL
United Kingdom
Telephone: 0844 2724521
Email: info@businesssourcesolutions.co.uk
Website: www.businesssourcesolutions.co.uk

Alpha Products 15 email

More Related Content

Viewers also liked

Similar to Alpha Products 15 email

Alpha Products 15 email
