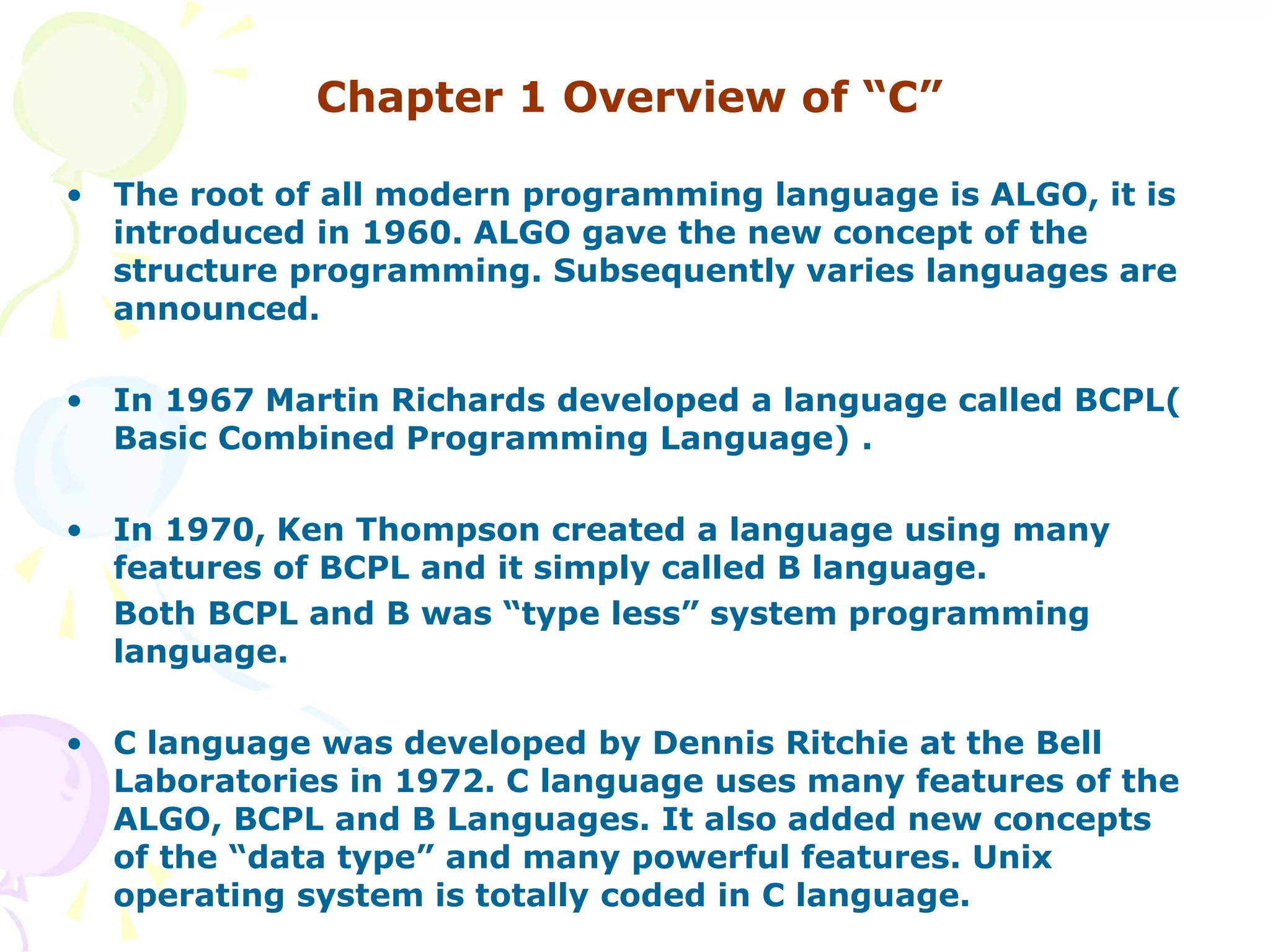

Chapter 1 Overview of “C”
• The root of all modern programming language is ALGO, it is
introduced in 1960. ALGO gave the new concept of the
structure programming. Subsequently varies languages are
announced.
• In 1967 Martin Richards developed a language called BCPL(
Basic Combined Programming Language) .
• In 1970, Ken Thompson created a language using many
features of BCPL and it simply called B language.
Both BCPL and B was “type less” system programming
language.
• C language was developed by Dennis Ritchie at the Bell
Laboratories in 1972. C language uses many features of the
ALGO, BCPL and B Languages. It also added new concepts
of the “data type” and many powerful features. Unix
operating system is totally coded in C language.

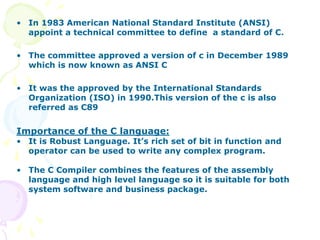

• In 1983 American National Standard Institute (ANSI)
appoint a technical committee to define a standard of C.
• The committee approved a version of c in December 1989
which is now known as ANSI C
• It was the approved by the International Standards
Organization (ISO) in 1990.This version of the c is also
referred as C89
Importance of the C language:
• It is Robust Language. It’s rich set of bit in function and
operator can be used to write any complex program.
• The C Compiler combines the features of the assembly
language and high level language so it is suitable for both
system software and business package.

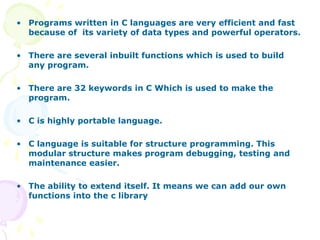

• Programs written in C languages are very efficient and fast
because of its variety of data types and powerful operators.
• There are several inbuilt functions which is used to build
any program.
• There are 32 keywords in C Which is used to make the
program.
• C is highly portable language.
• C language is suitable for structure programming. This
modular structure makes program debugging, testing and
maintenance easier.
• The ability to extend itself. It means we can add our own
functions into the c library

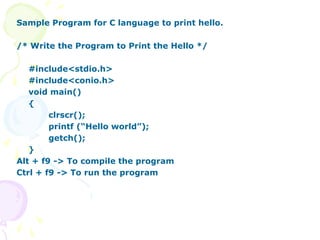

Sample Program for C language to print hello.
/* Write the Program to Print the Hello */
#include<stdio.h>
#include<conio.h>
void main()
{
clrscr();
printf (“Hello world”);
getch();
}
Alt + f9 -> To compile the program
Ctrl + f9 -> To run the program

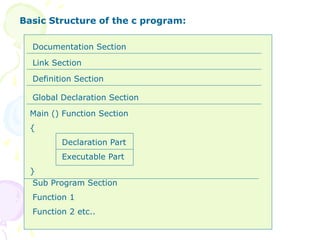

Basic Structure of the c program:
Documentation Section
Link Section
Definition Section
Global Declaration Section
Main () Function Section
{
Declaration Part
Executable Part
}
Sub Program Section
Function 1
Function 2 etc..

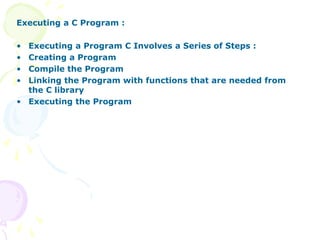

Executing a C Program :
• Executing a Program C Involves a Series of Steps :
• Creating a Program
• Compile the Program
• Linking the Program with functions that are needed from
the C library
• Executing the Program

Enter the
Program Code
Compile Program
with Compiler
Syntax Error
Link with System
Library
Execute Object Code
Generate the Output
No
Yes
Edit the
Source
Program
Executable Object
Code
Object Code

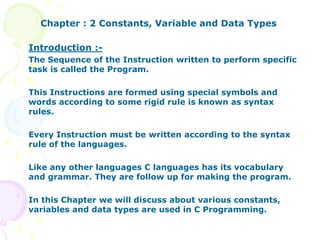

Chapter : 2 Constants, Variable and Data Types
Introduction :-
The Sequence of the Instruction written to perform specific
task is called the Program.
This Instructions are formed using special symbols and
words according to some rigid rule is known as syntax
rules.
Every Instruction must be written according to the syntax
rule of the languages.
Like any other languages C languages has its vocabulary
and grammar. They are follow up for making the program.
In this Chapter we will discuss about various constants,
variables and data types are used in C Programming.

Character Set :
• Character Set is the set of the character.
• This characters are used to form the word, numbers and
expression.
• The characters in the c are grouped into the following
categories.
Letters
Digits
Special characters
White Spaces.
Letters : Uppercase A…Z, Lowercase a…z
Digits : All decimal digits 0 to 9
Special Character : ,(comma) .(period) ; (semicolon)
: (colon), & (ampersand), # (number sign) etc.
White spaces : Blank Space, Horizontal Space, New Line.

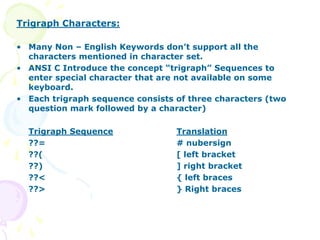

Trigraph Characters:
• Many Non – English Keywords don’t support all the
characters mentioned in character set.
• ANSI C Introduce the concept “trigraph” Sequences to
enter special character that are not available on some
keyboard.
• Each trigraph sequence consists of three characters (two
question mark followed by a character)
Trigraph Sequence Translation
??= # nubersign
??( [ left bracket
??) ] right bracket
??< { left braces
??> } Right braces

C Tokens:
Smallest Individual units are known as C Tokens.
There are six types of the C Tokens.
• Keywords
• Identifiers
• Constants
• String
• Special Symbols
• Operators.
Keywords:
• Every C word is classified as either keyword or identifier.
• All keywords have fixed meanings and you can not change
its meanings.
• Keywords serve as a basic building blocks for program
statement. ANSI C supports 32 keywords that are listed in
ANSI C book.

Ex: int, float, double, extern, static, auto, continue, if, goto
short, long etc. are the keywords
Identifiers:
• Identifiers refer to the names of variables, functions and
arrays.
• These are user defined names and consists of sequence of
letters and digits.
• Both uppercase and lowercase letters are permitted to
make the identified but generally lowercase letters are used
to make the variable.
Rules for Identifiers:
• First character must be alphabet
• Must not contain white space
• Only first 31 characters are significant
• Can not use keyword as a identifier

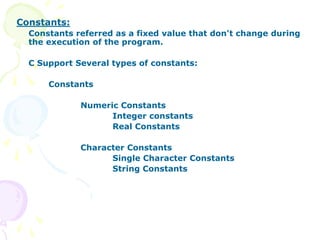

Constants:
Constants referred as a fixed value that don't change during
the execution of the program.
C Support Several types of constants:
Constants
Numeric Constants
Integer constants
Real Constants
Character Constants
Single Character Constants
String Constants

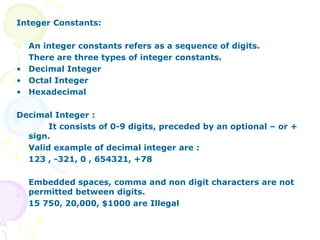

Integer Constants:
An integer constants refers as a sequence of digits.
There are three types of integer constants.
• Decimal Integer
• Octal Integer
• Hexadecimal
Decimal Integer :
It consists of 0-9 digits, preceded by an optional – or +
sign.
Valid example of decimal integer are :
123 , -321, 0 , 654321, +78
Embedded spaces, comma and non digit characters are not
permitted between digits.
15 750, 20,000, $1000 are Illegal

Octal Integer:
An Octal Integers consists of digits 0-7 with a leading 0.
Ex:
037, 0, 0435, 0551
Hexadecimal Integer:
A sequence of digits preceded by 0x or OX is considered as
Hexadecimal Integer.
Hexadecimal Integer includes 0 to 9 digits and A to F
letters.
Ex: 0x9, 0x9F, OXbcd etc are valid.
Real Constants:
Integer numbers are inadequate to represent quantities
such as distance, heights, temperature, price and so on.
These quantities are represented by a number containing
fractional parts like 12.32. Such numbers are called real
constants

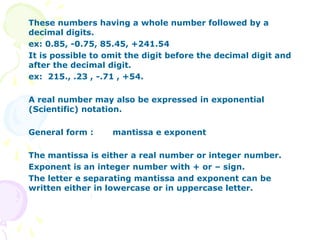

These numbers having a whole number followed by a
decimal digits.
ex: 0.85, -0.75, 85.45, +241.54
It is possible to omit the digit before the decimal digit and
after the decimal digit.
ex: 215., .23 , -.71 , +54.
A real number may also be expressed in exponential
(Scientific) notation.
General form : mantissa e exponent
The mantissa is either a real number or integer number.
Exponent is an integer number with + or – sign.
The letter e separating mantissa and exponent can be
written either in lowercase or in uppercase letter.

ex : 215.65 may be written as 2.1565e2 in exponential
notation. e2 means multiple by 102
75000 written as 7.5E4 or 7.5E+4
-0.00038 written as -3.8e-4
Comma, White space and dollar space is not permitted in
digits.
25,0.000 , 7.1 e 4 , 1.5 E 2.5 (exponent must be an integer),
$255.
Single character constants:
A single character constant contains a single character
enclosed with a pair of single quotation mark (‘ ’).
ex: ‘5’, ‘x’, ‘;’ , ‘ ’
Note that character constant ‘5’ is not same as number 5.
character constant have a integer value known as ASCII
value

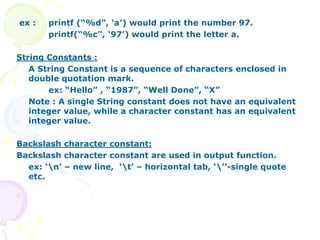

ex : printf (“%d”, ‘a’) would print the number 97.
printf(“%c”, ‘97’) would print the letter a.
String Constants :
A String Constant is a sequence of characters enclosed in
double quotation mark.
ex: “Hello” , “1987”, “Well Done”, “X”
Note : A single String constant does not have an equivalent
integer value, while a character constant has an equivalent
integer value.
Backslash character constant:
Backslash character constant are used in output function.
ex: ‘n’ – new line, ‘t’ – horizontal tab, ‘’’-single quote
etc.

VARIABLE :
A variable is a data name that may be used to store a data
value.
Unlike constants that remain unchanged during the
execution of the program, a variable may take different
value at different time.
Rules to declare a variable :
• They must begin with letter
• variable length must be 31 character significant.
• Both lowercase and uppercase letters are distinct. ex Total
and total are not same
• It should not be a keyword
• White space, Dollar sign are not allowed.
ex: John, delhi, First_tag, int_type ---- valid
Price$, char, group one, 123, 25th, (area) ------- Invalid

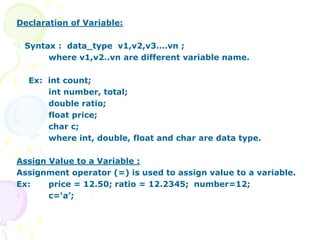

Declaration of Variable:
Syntax : data_type v1,v2,v3….vn ;
where v1,v2..vn are different variable name.
Ex: int count;
int number, total;
double ratio;
float price;
char c;
where int, double, float and char are data type.
Assign Value to a Variable :
Assignment operator (=) is used to assign value to a variable.
Ex: price = 12.50; ratio = 12.2345; number=12;
c=‘a’;

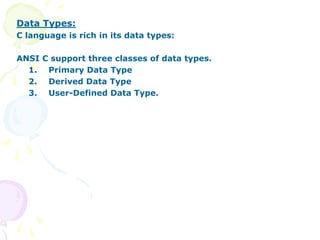

Data Types:
C language is rich in its data types:
ANSI C support three classes of data types.
1. Primary Data Type
2. Derived Data Type
3. User-Defined Data Type.

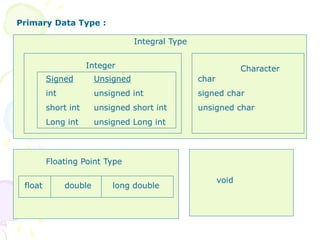

Primary Data Type :
Integral Type
Integer Character
Signed
int
short int
Long int
Unsigned
unsigned int
unsigned short int
unsigned Long int
char
signed char
unsigned char
Floating Point Type
float double long double
void

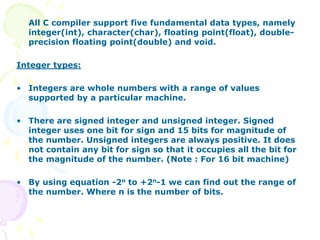

All C compiler support five fundamental data types, namely
integer(int), character(char), floating point(float), double-
precision floating point(double) and void.
Integer types:
• Integers are whole numbers with a range of values
supported by a particular machine.
• There are signed integer and unsigned integer. Signed
integer uses one bit for sign and 15 bits for magnitude of
the number. Unsigned integers are always positive. It does
not contain any bit for sign so that it occupies all the bit for
the magnitude of the number. (Note : For 16 bit machine)
• By using equation -2n to +2n-1 we can find out the range of
the number. Where n is the number of bits.

• To provide some control over the range of number and
storage space, C has three classes of integer storage,
namely short int, int and long int in both signed and
unsigned forms.
Size and Range of Data Type on a 16-bit machine.
Type size(bits) Range
int or signed int 16 -215 to 215 -1
unsigned int 16 0 to 216-1
short int or 8 -27 to 27 -1
signed short int
unsigned short int 8 0 to 28 -1
long int or 32 -231 to 231 -1
signed long int
unsigned long int 32 0 to 232 -1

Floating Point Types:
• Floating point numbers are stored in 32 bits (on all 16bit
and 32 bit machines) with 6 digits of precision.
• Floating point numbers are defined in C by the keyword
float.
• When the accuracy provided by float is not sufficient double
data type is used. It uses 64 bits giving a precision of 14
digits.
• When you want to extend more precision you can use the
long double data type. it uses 80 bits
Type size(bits) Range
float 32 3.4E-38 to 3.4E+38
double 64 1.7E-308 to 1.7E+308
long double 80 3.4E-4932 to 1.1E+4932

Void Types :
• Void type has no values.
• Void type does not return any values.
Character Type:
• Character type data type is char.
• It’s storage is 8bit to store a bit.
• The qulifier signed and unsigned explicitly applied on
character type
Type size (bits) range
char or signed char 8 -27 to 27 -1
unsigned char 8 0 to 28 -1

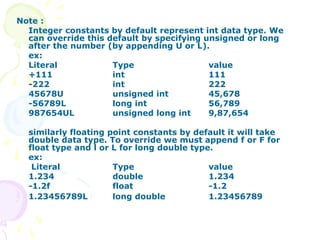

Note :
Integer constants by default represent int data type. We
can override this default by specifying unsigned or long
after the number (by appending U or L).
ex:
Literal Type value
+111 int 111
-222 int 222
45678U unsigned int 45,678
-56789L long int 56,789
987654UL unsigned long int 9,87,654
similarly floating point constants by default it will take
double data type. To override we must append f or F for
float type and l or L for long double type.
ex:
Literal Type value
1.234 double 1.234
-1.2f float -1.2
1.23456789L long double 1.23456789

/* Program To Show the declaration, assignments and values
stored in varies types of variables */
#include<stdio.h>
#include<conio.h>
void main()
{
float x; double q ; unsigned k ; int m =5431;
long int n = 1234567890;
x=1.234567890000; q= 1.0 ; k=54321;
printf(“%d”, m); printf(“%ldn”, n); printf(“%fn”, x);
printf(“%lf”,x); printf(“%lfn”,q); printf(“%u”,k);
}

Defining Symbolic Constants:
Those constants which are repeatedly used in the programs
are defined as a symbolic constants.
Because of Symbolic constants we can solve problems like:
1. Problem in modification of the program
2. Problem in understanding the program
Syntax:
#define symbolic_name value_of_constant
Ex:
#define PI 3.14
#define MAX 200
#define PASS_MARK 50

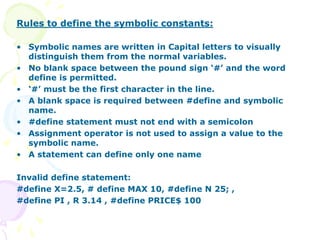

Rules to define the symbolic constants:
• Symbolic names are written in Capital letters to visually
distinguish them from the normal variables.
• No blank space between the pound sign ‘#’ and the word
define is permitted.
• ‘#’ must be the first character in the line.
• A blank space is required between #define and symbolic
name.
• #define statement must not end with a semicolon
• Assignment operator is not used to assign a value to the
symbolic name.
• A statement can define only one name
Invalid define statement:
#define X=2.5, # define MAX 10, #define N 25; ,
#define PI , R 3.14 , #define PRICE$ 100

Declaring a variable as constant:
Syntax:
const data_type variable_name = value ;
Ex:
const int class_size=40;
Using const keyword we can made any variable’s value
constant and because of that we cant change the value of
that variable during the execution time.
Declaring a variable as volatile:
Qualifier volatile that could be used to tell explicitly the
compiler that a variable’s value may be changed at any time
by some external source.
Syntax:
volatile int date.

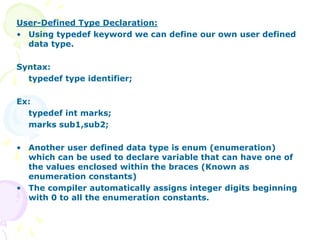

User-Defined Type Declaration:
• Using typedef keyword we can define our own user defined
data type.
Syntax:
typedef type identifier;
Ex:
typedef int marks;
marks sub1,sub2;
• Another user defined data type is enum (enumeration)
which can be used to declare variable that can have one of
the values enclosed within the braces (Known as
enumeration constants)
• The compiler automatically assigns integer digits beginning
with 0 to all the enumeration constants.

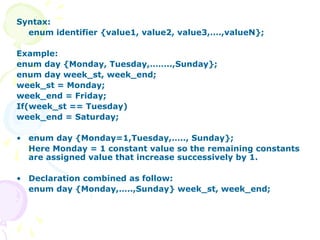

Syntax:
enum identifier {value1, value2, value3,….,valueN};
Example:
enum day {Monday, Tuesday,……..,Sunday};
enum day week_st, week_end;
week_st = Monday;
week_end = Friday;
If(week_st == Tuesday)
week_end = Saturday;
• enum day {Monday=1,Tuesday,….., Sunday};
Here Monday = 1 constant value so the remaining constants
are assigned value that increase successively by 1.
• Declaration combined as follow:
enum day {Monday,…..,Sunday} week_st, week_end;

Read data from keyboard:
Using Scanf function we can read data from the keyboard.
Syntax:
scanf(“control string”,&variable1,&variable2);.

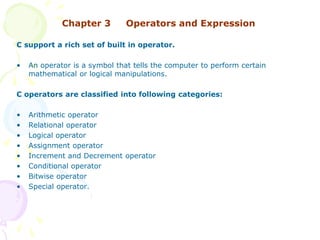

Chapter 3 Operators and Expression
C support a rich set of built in operator.
• An operator is a symbol that tells the computer to perform certain
mathematical or logical manipulations.
C operators are classified into following categories:
• Arithmetic operator
• Relational operator
• Logical operator
• Assignment operator
• Increment and Decrement operator
• Conditional operator
• Bitwise operator
• Special operator.

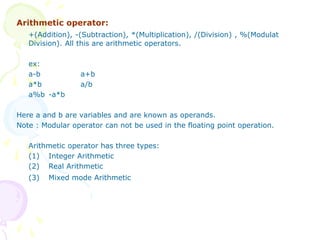

Arithmetic operator:
+(Addition), -(Subtraction), *(Multiplication), /(Division) , %(Modulat
Division). All this are arithmetic operators.
ex:
a-b a+b
a*b a/b
a%b -a*b
Here a and b are variables and are known as operands.
Note : Modular operator can not be used in the floating point operation.
Arithmetic operator has three types:
(1) Integer Arithmetic
(2) Real Arithmetic
(3) Mixed mode Arithmetic

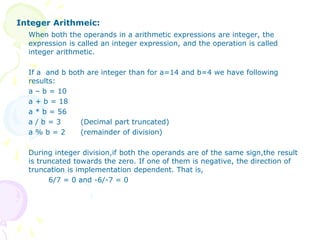

Integer Arithmeic:
When both the operands in a arithmetic expressions are integer, the
expression is called an integer expression, and the operation is called
integer arithmetic.
If a and b both are integer than for a=14 and b=4 we have following
results:
a – b = 10
a + b = 18
a * b = 56
a / b = 3 (Decimal part truncated)
a % b = 2 (remainder of division)
During integer division,if both the operands are of the same sign,the result
is truncated towards the zero. If one of them is negative, the direction of
truncation is implementation dependent. That is,
6/7 = 0 and -6/-7 = 0

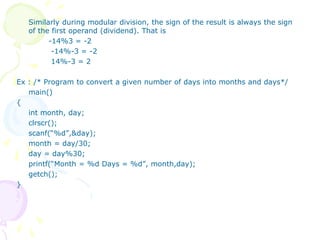

Similarly during modular division, the sign of the result is always the sign
of the first operand (dividend). That is
-14%3 = -2
-14%-3 = -2
14%-3 = 2
Ex : /* Program to convert a given number of days into months and days*/
main()
{
int month, day;
clrscr();
scanf(“%d”,&day);
month = day/30;
day = day%30;
printf(“Month = %d Days = %d”, month,day);
getch();
}

Real Arithmetic :
An arithmetic expression involving only real operands is called real
arithmetic. A real operands may assume values either in decimal or
exponential notation.
If x,y,z are floats, then we will have:
x = 6.0/7.0 = 0.85713
y = -2.0/3.0 = -0.666667
the operator % can not be used with real operands.
Mixed Mode Arithmetic:
When one of the operand is real and the other is integer, the expression is
called the mixed mode arithmetic expression. If either operand is real type
then only real operation is performed and the result is always a real
number. Thus
15/ 10.0 = 1.5
where as
15/10 = 1

Relational operators:
Whenever you want to compare two entities at that time you can use the
Relational operator.
An expression containing a relational operator is known as relational
expression.
C Support six type of the relational operators:
operator Meaning
< less than
<= is less than or equal to
> greater than
>= is greater than or equal to
== is equal to
!= is not equal to
Relational operators are generally used in the decision making statements
like if and while and it returns value true and false

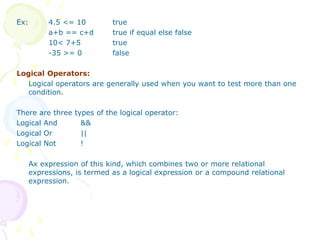

Ex: 4.5 <= 10 true
a+b == c+d true if equal else false
10< 7+5 true
-35 >= 0 false
Logical Operators:
Logical operators are generally used when you want to test more than one
condition.
There are three types of the logical operator:
Logical And &&
Logical Or ||
Logical Not !
Ax expression of this kind, which combines two or more relational
expressions, is termed as a logical expression or a compound relational
expression.

Truth Table:
Op-1 Op-2 value of the expression
op-1 && op-2 op1 || op2
1 1 1 1
1 0 0 1
0 1 0 1
0 0 0 0
Example :
if(age > 55 && salary < 1000)
if(number < 0 || number > 100)
Assignment Operators:
Assignment operators are used to assign the result of an expression to a
variable. We have seen the usual assignment operator ‘=’. In addition c
has a ‘shorthand’ assignment operators of the form.

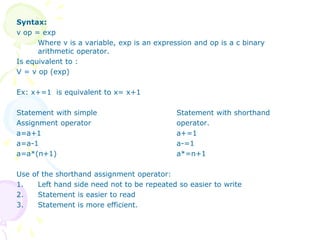

Syntax:
v op = exp
Where v is a variable, exp is an expression and op is a c binary
arithmetic operator.
Is equivalent to :
V = v op (exp)
Ex: x+=1 is equivalent to x= x+1
Statement with simple Statement with shorthand
Assignment operator operator.
a=a+1 a+=1
a=a-1 a-=1
a=a*(n+1) a*=n+1
Use of the shorthand assignment operator:
1. Left hand side need not to be repeated so easier to write
2. Statement is easier to read
3. Statement is more efficient.

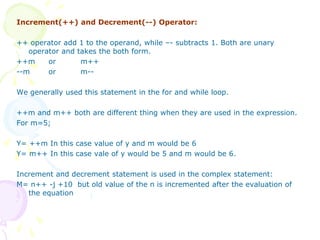

Increment(++) and Decrement(--) Operator:
++ operator add 1 to the operand, while –- subtracts 1. Both are unary
operator and takes the both form.
++m or m++
--m or m--
We generally used this statement in the for and while loop.
++m and m++ both are different thing when they are used in the expression.
For m=5;
Y= ++m In this case value of y and m would be 6
Y= m++ In this case vale of y would be 5 and m would be 6.
Increment and decrement statement is used in the complex statement:
M= n++ -j +10 but old value of the n is incremented after the evaluation of
the equation

#include<stdio.h>
#include<conio.h>
void main()
{
int n,k,m;
clrscr();
k=1,m=2;
n= k++ + m;
printf("%d",k);
printf("%d",n);
getch();
}
Output:k=2, n=3

Conditional operator:
Conditional operator is also called the “ternary operator”.
Syntax:
exp1 ? exp2 : exp3
Ex:
a = 10;
b = 15;
X = (a>b) ? a : b;
Its same as
if (a > b)
x = a;
else
x = b;

Bitwise Operator :
• Whenever you want to manipulate your data at that time you can use the
Bitwise operator.
• These operators are generally used to testing the Bits, or shifting them left
or right.
• Bitwise operator can not be applied to float or double.
• List of the Bitwise operators and their meanings are as follow.
Operator Meaning
& bitwise AND
| bitwise OR
^ bitwise exclusive OR
<< shift left
>> shift right

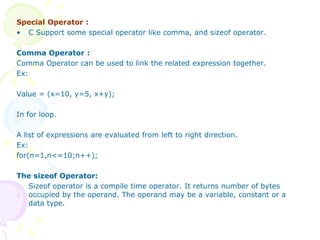

Special Operator :
• C Support some special operator like comma, and sizeof operator.
Comma Operator :
Comma Operator can be used to link the related expression together.
Ex:
Value = (x=10, y=5, x+y);
In for loop.
A list of expressions are evaluated from left to right direction.
Ex:
for(n=1,n<=10;n++);
The sizeof Operator:
Sizeof operator is a compile time operator. It returns number of bytes
occupied by the operand. The operand may be a variable, constant or a
data type.

Ex:
m = sizeof(sum);
n = sizeof(long int);

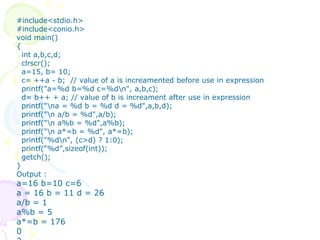

#include<stdio.h>
#include<conio.h>
void main()
{
int a,b,c,d;
clrscr();
a=15, b= 10;
c= ++a - b; // value of a is increamented before use in expression
printf("a=%d b=%d c=%dn", a,b,c);
d= b++ + a; // value of b is increament after use in expression
printf("na = %d b = %d d = %d",a,b,d);
printf("n a/b = %d",a/b);
printf("n a%b = %d",a%b);
printf("n a*=b = %d", a*=b);
printf("%dn", (c>d) ? 1:0);
printf(“%d”,sizeof(int));
getch();
}
Output :
a=16 b=10 c=6
a = 16 b = 11 d = 26
a/b = 1
a%b = 5
a*=b = 176
0

ARITHMETIC EXPRESSION :
An arithmetic expression is a combination of variables, constants, and
operators arranged as per the syntax of the language.
Example :
Algebric Exprssion C Expression
a x b – c a * b – c
(m+n)(x+y) (m+n) * (x+y)
ab/c a*b/c
3x2 +x +1 3*x*x + x + 1
EVALUATION OF EXPRESSION :
Syntax : variable = expression;
Ex: x = a * b – c; z = a – b / c – d;

Precedence of Arithmetic operators:
High Priority : * / %
Low Priority : + -
#include<stdio.h>
#include<conio.h>
void main()
{
float a,b,c,x,y,z;
clrscr();
a = 9; b = 12; c = 3;
x = a -b / 3 + c * 2 -1;
y = a -b / (3 + c) * (2-1);
z = a -(b / (3 + c) *2) -1;
printf("x = %f y = %f z = %f", x,y,z);
getch();
}
Output : x =10.000000 , y = 7. 000000 , z = 4. 000000

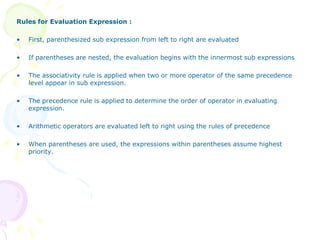

Rules for Evaluation Expression :
• First, parenthesized sub expression from left to right are evaluated
• If parentheses are nested, the evaluation begins with the innermost sub expressions
• The associativity rule is applied when two or more operator of the same precedence
level appear in sub expression.
• The precedence rule is applied to determine the order of operator in evaluating
expression.
• Arithmetic operators are evaluated left to right using the rules of precedence
• When parentheses are used, the expressions within parentheses assume highest
priority.

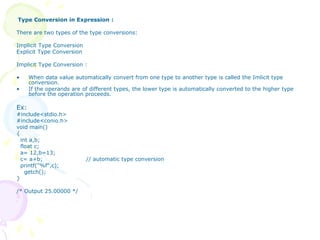

Type Conversion in Expression :
There are two types of the type conversions:
Implicit Type Conversion
Explicit Type Conversion
Implicit Type Conversion :
• When data value automatically convert from one type to another type is called the Imlicit type
conversion.
• If the operands are of different types, the lower type is automatically converted to the higher type
before the operation proceeds.
Ex:
#include<stdio.h>
#include<conio.h>
void main()
{
int a,b;
float c;
a= 12,b=13;
c= a+b; // automatic type conversion
printf("%f",c);
getch();
}
/* Output 25.00000 */

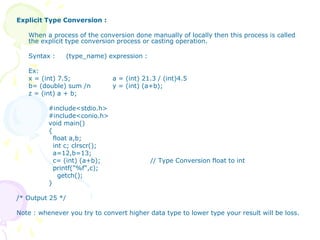

Explicit Type Conversion :
When a process of the conversion done manually of locally then this process is called
the explicit type conversion process or casting operation.
Syntax : (type_name) expression :
Ex:
x = (int) 7.5; a = (int) 21.3 / (int)4.5
b= (double) sum /n y = (int) (a+b);
z = (int) a + b;
#include<stdio.h>
#include<conio.h>
void main()
{
float a,b;
int c; clrscr();
a=12,b=13;
c= (int) (a+b); // Type Conversion float to int
printf("%f",c);
getch();
}
/* Output 25 */
Note : whenever you try to convert higher data type to lower type your result will be loss.

Chapter : 4 Managing Input Output Operation
Reading a character :
Using getchar() function you can get a single character from the screen.
Syntax:
Variable_name = getchar();
Ex: char name;
name = getchar();
Writing a character :
Using putchar() function you can print the character which is stored in the variable on
to the output screen.
Syntax: putchar(variable_name);
Ex: char answer;
answer = ‘y’
putchar (answer);

Character Functions:
• C Support many character functions. These character functions contained in the file
ctype.h and therefore the statement
#include<ctype.h> must be include in the program to access this character function.
Character set functions:
isalnum(c) - Is c an alphanumeric character
isalpha( c ) - Is c an alphabetic character
isdigit( c) - Is c a digit.
islower( c ) - Is c lower case letter
isupper( c ) - Is c Upper Case letter
isspace( c ) - Is c a white space character.
ispunct( c ) - Is c a punctual mark
toupper() - convert lowercase argument into uppercase letter and function
tolower() – convert uppercase letter into the lowercase letter.

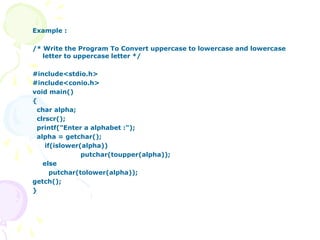

Example :
/* Write the Program To Convert uppercase to lowercase and lowercase
letter to uppercase letter */
#include<stdio.h>
#include<conio.h>
void main()
{
char alpha;
clrscr();
printf("Enter a alphabet :");
alpha = getchar();
if(islower(alpha))
putchar(toupper(alpha));
else
putchar(tolower(alpha));
getch();
}

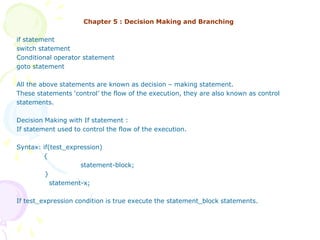

Chapter 5 : Decision Making and Branching
if statement
switch statement
Conditional operator statement
goto statement
All the above statements are known as decision – making statement.
These statements ‘control’ the flow of the execution, they are also known as control
statements.
Decision Making with If statement :
If statement used to control the flow of the execution.
Syntax: if(test_expression)
{
statement-block;
}
statement-x;
If test_expression condition is true execute the statement_block statements.

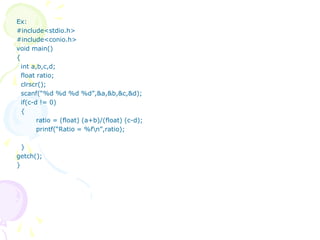

Ex:
#include<stdio.h>
#include<conio.h>
void main()
{
int a,b,c,d;
float ratio;
clrscr();
scanf(“%d %d %d %d”,&a,&b,&c,&d);
if(c-d != 0)
{
ratio = (float) (a+b)/(float) (c-d);
printf(“Ratio = %fn”,ratio);
}
getch();
}

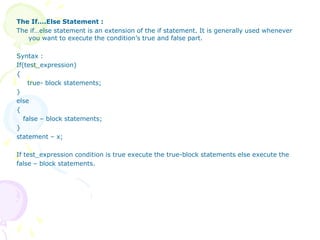

The If….Else Statement :
The if…else statement is an extension of the if statement. It is generally used whenever
you want to execute the condition’s true and false part.
Syntax :
If(test_expression)
{
true- block statements;
}
else
{
false – block statements;
}
statement – x;
If test_expression condition is true execute the true-block statements else execute the
false – block statements.

Ex:
#include<stdio.h>
#include<conio.h>
void main()
{
int a,b;
clrscr();
scanf(“%d %d”, &a, &b);
if (a>b)
printf(“A is bigger than B : %d”,a);
else
printf(“B is bigger tha A : %d”,b);
getch();
}

Nesting of If…Else statements:
When a series of decisions are involved, we may have to use more than one if…else
statements in a program in nested form is called the nesting of if…else statements.
Syntax:
if(test_condition 1)
{
if(test_condition 2)
{
statement – 1;
}
else
{
statement – 2;
}
}
else
{
statement – 3;
}
Statement – x;

Ex:
#include<stdio.h>
#include<conio.h>
void main()
{
float a,b,c; clrscr();
scanf(“%f %f %f”,&a,&b,&c);
if(a>b)
{
if(a>c)
printf(“%fn”,a);
else
printf(“%fn”,c);
}
else
{
if(c>b)
printf(“%fn”,c);
else
printf(“%fn”,b);
}
getch();
}

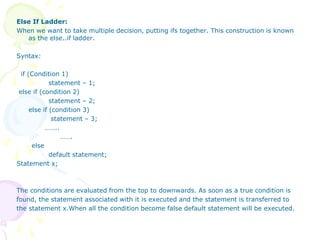

Else If Ladder:
When we want to take multiple decision, putting ifs together. This construction is known
as the else..if ladder.
Syntax:
if (Condition 1)
statement – 1;
else if (condition 2)
statement – 2;
else if (condition 3)
statement – 3;
……..
…….
else
default statement;
Statement x;
The conditions are evaluated from the top to downwards. As soon as a true condition is
found, the statement associated with it is executed and the statement is transferred to
the statement x.When all the condition become false default statement will be executed.

#include<stdio.h>
#include<conio.h>
void main()
{
int s1,s2,total;
float per;
clrscr();
printf("Enter Marks for s1 & s2 :");
scanf ("%d %d",&s1,&s2);
total = s1+s2;
printf("nnTotal Mark is : %d",total);
per=(float)(total*100/2);
printf("nnPercentage is :%f",per);
printf("nnClass of the Student :");
if(per>79)
printf("Honours:");
else if(per>59)
printf("First");
else if(per>39);
printf("Second");
getch();
}

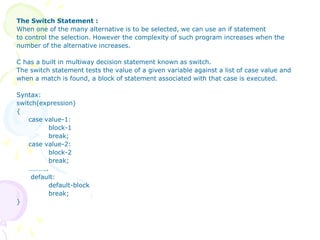

The Switch Statement :
When one of the many alternative is to be selected, we can use an if statement
to control the selection. However the complexity of such program increases when the
number of the alternative increases.
C has a built in multiway decision statement known as switch.
The switch statement tests the value of a given variable against a list of case value and
when a match is found, a block of statement associated with that case is executed.
Syntax:
switch(expression)
{
case value-1:
block-1
break;
case value-2:
block-2
break;
………..
default:
default-block
break;
}

• The expression is an integer or character expression. Value1, value2 are constants
and are known as case label.
• There is no need to put braces around these blocks.
• When switch is executed, the value of the expression is successfully compared against
the Values value1, value2…. If the case is found whose value matches with the value
of the expression, then the block of statements that follows the case are executed.
• break statement exit the control from the switch case and transfer the control after
the switch case statement.
• The default is an optional case, when present, it will be executed if the value of the
expression does not match with any of the case values.
Rules for switch statement:
• Case label must be integer or character.
• Case label must be unique.No two case labels can have the same value.
• Case label must end with colon.
• The break statement is optional.
• The default label is optional.
• There can be at most one default label.
• The default may be placed any where but usually placed at the end
• It is permitted to nest switch statement.

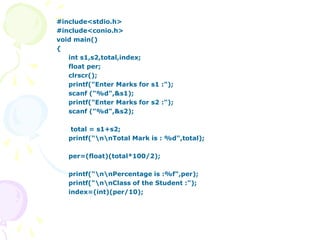

#include<stdio.h>
#include<conio.h>
void main()
{
int s1,s2,total,index;
float per;
clrscr();
printf("Enter Marks for s1 :");
scanf ("%d",&s1);
printf("Enter Marks for s2 :");
scanf ("%d",&s2);
total = s1+s2;
printf("nnTotal Mark is : %d",total);
per=(float)(total*100/2);
printf("nnPercentage is :%f",per);
printf("nnClass of the Student :");
index=(int)(per/10);

switch(index)
{
case 10:
case 9:
case 8:
printf("Honour");
break;
case 7:
case 6:
printf("First");
break;
case 5:
case 4:
printf("Second");
break;
default:
printf("Grade not displayed");
}
getch();
}

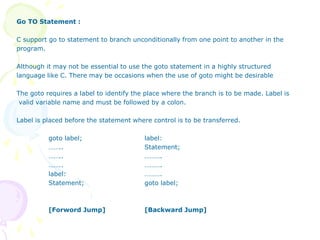

Go TO Statement :
C support go to statement to branch unconditionally from one point to another in the
program.
Although it may not be essential to use the goto statement in a highly structured
language like C. There may be occasions when the use of goto might be desirable
The goto requires a label to identify the place where the branch is to be made. Label is
valid variable name and must be followed by a colon.
Label is placed before the statement where control is to be transferred.
goto label; label:
…….. Statement;
…….. ……….
…….. ……….
label: ……….
Statement; goto label;
[Forword Jump] [Backward Jump]

Backward Jump.
If a label is before the statement goto, a loop will be formed and some statements will be
Executed repeatedly. Such a jump is known as Backward Jump.
Forward Jump:
If the label is placed after the goto label, some statements will be skipped and the jump is
known as a forward jump.

Ex:
#include<stdio.h>
#include<conio.h>
#include<math.h>
void main()
{
float x,y;
clrscr();
read:
scanf(“%f”,&x);
if(x<0)
{
printf(“This is a Negative value”);
goto read;
}
else
{
y=sqrt(x)
printf(“Suare root of %f is %f ”,x,y);
}
goto read;
getch();
}
Note : Infinite loop will be occurred because of the above case.

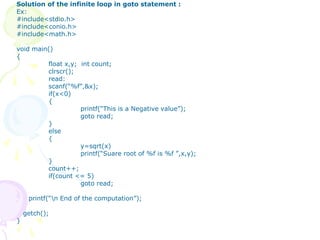

Solution of the infinite loop in goto statement :
Ex:
#include<stdio.h>
#include<conio.h>
#include<math.h>
void main()
{
float x,y; int count;
clrscr();
read:
scanf(“%f”,&x);
if(x<0)
{
printf(“This is a Negative value”);
goto read;
}
else
{
y=sqrt(x)
printf(“Suare root of %f is %f ”,x,y);
}
count++;
if(count <= 5)
goto read;
printf(“n End of the computation”);
getch();
}

Chapter : 6 Decision Making and Looping
What is looping?
A sequence of statements are executed until some condition for termination of the loop
are satisfied is called looping.
There are two types of the looping.
(a) Entry controlled loop
(b) Exit controlled loop
Entry controlled loop : In this looping first condition will be checked and then Body of
the statements are executed is called the entry controlled loop.
Exit controlled loop: In this looping first body of the statements are executed and then
condition will be checked is called the exit controlled loop.

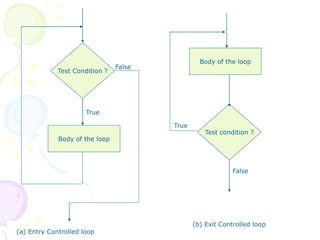

Test Condition ?
Body of the loop
Body of the loop
Test condition ?
True
True
False
False
(a) Entry Controlled loop
(b) Exit Controlled loop

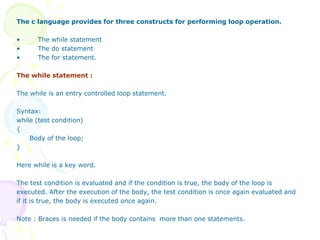

The c language provides for three constructs for performing loop operation.
• The while statement
• The do statement
• The for statement.
The while statement :
The while is an entry controlled loop statement.
Syntax:
while (test condition)
{
Body of the loop;
}
Here while is a key word.
The test condition is evaluated and if the condition is true, the body of the loop is
executed. After the execution of the body, the test condition is once again evaluated and
if it is true, the body is executed once again.
Note : Braces is needed if the body contains more than one statements.

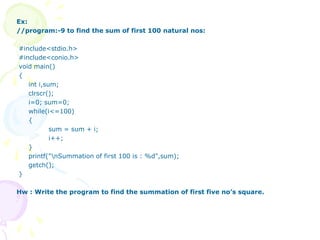

Ex:
//program:-9 to find the sum of first 100 natural nos:
#include<stdio.h>
#include<conio.h>
void main()
{
int i,sum;
clrscr();
i=0; sum=0;
while(i<=100)
{
sum = sum + i;
i++;
}
printf("nSummation of first 100 is : %d",sum);
getch();
}
Hw : Write the program to find the summation of first five no’s square.

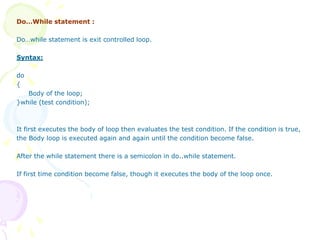

Do…While statement :
Do…while statement is exit controlled loop.
Syntax:
do
{
Body of the loop;
}while (test condition);
It first executes the body of loop then evaluates the test condition. If the condition is true,
the Body loop is executed again and again until the condition become false.
After the while statement there is a semicolon in do..while statement.
If first time condition become false, though it executes the body of the loop once.

/* Find the factorial of any number */
#include<stdio.h>
#include<conio.h>
void main()
{
int n, fact=1;
clrscr();
printf("Enter the number :");
scanf("%d",&n);
if(n<0)
printf("n factorial of negetive number is not possible :");
else if(n==0)
printf("Factorial of 0 is 1n");
else
{
do
{
fact *= n;
n--;
}while(n>0);
printf("Factorial of the given no. is : %d", fact);
}
getch();
}

For Loop:
The for loop is another entry control loop that provides a more concise loop control
structure.
Syntax :
for( initialization; test-condition ; increment or decrement)
{
Body of the loop
}
Initialization: In Initialization part you can initialize the variable. Such as i=0.
Test-Condition: The value of the control variable is tested using the test – condition. Test
condition is relational expression, such as i<10 that determines when loop will exit. If
the condition is true body of the loop is executed otherwise the loop is terminated.
Increment or Decrement : When the Body of the loop is executed, the control is
transferred back to the for statement after evaluating the last statement in the loop.
Now the control variable is incremented or decremented.

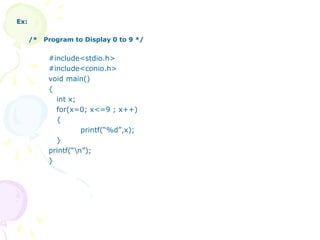

Ex:
/* Program to Display 0 to 9 */
#include<stdio.h>
#include<conio.h>
void main()
{
int x;
for(x=0; x<=9 ; x++)
{
printf(“%d”,x);
}
printf(“n”);
}

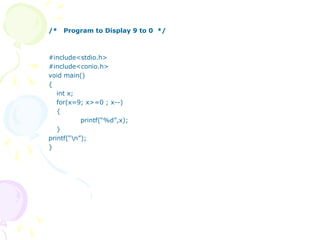

/* Program to Display 9 to 0 */
#include<stdio.h>
#include<conio.h>
void main()
{
int x;
for(x=9; x>=0 ; x--)
{
printf(“%d”,x);
}
printf(“n”);
}

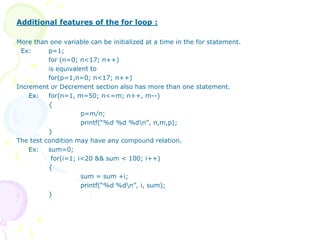

Additional features of the for loop :
More than one variable can be initialized at a time in the for statement.
Ex: p=1;
for (n=0; n<17; n++)
is equivalent to
for(p=1,n=0; n<17; n++)
Increment or Decrement section also has more than one statement.
Ex: for(n=1, m=50; n<=m; n++, m--)
{
p=m/n;
printf(“%d %d %dn”, n,m,p);
}
The test condition may have any compound relation.
Ex: sum=0;
for(i=1; i<20 && sum < 100; i++)
{
sum = sum +i;
printf(“%d %dn”, i, sum);
}

It is also permissible to use expression in the assignment statements of initialization and
increment sections.
Ex: for( x=(m+n)/2; x>0; x= x/2)
Another feature of the for loop is that one or more section can be omitted, if necessary.
Ex: m=5;
for( ; m != 100 ;)
{
printf(“%dn”, m);
m++;
}
Note : If test condition is not present, the for statement sets up an “infinite
loop” such loop can be broken using break and goto statements in the loop.
We can set up the time delay loops using the null statement as follow:
for(j=1000; j>0; j--) ;
This loop is executed 1000 times without producing any output; it simply
causes time delay.
The Body of the loop contains only a semi colon, known as null statement.
Note : The c compiler does not give any error message if we place semicolon by
mistake at the end of a for statement..

Nesting of for loop:
Nesting of for loops, that is one for statement within another for statement.
Ex:
for ( i=1 ; i< 10; i++)
{
for ( j=1; j != 5; j++ )
{
………..
…………
}
……………..
…………….
}
Note : ANSI C allow up to 15 levels of nesting.
Inner loop
Outer loop

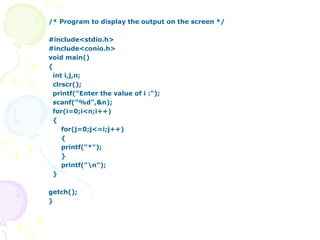

/* Program to display the output on the screen */
#include<stdio.h>
#include<conio.h>
void main()
{
int i,j,n;
clrscr();
printf("Enter the value of i :");
scanf("%d",&n);
for(i=0;i<n;i++)
{
for(j=0;j<=i;j++)
{
printf("*");
}
printf("n");
}
getch();
}

/*
Enter the value of n : 4
*
**
***
****
*/

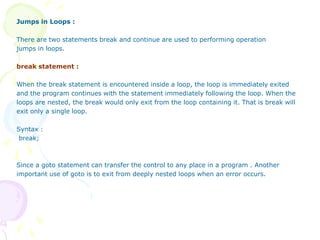

Jumps in Loops :
There are two statements break and continue are used to performing operation
jumps in loops.
break statement :
When the break statement is encountered inside a loop, the loop is immediately exited
and the program continues with the statement immediately following the loop. When the
loops are nested, the break would only exit from the loop containing it. That is break will
exit only a single loop.
Syntax :
break;
Since a goto statement can transfer the control to any place in a program . Another
important use of goto is to exit from deeply nested loops when an error occurs.

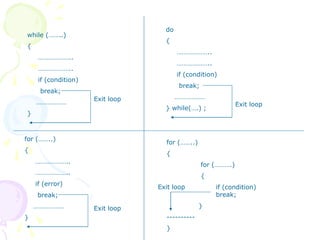

for (……..)
{
for (……….)
{
if (condition)
break;
}
----------
}
while (……..)
{
………………..
………………..
if (condition)
break;
………………
}
do
{
………………..
………………..
if (condition)
break;
………………
} while(….) ;
for (……..)
{
………………..
………………..
if (error)
break;
………………
}
Exit loop
Exit loop
Exit loop
Exit loop

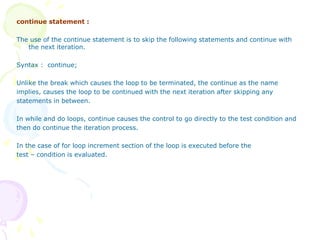

continue statement :
The use of the continue statement is to skip the following statements and continue with
the next iteration.
Syntax : continue;
Unlike the break which causes the loop to be terminated, the continue as the name
implies, causes the loop to be continued with the next iteration after skipping any
statements in between.
In while and do loops, continue causes the control to go directly to the test condition and
then do continue the iteration process.
In the case of for loop increment section of the loop is executed before the
test – condition is evaluated.

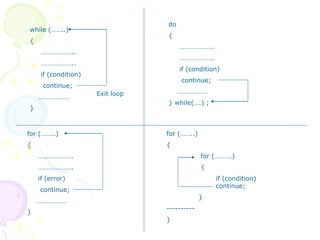

for (……..)
{
for (……….)
{
if (condition)
continue;
}
----------
}
while (……..)
{
………………..
………………..
if (condition)
continue;
………………
}
do
{
………………..
………………..
if (condition)
continue;
………………
} while(….) ;
for (……..)
{
………………..
………………..
if (error)
continue;
………………
}
Exit loop

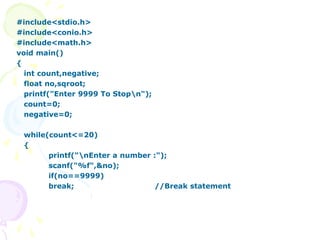

#include<stdio.h>
#include<conio.h>
#include<math.h>
void main()
{
int count,negative;
float no,sqroot;
printf("Enter 9999 To Stopn");
count=0;
negative=0;
while(count<=20)
{
printf("nEnter a number :");
scanf("%f",&no);
if(no==9999)
break; //Break statement

if( no < 0 )
{
printf("nNumber is negative");
negative++;
continue; // continue statement
}
sqroot = sqrt(no);
printf("Numer = %fn Square root = %fnn",no,sqroot);
count++;
}
printf("nNumber of item done = %dn",count);
printf("nNegative item = %dn",negative);
}

Chapter 7 : Arrays
Defination of Array : An array is a sequences collection of the realated
data items that share a common name.
An array is a derived data type.
There are mainly three types of the array:
• One – Dimentional arrays
• Two – Dimentional arrays
• Multidimentional arrays

One – Dimentional Arrays:
A list of items can be given one variable name using only one subscript and such
a variable is called a single subscripted variable or a one dimentional array.
Syntax:
type variable-name[size];
The type specifies the type of the element that will be contained in the array, such as int,
float or char.
Ex: If we want to represent a set of five numbers say, (35,40,20,57,19) by an array
variable number, then we may declare the vaiable number as follows.
int number[5];
And the computer reserves five storage location as shown below:
Number[0]
Number[1]
Number[2]
Number[3]
Number[4]

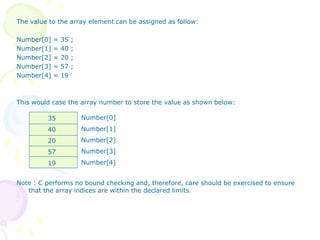

The value to the array element can be assigned as follow:
Number[0] = 35 ;
Number[1] = 40 ;
Number[2] = 20 ;
Number[3] = 57 ;
Number[4] = 19
This would case the array number to store the value as shown below:
Note : C performs no bound checking and, therefore, care should be exercised to ensure
that the array indices are within the declared limits.
Number[0]
Number[1]
Number[2]
Number[3]
Number[4]
35
40
20
57
19

Same way,
float height[50];
Declares the height to be an array containing 50 real elements. Any subscript to
0 to 49 are valid.
• Any references to the arrays outside the declared limits would not
necessarily cause an error. Rather, it might result in unpredictable program
results.
• The size should be either integer constant or symbolic constant.
The C language treats character string simply as array of characters. The size in
a character string represents the maximum number of characters that the string
can hold.
char name[10] ;
Declare name as a character array variable that can hold a maximum of 10 characters.
Suppose we read the following string constant into the string variable name.
“WELL DONE”

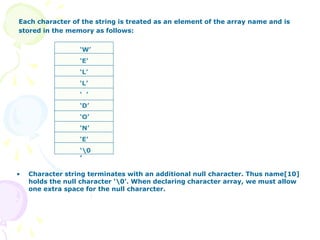

Each character of the string is treated as an element of the array name and is
stored in the memory as follows:
• Character string terminates with an additional null character. Thus name[10]
holds the null character ‘0’. When declaring character array, we must allow
one extra space for the null chararcter.
‘W’
‘E’
‘L’
‘L’
‘ ’
‘D’
‘O’
‘N’
‘E’
‘0
’

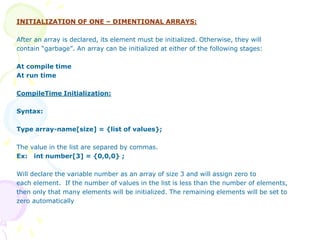

INITIALIZATION OF ONE – DIMENTIONAL ARRAYS:
After an array is declared, its element must be initialized. Otherwise, they will
contain “garbage”. An array can be initialized at either of the following stages:
At compile time
At run time
CompileTime Initialization:
Syntax:
Type array-name[size] = {list of values};
The value in the list are separed by commas.
Ex: int number[3] = {0,0,0} ;
Will declare the variable number as an array of size 3 and will assign zero to
each element. If the number of values in the list is less than the number of elements,
then only that many elements will be initialized. The remaining elements will be set to
zero automatically

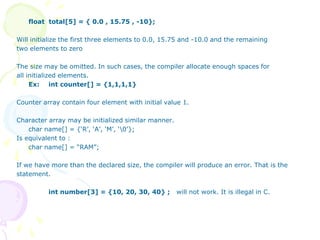

float total[5] = { 0.0 , 15.75 , -10};
Will initialize the first three elements to 0.0, 15.75 and -10.0 and the remaining
two elements to zero
The size may be omitted. In such cases, the compiler allocate enough spaces for
all initialized elements.
Ex: int counter[] = {1,1,1,1}
Counter array contain four element with initial value 1.
Character array may be initialized similar manner.
char name[] = {‘R’, ‘A’, ‘M’, ‘0’};
Is equivalent to :
char name[] = “RAM”;
If we have more than the declared size, the compiler will produce an error. That is the
statement.
int number[3] = {10, 20, 30, 40} ; will not work. It is illegal in C.

Run Time Initialization :
An array can be explicitly initialized at run time. This approach is usually applied
for initializing large arrays.
Ex:
for(i=0; i<100 ; i++)
{
if (i < 50 )
sum[i] = 0.0;
else
sum[i] = 1.0;
}
In the above case the first 50 elements are initialized to zero while the
remaining elements are initialized to 1.0 are run time.
We can also use a read function such as scanf to initialize an array.
Ex: int x[3];
scanf (“%d %d %d”, &x[0], &x[1], &x[2] ) ;
Will initialize array elements with the values entered through the kwyboard.

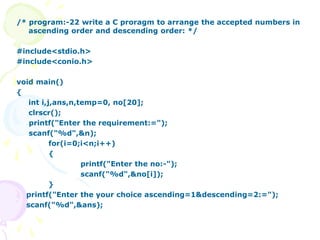

/* program:-22 write a C proragm to arrange the accepted numbers in
ascending order and descending order: */
#include<stdio.h>
#include<conio.h>
void main()
{
int i,j,ans,n,temp=0, no[20];
clrscr();
printf("Enter the requirement:=");
scanf("%d",&n);
for(i=0;i<n;i++)
{
printf("Enter the no:-");
scanf("%d",&no[i]);
}
printf("Enter the your choice ascending=1&descending=2:=");
scanf("%d",&ans);

for(i=0;i<n;i++)
{
for(j=i;j<n;j++)
{
if(ans==1)
{
if(no[i]>no[j])
{
temp=no[i];
no[i]=no[j];
no[j]=temp;
}
}
else
if(no[i]<no[j])
{
temp=no[i];
no[i]=no[j];
no[j]=temp;
}
}
printf("%d",no[i]);
printf("n");
}
getch();
}

TWO – DIMENTIONAL ARRAYS:
If you want to store data into table or matrix form at that time you can use the
two dimentional array.
Ex:
ITEM 1 ITEM2 ITEM 3
SALES MAN 1 310 275 365
SALES MAN 2 210 190 325
SALES MAN 3 405 235 240
SALES MAN 4 260 300 380
The table discussed above can be define as :
v[4][3] where 4 Rows and 3 columns.
Declaration of two dimentional array:
Syntax : data_type array-name[rowsize][colsize];

Memory representation of the two dimentional array for v[4][3] .
column 0 column 1 column2
[0][0] [0][1] [0][2]
Row 0
[1][0] [1][1] [1][2]
Row 1
[2][0] [2][1] [2][2]
Row 2
[3][0] [3][1] [3][2]
Row 3
310 275 365
325
240
0
365
275
235
190
10
405
310

INITIALIZING TWO DIMENTIONAL ARRAY:
Ex: int table[2][3] = {0,0,0,1,1,1};
Initialize elements of the first row to 0 and second row to 1. The initialization is
done row by row.
The above statement can be equivalent written as :
int table[2][3] = {{0,0,0},{1,1,1}};
We can also initialize a two dimensional array in the form of a matrix as shown below:
int table[2][3] = {
{0,0,0},
{1,1,1}
} ;
When the array is completely initialized with all values, we need not specify the size of the
first dimension. That is, the statement is permitted.
int table[][3] = {
{0,0,0} ,
{1,1,1)
};

If the value is missing in an initializes, they are automatically set to zero.
Ex: int table[2][3] ={
{1,1} ,
{2}
} ;
Will initialize the first two elements of the first row to one, the first element of the second
row to two and all other elements to zero.
When all the elements are initialized to zero, the following short cut method may be used.
int m[3][5] = { 0, 0 };
or
int m[3][5] = { {0} , { 0} };

//program30 : addition of two matrix
#include<stdio.h>
#include<conio.h>
void main()
{
int i,j,n,m,a[10][10],b[10][10],m1,n1;
clrscr();
printf("Enter No of Rows for first matrix:");
scanf("%d",&n);
printf("Enter No of columns for first Matrix:");
scanf("%d",&m);
printf("Enter No of Rows for second matrix:");
scanf("%d",&n1);
printf("Enter No of columns for second Matrix:");
scanf("%d",&m1);

if(m!=m1 || n!=n1)
printf("Sum not Possible.");
else
{
for(i=0;i<n;i++)
{
for(j=0;j<m;j++)
{
printf("Give value of a[%d][%d]:",i+1,j+1);
scanf("%d",&a[i][j]);
}
}
for(i=0;i<n1;i++)
{
for(j=0;j<m1;j++)
{
printf("Give value of b[%d][%d]:",i+1,j+1);
scanf("%d",&b[i][j]);
}
}

printf("First Matrix:n");
for(i=0;i<n;i++)
{
for(j=0;j<m;j++)
{
printf("%d ",a[i][j]);
}
printf("n");
}
printf("Second Matrixn");
for(i=0;i<n1;i++)
{
for(j=0;j<m1;j++)
{
printf("%d ",b[i][j]);
}
printf("n");
}
printf("After Sum New Matrixn");
for(i=0;i<n1;i++)
{
for(j=0;j<m1;j++)
{
printf("%d ",a[i][j]+b[i][j]);
}
printf("n");
}
}
getch();
}

MULTIDIMENTIONAL – ARRAY :
C allows array of three or more dimensions.
Syntax:
type array_name [s1] [s2] [s3]……………[sn] ;
Where si is the size of the ith dimentions.
Some ex: int survey [3] [5] [12] ;
float table [5] [4] [5] [3] ;
Survey is a three dimensional array while table is four dimensional array.
Survey contain 180 integer value. Table contain 300 element for floating type.
Ex:
int survey[3][5][12];
In this first index denotes year, second city and third month. The array survey
Represent a survey of rainfall during the last three years from January to
December in five cities.

Month
City
1 2 12
…………………………………
1
5
…………
YEAR 1
Month
City
1 2 12
…………………………………
1
5
…………
YEAR 2
-----------
YEAR 3

Dynamic Array:
In C it is possible to allocate memory at the run time to the Array is called the
Dynamic Array.
Dynamic arrays are created using what are known as pointer variable and
memory management function like malloc, calloc and realloc.
The process of allocating memory at compile time is known as static memory
allocation and the array that receive static memory allocation is called the static
array.

Chapter : 8 Handling of character String:
What is a String :
String is a group of character array.
Any group of character defined between
double quotation mark is a constant string.
Ex: printf(“Hello How are you”);
output : Hello How are you
If you want to included double quotes with
string than also it is possible.
Ex: printf(“”Hello How are you””);
output : “Hello How are you”

• Declaring and Initialising String Variable :
A String Variable is always declared as an
array :
Syntax : char string_name[size];
Where size determines the number of
character in the string.
size should be maximum number of the
character + 1.
because When the compiler assigns the
character string to character array . It
automatically supplies null character (“0”)
at the end of the string.
Ex: char city[10];
char name[30];

• Initialization of string variable :
char array may be initialized when they
are declared.
you can initialized char array with two
form:
char city[9] = “New York”;
char city[9] = {‘N’, ‘e’, ‘w’, ‘ ’, ‘Y’, ‘o’, ‘r’,
‘k’,’0’ };

C also permit us to initialise character array
without specifying the number of elements.
In such cases, the size of the array will be
determined automatically,based on the
number of the elements initialised.
Ex: char string[] = {‘G’,’O’,’O’,’D’,’0’};
It defines the string as five elements array.

• Reading String from terminal :
You can read the string using scanf function
with %s format specification.
Ex: char address[15];
scanf(“%s”,address);
(& sign is not included before address)
The problem with the scanf function is that it
terminates its input on the first white space
it finds.
Ex: If input string is New York in
address that address array included only
New. After New, string will be terminated.

If we want to to read the entire line
“New York” then we may use two character
array of appropriate sizes. That is,
scanf(“%s %s”,adr1,adr2);
Where adr1 assign “New” and adr2 assigns
“York”.

• Reading a line of Text:
Program to read a line of text from terminal :
#include<stdio.h>
void main()
{
char line[81],character; int c=0;
do
{
character = getchar();
line[c] = character;
c++;
} while(character != ‘n’);
c=c-1; line[c] = ‘0’ ;
printf(“n %s n”,line)
}
Output : programming in C is interesting.
Programming in C is interesting.

• Copying one string to another string
We can copy one string to another string
using character by character basis.
We can’t assign one string to another string
directly.
Ex: string = “ABC”;
string1 = string2;
is not possible in C.

program to copying one string to another string :
#include<stdio.h>
void main()
{
char str1[80],str2[80]; int i;
printf(“Enter the Stringn”);
scanf(“%s”,str2);
for(i=0; str2[i] != ‘0’; i++)
str1[i] = str2[i];
str1[i] = ‘0’;
printf(“%sn”,str1);
printf(“No.of characters=%dn”,i);
}

• Writing string to screen :
We have used printf function with %s format to print
the string to the screen.
Ex: printf(“%s”,name);
Used to display the entire contents of the array name.
Features of the %s format specification :
(1) When the field width is less than the length of the
string than the entire string is printed.
(2) The integer value on the right side of the decimal
point specifies the number of character to be printed.
Ex: %10.4s specifies 4 character printed .
(3) When the number of character to be printed is
specified by zero,nothing is printed.
Ex: %10.0s
(4) The minus sign in the specification causes the
string to be printed left side. Ex: %-10.4s 4 character
printed left side.

• Another nice features for printing output is:
printf(“%*.*sn”,w,d,string);
prints the first d characters of the string in the
field width of w.
Write the program for writing string using %s format :
void main()
{
char country[15] = “United Kingdom”
printf(“%15s n”,country);
printf(“%5s n”,country);
printf(“%15.6s n”,country);
printf(“%-15.6s n”,country);
}

• Output :
• United Kingdom
• United Kingdom
• United
• United
• Uni

• Write the program to print the output:
void main()
{
int c , d;
char string[] = “Cprogramming”;
for(c=0;c<=11;c++)
{
d=c+1;
printf(“%-12.*s n”,d,string);
}
printf(“nn”);
for(c=11;c>=0;c--)
{
d=c+1;
printf(“%-12.*s n”,d,string);
}
}

• OUT PUT :
C
Cp
Cpr
Cpro
Cprog
………………..
Cprogramming
Cprogramming
Cprogrammin
Cprogrammi
Cprogramm
Cprogram
Cprogra
Cprogr
……..
….
C

• Arithmetic operation on characters :
To write a character in integer
representation , we may write it as an
integer.
Ex: int x;
x = ‘a’;
printf(“%dn”,x); it will display number
97 on the screen.
It is also possible to perform arithmetic
operation on the character constants and
variable.
Ex: x = ‘z’ – 1
Ascii value of z is 122 so x will be store 121.

• The C library provides a function which
converts string of digits into their integer
value.
Ex: number = “1988”;
year = atoi(number);
String Handling function :
There are mainly four types of string
handling function:
1. strcat() – Concatenation of two string
2. strcmp() – Compares two string
3. strcpy() – copies one string over another
string
4. strlen() – finds the length of the string.

• Strcat() : - Using this function you can
concat two string:
syntax : strcat(string1,string2);
where string1 and string2 both are character
array.
string2 is appended to string1 by removing
null character at the end of string1.
Ex: str1 = “Very 0”
str2 = “Good0”
str3 = “Bad0”
Strcat(str1,str2); - output : Very Good0

• It also allows to concat three string together
Ex: strcat(strcat(str1,str2),str3);
output : Very GoodBad
strcmp() : This function compares two string If
both are equal then it return 0 value and if
they are not equal then it will return numeric
difference between the nonmatching
character.
Ex: strcmp(“their”,”there”); will return
numeric difference between ASCII “i”and”r”.

• strcpy () : using this function we can copy
contents of one string to contents of another
string.
syntax : strcpy(str1,str2);
strlen() : This function is used to find the
length of the string.
n = strlen(string);
where n is an integer variable.

• Examples of string handling function :
#include<stdio.h>
#include<string.h>
void main()
{
char s1[20],s2[20],s3[20];
int x,l1,l2,l3;
printf(“Enter two string constantsn”);
scanf(“%s %s”,s1,s2);
x=strcmp(s1,s2);
if(x != 0)
{
printf(“Strings not equal”); strcat(s1,s2);
}
else
printf(“strings are equal”) ; strcpy(s3,s1);
l1 = strlen(s1); l2=strlen(s2) ; l3 = strlen(s3);
printf(“s1 = %s length=%d charactern”,s1,l1);
}

• Table of string :
When you want to store a set of strings in
table form than it is possible using two
dimensional character array.
Ex: student[30][15]
A character array student[30][15] may be
used to store a list of 30 names,each of the
length not more than 15 characters.

• Write a program that would sort a list of names in alphabetical
order.
#define ITEMS 5
#define MAXCHAR 20
void main()
{
char string[ITEMS][MAXCHAR],dummy[MAXCHAR];
int i=0,j=0;
printf(“Enter names:”);
while(i<ITEMS)
scanf(“%s”,string[i++]);
for(i=1;i<ITEMS;i++)
{
for(j=1;j<=ITEMS-i;j++)
{
if(strcmp(string[j-1],string[j])>0)
{
strcpy(dummy,string[j-1]);
strcpy(string[j-1],string[j]);
strcpy(string[j],dummy);
}
}
Printf(“n Alphabetical order”);
for(i=0;i<ITEMS;i++)
printf(“%s”,string[i]);
}

• Write the program to count the number of character,word
and spaces in line :
#include<stdio.h>
void main()
{
char line[81],ctr;
int i,c,end=0,character=0,words=0,line=0;
while(end==0)
{
c=0;
while((ctr=getchar()) != ‘n’)
line[c++] = ctr; line[c] = ‘0’;
if(line[0]=‘ ’)
break;
else
{
words++;
for(i=0;line[i] != ‘0’;i++)
continue :

if(line[i] == ‘ ’ || line[i] == ‘t’)
words++;
}
/* counting lines and characters */
lines = lines +1;
characters = characters + strlen(line);
}
printf(“Number of lines = %dn”,lines);
printf(“Number of words = %dn”,words);
printf(“Number of character = %d”,characters);
}

• Chapter - 9 User Defined Function:
• C Functions can be classified into two
category :
1. Library function.
2. User defined function.
Difference between library and user defined
function : library function is inbuilt function
while user defined function is developed by
user.
Ex : printf and scanf are library function
while main() is an user defined function

• Need for user defined function :
main is a user defined function.It is possible
to write entire code in main function but it
leads a number of problems.
The program becomes to large and complex,
so the task of maintaining,debugging and
testing is become difficult.
If a program is divided into function parts
then each parts may be individually coded
and finally combined into single units. These
subprogram is called function.
And it is easier to understand, to debug
code and test.

• Benefits of function:
1. It facilitates top - down modular
programming.
2. The length of source code is reduced by
using function at appropriate place.
3. It is easy to locate and isolate faulty
function for further investigation.
4. A function can be used by many other
programs.

• Forms (Syntax) of function :
return_type function_name(argument list)
{
local variable declaration;
executable statements;
………….
………….
return( expression);
}
• By default return_type of function is int
• void should not return any value.

• Ex:1
#include<stdio.h>
#include<conio.h>
void main()
{
void printline(); // prototype
printline(); // calling function
printf("This is a function programn");
printline();
}
void printline() //called function
{
int i;
for(i=1;i<40;i++)
printf("-");
printf("n");
}

Ex:2
#include<stdio.h>
#include<conio.h>
void printline() //called function
{
int i;
for(i=1;i<40;i++)
printf("-");
printf("n");
}
void main()
{
//does not required to declare prototype
printline(); // calling function
printf("This is a function programn");
printline();
}
If you declared UDF before the main function than it should not required to
declare prototype.

Category of the function :
There are three categories of the function :
1. Function with no arguments and no
return value
2. Function with arguments and no return
value.
3. Function with arguments and with return
value

• Function with no arguments and no return value :
This function can not contain any arguments and any
return value.
Ex:
#include<stdio.h>
void mul()
{
int j,k,mul;
scanf(“%d”,&j); scanf(“%d”,&k);
mul = j * k;
printf(“%d”,mul);
}
void main()
{
mul();
}

Function with arguments and no return value :
This function contain arguments but does not return value.
#include<stdio.h>
#include<conio.h>
void main()
{
void mul(int,int);
int j,k;
clrscr();
scanf("%d %d",&j,&k);
mul(j,k);
getch();
}
void mul(int l,int m)
{
int mul;
mul = l * m;
printf("%d",mul);
}

• Function with arguments and with return value :
Ex:
#include<stdio.h>
#include<conio.h>
void main()
{
int mul(int,int);
int j,k,multipli;
clrscr();
scanf("%d %d",&j,&k);
multipli=mul(j,k);
printf("%d",multipli);
getch();
}
int mul(int l,int m)
{
int mul;
mul = l * m;
return(mul);
}

• Recursion :
Recursion is a process where a function calls
itself.
Ex: main()
{
printf(“This is an example of recursion “);
main();
}
output :
This is an example of recursion
This is an example of recursion
……..
Execution will be continue indefinitely

• Ex: Write the program to find the factorial of the given no. using the
recursion :
#include<stdio.h>
#include<conio.h>
factorial(int no)
{
int fact;
if(no==1)
return(1);
else
fact=no*factorial(no-1);
return(fact);
}
void main()
{
int no;
clrscr();
printf("Enter the number");
scanf("%d",&no);
factorial(no);
getch();
}

• Output :
• Enter No : 3
fact=3*factorial(2)
= 3*2*factorial(1)
= 3*2*1
=6
Function with arrays :
Syntax : functionname(arrayname,size)
Ex : largest(a,n)
Where largest is a function name, a is an array
name and n is a size of an array

• Ex: Find the maximum no:
float largest(float a[],int n)
{
int i ; float max; max = a[0];
for(i=1;i<n;i++)
if(max < a[i])
max = a[i];
return(max);
}
main()
{
float largest[float [],int n];
float value[4]={2.5,-4.75,1.2,3.67}
printf(“%fn”,largest(value,4));
}

• The scope and lifetime of variables in
function :
In C there are four types of storage classes :
1. Autoamatic storage classes
2. External variables
3. Static variables.
4. Register variables
Automatic variables :
Automatic varibles declared inside a
function in which they are utilized.
so, automatic variables are private to that
function.

• Automatic variables are referred as a local
variable or internal variable.
• So you can declare this variable in more than
one function without any confusion.
• Ex: main()
{ int number ; }
You can also declared explicitly with auto
keyword
Ex: main()
{ auto int number ; }

• External variable :
• variables that are both active and alive throughout
the entire program is known as external variable.It
is also called global variable.
• unlike local varibles global variables can be
accessed by any function in the program.
• Ex: int number;
main()
{
……… }
fun1()
{
…….. }
fun2()
{
…….. }

• Static variables:
static variables declared using static keyword.
Ex: static int number;
Static variables are initialised only once during the
execution of the program.
static variables are generally used to retain values
between function calls.
Ex: main()
{ int i;
for(i=0;i<=3;i++)
stat();
}
stat()
{
static int x=0; x++ ;
printf(“%dn”,x) }

• Register Variables :
Register Variables are generally used to
store variable register so you can access
that variable very fast than store in the
memory.
you can create your register variable using
register keyword.
Ex: register int x;
register variables are generally used in
looping.

Chapter - 10 Structure and Unions
• Structures :
Structure is nothing but group of dataitems
of different type with a single name.
Define structure :
struct book_name
{
char title ;
char author;
int pages ;
float prices;
};
struct book_name book1,book2,book3;

• Second method to defining structure is :
struct book_name
{
char title ;
char author;
int pages ;
float prices;
} book1,book2,book3;
You can defined structure globally as well as locally.
when you defined structure outside the main its called
global declaration of structure.
when you declared structure inside the main its called
local declaration of structure.

#include<stdio.h>
#include<conio.h>
#include<string.h>
#define l 2
void main()
{
int i,j;
struct stud
{
int rno;
char nm[50];
char add[50];
char ct[50];
int ph;
}s;
clrscr();

printf("Give Roll No:");
scanf("%d",&s.rno);
printf("Give Name:");
scanf("%s",s.nm);
printf("Give Address:");
scanf("%s",s.add);
printf("Give City:");
scanf("%s",s.ct);
printf("Give Phone No:");
scanf("%d",&s.ph);
printf("Roll No:%dn",s.rno);
printf("Name:%sn",s.nm);
printf("Address:%sn",s.add);
printf("City:%sn",s.ct);
printf("Phone No:%dn",s.ph);
getch();
}

• Initialization of structure variable :
First method to initialise structure :
main()
{
struct st_record
{
int weight;
float height;
};
struct st_record stud1 = {60,80.5};
struct st_record stud2 = {53,170};
}

Second method to initialise structure :
struct st_record
{
int weight;
float height;
} stud1={60,80.5};
/* you also initialise stud2 globally by
separating comma */
main()
{
struct st_record stud2 = {60,80.5};
}

Arrays of structure :
// Program No:40
#include<stdio.h>
#include<conio.h>
#include<string.h>
#define l 3
void main()
{
int i,j;
struct stud
{
int rno;
char nm[50];
char add[50];
char ct[50];
int ph;
}s[l];
clrscr();

for(i=0;i<l;i++)
{
printf("Give Roll No:");
scanf("%d",&s[i].rno);
scanf("%s",s[i].nm);
printf("Give Address:");
scanf("%s",s[i].add);
printf("Give City:");
scanf("%s",s[i].ct);
printf("Give Phone No:");
scanf("%d",&s[i].ph);
}
for(i=0;i<l;i++)
{
printf("Roll No:%dn",s[i].rno);
printf("Name:%sn",s[i].nm);
printf("Address:%sn",s[i].add);
printf("City:%sn",s[i].ct);
printf("Phone No:%dn",s[i].ph);
}
getch();
}

// Program No:41
#include<stdio.h>
#include<conio.h>
#include<string.h>
#define l 3
#include<stdlib.h>
void main()
{
char ch[50]="";
int i,j;
struct crt
{
int arg;
char nm[50];
char tnm[50];
}s[l];
clrscr();

for(i=0;i<l;i++)
{
scanf("%s",s[i].nm);
printf("Give Name of Team:");
scanf("%s",s[i].tnm);
printf("Give Average:");
scanf("%d",&s[i].arg);
}
for(i=0;i<l;i++)
{
if(strcmp(s[i].tnm,ch)!=0)
{
strcpy(ch,s[i].tnm);
printf("%s team listn",ch);
for(j=i;j<l;j++)
{
if(strcmp(s[j].tnm,ch)==0)
{
printf("%sn",s[j].nm);
printf("%dn",s[j].arg);
}
}
}
}
getch();
}

• Array within structure :
void main()
{
struct marks
{
int sub[3];
int total ;
};
struct marks student[3] =
{45,67,81,0,75,53,69,0,57,36,71,0};
int i,j;
for(i=0;i<=2;i++)
{
for(j=0;j<=2;j++)
{
student[i].total += student[i].sub[j];
}
}

printf(“display student totalnn”)
for(i=0;i<=2;i++)
printf(“student[%d] %d”,i+1,student[i].total)
}
Structure within structure :
Structure within a structure means nesting of structures.
Ex: the following structure defined to store information
about the salary of employees.
struct salary
{
char name[20] ; char department[20];
int basic_pay; int houserent_allowance;
int city_allowance ; int medical_allowance;
}

• Now we can group all the items related to allowance
together and declare them under a structure .
struct salary
{
char name[20] ;
char department[20];
int basic_pay;
struct
{
int houserent_allowance;
int city_allowance ;
int medical_allowance;
} allowance ;
}

• The salary structure contains a member named
allowance which itself is a structure with three
members.the members contained in the inner
structure can be reffered as :
employee.allowance.dearness
employee.allowance.house_rent
employee.allowance.city
It is not allowed directly accessed
ex: employee.allowance (actual member is
missing)
employee.house_rent (inner structure
variable is missing)

• An inner structure can have more than one variable
name.
Ex: struct salary
{
char name[20];
struct
{
int city_allowance;
int medicle_allowance;
} allowance,arears;
* We can also use tag name to define inner structures.

struct pay
{
int city_allowance;
int medicle_allowance;
};
struct salary
{
char name[20];
struct pay allowance;
struct pay arrears;
};
struct salary employee;

• Structure and function :
There are three method by which the values of a
structure can be transferred from one function to
another function.
1. pass each member of the structure as an actual
argument of the function.This method is
inefficient when structure size is very large.
2. passing of a copy of the entire structure to the
called function.since function working on the copy
of the structure,any changes to structure
members within the function are not reflected in
the original structure. therefore it is necessary
for the function to return the entire function to
the called function. All compiler does not support
this method.

3. using pointer to pass the structure as an
arguments. In this case address location of the
structure is passed to the called function.the
function can access indirectly the entire structure
and work on it. This method is more efficient than
other two method.
The general format of sending a copy of the
structure to the called function.
data_tye function_name(struct_type st_name)
{
…………….
…………….
return(expression);
}

• Program to illustrate the method of sending an entire
structure as a parameter to a function.
#include<stdio.h>
#include<conio.h>
struct stores
{
char name[20];
float price;
int quantity;
};
struct stores update(struct stores product,float p,int q)
{
product.price = product.price + p;
product.quantity=product.quantity + q;
return(product);
}

float mul(struct stores stock)
{
return(stock.price * stock.quantity);
}
void main()
{
float p_increament , q_increament , value;
struct stores item = {"ABC",25.34,12};
printf("price increament and quantity increamentn");
scanf("%f %d",&p_increament,&q_increament);
/*------------------------------------------------*/
item = update(item,p_increament,q_increament);
/* ----------------------------------------------- */
printf("update values of itemnn");
printf("Name : %s",item.name);
printf("Price : %f",item.price);
printf("Quantity : %d",item.quantity);
/*----------------------------------------- */
value = mul(item);
/*------------------------------------------*/
printf("value of the item = %f",value);
}
}

• Union :
Unions are concepts borrowed from structures
therefore follow the same syntax as structures.
Difference between structure and unions :
In structures each member has its own storage
locations, whereas all members of the unions use the
same storage locations.This implies that a union may
contain many members at a time but it can handle
only one member at a time.
In unions the compiler allocates a piece of storage
that is large enough to hold the largest variable type
in the union.

Ex: Unions Example
#include<stdio.h>
#include<conio.h>
union item
{
int m;
int x;
int c;
}code;
void main()
{
code.m=10;
code.x = 15;
printf("%d",code.m);
printf("%d",code.x);
}
/* Output : 15 15 */

• Using unary operator sizeof() you can know the
size of structure.
• Bit Fields :
integer fields of size 16 bits to store data. There
are occasions where data items require much
less than 16 bits space. In such cases, we waste
memory space. This is possible using small bit
fields.
The bit field is a set of bits whose size can be
from 1 to 16 bits in length. A word can be divided
into a number of bit fields.
the name and size of the bit fields are defined
using a structure.

• General format to define bit fieldth :
struct tag_name
{
data_type name1 : bit_length;
……………………
…………………..
data_type nameN : bit_length;
}
Where data_type is either int , unsigned int and bit –
length specified number of bits used for specified
name. The bit length is decided by the range of values
to be stored

• There are several specific points to be observer :
1. The first field always starts with the first bit of the
word.
2. A bit field cannot overlap integer boundaries.the sum
of lengths of all fields in a structure should not
be more than the size of a word.In case,it is
more,the overlapping field is automatically forced
to the beginning of the next word.
3. there can be unnamed field declared with size.
unsigned : length ;
It provides padding within the word.
4. there can be unused bits in a word.
5. we cannot take the address of a bit field variable.this
means we cannnot use scanf function and pointer in
the bit field.
6. Bit fields cannot be arrayed.
7. Bit fields should be assigned values that are
within the range of their size. If we try to assign larger
value than unpredicted result generated

• Ex:
struct personal
{
unsigned sex : 1
unsigned age : 7
unsigned m_status : 1
unsigned childeren : 3
unsigned : 4
} emp;
Range :
Bit field Bit-length Range
sex : 1 0 or 1
age : 7 0 or 127
m_status : 1 0 or 1
childeren : 3 0 to 7
Note : we cannot use scanf to read values into a bit field.we
may have to read into a temporary variable and then
assigns its value to the bit field.

Chapter-11 POINTERS
What is a pointer ?
A pointer is nothing but a variable that contains the
address which is a location of the another variable
in memory.
Benefits of using the pointer :
1. A pointer enables us to access a variable that is
defiend outside the function.
2. Pointer are more efficient in handling data table.
3. Pointer reduces the length and complexity of the
program.
4. The use of pointer array to character string results
in saving of datastorage space in memory.

• Declaring and initialising pointers :
syntax :
data_type *pt_name ;
this tells the compiler three things about the
variable pt_name.
1. * tells the compiler that the variable
pt_name is a pointer variable.
2. pt_name needs a memory location.
3. pt_name points to a variable of type
data_type.

• Ex: int quantity=179 ;
int *p;
p=&quantity;
quantity variable
179 value
5000 Address
p=&quantity; using this statement you can
store the address of the variable quantity to the
pointer variale p.
Note : you can know the address of variable using %u
format specification.
You can’t assign an absolute address to a pointer
variable directly.
Ex: p = 5000; It is not possible

• Accessing variables using pointers.
void main()
{
int x,y, *ptr;
x=10;
ptr=&x;
y = *ptr;
printf(“Value of x is %dnn”,x);
printf(“%d is stored at address %un”, x, &x);
printf(“%d is stored at address %un”, *&x, &x);
printf(“%d is stored at address %un”, *ptr, &x);
printf(“%d is stored at address %un”, y, &*ptr);
printf(“%d is stored at address %un”,ptr,&ptr);
printf(“%d is stored at address %un”, y, &y);
*ptr=25;
printf(“n Now x = %dn”,x)
}

• Output:
Value of X is 10
10 is stored at address 4104
Now x = 25

• Pointers expression :
void main()
{
int a,b,*p1,*p2, x, y, z ;
a =12; b = 4;
p1=&a; p2 = &b;
x = *p1 * *p2 – 6;
y = 4* - *p2 / *p1 + 10;
printf(“Address of a = %un”,p1);
printf(“Address of b=%un”,p2);
printf(“n”);
Printf(“a=%d, b=%dn”,a , b);
printf(“x=%d , y=%dn”,x,y);
*p2 = *p2 + 3 ; *p1 = *p2 – 5 ; z= *p1 * *p2 – 6 ;
printf(n a = %d , b = %d “, a ,b);
printf(“z = %dn”, z);
}

Out put :-
Address of a = 4020
Address of b =4016
a = 12 b=4
x=42 y=9
a=2 b=7 z=8
Pointer increments and scale factor :
p1++ will cause the pointer p1 points to the next value of
its type. Ex :- if p1 is an integer pointer with the initial
value say 2800,then after the operations p1=p1+1,the
value of p1 will be 2802,not 2801
when we increment pointer its value is increased by the
length of the data type that it points to.This length is called
scale factor.

• Pointer and Arrays :-
When an array is declared,the compiler allocates a base
Address and sufficient amount of storage to contains all
The elements of the array in memory location.
Base address is the location of the first element of the
array
int x[5] = {1,2,3,4,5}
Suppose the base address of x is 1000 and assuming that
Each integer requires 2 bytes,the five elements stored as
Follows :
Element x[0] x[1] x[2] x[3] x[4]
Value 1 2 3 4 5
Address 1000 1002 1004 1006 1008
So, base address is,
x = &x[0] = 1000

• If we declare p as integer pointer, then we can make the
pointer p to point to the array x by the following
statements.
p = x or p = &x[0]
Now we can access every element of x using p++ to move
from one element to another.
p = &x[0] (=1000)
p+1 = &x[1] (=1002)
p+2 = &x[2] (=1004)
p+3 = &x[3] (=1006)
p+4 = &x[4] (=1008)

/***PRGRAMM FOR N NUMBER ELEMENT SUM******/
#include<stdio.h>
main()
{
int x[10],i,*p,n,sum=0;
printf("enter the N:");
scanf("%d",&n);
printf("enter the the data:n");
for(i=0;i<n;i++)
{
scanf("%d",&x[i]);
}
p = x;
for(i=0;i<n;i++)
{
printf("n%d",*p);
sum=sum + *p;
p++;
}
printf("nsum=%d",sum);
}

2,0 2,3
P
P + 1
0 1 2 3 4
0
1
2
3
*(p+2)
p+2
P = pointer to first row
P+I = pointer to ith row
*(p+i) = pointer to first element in the ith row
*(p+i)+j = pointer to jth elements
*(*(p+i)+j)=value stored in the cell(i,j)
*(p+2) + 3

/*** PROGRAMM FOR SUM OF N NUBER ELEMENT*****/
#include<stdio.h>
main()
{
int x[10][10],i,j,n,sum=0;
clrscr();
printf("enter the N:");
scanf("%d",&n);
printf("enter the the data:n");
for(i=0;i<n;i++)
{
for(j=0;j<n;j++)
{
scanf("%d",&x[i][j]);
}

`for(i=0;i<n;i++)
{
for(j=0;j<n;j++)
{
printf("n%d",*(*(x+i)+j));
sum=sum + *(*(x+i)+j);
}
}
printf("nsum=%d",sum);
}
getch();
}

/* program for double dimention matrix */
#include<stdio.h>
main()
{
int a[5][5],r;
clrscr();
scanf("%d",&r);
rea(a,r);
writ(a,r);
}
rea(int (*p)[5], int r)
{
int i,j;
for(i=0;i<r;i++)
for(j=0;j<5;j++)
{
printf("Enter the element data for (%d,%d) : ",i+1,j+1);
scanf("%d",*(p+i)+j);
}
}

writ(int (*p)[5], int r)
{
int i,j;
for(i=0;i<r;i++)
{
for(j=0;j<5;j++)
printf("%d",*(*(p+i)+j));
printf("n");
}
}

• Pointer and character string :-
In c, a constant character string always represents a
pointer to that string. And therefore you can directly write
char *name;
name = “DELHI”
these statements will declare name as a pointer to
character and assign to name the constant character string
“Delhi”.
but remember that this type of assignment does not apply
on character arrays.
char name[20];
name = “DELHI”
one important use of pointer is handling of a table of string.
following is the array of string.
char name[3][25];
this say that table containing three names ,each with a
maximum length of 25 characters. So total storage
requirement for the name table are 75 bytes

• We know that individual string may be equal
length.therefore instead of making each row a fixed number
of characters,we can make it a pointer to a string of varying
length.
char *name[3] = {
“New Zealand”,
“Australia”,
“India”
}
Where name to be an array of three pointers to a
character,each pointer points to a particular name.
name[0]=“New Zealand”,
name[1]=“Australia”,
name[2]=“India”
This declaration allocates only 28 bytes.
The character arrays with the rows of varying length are
called ragged array.

/****PROGRAMM FOR STRING PRINT USING POINTER ****/
#include<stdio.h>
main()
{
char name[10],*ptr;
clrscr();
printf("enter the name => ");
scanf("%s",name);
ptr=name;
printf("n");
while(*ptr != '0')
{
printf("%c",*ptr);
ptr++;
}
getch();
}
Note : if we want to directly assign string constant then we
have to make name as character pointer.
char *name ; name = “Delhi”

• Pointer and function :
When we pass addresses to a function,the parameter
receiving the addresses should be pointers.
The process of calling a function using pointer to pass the
address of variable is known as call by reference. The
function which is called by ‘reference’ can change the value
of the variable used in the call.
Ex: main()
{
int x=20;;
change(&x);
printf(“%dn”,x);
}
change(int *p)
{
*p = *p + 10
}

Thus call by reference provides the mechanism by which
the function can change the stored value.
Ex: /***PROGRAM FOR EXCHANGING THE VALUE*****/
#include<stdio.h>
main()
{
int a,b;
printf("enter the number");
scanf("%d %d",&a,&b);
printf("ttnA=%d B=%dnn",a,b);
swap(&a,&b);
printf("ttnA=%d B=%d",a,b);
}
swap(int *p ,int *q)
{
int t;
t=*p;
*p=*q;
*q=t;
}

• POINTERS AND STRUCTURES :
We know that name of an array stands for address of the
zeroth elements.the same thing is true for names of arrays
of structure variable.
Ex: struct inventory
{
char name[30];
int number;
float price;
} product[2],*ptr;
here product as an array of two elements and ptr as pointer
to data objects of the type struct inventory.
ptr = product ;
would assign the address of the zeroth element of product
to ptr. That is the pointer ptr points to the product[0].It’s
members can be accessed using the following notation.

• ptr -> name
ptr->number
ptr->price
-> : this symbol is called arrow operator and is made up of
minus sign and greater than sign.
When pointer ptr is incremented by one.it is made to point
to the next record i.e. product[1].
we can also use notation (*ptr).number to access the
member number.Parantheses around *ptr are necessary
because the member operator “.” has a higher precedence
than the operator *.
Note : precedence is necessary in structure.
ex: ++ptr -> count : increment counter
(++ptr)->counter :- increment pointer.

• Ex: pointer to structure variable :
struct invent
{
char *name[20];
int number;
float price;
} product[3] , *ptr ;
void main()
{
for(ptr=product ; ptr < product + 3 ; ptr++)
scanf(“%s %d %f”,ptr->name,&ptr->number,&ptr->price);
ptr=product;
for(ptr=product ; ptr < product + 3 ; ptr++)
printf(“%s %d %f”,ptr->name,ptr->number,ptr->price);
}

• Pointer to function :
A pointer which points to a function is called function to a
pointer.
syntax: type (*fptr)();
Ex: double (*p1)() , mul();
p1=mul;
where p1 points to a function mul. Now to the function mul
we can use pointer p1 instead of mul function.
To call the function mul, we may now use the pointer p1
with the list of parameters.that is
(*p1)(x,y)
is equivalent to
mul(x,y)

Chapter-12 File Management in C
using the functions such as scanf and printf to read and
write data. These are console oriented I/O functions which
always use the terminal as the target place.This works fine
as long as the data is small.In many real-life problem
involve large volume of data and in this situation console
oriented operations pose two major problems
1. it is more time consuming to handle large volumes of
data.
2. the entire data is lost when either the program is
terminated.
so, it’s a more flexible that data can be stored on the disk
and read whenever necessary, without destroying the data.
this is possible using the concept file to store data.
A file is a place on the disk where a group of related data is
stored.

• Basic file operations are :
naming a file
opening a file
reading data from file
writing data to a file
closing a file
DEFINING AND OPENING A FILE :
General format for defining and opening a file :
syntax :
FILE *fp ;
fp = fopen(“filename”,”mode”);
where fp is a pointer variable which points to the data type
FILE. FILE is a structure that is defined in the I/O library.
The second statement open the file named filename. the
second method also specifies the openig of the file.the
mode do this job.

• There are three types of mode :
r open the file for reading only
w open the file for writing only
a open the file for appending data to it.
when trying to open a file,there are three possibilities :
1. In write mode : a file with specified name is created if
the file does not exist.the contents are deleted if the
file are already exist.
2. In append mode : when the purpose is “appending” the
file is opened with the current content safe.a file with
the specified file name is created if file does not exist.
3. In read mode : if file is exist then open file in read
mode otherwise an error occurs.
Ex: FILE *p1 , *p2 ;
p1 = fopen(“data”,”r”);
p2 = fopen(“results”,”w”);

• Closing a file :
Using this function you can close the file.
syntax : fclose(file_pointer);
Ex: fclose(*p1);
fclose(*p2);
INPUT OUTPUT OPERATION IN FILE :
getc and putc Functions :
Using getc function you can read a character from a file that
has been opened in read mode.
syntax : c = getc(fp);
where fp is a file pointer which points to a file which is
opened in a read mode

And store the character to the variable c. Readind should be
terminated when EOF is encountered.
using putc function you can write character to a file.
syntax : putc(c,fp1)
where fp1 is a function pointer which points to a file which
is opened in write mode to store the character and c is a
character variable which stores the character which is write
to a file.

• Ex : #include<stdio.h>
Void main()
{
FILE *f1;
char c;
f1 = fopen(“INPUT”,”w”);
while((c=getchar()) != EOF)
putc(c,f1);
fclose(f1);
f1 = fopen(“INPUT”,”r”);
while((c=getc(f1)) != EOF)
printf(“%c”,c);
fclose(f1);
}
Note :You terminate the entering string by pressing ctrl + Z.

• Similarly getw and putw functions are used to read the
integer value from file and to write the integer value to the
file.
#include<stdio.h>
Void main()
{
FILE *f1;
int no , i;
f1 = fopen(“INPUT”,”w”);
for(i=0 ; i < 10 ; i++)
{
scanf(“%d”,&no);
if(no == -1)
break;
putw(no,f1);
}
fclose(f1);
f1 = fopen(“INPUT”,”r”);
while((no=getw(f1)) != EOF)
printf(“%d”,no);
fclose(f1);
}

/****PROGRAMM FOR TO READ AND WRITE FROM
FILE***********/
#include<stdio.h>
main()
{
FILE *f,*f1,*f2;
int c,i;
clrscr();
printf("ENTER THE THE DATA ==== >");
f=fopen("input","w");
for(i=0;i<50;i++)
{
scanf("%d",&c);
if(c==999)
break;
putw(c,f);
}
fclose(f);

f=fopen("input","r");
f1=fopen("even","w");
f2=fopen("odd","w");
while(!feof(f))
{
c=getw(f);
printf("%d",c);
if(c%2==0)
putw(c,f1);
else
putw(c,f2);
}
fclose(f);
fclose(f1);
fclose(f2);
f1=fopen("odd","r");
f2=fopen("even","r");

printf("GIVE DATA IS ODDn");
while(!feof(f1))
{
c=getw(f1);
printf("%d",c);
}
printf("GIVE DATA IS EVENn");
while(!feof(f2))
{
c=getw(f2);
printf("%d",c);
}
fclose(f1);
fclose(f2);
}

• The fprintf and fscanf function :
the functions fprintf and fscanf are identical to the printf
and scanf function.
fscanf and fprintf functions are generally used to perform
input and output operation.
syntax for fprintf :
fprintf(fp,“control string”,list)
where fp is a file pointer associated with the file that has
been opened for writing. The control string contains output
specifications for the items in the list. The list may include
variables , constants and strings.
Ex: fprintf(f1,”%s %d %f”, name,age,7.5);
fscanf functions are generally used to read the data from
the file.

syntax for fscanf :
fscanf(fp,“control string”,list)
where fp is a file pointer associated with the file that has
been opened for reading. The control string contains input
specifications for the items in the list. The list may include
variables , constants and strings.
Ex: fscanf(f2,”%s %d”, item , &quantity);

• Error handling during I/O operation :
It is possible that an error may occur during I/O operation
on a file.typical error situation include :
1. Trying to read beyond the end – of – file mark.
2. Trying to use a file that has not been opened.
3. Trying to perform an operation on a file.,when the file
opened for another type of operation.
4. Opening a file with an invalid filename.
5. Attempting to write to a write – protected file.
this type of errors are handles during the I/O operations.
The feof function can be used to test for an end of file
condition.
if(feof(fp))
printf(“End of data n”);

• Where fp is file pointer it pass as a arguments to the feof
function.
• The ferror function is used to check that an error has
occurred or not during the reading processing.
Ex: if(ferror(fp) != 0 )
printf(“An error has occurredn”);
• When the file cannot be opened for some reason,then the
function returns a null pointer.this facility can be used to
test whether a file has been opened or not.
Ex: if(fp == NULL)
printf(“File could not be opened”);

• Ex:
#include<stdio.h>
void main()
{
char *filename;
FILE *fp1,*fp2;
int i , number;
fp1 = fopen(“TEST”,”w”);
for(i=0;i<=100;i+=10)
putw(i , fp1);
fclose(fp1);
printf(“Input file name n”);
Open_file :
scanf(“%s”,filename);
if((fp2 = fopen(filename,”r”)) == NULL)
{
printf(“can not open the file Try againn ”);
goto open_file;
}

else
for(i=1;i<=20;i++)
{
number = getw(fp2);
if(feof(fp2))
{
printf(“n Range out of data.n”);
break;
}
else
printf(“ %d n”, number);
}
fclose(fp2);
}

• Random access to a files :
using ftell , rewind and fseek functions we can randomly
access the files.
ftell function :-
using ftell function we can know the current position of
the file.
syntax : n = ftell(fp)
where fp = filepointer , n would give the relative offset
(in bytes) of the current position. This means that n bytes
have already been read (or written)
rewind function :- using this function we can resets the
position of the pointer to the start of the file.
syntax : rewind(fp);
n=ftell(fp);
where fp = file pointer. When second
statements are executed it would assign 0 to n because file
position has been set to the start of the file by rewind.
this functions helps us in reading a file more than
once,without having close and open the file
Note : whenever file is open for reading or writing , rewind is
done automatically

• fseek function : fseek function is used to move the file
position to a desired location.
syntax : fseek(fileptr,offset,position);
where fileptr is a pointer to the file concerned , offset is a
number or variable of type of long.
the offset specifies the number of positions to be moved
from the location specified by position.
The position take one of the following three form :
value meanings
0 Beginning of the file
1 current position
2 End of the file

• The offset may be positive, meaning move forwards or
negative meanings move backwards.
the following examples illustrate the operation of the fseek
function :
Statement Meaning
fseek(fp,0L,0) Go to the Beginning
fseek(fp,0L,1) stay at current position
fseek(fp,0L,0) Go to the end of the file.
fseek(fp,m,0) Move to (m+1)th byte in the file
fseek(fp,m,1) Go forward by m bytes
fseek(fp,-m,1) Go backward m bytes from
current position.
fseek(fp,-m,2) Go backward by m bytes from the
end.
When operation is successful,fseek returns a 0 otherwise
returns -1.

• Example:
#include<stdio.h>
void main()
{
FILE *fp;
long n;
char c;
fp = fopen(“RANDOM”,”w”);
while((c=getchar()) != EOF)
putc(c,fp);
printf(“No.of character entered=%ld”,ftell(fp));
fclose(fp);
fp = fopen(“RANDOM”,”r”)
n = 0L;

while(feof(fp)==0)
{
fseek(fp,n,0) /* position to (n+1)th character */
printf(“Position of %c is %ldn”,getc(fp),ftell(fp));
n=n+5L;
}
}
Output :
ABCDEFGHIJKLMNOPQRSTUVWXYZ^Z
No.of character entered = 26
Position of A is 0
Position of F is 5
Position of K is 10
Position of P is 15
Position of U is 20
Position of Z is 25
Position of is 30
When printing current position 30 the loop is terminating.

• Command line arguments :-
command line arguments is a parameter supplied to a
program when the program is invoked.
Execution of the c program is starting from the main
function. main function also contains arguments like
another normal function.
main function can take two arguments : argc and argv
variable argc counts the number of arguments on the
command line.
argv is an argument vector and represents an array of
character pointers that point to the command line
arguments. The size of this array will be equal to the value
of argc.

• Ex: if we want to execute a program to copy the contents of
a file named X_FILE to another one named Y_FILE,then we
may use command line like,
c:> PROGRAM X_FILE Y_FILE
Where PROGRAM is a filename where program execution
code is stored.
so, argc ----> 3 arguments
argv[0] ------> program
argv[1] ------> X_FILE
argv[0] ------>Y_FILE
to access the command line arguments, we must declare
main function and its parameters.
main(int argc, char *arg[v])
{
…………….
……………
}

Example:
#include<stdio.h>
#include<conio.h>
void main(int argc , char *argv[])
{
FILE *fp;
int i;
char word[15];
clrscr();
fp=fopen(argv[1],"w");
printf("No.of arguments =%dn",argc);
for(i=2;i<argc;i++)
fprintf(fp,"%s",argv[i]); /* write contents to file */
fclose(fp);

/* writing contents of the file to the screen */
printf("contents of the file to the screenn");
fp = fopen(argv[1],"r");
for(i=2;i<argc;i++)
{
fscanf(fp,"%s",word);
printf("%s",word);
}
fclose(fp);
printf("nn");
getch();
}

Chapter 13
Dynamic Memory Allocation
Need for DMA ?
Most often we face situations in programming where the
data is dynamic in nature. That is, the number of data items
keep changing during execution of the program.
Ex :A program for processing the list of customers of
corporation.the list grows when the names are added and
shrinks when names are deleted.When list grows we need
to allocate more memory space to the list to accommodate
additional data items.such situations can be handled more
easily and effectively by using what is known as dynamic
data structures.

• What is DMA ?
The process of allocating memory at runtime is known as
Dynamic Memory Allocation.
There are four memory allocation function :
malloc : It allocates requested size of bytes and returns
a pointer to the first byte of the allocated space.
calloc : Allocates space for an array of elements,
initializes them to zero and then returns a
pointer to the memory.
free : Frees previously allocated space.
realloc : Modifies the size of previously allocated space.

• Memory allocation process
Local variables
Free memory
Global variables
C program
instructions
Stack
Heap
Permanent storage
Area.
The memory space that is located between two region is
available for dynamic memory allocation during execution of
the program.this free memory region is called heap.the
size of the heap keep changing during the execution of the
program.therefore it is possible to memory overflow
problem during dynamic allocation process.in such situation
memory allocation function returns a NULL pointer.

• malloc :
Using this function we can allocate a block of memory. The malloc
function reserve a block of memory of specified size and returns a
pointer of type void. This means that we can assign it any type of
the pointer.
syntax : ptr = (cast-type *) malloc (byte-size)
ptr : is a pointer of the type cast-type.
malloc : returns a pointer to an area of memory with size
byte-size.
Ex: x = (int *) malloc (100 * sizeof(int));
100 * sizeof(int) memory space is allocated and x points to the
first byte of the memory allocated spaces.

cptr = (char *) malloc (10)
it allocates 10 bytes of space for the pointer cptr of type
char.
cptr
Remember ,the allocation fail if the space in the heap is not
sufficient to satisfy request.If it fails,it returns a NULL.we
should there for check whether the allocation is successful
before using the memory pointer.
Address of
first byte
10 bytes of space

• Ex:
#include<stdio.h>
#include<stdlib.h>
define NULL 0
main()
{
int *p, *table;
int size;
printf(“n what is the size of the tbale ?”);
scanf(“%d”,size);
if(table = (int *)malloc(size * sizeof(int))) == NULL)
{
printf(“No space is available n”);
exit(1);
}
printf(“Reading Table valuesn”);
for(p=table;p<table+size;p++)
scanf(“%d”,p);
for(p=table;p<table+size;p++)
printf(“%d”,*p);
}

• malloc :
using this function we can allocate multiple block of storage
and each of the same size and then sets all bytes to zero.
syntax : ptr = (cast-type *) calloc (n,elem-size)
the above statements allocates contiguous space for n
blocks , each of size elem-size bytes.all bytes are initialised
to zero and a pointer returns to the first bytes of the
allocated region.if there is not space then it returns NULL
pointer
It is generally used for storing derived data – type such as
arrays and structures.

• Ex:
struct student
{
char name[25];
float age;
long int id_num;
};
typedef struct student record;
record *st_ptr;
int class_size=30;
st_ptr=(record *) calloc (class_size , sizeof(record));
…………..
……………
if(st_ptr == NULL)
{
printf(“Available memory is not sufficientn”);
exit(1);
}

• free :
using free function we can releases the block of memory
which is created by malloc and calloc function.
syntax : free(ptr)
Where ptr is a pointer to a memoryblock which is created
by malloc and calloc.
• realloc :
using this function we can change the already allocated
memory – size.
and this process is called the reallocation process.
Ex: ptr = malloc(size) /* allocates the space */
ptr = realloc(ptr,newsize) /* reallocates the space */

• Ex: program for use of realloc and free function :
#include<stdio.h>
#include<stdlib.h>
#define NULL 0
void main()
{
char *buffer;
/* allocating memory */
if(buffer = (char *)malloc(10))==NULL)
{
printf(“malloc failedn”);
exit(1);
}
strcpy(buffer,”HYDERABAD”);
printf(“Buffer contains : %sn”,buffer);

/* Reallocation */
if(buffer = (char *) realloc(buffer,15))==NULL)
{
printf(“Reallocation failed n”);
exit(1);
}
printf(“Buffer size is modified.n”);
strcpy(“buffer”,”SECUNDERABAD”);
printf(“buffer now contains : %sn”,buffer);
/* Freeing memory */
free(buffer);
}

Chapter 14: The Preprocessor
What is preprocessor?
The preprocessor is a program that processes the source code
Before it passes through the compiler.
Preprocessor Directives:
Following are the preprocessor directives:
#define Define a macro substitution
#undef Undefined a macro
#include Specifies the file to be included
#ifdef Test for macro definition
#endif Specifies the end of if
#ifndef Tests whether a macro is not defined
#if Tests a compile time condition
#else Specifies alternative when #if test fails.

Preprocessor directive follow special syntax rule.
• They all begin with the symbol #.
• They don’t require the semicolon at the end.
• Preprocessor directives are placed before the main
line
These directives can be divided into three categories:
• Macro Substitution directives
• File inclusion directives
• Compile control directives
Macro Substitution:
Macro substitution is a process where an identifier in a
Program is replaced by a predefined string composed
of one or more tokens.

There are different form of macro substitution.
• Simple macro substitution.
• Argument macro substitution.
• Nested Macro substitution.
Simple macro substitution.
The preprocessor accomplish this task under the direction of
the #define statement
This statement usually known as a macro definition
or simply macro.
Syntax: #define identifier string

Ex:
#define count 100
#define False 0
#define PI 3.14
#define AREA 5*12.46
#define SIZE sizeof(int)*4
#define D 45-22
#define A 78+32
#define TEST if(x>y)
#define AND
#define PRINT printf(“Very Good.n”);
TEST AND PRINT
The preprocessor translate above line to.
If(x>y)
printf(“Very Good.n”);

#define EQUALS ==
#define AND &&
#define BLANK LINE printf(“n”);
#define INCREMENT ++
Macro with Arguments:
When you passed arguments to the macro is called the macro
with arguments.
Syntax: #define identifier(f1,f2……fn) string
Ex:
#define CUBE(x) (x*x*x)
If the following statements occur in the program.
Volume = CUBE(side);

Then the preprocessor expand this statement to :
Volume = (side * side * side);
If consider the following statement:
Volume = CUBE(a+b)
This would be expand to :
Volume = (a+b * a+b * a+b)
Ex:
#define MAX(a,b) (((a) > (b)) ? (a) : (b) )

Nesting of the macros:
We can also use one macro inside another macro is called the
Nesting of the macro.
Ex:
#define M 5
#define N M+1
#define SQU(x) ((x)*(x))
#define CUBE(x) (SQU(x) *(x))
#define SIXTH(x) (CUBE(x) * CUBE(x))

The preprocessor expands each #define macro, until no more
macro appear in the text.
For example, the last definition is first expanded into
((SQU(x) * (x)) * (SQU(x) * (x)))
Since SQU(x) is still a macro, it is further expanded into line.
((((x) * (x))*(x)) * (((x) * (x)) * (x)))
Which is finally evaluated as x6
Undefining a Macro:
A define macro can be undefined, using the statement.
#undef identifier
This is useful when we want to restrict the definition only to a
particular part of the program.

FILE INCLUSION:
An external file containing functions or macro definition can
be included as a part of a program so that we need not rewrite
those functions or macro definitions. This is achieved by the
preprocessor directives.
#include “filename”
Where filename is the name of the file containing the required
definition of functions. At this point, the preprocessor inserts
the entire contents of filename into the source code of the
program. When the filename is included with the double
quotation marks, the search for the file is made first in the
current directory and then in standard directories.

#include <filename>
Without double quotation marks. In this case, the file is
searched only in the standard directories.
Nesting of included file is allowed. That is an included file
include another file.
Ex:
#include<stdio.h>
#include “SYNTAX.C”
#include “STAT.C”
#include “TEST.C”

COMPILER CONTROL DIRECTIVES:
While developing large programs, you may face one or more
of the following situation.
Situatuion1 :
You have included a file containing some macro definitions. It
is not known whether a particular macro(say, TEST) has been
defined in that header file.
This situation refers to the conditional definition of a macro.
We want to ensure that the macro test is always defined,
irrespective it has been defined in the header file or not.

This can be achieved as follow.
#include “DEFINE.H”
#ifndef TEST
#define TEST 1
#endif
In the above case searched for the definition of TEST in the
header file and if not defined, then all the lines between the
#ifndef and the corresponding #endif directives are ‘active’
in the program.
That is the processor
#define TEST is processed.
In case, the TEST has been defined in the header file, the
#ifndef condition become false , therefore the directive
#define TEST is ignored.

#ifdef TEST
#undef TEST
#endif
In the above case, even if TEST is defined in the header file, its
definition is removed.
Situation 2:
Suppose a customer has two different types of computers and
you are required to write a program that will run on both the
system. You want to use the same program, although certain
lines of code must be different for each system.
The main concern is to make the program portable.

This can be achieved as following:
main()
{
……….
#ifdef IBM_PC
{
………. // Code for IBM_PC
}
#else
{
………. // Code for HP machine
}
#endif
……….
}
If we want the program to run of IBM PC. We include the
directive
#define IBM_PC

Situation 3.
This is similar to the above situation
#ifdef ABC
group A lines
#else
group B lines
#endif
Group A lines are included if the customer ABC is defined.
Otherwise Group B lines are included.

Situation 4:
This is useful for debugging a particular macro.
Ex: #ifdef Test
{
printf(“Array Element”);
for(i=0;i<m;i++)
printf(“x[%d] = %dn”, I, x[i]);
}
#endif
………….
#ifdef TEST
printf(…….);
#endif
Directives #ifdef and #endif are included only if the macro
TEST is defined. Once Every thing is OK undefine the TEST.
This makes the #ifdef TEST condition become false and
therefore all the debugging statements are left out.

The C preprocessor also support a more general form of test
condition - #if directive. This takes the following form:
#if constant expression
{
statement 1
statement 2
………
………
}
#endif
If the result of the constant expression is true then all the
statements are executed otherwise they are skipped.
As a constant expression may be any logical expression.

All C ppt.ppt

More Related Content

Similar to All C ppt.ppt

More from JeelBhanderi4

Recently uploaded

All C ppt.ppt
