1. ALIAS ATTRIBUTE –
HOW TO CONFIGURE
Boris Blajevici
Senior Technical Support Engineer
November 20th 2015

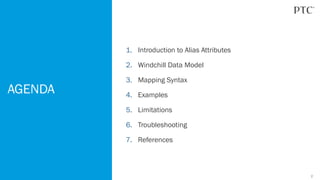

2. 2
1. Introduction to Alias Attributes
2. Windchill Data Model
3. Mapping Syntax
4. Examples
5. Limitations
6. Troubleshooting
7. References
AGENDA

3. 3
INTRODUCTION
TO ALIAS
ATTRIBUTES

4. 4
• Purpose:
– Alias Attributes map to an attribute on a related object
– Mapping allows to display information of the related object on Information page or tables
– Mapping property using operators and the internal names
– Target object types need to be accessible either by reference or link
• Examples:
– Display Part Number on a CAD Document
– Display Master attributes on a versioned type
– Display Document Attributes on described Part
INTRODUCTION TO ALIAS ATTRIBUTES

5. 5
INTRODUCTION TO ALIAS ATTRIBUTES
• Alias Attributes can be defined through the Type and
Attribute Manager
– Name
– Data Type
– Properties  Mapping

6. 6
WINDCHILL
DATA MODEL

7. 7
OBJECT RELATIONSHIPS
Type L
Type C
Type B
Type A
Type D
IBA: Approver
MyType
Alias Attribute:
Documentation_Approver

8. 8
• Two ways of creating relations in Windchill Data Model:
– References
– Link objects
WINDCHILL DATA MODEL

9. 9
• References:
– Represented in the database as “Foreign Key” relations
– Can be identified by two columns in the database table:
• Column CLASSNAMEKEYxxx contains information on the database table this reference points to
• Followed by column Idxxx that contains the value of the referenced object’s IDA2A2
– Examples: Master references
REFERENCES
Some table… Table for CLASS_A
This tells which
table to look at.

10. 10
• Windchill uses link objects to explicitly link objects together
• Links are managed by a separate class
• Contains two references, one to parent and one to child (in general this is):
– Parent = Role A: CLASSNAMEKEYROLEAOBJECTREF & IDA3A5
– Child = Role B: CLASSNAMEKEYROLEBOBJECTREF & IDA3B5
LINK OBJECTS

11. 11
• Example:
– Part Usage Link for BOM
• usedBy = CLASSNAMEKEYROLEAOBJECTREF & IDA3A5
• uses= CLASSNAMEKEYROLEBOBJECTREF & IDA3B5
LINK OBJECTS
wt.part.WTPartUsageLink
WTPart WTPartMaster
usedBy uses Simplified view of WTPARTDESCRIBELINK table
WTPART table
WTDOCUMENT table
WTDOCUMENTMASTER table
WTPARTMASTER

12. 12
• Use Logical Attribute Report to identify Alias Attribute mappings provided per default
• The Logical Attributes Report is available from Customization ▶ Tools
– Site preference Client Customization=Yes
– Customization > Tools > Logical Attribute Report
LOGICAL ATTRIBUTE REPORT

13. 13
KDB ARTICLES
• Search Knowledge DB for articles containing relationship information
CS63595 - How to understand
Change Management objects
and their relations in Windchill
PDMLink

14. 14
RELATIONSHIP EXPLORER
Use the Relationship Explorer

15. 15
VISUAL HELP TO IDENTIFY THE DATA MODEL
• Leverage graphical Join Models that will be available in Query Builder of Windchill 11.0
• Easy and simple way identify available References and Links

16. 16
MAPPING SYNTAX

17. 17
• General Guideline:
– Starting point of the mapping is object where the Alias Attribute is defined
– This object is not included in the Mapping property
– Value of attribute at the end of mapping displays value of the alias attribute in the UI
• Operators:
– There are four operators available for navigation: ^, @, ~ and =
MAPPING SYNTAX

18. 18
• Usage:
– Takes a reference attribute and gets to the object that it refers to
– Used to navigate a direct reference to another object
– To the left is the name of the reference attribute, to the right the type the attribute refers to
– For example:
“ ^ “ OPERATOR

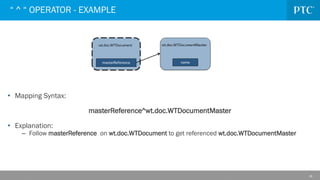

19. 19
• Mapping Syntax:
masterReference^wt.doc.WTDocumentMaster
• Explanation:
– Follow masterReference on wt.doc.WTDocument to get referenced wt.doc.WTDocumentMaster
“ ^ “ OPERATOR - EXAMPLE

20. 20
• Usage:
– Operator searches for an object that matches a reference parameter
– Similar to the dereference operator, but travels reference in other direction
– Commonly used when navigating link objects
– For example:
“ @ “ OPERATOR

21. 21
• Mapping Syntax:
usedBy@wt.doc.WTDocumentUsageLink
• Explanation:
– Find and return that wt.doc.WTDocumentUsageLink that has a reference called usedBy that links to
the current object (wt.doc.WTDocument)
“ @ “ OPERATOR - EXAMPLE

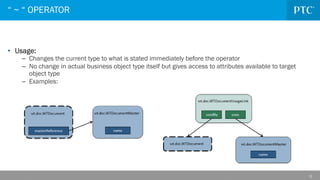

22. 22
• Usage:
– Changes the current type to what is stated immediately before the operator
– No change in actual business object type itself but gives access to attributes available to target
object type
– Examples:
“ ~ “ OPERATOR

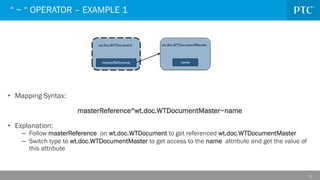

23. 23
• Mapping Syntax:
masterReference^wt.doc.WTDocumentMaster~name
• Explanation:
– Follow masterReference on wt.doc.WTDocument to get referenced wt.doc.WTDocumentMaster
– Switch type to wt.doc.WTDocumentMaster to get access to the name attribute and get the value of
this attribute
“ ~ “ OPERATOR – EXAMPLE 1

24. 24
• Mapping Syntax:
usedBy@wt.doc.WTDocumentUsageLink~uses^wt.doc.WTDocumentMaster~name
• Explanation:
– Find and return that wt.doc.WTDocumentUsageLink that has a reference called usedBy that links to
the current object (wt.doc.WTDocument)
– Switch type to wt.doc.WTDocumentUsageLink to get access to the uses reference attribute
– Follow the reference to the wt.doc.WTDocumentMaster and switch type
– Return the name attribute value
“ ~ “ OPERATOR – EXAMPLE 2

25. 25
• Usage:
– Navigates to object with an attribute value that equals to the attribute value on current type
– No direct reference or link needs to exist
– Is a trident operator: <attribute1>=<attribute2>@<type>
– Only supported with modeled attributes of type Boolean, Integer, String and Date on left and right
side of the equal symbol
– Examples:
Display number of End Item that is stored in a SubFolder object with same name
“ = “ OPERATOR

26. 26
Display number of End Item that is stored in a SubFolder object with same name
• Mapping Syntax:
name=name@wt.part.WTPart~number
• Explanation:
– Find and return the wt.part.WTPart with same name as wt.folder.SubFolder object
(Note: the WTPart does not necessarily be located in the SubFolder)
– Switch type and return the number attribute
“ = “ OPERATOR - EXAMPLE

27. 27
MAPPING SYNTAX EXAMPLE 1
Type L
(link)
~ role_a_ref
~ role_b_ref
Type C
Type B
~ b_to_c_ref
Type A Type D
~ d_to_c_ref
~ Approver
MyType
~ type_a_ref
~Alias_D Type_D.Approver
type_a_ref ^ Type_A Type_L role_b_ref Type_B
@
~ ^
role_a_ref ~ ~ b_to_c_ref Type_C
^ Type_D d_attribute
@ ~
~ d_to_c_ref
^
^
^
@
@
Example: Define new alias attribute „Alias_D“ on MyType that shows the value of attribute „Approver“ from object of „Type D“

28. 28
ONE-TO-MANY RELATIONSHIPS
Mapping: describes@wt.part.WTPartDescribeLink~describedBy^wt.doc.WTDocument~Approver

29. 29
MAPPING SYNTAX EXAMPLE 2
Mapping: name=name@wt.doc.WTDocument~Approver
Example: Define new alias attribute „Documentation Approver“ on WTPart that shows the value of attribute „Approver“ from
WTDocument with same Name
Alias Attribute

30. 30
LIMITATIONS

31. 31
• Alias Attributes not supported in Advanced Search
– CS129256 - How to make alias attributes available for Advanced Search In Windchill PDMLink 10.1
– CS81826 - Alias attributes cannot be used as search criteria in Advanced Search in Windchill PDMLink 10
– Idea: 6402 - WTPart Alias-Attributes in Advanced Search (Criteria)
• Alias Attributes are not supported in Filters
– CS150341 - Is it possible to define a filter for Alias attribute mapping in Windchill PDMLink 10
• Alias Attributes not available in Table Views prior Windchill 10.1 M040
– CS40073 - Alias Attributes and Calculated Attributes are not available for Table View in Windchill PDMLink 10.0 M020
• Alias Attributes not supported in Desktop Integration
– CS70889 -Alias and Calculated attributes are not visible from Office Applications using Desktop Integration in
Windchill
• Alias Attributes are not propagated to CAD Applications
– CS202614 - Does it support to propagate Alias type Attributes value stored on EPMDocument object from Windchill to
CAD Application ?
– Idea: 4087 - Tool Support to create Alias Attributes
– Idea: 4442 - Alias Attribute support for workspace and CAD
• Alias Attributes can’t map to NPA attributes
LIMITATIONS

32. 32
TROUBLESHOOTING

33. 33
• Alias Attribute mapping only used once on a type or its subtypes
– Additional mappings will result in error message
– Logical Attribute Report can be used to check configured mappings (including OOTB mappings)
– Logical Attribute Report available on http://hostname/Windchill/meta/LogicalAttributeReport.jsp
• Alias Attribute results in comma separated list of values
– Attribute mapping does not return unique but multiple results
– Consider if equal operator in mapping syntax can narrow down result set
• Alias Attribute does not show any values even target attribute has value
– Possible issue in the mapping syntax
– Alias Attribute mappings are very often complicated
– Breaking down the mapping and adding one operator after the other helps troubleshooting
• Creating Alias Attribute mapping rises error messages that syntax can’t be resolved or is
incorrect
– Breakdown the mapping in multiple pieces and adding one operator after the other to identify
incorrect mapping
TROUBLESHOOTING

34. 34
REFERENCES

35. 35
• CS131355 - Understanding mapping syntax and operators for alias attributes in Windchill

36. 36
• CS131357 - Overview of link objects in Windchill

37. 37
• CS106319 - Mapping details for creating Alias Attributes to display object Numbers of various
types in Windchill PDMLink

38. 38
• CS41966 - How to display soft attributes added to master in Windchill PDMLink 10
• CS40087 - How to show the associated WTPart revision on the Cad Document details page
using the Alias attribute in Windchill PDMLink 10

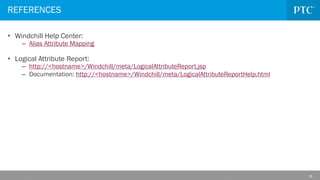

39. 39
• Windchill Help Center:
– Alias Attribute Mapping
• Logical Attribute Report:
– http://<hostname>/Windchill/meta/LogicalAttributeReport.jsp
– Documentation: http://<hostname>/Windchill/meta/LogicalAttributeReportHelp.html
REFERENCES

40. 40
• Q&A
