The document discusses the need for LTE in homes and enterprises to improve coverage, quality of service, and facilitate the transition to 4G. It introduces Alcatel-Lucent's 9961 multi-standard home cell and 9962 multi-standard enterprise cell series, which support both 3G and 4G using a single system-on-chip. It also describes new features like LTE-U/LAA, Wi-Fi boost, and their combination to enhance performance by blending Wi-Fi and cellular connectivity.

1. 1
COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

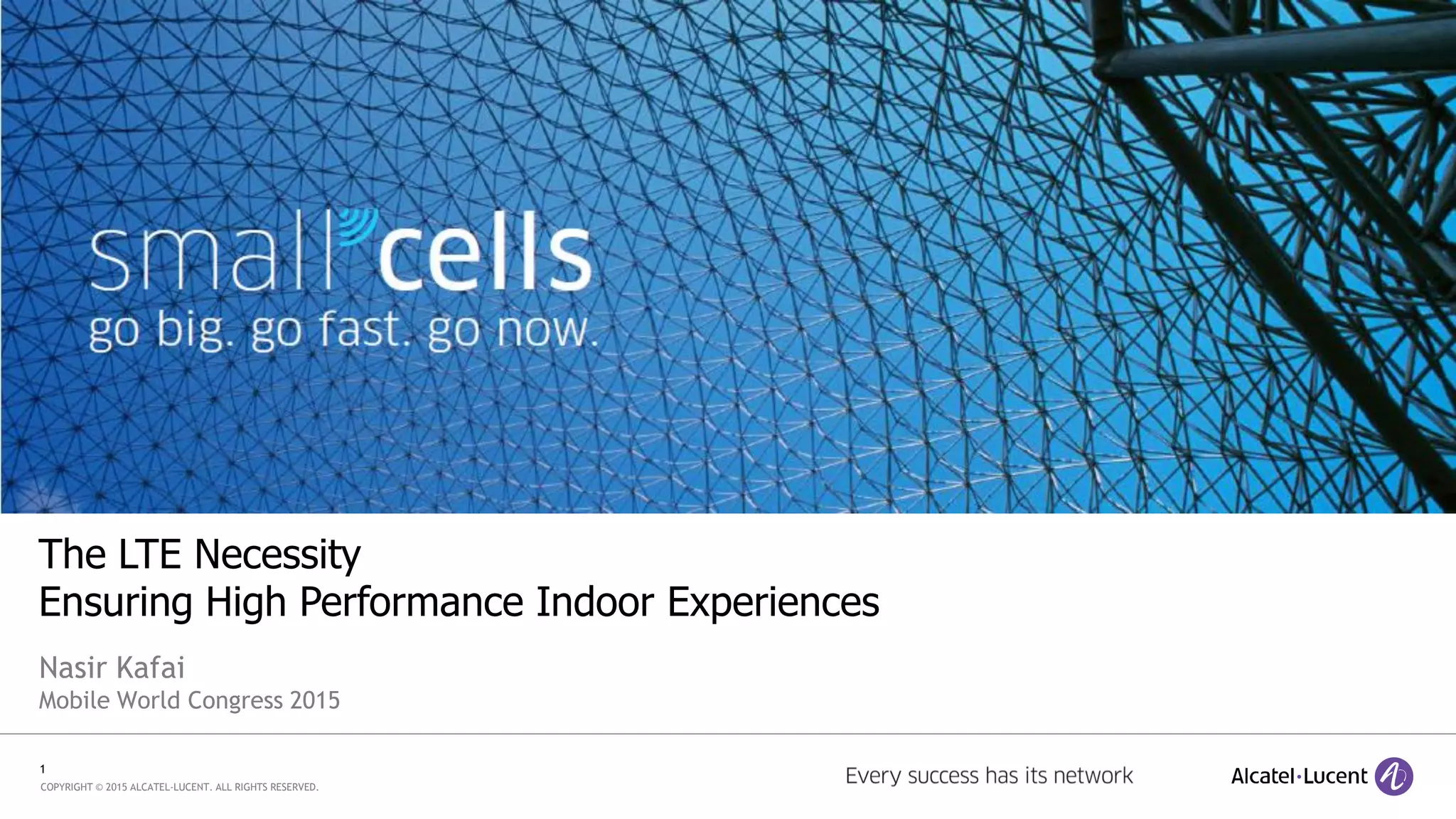

The LTE Necessity
Ensuring High Performance Indoor Experiences
Nasir Kafai
Mobile World Congress 2015

2. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
2
Agenda
1. The need for LTE in the home & enterprise
2. Home and enterprise small cell innovation
3. Small cell feature enablement – intro. LTE-U/LAA and Wi-Fi boost
4. Small cells references

3. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
3
• Improve coverage
• Ensure quality isn’t dictated by Wi-Fi alone
• Smooth migration of customer base to 4G – support
WCDMA and LTE customers with the same hardware
• Acquire new customers or break in to wireless (CLECs)
• Facilitate move to VoLTE – offer superior voice and
enable network consolidation (opportunity to refarm
2G/3G spectrum)
• Offer new features/services – “blend” Wi-Fi and cellular
for a wireline experience, wirelessly
The move to 4G
The importance of LTE in the home and enterprise

4. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
4
Introducing the 9961 multi-standard home cell
Simultaneous W-CDMA and LTE or LTE only
• Announced Sept. 2014 at CTIA (Vegas), Launched MWC15
• Qualcomm SoC – 3G/4G software definable
• 16 users (8 simultaneous W-CDMA voice and data + 8
simultaneous LTE voice and data)
• Output power:
• 1x100mW W-CDMA (5 MHz = 21 Mbps DL, 5.7 Mbps UL)
• 2x100mW LTE (2x2 MIMO) (20 MHz = 150 Mbps DL, 75
Mbps UL)
• Power consumption: <22W
• Hardware supports up to 20 MHz bandwidth
• Omni-directional antenna
• <1.5L

5. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
5
• Deliver exceptional wireless home experiences
• Extend wireless coverage and services throughout the home
• Support 3G & 4G users simultaneously or offer LTE only
• Superior voice and video quality (IMS enabled VoLTE).
• Offload macro network by reusing licensed LTE and W-CDMA
spectrum in the home
• Streamline 4G migration
• Improve Wireless performance by blending LTE and Wi-Fi to
ensure strongest possible wireless connections
• Compact design using single SOC solution
• OPEX saving with plug and play capabilities
Multi-Standard Home Cell
Value proposition / benefits

6. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
6
In-building cellular addressed by three architectures
There is no “one size fits all”

7. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
7
• W-CDMA, 2x2 MIMO LTE, Wi-Fi in a single box (LTE-only mode)
• Software definable 3G/4G technology and remote RF bands configuration
• VoLTE with CSFB and SR-VCC, CMAS, MFBI, Prioritized E911
• CA and eMBMS hardware ready
• SON, Secure Plug-n-Play, TR-069 management.
• Common small cell and security gateway leverage 3G OA&M Systems
• Up to 32 W-CDMA plus up to 64 LTE simultaneous users (total = 96)
• Up to 128 simultaneous users in LTE-Only mode
• LTE 2 x 250mW (24 dBm) typical Tx power
• W-CDMA 1 x 250mW (24 dBm) typical Tx power
• Wi-Fi (2.4 & 5GHz concurrent, 2x2 MIMO, 100 mW Tx per path)
• Volume: range from 1.5L – 7+L depending on bands supported
• Peak throughputs 2x20 MHz LTE CA (HW capability): 300/150 Mbps DL/UL
• Power over Ethernet (4pPOE-compliant with Power over HDBaseT) with Alcatel Lucent OmniSwtich
6450 P10S or Mid span POE Injector
• Easily integrates with an end-to-end network including gateway, packet core, and common OA&M
Introducing the 9962 Multi-standard Enterprise Cell series (v1, v2, v3)
Key features
V1
V2 Large Enterprise
V2 SOHO
V3

8. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
8
• Deliver exceptional In-building wireless voice and data
experience
• Supports Multi-Standard W-CDMA, LTE and Wi-Fi in a single box
• Circuit switched voice & IMS-enabled VoLTE.
• Can be self installed for Small/Medium Enterprises
• Single, shared site, backhaul, power and OA&M
• Supports MOCN ( Multi-Operator Core Network)
• Software Defined 3G/4G Technology and RF Band
- Migration flexibility from 3G to 4G, or support a mix of technologies
- Remote RF Configuration
- Allows operators to reclaim spectrum for use in LTE networks
• Common small cell and security gateway leverage 3G/4G
OA&M systems
- SON, Secure Plug n Play, TR 069 management.
Multi-standard Enterprise Cell
Value proposition / benefits

9. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
9
Alcatel-Lucent’s Wireless Unified Networks
Delivering new feature capability
Blending the BEST of Wi-Fi with Cellular (3G & 4G) to provide an unmatched experience
Cellular
Boost
Boost cellular by
adding unlicensed
spectrum capacity
Wi-Fi
Boost
Boost Wi-Fi by
adding in cellular
(3G & 4G)

10. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
10
• LTE downlink transmission in unlicensed bands
• 3GPP R13 standards to support Wi-Fi co-existence and regional regulations
What if we brought the quality of LTE to the unlicensed?
Licensed Assisted Access (LAA) / LTE-U
Lic. UL
Lic. DL
LAA / LTE-U
LTE-U 5GHz
LAA / LTE-U
DL
LAA/LTE-U Value Proposition:
• Augment limited licensed spectrum
• Faster download rates (LTE & LTE-U aggregation)
• Better cell edge performance
• H-ARQ packet recovery advantage (~3dB) over Wi-Fi
Alcatel-lucent: Dynamic duty cycle demo on booth, trialing
LTE-U in 2015, initial product offering early 2016

11. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
11
What if we blended Wi-Fi with cellular?
Intro. Wi-Fi boost Wi-Fi boost
Wi-Fi Cellular(3G or 4G)
DL UL
• 20% - 30% increase in Wi-Fi DL - Single User
• 70% increase in Wi-Fi DL – Multi User
• 10x or more (55x in lab tests) increase in UL (Far user)
• Wi-Fi range increased by 2x
• More consistent Wi-Fi performance (LTE DL always
available on hot stand-by to respond to Wi-Fi
congestion)
• Utilizes existing UE’s
• Applicable to 3G and 4G
• Works with existing Wi-Fi APs
• Adding value beyond basic coverage
• Upgrade from a user experience PoV

12. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
12
Benefits of Wi-Fi boost with aggregation
Wi-Fi boost w/ aggregation
Wi-Fi
DL UL
DL
Cellular(4G)
• Same gains as Wi-Fi Boost
• > 10x (55x in lab test) increase in UL (Far user)
• Wi-Fi range increased by 2x
• More consistent Wi-Fi performance
• Aggregation: 2x or more (~250% gain in lab test) DL
gain over LTE (indoor)
• Software upgrade to LTE femtos
• Re-use and extension of LTE mobility mechanisms
• Technology re-use: extends LTE dual connectivity
method to LTE + Wi-Fi

13. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
13
Enterprise use case with 100 Wi-Fi users
Significant improvement as a result of deploying Wi-Fi boost
WiFi Rate Map
20 40 60 80 100 120 140 160
10
20
30
40
50
60
70
80
90
100
110
Mbps/user0
2
4
6
8
10
12
Boost Rate Map
20 40 60 80 100 120 140 160
10
20
30
40
50
60
70
80
90
100
110
Mbps/user
0
2
4
6
8
10
12
Wi-Fi TCP DL Throughput Wi-Fi Boost TCP DL Throughput
Wi-Fi APs LTE eNBs

14. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
14
COMBINING Cellular boost (i.e., LTE-U/LAA) and
Wi-Fi boost with aggregation
Lic. UL
Lic. DL
LTE-U
DL
Value Proposition of Adding Wi-Fi boost (w/ agg.) and LTE-U:
• Increased capacity
• Greater range
• Higher peak rates (1.25 Gbps)
• More constant end-user experience regardless of proximity to the AP
Wi-Fi 5GHz,
Channel 149,
DL
Wi-Fi
LTE-U 5GHz,
Channel 136,
• Wireless Unified Networks enables utilization of BOTH Cellular (e.g., LTE-U) and
Wi-Fi technologies simultaneously for an optimal end-user experience
Wi-Fi +
Cellular
Boost
Wi-Fi boost w/ aggregation + LTE-U
Wi-Fi boost (w/ aggregation) complements LTE-U. Wi-Fi
boost (w/ aggregation) enables UL traffic across LTE
and the aggregation of 3 DL paths

15. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
15
65
111
45
Small cells references
76 Customer
Deployment
Agreements
and Growing
133 Commercial
Contracts across
all Segments
Deployed in 53
Countries
Jan.
2014
Jan.
2015

16. COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
16
Small cell references
....30 (24 – Jan. 2014) customer contracts for
metro cell deployments in 20 countries
....56 (47 – Jan. 2014) customer contracts for
enterprise cell deployments in 42
countries
....47 (40 – Jan. 2014) customer contracts for
residential cell deployments in 36
countries
