Architectural design

1. CASE
STUDY

2. Table Of Content
01
OFFLINE CASE STUDY :
AUTOCLUSTER EXHIBITION
CENTRE
02
ONLINE CASE STUDY : HYDERABAD
INTERNATIONAL CONVENTION
CENTRE
03 BASEMENT PARKING
04 BANQUET HALL AND
FOOD COURT
05 CONCLUSION

3. HYDERABAD INTERNATIONAL
CONVENTION CENTRE
• LOCATION : HITEC CITY CYBERABAD, HYDERABAD
• TOTAL SITE AREA : 128,901 SQ.M.
• TOTAL BUILTUP : 52,640 SQ.M.
• ARCHITECT : UK BASED RMJM ARCHITECTS CHANDAVARKAR
AND THACKER INDIA PVT.LTD.
• OWNER : EMAAR PROPERTIES PJSC DUBAI.
• PURPOSE : A MULTIPURPOSE SPACE THAT PROVIDES
CONVENTIONAL FACILITIES.
• FACILITIES : EXHIBTION HALL, 21 MEETING ROOMS,
6 INTERPRETATION BOOTHS, 4 SPEAKER PREPERATION ROOMS,
VIP LOUNGE, THE CLUB, AV OPERATION ROOOMS, CLOAK
ROOMS, PANTRIES, GIFT SHOPS ALONG WITH OTHER SERVICE
SPACES.
• FUNCTION : TRADE SHOWS, EXPO AND EXHIBITIONS,
CONFERENCES AND MEETINGS AND GATHERINGS ETC.

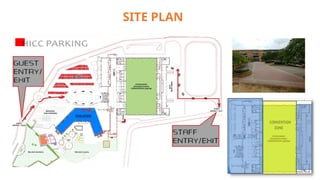

4. SITE PLAN

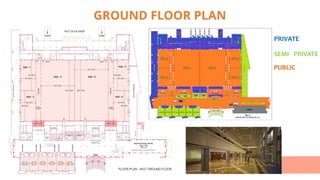

5. GROUND FLOOR PLAN

6. FIRST FLOOR PLAN

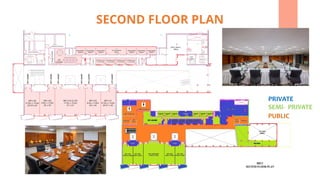

7. SECOND FLOOR PLAN

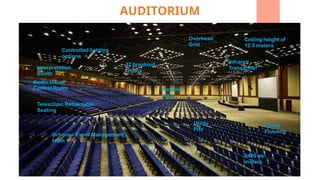

8. AUDITORIUM

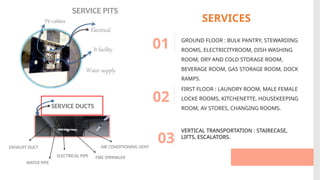

9. 01 GROUND FLOOR : BULK PANTRY, STEWARDING
ROOMS, ELECTRICITYROOM, DISH WASHING
ROOM, DRY AND COLD STORAGE ROOM,
BEVERAGE ROOM, GAS STORAGE ROOM, DOCK
RAMPS.
02
FIRST FLOOR : LAUNDRY ROOM, MALE FEMALE
LOCKE ROOMS, KITCHENETTE, HOUSEKEEPING
ROOM, AV STORES, CHANGING ROOMS.
03
VERTICAL TRANSPORTATION : STAIRECASE,
LIFTS, ESCALATORS.
SERVICES
EXHAUST DUCT
WATER PIPE
ELECTRICAL PIPE FIRE SPRINKLER
AIR CONDITIONING VENT
SERVICE DUCTS
TV cables

10. MATERIALS AND FLOORING
Carpet tiles
• RCC CONSTRUCTION
• RINGING BEAM, SUSPENTION
CAPACITY OF 1 TON
• POLYVINYL CLORIDE FABRICS AND
GALVANIZED STEEL FRAMING
(WEATHER PORT STRUCTURE )

11. SPACES
ROUND TABLE

12. ROUND TABLE
CONFERENCES
BANQUET
DIGITAL WORKSHOPS SEMINARS
LOUNGE
PHOTOS
