The document provides an overview of data visualization and flow control in R programming, including conditional execution with 'if' statements, loops, and function definitions and usage. It covers concepts such as variable scope, string manipulation, and the installation and usage of packages to enhance functionality. Additionally, it discusses various types of plots like scatter plots, box plots, and bar charts using ggplot2.

1. DATA VISUALIZATION IN
R PROGRAMMING

2. Flow Controls

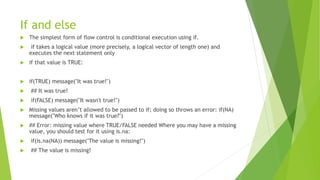

3. If and else
 The simplest form of flow control is conditional execution using if.
 if takes a logical value (more precisely, a logical vector of length one) and
executes the next statement only
 if that value is TRUE:
 if(TRUE) message("It was true!")
 ## It was true!
 if(FALSE) message("It wasn't true!")
 Missing values aren’t allowed to be passed to if; doing so throws an error: if(NA)
message("Who knows if it was true?")
 ## Error: missing value where TRUE/FALSE needed Where you may have a missing
value, you should test for it using is.na:
 if(is.na(NA)) message("The value is missing!")
 ## The value is missing!

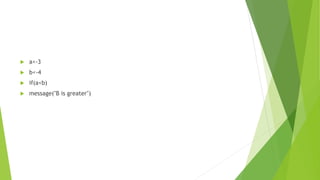

4.  a<-3
 b<-4
 if(a<b)
 message("B is greater")

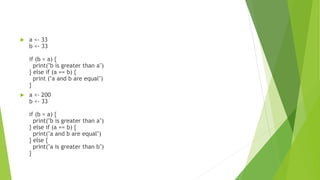

5.  a <- 33
b <- 33
if (b > a) {
print("b is greater than a")
} else if (a == b) {
print ("a and b are equal")
}
 a <- 200
b <- 33
if (b > a) {
print("b is greater than a")
} else if (a == b) {
print("a and b are equal")
} else {
print("a is greater than b")
}

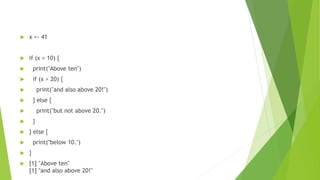

6.  x <- 41
 if (x > 10) {
 print("Above ten")
 if (x > 20) {
 print("and also above 20!")
 } else {
 print("but not above 20.")
 }
 } else {
 print("below 10.")
 }
 [1] "Above ten"
[1] "and also above 20!"

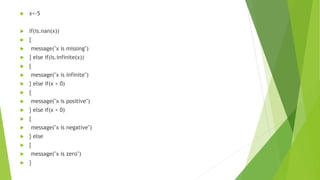

7.  x<-5
 if(is.nan(x))
 {
 message("x is missing")
 } else if(is.infinite(x))
 {
 message("x is infinite")
 } else if(x > 0)
 {
 message("x is positive")
 } else if(x < 0)
 {
 message("x is negative")
 } else
 {
 message("x is zero")
 }

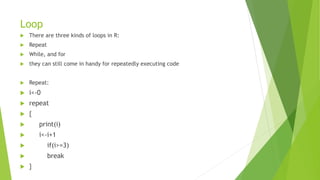

8. Loop
 There are three kinds of loops in R:
 Repeat
 While, and for
 they can still come in handy for repeatedly executing code
 Repeat:
 i<-0
 repeat
 {
 print(i)
 i<-i+1
 if(i>=3)
 break
 }

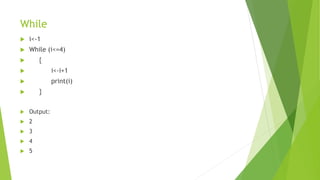

9. While
 i<-1
 While (i<=4)
 {
 i<-i+1
 print(i)
 }
 Output:
 2
 3
 4
 5

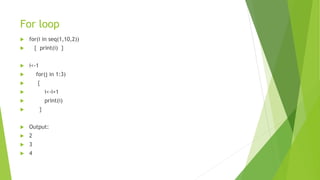

10. For loop
 for(i in seq(1,10,2))
 { print(i) }
 i<-1
 for(j in 1:3)
 {
 i<-i+1
 print(i)
 }
 Output:
 2
 3
 4

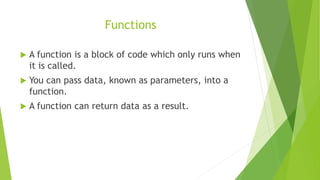

11. Functions
 A function is a block of code which only runs when
it is called.
 You can pass data, known as parameters, into a
function.
 A function can return data as a result.

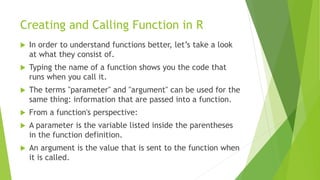

12. Creating and Calling Function in R
 In order to understand functions better, let’s take a look
at what they consist of.
 Typing the name of a function shows you the code that
runs when you call it.
 The terms "parameter" and "argument" can be used for the
same thing: information that are passed into a function.
 From a function's perspective:
 A parameter is the variable listed inside the parentheses
in the function definition.
 An argument is the value that is sent to the function when
it is called.

13. Example
 Sample<-function(a,b,c)
 {
 print(a)
print(b)
print(c)
print(a+b+c)
}
Sample(2,3,4)

14. Passing Functions to and from Other
Functions
 Functions can be used just like other variable
types, so we can pass them as arguments to other
functions, and return them from functions.
 One common example of a function that takes
another function as an argument is do.call.
 do.call(function(x, y) x + y, list(1:5, 5:1))
 ## [1] 6 6 6 6 6

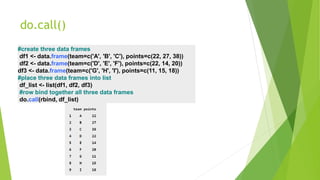

15. do.call()
#create three data frames
df1 <- data.frame(team=c('A', 'B', 'C'), points=c(22, 27, 38))
df2 <- data.frame(team=c('D', 'E', 'F'), points=c(22, 14, 20))
df3 <- data.frame(team=c('G', 'H', 'I'), points=c(11, 15, 18))
#place three data frames into list
df_list <- list(df1, df2, df3)
#row bind together all three data frames
do.call(rbind, df_list)

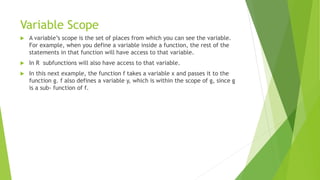

16. Variable Scope
 A variable’s scope is the set of places from which you can see the variable.
For example, when you define a variable inside a function, the rest of the
statements in that function will have access to that variable.
 In R subfunctions will also have access to that variable.
 In this next example, the function f takes a variable x and passes it to the
function g. f also defines a variable y, which is within the scope of g, since g
is a sub‐ function of f.

17.  So, even though y isn’t defined inside g, the example works:
 f <- function(x)
 {
 y <- 1
 g <- function(x)
 {
 (x + y) / 2 #y is used, but is not a formal argument of g }
 g(x)
 }
 f(sqrt(5)) #It works! y is magically found in the environment of f
 ## [1] 1.618

18. String Manipulation
 String manipulation basically refers to the process of
handling and analyzing strings.
 It involves various operations concerned with
modification and parsing of strings to use and change its
data.
 Paste:
 str <- paste(c(1:3), "4", sep = ":")
 print (str)
 ## "1:4" "2:4" "3:4"
 Concatenation:
 # Concatenation using cat() function
 str <- cat("learn", "code", "tech", sep = ":")
 print (str)
## learn:code:tech

19. Packages and Visualization

20. Loading and Packages
 R is not limited to the code provided by the R Core Team.
It is very much a community effort, and
 there are thousands of add-on packages available to
extend it.
 The majority of R packages are currently installed in an
online repository called CRAN (the Comprehensive R
Archive Network1)
 which is maintained by the R Core Team. Installing and
using these add-on packages is an important part of the R
experience

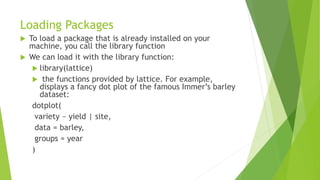

21. Loading Packages
 To load a package that is already installed on your
machine, you call the library function
 We can load it with the library function:
 library(lattice)
 the functions provided by lattice. For example,
displays a fancy dot plot of the famous Immer’s barley
dataset:
dotplot(
variety ~ yield | site,
data = barley,
groups = year
)

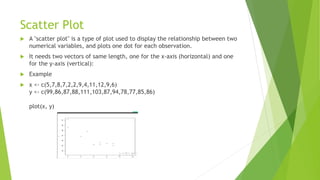

22. Scatter Plot
 A "scatter plot" is a type of plot used to display the relationship between two
numerical variables, and plots one dot for each observation.
 It needs two vectors of same length, one for the x-axis (horizontal) and one
for the y-axis (vertical):
 Example
 x <- c(5,7,8,7,2,2,9,4,11,12,9,6)
y <- c(99,86,87,88,111,103,87,94,78,77,85,86)
plot(x, y)

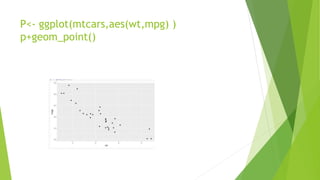

23. P<- ggplot(mtcars,aes(wt,mpg) )
p+geom_point()

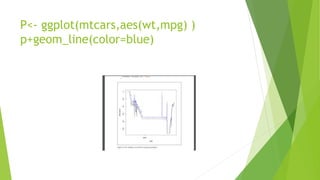

24. P<- ggplot(mtcars,aes(wt,mpg) )
p+geom_line(color=blue)

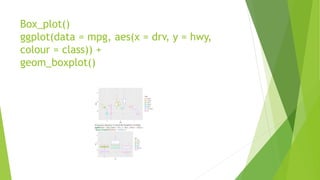

25. Box_plot()
ggplot(data = mpg, aes(x = drv, y = hwy,
colour = class)) +
geom_boxplot()

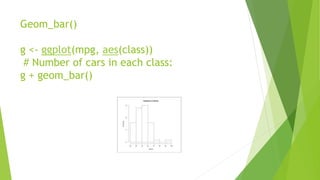

26. Geom_bar()
g <- ggplot(mpg, aes(class))
# Number of cars in each class:
g + geom_bar()
