This document presents a method for evaluating end-user development (EUD) technologies developed by researchers from the University of Brasília. The evaluation framework incorporates multiple characteristics, sub-characteristics, and metrics, and has been tested against various EUD platforms such as Oracle Apex and OutSystems. The study aims to enhance the effective selection and use of software packages in organizations, addressing challenges in the adoption of EUD tools.

1. Americas Conference
on Information Systems,
AMCIS 2017,
Aug, 10th
A METHOD FOR EVALUATING
END-USER DEVELOPMENTTECHNOLOGIES
Prof. Dr. Claudia Melo, Dep. of Computer Science
Jonathan Moraes, Fac. of Software Engineering
Marcelo Ferreira, Fac. of Software Engineering
Prof. Dr. Rejane Figueiredo, Fac. of Software EngineeringUniversity of Brasília, Brazil

2. WHY ARE WE INVESTIGATING EUD TECHNOLOGY EVALUATION?
•# of end users > # of professional
so1ware developers
•> 50M end-user developers,
USA only (Burne9 and Myers,
2014)
• Li9le research has empirically examined so1ware package
evalua7on criteria and techniques in general, and in the end-user
development context in par7cular (Harnisch, 2014; Jadhav and
Sonar, 2009; Jadhav and Sonar, 2011; Misra and Mohanty, 2003)
• Success and failure of end-
user development within an
organizaOon ulOmately
depends on how effec7ve
so1ware packages are
chosen and used
2

3. • This research study is part of a partnership with the Ministry of
CommunicaOons, Science, and Technology, Brazil
• Plenty of EUD tools being offered in the market
• OrganizaOons sOll lost on how to take full advantage of EUD
(facing cultural, managerial and technological challenges). But
already buying soluOons!
INDUSTRY CONTEXT
3

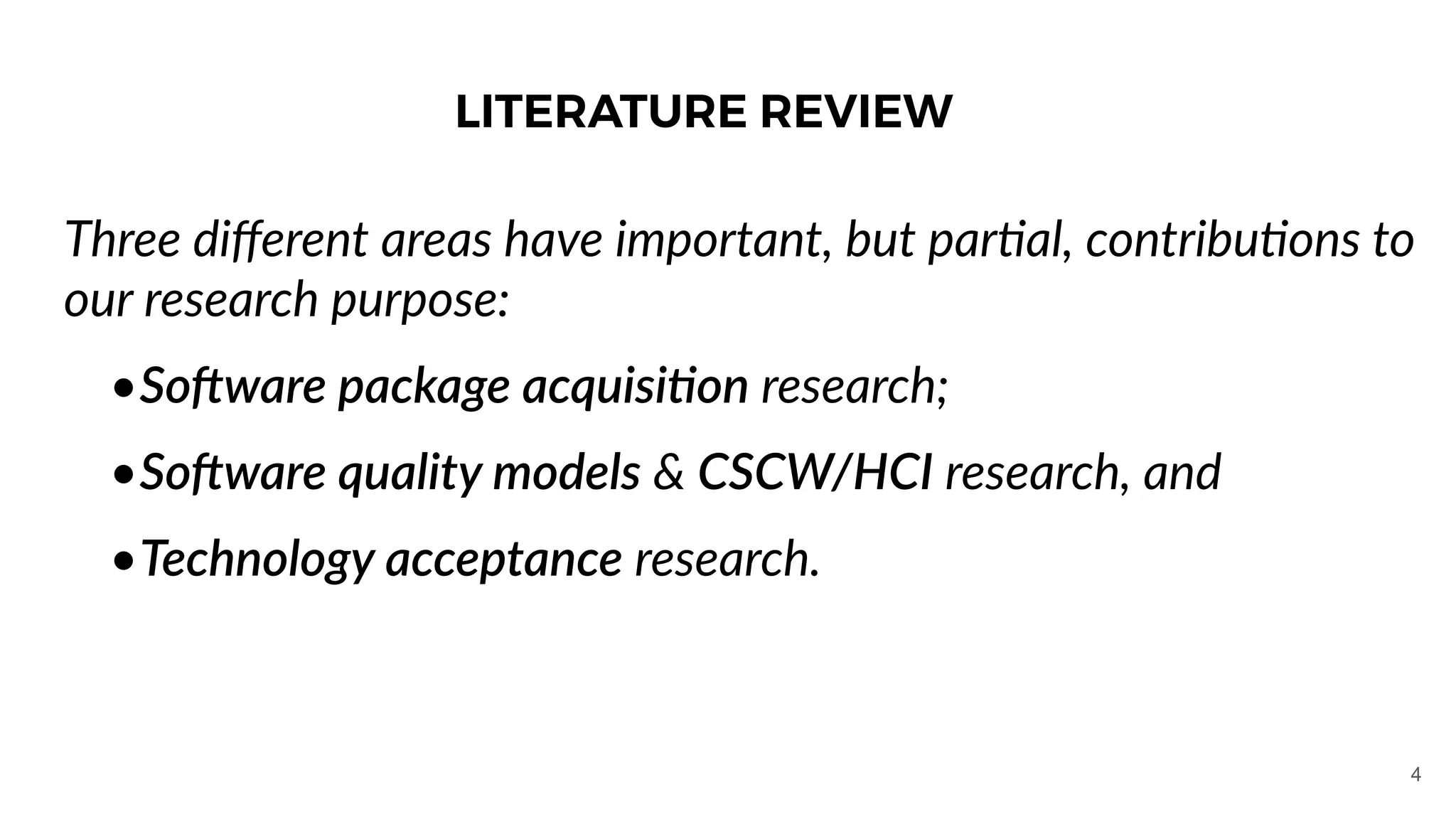

4. Three different areas have important, but parOal, contribuOons to
our research purpose:
•So#ware package acquisi1on research;
•So#ware quality models & CSCW/HCI research, and
•Technology acceptance research.
LITERATURE REVIEW
4

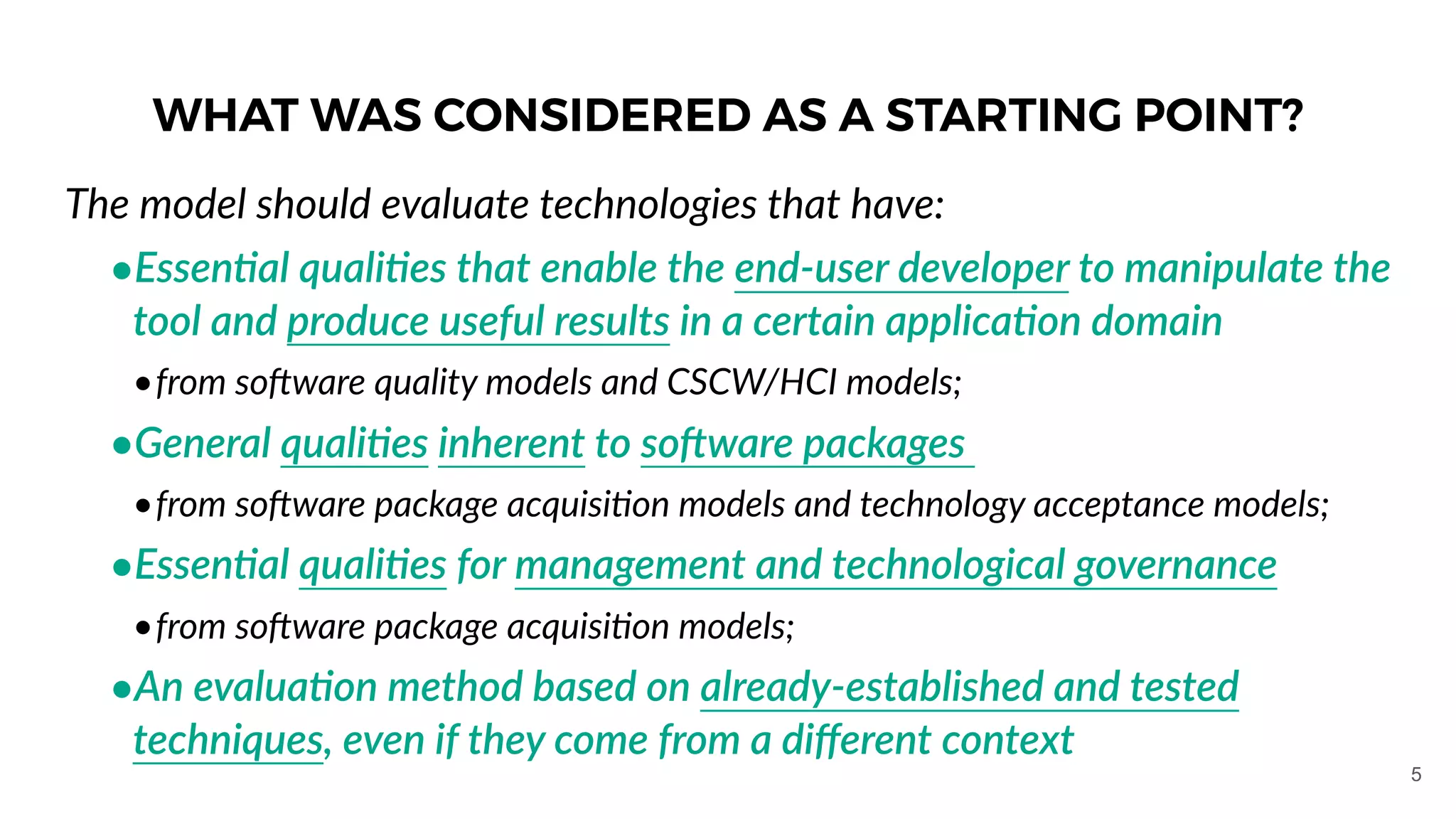

5. WHAT WAS CONSIDERED AS A STARTING POINT?
The model should evaluate technologies that have:
•Essen1al quali1es that enable the end-user developer to manipulate the
tool and produce useful results in a certain applica1on domain
•from so]ware quality models and CSCW/HCI models;
•General quali1es inherent to so#ware packages
•from so]ware package acquisiOon models and technology acceptance models;
•Essen1al quali1es for management and technological governance
•from so]ware package acquisiOon models;
•An evalua1on method based on already-established and tested
techniques, even if they come from a different context
5

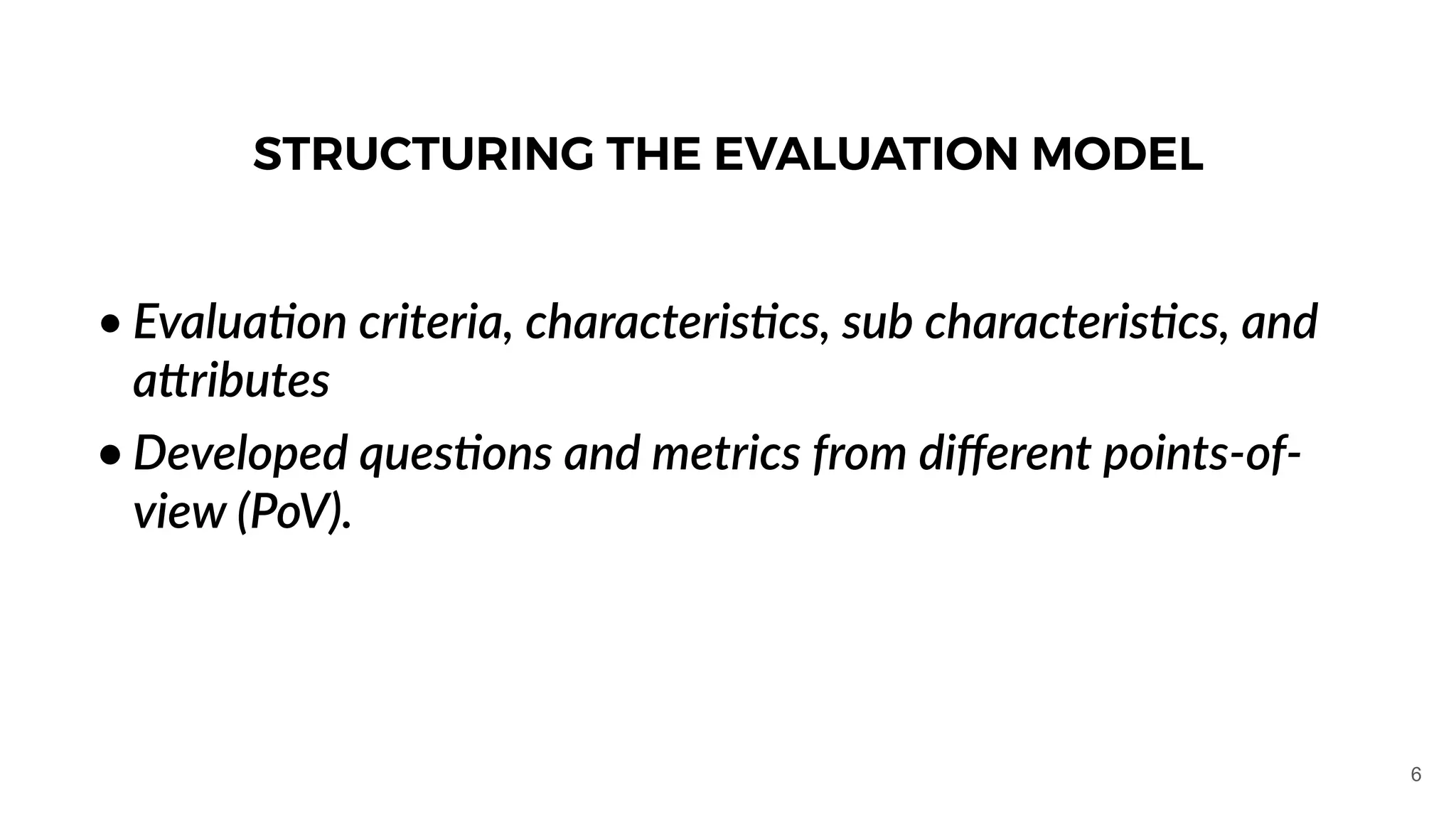

6. • Evalua1on criteria, characteris1cs, sub characteris1cs, and
aJributes
• Developed ques1ons and metrics from different points-of-
view (PoV).
STRUCTURING THE EVALUATION MODEL
6

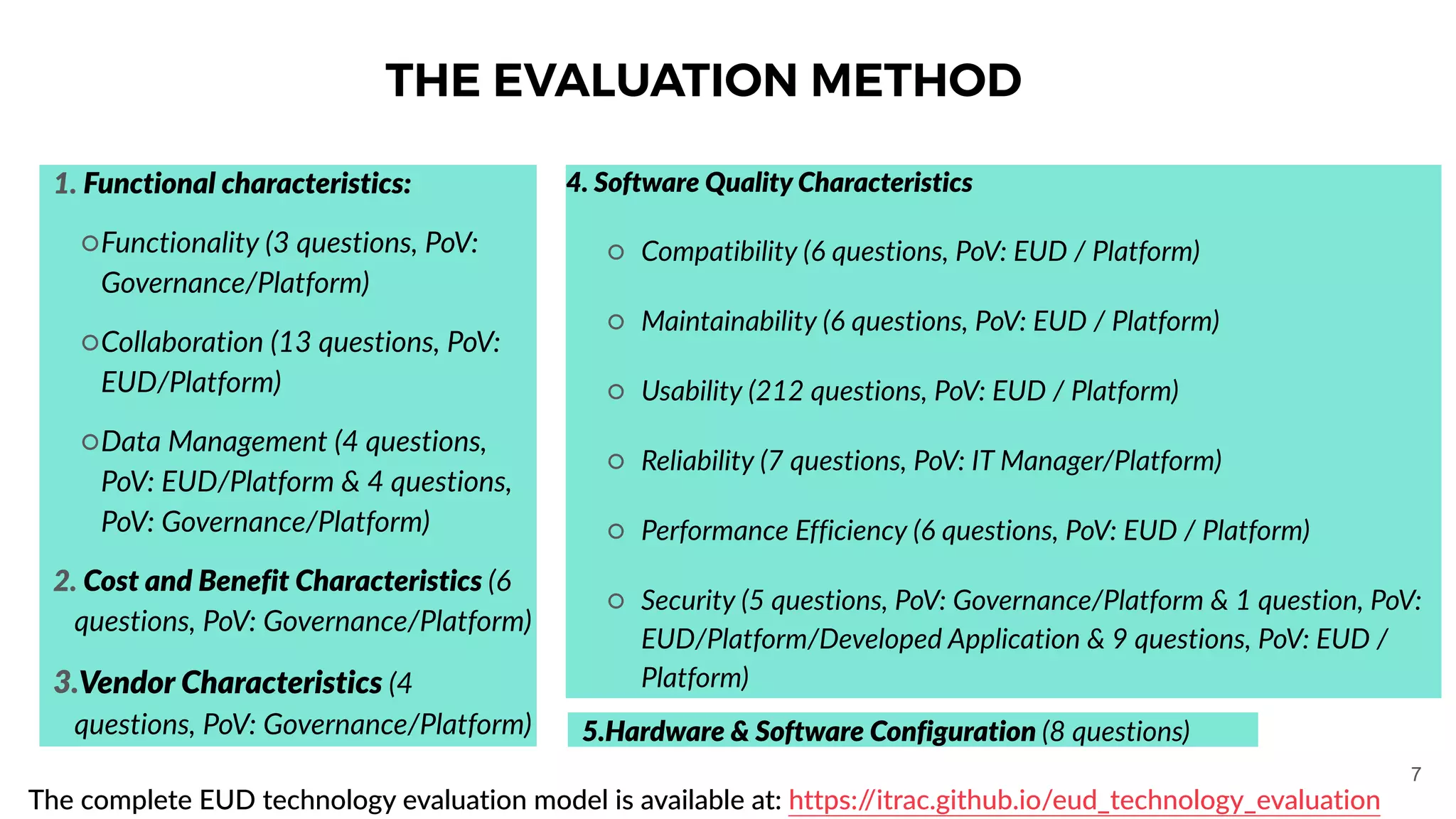

7. THE EVALUATION METHOD
1. Functional characteristics:
○Functionality (3 questions, PoV:
Governance/Platform)
○Collaboration (13 questions, PoV:
EUD/Platform)
○Data Management (4 questions,
PoV: EUD/Platform & 4 questions,
PoV: Governance/Platform)
2. Cost and Benefit Characteristics (6
questions, PoV: Governance/Platform)
3.Vendor Characteristics (4
questions, PoV: Governance/Platform)
4. Software Quality Characteristics
○ Compatibility (6 questions, PoV: EUD / Platform)
○ Maintainability (6 questions, PoV: EUD / Platform)
○ Usability (212 questions, PoV: EUD / Platform)
○ Reliability (7 questions, PoV: IT Manager/Platform)
○ Performance Efficiency (6 questions, PoV: EUD / Platform)
○ Security (5 questions, PoV: Governance/Platform & 1 question, PoV:
EUD/Platform/Developed Application & 9 questions, PoV: EUD /
Platform)
5.Hardware & Software Configuration (8 questions)
The complete EUD technology evaluation model is available at: https://itrac.github.io/eud_technology_evaluation
7

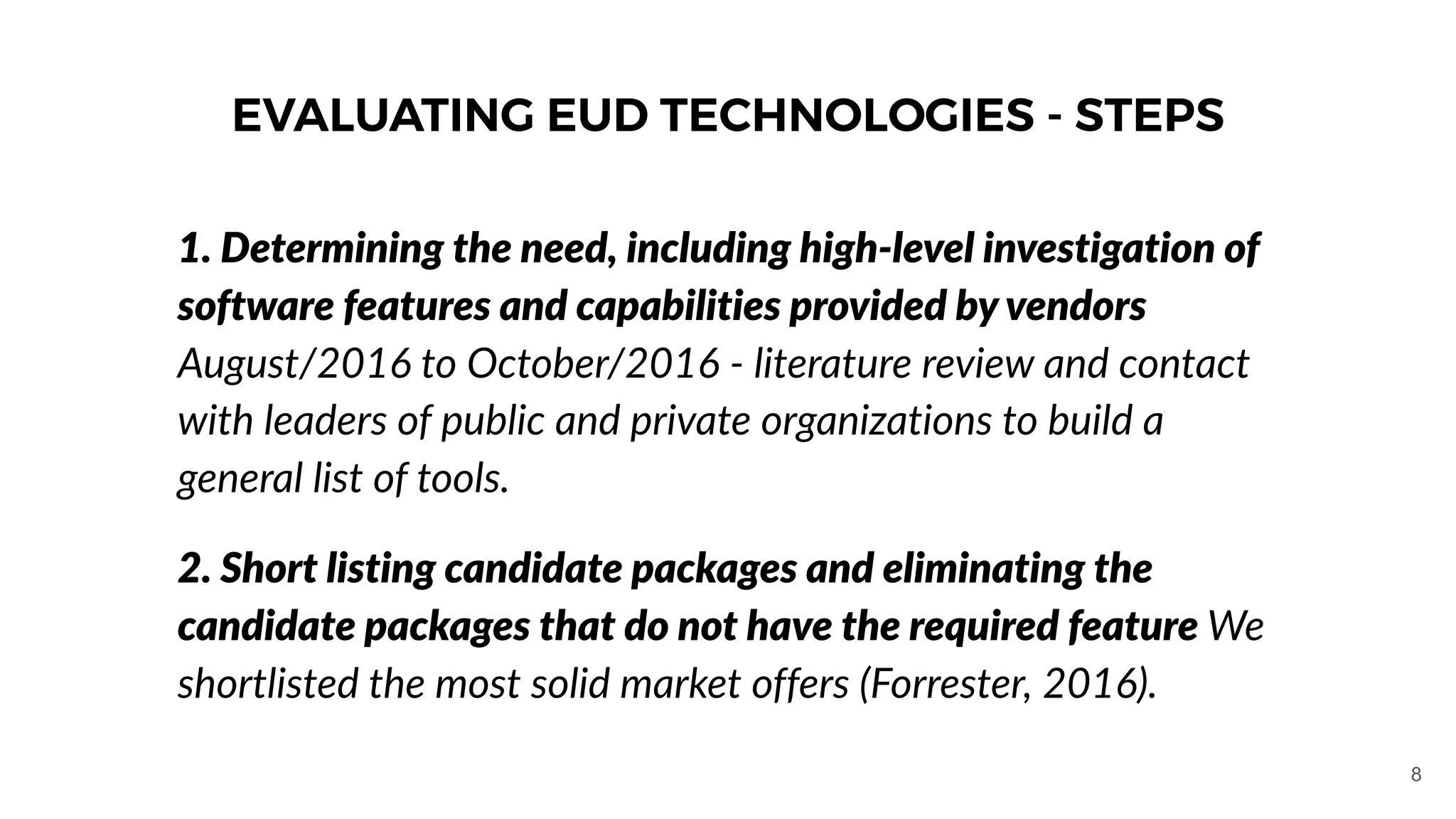

8. EVALUATING EUD TECHNOLOGIES - STEPS
1. Determining the need, including high-level investigation of
software features and capabilities provided by vendors
August/2016 to October/2016 - literature review and contact
with leaders of public and private organizations to build a
general list of tools.
2. Short listing candidate packages and eliminating the
candidate packages that do not have the required feature We
shortlisted the most solid market offers (Forrester, 2016).
8

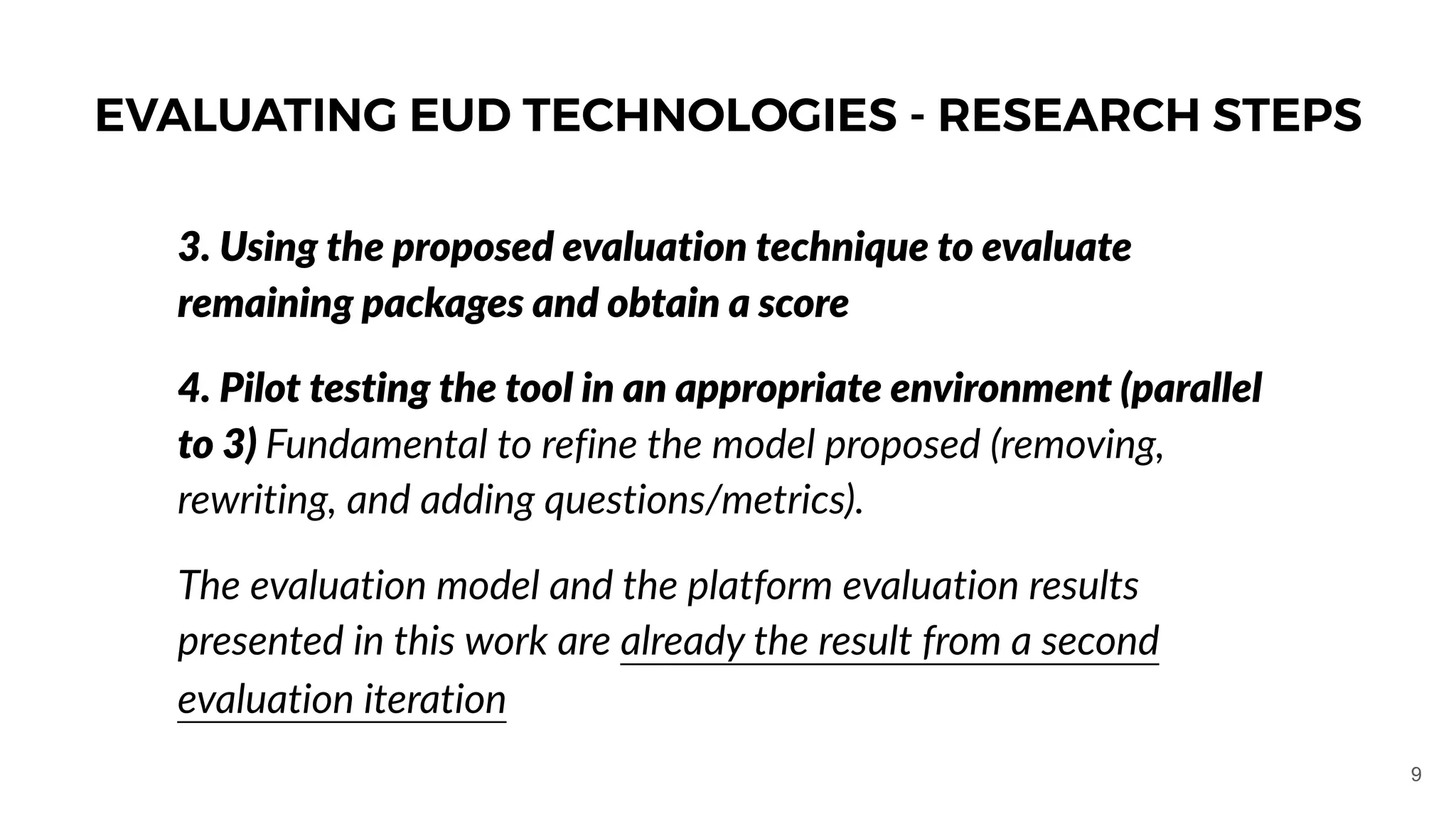

9. 3. Using the proposed evaluation technique to evaluate
remaining packages and obtain a score
4. Pilot testing the tool in an appropriate environment (parallel
to 3) Fundamental to refine the model proposed (removing,
rewriting, and adding questions/metrics).
The evaluation model and the platform evaluation results
presented in this work are already the result from a second
evaluation iteration
EVALUATING EUD TECHNOLOGIES - RESEARCH STEPS
9

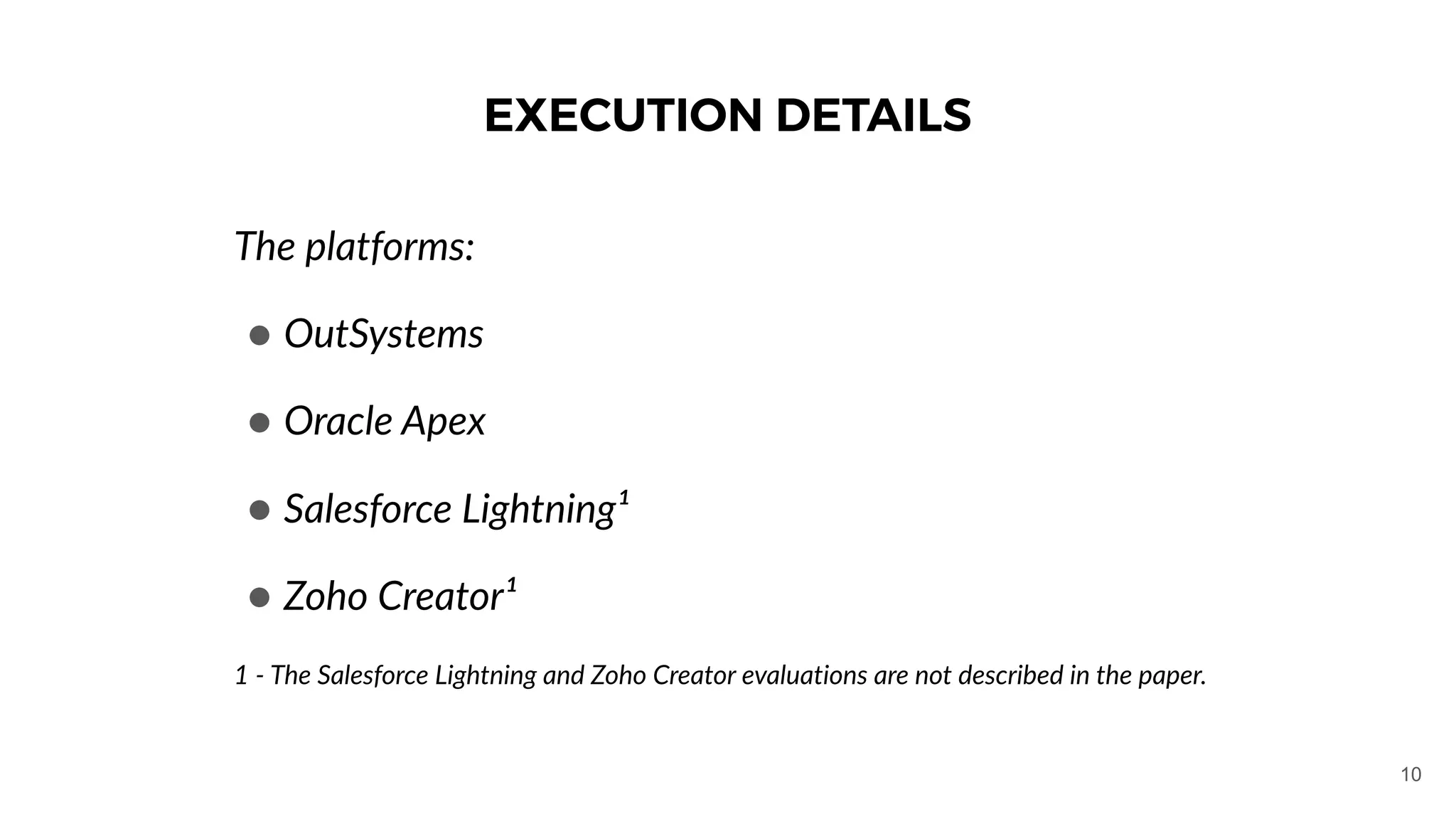

10. EXECUTION DETAILS
The platforms:
● OutSystems
● Oracle Apex
● Salesforce Lightning¹
● Zoho Creator¹
1 - The Salesforce Lightning and Zoho Creator evaluations are not described in the paper.
10

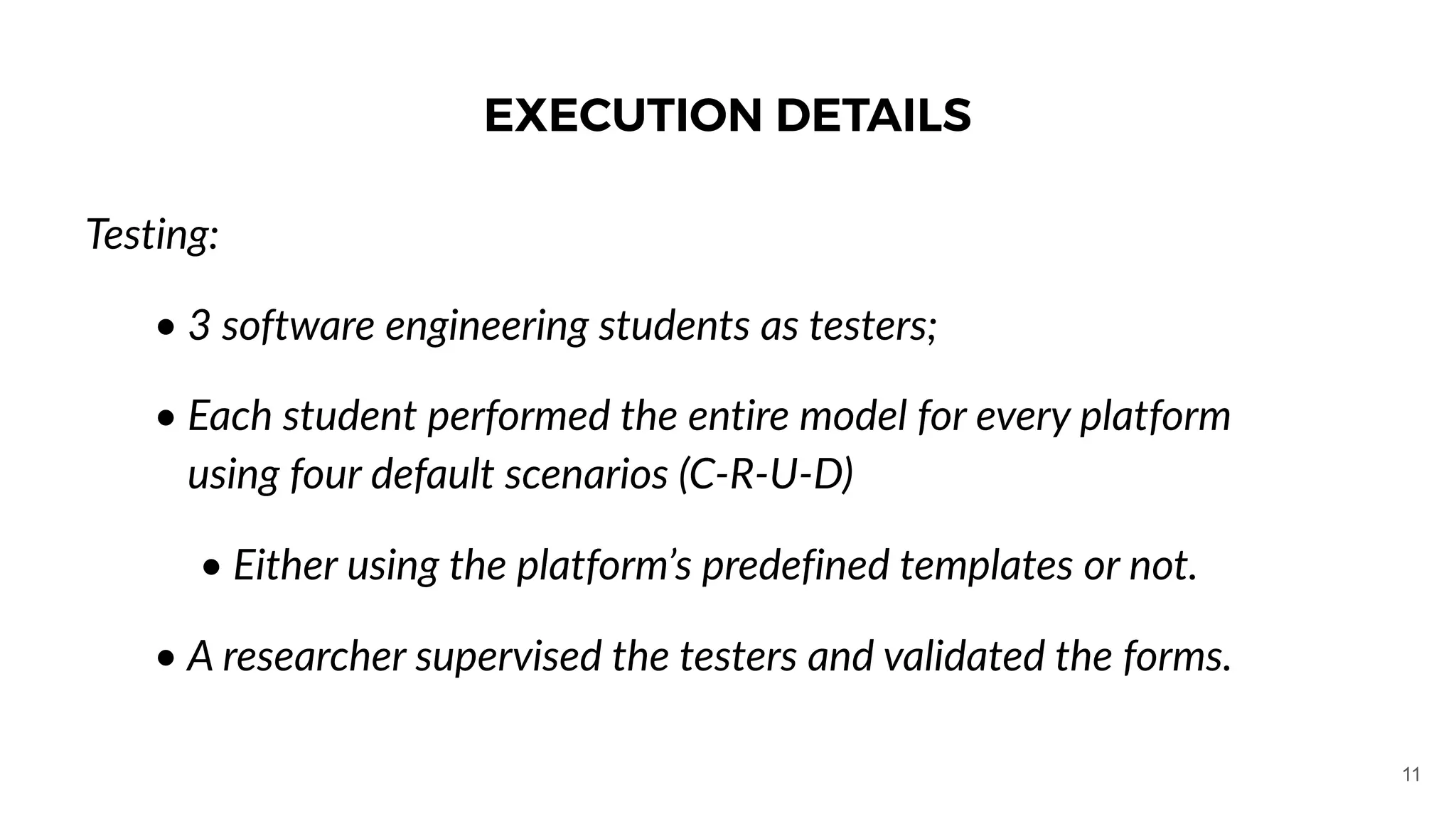

11. Testing:
• 3 software engineering students as testers;
• Each student performed the entire model for every platform
using four default scenarios (C-R-U-D)
• Either using the platform’s predefined templates or not.
• A researcher supervised the testers and validated the forms.
EXECUTION DETAILS
11

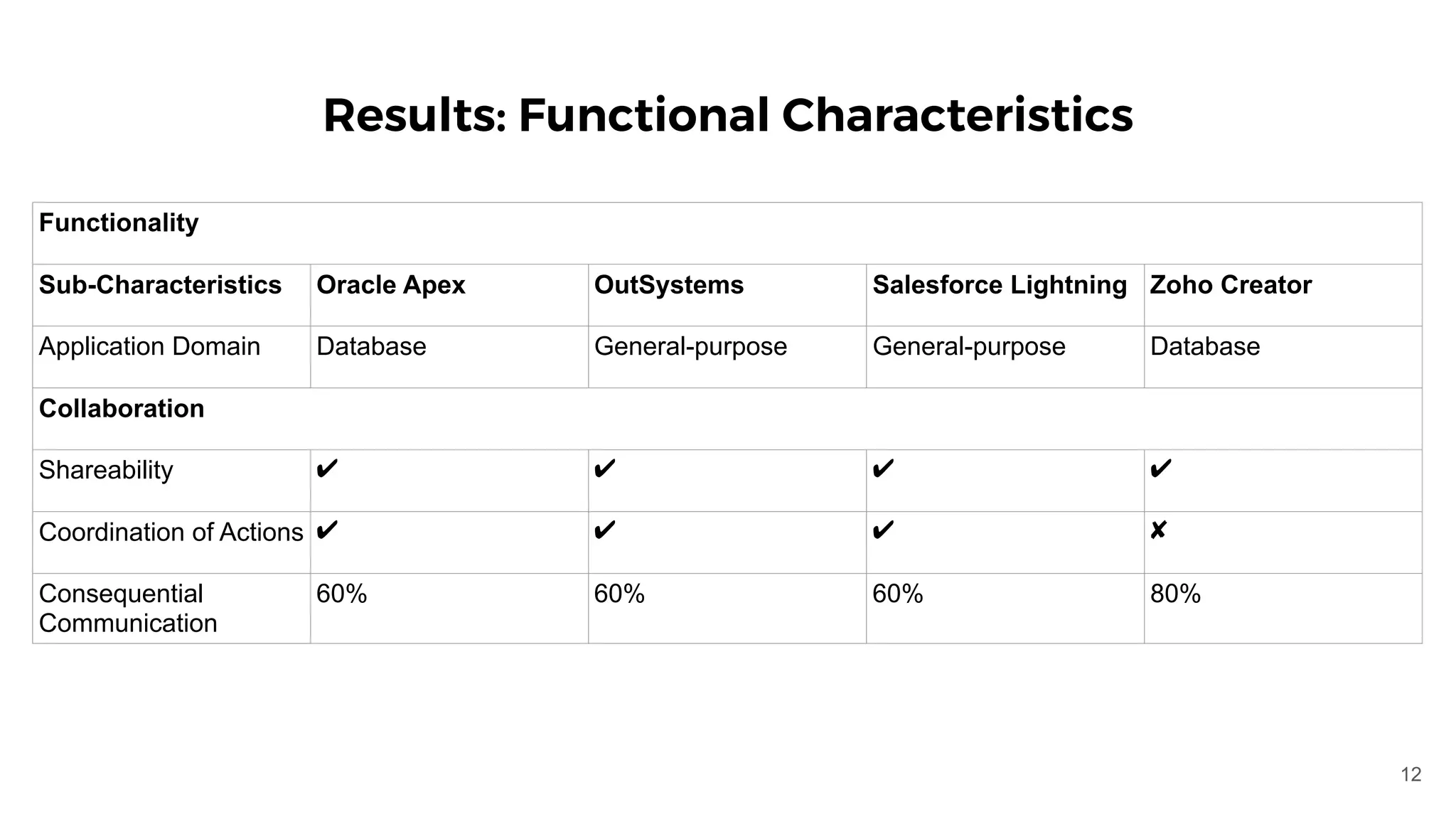

12. Results: Functional Characteristics
Functionality
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
Application Domain Database General-purpose General-purpose Database
Collaboration
Shareability ✔ ✔ ✔ ✔
Coordination of Actions ✔ ✔ ✔ ✘
Consequential
Communication
60% 60% 60% 80%
12

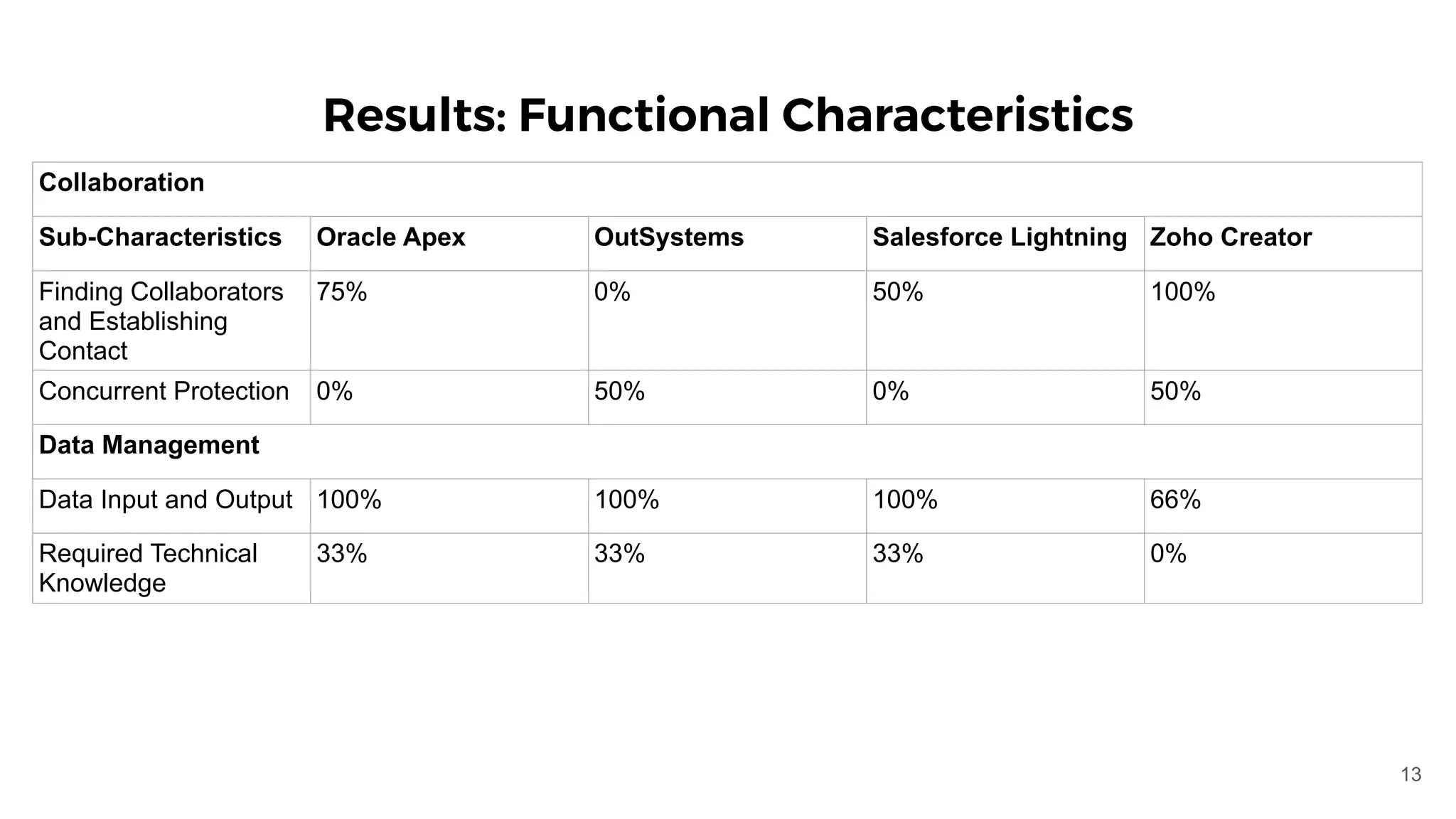

13. Results: Functional Characteristics
Collaboration
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
Finding Collaborators
and Establishing
Contact
75% 0% 50% 100%
Concurrent Protection 0% 50% 0% 50%
Data Management
Data Input and Output 100% 100% 100% 66%
Required Technical
Knowledge
33% 33% 33% 0%
13

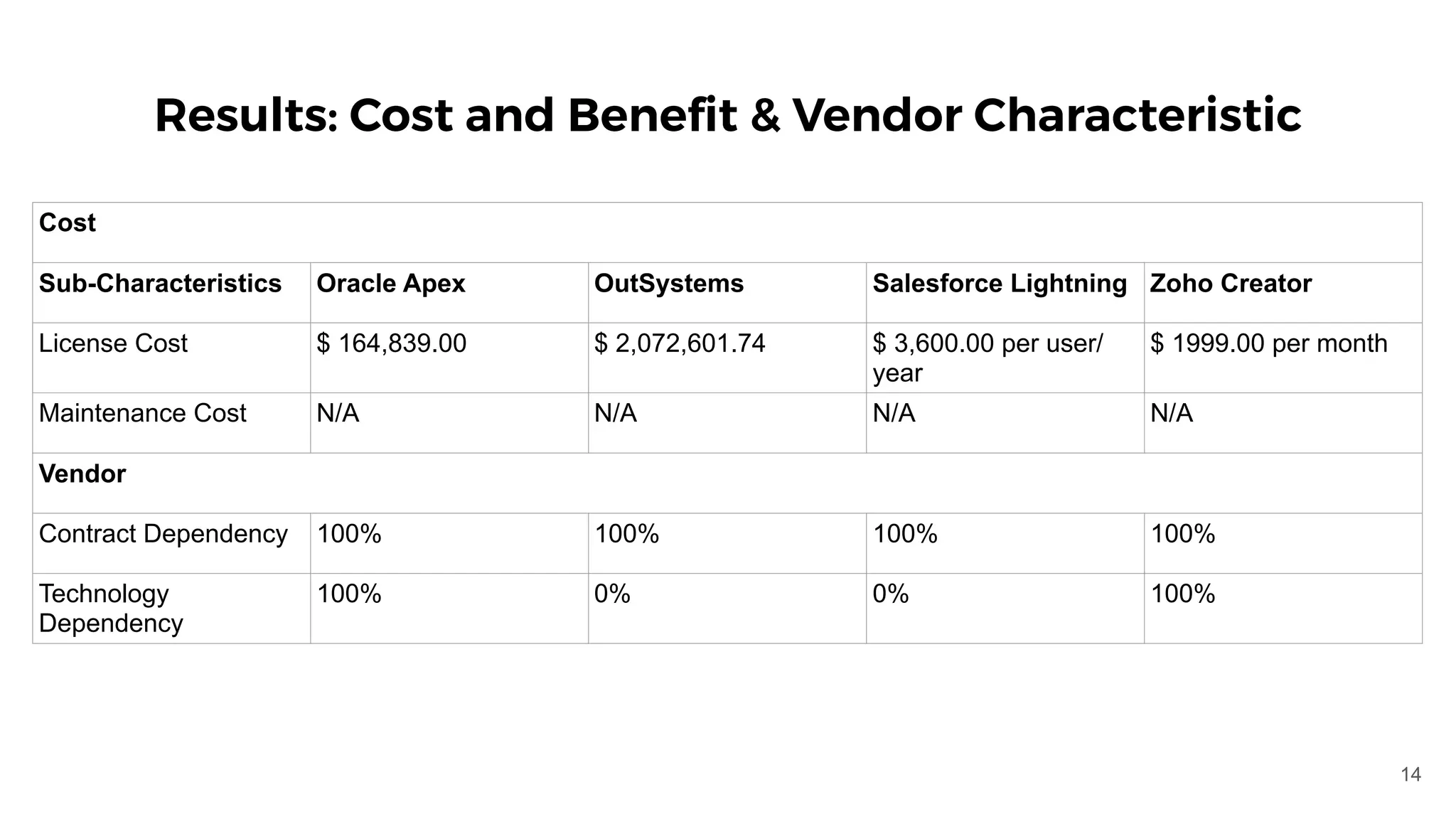

14. Results: Cost and Benefit & Vendor Characteristic
Cost
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
License Cost $ 164,839.00 $ 2,072,601.74 $ 3,600.00 per user/
year
$ 1999.00 per month
Maintenance Cost N/A N/A N/A N/A
Vendor
Contract Dependency 100% 100% 100% 100%
Technology
Dependency
100% 0% 0% 100%
14

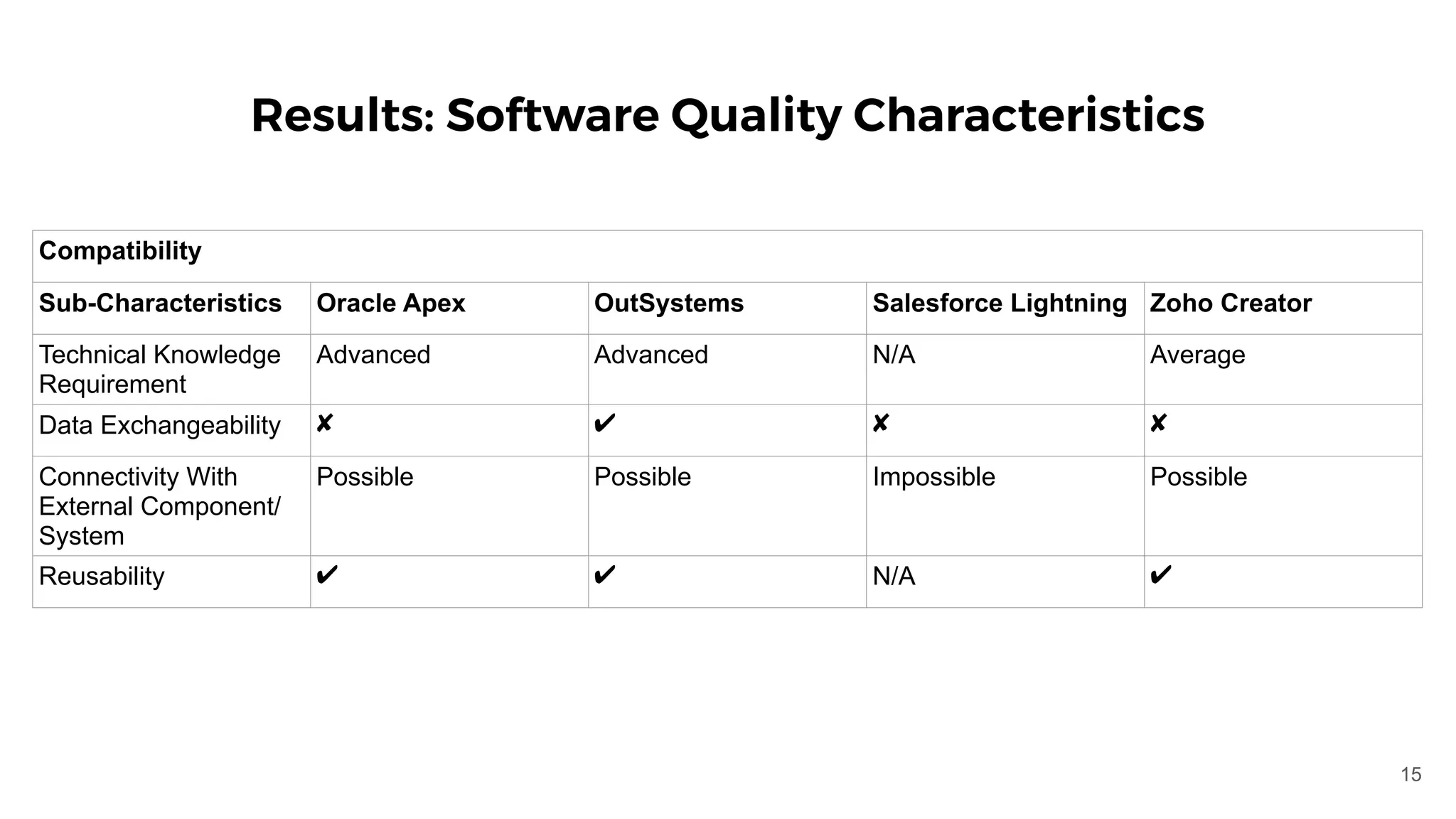

15. Results: Software Quality Characteristics
Compatibility
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
Technical Knowledge
Requirement
Advanced Advanced N/A Average
Data Exchangeability ✘ ✔ ✘ ✘
Connectivity With
External Component/
System
Possible Possible Impossible Possible
Reusability ✔ ✔ N/A ✔
15

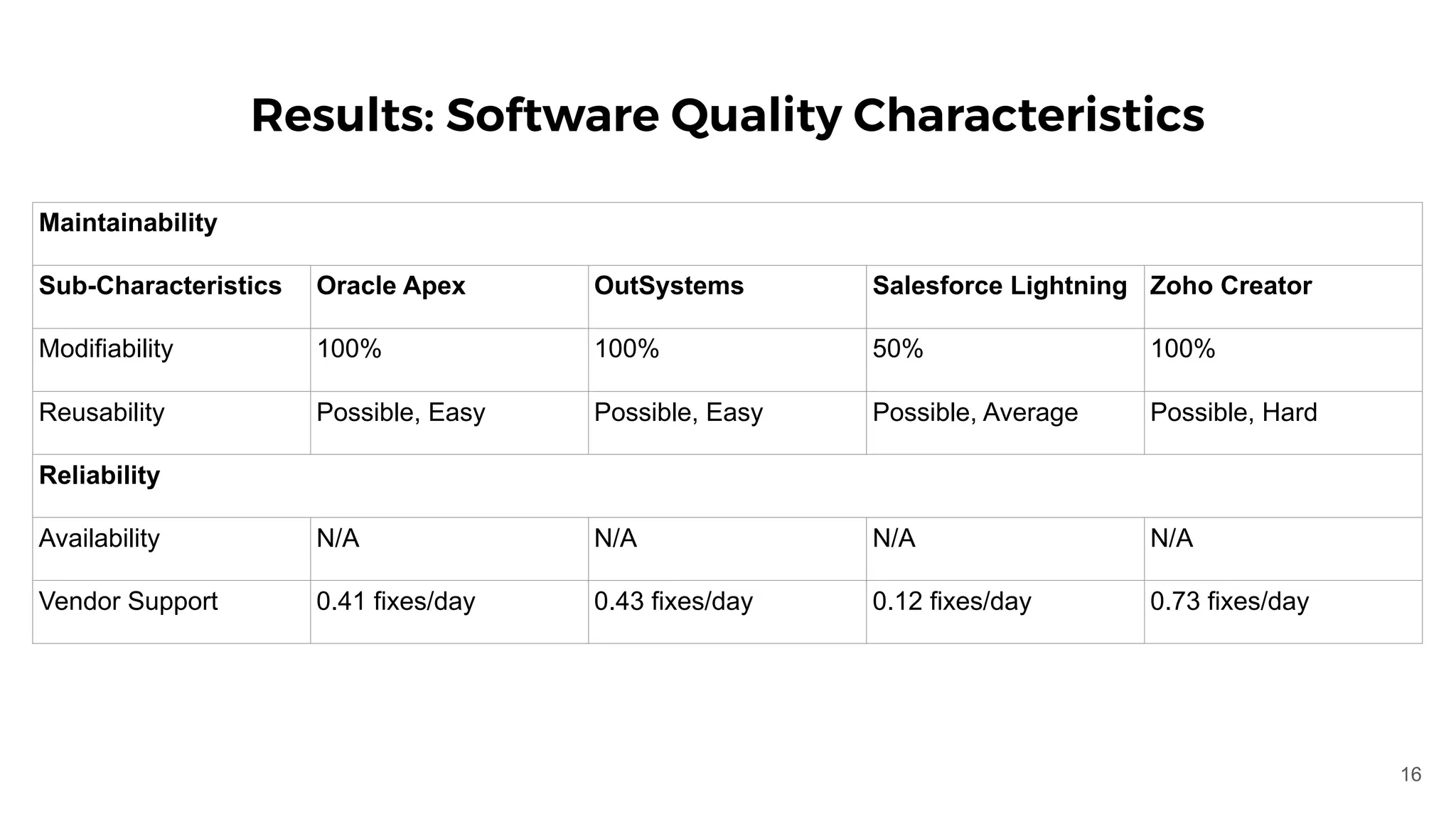

16. Results: Software Quality Characteristics
Maintainability
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
Modifiability 100% 100% 50% 100%
Reusability Possible, Easy Possible, Easy Possible, Average Possible, Hard
Reliability
Availability N/A N/A N/A N/A
Vendor Support 0.41 fixes/day 0.43 fixes/day 0.12 fixes/day 0.73 fixes/day
16

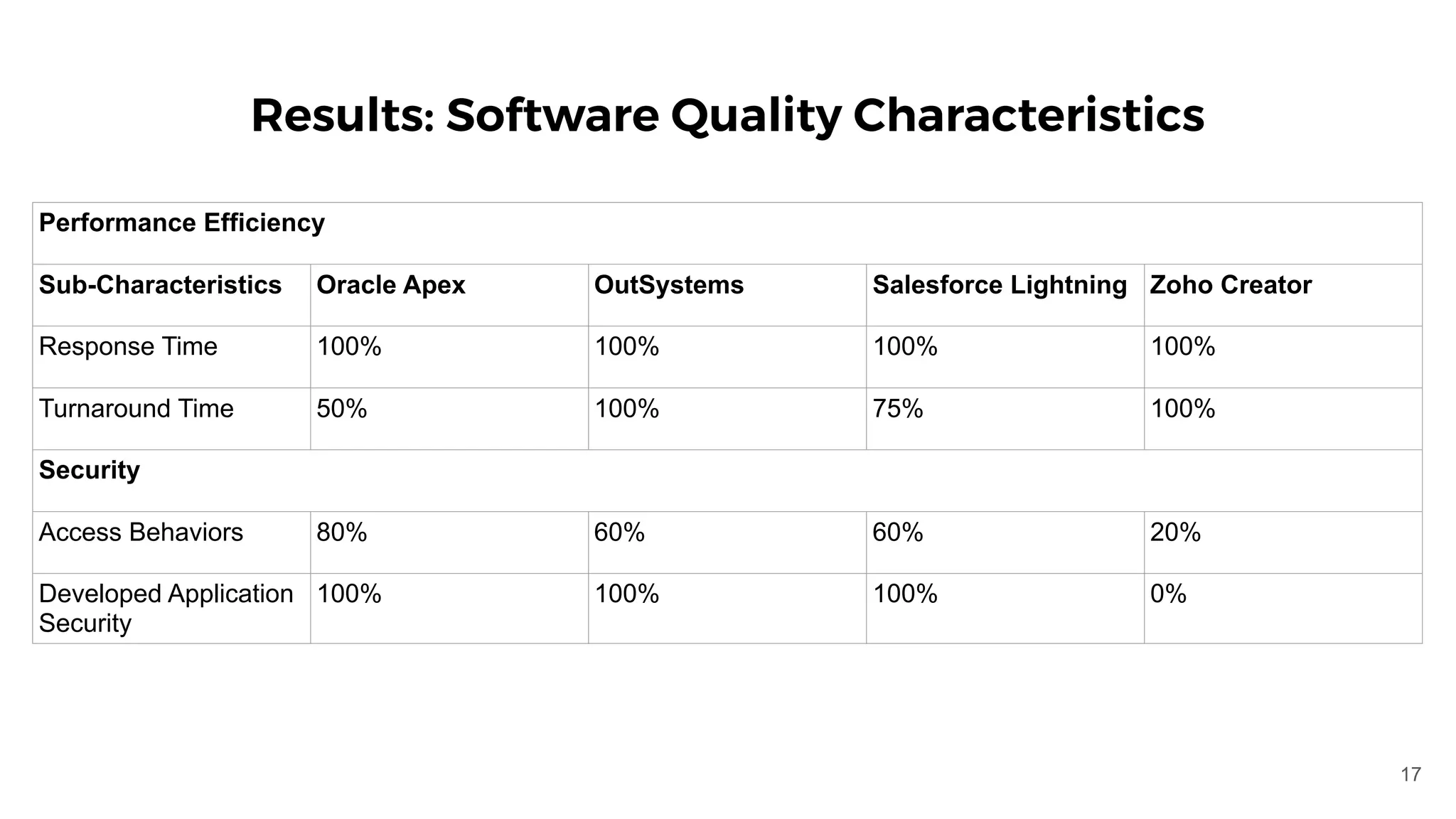

17. Results: Software Quality Characteristics
Performance Efficiency
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
Response Time 100% 100% 100% 100%
Turnaround Time 50% 100% 75% 100%
Security
Access Behaviors 80% 60% 60% 20%
Developed Application
Security
100% 100% 100% 0%
17

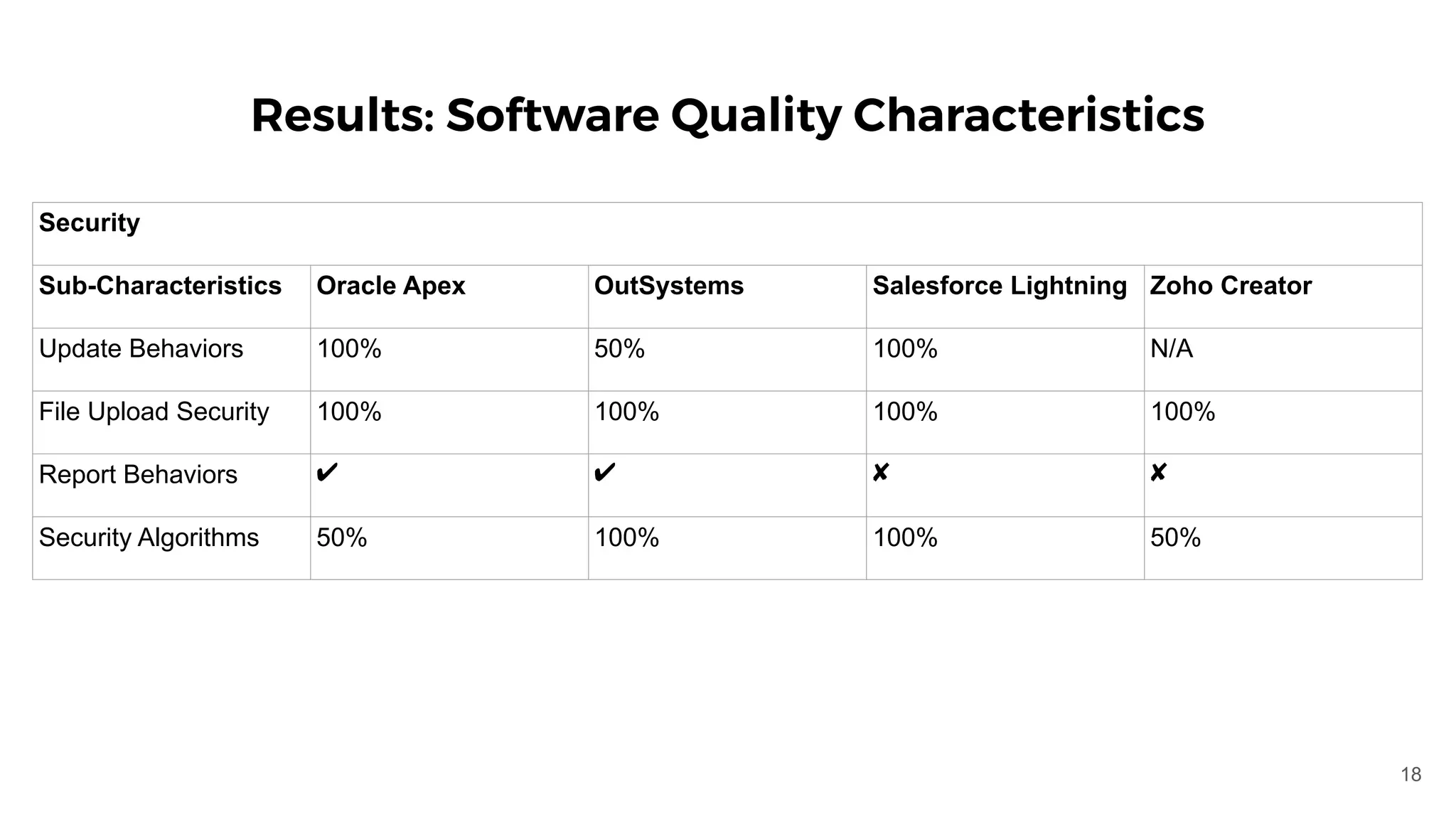

18. Results: Software Quality Characteristics
Security
Sub-Characteristics Oracle Apex OutSystems Salesforce Lightning Zoho Creator
Update Behaviors 100% 50% 100% N/A
File Upload Security 100% 100% 100% 100%
Report Behaviors ✔ ✔ ✘ ✘
Security Algorithms 50% 100% 100% 50%
18

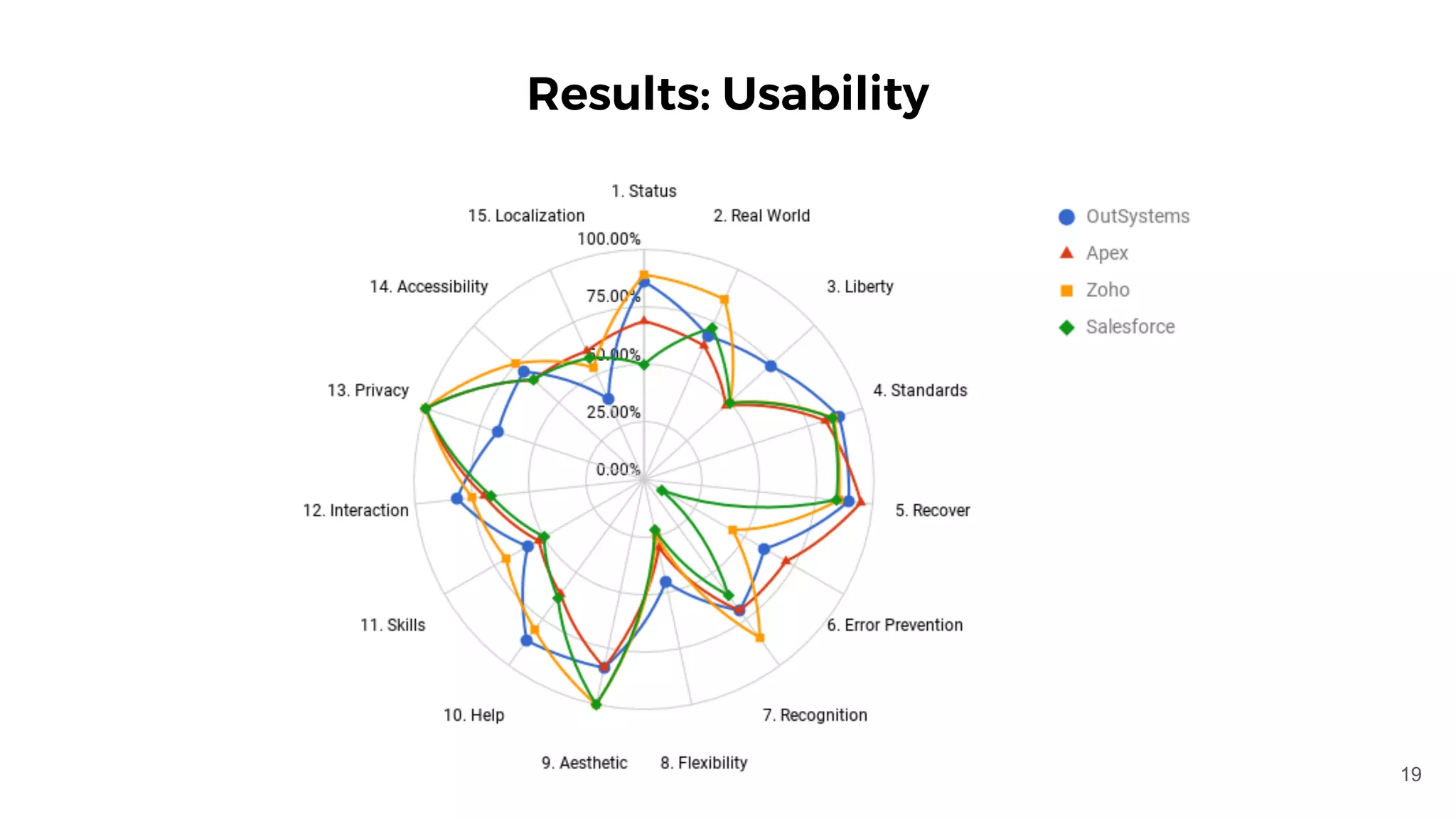

19. Results: Usability
19

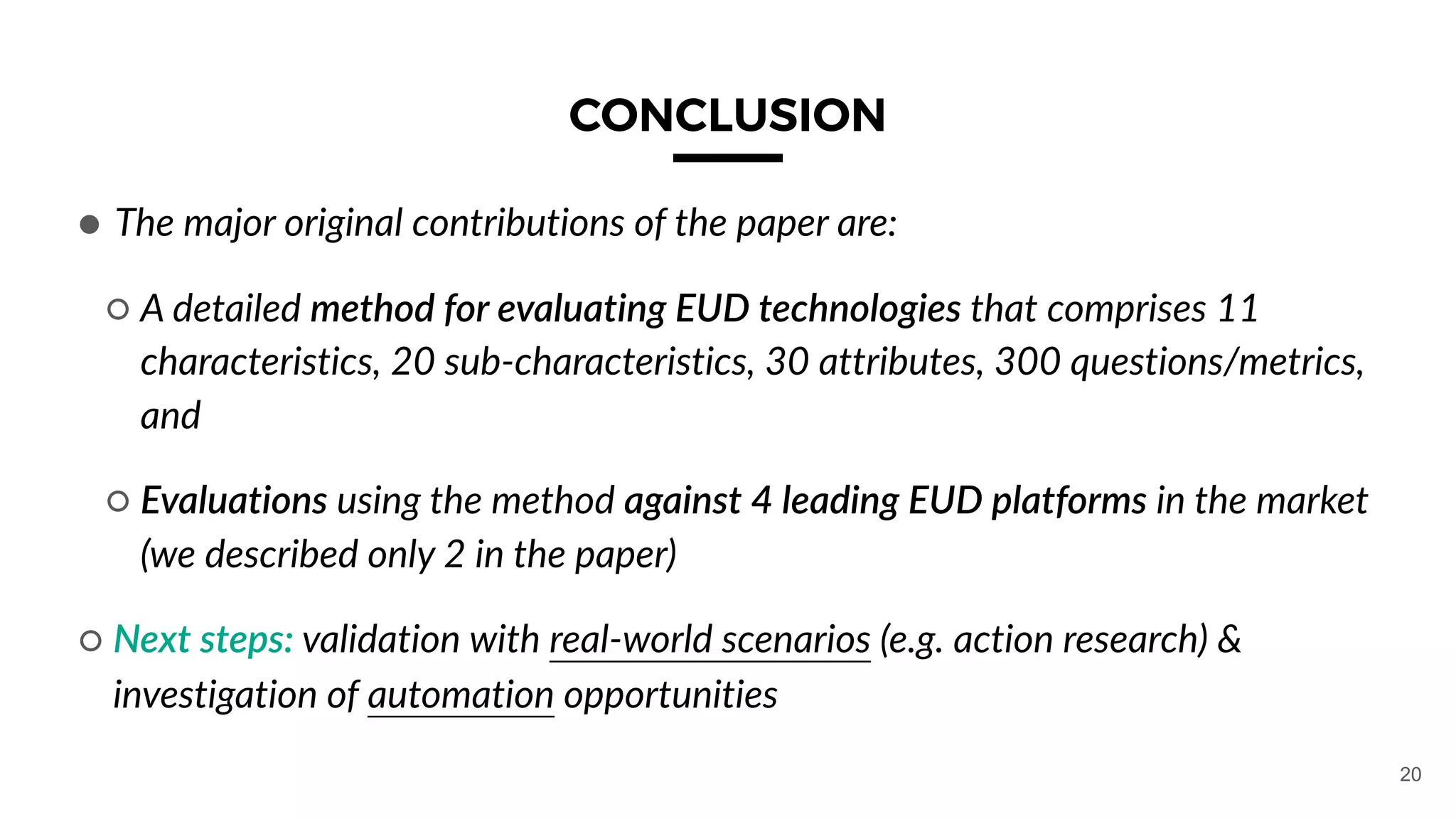

20. CONCLUSION
● The major original contributions of the paper are:
○ A detailed method for evaluating EUD technologies that comprises 11
characteristics, 20 sub-characteristics, 30 attributes, 300 questions/metrics,
and
○ Evaluations using the method against 4 leading EUD platforms in the market
(we described only 2 in the paper)
○ Next steps: validation with real-world scenarios (e.g. action research) &
investigation of automation opportunities
20

21. Questions?
Thanks!
claudiam@unb.br
Claudia Melo 21
Acknowledgement: this research received support from
Fundação de Apoio a Pesquisa do Distrito Federal (FAP-DF)
