This document is a comprehensive guide on detox automation testing for React Native applications, highlighting its importance for delivering high-quality user experiences. It covers the setup process, key features of the detox framework, and the integration of headspin devices to enhance testing capabilities. Additionally, it addresses common challenges developers may face while using detox, emphasizing its effectiveness as a gray-box testing approach for robust and reliable mobile application testing.

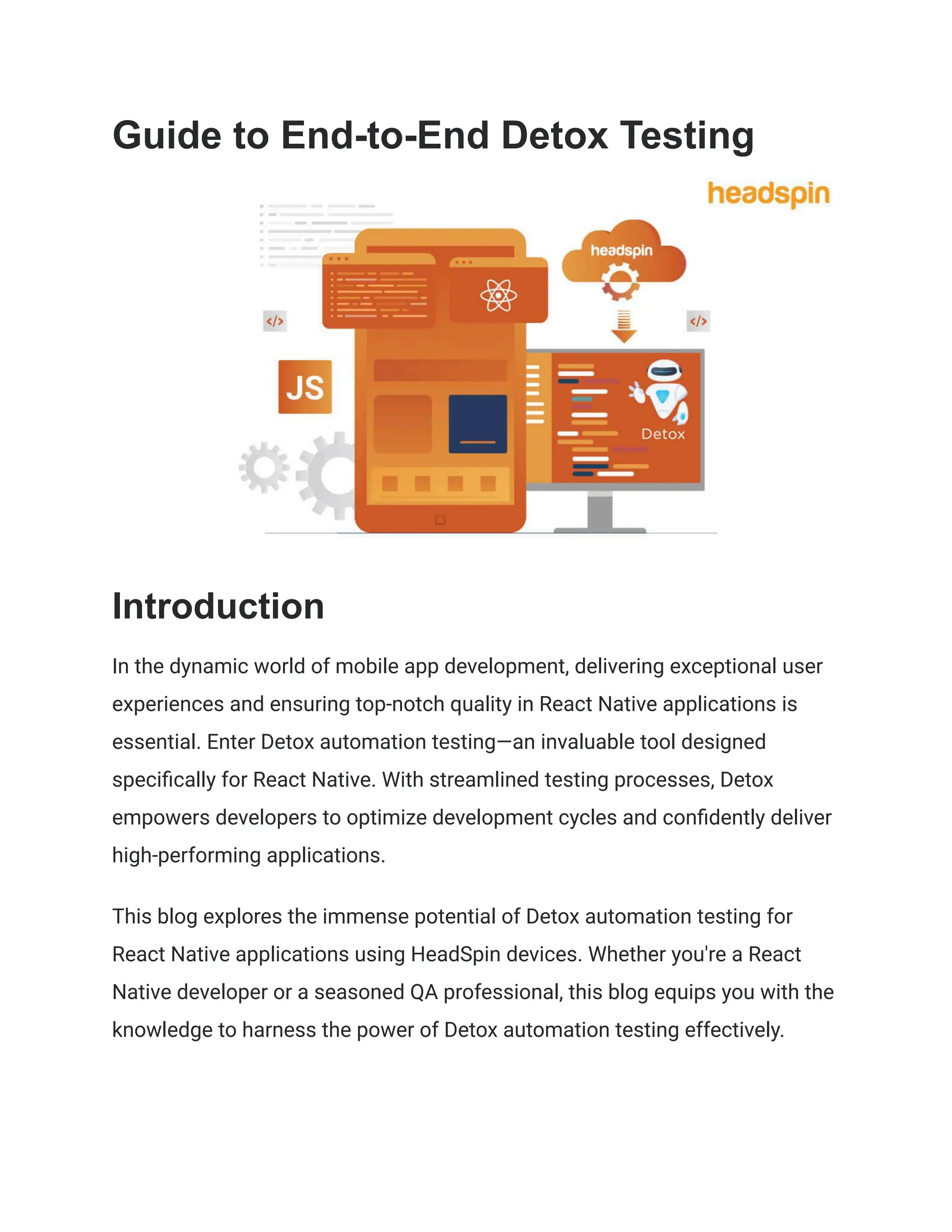

1. Guide to End-to-End Detox Testing
Introduction
In the dynamic world of mobile app development, delivering exceptional user
experiences and ensuring top-notch quality in React Native applications is
essential. Enter Detox automation testing—an invaluable tool designed
specifically for React Native. With streamlined testing processes, Detox
empowers developers to optimize development cycles and confidently deliver
high-performing applications.
This blog explores the immense potential of Detox automation testing for
React Native applications using HeadSpin devices. Whether you're a React
Native developer or a seasoned QA professional, this blog equips you with the
knowledge to harness the power of Detox automation testing effectively.

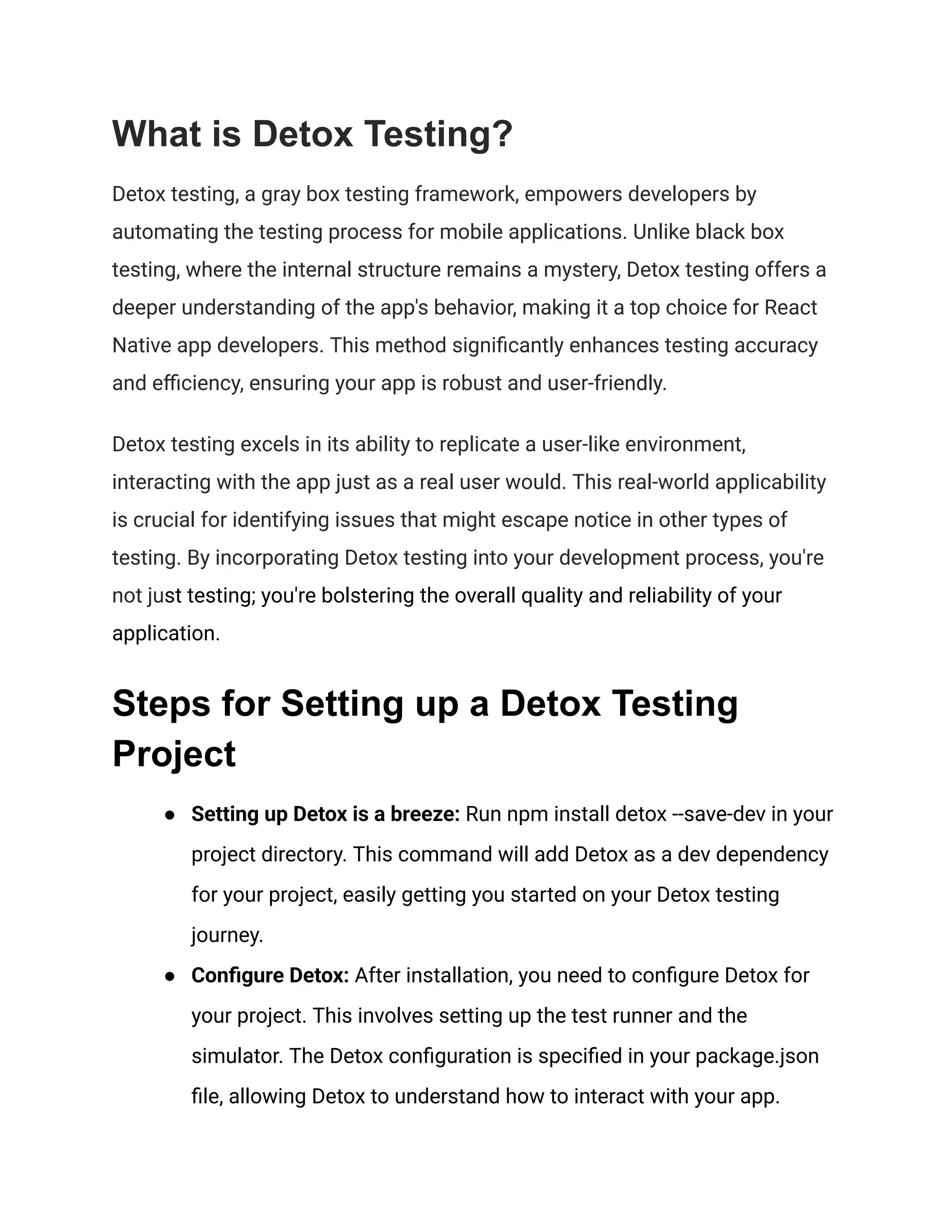

2. What is Detox Testing?
Detox testing, a gray box testing framework, empowers developers by
automating the testing process for mobile applications. Unlike black box
testing, where the internal structure remains a mystery, Detox testing offers a
deeper understanding of the app's behavior, making it a top choice for React
Native app developers. This method significantly enhances testing accuracy
and efficiency, ensuring your app is robust and user-friendly.
Detox testing excels in its ability to replicate a user-like environment,
interacting with the app just as a real user would. This real-world applicability
is crucial for identifying issues that might escape notice in other types of
testing. By incorporating Detox testing into your development process, you're
not just testing; you're bolstering the overall quality and reliability of your
application.
Steps for Setting up a Detox Testing
Project
● Setting up Detox is a breeze: Run npm install detox --save-dev in your
project directory. This command will add Detox as a dev dependency
for your project, easily getting you started on your Detox testing
journey.
● Configure Detox: After installation, you need to configure Detox for
your project. This involves setting up the test runner and the
simulator. The Detox configuration is specified in your package.json
file, allowing Detox to understand how to interact with your app.

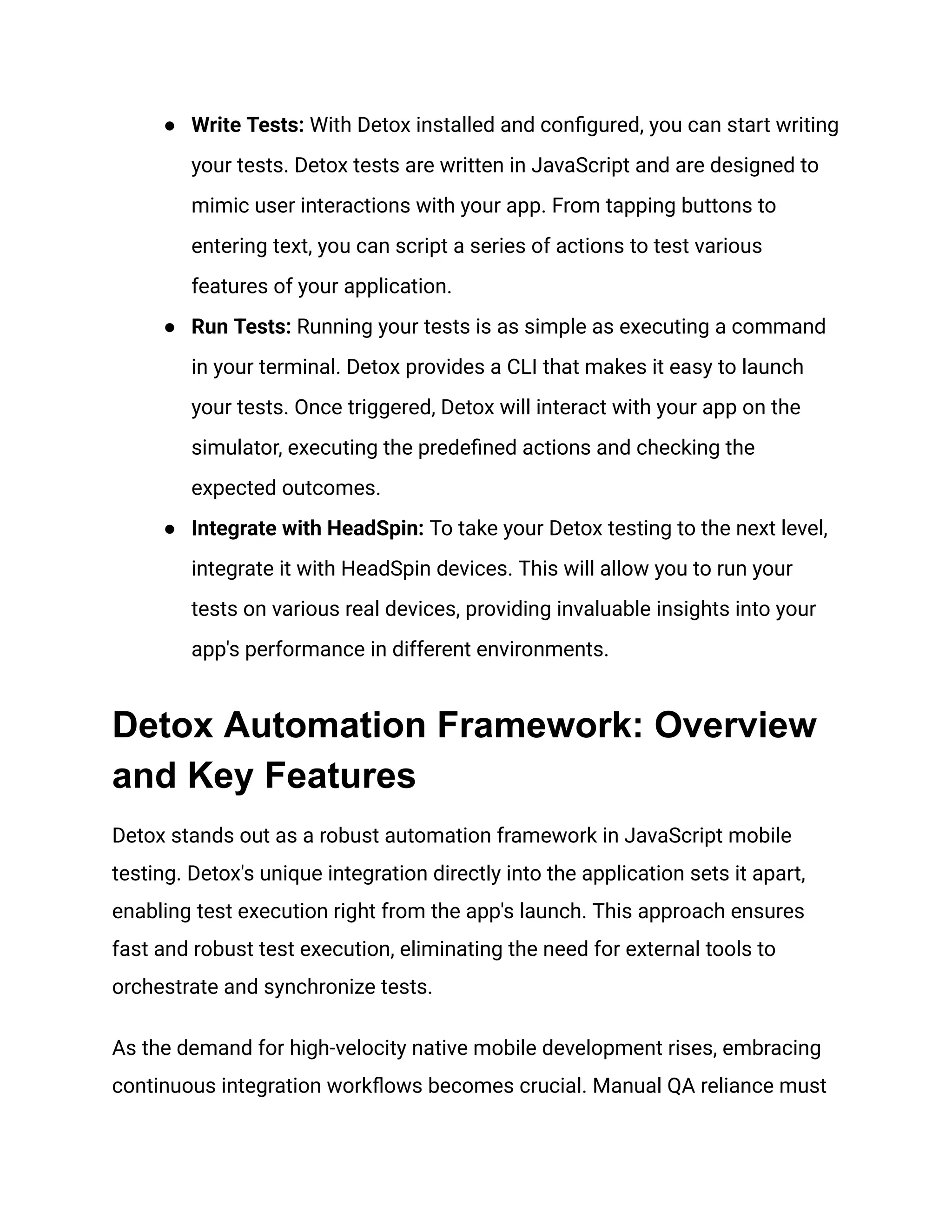

3. ● Write Tests: With Detox installed and configured, you can start writing
your tests. Detox tests are written in JavaScript and are designed to
mimic user interactions with your app. From tapping buttons to
entering text, you can script a series of actions to test various
features of your application.
● Run Tests: Running your tests is as simple as executing a command
in your terminal. Detox provides a CLI that makes it easy to launch
your tests. Once triggered, Detox will interact with your app on the
simulator, executing the predefined actions and checking the
expected outcomes.
● Integrate with HeadSpin: To take your Detox testing to the next level,
integrate it with HeadSpin devices. This will allow you to run your
tests on various real devices, providing invaluable insights into your
app's performance in different environments.
Detox Automation Framework: Overview
and Key Features
Detox stands out as a robust automation framework in JavaScript mobile
testing. Detox's unique integration directly into the application sets it apart,
enabling test execution right from the app's launch. This approach ensures
fast and robust test execution, eliminating the need for external tools to
orchestrate and synchronize tests.
As the demand for high-velocity native mobile development rises, embracing
continuous integration workflows becomes crucial. Manual QA reliance must

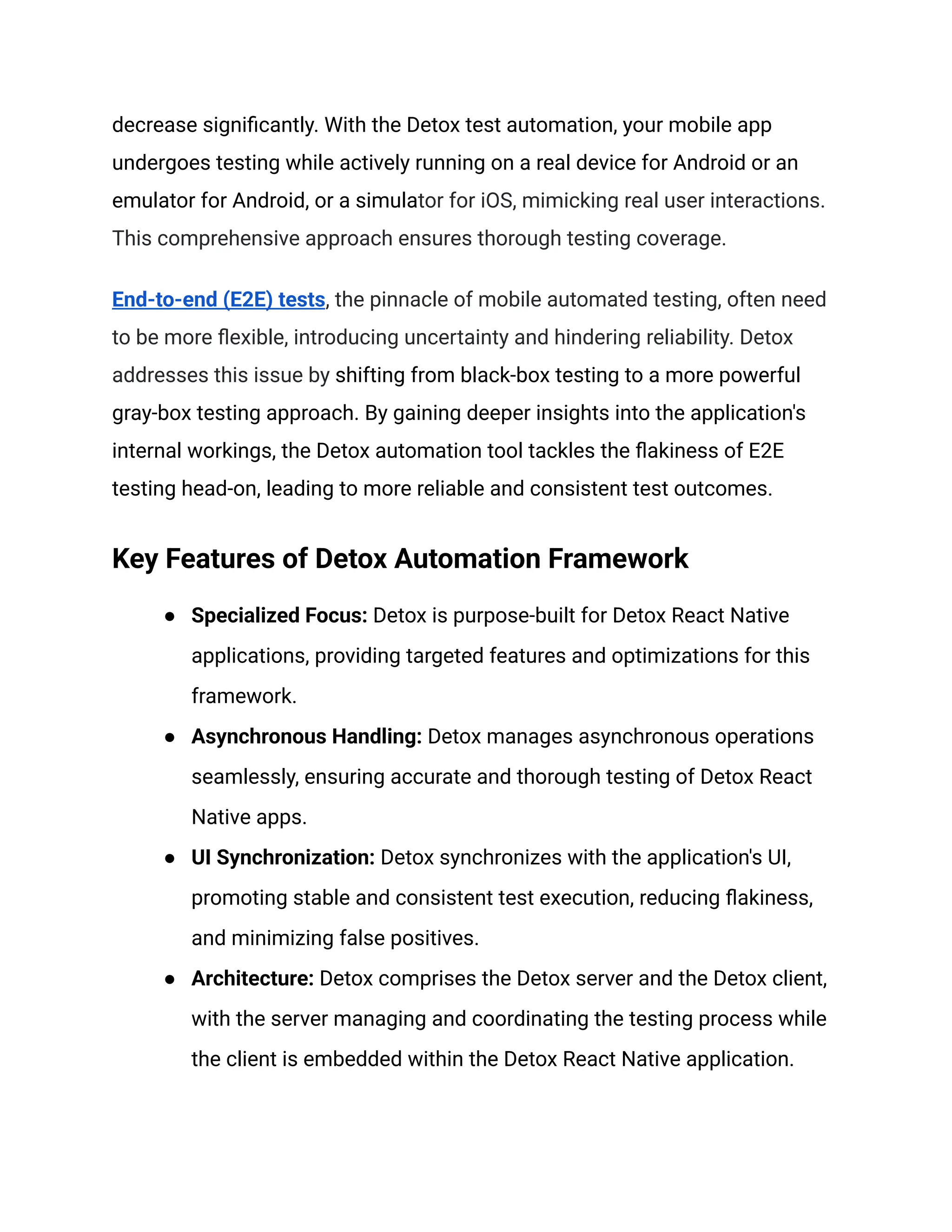

4. decrease significantly. With the Detox test automation, your mobile app
undergoes testing while actively running on a real device for Android or an
emulator for Android, or a simulator for iOS, mimicking real user interactions.
This comprehensive approach ensures thorough testing coverage.
End-to-end (E2E) tests, the pinnacle of mobile automated testing, often need
to be more flexible, introducing uncertainty and hindering reliability. Detox
addresses this issue by shifting from black-box testing to a more powerful
gray-box testing approach. By gaining deeper insights into the application's
internal workings, the Detox automation tool tackles the flakiness of E2E
testing head-on, leading to more reliable and consistent test outcomes.
Key Features of Detox Automation Framework
● Specialized Focus: Detox is purpose-built for Detox React Native
applications, providing targeted features and optimizations for this
framework.
● Asynchronous Handling: Detox manages asynchronous operations
seamlessly, ensuring accurate and thorough testing of Detox React
Native apps.
● UI Synchronization: Detox synchronizes with the application's UI,
promoting stable and consistent test execution, reducing flakiness,
and minimizing false positives.
● Architecture: Detox comprises the Detox server and the Detox client,
with the server managing and coordinating the testing process while
the client is embedded within the Detox React Native application.

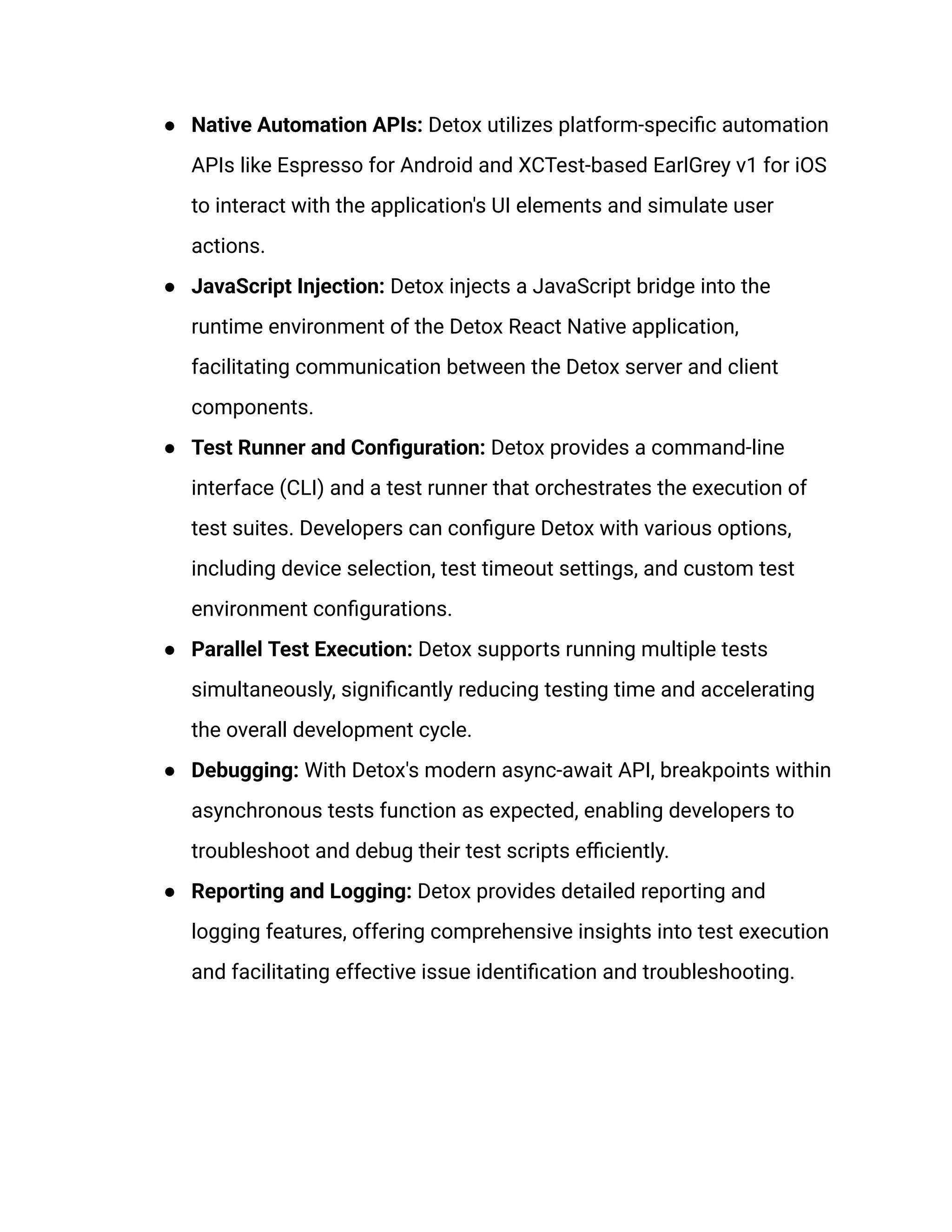

5. ● Native Automation APIs: Detox utilizes platform-specific automation
APIs like Espresso for Android and XCTest-based EarlGrey v1 for iOS
to interact with the application's UI elements and simulate user
actions.
● JavaScript Injection: Detox injects a JavaScript bridge into the
runtime environment of the Detox React Native application,
facilitating communication between the Detox server and client
components.
● Test Runner and Configuration: Detox provides a command-line
interface (CLI) and a test runner that orchestrates the execution of
test suites. Developers can configure Detox with various options,
including device selection, test timeout settings, and custom test
environment configurations.
● Parallel Test Execution: Detox supports running multiple tests
simultaneously, significantly reducing testing time and accelerating
the overall development cycle.
● Debugging: With Detox's modern async-await API, breakpoints within
asynchronous tests function as expected, enabling developers to
troubleshoot and debug their test scripts efficiently.
● Reporting and Logging: Detox provides detailed reporting and
logging features, offering comprehensive insights into test execution
and facilitating effective issue identification and troubleshooting.

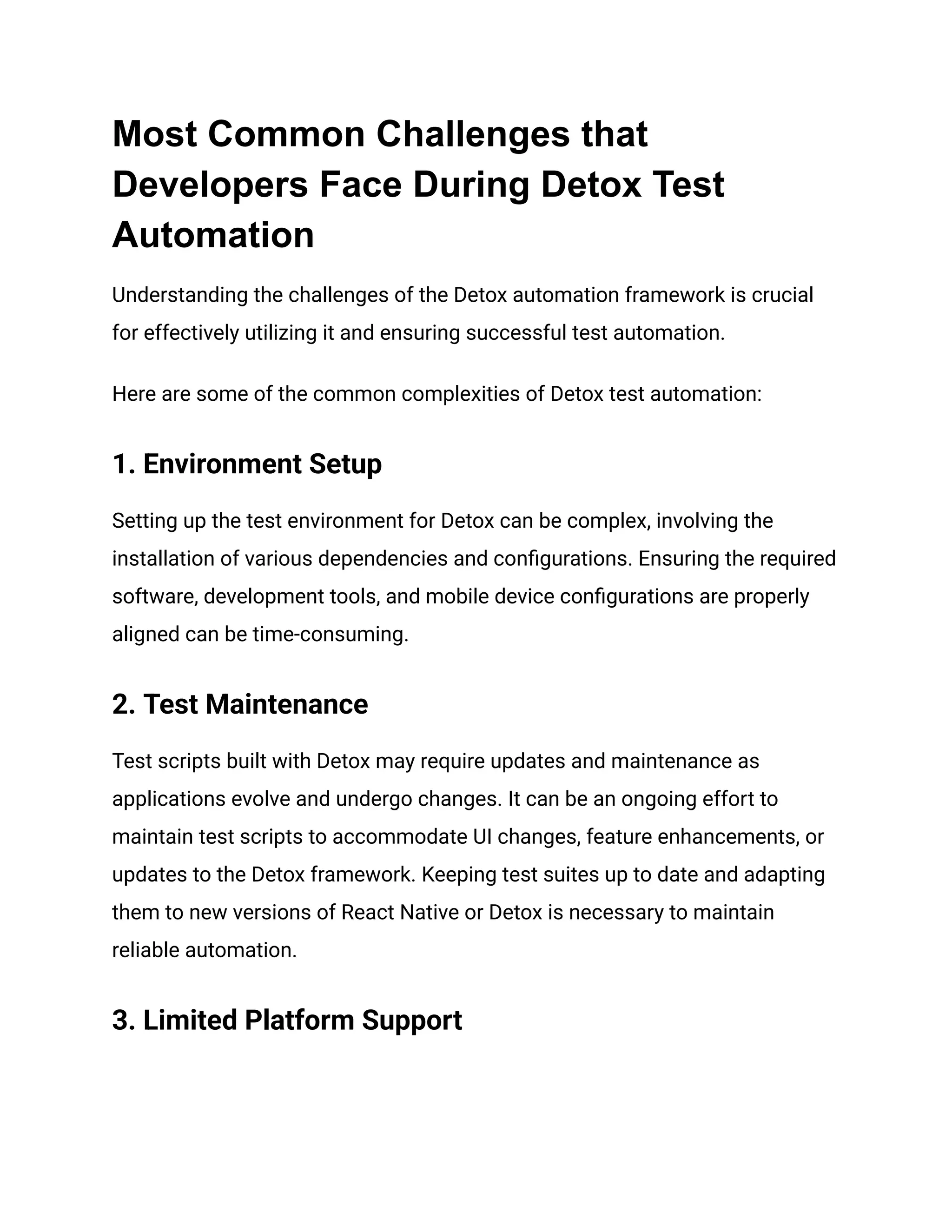

6. Most Common Challenges that
Developers Face During Detox Test
Automation
Understanding the challenges of the Detox automation framework is crucial
for effectively utilizing it and ensuring successful test automation.
Here are some of the common complexities of Detox test automation:
1. Environment Setup
Setting up the test environment for Detox can be complex, involving the
installation of various dependencies and configurations. Ensuring the required
software, development tools, and mobile device configurations are properly
aligned can be time-consuming.
2. Test Maintenance
Test scripts built with Detox may require updates and maintenance as
applications evolve and undergo changes. It can be an ongoing effort to
maintain test scripts to accommodate UI changes, feature enhancements, or
updates to the Detox framework. Keeping test suites up to date and adapting
them to new versions of React Native or Detox is necessary to maintain
reliable automation.
3. Limited Platform Support

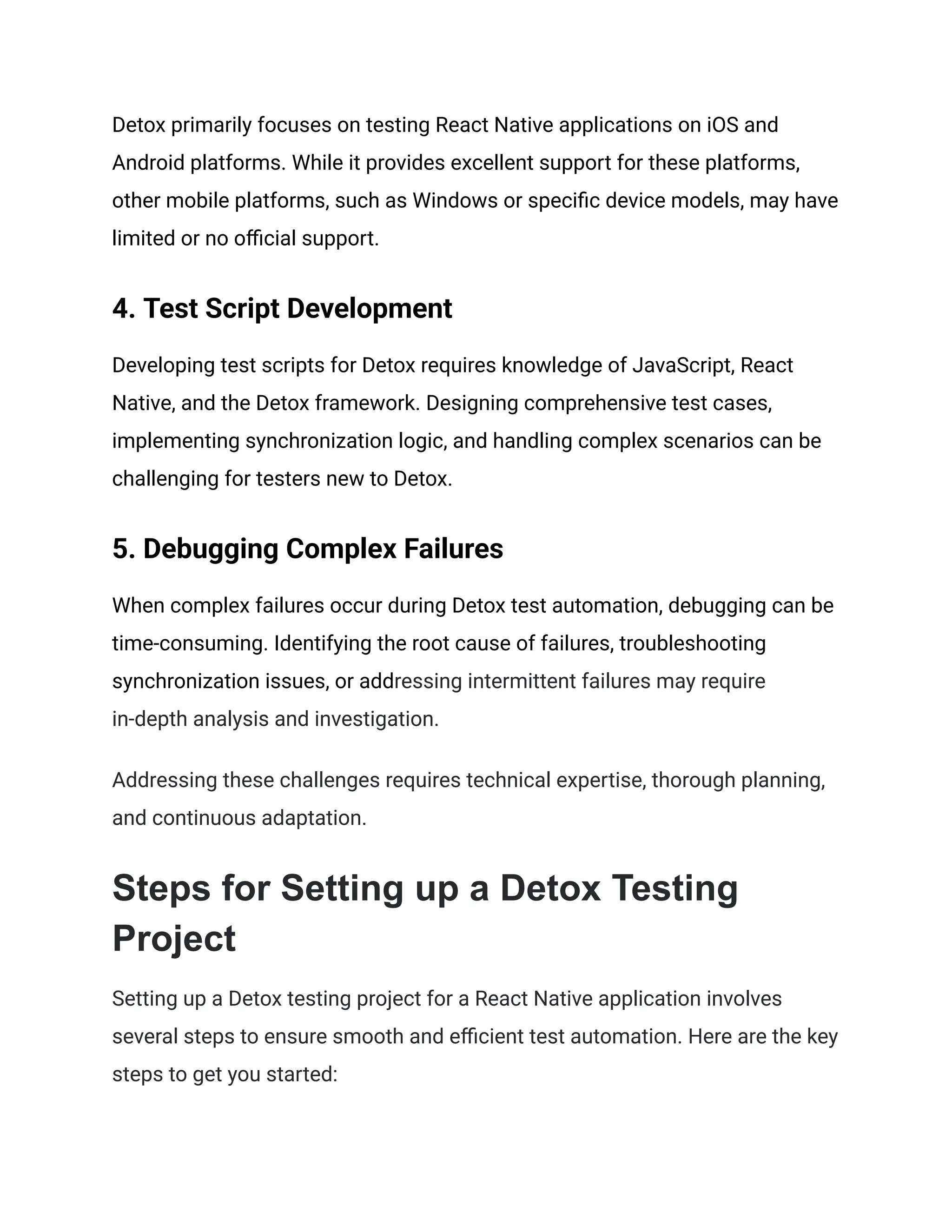

7. Detox primarily focuses on testing React Native applications on iOS and
Android platforms. While it provides excellent support for these platforms,
other mobile platforms, such as Windows or specific device models, may have
limited or no official support.
4. Test Script Development
Developing test scripts for Detox requires knowledge of JavaScript, React
Native, and the Detox framework. Designing comprehensive test cases,
implementing synchronization logic, and handling complex scenarios can be
challenging for testers new to Detox.
5. Debugging Complex Failures
When complex failures occur during Detox test automation, debugging can be
time-consuming. Identifying the root cause of failures, troubleshooting
synchronization issues, or addressing intermittent failures may require
in-depth analysis and investigation.
Addressing these challenges requires technical expertise, thorough planning,
and continuous adaptation.
Steps for Setting up a Detox Testing
Project
Setting up a Detox testing project for a React Native application involves
several steps to ensure smooth and efficient test automation. Here are the key
steps to get you started:

8. Unset
Unset

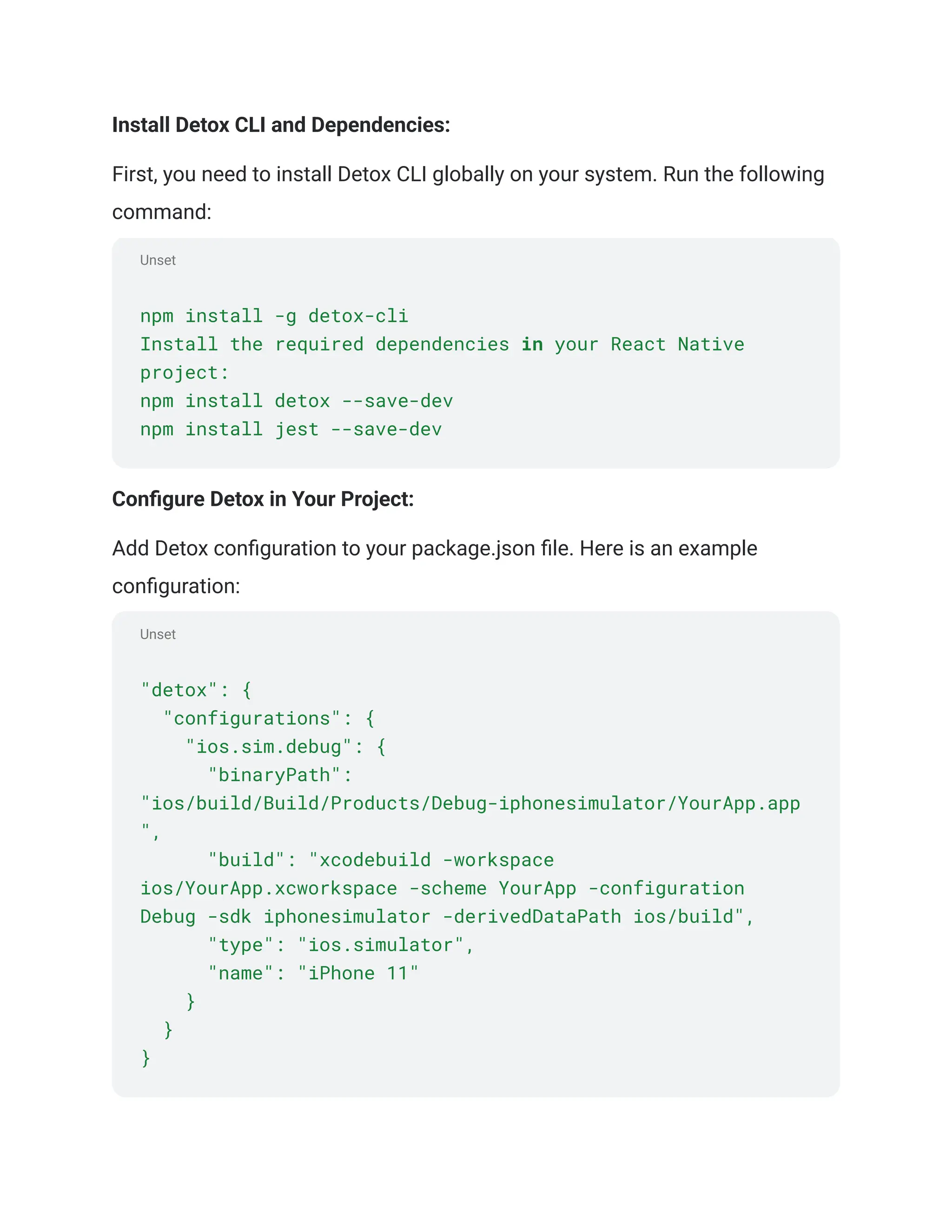

Install Detox CLI and Dependencies:
First, you need to install Detox CLI globally on your system. Run the following
command:
npm install -g detox-cli
Install the required dependencies in your React Native
project:
npm install detox --save-dev
npm install jest --save-dev
Configure Detox in Your Project:
Add Detox configuration to your package.json file. Here is an example
configuration:
"detox": {
"configurations": {
"ios.sim.debug": {
"binaryPath":
"ios/build/Build/Products/Debug-iphonesimulator/YourApp.app
",
"build": "xcodebuild -workspace
ios/YourApp.xcworkspace -scheme YourApp -configuration
Debug -sdk iphonesimulator -derivedDataPath ios/build",
"type": "ios.simulator",
"name": "iPhone 11"
}
}
}

9. Unset
Unset

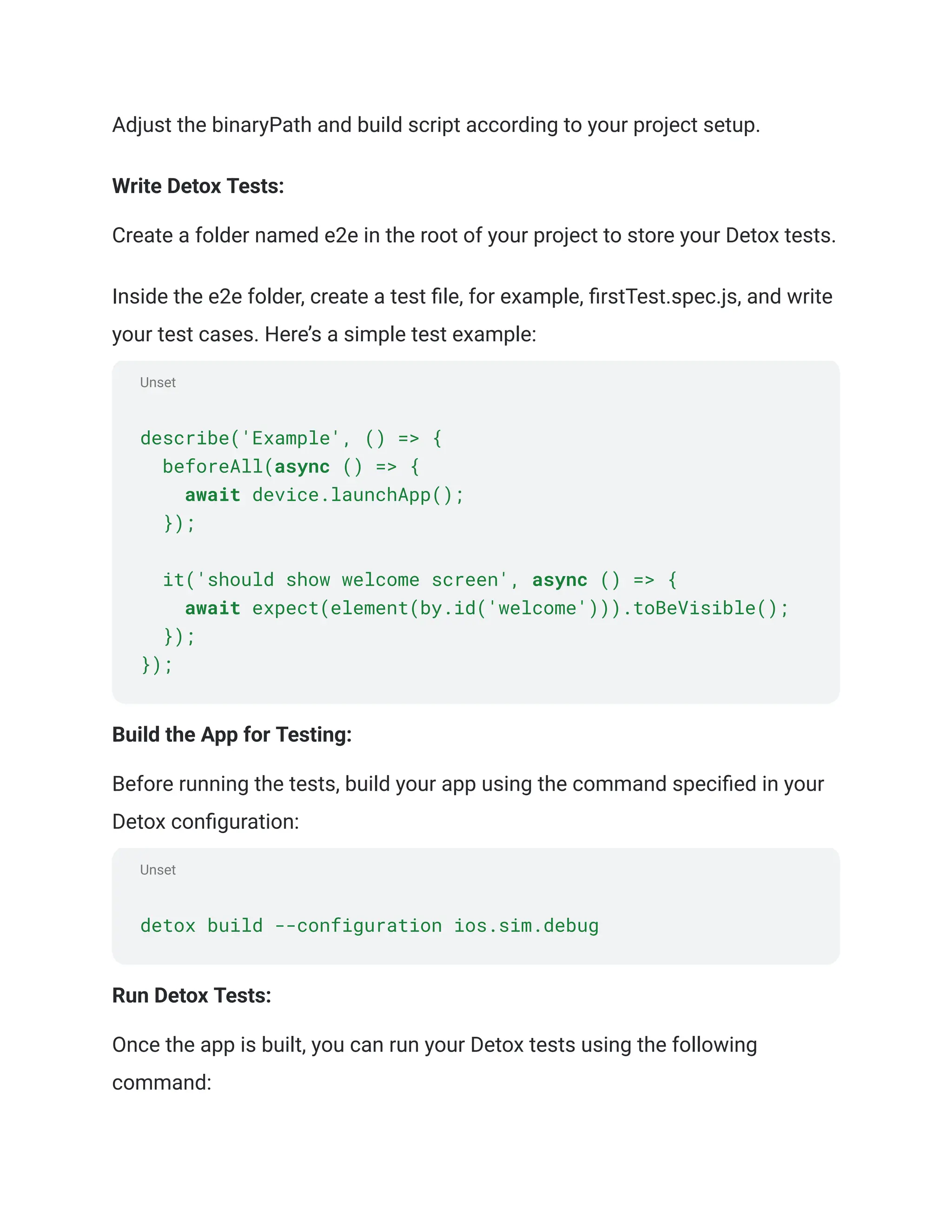

Adjust the binaryPath and build script according to your project setup.
Write Detox Tests:
Create a folder named e2e in the root of your project to store your Detox tests.
Inside the e2e folder, create a test file, for example, firstTest.spec.js, and write
your test cases. Here’s a simple test example:
describe('Example', () => {
beforeAll(async () => {
await device.launchApp();
});
it('should show welcome screen', async () => {
await expect(element(by.id('welcome'))).toBeVisible();
});
});
Build the App for Testing:
Before running the tests, build your app using the command specified in your
Detox configuration:
detox build --configuration ios.sim.debug
Run Detox Tests:
Once the app is built, you can run your Detox tests using the following
command:

10. Unset

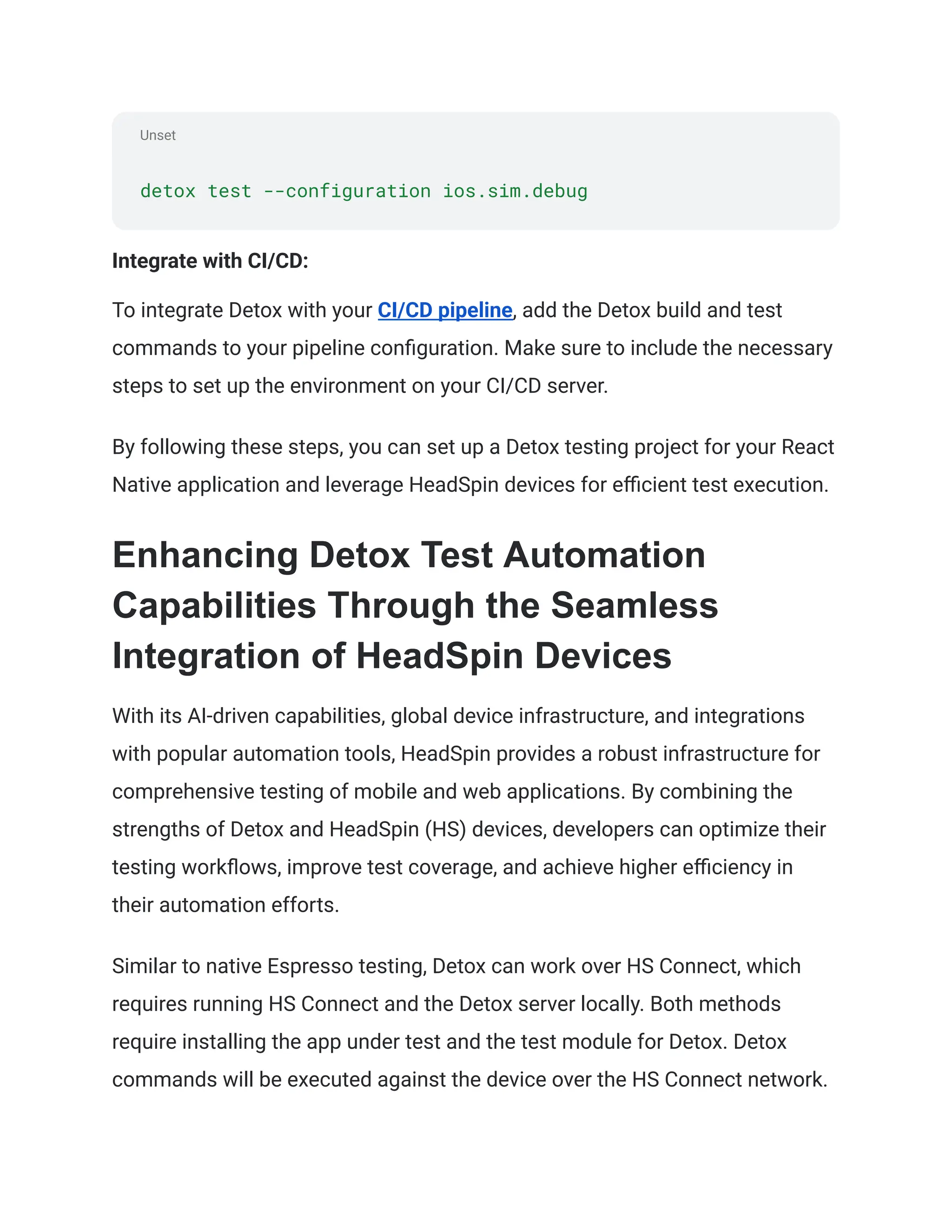

detox test --configuration ios.sim.debug
Integrate with CI/CD:
To integrate Detox with your CI/CD pipeline, add the Detox build and test
commands to your pipeline configuration. Make sure to include the necessary
steps to set up the environment on your CI/CD server.
By following these steps, you can set up a Detox testing project for your React
Native application and leverage HeadSpin devices for efficient test execution.
Enhancing Detox Test Automation
Capabilities Through the Seamless
Integration of HeadSpin Devices
With its AI-driven capabilities, global device infrastructure, and integrations
with popular automation tools, HeadSpin provides a robust infrastructure for
comprehensive testing of mobile and web applications. By combining the
strengths of Detox and HeadSpin (HS) devices, developers can optimize their
testing workflows, improve test coverage, and achieve higher efficiency in
their automation efforts.
Similar to native Espresso testing, Detox can work over HS Connect, which
requires running HS Connect and the Detox server locally. Both methods
require installing the app under test and the test module for Detox. Detox
commands will be executed against the device over the HS Connect network.

11. Unset

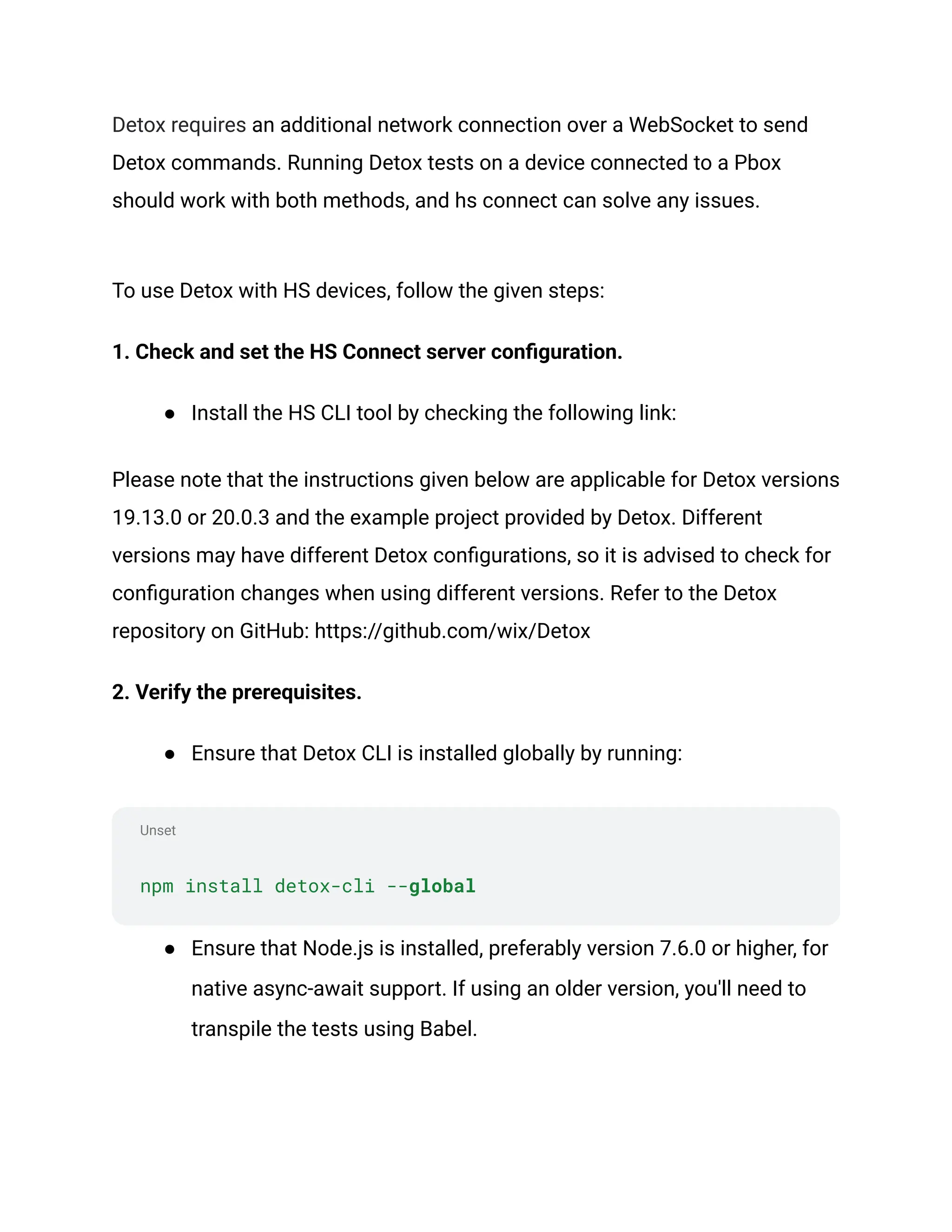

Detox requires an additional network connection over a WebSocket to send
Detox commands. Running Detox tests on a device connected to a Pbox
should work with both methods, and hs connect can solve any issues.
To use Detox with HS devices, follow the given steps:
1. Check and set the HS Connect server configuration.
● Install the HS CLI tool by checking the following link:
Please note that the instructions given below are applicable for Detox versions
19.13.0 or 20.0.3 and the example project provided by Detox. Different
versions may have different Detox configurations, so it is advised to check for
configuration changes when using different versions. Refer to the Detox
repository on GitHub: https://github.com/wix/Detox
2. Verify the prerequisites.
● Ensure that Detox CLI is installed globally by running:
npm install detox-cli --global
● Ensure that Node.js is installed, preferably version 7.6.0 or higher, for
native async-await support. If using an older version, you'll need to
transpile the tests using Babel.

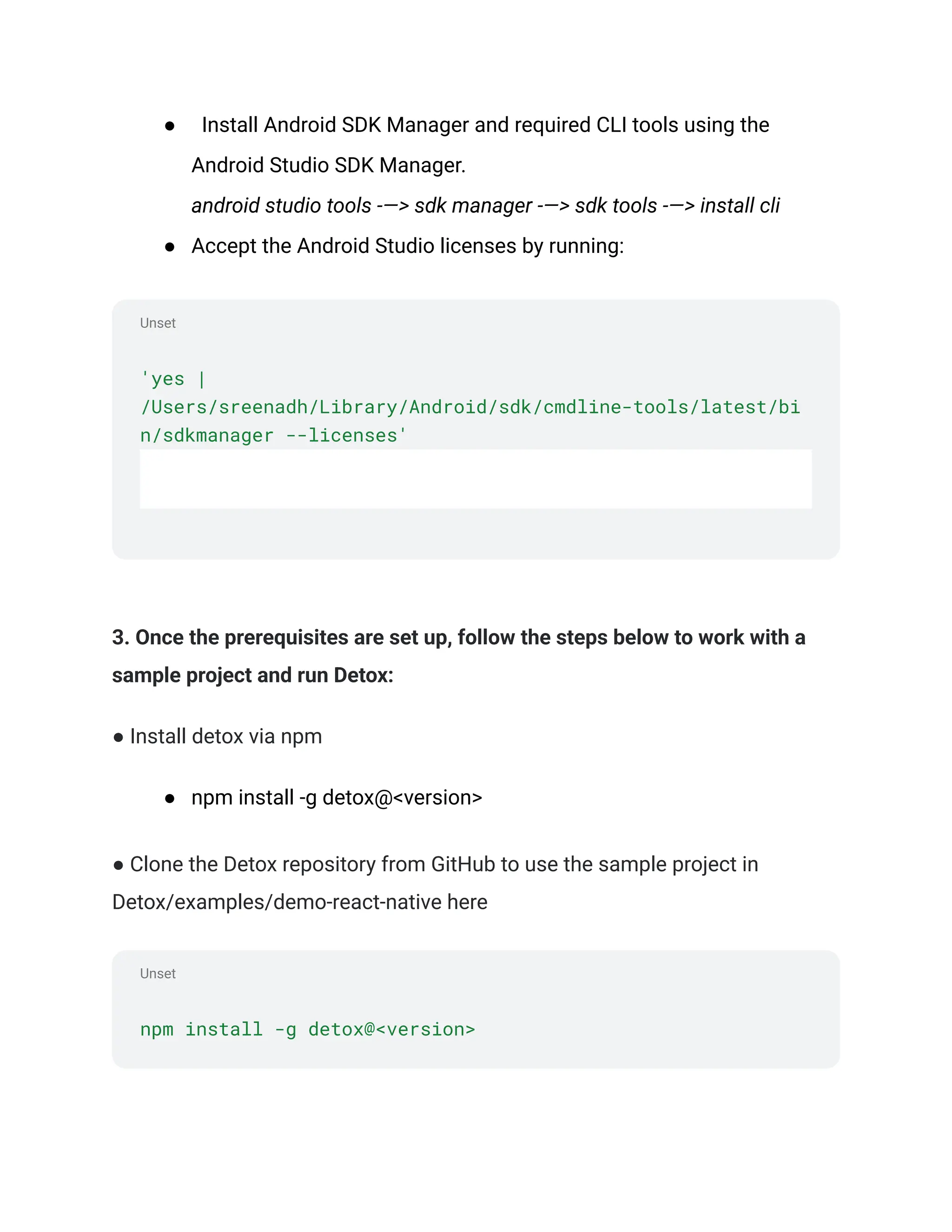

12. Unset
Unset
● Install Android SDK Manager and required CLI tools using the
Android Studio SDK Manager.
android studio tools -—> sdk manager -—> sdk tools -—> install cli
● Accept the Android Studio licenses by running:
'yes |
/Users/sreenadh/Library/Android/sdk/cmdline-tools/latest/bi
n/sdkmanager --licenses'
3. Once the prerequisites are set up, follow the steps below to work with a
sample project and run Detox:
● Install detox via npm
● npm install -g detox@<version>
● Clone the Detox repository from GitHub to use the sample project in
Detox/examples/demo-react-native here
npm install -g detox@<version>

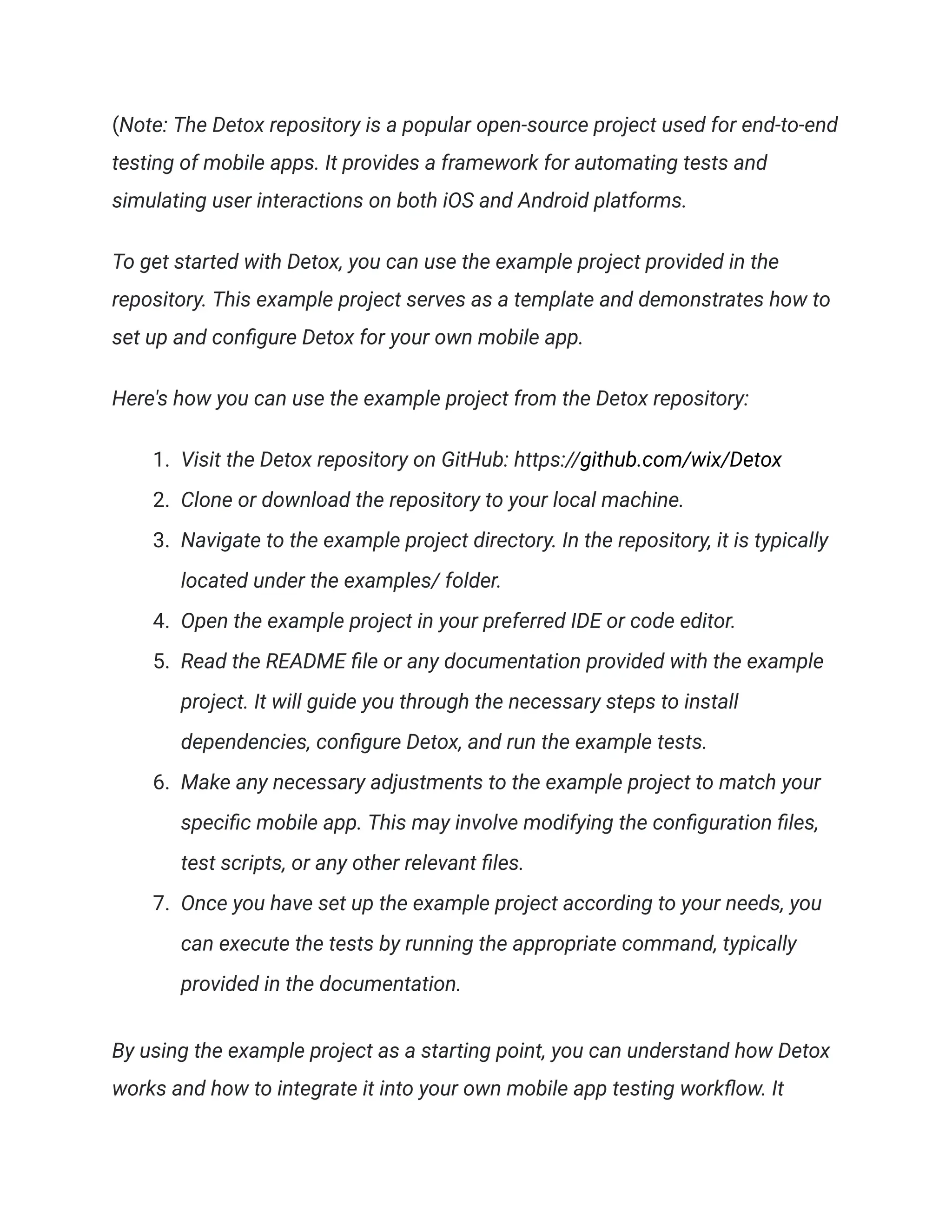

13. (Note: The Detox repository is a popular open-source project used for end-to-end
testing of mobile apps. It provides a framework for automating tests and
simulating user interactions on both iOS and Android platforms.
To get started with Detox, you can use the example project provided in the
repository. This example project serves as a template and demonstrates how to
set up and configure Detox for your own mobile app.
Here's how you can use the example project from the Detox repository:
1. Visit the Detox repository on GitHub: https://github.com/wix/Detox
2. Clone or download the repository to your local machine.
3. Navigate to the example project directory. In the repository, it is typically
located under the examples/ folder.
4. Open the example project in your preferred IDE or code editor.
5. Read the README file or any documentation provided with the example
project. It will guide you through the necessary steps to install
dependencies, configure Detox, and run the example tests.
6. Make any necessary adjustments to the example project to match your
specific mobile app. This may involve modifying the configuration files,
test scripts, or any other relevant files.
7. Once you have set up the example project according to your needs, you
can execute the tests by running the appropriate command, typically
provided in the documentation.
By using the example project as a starting point, you can understand how Detox
works and how to integrate it into your own mobile app testing workflow. It

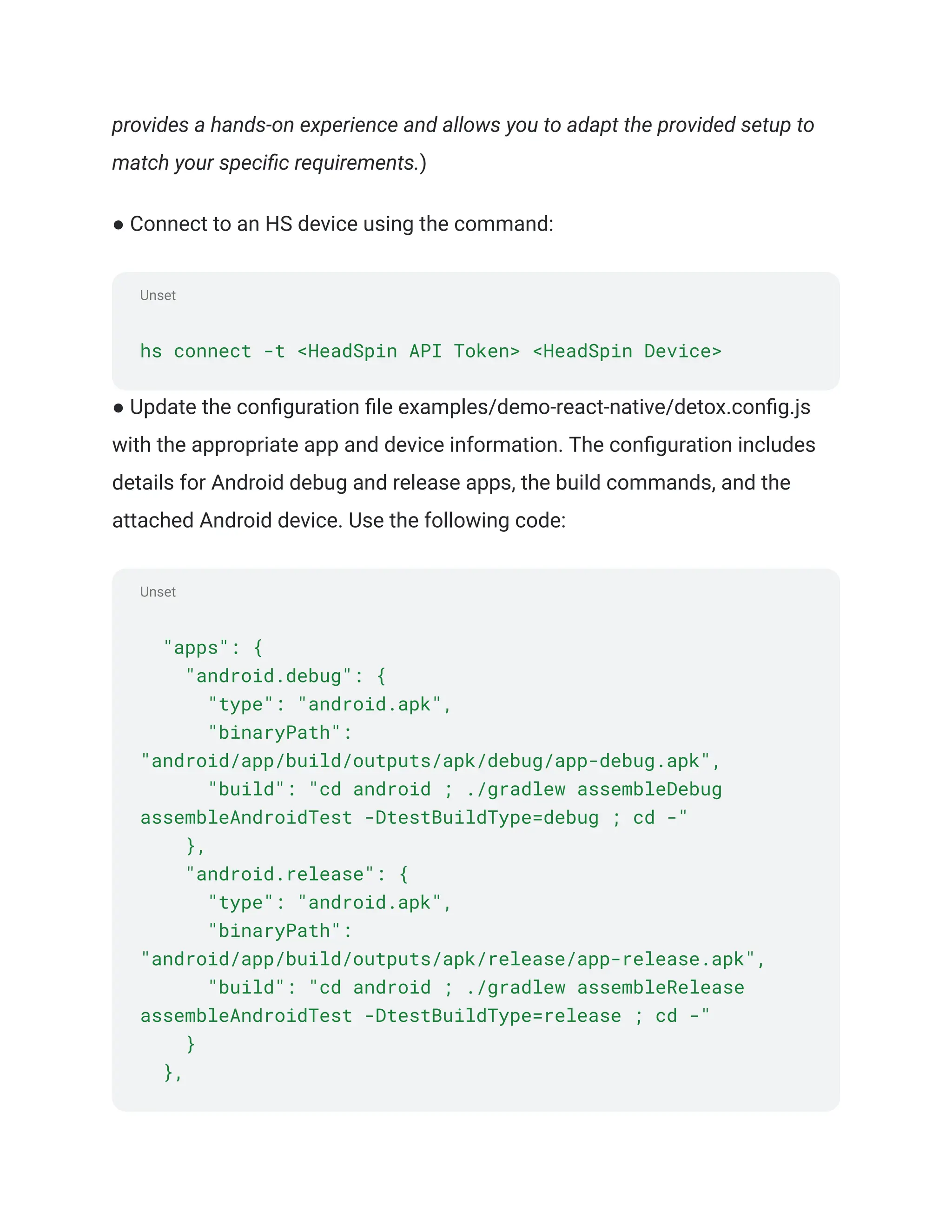

14. Unset
Unset
provides a hands-on experience and allows you to adapt the provided setup to
match your specific requirements.)
● Connect to an HS device using the command:
hs connect -t <HeadSpin API Token> <HeadSpin Device>
● Update the configuration file examples/demo-react-native/detox.config.js
with the appropriate app and device information. The configuration includes
details for Android debug and release apps, the build commands, and the
attached Android device. Use the following code:
"apps": {
"android.debug": {
"type": "android.apk",
"binaryPath":
"android/app/build/outputs/apk/debug/app-debug.apk",
"build": "cd android ; ./gradlew assembleDebug
assembleAndroidTest -DtestBuildType=debug ; cd -"
},
"android.release": {
"type": "android.apk",
"binaryPath":
"android/app/build/outputs/apk/release/app-release.apk",
"build": "cd android ; ./gradlew assembleRelease
assembleAndroidTest -DtestBuildType=release ; cd -"
}
},

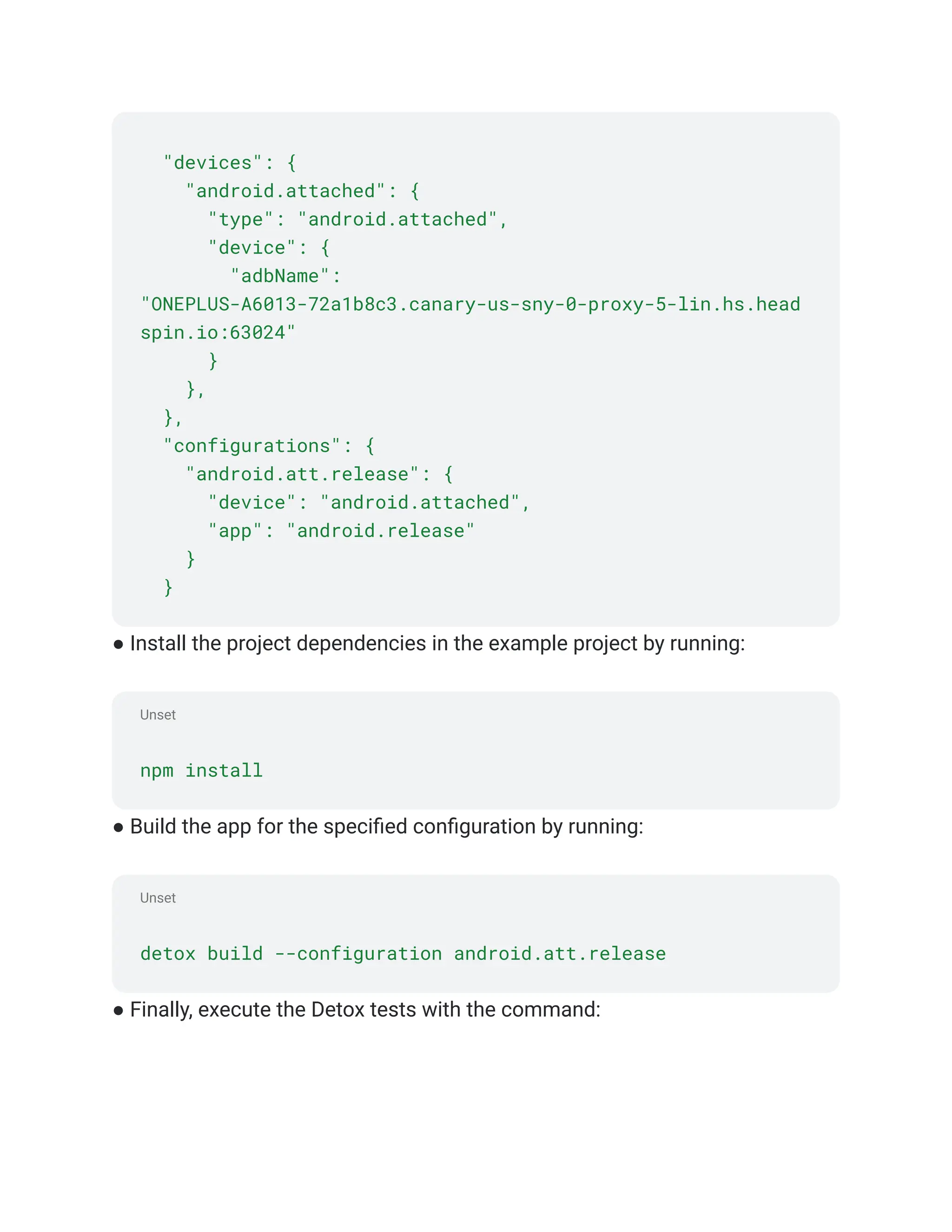

15. Unset
Unset
"devices": {
"android.attached": {
"type": "android.attached",
"device": {
"adbName":
"ONEPLUS-A6013-72a1b8c3.canary-us-sny-0-proxy-5-lin.hs.head
spin.io:63024"
}
},
},
"configurations": {
"android.att.release": {
"device": "android.attached",
"app": "android.release"
}
}
● Install the project dependencies in the example project by running:
npm install
● Build the app for the specified configuration by running:
detox build --configuration android.att.release
● Finally, execute the Detox tests with the command:

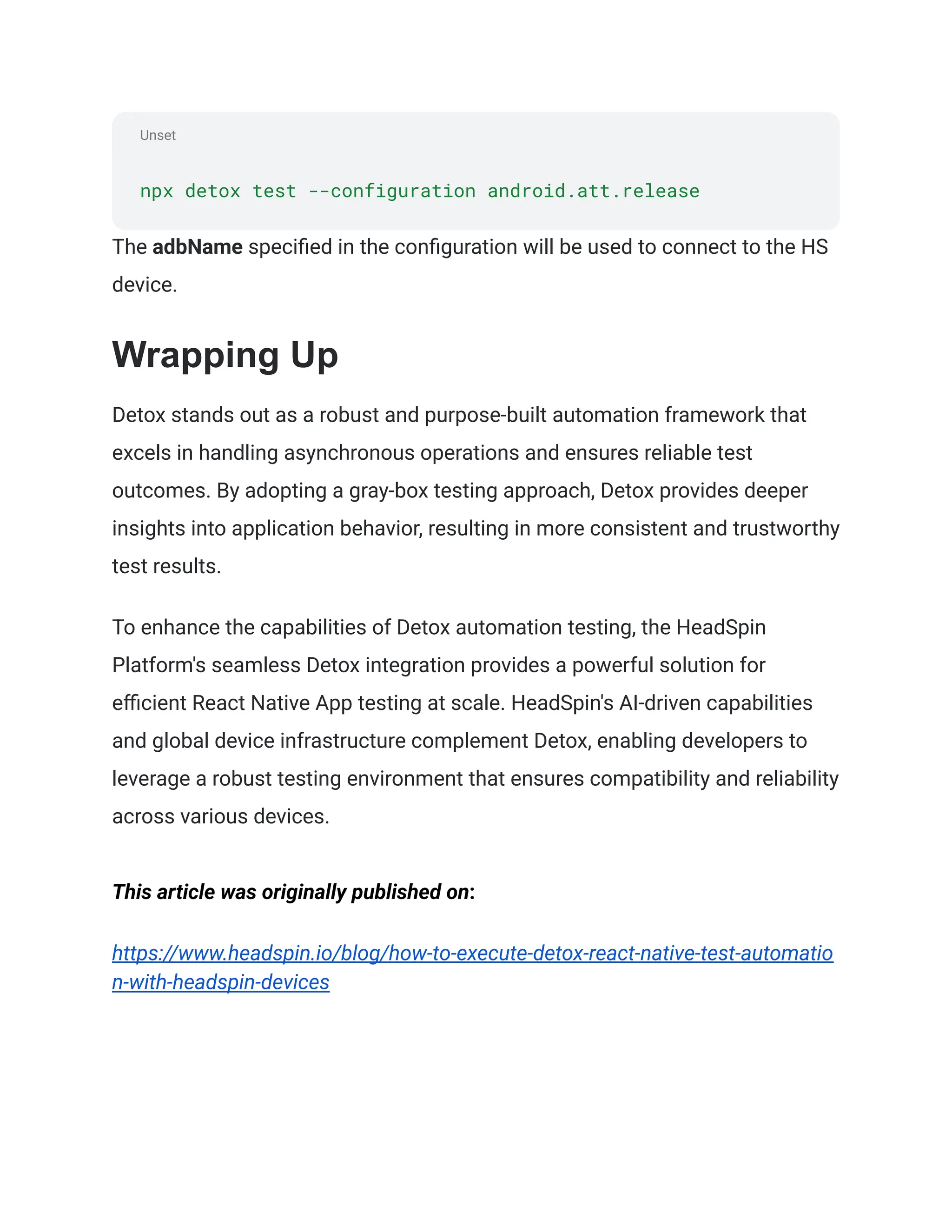

16. Unset
npx detox test --configuration android.att.release
The adbName specified in the configuration will be used to connect to the HS
device.
Wrapping Up
Detox stands out as a robust and purpose-built automation framework that
excels in handling asynchronous operations and ensures reliable test
outcomes. By adopting a gray-box testing approach, Detox provides deeper
insights into application behavior, resulting in more consistent and trustworthy
test results.
To enhance the capabilities of Detox automation testing, the HeadSpin
Platform's seamless Detox integration provides a powerful solution for
efficient React Native App testing at scale. HeadSpin's AI-driven capabilities
and global device infrastructure complement Detox, enabling developers to
leverage a robust testing environment that ensures compatibility and reliability
across various devices.
This article was originally published on:
https://www.headspin.io/blog/how-to-execute-detox-react-native-test-automatio
n-with-headspin-devices
