Inner City Sub Center

Table of Contents Summary of Project Objectives….……………...................... Sub Center Program…...……………..……….……................. Project Site Analysis.………….…….….……………………… Appendices/Studies...…………………………………………... Project Implementation………………………………………… 1 2 3 4 5 Executive Summary Summary of Spaces & Facilities Sub Center Function & Goals Code Analysis Zoning Requirements Existing Conditions Site Plan Analysis Project Schedule Project Costs Spatial Relationship Diagrams Photographs of Site Sub Center Services Miscellaneous

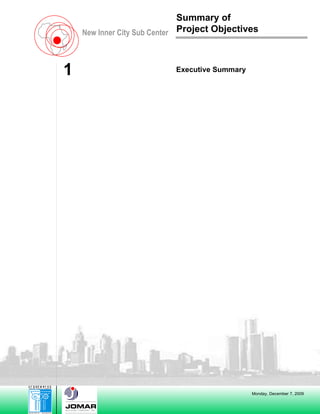

Summary of Project Objectives Executive Summary 1

Summary of Project Objectives Executive Summary This document defines the project scope for the new Inner City Sub Center. The project site is bounded by Iroquois Street to the west; East Forest Avenue to the South; and Pinegrove City Park to the north and east. The Inner City Sub Center has been a fixture in the city of the Detroit since it’s founding in 1969. The Center provides community programs including, but not limited to: youth entrepreneurship, after school and latchkey, athletic teams, a food co-op, and emergency and food clothing distribution. The Inner City Sub Center has outgrown its existing home – a two-and-a- half story school building (formerly Hilger School) - and has insufficient space to house their increasing staff, many programs and the community they serve. The Center currently has a staff of 12 with office space for four; youth programs service nearly 300 children at once; 50 senior citizens participate weekly; and there are several young adults active in educational programs. The space would require extensive structural, mechanical and logistical upgrades in order to operate efficiently. A new building on the existing site (adjacent to the current structure) is proposed with the following features: Administrative and Program Offices Class Rooms Professional Kitchen Banquet Room Food Co-op Community Outreach Center Library and Computer Center Auditorium Gymnasium and Fitness Center Recording and Video Production Studio Silk Screening Area Gift Shop The existing 17,000 square foot building and one-story annex, which housed classrooms, will be demolished once the new structure is complete. A new Center can provide the neighborhood and the entire city of Detroit with a structure that builds upon the many existing programs and services that the Inner City Sub Center provides and a new and exciting venue for community events and gatherings. 1.1

Sub Center Program Sub Center Function & Goals 2 Sub Center Services Summary of Spaces & Facilities

Function The Inner City Sub Center promotes positive African-American values, pride, self love and respect while raising the level of Black consciousness, awareness and understanding throughout the community. Sub Center Program Goals The Inner City Sub Center philosophy is people helping people by providing meaningful and relevant programs, services, and activities to the Black community through Nguzo Saba (Swahili), Seven Principles of Blackness . The Seven Principles of Blackness consist of: UMOJA (Unity) KUJICHAGULIA (Self-determination) UJIMA (Collective Work) UJAMAA (Cooperative Economics) NIA (Purpose) KUUMBA (Creativity) IMANI (Faith) Services The Inner City Sub Center offers the following services to the community: Youth Academy/Youth In Crisis Program The Youth Academy/Youth in Crisis Program is an umbrella of activities that help nurture, educate and guide children by teaching them discipline, self-esteem, respect and self-awareness. Children 5 to 7 participate in the Ebony Youth Program. Youth 9 to 14 are encouraged to join computer skills training classes, African dance and drumming, the Alkebulan Male Fancy Drill Team and the Buckle-Up Kids. Program hours are Monday-Friday 3p.m. to 8p.m. Summer hours are noon to 8 p.m. Ujamaa Club/Youth Entrepreneurial Program Young Adults ages 14 to 21 develop entrepreneurial training skills and learn to operate a business through classroom training, economic development training and internships. At the end of the training the students actually develop, organize and run a business where products and merchandise are sold to the 2.1

Sub Center Program Services (cont’d) public. Participants are also taught the importance of African-American ownership and economic empowerment. Alkebulan Male Fancy Drill Team Organized in 1989, young males 9 to 16 are taught adult male responsibility, discipline, pride and unity under the direction of an instructor who guides their development through the use of exercise in marching formations, and movement through methodical training. The Buckle-Up Kids Boys and girls 6 to 16 learn seat-belt safety through the original Buckle-Up Kids. This national program educates and promotes the importance of car safety through the use of song and dance. The Buckle-Up Kids have received numerous awards including a resolution from The Detroit City Council and are acknowledged as the City of Detroit's Seat-Belt Ambassadors through out the Metropolitan area and the State of Michigan. The Buckle-up kids have also traveled nationally. After School Latch Key The Sub Center provides an after school latch key program for children ages 5 to 14, Monday-Friday from 3p.m. to 7p.m. The program offers tutorial, recreational, educational services and cultural activities. Latch key children may be picked-up from various schools or brought to the program. The latch key program charges a minimal fee for services and parent involvement is mandatory. Food Co-Op Store/Emergency Food Program The Sub Center provides fresh foods to needy families daily at the co-op. Store hours are from 10a.m. to 7p.m., Monday-Friday and 10a.m. to 5p.m., Saturday. The product line includes snacks, fruits and vegetables, dry goods, canned goods and meat products. The emergency food program distributes emergency food boxes monthly to needy families and senior citizens with referral. Food and monetary donations are always welcome. Free Breakfast/Free Meals Program This program provides more than 10,000 men, women and children annually with nutritious meals. Free breakfast is served Monday-Thursday from 8:30a.m. to 10:30a.m. After school snack meals are also served daily to latch key and 2.2

Sub Center Program Services (cont’d) youth academy participants. The free meals program additionally serves more than 1,000 people at our annual Thanksgiving and Kwanzaa Karamu Feasts. Emergency Clothing Programs The emergency clothing program offers free clothing and shoes to needy families with referral from outside agencies, block clubs, schools, churches and social services programs. The program sponsors an annual clothing, shoes and toy donation drive during Kwanzaa. Neighborhood Development Organization A community-based referral service is available for needy residents. Outreach is the means to disseminate community information by sponsoring community forums and monthly senior citizen luncheons. Working in cooperation with residents and luncheons. Working in cooperation with residents and community groups, block clubs, churches, etc. to address community issues and problems is a major component of this program. The Center serves as a meeting place for many community groups and organizations. The Million Man Alumni Association meets every Thursday at 7p.m. The Center also serves as the headquarters for the Detroit Falcons Football Organization. Zawadi Gift Shop Zawadi Gift Shop stocks a wide selection of clothing including Million Man March apparel and products, cultural sports wear and African garments. The shop is open Monday-Friday, 10a.m. to 6p.m., and Saturday. Zawadi carries a large selection of books and greeting cards. The gift shop also serves as a training ground for the youth entrepreneurial program. Vending opportunities in various locations throughout the city are also a fundamental part of this program. Food Co-Op "Share" Program The monthly Co-op "Share" program gives the community residents the opportunity to save money on their food purchases through cooperative buying. Each participant is asked to pay a fee for each "Share" they purchase and to give (2) hours cooperative work to assist in purchasing, packing and distributing food to the members. Monthly "Share" boxes include at least 2 meats, bread, eggs, fresh fruits and vegetables. This program is operated in conjunction with the Coalition of Black Farmers and The Million Man Alumni Association. 2.3

Summary of Spaces & Facilities Sub Center Program 2.4 300 Gymnasium / Game Room 140 35 4 Cot Storage 140 35 4 Storage 240 30 8 Restrooms 2520 2520 4 Classroom 72 Early Childhood Development Center 300 300 1 Storage 2500 2500 1 Kitchen 7500 7500 1 Multi-Use Room 500 Banquet / Multi Purpose Hall 144 144 1 Office 180 180 1 Storage 200 Co-op Store / Food Pantry 200 200 1 Quiet Room 1750 1750 1 Classroom/Meeting Room 50 Senior Citizens Center 8000 800 10 200 Classrooms 144 144 1 1 Storage/Copier/Safe 324 324 1 1 Conference Room 108 108 1 1 Emergency Services 108 108 1 1 Seniors 648 108 6 6 Instructors 144 144 1 1 Youth Director 144 144 1 1 IT Technician 144 144 1 1 Office Manager 180 180 1 1 Deputy Director 225 225 1 1 Executive Director Administrative TOTAL SF UNIT SF NUMBER OF ROOMS OCCUPANCY LOAD ROOM/ AREA

Summary of Spaces & Facilities (cont’d) Sub Center Program 2.5 Gift Shop / Boutique 100 100 1 Storage 900 450 2 Lockers 2000 2000 1 Classroom 600 600 1 Weight room 300 300 Circulation 400 400 1 13 Reader Space 300 300 1 2 Staff Work Space TOTAL SF UNIT SF NUMBER OF ROOMS OCCUPANCY LOAD ROOM/ AREA 6150 6150 1 Auditorium 500 Auditorium 1000 1000 1 Aerobics 30 Physical Fitness Center 300 300 1 3 Technical Center 200 200 1 6 Computer Stations 1000 1000 1 2000 (books) Stacks Library 400 400 1 Kitchen 800 800 1 Classroom 20 Kitchen / Culinary Art Program 1000 1000 1 30 Computer Technology Lab 400 400 1 Gift Shop 100 100 1 Storage 500 500 1 Work Shop 50 Silk Screen Shop 450 225 2 Storage 400 200 2 Restrooms 300 150 2 Showers 7296 7296 1 Gymnasium/Game Room

Summary of Spaces & Facilities (cont’d) Sub Center Program 2.6 1500 1500 1 Stage 1 30 Staff Lounge 1000 1000 10 Studio 71409 TOTAL 880 880 1 4 ( vehicle) Latch Key Garage 1200 1200 50 Outdoor Recreation/Playground Outdoor / Garage Spaces 180 180 1 Electrical 400 400 1 Mechanical 9010 Circulation (15%) 59739 SUBTOTAL 500 500 1 Storage Lavatories 360 180 2 Men 400 200 2 Women 600 150 4 Storage Rooms Recording Studio TOTAL SF UNIT SF NUMBER OF ROOMS OCCUPANCY LOAD ROOM/ AREA 3200 800 4 Rental Rooms 300 150 2 Lockers/Showers 370 185 2 Restrooms 80 80 1 Kitchen 600 600 1 Lounge 150 150 1 Storage

Project Site Analysis Zoning Requirements 3 Code Analysis Site Plan Existing Conditions

Zoning Requirements Building Use: Michigan Building Code - 2000 E Educational Use Group, (Main Use) Accessory Uses A-1 Assembly Use Group, Theaters – (Auditorium) A-3 Assembly Use Group, Structures – (Banquet/Multi-purpose Hall/Gym) I-4 Institutional Use Group, Child Care Facility – more than 5 children 2-1/2 years of age or less for less than 24 hours. See exception allowed in Code Analysis Zoning: Detroit Zoning Ordinance - 2003 R-1 Residential District Non-Profit Neighborhood Center permitted in R-1 Residential District with approval (Ord. No. 81.0303) Lot Size Requirements – (Ord. No. 81.0403) Non-Profit Neighborhood Center Min. Lot Area = 10,000 sq. ft . Min. Lot Width = 70 feet Yard Requirements – (Ord. No. 81.0503) Non-Profit Neighborhood Center Front =20 ft. Side = Formula B* Rear = 30 ft . *[Formula B = length + 2(height)/6 but not less than 5 ft.] Height Limitations – (Ord. No. 81.0703) Non-Profit Neighborhood Center Max. Height = 35 feet Lot Coverage – (Ord. No. 81.0803) Non-Profit Neighborhood Center – The combined area occupied by all buildings shall not exceed thirty-five (35) percent of the area of the zoning lot. Parking Requirements – (Ord. No. 47.0108N) Non-Profit Neighborhood Center – One (1) space for each one hundred (100) square feet of gross floor area. Off-Street parking location – Not more than 100 ft. from the building or use to be served measured from the nearest point of the off-street parking and the nearest point of the building or use to be served. Loading Requirements – (Ord. No. 47.0200) Educational, recreational, cultural facilities over 10,000 sq. ft. but less than 100,000 sq. ft. require 1 loading and unloading berth at 12 ft. x 35 ft. (not including aisle and maneuvering space.) Project Site Analysis 3.1

Code Analysis Michigan Building Code - 2000: E Educational Use Group, (Main Use) Accessory Uses A-1 Assembly Use Group, Theaters – (Auditorium) A-3 Assembly Use Group, Structures – (Banquet/Multi-purpose Hall/Gym) I-4 Institutional Use Group, Child Care Facility – exception allowed when facility provides care for more than five but no more than 100 children, 2-1/2 years or less of age, when rooms where such children are cared for are located on the level of exit discharge and each of these child care rooms has an exit door directly to the exterior shall be classified as Use Group E. Type of Construction – (Table 503) Type I A-unlimited stories and area; B-5 story limit, unlimited area Type IB Fire-Resistance Rating for Building Elements – (Tables 601 & 602) 2 hours - Structural Frame incl. columns, girders, & trusses 2 hours – Bearing Walls; interior and exterior 1 hour – Nonbearing Walls & Partitions; interior and exterior (0 hours if separation distance is 30 feet or greater.) 2 hours – Floor construction incl. supporting beams and joists 1 hour – Roof construction incl. supporting beams and joists Maximum Area of Exterior Wall Openings – (Table 704.8) No Limit – protected & fire separation distance greater than 30 feet. Fire Wall Fire-Resistance Ratings – (Table 705.4) 3 hours – Use Groups A, E, and I. Separation of Occupancies – (706.3.5 and Table 302.3.3) 0 hours – exception ‘e’ – assembly areas accessory to Group E are not considered separate occupancies. Shaft & Vertical Exit Enclosures Fire-Resistance Rating – 707.4 Not less than 1 hour where connecting less than 4 stories and shaft enclosures shall have a rating not less than the floor assembly penetrated but need not exceed 2 hours. Max. No. of Stories/Height – 5 story limit / 35’ height (Table 503) Project Site Analysis 3.2

Code Analysis cont’d Interior Wall & Ceiling Finish Requirements – (Table 803.4) Class B – vertical exits and exit passageways. Class C – exit access corridors, other exitways, rooms & enclosed spaces. See table for exceptions. Fire Protection – Use Groups A-1, A-3, and E Group A-1 – 903.2.1.1 – automatic sprinkler system shall be provided throughout a fire area containing an area exceeding 12,000 sq. ft. or if the occupant load is 300 or more or if the fire area is located on a floor other than the level of exit discharge. Group A-3 – 903.2.1.3 – automatic sprinkler system shall be provided throughout a fire area containing an area exceeding 12,000 sq. ft. or if the occupant load is 300 or more or if the fire area is located on a floor other than the level of exit discharge. Group E – 903.2.2 – automatic sprinkler system shall be provided throughout all Group E areas greater than 20,000 sq. ft. in area. An automatic sprinkler system shall also be provided for every portion of educational buildings below the level of exit discharge. Fire Alarm & Detection System – Use Group A & E Group A – 907.2.1 – a manual alarm system shall be installed in accordance with NFPA 72 in Group A occupancies having an occupant load of 300 or more. Portions of Group E occupancies occupied for assembly purposes shall be provided with a fire alarm as required for the Group E occupancy. Exception: manual alarm boxes are not required where the building is equipped throughout with an automatic sprinkler system and the notification appliances will activate upon sprinkler water flow. Group E – 907.2.3 – a manual fire alarm system shall be installed in Group E occupancies. When automatic sprinkler systems or smoke detectors are installed, such systems or detectors shall be connected to the building fire alarm system. Means of Egress – Use Groups A and E Exit Access Travel Distance – 1004.2.4 located so that the maximum length of exit access travel, measured from the most remote point to the entrance to an exit along the natural and unobstructed path of egress travel, shall not exceed 250’ for fully automatic sprinklered buildings (Table 1004.2.4) Project Site Analysis 3.3

Code Analysis cont’d Means of Egress – Use Groups A and E (cont’d) Corridor Fire-Resistance Rating – Table 1004.3.2.1 0 hours for Use groups A & E serving an occupant load greater than 30 with a fully automatic sprinklered system. Exception: Not required for corridors in occupancy group E where each room that is used for instruction has at least one door directly to the exterior and rooms for assembly purposes have at least one-half of the req.’d means or egress doors opening directly to the exterior. Exterior doors are required to be at ground level. Minimum Corridor Width – 1004.3.2.2 Not less than 44 inches or as determined by Table 1003.2.3 Minimum Stair Width – 1003.3.3.1 Not less than 44 inches or as determined by Table 1003.2.3 Minimum Number of Exits per Occupant Load – Table 1005.2.1 2 exits required for occupant loads of 1 to 500. Minimum Door Size – 1003.3.1.1 & 1003.3.1.2 32 inches min. (48 inch max) width x 80 inches min. height - door shall be side hinged and swing in the direction of egress travel where serving an occupant load of 50 or more persons. Projections into clear width – 1003.3.1.1.1 Not to exceed 4 inches between 34” and 80” above the floor or ground. There shall not be any projections into the required clear width lower than 34” above the floor or ground. Project Site Analysis 3.4

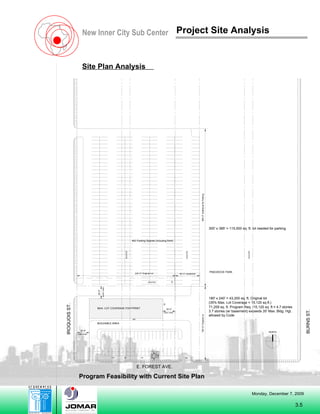

Site Plan Analysis Project Site Analysis 3.5 Program Feasibility with Current Site Plan

Site Plan Analysis (cont’d) Project Site Analysis 3.6 Program Feasibility with Additional Site – Option A

Site Plan Analysis (cont’d) Project Site Analysis 3.7 Program Feasibility with Additional Site – Option B

Project Implementation Project Costs 4 Project Schedule

Project Implementation Project Costs 4.1

Project Implementation Project Schedule 4.2

Appendices/Studies 5 Photographs of Site Spatial Relationship Diagrams Miscellaneous

Photographs of Site 5.1 Appendices/Studies South View along E. Forest Ave. looking East. West View along Iroquois looking North.

Photographs of Site (cont’d) 5.2 Appendices/Studies East View looking West from Pinegrove Park. East View looking North through Pinegrove Park. East View along E. Forest Ave. looking West.

Photographs of Site (cont’d) 5.3 Appendices/Studies North View from Pinegrove Park looking West. North View looking East from Parking Lot.

Photographs of Site (cont’d) 5.4 Appendices/Studies North View from Pinegrove Park looking West. Parking access from Iroquois looking North View through Pinegrove Park looking South along Iroquois View looking East from Parking Lot.

Photographs of Site (cont’d) 5.5 Appendices/Studies View thru Pinegrove Park looking South along Iroquois View through Pinegrove Park looking North from Parking Lot. View through Pinegrove Park looking North from Parking Lot. View through Pinegrove Park looking East from Parking Lot.

Photographs of Site (cont’d) 5.6 Appendices/Studies View from Pinegrove Park looking South View from Pinegrove Park looking West. View from Pinegrove Park looking West.

Spatial Relationship Diagram Administrative 5.7 Security/ Checkpoint Building Entry To Activity or Event To Office Administrative 2,169 sq. ft. Youth Director 144 sq. ft. 108 sq. ft. Emergency Services 180 sq. ft. Deputy Director 225 sq. ft. Executive Director 324 sq. ft. Conference Room Storage Copier/Safe 144 sq. ft. 144 sq. ft. IT Tech 144 sq. ft. Office Manager 108 sq. ft. Seniors 108 sq. ft. Instructors 108 sq. ft. Instructors 108 sq. ft. Instructors 108 sq. ft. Instructors 108 sq. ft. Instructors 108 sq. ft. Instructors

Spatial Relationship Diagram Classrooms 5.8 10 Classrooms at 800 sq. ft. each. 3 classrooms with retractable moveable walls to accommodate larger events. Senior Citizens Center Gift Shop / Boutique Will be in close proximity to Early Childhood Development Center. Will be run by the Youth as part of the Entrepreneurship Program. Shall sell garments, books, jewelry, apparel, cards, black history items, souvenirs, etc. Classrooms 8,000 sq. ft. Classroom 800 sq. ft. Classroom 800 sq. ft. Classroom Classroom 800 sq. ft. Classroom Classroom 800 sq. ft. Classroom Classroom 800 sq. ft. Classroom Classroom 800 sq. ft. Classroom Classroom 800 sq. ft. Classroom 800 sq. ft. Classroom 800 sq. ft. Classroom 800 sq. ft. Senior Citizens Center 1,950 sq. ft Quiet Room 200 sq. ft. Classroom/ Meeting Room 1,750 sq. ft. Gift Shop Boutique 500 sq. ft. Office 100 sq. ft. Gift Shop/ Boutique 400 sq. ft.

Spatial Relationship Diagram Banquet / Multi Purpose Hall Storage 300 sq. ft. Kitchen 2,500 sq. ft. Kitchen/ Culinary Arts Program 5.9 Membership based store that will be part of the Youth Entrepreneurship Program. Will store & sell dry goods, fruit & vegetables, halal meats. Includes refrigeration and shelving. Will share portion of Kitchen with Culinary Arts Program To be located next to the main kitchen. Culinary Arts kitchen will be part of main kitchen. Multi-Use Room 7,500 sq. ft. Banquet/ Multi-Purpose Hall 7,500 sq. ft Kitchen/ Culinary Arts Program 1,200 sq. ft Kitchen 400 sq. ft. Classroom 800 sq. ft. Co-op Store/ Food Pantry 324 sq. ft. Office 144 sq. ft. Store/ Food Pantry 180 sq. ft. Co-op Store / Food Pantry Loading Dock Loading Dock

Spatial Relationship Diagram 5.10 Computer Technology Lab Early Childhood Development Center Computer Technology Lab 1,000 sq. ft All classrooms will have direct access at grade to 1,200 sq. ft. enclosed play area. Lab can be located at a lower level. Computer Technology Lab 1,000 sq. ft Early Childhood Development Center 3,040 sq. ft. Classroom 630 sq. ft. Cot Storage 35 sq. ft. Storage 35 sq. ft. Boys Restroom 30 sq. ft. Girls Restroom 30 sq. ft. Classroom 630 sq. ft. Classroom 630 sq. ft. Classroom 630 sq. ft. Boys Restroom 30 sq. ft. Cot Storage 35 sq. ft. Storage 35 sq. ft. Girls Restroom 30 sq. ft. Girls Restroom 30 sq. ft. Boys Restroom 30 sq. ft. Girls Restroom 30 sq. ft. Storage 35 sq. ft. Cot Storage 35 sq. ft. Storage 35 sq. ft. Cot Storage 35 sq. ft. Boys Restroom 30 sq. ft. Outside Outside Outside Outside

Spatial Relationship Diagram Gymnasium 5.11 Physical Fitness Center Gymnasium/Game Room 9,346 sq. ft. Gymnasium/Game Room 7,296 sq. ft. Storage 225 sq. ft. Storage 225 sq. ft. Boys Locker Room 450 sq. ft. Restroom 200 sq. ft. Showers 150 sq. ft. Girls Locker Room 450 sq. ft. Restroom 200 sq. ft. Showers 150 sq. ft. Physical Fitness Center 1,600 sq. ft Weight Room 600 sq. ft. Aerobics 1,000 sq. ft.

Spatial Relationship Diagram Auditorium Auditorium 6,150 sq. ft. Stage 1,500 sq. ft. Library 5.12 Auditorium 8,150 sq. ft Storage 500 sq. ft. Library 2,500 sq. ft. Reader space 400 sq. ft. Computer Stations (6) 200 sq. ft. Circulation 300 sq. ft. Stacks 1,000 sq. ft. Staff Work Space 300 sq. ft. Technical Center 300 sq. ft.

Spatial Relationship Diagram Staff Lounge Staff Lounge 1,350 sq. ft Silk Screen Shop Silk Screen Shop 2,600 sq. ft. Silk Screen Shop 2,000 sq. ft. Work Shop 500 sq. ft. 5.13 Lounge 600 sq. ft. Kitchen 80 sq. ft. Men’s Restroom 185 sq. ft. Men’s Locker/ Showers 150 sq. ft. Women’s Locker/ Showers 150 sq. ft. Women’s Restroom 185 sq. ft. Storage 100 sq. ft.

Spatial Relationship Diagram Rental Rooms 5.14 Recording Studio Rental Rooms 3,200 sq. ft. Classroom 800 sq. ft. Classroom 800 sq. ft. Classroom 800 sq. ft. Classroom 800 sq. ft. Recording Studio 1,150 sq. ft. Storage 150 sq. ft. Studio 1,000 sq. ft.
