2016 Ford Mustang eBrochure

2016 MUSTANG
ford.comShelby GT350. Fastback. Oxford White. Available equipment.

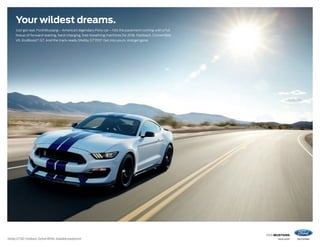

Your wildest dreams.
Just got real. Ford Mustang – America’s legendary Pony car – hits the pavement running with a full
lineup of forward-leaning, hard-charging, free-breathing machines for 2016. Fastback. Convertible.
V6. EcoBoost.®
GT. And the track-ready Shelby GT350.®
Get into yours. And get gone.

2016 MUSTANG
ford.com
Shelby GT350R. Fastback. Race Red. Available equipment.
1
Available feature.

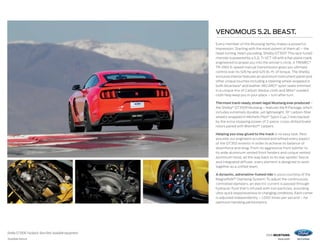

VENOMOUS 5.2L BEAST.
Every member of the Mustang family makes a powerful
impression. Starting with the most potent of them all – the
head-turning, heart-pounding, Shelby GT350.®
This race-tuned
monster is powered by a 5.2LTi-VCT V8 with a flat-plane crank,
engineered to propel you into the winner’s circle. ATREMEC®
TR-3160 6-speed manual transmission gives you ultimate
control over its 526 hp and 429 lb.-ft. of torque. The Shelby
exclusive interior features an aluminum instrument panel and
other unique touches including a steering wheel wrapped in
both Alcantara®
and leather. RECARO®
sport seats trimmed
in a unique mix of Carbon Weave cloth and Miko®
sueded
cloth help keep you in your place – turn after turn.
The most track-ready, street-legal Mustang ever produced –
the Shelby®
GT350R Mustang – features the R Package, which
includes extremely durable, yet lightweight, 19 carbon-fiber
wheels wrapped in Michelin Pilot®
Sport Cup 2 tires backed
by the extra stopping power of 2-piece, cross-drilled brake
rotors paired with Brembo™ calipers.
Helping you stay glued to the track is no easy task. Rest
assured, our engineers scrutinized and refined every aspect
of the GT350 exterior in order to achieve its balance of
downforce and drag. From its aggressive front splitter to
its wide aluminum vented front fenders and unique vented
aluminum hood, all the way back to its rear spoiler,1
fascia
and integrated diffuser, every element is designed to work
together as a unified team.
A dynamic, adrenaline-fueled ride is yours courtesy of the
MagneRide™ Damping System.1
To adjust the continuously
controlled dampers, an electric current is passed through
hydraulic fluid that’s infused with iron particles, providing
ultra-quick responsiveness to changing conditions. Each corner
is adjusted independently – 1,000 times per second – for
optimum handling performance.

2016 MUSTANG
ford.com
GT Premium. Fastback. Race Red. California Special. Available equipment.
1
Tested with 93-octane fuel. 2
Mustang GT with GT Performance Package figure based on internal Ford testing data. 3
Available feature.

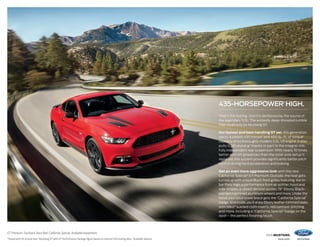

435-HORSEPOWER1
HIGH.
That’s the feeling. And it’s reinforced by the sound of
the legendary 5.0L.The wickedly deep-throated rumble
that could only be Mustang GT.
Our fastest and best-handling GT yet, this generation
packs a potent 435 horses1
and 400 lb.-ft. of torque1
courtesy of its thoroughly modern 5.0L V8 engine. It also
pulls 0.98 lateral g2
thanks in part to the integral-link,
fully independent rear suspension. With nearly 10 times
better anti-lift properties than the solid-axle setup it
replaced, this system provides significantly better pitch
control during hard acceleration and braking.
Get an even more aggressive look with the new
California Special3
GT Premium. Outside, the heat gets
turned up with unique Black front grilles featuring the tri-
bar Pony logo, a performance front air splitter, hood and
side stripes, a raised decklid spoiler, 19 Ebony Black-
painted machined aluminum wheels and more. Under the
hood, your strut tower brace gets the “California Special”
badge. And inside, you’ll enjoy Ebony leather-trimmed seats
with Miko®
sueded cloth inserts, red contrast stitching
and more, including a “California Special” badge on the
dash – the perfect finishing touch.

2016 MUSTANG
ford.com
EcoBoost Premium. Convertible. Magnetic. Dark Saddle leather trim. Pony Package.
1
EPA-estimated rating: 21 city/32 hwy/25 combined mpg, 2.3L EcoBoost automatic fastback.
Actual mileage will vary. Class is High-Power Sports Cars based on Ford segmentation. 3
Available feature. 4
Available Fall 2015.

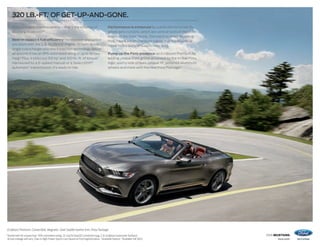

320 LB.-FT.1
OF GET-UP-AND-GONE.
Turbocharged responsiveness – that’s the essence of
Mustang EcoBoost.®
Best-in-class I-4 fuel efficiency,2
horsepower and torque
are yours with the 2.3L EcoBoost engine. Its twin-scroll
single turbocharger and direct-injection technology deliver
all around. It has an EPA-estimated rating of up to 32 hwy
mpg.2
Plus, it kicks out 310 hp1
and 320 lb.-ft. of torque.1
Harnessed by a 6-speed manual or a SelectShift®
automatic3
transmission, it’s ready to ride.
Performance is enhanced by subtle elements like the
wheel aero curtains, which are vertical slots at the outer
edges of the front fascia. Standard on every Mustang,
they create a high-pressure region that holds airflow
closer to the body and minimizes drag.
Pump up the Pony presence on EcoBoost Premium by
adding unique front grilles accented by the tri-bar Pony
logo, sporty side stripes, unique 19 polished aluminum
wheels and more with the new Pony Package.4

2016 MUSTANG
ford.com
V6. Fastback.Triple YellowTri-coat. Available equipment.
1
EPA-estimated rating: 19 city/28 hwy/22 combined mpg, 3.7L automatic fastback. Actual mileage will vary.
FASTBACK. FAST FORWARD.
Whether your Mustang V6 takes the iconic form of
the fastback, or your must-have dream machine is
a droptop, you can look forward to the passionate
performance of its 3.7L Ti-VCT V6 engine.
With 300 hp and 280 lb.-ft. of torque at your
disposal, every trip is bound to be a blast. Take
your pick of a short-throw manual or a SelectShift®
automatic1
transmission. With the auto, Mustang V6
has an EPA-estimated rating of 28 hwy mpg.2
Excellent road feel and precise handling are just
a few benefits of the standard fully independent
suspension system. It features a double-ball-joint
configuration in front, along with high-strength
aluminum-alloy knuckles and H-arms in the rear.
Utilizing advanced lightweight materials helps to
keep unsprung mass down while maximizing grip –
so you can have fun putting your Mustang through
its paces on the way to places like this.

2016 MUSTANG
ford.comGT Premium. Convertible. Magnetic. Dark Saddle leather trim. Available equipment.

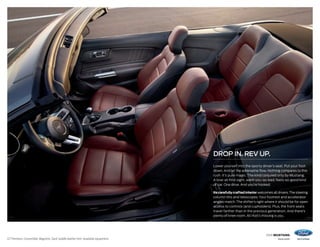

DROP IN. REV UP.
Lower yourself into the sporty driver’s seat. Put your foot
down. And let the adrenaline flow. Nothing compares to this
rush. It’s pure magic. The kind conjured only by Mustang.
A love-at-first-sight, want-you-so-bad, feels-so-good kind
of car. One drive. And you’re hooked.
Itscarefullycraftedinterior welcomes all drivers.The steering
column tilts and telescopes.Your footrest and accelerator
angles match.The shifter’s right where it should be for open
access to controls (and cupholders). Plus, the front seats
travel farther than in the previous generation. And there’s
plenty of knee room. All that’s missing is you.

2016 MUSTANG
ford.com
GT Premium. Fastback. Ebony leather trim. GT Performance Package.
1
Driving while distracted can result in loss of vehicle control. Only use SYNC/other devices, even with voice commands, when it is safe to do so. Some features may be locked out while the vehicle is in gear. Not all features
arecompatiblewithall phones. 2
Availablefeature.SYNCAppLinkisavailableonselectmodelsandcompatiblewithselectsmartphoneplatforms. CommandsmayvarybyphoneandAppLinksoftware.3
Thevehicle’selectrical
system (including the battery), the wireless service provider’s signal and a connected mobile phone must all be available and operating for 911 Assist to function properly.These systems may become damaged in a crash.
The paired mobile phone must be connected to SYNC, and the 911 Assist feature enabled, in order for 911 to be dialed. When the feature is ON, 911 Assist uses your paired and connected mobile phone to assist occupants
to contact emergency services by dialing 911 if your airbag deploys or, on certain vehicles, if the emergency fuel pump shut-off is activated. Aftermarket on-board diagnostic devices may interfere with various vehicle
systems including Vehicle Health Report and 911 Assist.To avoid interference, remove the device or contact the device maker for more information on compatibility. 4
You must have a Bluetooth-enabled
phone paired to your SYNC system. 6
Optional Navigation System map updates cannot be received via Wi-Fi and require a separate update.
TALKS THE TALK.
Voice-activated SYNC®1
technology helps you keep your eyes
on the road and hands on the wheel. SYNC. Say the word.®

Hands-free calling lets you make a call with a simple push of a
button along with the sound of your voice.

Automatic phone book download transfers the names and
numbers in your compatible phone automatically, once paired.

Voice-activated music commands let you say what music you
want to hear and listen to it easily with voice-activated search, or
say “Bluetooth®
audio” to stream content from your phone.

SYNC AppLink™2
lets you control some of your favorite compatible
mobile apps with your voice.

911 Assist®3
is a convenient no-charge feature that allows you to
connect your compatible cell phone to help call 911, even if you can’t.
Upgrade to SYNC 3.1,4
Our next generation of voice-activated
technology with an easy-to-use new design and features.

New hardware meets new software on the easy-to-read color LCD
touch screen that displays phone, audio and navigation4
functions.

High-speed performance means you’ll experience quick
responses to your commands. Plus, the capacitive touch screen
includes a convenient swipe feature similar to your smartphone
(as well as pinch-to-zoom capability within navigation4
).

Enhanced voice recognition lets you talk with simple, real-world
voice commands and the system responds naturally to your voice.

Easy destination entry feature within navigation4
helps you locate
your favorite restaurants, nearest ATM and more.

Siri®
seamless integration brings the power of Siri Eyes Free5
and
your iPhone®5
into your vehicle.

Automatic updates over Wi-Fi®6
let you keep SYNC 3 up-to-date
with the latest software as soon as new updates become available.

2016 MUSTANG
ford.com

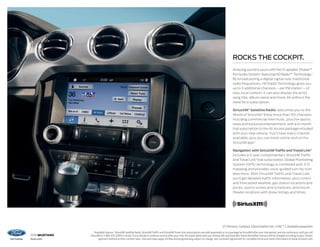

ROCKS THE COCKPIT.
Amazing sound is yours with the 12-speaker Shaker™
Pro Audio System1
featuring HD Radio™ Technology.1
By broadcasting a digital signal over traditional
radio frequencies, HD Radio Technology gives you
up to 3 additional channels – per FM station – of
new, local content. It can also display the artist,
song title, album name and more. All without the
need for a subscription.
SiriusXM®
Satellite Radio1
welcomes you to the
World of SiriusXM.2
Enjoy more than 150 channels
including commercial-free music, plus live sports,
news and exclusive entertainment, with a 6-month
trial subscription to the All Access package included
with your new vehicle. You’ll hear every channel
available, plus you can listen online and on the
SiriusXM app.2
Navigation1
with SiriusXM Traffic and Travel Link®
includes a 5-year complimentary SiriusXM Traffic
and Travel Link2
trial subscription. Global Positioning
System (GPS) technology is combined with 3-D
mapping and provides voice-guided turn-by-turn
directions. With SiriusXM Traffic and Travel Link,
you’ll get detailed traffic information, plus current
and forecasted weather, gas station locations and
prices, sports scores and schedules, and movie
theater locations with show listings and times.
GT Premium. Fastback. Ebony leather trim. SYNC®
3. Available equipment.
1
SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link subscriptions are sold separately or as a package by SiriusXM after your trial period, and are continuous until you call
SiriusXM at 1-866-635-2349 to cancel. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen
payment method at then-current rates. Fees and taxes apply. All fees and programming subject to change. See Customer Agreement for complete terms and more information at www.siriusxm.com.

2016 MUSTANG
ford.com
GT Premium. Fastback. Ruby Red MetallicTinted Clearcoat. Available equipment.
1
Available feature. Driver-assist features are supplemental and do not replace the driver’s attention, judgment and need to control the vehicle. 2
BLIS replaces standard integrated blind spot mirrors.
SENSES DANGER.
LIKE A SUPERHERO.
High-speed passing. Crowded lots.Tight driveways.
Long runs down the highway. Ford Mustang
offers advanced driver-assist technologies1
with
sophisticated sensors that can help you out in all
these challenging real-world moments and more.
Stay alert to traffic detected in blind spots as
you drive forward, or traffic nearing either side of
the vehicle as you slowly back up, thanks to BLIS®
(Blind Spot Information System) with cross-traffic
alert.1
BLIS helps warn you using lights embedded
in the sideview mirrors.2
Cross-traffic alert uses the
same lights, plus an audio warning and a message
center notice.
Get a heads-up from adaptive cruise control and
collision warning with brake support.1
This system
helps maintain your choice of 4 preset gaps from
the vehicle in front of you and can alert you to a
potential collision. If one is detected, it flashes
a warning on the windshield, sounds an alarm,
and preps the braking system to provide full
responsiveness when you do brake.

2016 MUSTANG
ford.comGT Premium. Convertible. Deep Impact Blue. Ebony leather trim. Available equipment.
AND TRANSFORMS IN A FLASH.
This Mustang convertible is a quick-change artist – dropping
its top nearly twice as fast as the previous generation.
Engineered as a convertible from the start, it’s designed
to deliver a smoother ride and better handling than its
predecessor as well. Plus, it has a lower liftover height and
best-in-class trunk space.
Go topless in seconds by simply releasing the centrally
located top latch and pressing a button. The electric drive
system operates not only quickly, but quietly too.
Convertible life is easy, thanks to thoughtful touches
like the tonneau caps that slide neatly into place, helping
give the lowered top a sleek finish.
To perfect its top-down look, the convertible sports
exclusive design cues that set it apart from the fastback.
Note the higher, straighter muscle line across its rear
haunches. And its distinctively contoured trunk lid. The
2016 Mustang convertible – open-air freedom at its best.

2016 MUSTANG
ford.comGT Premium. Fastback.TripleYellowTri-coat. GT Performance Package.

2016 MUSTANG
ford.com
EcoBoost®
Premium. Fastback. Race Red. Available equipment.
1
Available feature.
RACERS: TAP THIS.
The 2016 Mustang serves up hot technology designed
specifically for you. Next time the track starts getting slick,
just tap a toggle switch on the dash to adjust its Selectable
Drive Modes.1
And keep going.
Choose from 4 modes: Normal, Sport+,Track, and Snow/Wet.
Each one activates predefined powertrain and chassis
calibrations suited to that particular driving situation.
Normal mode delivers a balance of comfort and responsive
handling for an engaging driving experience.
Sport+ mode provides more responsive steering and throttle
response, plus different shift points if your Mustang is equipped
with the SelectShift®
automatic transmission. It’s great for
more spirited driving on twisty roads.
Track mode, which is for track use only, allows skilled drivers to
push the car closer to its limits on the track before AdvanceTrac®
electronic stability control intervenes. It’s perfect for weekend
track days and autocrosses because it lets you extract the
absolute maximum from the vehicle.
Snow/Wet mode comes in handy when road conditions take a
turn for the worse. It provides confident handling by retaining
a connected-to-the-road feel without sacrificing any of the
inherent composure of your new Mustang.

2016 MUSTANG
ford.com
GT Premium. Fastback. Shadow Black. Available equipment.
Vehicle shown on closed course with professional driver. Do not attempt. 1
Track use only. 3
Manual transmission only.
NOTHIN’ BUT SMOKE IN YOUR MIRRORS.
When it’s track time, leave the competition behind with
electronic line-lock.1,2
Only on GT and Shelby GT350®
models, it’s activated using Mustang TrackApps.™2
And
its sole purpose is to prep your tires for the big win.
For customized steering feedback, the selectable-
effort electric power-assisted steering offers you 3 modes
(Standard, Sport and Comfort) in the Steering Feel menu.
An iconic “Christmas tree” offers accurate countdown
starts.You can also monitor g-forces, braking times and
acceleration times in quarter-mile, 0–60 and more, all
within the TrackApps.2
Serious stopping power is built into the GT Performance
Package: 6-piston Brembo™ front calipers bite down on
15 vented rotors.3
Then it’s go-time again.

2016 MUSTANG
ford.comGT Premium. Fastback. Competition Orange. GT Performance Package. Available equipment.
TRACK STAR.
While developing the GT Performance
Package for Mustang GT, engineers used the
previous generation’s Boss®
302 model as their
performance benchmark – this race-ready
machine is even faster around the track.
Getting it done starts with the underpinnings.
The package gives you a strut-tower brace, a
K-brace, heavy-duty front springs, an upsized
rear sway bar, a larger radiator, a 3.73 TORSEN®
rear axle and more. See the Specs for details.

2016 MUSTANG
ford.com
MUSTANG SPECIFICATIONS
Dimensions may vary by trim level. 1
Actual mileage will vary. 2
For Shelby GT350®dimensions and capacities see your dealer. 3
In lieu of a traditional spare tire, Mustang comes equipped with
a tire sealant and inflator kit which includes a portable air compressor and a can of tire sealant to inflate and seal small punctures for short periods of time. 5
Always wear your safety belt and secure children in the rear seat.
Standard Features
Mechanical
4-wheel vented disc Anti-Lock Brake System (ABS)
Selectable-effort electric power-assisted steering
(Standard, Sport, Comfort)
Suspension – Front: independent double-ball-joint
MacPherson strut with stabilizer bar
Suspension – Rear: independent integral link
with stabilizer bar
Tire inflator and sealant kit4
Seating
4-way adjustable front head restraints
50/50 split-fold rear seat (fastback only)
Front bucket seats
Interior
12-volt powerpoints (2)
Auto-dimming rearview mirror
Carpeted front floor mats
Cruise control
Full center floor console with storage bin
Illuminated locking glove compartment
Intelligent Access with push-button start
Leather-wrapped steering wheel and parking
brake handle
Power door locks
Power windows with global open and one-touch
-up/-down feature (one-touch-up only on fastback)
Steering wheel-mounted cruise, audio
and 5-way controls
Sun visors with illuminated vanity mirrors
Sunglasses storage bin
Tilt/telescoping steering column
Exterior
Automatic headlamps with wiper activation
Easy Fuel®
capless fuel filler
Embedded radio antenna (fastback only)
HID headlamps with signature lighting
LED taillamps with sequential turn signals
Rear-window defroster
Sideview mirrors with integrated blind spot mirrors
Tonneau caps (convertible only)
Windshield wipers – Variable-intermittent
Safety Security
Personal Safety System™ with dual-stage
front airbags5
AdvanceTrac®
electronic stability control
Belt-Minder®
front safety belt reminder
Driver’s knee airbag5
Front-seat side airbags5
Glove-box-door-integrated knee airbag5
Illuminated Entry System
Individual Tire Pressure Monitoring System
(excludes available spare)
LATCH – Lower Anchors and Tether Anchors
for Children
MyKey®
Perimeter alarm
Rear view camera
Remote Keyless Entry System
Safety belt restraint system – Manual 3-point
shoulder and lap safety belt system for all
seating positions
SecuriLock®
Passive Anti-Theft System
Side-curtain airbags5
(fastback only)
SOS Post-Crash Alert System™
Engines/EPA-Estimated Ratings1
Dimensions2
3.7LTi-VCT V6
300 hp @ 6,500 rpm
280 lb.-ft. of torque @ 4,000 rpm
6-speed manual
17 city/28 hwy/21 combined mpg
6-speed SelectShift®
automatic
2.3L EcoBoost®
I-4
310 hp @ 5,500 rpm3
320 lb.-ft. of torque @ 3,000 rpm3
6-speed manual
6-speed SelectShift automatic
6-speedSelectShiftautomatic(convertible)
5.0LTi-VCT V8
435 hp @ 6,500 rpm3
6-speed manual
6-speed SelectShift automatic
6-speedSelectShiftautomatic(convertible)
5.2LTi-VCT V8
526 hp @ 7,500 rpm3
6-speed manual
Exterior Fastback/Convertible
Wheelbase 107.1
Length 188.3
Height 54.4/54.9
Width – Folded mirrors 77.0
Width – Including mirrors 81.9
Interior – Front Fastback/Convertible
Head room 37.6
Shoulder room 56.3
Hip room 54.9
Leg room (max.) 44.5
Interior – Rear Fastback/Convertible
Head room 34.8/35.7
Shoulder room 52.2/44.7
Hip room 47.4/43.7
Leg room 29.0/29.2
Capacities (cu. ft.) Fastback/Convertible
Passenger volume 82.8/79.3
Luggage capacity 13.5/11.4
Total interior volume 96.3/90.7
Fuel tank (gal.)
V6/V8 16.0
I-4 15.5

2016 MUSTANG
ford.com
V6
17 Sparkle Silver-Painted
Aluminum
Standard: V6
18 Foundry Black-Painted
Machined Aluminum
Included: 051A
Ebony cloth trim. Available equipment.
Tri-bar Pony badge on gloss-black-finished trunk-lid panel.
LED taillamps with sequential turn signals.
Intelligent Access with push-button start.
HID headlamps with signature lighting.
Equipment Group 050A
Includes all standard features, plus:
Mechanical
3.7L Ti-VCT V6 engine
6-speed manual transmission
3.15:1 gear ratio with limited-slip rear differential
Seating
4-way manually adjustable driver’s seat
with height adjustment
2-way manually adjustable front-passenger seat
Cloth seats
Interior
AM/FM stereo/single-CD player with 6 speakers
Ford SYNC®
Enhanced Voice Recognition
Communications and Entertainment System with
4.2 color LCD screen in center stack, 911 Assist,®
AppLink,™ and 2 smart-charging USB ports
Single-zone manual air conditioning
TrackApps™ located in instrument cluster
Exterior
17 Sparkle Silver-painted aluminum wheels
with P235/55R17 all-season tires
Black cloth top on convertible
Body-color power sideview mirrors
Dual bright slashed-cut exhaust tips
Available Equipment Group
Equipment Group 051A – Blade-style decklid
spoiler, 6-way power driver’s seat with power lumbar,
LED fog lamps, and 18 Foundry Black-painted
machined aluminum wheels
Available Options Package
(requires 051A)
automatic transmission
with steering wheel-mounted paddle shifters
and Remote Start System
All-weather floor mats
Enhanced Security Package includes electronic-
locking center console, Active Anti-Theft System,
electronic steering column lock, and wheel locks
(standard on convertible)
Over-the-top racing stripe (fastback only)
Reverse Sensing System
Spare wheel and tire
Spoiler delete (requires 051A)

EcoBoost®1
EcoBoost Premium
EcoBoost Premium. Ceramic leather trim.
Available equipment.
EcoBoost. Interior Wheel Package.
Available equipment.
EcoBoost Premium.
Heated and cooled front seats.
EcoBoost. Wheel Stripe Package.
18 Magnetic-Painted
Machined Aluminum
Standard
Aluminum
Optional
19 Ebony Black-Painted
Aluminum
Included:
EcoBoost Performance Package
19 Polished Aluminum
Included: Pony Package
19 Low-Gloss Black-Painted
MachinedAluminum
Included:InteriorWheelPackage
and Wheel Stripe Package
20 x 9 Foundry Black-Painted
Machined Aluminum
Optional: EcoBoost Premium
Includes select V6 features, plus:
Mechanical
2.3L EcoBoost I-4 engine
Active noise cancellation
Seating
6-way power driver’s seat with power lumbar
6-way power front-passenger seat
Interior
Diamond-mesh aluminum dash panel
Exterior
18 Magnetic-painted machined aluminum wheels
Blade-style decklid spoiler
LED fog lamps
Available Options Packages
automatic transmission with
steering wheel-mounted paddle shifters, 3.15:1 gear
ratio with limited-slip rear differential, and Remote
Start System
18 Foundry Black-painted aluminum wheels with
235/50R18 all-season tires (n/a with EcoBoost
Performance Package, Interior Wheel Package,
or Wheel Stripe Package)
Black-paintedroof(n/awithover-the-topracingstripe)
EcoBoost Performance Package includes unique
front air splitter; larger radiator; upsized rear sway
bar; heavy-duty front springs; unique chassis tuning;
larger brake rotors with 4-piston calipers; 19 Ebony
Black-painted aluminum wheels with 255/40R19
summer-only tires2
; unique electric power-assisted
steering, ABS and electronic stability control tuning;
Engine Turn aluminum dash panel; Gauge Pack (oil
pressure and boost); spoiler delete; and 3.55:1 gear
ratio with limited-slip rear differential (n/a with
18 wheels, Interior Wheel Package, spare wheel
and tire, or Wheel Stripe Package)
InteriorWheelPackageincludesuniquedoor-trim
panels and seats with Metal Gray contrast stitching;
embroideredPonyLogoonfrontseats;carpetedfront
floor mats with embroidered Pony logo; and 19 low-
gloss Black-painted machined aluminum wheels
with 255/40R19 tires (n/a with 18 wheels, EcoBoost
Performance Package, or Wheel Stripe Package)
Over-the-top racing stripe (n/a with Black-painted
roof or Wheel Stripe Package)
RECARO®
sport Ebony cloth seats
with manual adjustment
(n/a with EcoBoost Performance Package)
Spoiler delete
Wheel Stripe Package includes 19 low-gloss
Black-painted machined aluminum wheels with
255/40R19 tires and side stripes (n/a with 18 wheels,
EcoBoost Performance Package, Interior Wheel
Package, or over-the-top racing stripe)
20 x 9 Foundry Black-painted machined aluminum
wheelswith265/35R20summer-onlytires2
(n/awith
EcoBoost Performance Package, Pony Package,
spare wheel and tire, or Wheel Stripe Package)
Adaptive cruise control and collision warning with
brake support, and rain-sensing windshield wipers
Black-painted roof
(n/a with convertible or over-the-top racing stripe)
EcoBoost Performance Package3
(upsized rear
sway bar and heavy-duty front springs on fastback
only; n/a with optional wheels, Pony Package, or
spare wheel and tire)
Enhanced Security Package
Over-the-topracingstripe(n/awithconvertible,Black-
paintedroof,PonyPackage,orWheelStripePackage)
Pony Package4
includes 19 polished aluminum
wheels, unique Pony grilles, side stripes, bright
beltline moldings and window surrounds (fastback),
and carpeted front floor mats with embroidered
Pony logo (n/a with EcoBoost Performance Package
or optional wheels)
Premier Trim With Color Accent Group3
includes
Charcoal Black interior environment with color-
accented seats and unique door-trim panel inserts
RECARO sport leather-trimmed seats with manual
adjustment3
(n/a with convertible, heated and
cooled front seats, or memory feature)
Spare wheel and tire (n/a with 20 wheels
or EcoBoost Performance Package)
Spoiler delete
Voice-activated Navigation System with pinch-to-
zoom capability, and integrated SiriusXM Traffic and
Travel Link®
with 5-year subscription
Wheel Stripe Package (n/a with EcoBoost
PerformancePackage,optionalwheels,over-the-top
racing stripe, or Pony Package)
1
Fastbackonly.2
Forddoesnotrecommendusingsummer
tires when temperatures drop to approximately 45°F
or below (depending on tire wear and environmental
conditions)orinsnow/iceconditions.Ifthevehiclemustbe
driven in these conditions, Ford recommends using all-
seasonorsnowtires.3
Whencertainpackagesareordered
in combination with other packages, final content may
vary.Seeyourdealerforadditionaldetails.4
Lateavailability.
Includes select EcoBoost features, plus:
Mechanical
Selectable Drive Modes with 4-gang toggle switch
pack (Normal, Sport+,Track, Snow/Wet)
Seating
Heated and cooled front seats
Leather-trimmed seats
Interior
Aluminum brake, clutch, and accelerator pedals
Ambient lighting
and amplifier
Bright-finish door speaker surrounds
Dual-zone electronic automatic temperature control
Illuminated door-sill plates
Premium door-trim panel inserts
Satin Brush aluminum dash panel
SiriusXM®
Satellite Radio with 6-month
trial subscription
SYNC®
3EnhancedVoiceRecognitionCommunications
and Entertainment System with 8 color LCD touch
screenincenterstackwithswipingcapability,911Assist,®
Universal garage door opener
Exterior
Body-color power, heated sideview mirrors
with integrated turn signal indicators
Pony projection lamps
Rear diffuser
Equipment Group 201A – Shaker™ Pro Audio
System with 12 speakers and amplifier, HD Radio™
Technology,driver’sseatandsideviewmirrormemory
feature, and BLIS®
(Blind Spot Information System)
with cross-traffic alert
6-speed SelectShift automatic transmission
with steering wheel-mounted paddle shifters
and Remote Start System
18 Foundry Black-painted aluminum wheels
with 235/50R18 all-season tires (n/a with EcoBoost
Performance Package, Pony Package, or Wheel
Stripe Package)

19 Low-Gloss
Black-PaintedMachined
Aluminum
Included:InteriorWheelPackage
19 Dark Stainless
Premium Painted
Aluminum
Optional: GT Premium
20 x 9 Foundry
Black-Painted
Machined Aluminum
Optional: GT Premium
19 x 9 Front/19 x 9.5 Rear
Premium Luster Nickel-
Painted Aluminum
Optional:GTPerformancePackage
19 Black-Painted
Aluminum
Included:BlackAccentPackage
19 Ebony Black-Painted
MachinedAluminum
Included:CaliforniaSpecial
18 Magnetic-Painted
Machined Aluminum
Standard
Aluminum
Optional
19x9Front/19x9.5Rear
Ebony Black-Painted
Aluminum
Included:
GT Performance Package
GT Premium. California Special. Available equipment.
GT1
GT Premium
Includes select EcoBoost®
features, plus:
Mechanical
5.0L Ti-VCT V8 engine
Electronic line-lock (track use only)
Engine oil cooler
Larger brake rotors with 4-piston calipers
Launch control (manual transmission only)
Exterior
18 Magnetic-painted machined aluminum wheels
Dual bright rolled and polished exhaust tips
Hood-vented air extractors with integrated
secondary turn signals
Raised blade-style decklid spoiler
automatic transmission with
Start System
with 235/50R18 all-season tires (n/a with Black
Accent Package, GT Performance Package, or
Interior Wheel Package)
19 x 9 front and 19 x 9.5 rear premium Luster
Nickel-painted aluminum wheels with 255/40R19
front and 275/40R19 rear summer-only tires2
(requires GT Performance Package)
Black Accent Package includes 19 Black-painted
aluminum wheels, Black-painted exterior badging,
unique dark taillamp accents, and Black raised
blade-style decklid spoiler (n/a with 18 wheels,
GT Performance Package, Interior Wheel Package,
or over-the-top racing stripe)
Black-paintedroof(n/awithover-the-topracingstripe)
GT Performance Package includes unique front
air splitter; strut-tower brace; larger radiator; upsized
rear sway bar; heavy-duty front springs; unique
chassis tuning; K-member brace; Brembo™ 6-piston
front calipers; 19 x 9 front and 19 x 9.5 rear Ebony
Black-painted aluminum wheels with 255/40R19
; unique
electric power-assisted steering, ABS and electronic
stability control tuning; Engine Turn aluminum dash
panel; Gauge Pack (oil pressure and vacuum); spoiler
delete; and 3.73:1 gear ratio with TORSEN®
helical
gear differential (n/a with 18 wheels, automatic
transmission, Black Accent Package, Interior Wheel
Package, or spare wheel and tire)
Interior Wheel Package includes unique door-
trim panels and seats with Metal Gray contrast
stitching; embroidered Pony Logo on front seats;
carpeted front floor mats with embroidered Pony
logo; and 19 low-gloss Black-painted machined
aluminum wheels with 255/40R19 tires (n/a with
18 wheels, Black Accent Package, GT Performance
Package, or RECARO®
seats)
Over-the-topracingstripe(n/awithBlack-paintedroof)
RECARO sport Ebony cloth seats with manual
adjustment (n/a with Interior Wheel Package)
Sparewheelandtire(n/awithGTPerformancePackage)
Spoiler delete (n/a with GT Performance Package)
Equipment Group 401A – Shaker™ Pro Audio
System with 12 speakers and amplifier, HD Radio™
Technology, ambient lighting, driver’s seat and
sideview mirror memory feature, and BLIS®
(Blind
Spot Information System) with cross-traffic alert
6-speed SelectShift automatic transmission with
Start System
with 235/50R18 all-season tires (n/a with
Black Accent Package, California Special, or
GT Performance Package)
19 x 9 front and 19 x 9.5 rear premium Luster
Nickel-painted aluminum wheels with 255/40R19
(requires GT Performance Package)
19 Dark Stainless premium painted aluminum
wheels with 255/40R19 summer-only tires2
(n/a
with Black Accent Package, California Special,
or GT Performance Package)
20 x 9 Foundry Black-painted machined
aluminum wheels with 265/35R20 all-season tires
(n/a with Black Accent Package, California Special,
Adaptive cruise control and collision warning with
brake support, and rain-sensing windshield wipers
BlackAccentPackage (n/a with California Special,
GT Performance Package, optional wheels, over-the-
top racing stripe, or spoiler delete)
Black-painted roof
(n/a with convertible or over-the-top racing stripe)
EquipmentGroup400A
Includes select GT features, plus:
Mechanical
Selectable Drive Modes with 4-gang toggle switch
pack (Normal, Sport+,Track, Snow/Wet)
Seating
Heated and cooled front seats
Leather-trimmed seats
Interior
Aluminum brake, clutch, and accelerator pedals
Ambient lighting
and amplifier
Bright-finish door speaker surrounds
Dual-zone electronic automatic temperature control
Illuminated door-sill plates
Premium door-trim panel inserts
Satin Brush aluminum dash panel
SiriusXM®
SatelliteRadiowith6-monthtrialsubscription
SYNC®
3EnhancedVoiceRecognitionCommunications
and Entertainment System with 8 color LCD touch
screenincenterstackwithswipingcapability,911Assist,®
Universal garage door opener
Exterior
Body-color power, heated sideview mirrors
with integrated turn signal indicators
Pony projection lamps
Rear diffuser
CaliforniaSpecialincludes19EbonyBlack-painted
machined aluminum wheels with 255/40R19 tires;
unique performance front air splitter; unique black
grilles, and hood and side stripes; strut tower brace;
black raised decklid spoiler, sideview mirrors and
hood-ventedairextractors;fauxgascap;uniquedark
taillamp bezels; leather-trimmed seats with Miko®
sueded cloth inserts and red stitching; unique
instrument panel finish and door-panel inserts; and
premium carpeted front floor mats with embroidered
logo(n/awithBlackAccentPackage,GTPerformance
Package, optional wheels, over-the-top racing stripe,
PremierTrimWithColorAccentGroup,orRECAROseats)
Enhanced Security Package
Full vehicle cover with California Special logo
(requires California Special)
GT Performance Package1,3
(n/a with automatic
transmission, Black Accent Package, California
Special, optional wheels, or spare wheel and tire)
Over-the-top racing stripe (n/a with Black Accent
Package, Black-painted roof, California Special
or convertible)
Premier Trim With Color Accent Group3
includes
Charcoal Black interior environment with color-
accented seats and unique door-trim panel inserts
(n/a with California Special)
RECARO sport leather-trimmed seats with manual
adjustment3
(n/a with convertible, heated and
cooled front seats, or memory feature)
(n/a with 20 wheels or GT Performance Package)
Spoiler delete (n/a with California Special
Voice-activated Navigation System with pinch-to-
zoom capability, and integrated SiriusXM Traffic and
Travel Link®
with 5-year subscription
1
Fastback only. 2
Ford does not recommend using summer tires when temperatures drop to
approximately 45°F or below (depending on tire wear and environmental conditions) or in
snow/ice conditions. If the vehicle must be driven in these conditions, Ford recommends
using all-season or snow tires. 3
When certain packages are ordered in combination with
other packages, final content may vary. See your dealer for additional details.

1
Fastback only. 2
Ford does not recommend using summer tires when temperatures drop to approximately 45°F or below (depending on tire wear and
environmental conditions) or in snow/ice conditions. If the vehicle must be driven in these conditions, Ford recommends using all-season or snow tires.
RECARO sport Ebony Carbon Weave cloth
seats with Miko sueded cloth inserts.
R Package.Vented inner fenders.
Ebony Black carbon-fiber wheels.
R Package. Carbon-fiber rear wing.
RPackage.ShelbyCobra®
“GT350”badge.
Shelby GT350®1
Includes select GT Premium features, plus:
Mechanical
5.2LTi-VCTV8enginewith180°flat-planecrankshaft
TREMEC®
TR-3160 6-speed manual transmission
3.73:1gearratiowithTORSEN®
helicalgeardifferential
15.5 front and 14.9 rear cross-drilled 2-piece rotors
Aluminum front bumper beam
Brembo™ 6-piston front and 4-piston rear calipers
Seating
RECARO®
sport Ebony Carbon Weave cloth seats
with Miko®
sueded cloth inserts
4-way manually adjustable driver’s seat
2-way manually adjustable front-passenger seat
Interior
Leather- and Alcantara®
-wrapped flat-bottom
steering wheel
Unique instrument cluster with gray accents
Exterior
19 x 10.5 front and 19 x 11 rear Ebony Black-
painted aluminum wheels with 295/35ZR19 front
and 305/35ZR19 rear Michelin Pilot®
Super Sport
summer-only tires2
Aluminum hood with center vent
Dual exhaust with quad tips and active valves
Front fender vents with vented inner fenders
Gloss Black power sideview mirrors
Injection-molded carbon-fiber composite
grille opening
Raised blade-style decklid spoiler
Rear diffuser
Equipment Group 920A – R Package includes
continuously controlled MagneRide™ Damping
System;IntegratedDriverControlSystem(IDC);heavy-
duty front springs; engine oil, transmission, and
differential coolers; 19 x 11 front and 19 x 11.5 rear
Ebony Black carbon-fiber wheels with 305/30ZR19
front and 315/30ZR19 rear Michelin Pilot Sport Cup
2 summer-only tires2
; unique chassis tuning; unique
front air splitter; strut-tower brace; red accent
stitching; carbon-fiber rear wing; and wheel locks
(deletes air conditioning, audio system, rear seat,
rear view camera, tire inflator and sealant kit, floor
mats and SYNC®
)
Black-painted roof
Electronics Package includes 7-speaker audio
system; SYNC 3 Enhanced Voice Recognition
Communications and Entertainment System with
8colorLCDtouchscreenincenterstackand2smart-
charging USB ports; voice-activated Navigation
System with integrated SiriusXM®
Traffic and Travel
Link®
with 5-year subscription; SiriusXM Satellite
Radio with 6-month trial subscription; dual-zone
electronic automatic temperature control; universal
garagedooropener;integratedturnsignalindicators
in sideview mirrors; floor mats; auxiliary gauges; and
tire inflator and sealant kit (requires 920A)
Over-the-top racing stripe
Technology Package includes content of
Electronics Package; plus MagneRide Damping
System; Integrated Driver Control System (IDC);
Ebony leather-trimmed seats with Miko sueded
cloth inserts; and 6-way power, heated and cooled
front seats (n/a with 920A or Track Package)
Track Package includes MagneRide Damping
System; Integrated Driver Control System (IDC);
heavy-duty front springs; engine oil, transmission,
and differential coolers; raised rear spoiler; and
aluminum strut tower brace (n/a with 920A or
Technology Package)
19 x 10.5 Front/19 x 11 Rear
Ebony Black-Painted Aluminum
Standard
19 x 11 Front/19 x 11.5 Rear
Ebony Black Carbon Fiber
Included: R Package
ABOVE AND BEYOND.
When you’re ready to take your Mustang
to the next level, look no further than
Ford Performance Parts. Using a
convenient Mustang search tool on the
site, you can select your model year to
view the full list of currently available
equipment.You’ll find everything from
brakes to a supercharger, suspension,
wheels and more. All expertly engineered
to set your Mustang apart.
Learn more at
fordperformance.com

2016 MUSTANG
ford.com
Exteriors Stripes
Ingot Silver*
Mustang MustangShelby GT350®
Shelby GT350Shelby®
GT350R Shelby GT350R
Competition Orange
Race Red
Triple Yellow Tri-coat
Avalanche Gray
Oxford White
*Metallic.
Colors are representative only. See your dealer for actual paint/trim options.
Guard*
Deep Impact Blue*
Magnetic*
Shadow Black
Ruby Red MetallicTinted Clearcoat

2016 MUSTANG
ford.com
Interiors
1 Ebony Cloth 3 Dark Ceramic Cloth
5 Ceramic Leather
with Perforated Inserts
9 Ebony Leather with Perforated Inserts
and Yellow Jacket Stitching
7 Ebony Leather
10 Ebony Leather with Miko®
Sueded Cloth Inserts
and Red Stitching
11 Ebony Carbon Weave Cloth
with Miko Sueded Cloth Inserts
12 Ebony Leather
with Miko Sueded Cloth Inserts
8 Red Line Leather
2 Ebony Cloth
4 Ebony Leather
6 Dark Saddle Leather
Interiors
Exteriors V6 EcoBoost®
/GT EcoBoost Premium/GT Premium Shelby GT350®
Shelby®
GT350R
Oxford White 1 2 3 4 5 6 7 8 10 11 12 11
Ingot Silver 1 2 3 4 5 6 7 8 9 10
Avalanche Gray 11 12 11
Triple Yellow Tri-coat1
1 2 4 7 9 10 11 12 11
Competition Orange 1 2 3 4 5 7 10 11 12
Race Red 1 2 3 4 5 7 10 11 12 11
Ruby Red MetallicTinted Clearcoat1
1 2 3 4 5 7 8 10
Deep Impact Blue 1 2 3 4 5 6 7 8 10 11 12 11
Magnetic 1 2 3 4 5 6 7 8 9 10 11 12 11
Guard 1 2 3 4 5 6 7 10
Shadow Black 1 2 3 4 5 6 7 8 9 10 11 12 11
7, 8, 9 PremierTrim With Color Accent Group 10 California Special on GT Premium 12 Technology Package
1
Additional charge.
Colors are representative only. See your dealer for actual paint/trim options.

1
Ford Licensed Accessory.
Exterior
Ford Custom Graphics1
Full vehicle covers
Hood protector1
Rear spoilers
Interior
All-weather and premium carpeted
floor mats
Ash cup/coin holder
Auto-dimming rearview mirror
Carbon-fiber gear shift knob
Cargo organizers and protectors
Door-sill plates
First aid and roadside assistance kits1
Interior light kit
Sport pedals
Tablet cradle1
Electronics
Remote Access
Wheels
Ebony Black-painted aluminum
(19 x 9 front; 19 x 9.5 rear)
Wheel center caps
Wheel lock kit
GT fastback in Ingot Silver accessorized with 19 Ebony
Black-painted aluminum wheels, wheel center caps, wheel
lock kit, Black-painted Shelby®
Track Package rear spoiler,
and Ford Custom Graphics by 3M Original Wraps1
Remote Access
Sport pedals
Full vehicle cover
accessories.ford.com

©2015 Ford Motor Company 16MSTWEBPDF
ford.com/mustang
Click here to learn more
about your Mustang
Follow Ford:

New Vehicle Limited Warranty. We want your Ford Mustang ownership experience to be the best it can be. Under this
warranty, your new vehicle comes with 3-year/36,000-mile bumper-to-bumper coverage, 5-year/60,000-mile Powertrain
Warranty coverage, 5-year/60,000-mile safety restraint coverage, and 5-year/unlimited-mile corrosion (perforation) coverage –
all with no deductible. Please ask your Ford Dealer for a copy of this limited warranty.
Roadside Assistance. Covers your vehicle for 5 years or 60,000 miles, so you have the security of knowing that help may be
only a phone call away should you run out of fuel, lock yourself out of the vehicle or need towing.Your Ford Dealer can provide
complete details on all of these advantages.
Ford Credit. Get the ride you want. Whether you plan to lease or finance, you’ll find the choices that are right for you at
Ford Credit. Ask your Ford Dealer for details or check us out at fordcredit.com.
Ford Extended Service Plan. For a purchase or lease, the Ford Extended Service Plan (ESP) gives you peace-of-mind
protection designed to cover key vehicle components and protect you from the cost of unexpected repairs. Ask your dealer for
a Ford ESP, the only service contract backed exclusively by Ford and honored at all Ford Lincoln dealerships.
Insurance Services. Get Ford Motor Company quality in your auto insurance. Our program offers industry-leading benefits
and competitive rates. Call 1-877-367-3847, or visit us at fordvip.com for a no-obligation quote. Insurance offered by American
Road Services Company (in CA, American Road Insurance Agency), a licensed agency and subsidiary of Ford Motor Company.
Ford Original Accessories will be warranted for whichever provides you the greatest benefit: 24 months/unlimited mileage,
or the remainder of your Bumper-to-Bumper 3-year/36,000-mile New Vehicle Limited Warranty. Ford Licensed Accessories
(FLA) are warranted by the accessory manufacturer’s warranty. FLA are designed and developed by the accessory manufacturer
and have not been designed or tested to Ford Motor Company engineering requirements. Contact your Ford Dealer for details
and/or a copy of all limited warranties.
Comparisons based on competitive models (class is High-Power Sports Cars based on Ford segmentation), publicly available
information and Ford certification data at time of release. Vehicles may be shown with optional equipment. Features may be
offeredonlyincombinationwithotheroptionsorsubjecttoadditionalorderingrequirements/limitations.Dimensionsshown
may vary due to optional features and/or production variability. Information is provided on an “as is” basis and could include
technical, typographical or other errors. Ford makes no warranties, representations, or guarantees of any kind, express or
implied, including but not limited to, accuracy, currency, or completeness, the operation of the information, materials,
content, availability, and products. Ford reserves the right to change product specifications, pricing and equipment at any
time without incurring obligations.Your Ford Dealer is the best source of the most up-to-date information on Ford vehicles.
Alcantara is a registered trademark of Alcantara S.p.A., Italy. Brembo is a trademark of Brembo S.p.A. Cobra, GT350, and
Shelby are registered trademarks of Carroll Hall Shelby Trust. HD Radio is a proprietary trademark of iBiquity Digital Corp.
iPhone and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. MagneRide is a trademarked technology
of BWI Group. Miko is a registered trademark of Miko s.r.l. RECARO is a registered trademark of RECARO Beteiligungs-GmbH.
SiriusXM services require a subscription, sold separately by SiriusXM after trial period. Fees and taxes apply. All fees and
programming subject to change. Sirius satellite service is available only to those in the 48 contiguous USA, D.C. and PR (with
coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. Some channels
not available in all lineups. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. The Bluetooth
word mark is a trademark of the Bluetooth SIG, Inc. TORSEN is a registered trademark of JTEKT Corporation. TREMEC is a
registeredtrademarkofTransmisionesYEquiposMecanicos,S.A.deC.V. Wi-Fi®
isaregisteredtrademarkoftheWi-FiAlliance.®

2016 Ford Mustang eBrochure

More Related Content

What's hot

Similar to 2016 Ford Mustang eBrochure

Recently uploaded

2016 Ford Mustang eBrochure
