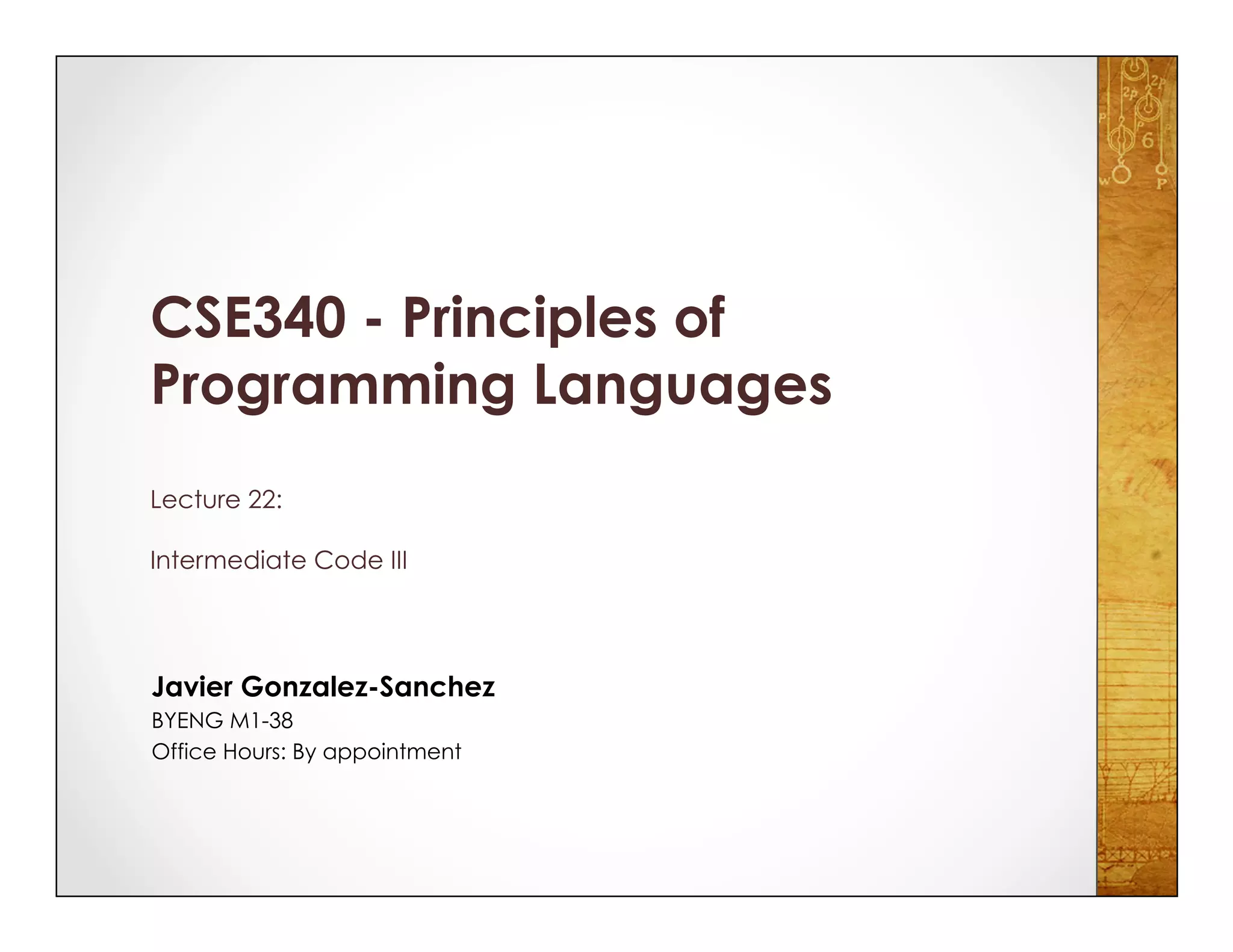

201506 CSE340 Lecture 22

CSE340 - Principles of
Programming Languages
Lecture 22:
Intermediate Code III
Javier Gonzalez-Sanchez
BYENG M1-38
Office Hours: By appointment

Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 3
Review
Programming Assignment 4
Level 1
LIT, LOD, STO, OPR

Code
PROGRAM
OPR 0, 0

Code
BODY

Code
PRINT
OPR 21, 0

Code
ASSIGNMENT
STO identifier, 0

Code
VARIABLE
identifier, <type>

Code
RETURN
OPR 1, 0

Parser
EXPRESSION
if (twice) {
OPR 8, 0
}

Parser
X
if (twice) {
OPR 9, 0
}

Parser
Y
if (operatorUsed) {
OPR 10, 0
}

Parser
R
if (twice) {
OPR <operatorNumber>, 0
}

Parser
E
if (twice) {
}

Parser
A
if (twice) {
}

Parser
B
if (operatorUsed) {
OPR 3, 0
}
LIT 0, 0

Assignment 2 | Code
C
LIT <value>, 0
LOD identifier, 0

Review
Programming Assignment 4
Level 2
JMP, JMC

Instructions
•  JMP <line>, 0
Put the value <line> in the program counter;
thus, the next line to be executed will be <line>
Examples:
JMP 1, 0
JMP 14, 0
JMP 75, 0

Instructions
•  JMC <line>, <condition>
Read one value from the CPU register
If the value is equal to <condition>, put the value
<line> in the program counter; thus, the next line to
be executed will be <line>
Examples:
JMC 1, true
JMC 14, false
JMC 75, true

Example
{
int a; int b;
a = 10;
while (a>1){
print (a);
}
return;
}
int a global 0
int b global 0
@
LIT 10, 0
STO a, 0
LOD a, 0
LIT 1, 0
OPR 11, 0 ; >
JMC #e1, false
LOD a, 0
OPR 20, 0 ; print
JMP #e2, 0
OPR 1, 0
OPR 0, 0

Labels
•  Compiler creates variables and adds them to the
symbol table to remember positions in the code.
•  This is useful for loops and conditions.

Labels | how while works
while (a < b) {
//code
}
label#1
if (a < b) {
//code
} else
goto label#2
}
goto label#1
label #2

Labels | how if works
if (a < b) {
//code1
} else {
// code2
}
if (a < b) {
if (a>b) goto label #1
//code1
} else
goto label#2
label #1
// code2
}
label #2

Example | while
{
int a; int b;
a = 10;
while (a>1){
print (a);
}
return;
}
int a global 0
int b global 0
int #e1 global 10
int #e2 global 3
LIT 10, 0
STO a, 0
LOD a, 0
LIT 1, 0
OPR 11, 0 ; >
JMC #e1, false
LOD a, 0
OPR 20, 0 ;print
JMP #e2, 0
OPR 1, 0
OPR 0, 0

Example | if
{
int a; int b;
a = 10;
if (a>1) {
print (a);
} else {
print (b);
}
return;
}
int a global 0
int b global 0
int #e1 global 10
int #e2 global 12
LIT 10, 0
STO a, 0
LOD a, 0
LIT 1, 0
OPR 11, 0 ; >
JMC #e1, false
LOD a, 0
OPR 20, 0 ;print
JMP #e2, 0
LOD b, 0
OPR 20, 0 ;print
OPR 1, 0
OPR 0, 0

Exercise
{
int a; int b;
a = 10;
while (a>1) {
if (a != 0) {
print (a);
} else {
print (b);
}
a = a -1;
}
}

Handwritten notes

Code
WHILE

Code
IF

What about a switch-case

Handwritten notes
Add the symbol table here…

Homework
Translate this source code to intermediate code:
int a, b;
switch (a) {
case 1: { b = 11; break;}
default:{ b = 99; break;}
}

Homework
Assignment #4

CSE340 - Principles of Programming Languages
Javier Gonzalez-Sanchez
javiergs@asu.edu
Summer 2015
Disclaimer. These slides can only be used as study material for the class CSE340 at ASU. They cannot be distributed or used for another purpose.
