1. TGB Partner
http://www.tgb.com.tw
TAIWAN GOLDEN BEE CO.,LTD.
TEL:+886-7-6222101 ~ 6 FAX:+886-7-6222110 E-mail:moto@tgb.com.tw SS08 130313 600
SCOOTERSCOOTERSCOOTER

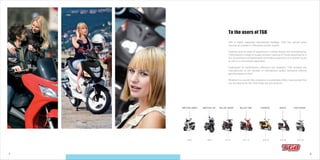

2. 1 2
To the users of TGB
p11-12 p13-14 p15-16 p17-18
BULL&T RS/RR
p7-10
BULL&T ONE EXPRESS XRACE
p3-4 p5-6
XMOTION 300EFI XMOTION 125 TAPO RS/RR
With a highly respected international heritage, TGB has earned great
success as a leader in the global scooter market.
Drawing upon its years of experience in vehicle design and manufacturing,
TGB produce a range of quality scooters catering for those searching for a
fun, economical and fashionable commuting experience or a scooter to put
to work in a commercial application.
Engineered for performance, efficiency and reliability, TGB scooters are
manufactured to the strictest of international quality standards offering
genuine peace of mind.
Whether it is a sporty 50cc scooter or a comfortable 300cc maxi-scooter that
you are looking for the TGB range has you covered.

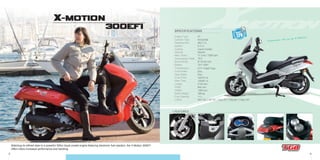

3. 3 4
300EFI
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Disc
120/70-14
140/60-13
2130 mm
840 mm
1380 mm
186 kg
11 L
Whi 702 // Sil 701 // Gra 701 // Bla 801 // Red 707
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
4T
Horizontal
263.7 cc
E.C.U.
Liquid Cooled
Electric
17.2 kw / 7500 rpm
10.0
Ø 73×63 mm
12V 12AH
SPECIFICATIONS
+ FEATURES:
Matching its refined style to a powerful 300cc liquid cooled engine featuring electronic fuel injection, the X-Motion 300EFI
offers riders increased performance and handling.
Experience life on an X-Motion.
OUTLET
12V
X-MOTION

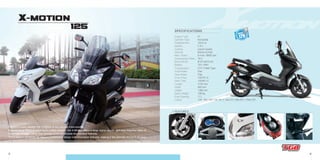

4. 5 6
X-MOTION
125
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Disc
120/70-14
140/60-13
2130 mm
840 mm
1380 mm
166 kg
11 L
125 : Whi 702 // Sil 701 // Gra 701 //Bla 801 // Red 707
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
4T
Horizontal
124.6 cc
C.D.I.
Liquid Cooled
Electric & Kick
8.4 kw / 8500 rpm
10.5
Ø 57×48.8 mm
12V 12AH
SPECIFICATIONS
+ FEATURES:
Elegant in every aspect, the X-Motion is the ultimate maxi-scooter.
Powered by a 125cc 4 valve liquid cooled engine , the X-Motion offers a large digital display and over forty-five liters of
underseat storage - more than enough to accommodate two full face helmets.
The X-Motion combines an elegant streamlined design with innovative features, making it the ultimate choice in its class.
OUTLET
12V

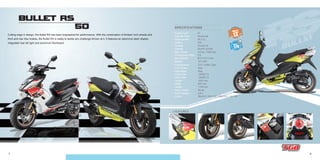

5. 7 8
BULLET RS
50
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Disc
130/60-13
130/60-13
1830 mm
670 mm
1155 mm
95 kg
6.8 L
Bla 612 / Whi 707 // Bla 612 / Yel 705
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
2T
Horizontal
49.3 cc
CDI
Forced Air
Electric & Kick
3.5 kw / 7000 rpm
7.8
Ø 41×37.4 mm
12V 4AH
SPECIFICATIONS
Cutting edge in design, the Bullet RS has been engineered for performance. With the combination of thirteen inch wheels and
front and rear disc brakes, the Bullet RS is ready to tackle any challenge thrown at it. It features an electronic dash display,
integrated rear tail light and aluminum floorboard.
+ FEATURES:
WHEELS
OUTLET
12V
Bla 612 / Whi 707 // Bla 612 / Yel 705Bla 612 / Whi 707 // Bla 612 / Yel 705
WHEELS
OUTLETOUTLET
12V12V12V12V12V

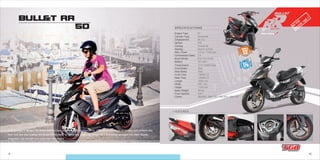

6. 9 10
BULL&T RR
50
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Disc
130/60-13
130/60-13
1830 mm
670 mm
1155 mm
95 kg
6.8 L
Bla 605 / Red 705 // Bla 605 / Whi 702
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
2T
Horizontal
49.3 cc
CDI
Forced Air
Electric & Kick
3.5 kw / 7000 rpm
7.8
Ø 41×37.4 mm
12V 4AH
SPECIFICATIONS
Cutting edge in design, the Bullet RR has been engineered for performance. With the combination of thirteen inch wheels and
front and rear disc brakes, the Bullet RR is ready to tackle any challenge thrown at it. It features an electronic dash display,
integrated rear tail light and aluminum floorboard.
+ FEATURES:
WHEELS
OUTLET
12V

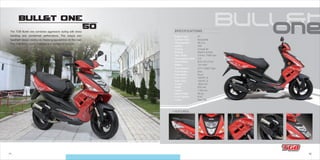

7. 11 12
BULL&T ONE
50
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Drum
120/70-12
120/70-12
1830 mm
670 mm
1155 mm
95 kg
6.8 L
Red 708
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
2T
Horizontal
49.3 cc
CDI
Forced Air
Electric & Kick
3.5 kw / 7000 rpm
7.8
Ø 41×37.4 mm
12V 4AH
SPECIFICATIONSThe TGB Bullet one combines aggressive styling with sharp
handling and unmatched performance. The unique twin
headlight design creates an imposing appearance on the road.
The TGB Bullet one is available in a number of variants.
+ FEATURES:
BULL&T ONE
50The TGB Bullet one combines aggressive styling with sharp
handling and unmatched performance. The unique twin
headlight design creates an imposing appearance on the road.
The TGB Bullet one is available in a number of variants.

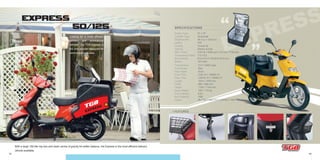

8. 13 14
EXPRESS
EXPRESS
EXPRESS
EXPRESS
EXPRESS
EXPRESS
EXPRESS
EXPRESS50/125
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Box Capacity
- Colors
CVT V-Belt Type
Disc
Drum
3.00-14 // 130/60-13
120/70-12 // 130/60-13
1910 // 1970 mm
660 // 685 mm
1150 // 1140 mm
105 // 119 kg
6.8 L
150L
Blu 702 // Red 701 // Yel 601 // Whi 702
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
2T // 4T
Horizontal
49.3 cc // 124.6 cc
CDI
Forced Air
Electric & Kick
2.63 kw / 6500 rpm // 6.3 kw / 7750 rpm
7.8 // 9.2
Ø 41×37.4 // Ø 52.4×57.8 mm
12V 9AH
SPECIFICATIONS
+ FEATURES:
Looking for a more efficient
delivery and promotional
vehicle? The TGB Express is
the only scooter designed for
commercial purposes.
With a large 150 liter top box and lower centre of gravity for better balance, the Express is the most efficient delivery
vehicle available.
EXPRESS
EXPRESS

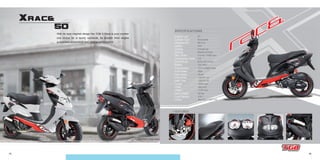

9. 15 16
XRAC&
50
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Drum
120/70-12
120/70-12
1830 mm
660 mm
1170 mm
92 kg
6.8 L
Bla 605 // Whi 702
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
2T
Horizontal
49.3 cc
CDI
Forced Air
Electric & Kick
3.5 kw / 7000 rpm
7.8
Ø 41×37.4 mm
12V 4AH
SPECIFICATIONS
With its race inspired design the TGB X-Race is your number
one choice for a sporty commute. Its smooth 50cc engine
guarantees economical and reliable performance.
+ FEATURES:

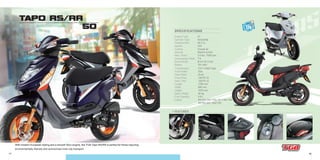

10. 17 18
TAPO RS/RR
50
- Transmission
- Front Brake
- Rear Brake
- Front Tires
- Rear Tires
- Length
- Width
- Height
- Basic Weight
- Fuel Capacity
- Colors
CVT V-Belt Type
Disc
Drum
120/70-12
120/70-12
1780 mm
650 mm
1075 mm
94 kg
6.8 L
RS:Whi 702 // Bla 701 // Blu 708
RR:Bla 605 / Red 705
- Engine Type
- Cylinder Type
- Displacement
- Ignition
- Cooling
- Starting
- Max. Power
- Compression Ratio
- Bore×Stroke
- Battery
2T
Horizontal
49.3 cc
CDI
Forced Air
Electric & Kick
3.5 kw / 7000 rpm
7.8
Ø 41×37.4 mm
12V 4AH
SPECIFICATIONS
+ FEATURES:
With modern European styling and a smooth 50cc engine, the TGB Tapo RS/RR is perfect for those requiring
environmentally friendly and economical inner-city transport.
OUTLET
12V

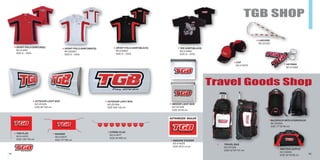

11. 19 20
TGB SHOP
Travel Goods Shop
CAP
NO:414079 KEYRING
NO:414083
TEE-SHIRT(BLACK)
NO:414082
SIZE:S∼XXXL
XMOTION DUFFLE
NO:Z02003
SIZE:35*33*68 cm
TRAVEL BAG
NO:Z01005
SIZE:42*45*107 cm
SPORT POLO-SHIRT(WHITE)
NO:Z02001
SIZE:S∼XXXL
BACKPACK WITH HYDROPACK
NO:Z02004
SIZE:17*36*48 cm
SPORT POLO-SHIRT(BLACK)
NO:Z02002
SIZE:S∼XXXL
LANYARD
NO:Z01001
TGB FLAG
NO:414076
SIZE:100*150 cm
BANNER
NO:414075
SIZE:75*180 cm
STRING FLAG
NO:414077
SIZE:34*409 cm
WINDOW STICKER
NO:414078
SIZE:30*21.4 cm
SPORT POLO-SHIRT(RED)
NO:414081
SIZE:S∼XXXL
INDOOR LIGHT BOX
NO:Z01008
SIZE:33*40 cm
OUTDOOR LIGHT BOX
NO:Z01003
SIZE:60*150 cm
OUTDOOR LIGHT BOX
NO:Z01004
SIZE:300*120 cm

12. 21 22
Accessory
HAND GUARD COMP. RH/LH
NO:413096A(L).413097A(R)
LOW SEAT
NO:452074A
PASSENGER BACKREST
NO:414058A
WINDSHIELD(SMALL)
NO:454061A
LEG COVER
NO:414053
WINDSHIELD(BIG)(STEEL)
NO:454060A
WAVE BRAKE DISC 260MM
NO:412952YREAR CARRIER ASSY.
NO:412414A
PASSENGER BACKREST
NO:414047A
HANDLE COVER
NO:414051(L)414052(R)
for X-MOTION
1
WINDSHIELD(BIG)(PLASTIC)
NO:454060B
2
3
4
5
6 7 8 9
10
11
12
13

13. 23 24
for BULL&T for EXPRESS
Accessory
REAR CARRIER ASSY.
NO:412407
WINDSHIELD
NO:413997
BASKET
NO:414063
WINDSHIELD
NO:414062
THERMOSTATIC BAG
NO:440955
BASKET
NO:413965A
1
2
TOP CASE.
NO:452016
3
1
2
3
4

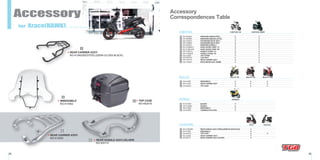

14. 25 26
Accessory Accessory
Correspondences Table
WINDSHIELD
NO:414062
WINDSHIELD.NO:414062
X-MOTION 125
BULLET RS
EXPRESS
Xrace
BULLET RR BULLET ONE
TAPO RS
X-MOTION 300EFI
REAR CARRIER ASSY.
NO:412400
REAR HANDLE ASSY.(SILVER)
NO:402131
REAR HANDLE ASSY.(STEEL)(SEMI-GLOSS BLACK)
REAR HANDLE ASSY.(SILVER)
NO:402131NO:402131
REAR CARRIER ASSY.REAR CARRIER ASSY.
NO:412400
for Xrace(HAWK)
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
X-MOTION
1
2
3
1
2
3
4
5
NO:412402SE
REAR CARRIER ASSY.(SILVER)NO:402131
REAR CARRIER ASSY.NO:412400
1
2
3
4
BULL&T
EXPRESS
Xrace(HAWK)
HAND GUARD COMP. LH
HAND GUARD COMP. RH
NO:413096A(L)
NO:413097A(R)
PASSENGER BACK SEATNO:414058A
WINDSHIELD(SMALL)NO:454061A
WINDSHIELD(BIG)(STEEL)
WINDSHIELD(BIG)(PLASTIC)
NO:454060A
NO:454060B
PASSENGER BACK SEATNO:414047A
HANDLE COVER. LHNO:414051(L)
HANDLE COVER. RHNO:414052(R)
LOW SEATNO:452074A
LEG COVERNO:414053
WAVE BRAKE DISC 260MMNO:412952Y
REAR CARRIER ASSY.NO:412414A
REAR CARRIER ASSY.NO:412407
TOP CASE.NO:452016
TOP CASE.NO:452016
WINDSHIELD.NO:413997
BASKET.NO:414063
WINDSHIELD.NO:414062
THERMOSTATIC BAG.NO:440955
BASKET.NO:413965A
REAR CARRIER ASSY.
NO:412402SE(STEEL)(SEMI-GLOSS BLACK)
REAR CARRIER ASSY.
NO:412402SE(STEEL)(SEMI-GLOSS BLACK)
REAR CARRIER ASSY.
TOP CASE.
NO:452016
