1. Backup and recovery architectures are evolving from conventional tape-centric models to more transformational disk-centric models using deduplication backup software and storage. 2. EMC offers various backup and recovery solutions including the Avamar deduplication backup software, Data Domain deduplication storage systems, and NetWorker backup software that can be used on-premise or off-premise. 3. These solutions provide benefits like reducing backup times and data transferred over networks through global deduplication and integration with virtual environments.

1. 1EMC CONFIDENTIAL—INTERNAL USE ONLY
Data Domain, Avamar
Dumitru Taraianu – Presales, EMC SEE
Backup & Recovery

2. 2EMC CONFIDENTIAL—INTERNAL USE ONLY
Back-up to Disk: Capacity = €€€€€€€
Primary Data
1x
Back-up Data
15x-20x

3. 3EMC CONFIDENTIAL—INTERNAL USE ONLY

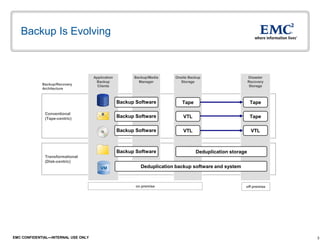

Backup Is Evolving
Backup/Recovery
Architecture
on premise off premise
Conventional
(Tape-centric)
Transformational
(Disk-centric)
Backup/Media
Manager
Onsite Backup
Storage
Disaster
Recovery
Storage
Application
Backup
Clients
Deduplication storageBackup Software
Deduplication backup software and system
Backup Software VTL VTL
Backup Software VTL Tape
Backup Software Tape Tape
VM

4. 4EMC CONFIDENTIAL—INTERNAL USE ONLY

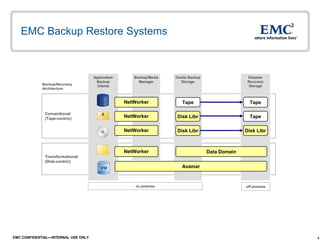

EMC Backup Restore Systems
Backup/Recovery
Architecture
on premise off premise
Conventional
(Tape-centric)
Transformational
(Disk-centric)
Backup/Media
Manager
Onsite Backup
Storage
Disaster
Recovery
Storage
Application
Backup
Clients
Data DomainNetWorker
Avamar
NetWorker Disk Libr Disk Libr
NetWorker Disk Libr Tape
NetWorker Tape Tape
VM

5. 5EMC CONFIDENTIAL—INTERNAL USE ONLY

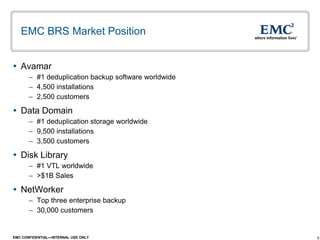

EMC BRS Market Position
 Avamar
– #1 deduplication backup software worldwide
– 4,500 installations
– 2,500 customers
 Data Domain
– #1 deduplication storage worldwide
– 9,500 installations
– 3,500 customers
 Disk Library
– #1 VTL worldwide
– >$1B Sales
 NetWorker
– Top three enterprise backup
– 30,000 customers

6. 6EMC CONFIDENTIAL—INTERNAL USE ONLY

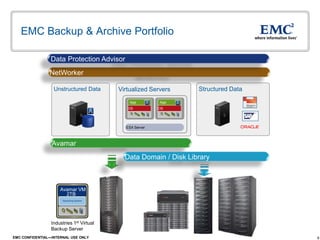

Structured Data
EMC Backup & Archive Portfolio
NetWorker
Unstructured Data Virtualized Servers
App
OS
App
OS
ESX Server
Avamar
Data Domain / Disk Library
Data Protection Advisor
Avamar VM
2TB
Industries 1st Virtual
Backup Server

7. 7EMC CONFIDENTIAL—INTERNAL USE ONLY

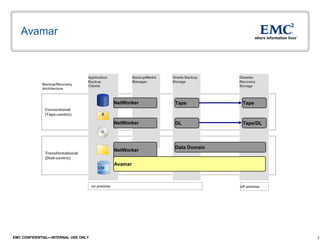

Avamar
Backup/Recovery
Architecture
on premise off premise
Conventional
(Tape-centric)
Transformational
(Disk-centric)
Backup/Media
Manager
Onsite Backup
Storage
Disaster
Recovery
Storage
Application
Backup
Clients
Data Domain
NetWorker
Avamar
NetWorker DL Tape/DL
NetWorker Tape Tape
VM

8. 8EMC CONFIDENTIAL—INTERNAL USE ONLY

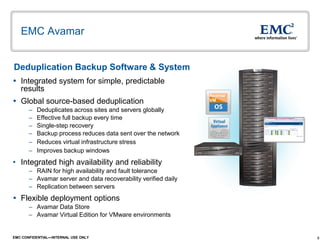

EMC Avamar
 Integrated system for simple, predictable
results
 Global source-based deduplication
– Deduplicates across sites and servers globally
– Effective full backup every time
– Single-step recovery
– Backup process reduces data sent over the network
– Reduces virtual infrastructure stress
– Improves backup windows
• Integrated high availability and reliability
– RAIN for high availability and fault tolerance
– Avamar server and data recoverability verified daily
– Replication between servers
 Flexible deployment options
– Avamar Data Store
– Avamar Virtual Edition for VMware environments
Deduplication Backup Software & System
Avamar
VM

9. 9EMC CONFIDENTIAL—INTERNAL USE ONLY

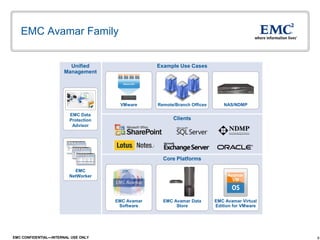

EMC Avamar Family
Core Platforms
Example Use CasesUnified
Management
Avamar
VM
EMC Data
Protection
Advisor
EMC
NetWorker
NAS/NDMPVMware Remote/Branch Offices
Clients
EMC Avamar
Software
EMC Avamar Virtual
Edition for VMware
EMC Avamar Data
Store

10. 10EMC CONFIDENTIAL—INTERNAL USE ONLY

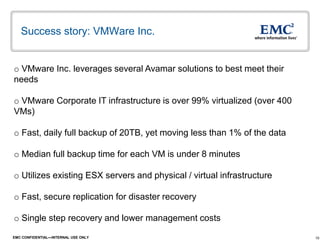

o VMware Inc. leverages several Avamar solutions to best meet their
needs
o VMware Corporate IT infrastructure is over 99% virtualized (over 400
VMs)
o Fast, daily full backup of 20TB, yet moving less than 1% of the data
o Median full backup time for each VM is under 8 minutes
o Utilizes existing ESX servers and physical / virtual infrastructure
o Fast, secure replication for disaster recovery
o Single step recovery and lower management costs
Success story: VMWare Inc.

11. 11EMC CONFIDENTIAL—INTERNAL USE ONLY

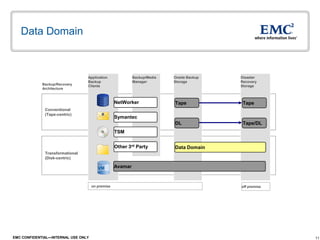

Data Domain
Backup/Recovery
Architecture
on premise off premise
Conventional
(Tape-centric)
Transformational
(Disk-centric)
Backup/Media
Manager
Onsite Backup
Storage
Disaster
Recovery
Storage
Application
Backup
Clients
Data DomainOther 3rd Party
Avamar
Symantec
DL Tape/DL
NetWorker Tape Tape
VM
TSM

12. 12EMC CONFIDENTIAL—INTERNAL USE ONLY

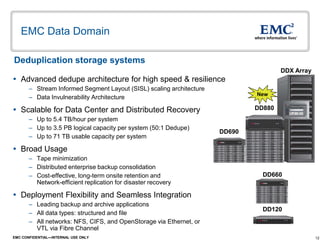

EMC Data Domain
 Advanced dedupe architecture for high speed & resilience
– Stream Informed Segment Layout (SISL) scaling architecture
– Data Invulnerability Architecture
 Scalable for Data Center and Distributed Recovery
– Up to 5.4 TB/hour per system
– Up to 3.5 PB logical capacity per system (50:1 Dedupe)
– Up to 71 TB usable capacity per system
 Broad Usage
– Tape minimization
– Distributed enterprise backup consolidation
– Cost-effective, long-term onsite retention and
Network-efficient replication for disaster recovery
 Deployment Flexibility and Seamless Integration
– Leading backup and archive applications
– All data types: structured and file
– All networks: NFS, CIFS, and OpenStorage via Ethernet, or
VTL via Fibre Channel
Deduplication storage systems
DDX Array
DD690
DD880
DD660
DD120
New

13. 13EMC CONFIDENTIAL—INTERNAL USE ONLY

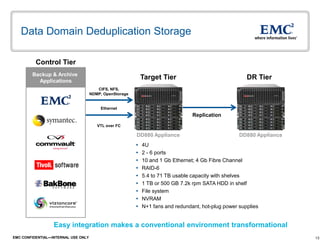

Data Domain Deduplication Storage
Easy integration makes a conventional environment transformational
Replication
CIFS, NFS,
NDMP, OpenStorage
Ethernet
VTL over FC
DD880 Appliance
Control Tier
Target Tier DR Tier
 4U
 2 - 6 ports
 10 and 1 Gb Ethernet; 4 Gb Fibre Channel
 RAID-6
 5.4 to 71 TB usable capacity with shelves
 1 TB or 500 GB 7.2k rpm SATA HDD in shelf
 File system
 NVRAM
 N+1 fans and redundant, hot-plug power supplies
DD880 Appliance
Backup & Archive
Applications

14. 14EMC CONFIDENTIAL—INTERNAL USE ONLY

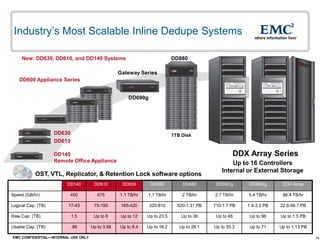

Industry’s Most Scalable Inline Dedupe Systems
DDX Array Series
OST, VTL, Replicator, & Retention Lock software options
Up to 16 Controllers
Internal or External Storage
DD140 DD610 DD630 DD565 DD660 DD690/g DD880/g DDX Array
Speed (GB/hr) 450 675 1.1 TB/hr 1.1 TB/hr 2 TB/hr 2.7 TB/hr 5.4 TB/hr 86.4 TB/hr
Logical Cap. (TB) 17-43 75-195 165-420 320-810 520-1.31 PB 710-1.7 PB 1.4-3.5 PB 22.6-56.7 PB
Raw Cap. (TB) 1.5 Up to 6 Up to 12 Up to 23.5 Up to 36 Up to 48 Up to 96 Up to 1.5 PB
Usable Cap. (TB) .86 Up to 3.98 Up to 8.4 Up to 16.2 Up to 26.1 Up to 35.3 Up to 71 Up to 1.13 PB
DD140
Remote Office Appliance
Gateway Series
DD690g
DD600 Appliance Series
New: DD630, DD610, and DD140 Systems
1TB Disk
DD880
DD610
DD630

15. 15EMC CONFIDENTIAL—INTERNAL USE ONLY15
Fortune 1000 Customers
Technology
Telecom
Public Sector
Media/Entertainment
Healthcare
Industrial/Auto
Consumer/Retail
Financial Services

16. 16EMC CONFIDENTIAL—INTERNAL USE ONLY
Central-European customers
