The document is a conceptual exterior renovation drawing for 102 Johnson Park created by Mark Williams. It depicts plans to power wash exposed surfaces, install architecturally correct replacement windows and doors with decorative millwork, add decorative shutters and friezes, and install a leaded stained glass window and transom. The drawing and all designs shown are the property of the company indicated and are not to be copied or shared without permission.

1. Imagine The Possibilities
102 Johnson Park
Conceptual Exterior Renovation
THIS PRINT AND ANY DESIGN THEREON IS THE
PROPERTY OF THE COMPANY AS INDICATED.
THIS PRINT IS TO BE RETURNED UPON REQUEST OR
COMPLETION OF THE WORK FOR WHICH IT WAS
ISSUED. IT IS TO BE USED ONLY FOR THE PURPOSE
FOR WHICH IT WAS EXPRESSLY LOANED AND IS NOT
TO BE COPIED IN ANY MANNER, NOR IS INFORMATION
TAKEN THEREFROM TO BE TRANSMITTED, OR PASSED
ON, TO OTHERS.
DRAWN BY: MARK WILLIAMS
SCALE: AS NOTED
DRAWING NUMBER:
TITLE:
D-Size 24"x36" Titleblock
REV DATEREV DATEREV DATEREV DATEREV DATEREV DATEREV DATEREV DATE
102 JOHNSON PARK
IMAGINE THE POSSIBILITIES
102 JOHNSON PARK
Under Current Management

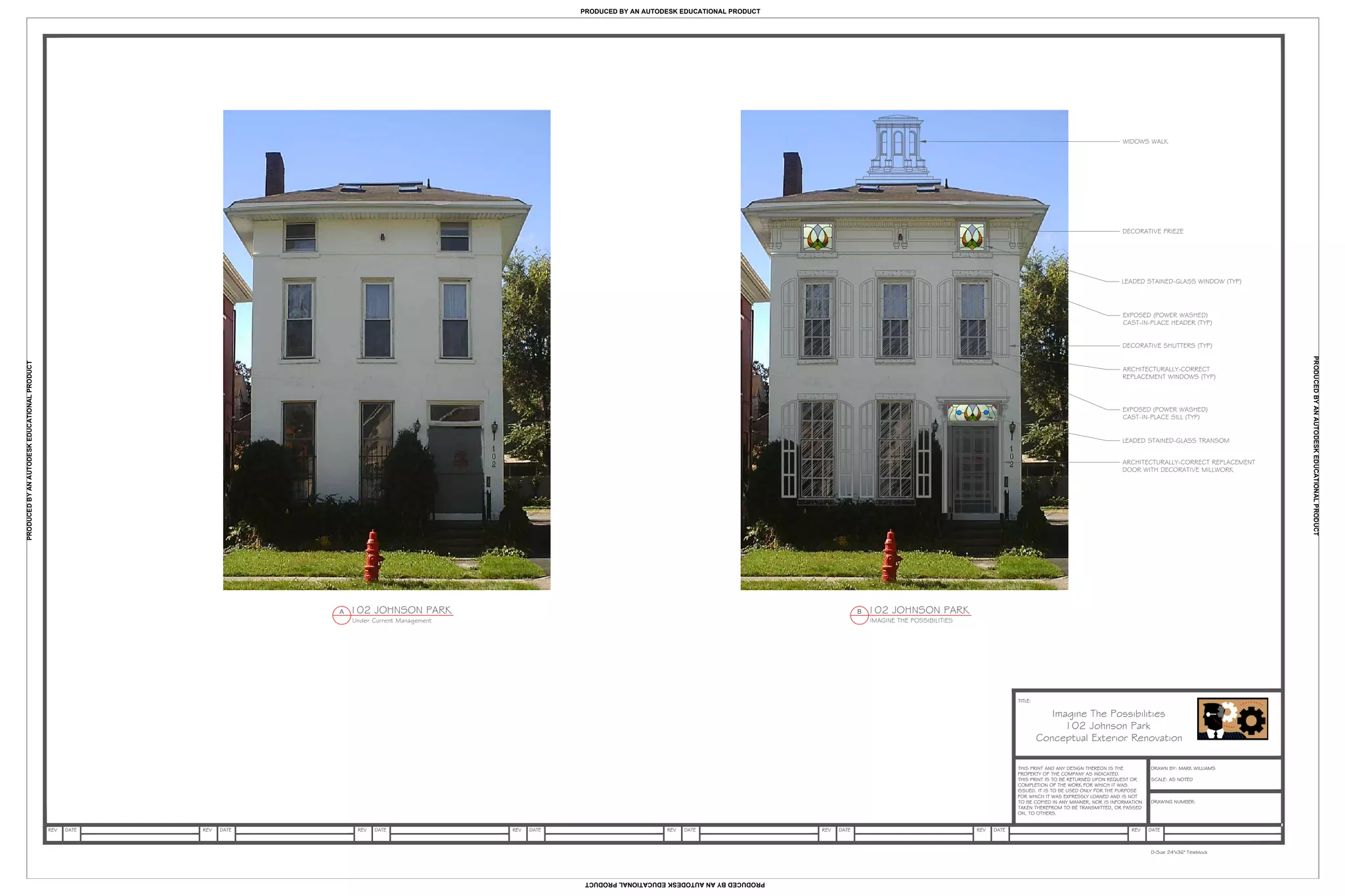

DECORATIVE FRIEZE
WIDOWS WALK
LEADED STAINED-GLASS WINDOW (TYP)
EXPOSED (POWER WASHED)
CAST-IN-PLACE HEADER (TYP)
DECORATIVE SHUTTERS (TYP)
ARCHITECTURALLY-CORRECT
REPLACEMENT WINDOWS (TYP)
EXPOSED (POWER WASHED)
CAST-IN-PLACE SILL (TYP)
LEADED STAINED-GLASS TRANSOM
ARCHITECTURALLY-CORRECT REPLACEMENT
DOOR WITH DECORATIVE MILLWORK
